2016 General Catalogue
Commercial Air Conditioning
MRV 50/60Hz R410a
ADDRESS
No.1 Haier Road, Hi-tech Zone, Qingdao 266101 P.R.China
CONTACTS
Tel: +86-532-8893-6938
B2B Website: www.haierac.com
B2C Website: www.haier.com
Commercial Air Conditioning
2016 General Catalogue
Version 1.0
Sep. 2015
MRV 50/60Hz R410a
Haier B2B Platform
http://www.haierac.com
This platform offers a community environment for our business partner to attain valuable resources, including catalogue,
brochures, leaflat and other marketing documents. Moreover, the platform is a convenient place where all business
partners can communicate with Haier directly.
The Haier Air-conditioning dealer portal
(www.haierac.com) is a platform to help Haier
distributors, installer and professional personnels
better understand and make business with Haier
globally.
The portal becomes the official new product
release channel, offering the latest materials of
Haier A/C products with high resolution pictures,
project reference to help our business partners
understand how our solutions help the end users
globally.
This platform offers an opportunity for our
business partners to share projects, applications
and other exciting stories with Haier.
Brand Story
Group
The Internet era is a diverse and unconventional time, where “one size fits all” products and solutions simply
aren’ t enough. Customers want to be treated as individuals and respected for who they are.
Everyone wants their unique lifestyle acknowledged. That is why Haier listens closely to you in order to gain a
genuine understanding of what is going on in your life and what is on your mind. So each of you can get the
smart home experience you deserve: be it simple, sophisticated, organized or enjoyable.
As a worldwide industry leader, Haier innovates beyond products and solutions and turns the organization into
a wholly connected platform. In doing so, internal and external resources are connected quickly and easily. We
believe only by doing so, we can best meet our consumers’ expectations in this rapidly evolving world.
Be part of the Haier Network. Create new possibilities.
Haier has built up its infrastructures globally to meet the customers' quick evolving demands, including R&D centers,
production facilities, trading companies and sales networks etc.
Haier's five R&D centers around the world have forged strategic partnerships with first-class suppliers, research
institutions, and prestigious universities to create an innovative ecosystem composed of internal and external scientists
and engineers connected by virtual and physical networks.
Haier is the #1 brand of Major Appliance in the world, with its global revenue reaching 32.3 billion USD in 2014.
2004 2007 2012 2014
32.3 billion USD
557k USD
1984
21
Global Revenue
Global Network
Indiana USA
ES
Haier group
was founded
in Qingdao,
China.
Developing
China’s first
split air
conditioner.
Developing
China’s first
inverter air
conditioner.
Launching
China’s first
dual split
inverter
conditioner.
Starting to
export air
conditioners
to Europe
market.
1985
1993
1995
Launching full
range light
commercial air
conditioning
solution.
1996
Launching
VRF system
with the
cooperation
with Toshiba.
Developing the
first digital DC
inverter air
conditioner in
China.
1998
Starting to
export air
conditioners
to USA .
1999
Building up
industry park
in Pakistan
and catching
No.1 market
share in
2005.
2001
Releasing
R410a DC
inverter
X-multi
system.
2005
Achieving
the bid of 20
projects of
Beijing
Olympic
Games.
2007
Achieving
red dot
design
award.
2009
Introducing the
more advanced
Freon-free DC
inverter air
conditioner and
magnetically
levitated VRF
system with high
energy
efficiency.
2010
Launching full
range of SUPER
MATCH
solutions
covering on-off
and inverter
models as well as
mono and multi
systems.
2011
Launching
Emperor series
and Aero series
floor standing
models which
lead the
innovation in
design and air
supply system.
2013
Establishing Haier
Europe HOME
SOLUTION
platform at Lyon
France to
accelerate the
marketing of
RAC/CAC/Heat
pump/Solar
solution.
Establishing AC
R&D center to
enhance the
R&D ability
with more
focus on users’
requirement.
Launching
MRV IV
full DC INV
technology
Max. 3 modular
up to 72HP.
2012
Achieving IF
design
award, one
of 10
creative
products in
the world.
Releasing
R410a
centrifugal
chiller with
maglev
technology
and R410a DC
inverter VRF
system.
2006
2014
2015
Haier AC has been holding No.1 market share
in Pakistan for 5 consecutive years from 2009.
Haier AC was ranked NO.5 in Italy by market
share in volume in 2012 & 2013 by DATABANK.
Haier B2C website in Italy was awarded
“Interactive Key Award 2013”.
Haier AC entered Winter Olympics in Sochi
Russia in 2013.
AC Milestones
Air Conditioning
1984
Air Conditioning
Setting New Standards: Haier’s new state of the art HVAC R&D Center
commences operation in March, 2014
Driving across the world’s longest bridge into the beautiful coastal city of Qingdao and taking the off-ramp to the massive Haier
Industrial Park, you will find the world’s most advanced HVAC R&D center and its adjacent height drop testing facility towering
over other buildings in the park. The commencement of the R&D center puts Haier in the leadership position to provide the best
HVAC product solutions suitable for different climates and environments around the globe.
Entering the lobby you will be awed by the installation and display of Haier’s world leading magnetic bearing oil free centrifugal
chiller that cools the building. Also in display are Haier’s latest innovation of residential and commercial products and BMS control
solutions.
The 6 story buildng houses 1,000 plus experienced engineers and technicians, and is equipped with 120 test labs. From
psychrometric labs that accurately measure product capacity and efficiency to acoustic labs that reduces sound level; from
environment simulators to sustainability test labs that ensure product reliability under the harshest ambient conditions, Haier
engineers work hand in hand with international team of experts to turn out green and user friendly climate control solutions.
The height drop test tower, standing 106 meters tall, is the tallest test tower of its kind. It allows Haier’s latest MRV products to
test under all kinds of installation scenarios.
The stage is set, and Haier is ever more ready to provide global customers with world class products. The new R&D Center is the
testament of Haier’s commitment and vision in being the leading player in the global HVAC industry.
Brief of R&D Center
Global Manufacturing Capacity
Huangdao
Jiaozhou
Dalian
Zhengzhou
Chongqing
MHQAC
Qingdao
Hefei
Wuhan
Algeria
Tunis
Nigeria
Pakistan
Thailand
Vietnam
Bangladesh
Domestically, Haier AC is running 9 factories, 1 of which is MHAQ, a JV between Haier and Mitsubishi Heavy. In overseas
markets, Haier is running 7 manufacturing plants.
With all these factories, Haier AC has a product capacity amounts to 20.1 million sets per year.

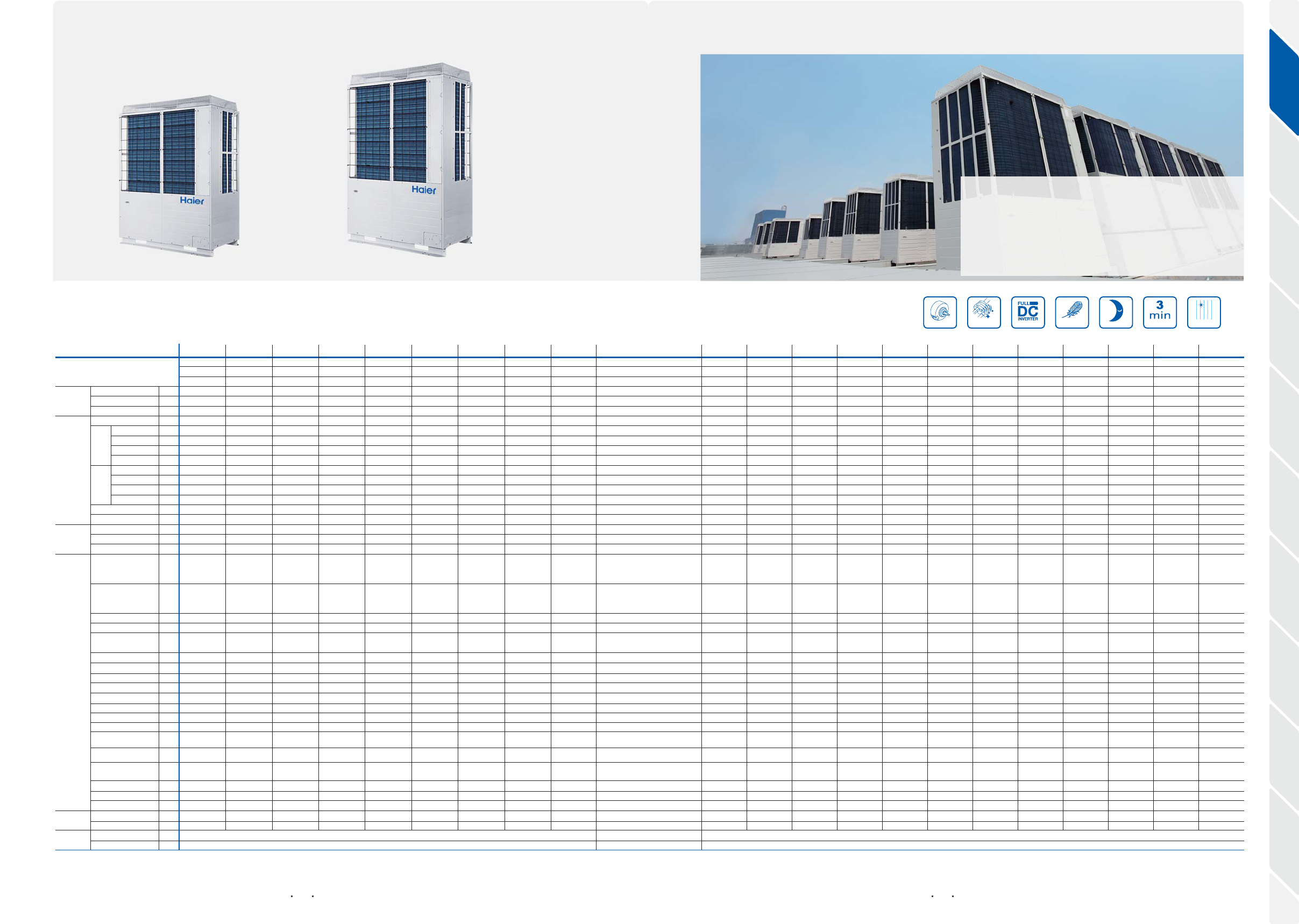

MRV IV (T3) MRV W (208~230V/3Ph/50(60)Hz)
MRV S
II
MRV III-RC(208~230V/3Ph/60Hz)

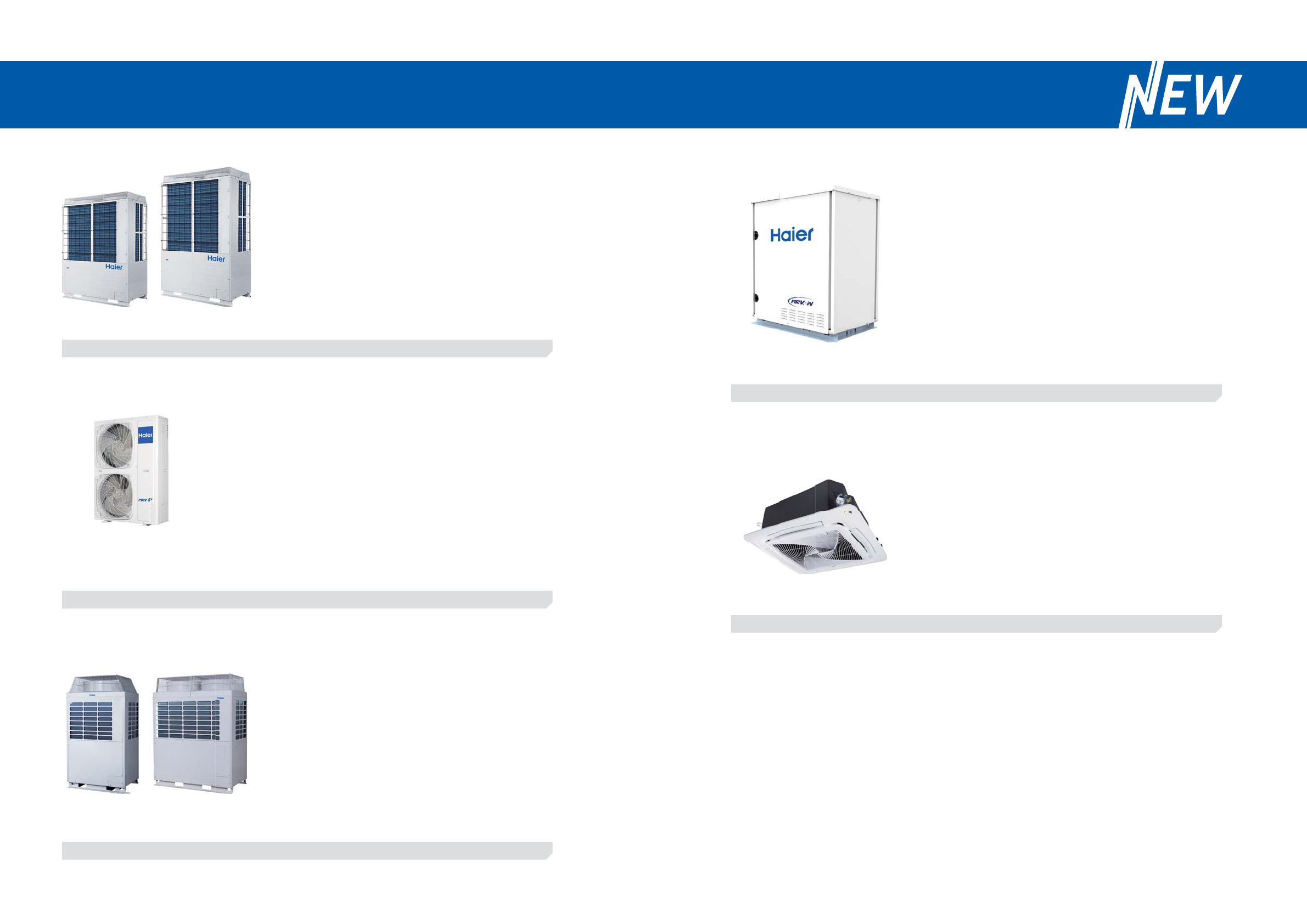

2016 NEW PRODUCT
0278/10/12/14HP 16/18/20HP
075
061
097
119

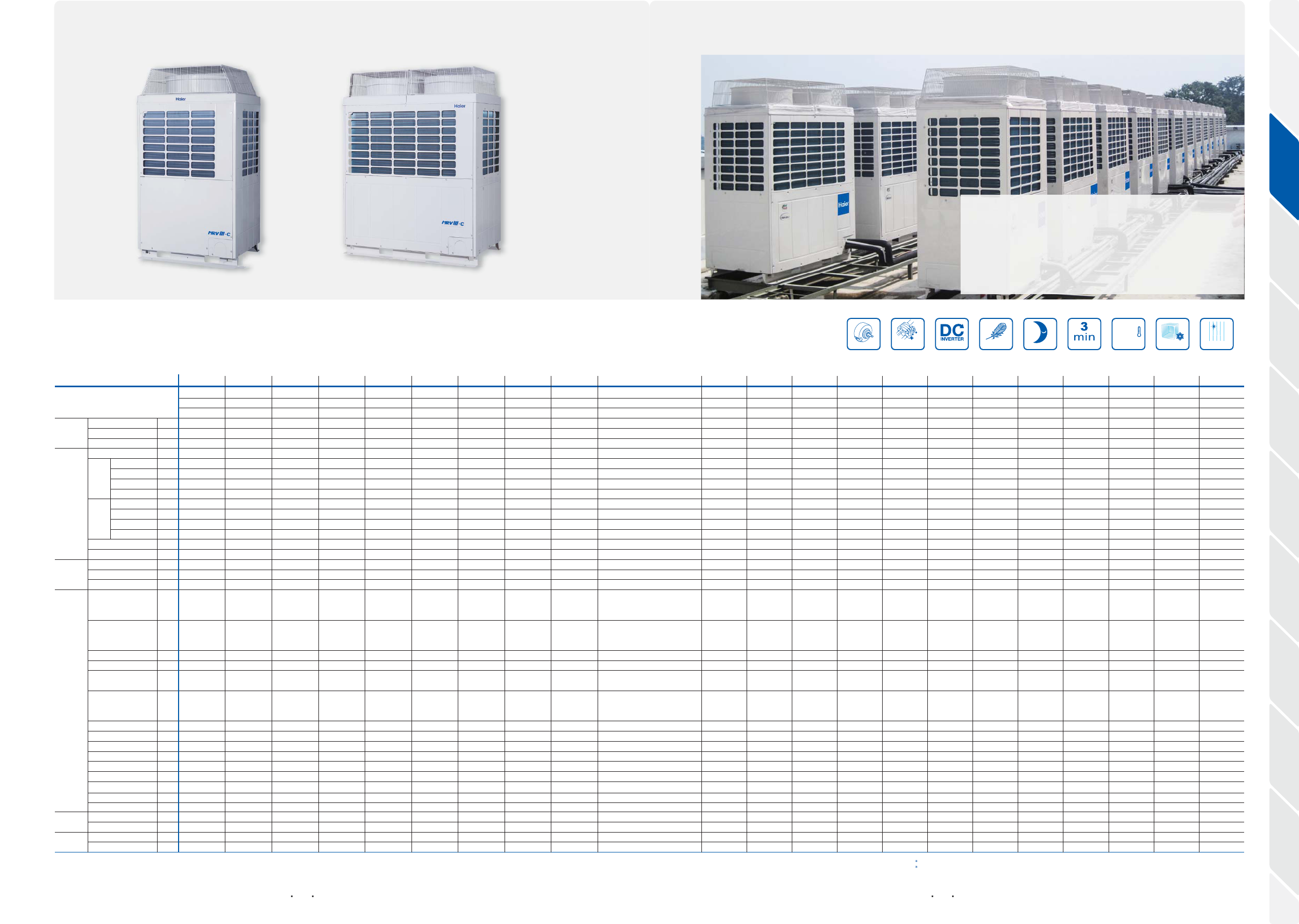

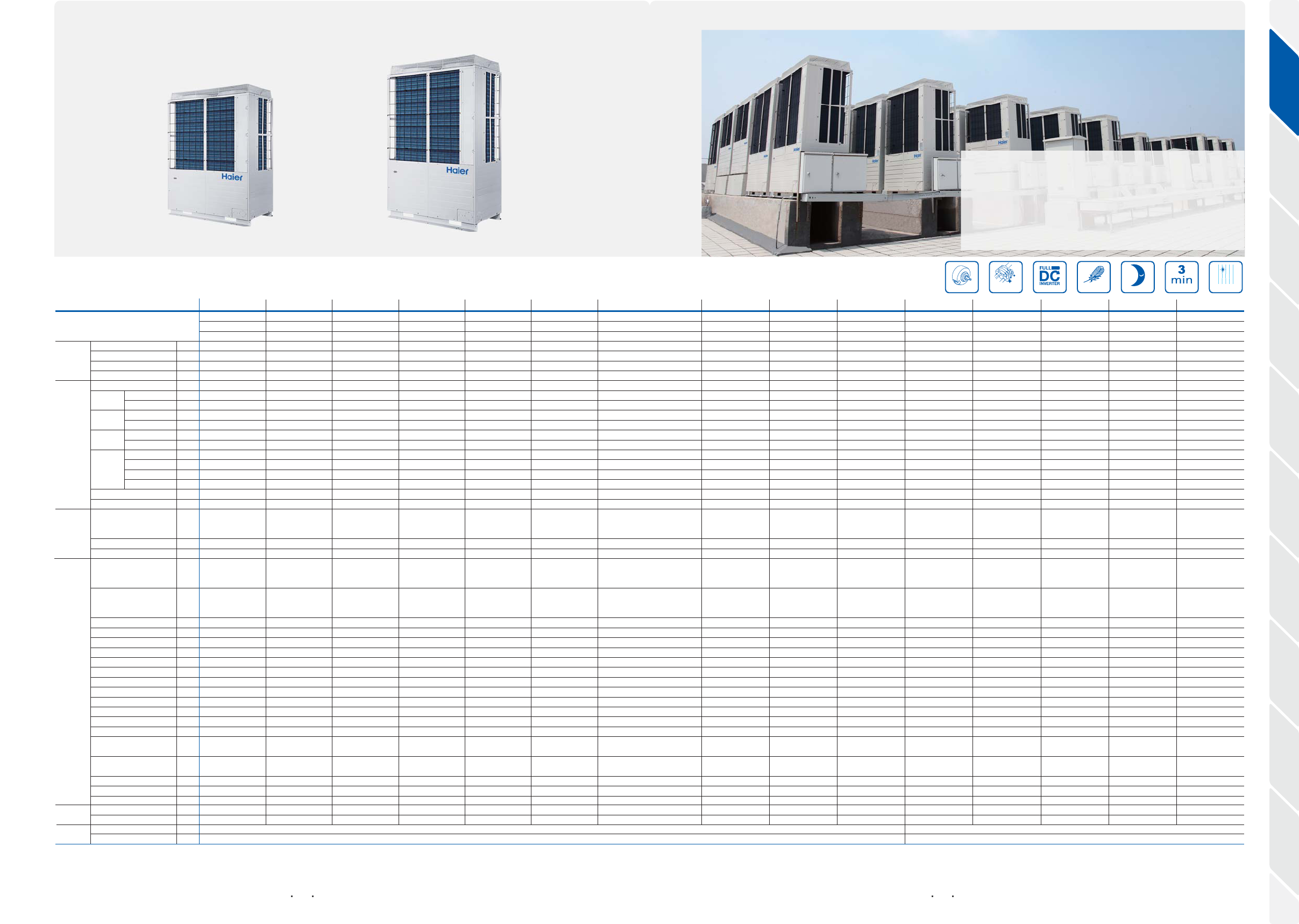

•Single Module: 8/10/12/14HP, 16/18/20HP
•Combination Module: 22-60HP, 3 modules
•Full DC INVERTER technology

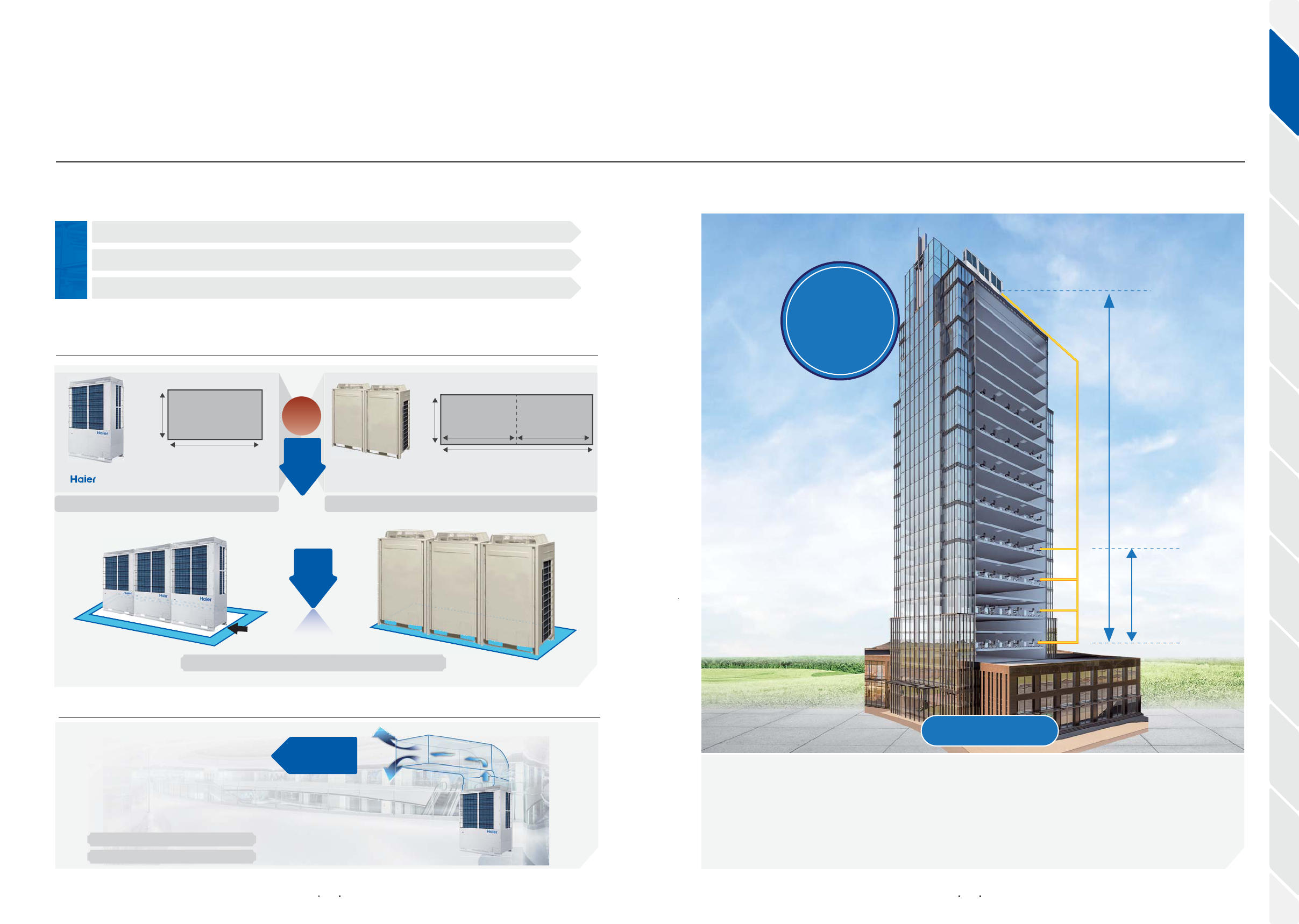

•Max.1000m total pipe length, Max.110m height drop
•Compatible with all the MRV indoor units
•High Ambient Temp. Operation up to 52°C
•208~230V/3Ph/50(60)Hz

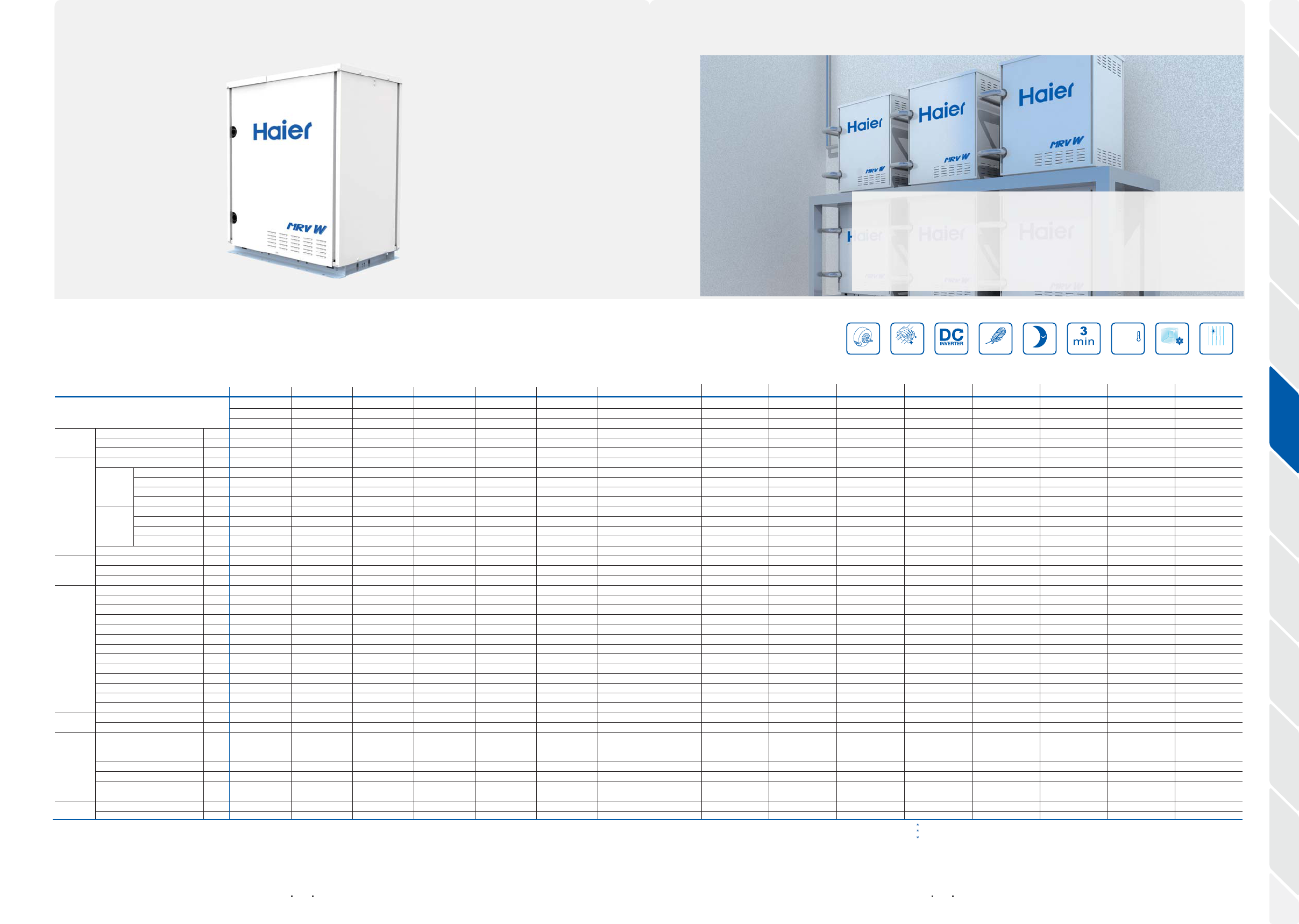

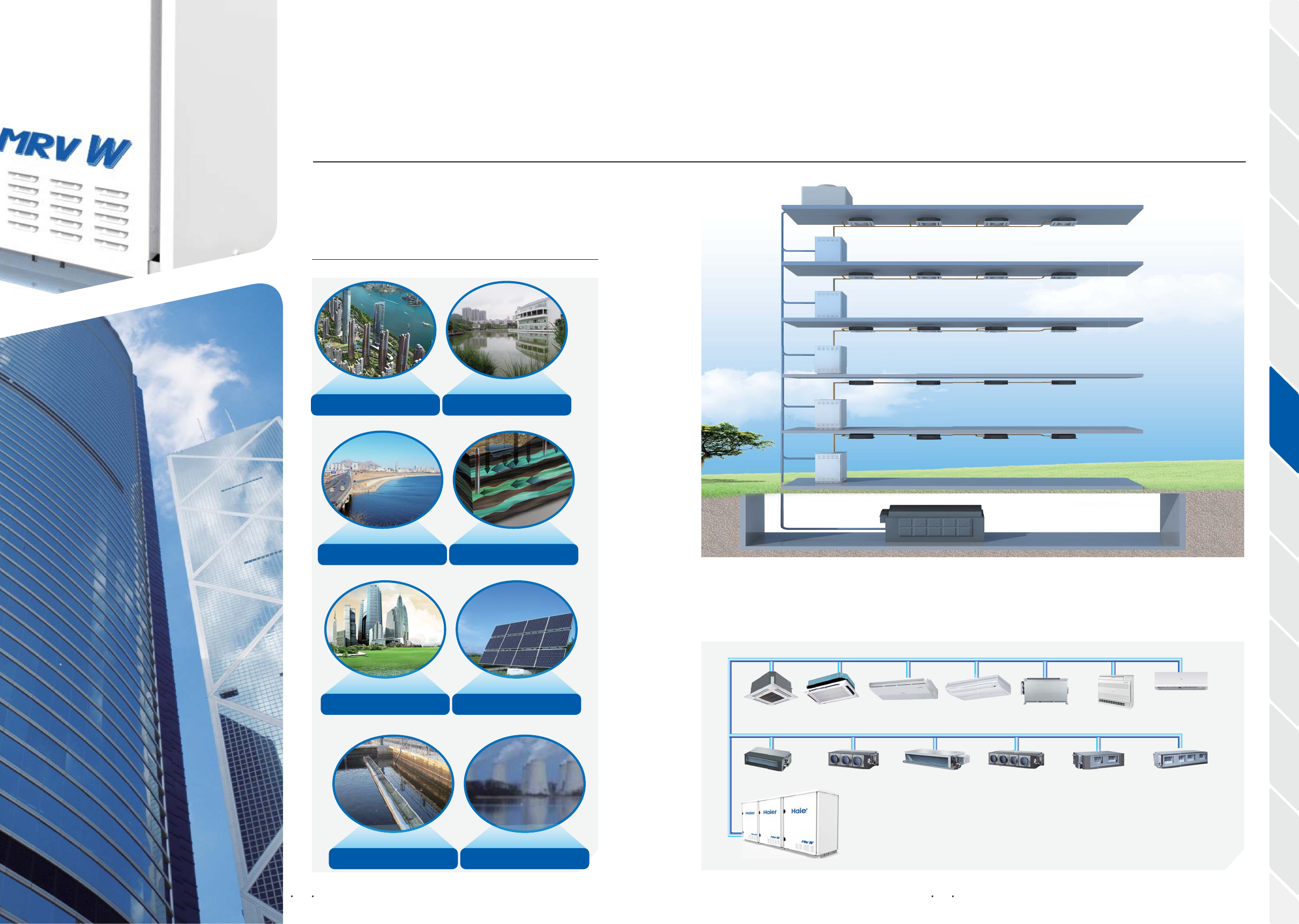

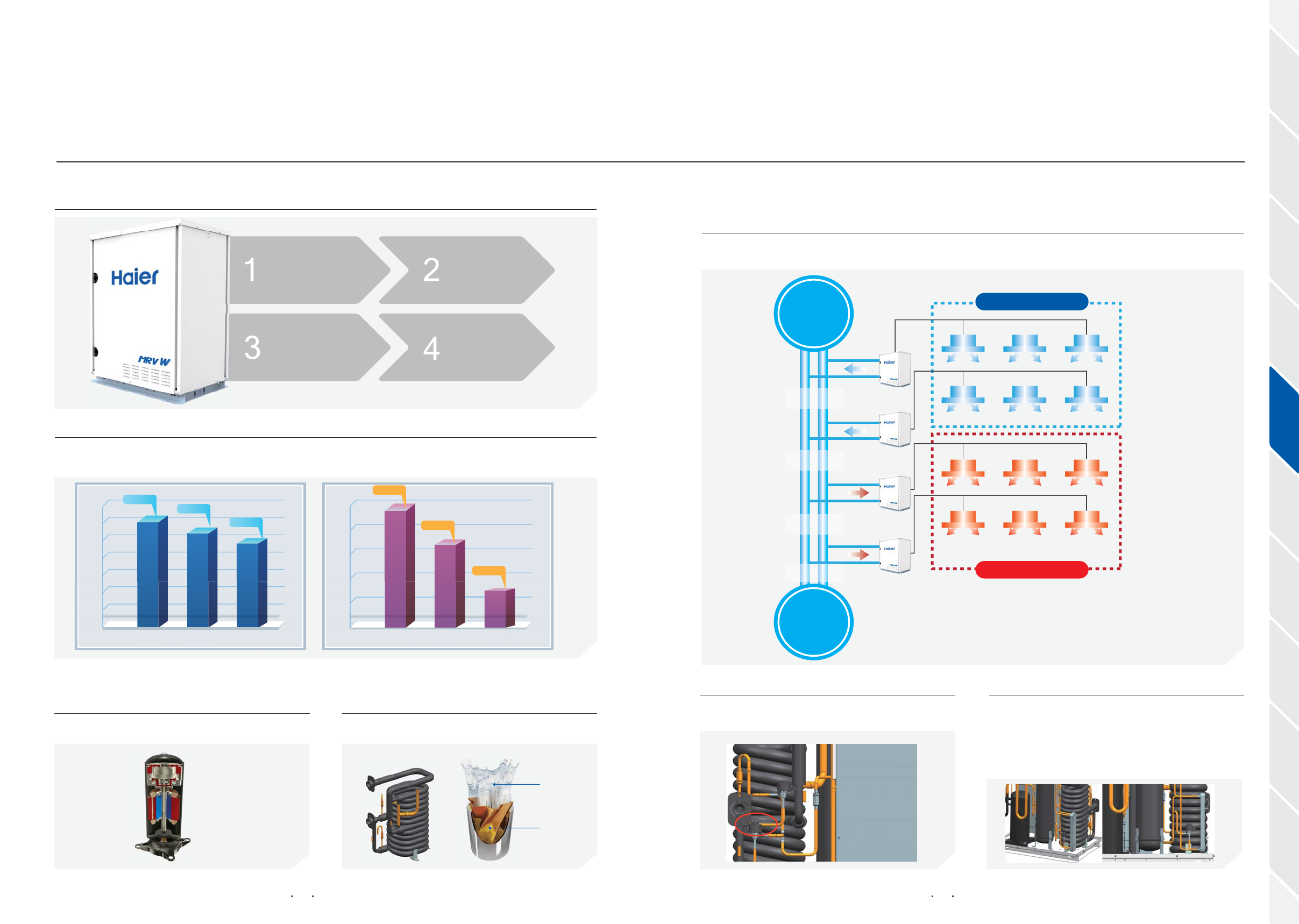

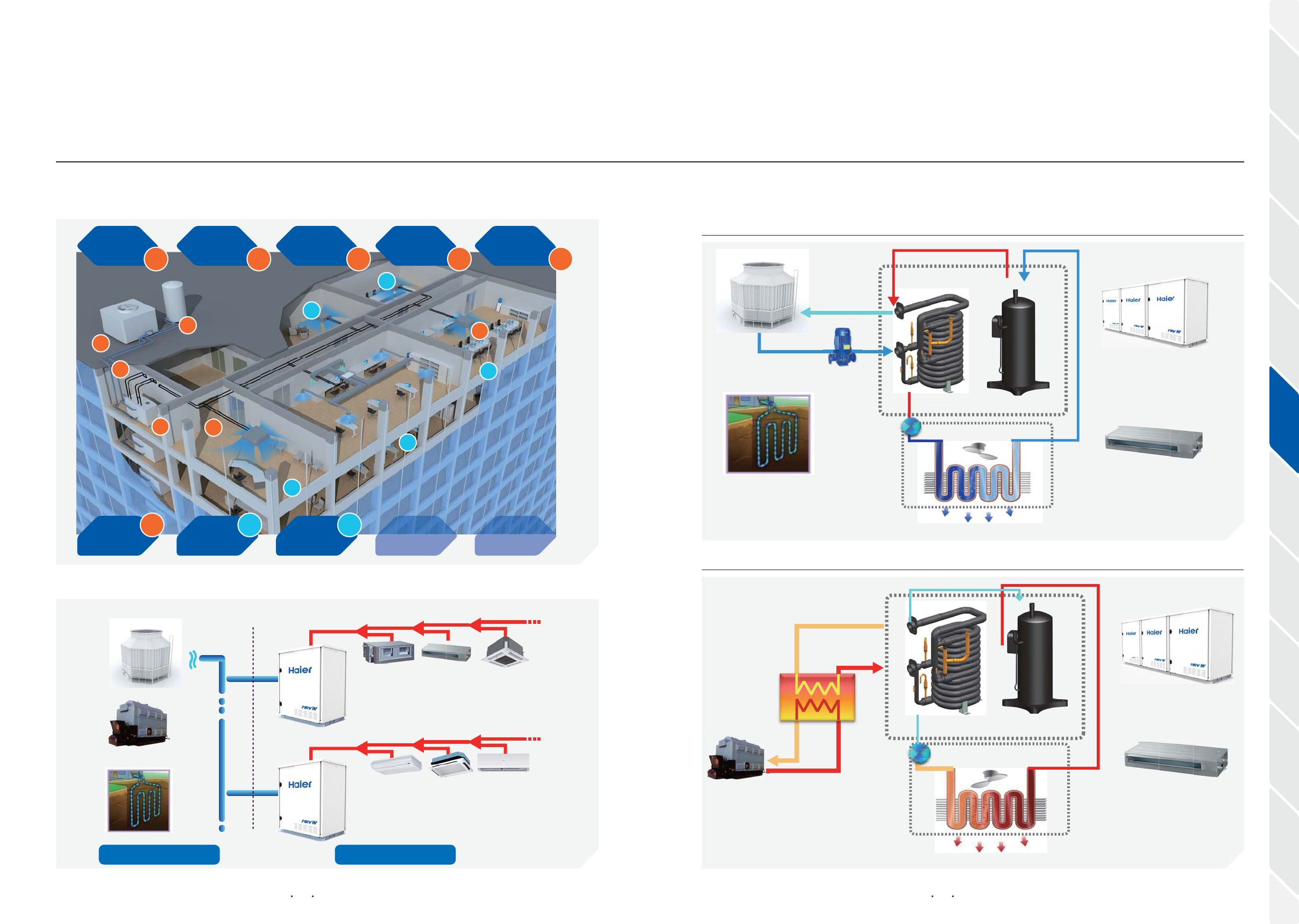

•Water Source MRV Outdoor Unit, Combine Water System and
Refrigerant System in one System
•3 Basic Single Module:8/10/12HP, Max 3 Modules
•Combination up to 36HP
•Most Compact Size Outdoor Design in the Industry
•Total 300m Long Pipe Length, Easy for Installation
•Double Coil Outdoor Heat Exchanger
•Compatible with all the MRV Indoor Units
•New platform, new outlook.

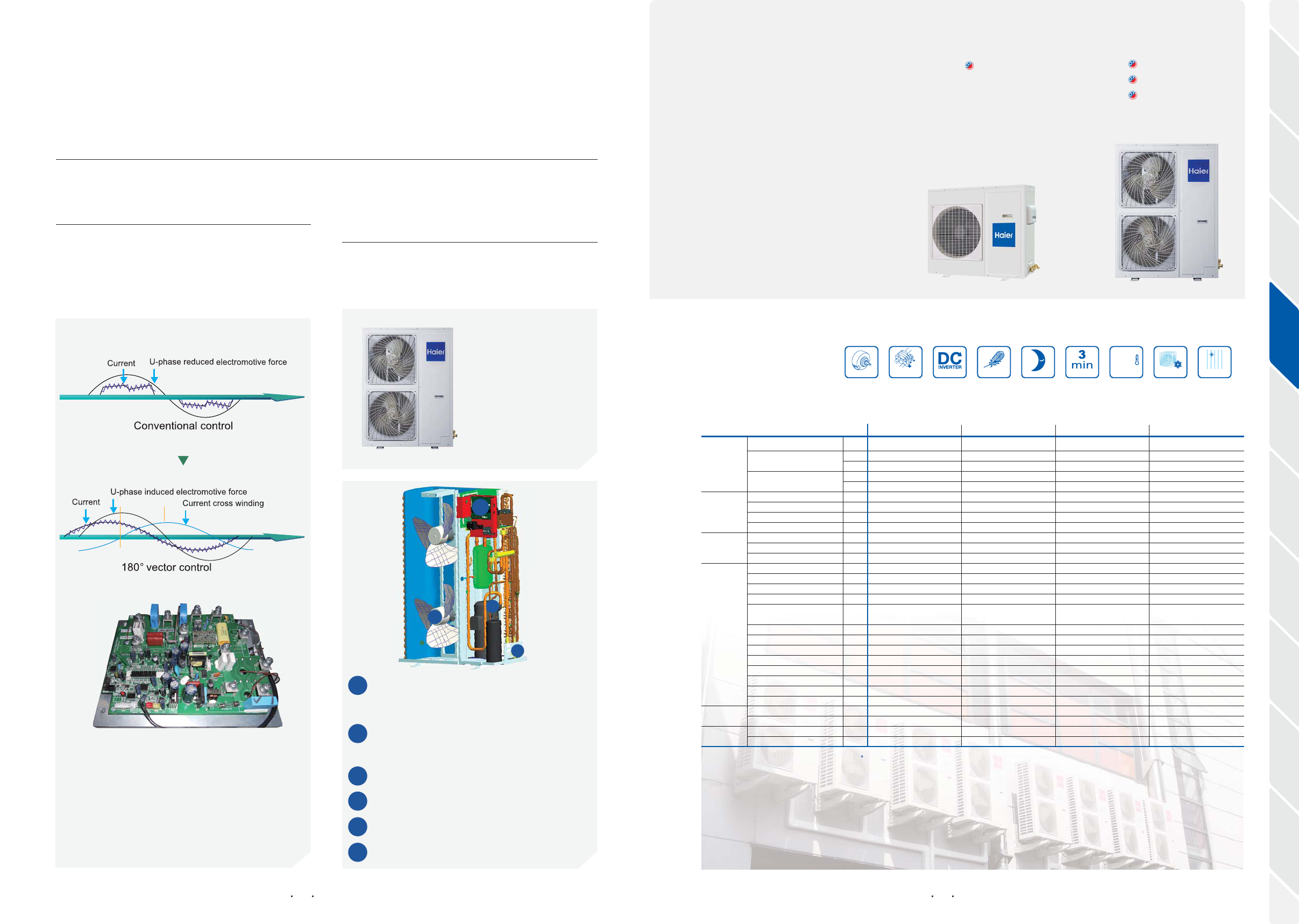

•Full DC inverter technology, high efficiency
•Low sound level, high comfort.
•High convenience.

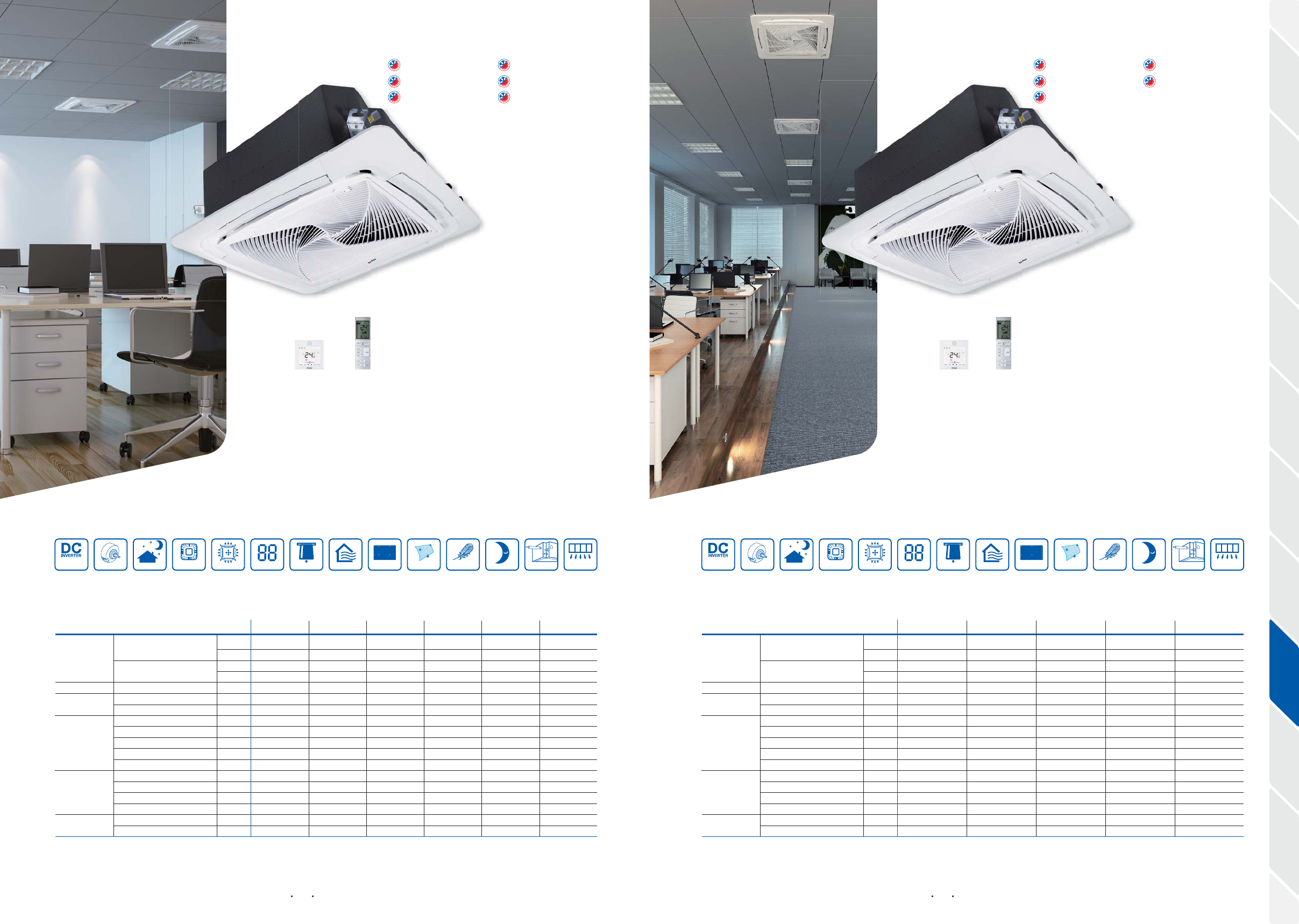

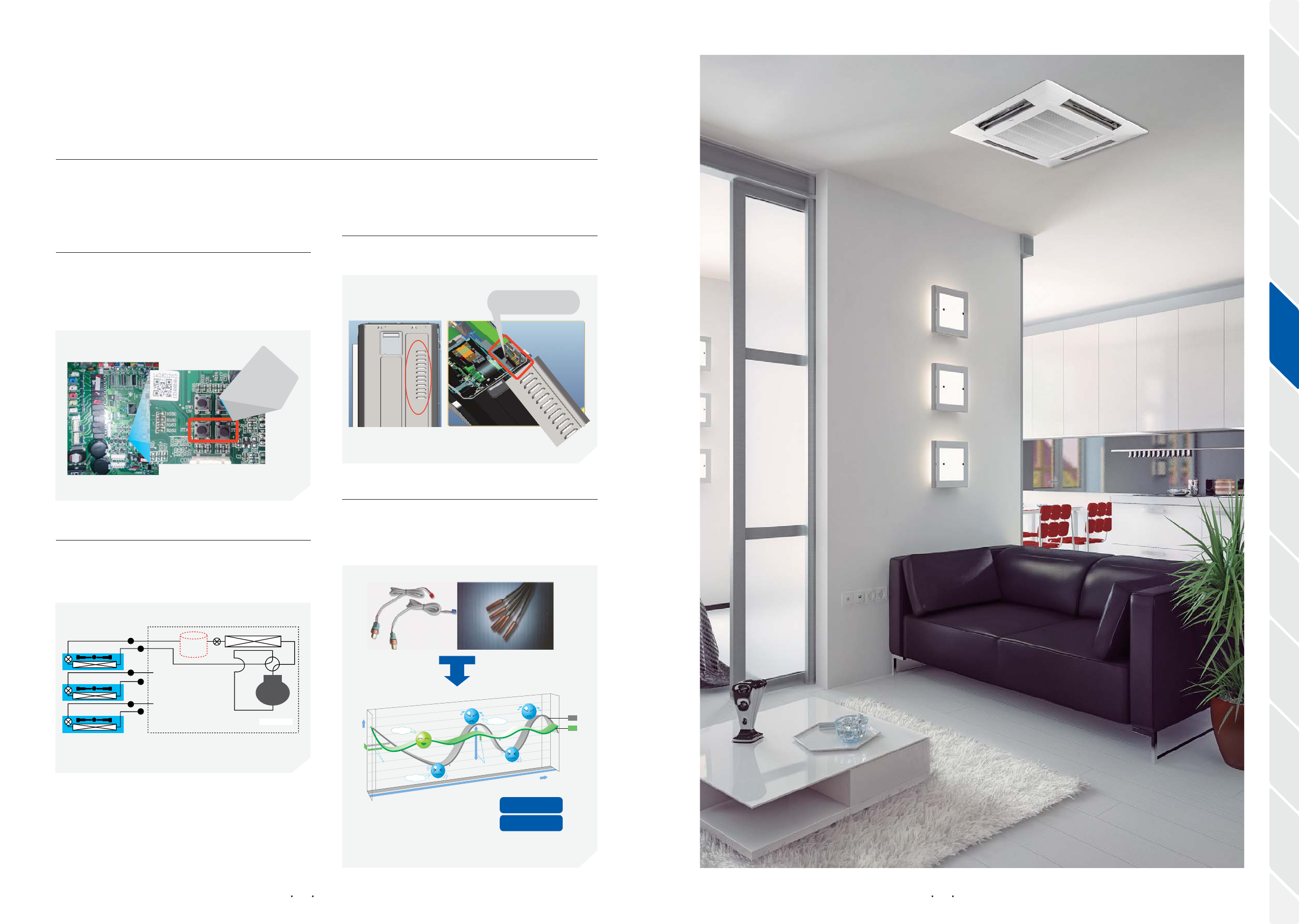

Round-way Smart Air Flow Cassette
•Unique Round-way air outlet, no blind spot
•Innovative 4 independent air flow control
•6 adjustable louver positions, 1296 air flow combinations
•Move Eye intelligent system, intelligence all around(optional)
•Power Supply: 3/208~230V/60Hz
•DC Inverter Scroll Compressor & BLDC Fan
•5 Basic Single Modular Units: 8/ 10/ 12/14/16HP
•Max. 3 Modules Combination up to 48HP
•Max Connected Indoor Units up to 64
•Compatible with all the MRV Indoor Units
8/10HP 12/14/16HP
4/5/6HP
003
013
033
051
067
083
103
111
119
143
173
Hotel
Office
Shop
Home
PRODUCT LINE UP
MRV IV-C
MRV III-C
MRVIII-RC
MRV S

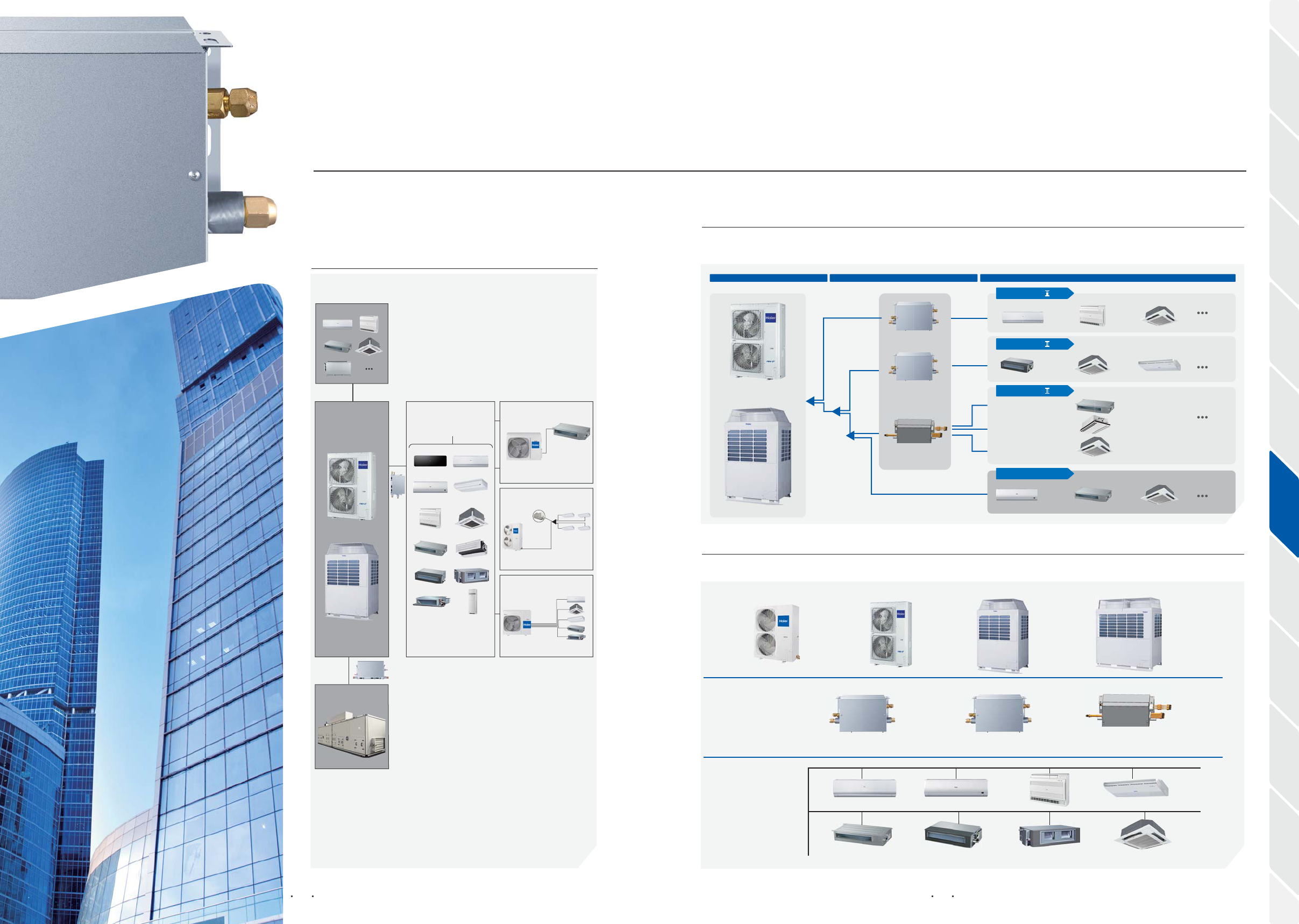

EASY MRV CONNECTION KIT

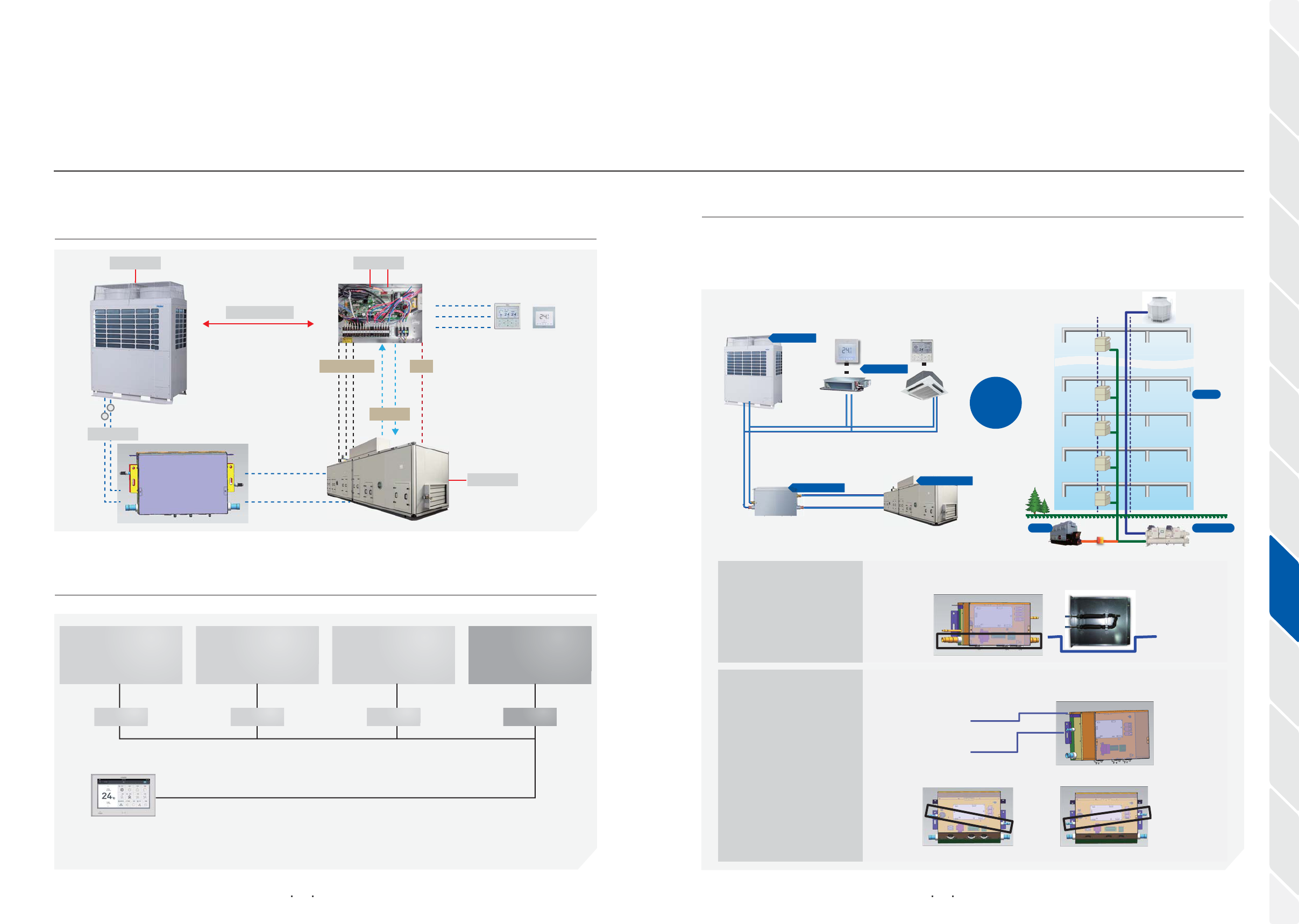

MRV AHU CONNECTION KIT
MRV INDOOR

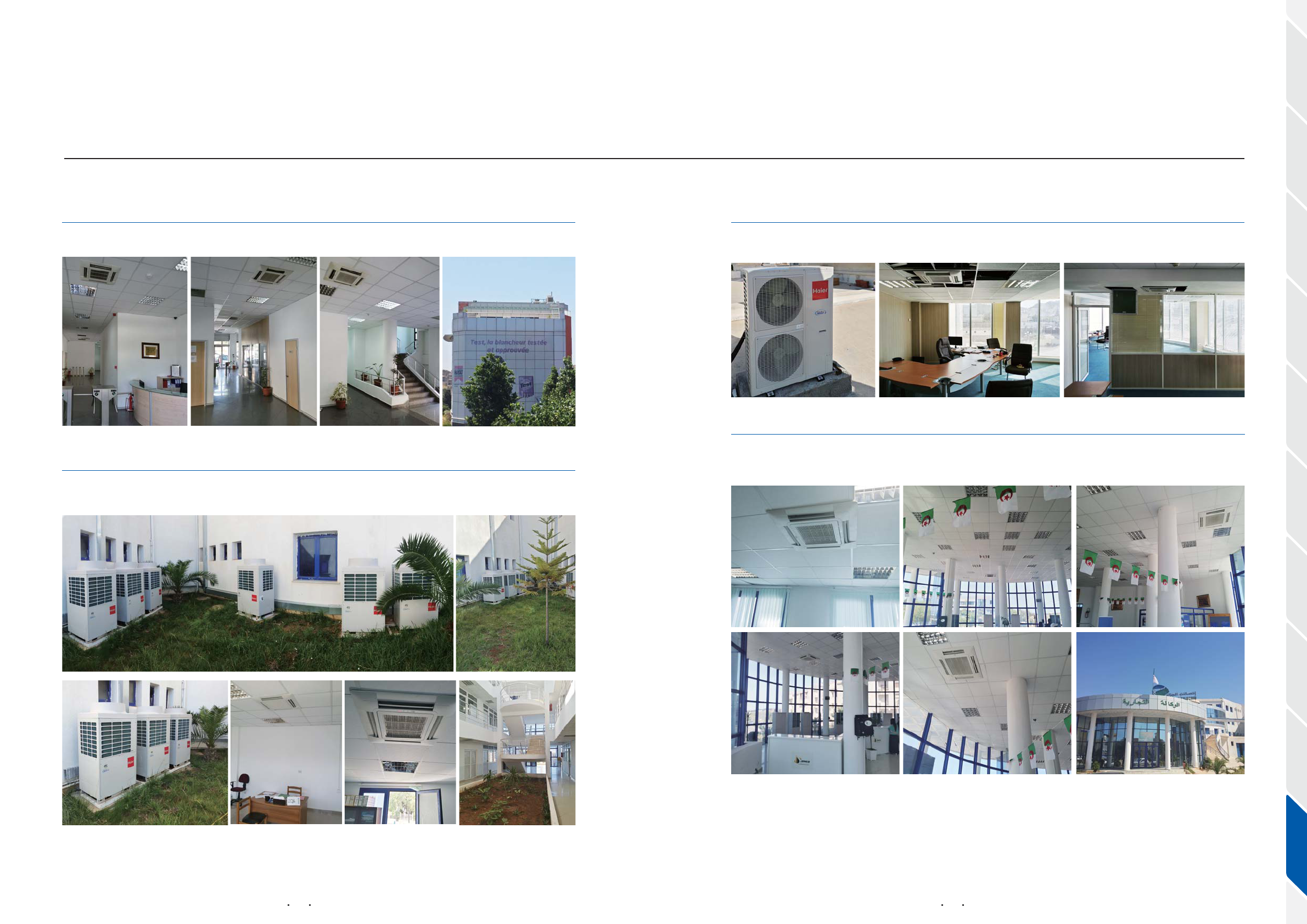

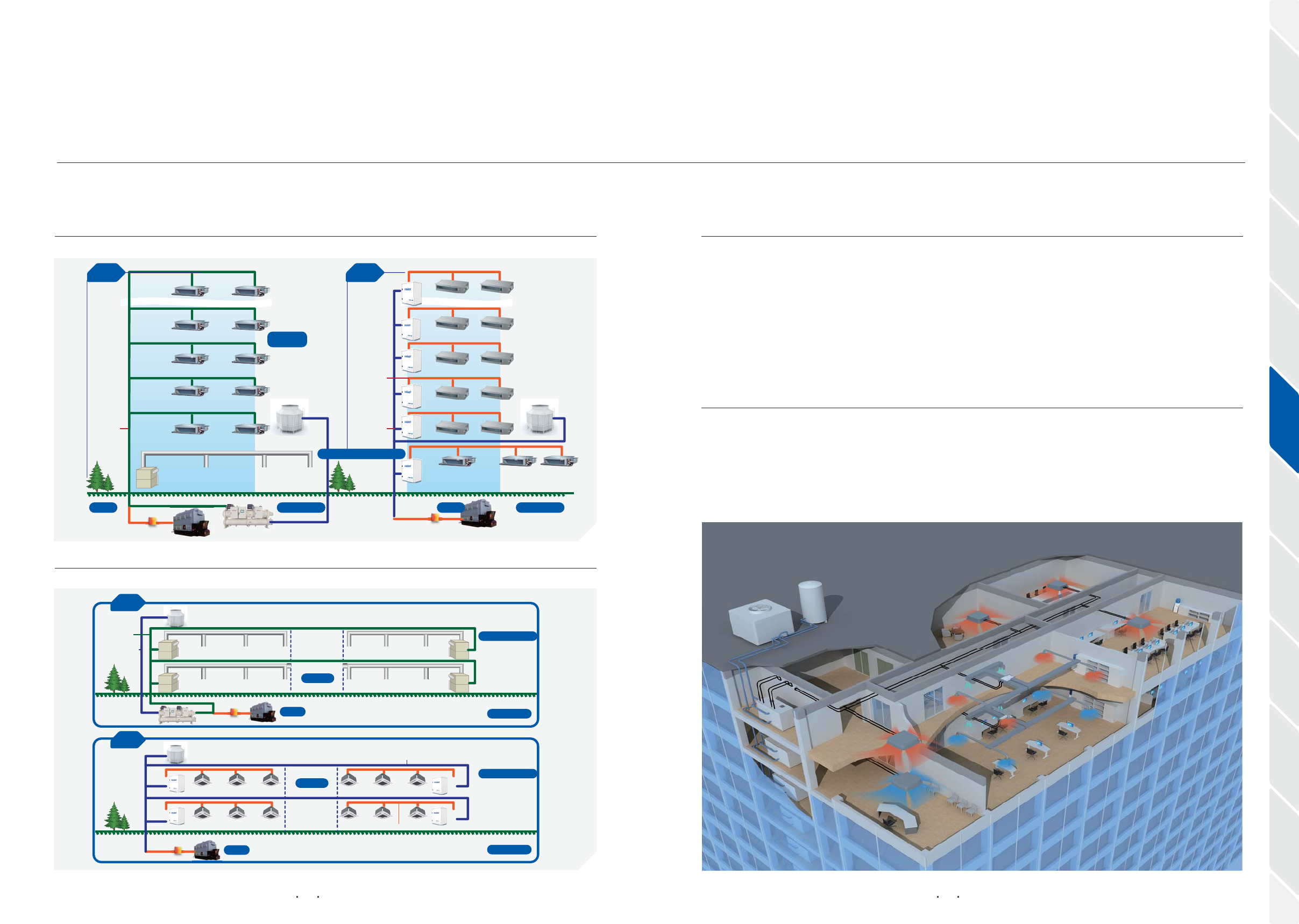

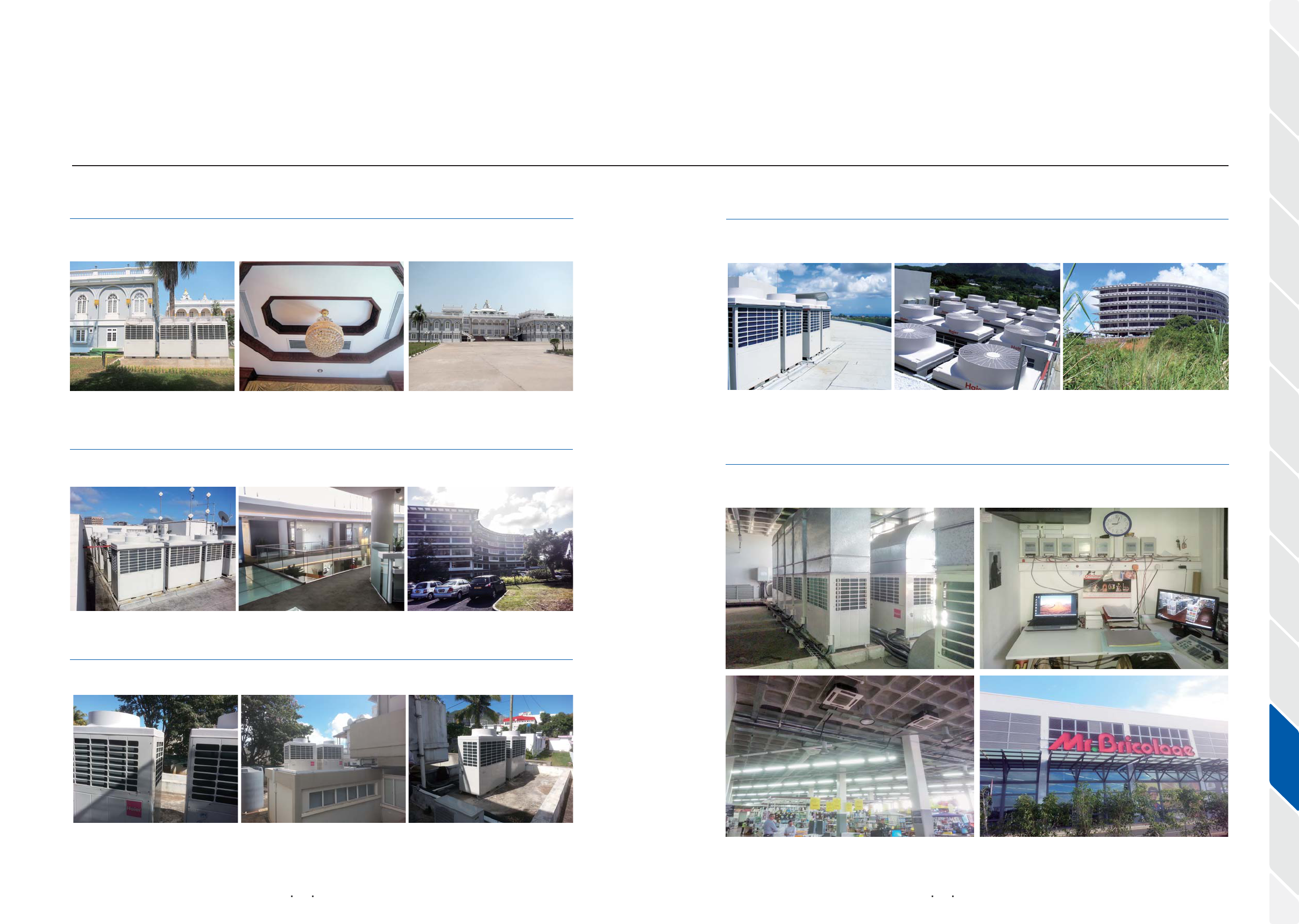

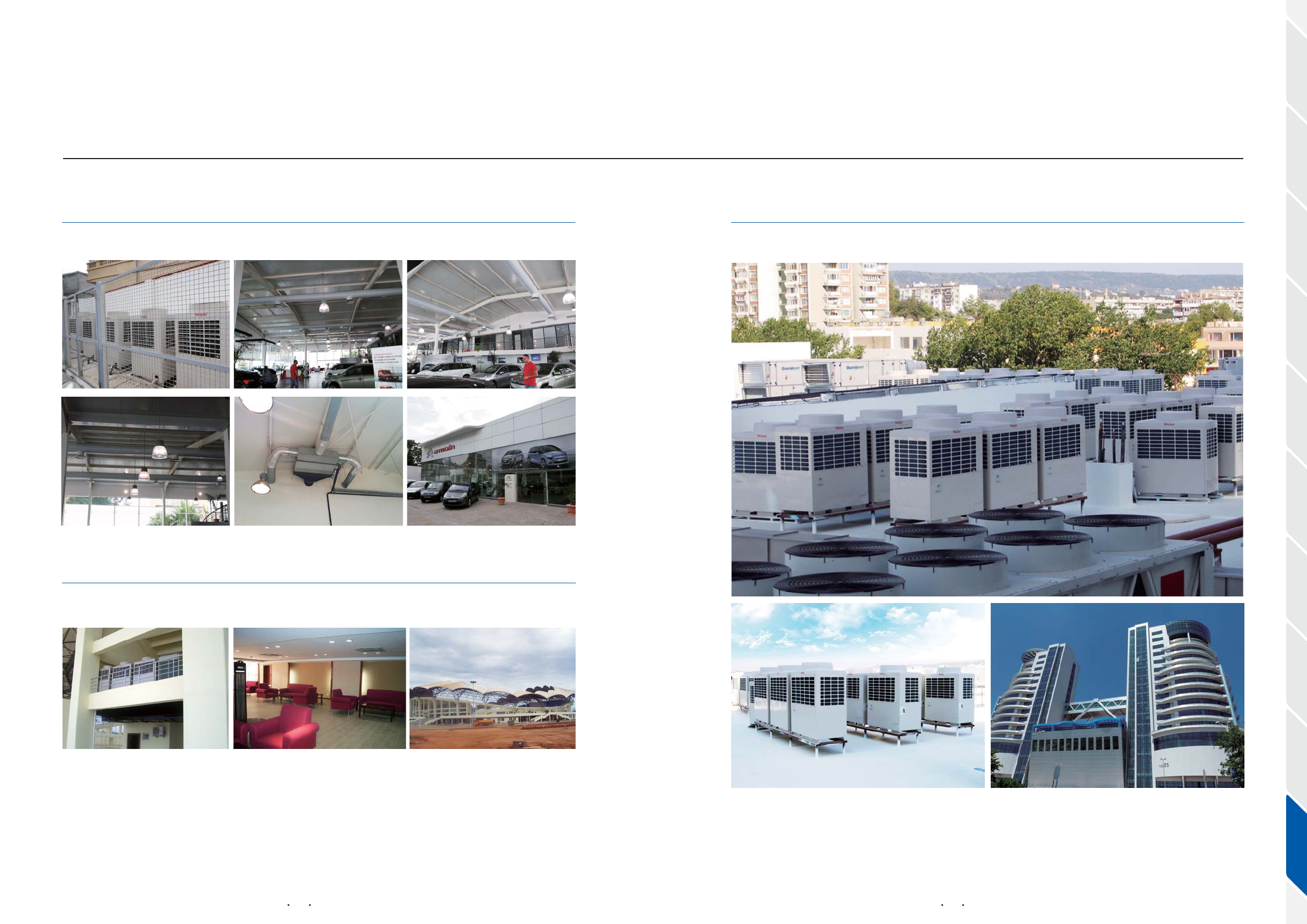

REFERENCE PROJECTS

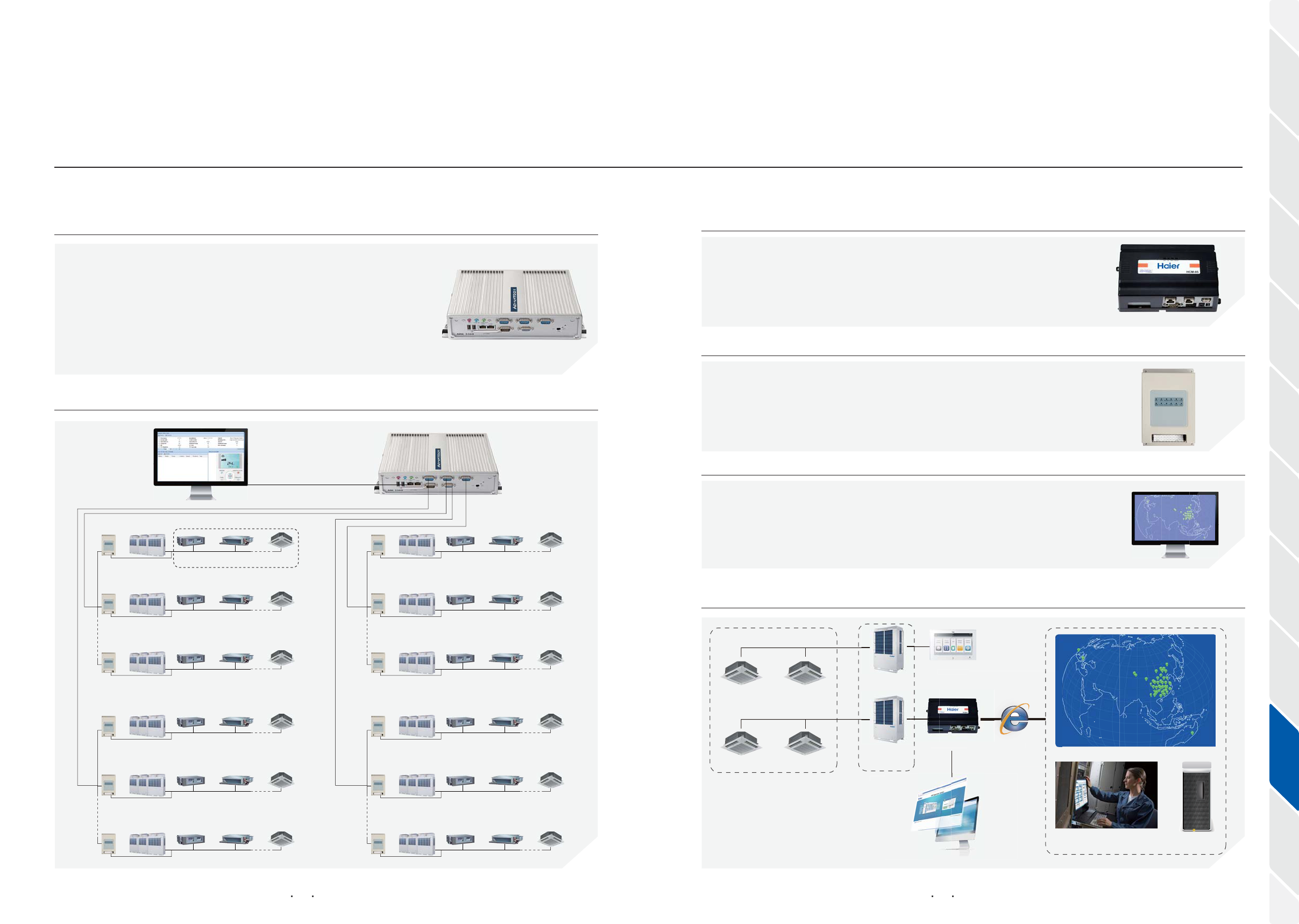

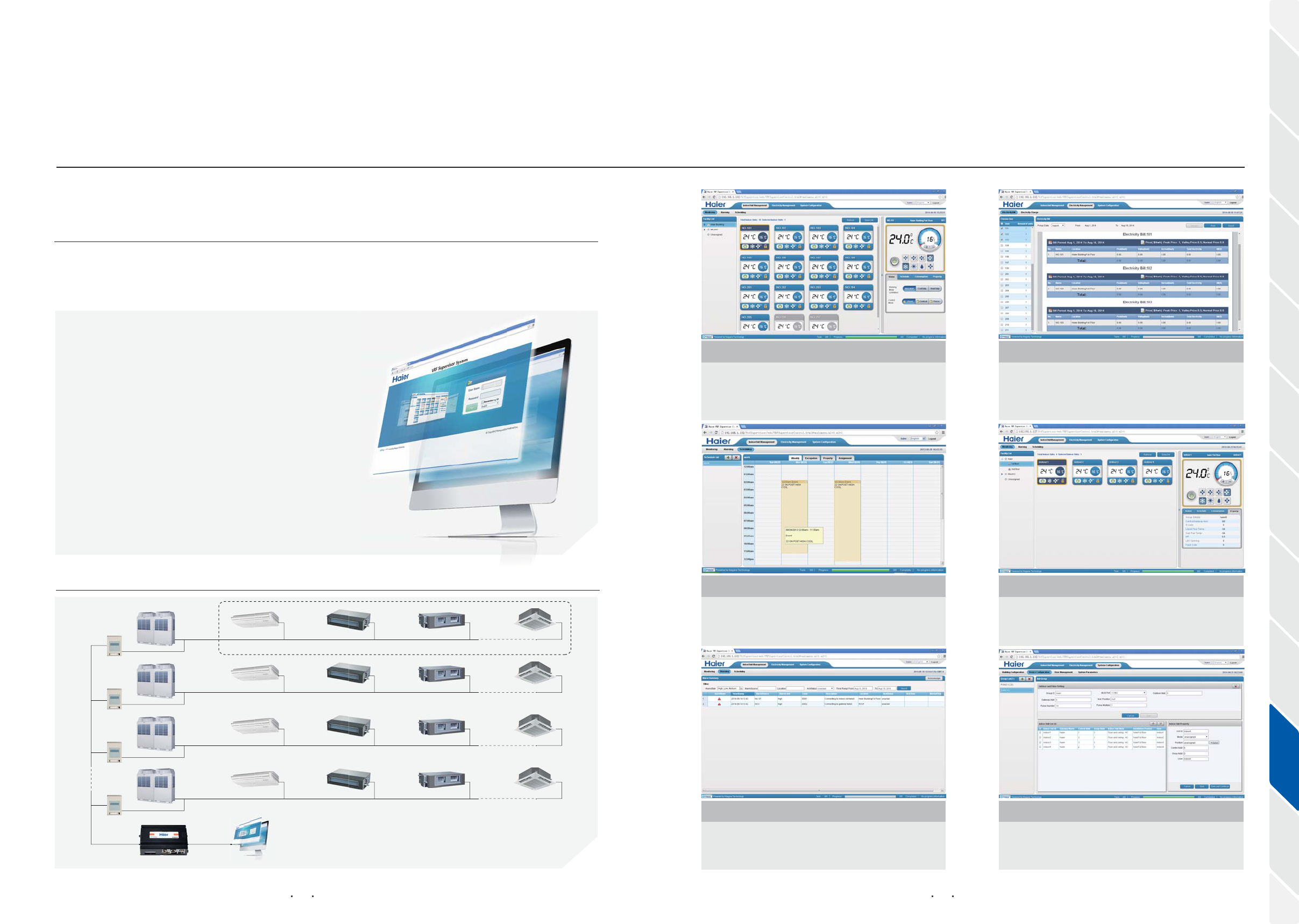

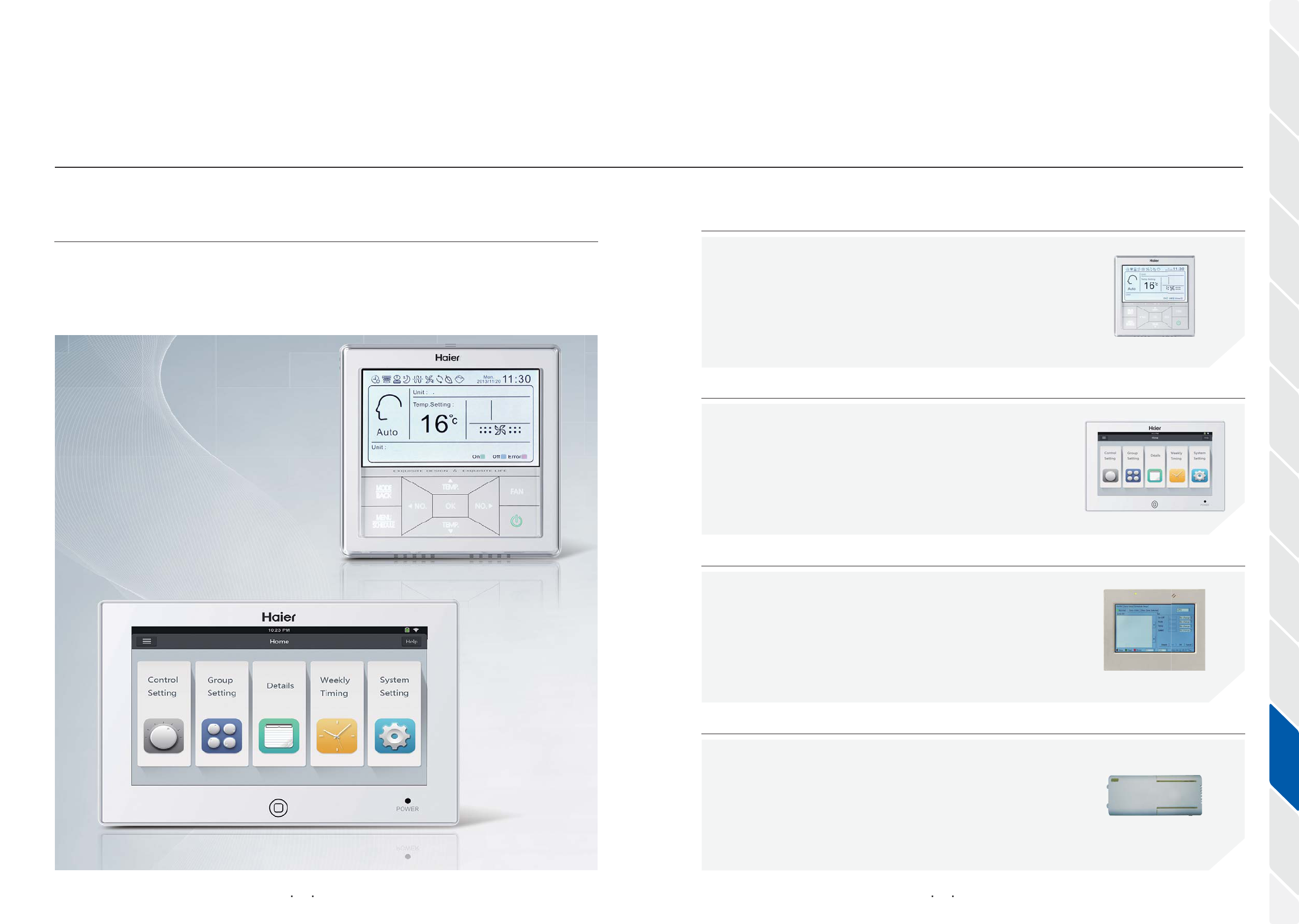

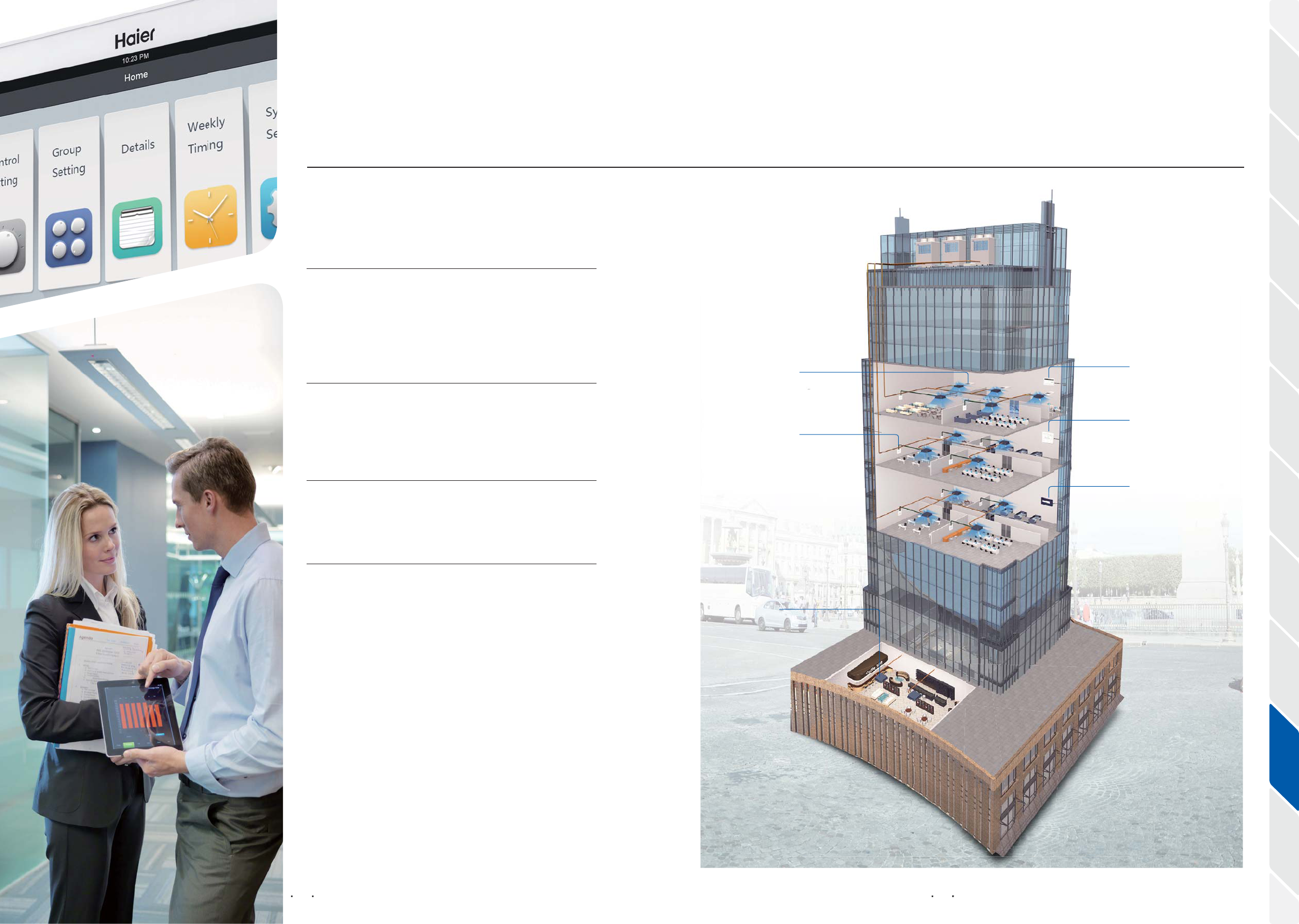

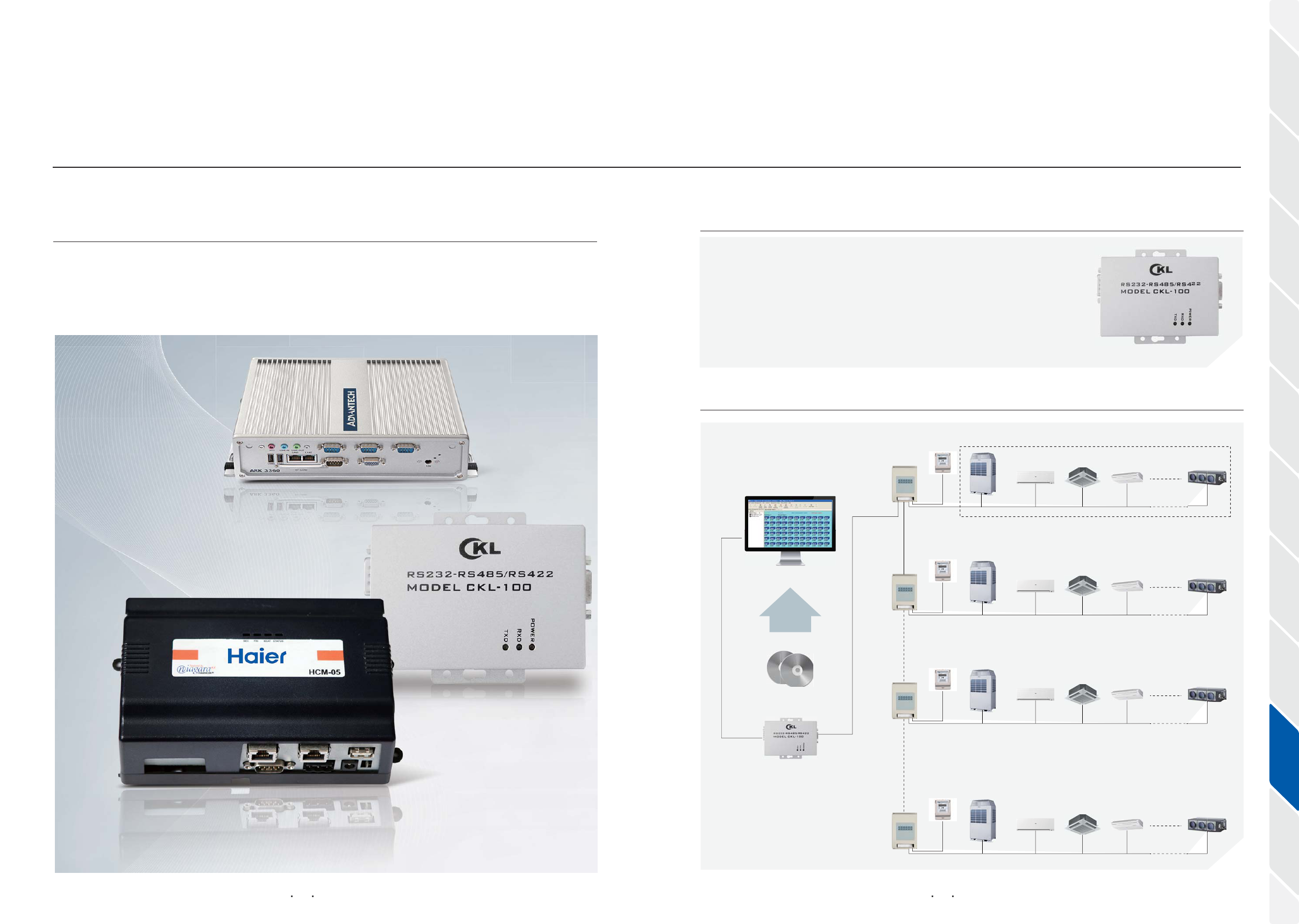

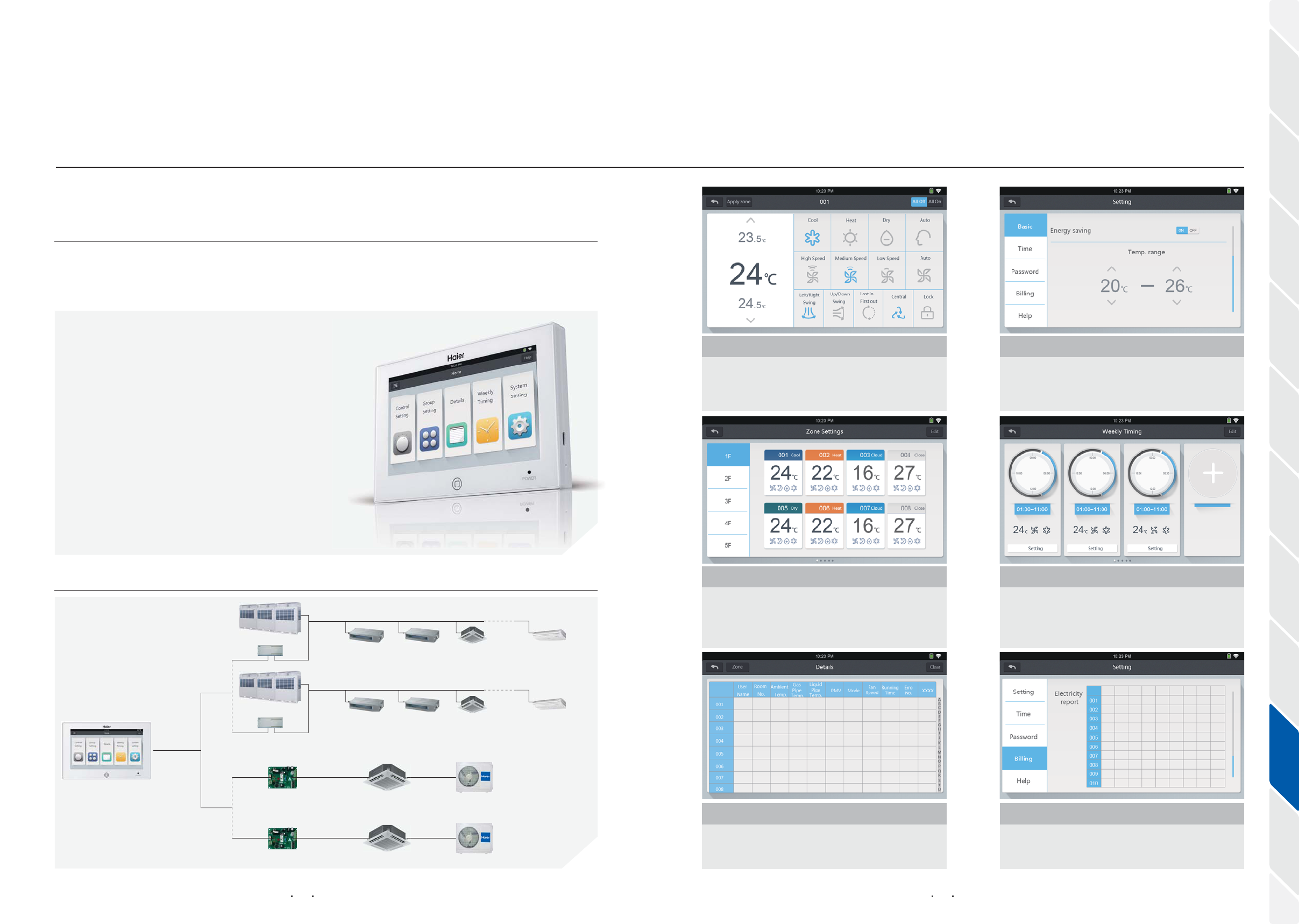

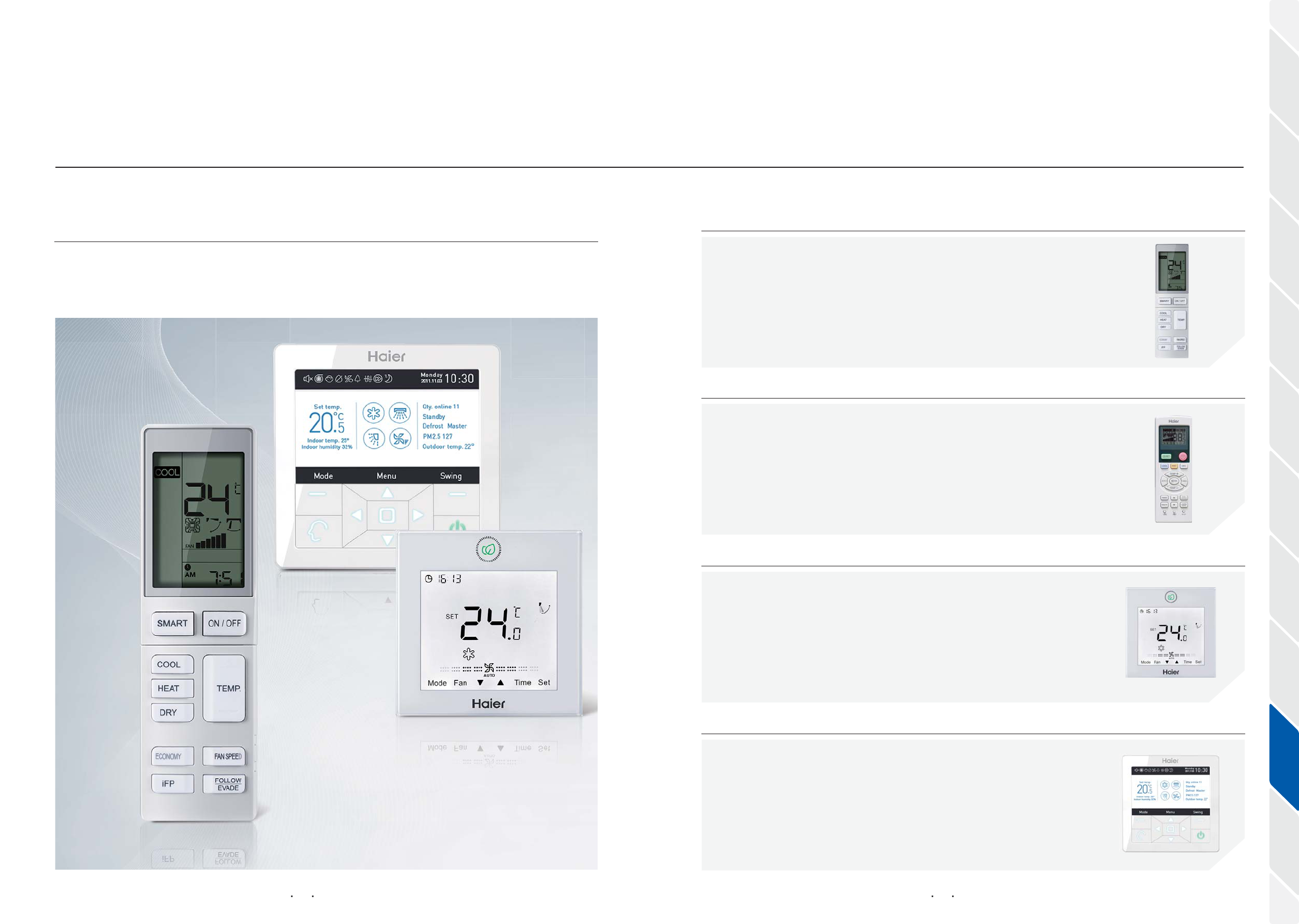

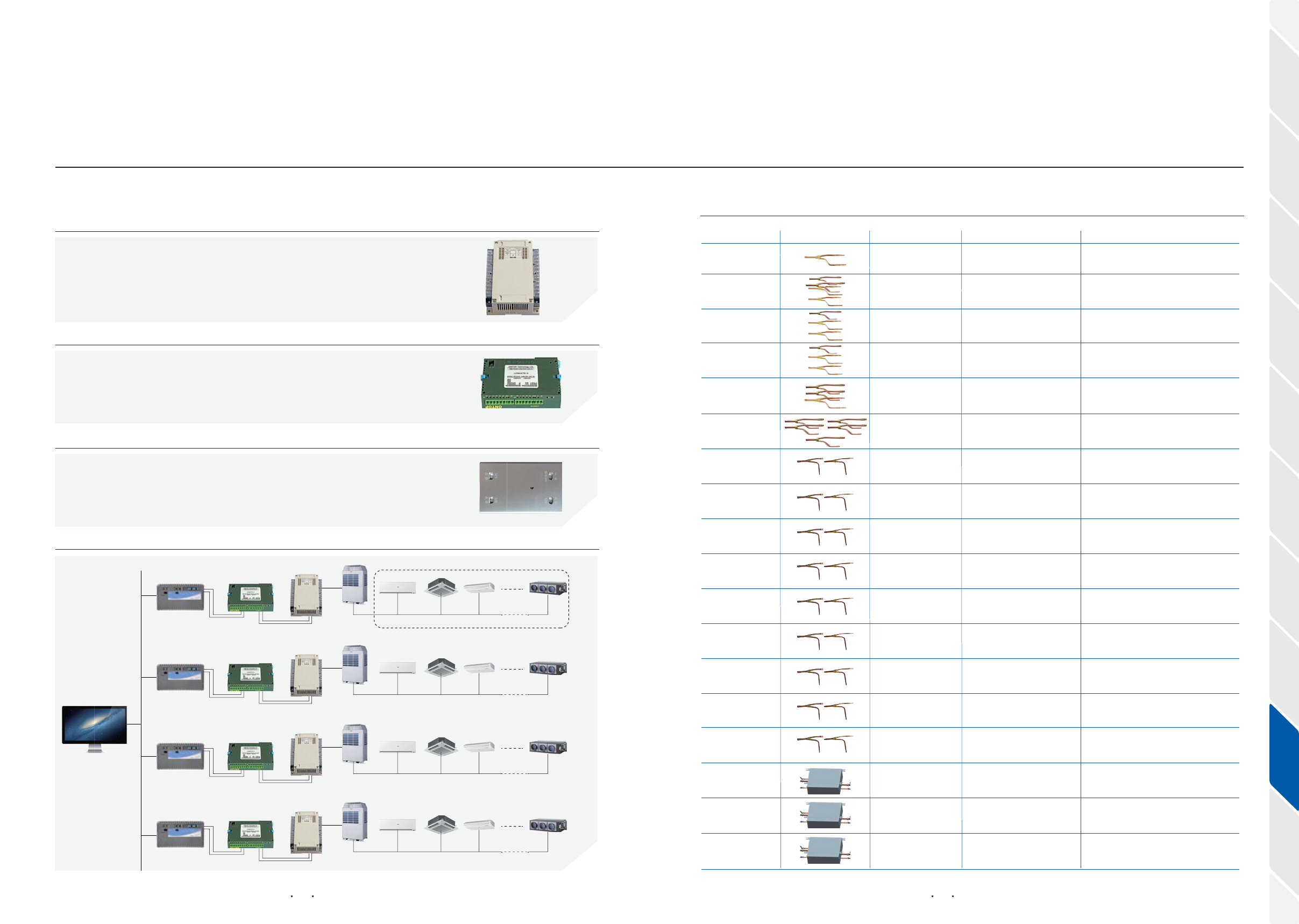

CONTROL SYSTEM
MRV W

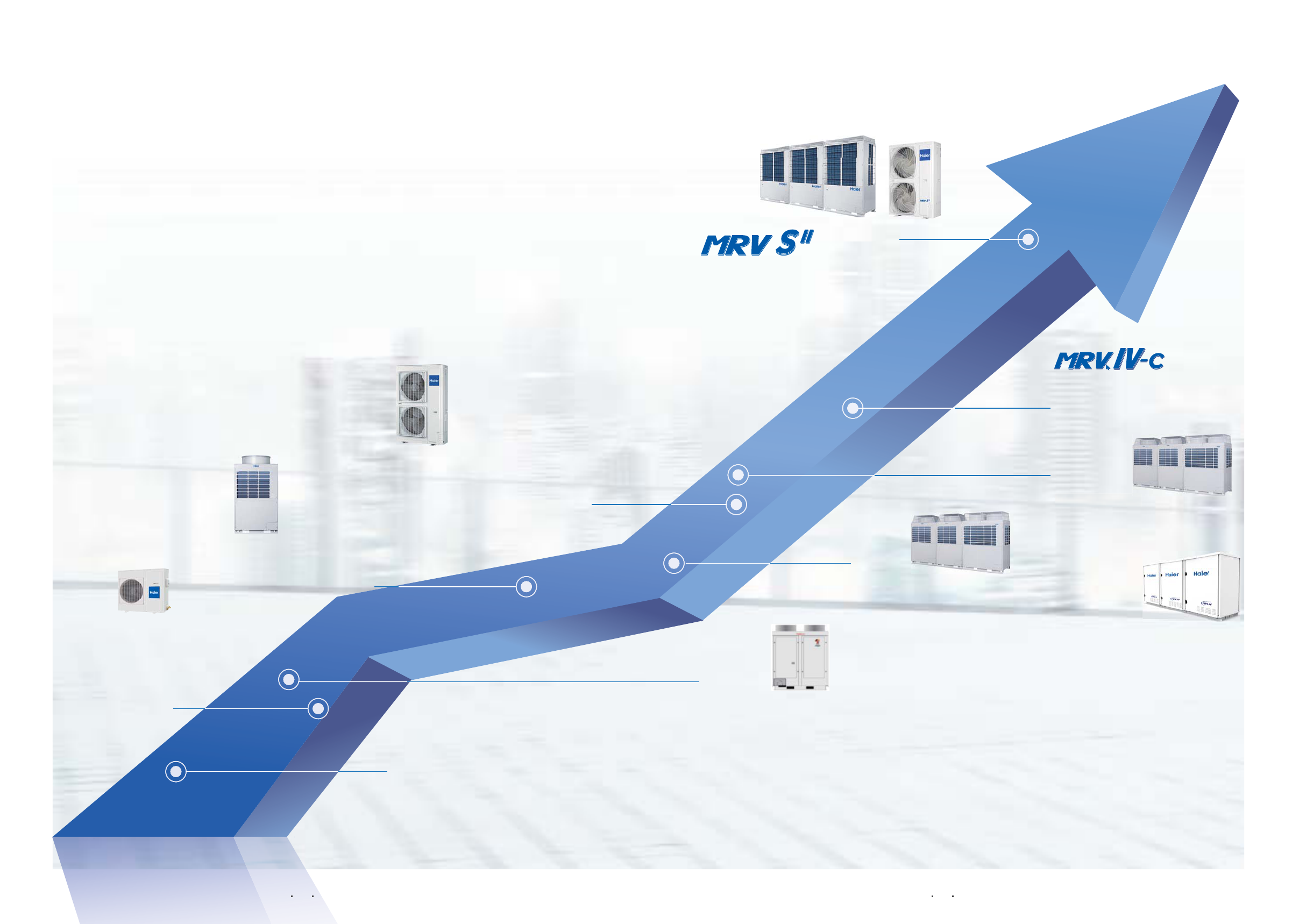

HAIER MRV Milestone
Haier
Joint Venture with MHI
and enter into China com-
mercial AC field
Commercial VRF (C-MRV )
First Modular VRF unit in
China
1993
1999
Home VRF
(Home MRV -
First unit in China)
Haier first home
inverter multi
1996
MRV III-C DC Inverter
23 Olympic reference
projects in Beijing

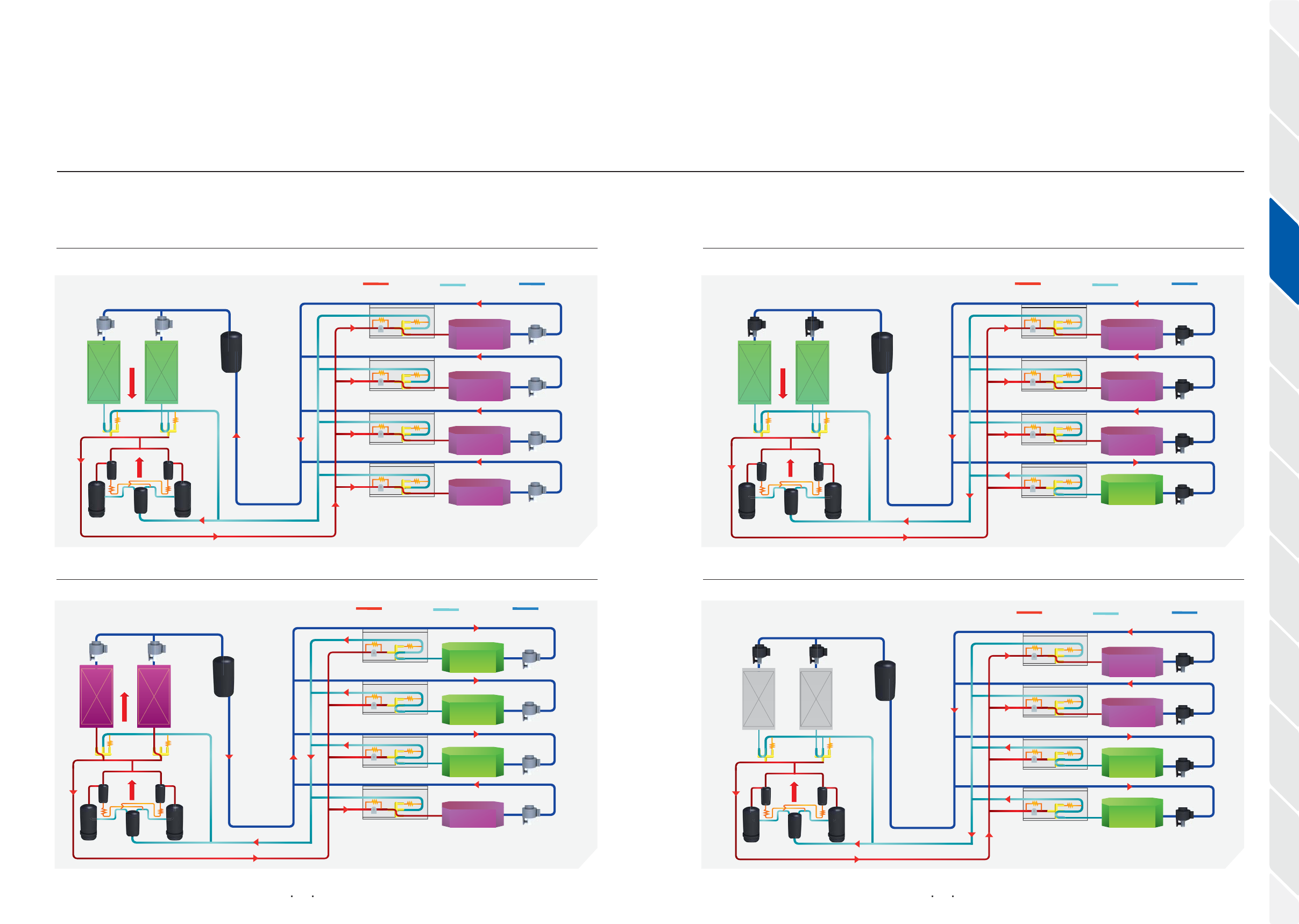

MRV III-RC
Heat recovery
(3 pipe system)
2008
2013
Full DC inverter, Largest
single module
New platform, new outlook
2014
Modular combination MRV II
First pure DC inverter in China
Technology from Toshiba
2005
Full DC inverter Side discharge

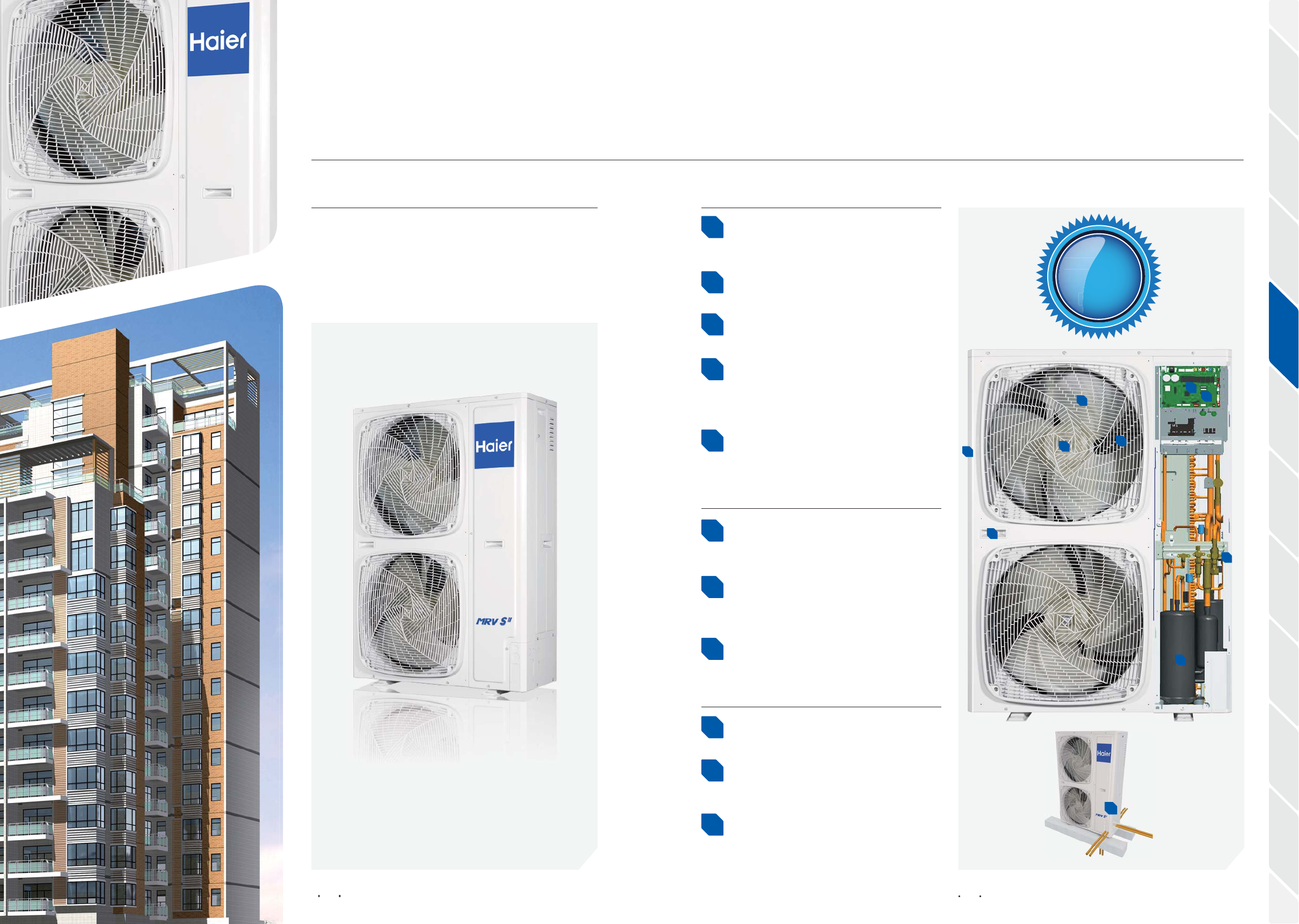

outdoor MRV S
Largest capacity of side discharge
2012
C

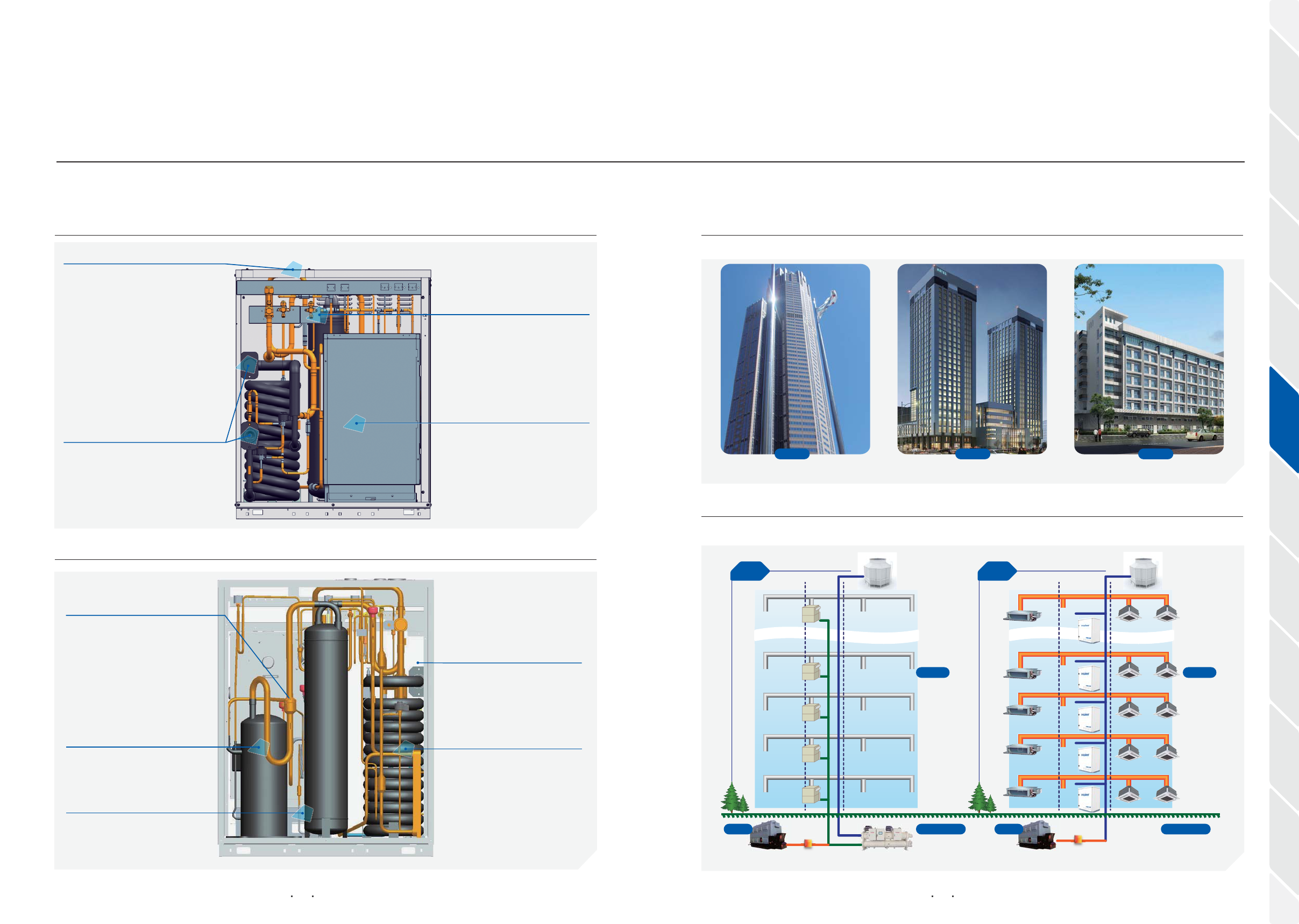

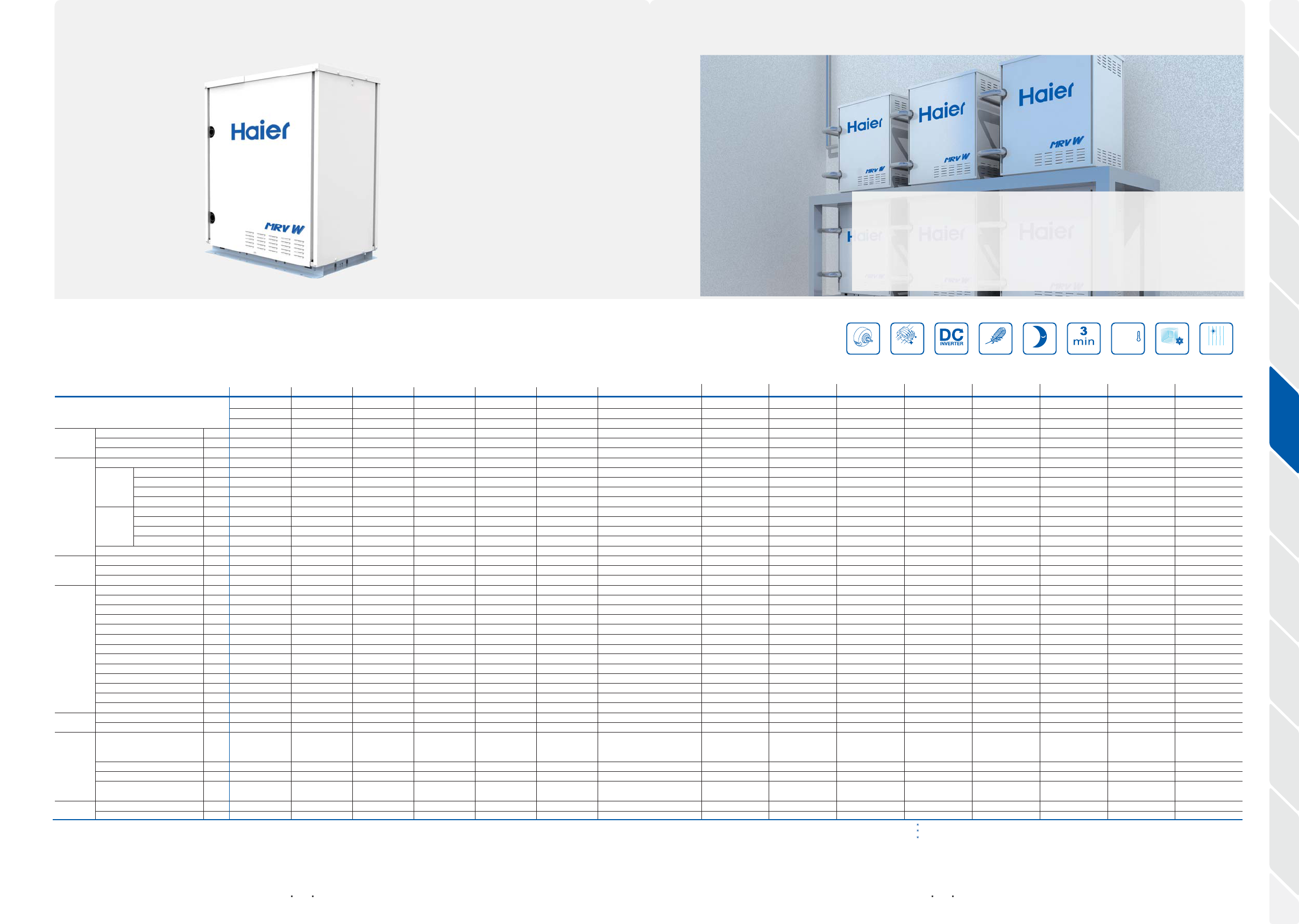

MRV W
Water-cooled
MRV
Haier, as China’s earliest VRF practitioners,
has been always committed to
the extreme pursuit to VRF system

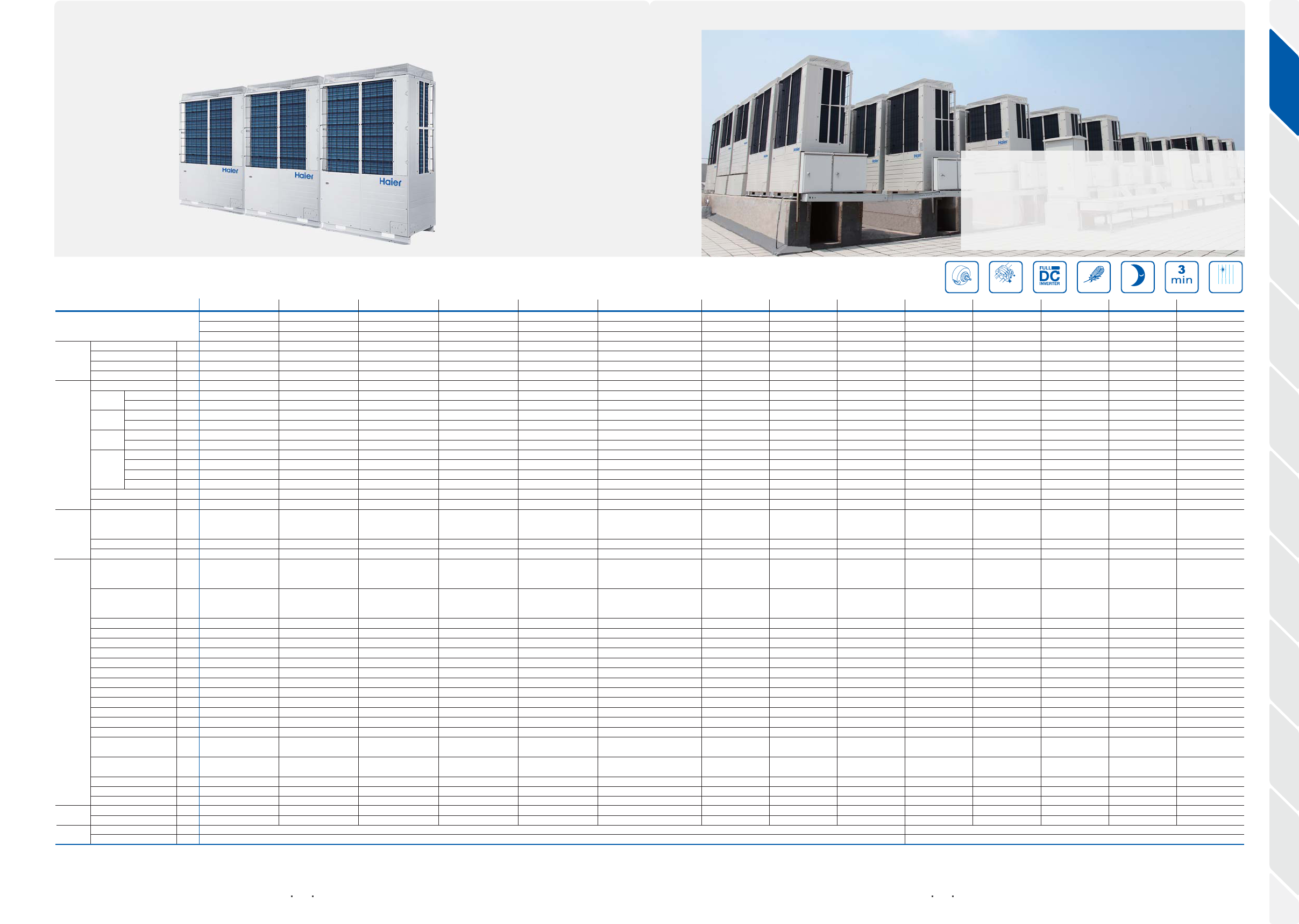

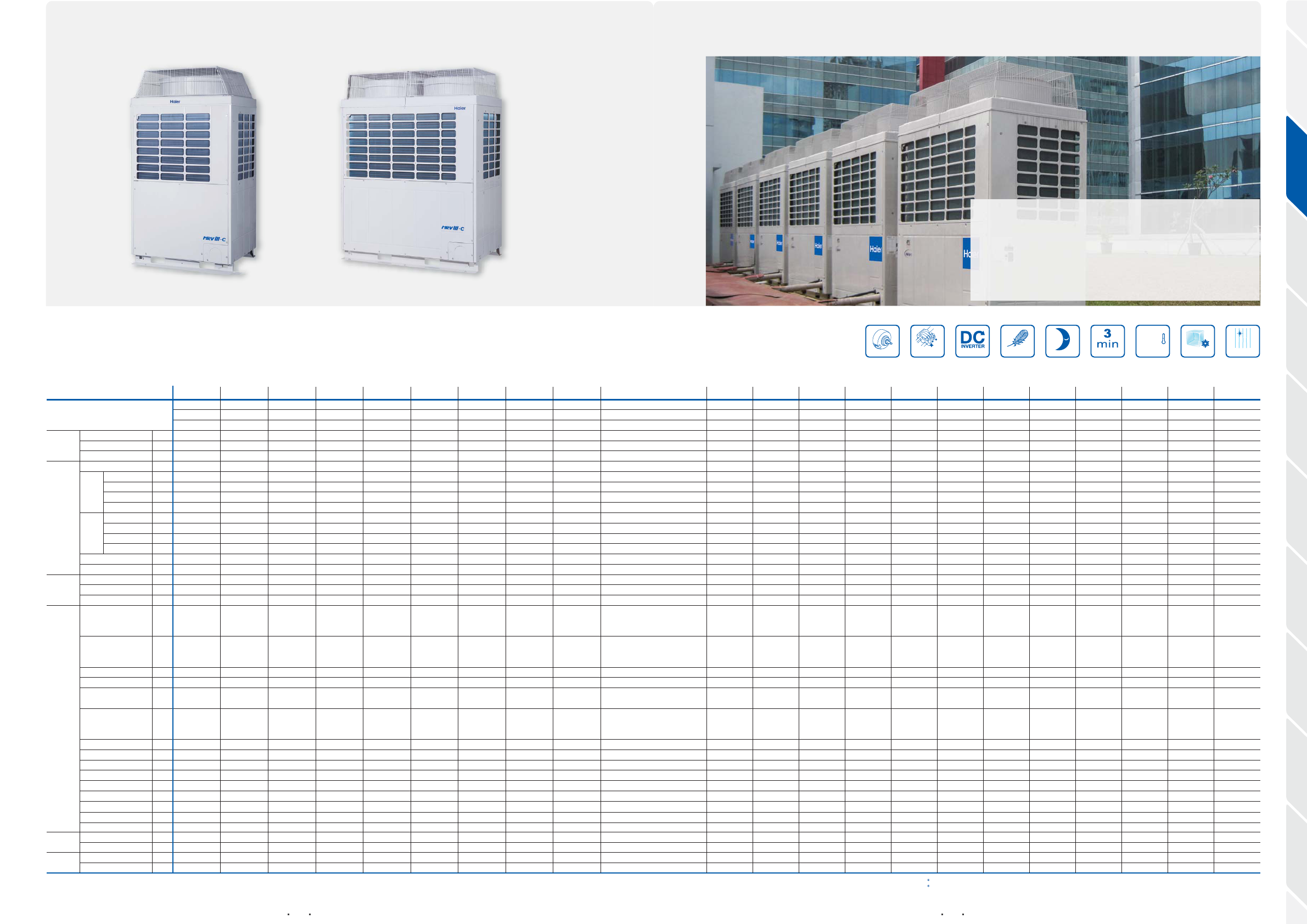

MRV IV-C (T3)
2015
0 01 002

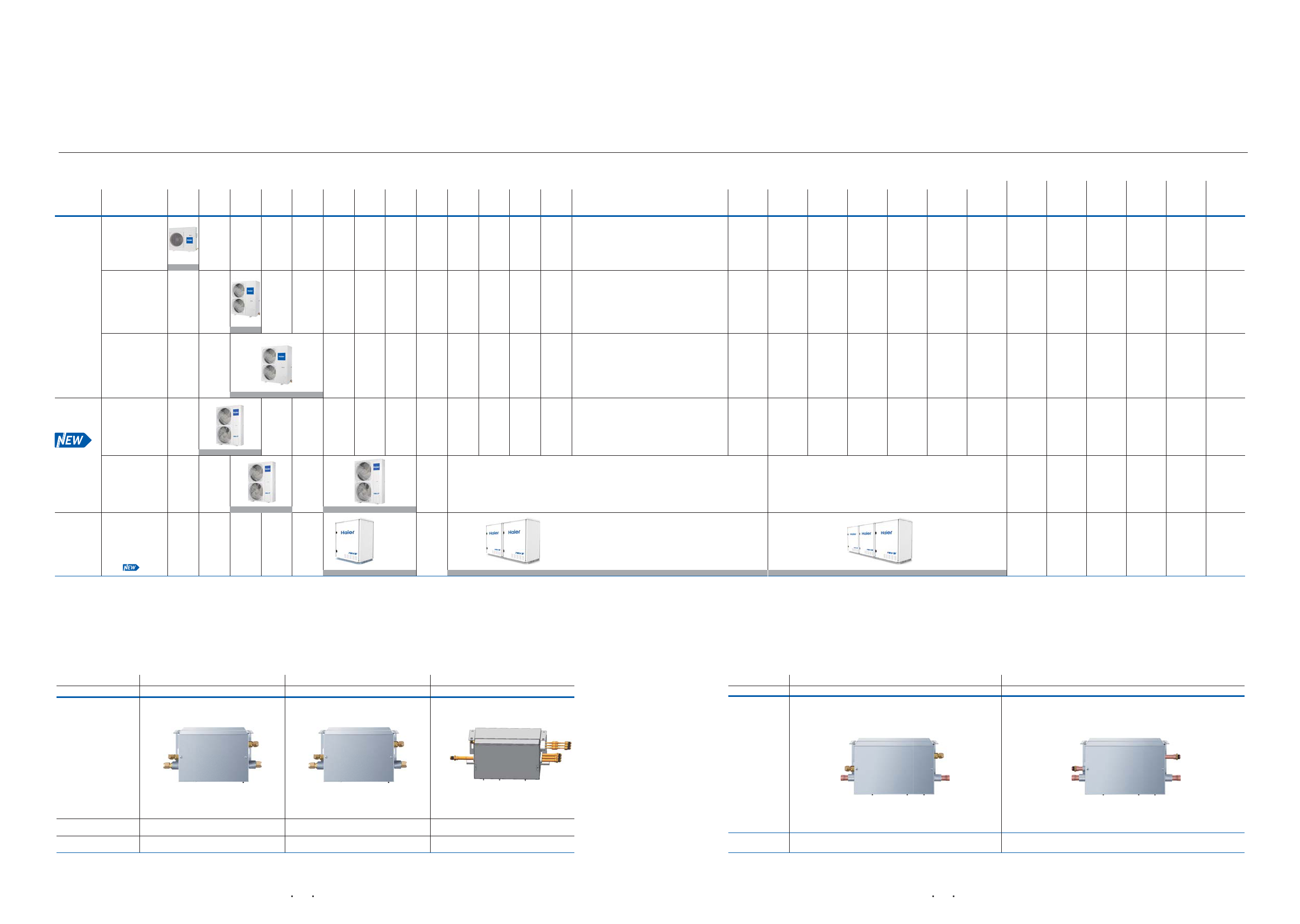

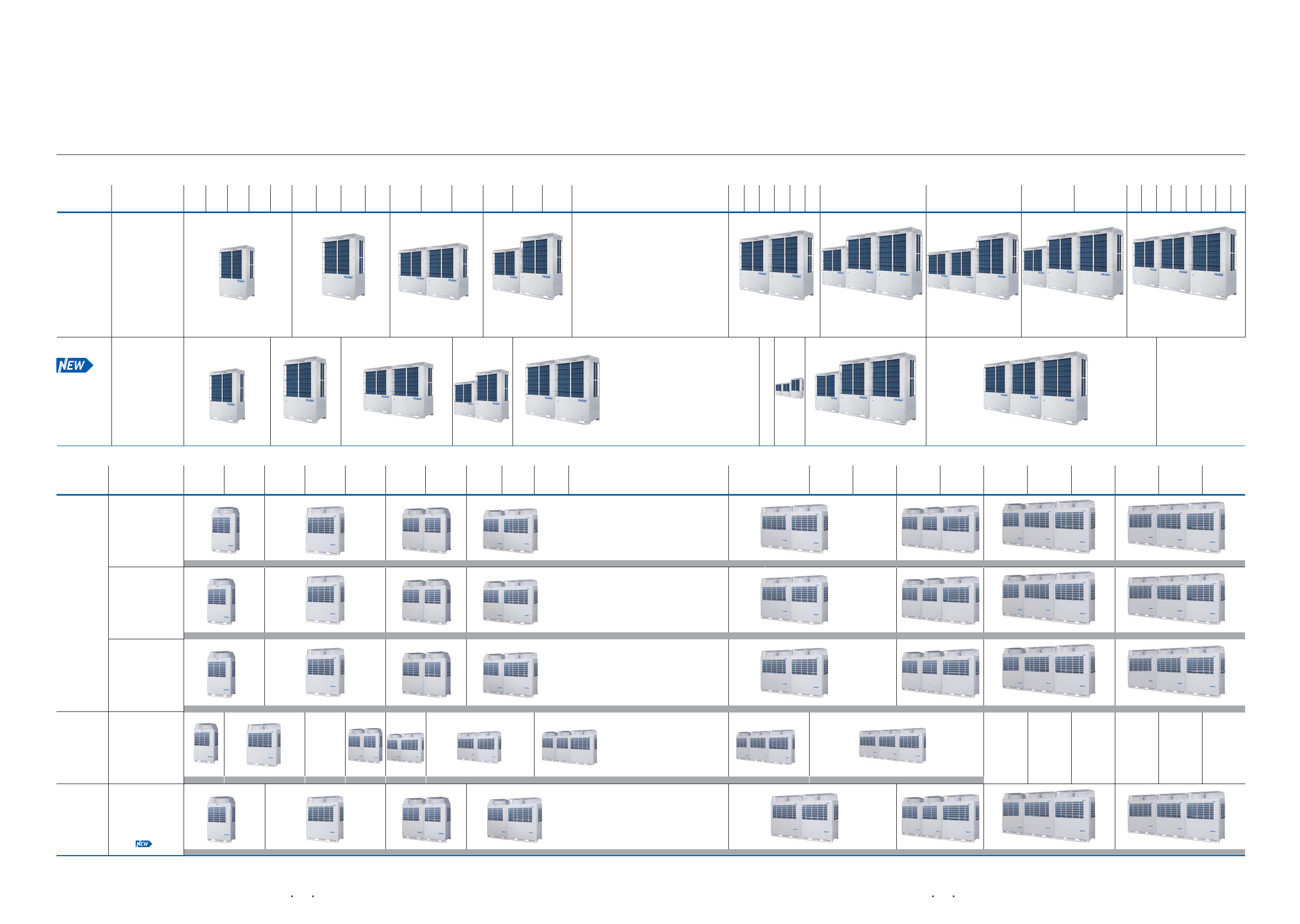

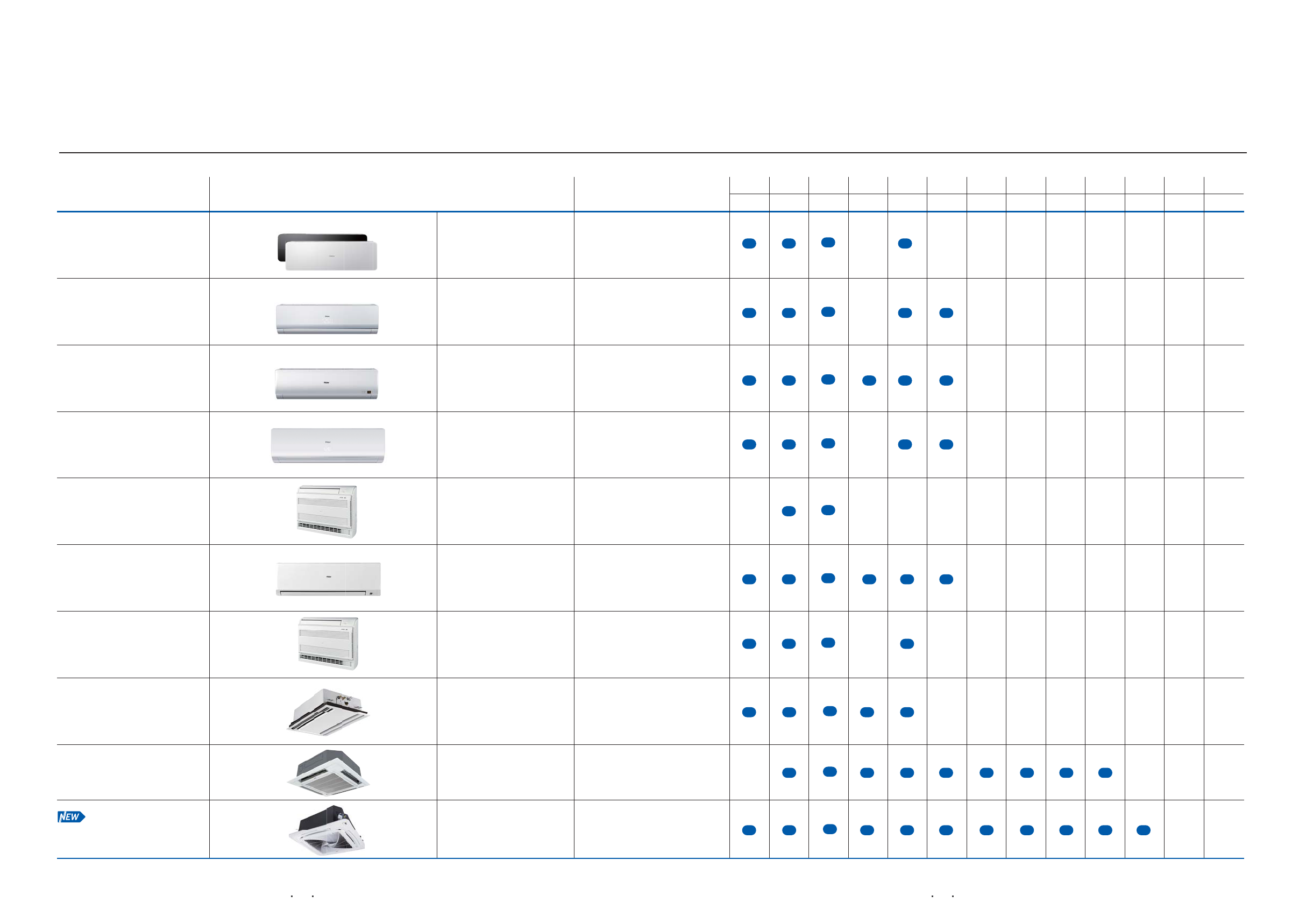

PRODUCT LINE-UP
(Outdoor Units)
3/208~230/60
3/460/60
3/380~400/50
3/380~400/60
3/380~400/50
3/380~400/60
3/208~230/60
3/380~400/50
3/380~400/60
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48HPSeries
HPSeries
MRVIII-C
(T1)
MRVIII-C
(T3)
MRVIII-RC
3/380~400/50
3/380~400/60
3/380~400/50
3/380~400/60
MRV IV-C
(T1)
MRV IV-C
(T3)
8 1 0 1 2 1 4 1 6 50 52 54 56
58 60 62 64 66 68 70 72
38 40 42 44 46 4832 34 3626 28 3018 20 22 24
003 004
1/220~230/50
1/220~230/50/60
3/380~400/50/60
3/380~400/50
3/380~400/60
3/208~230/60
3 4 5 6 7 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48HP
MRV S
I
MRV S
II
Series
MRV W

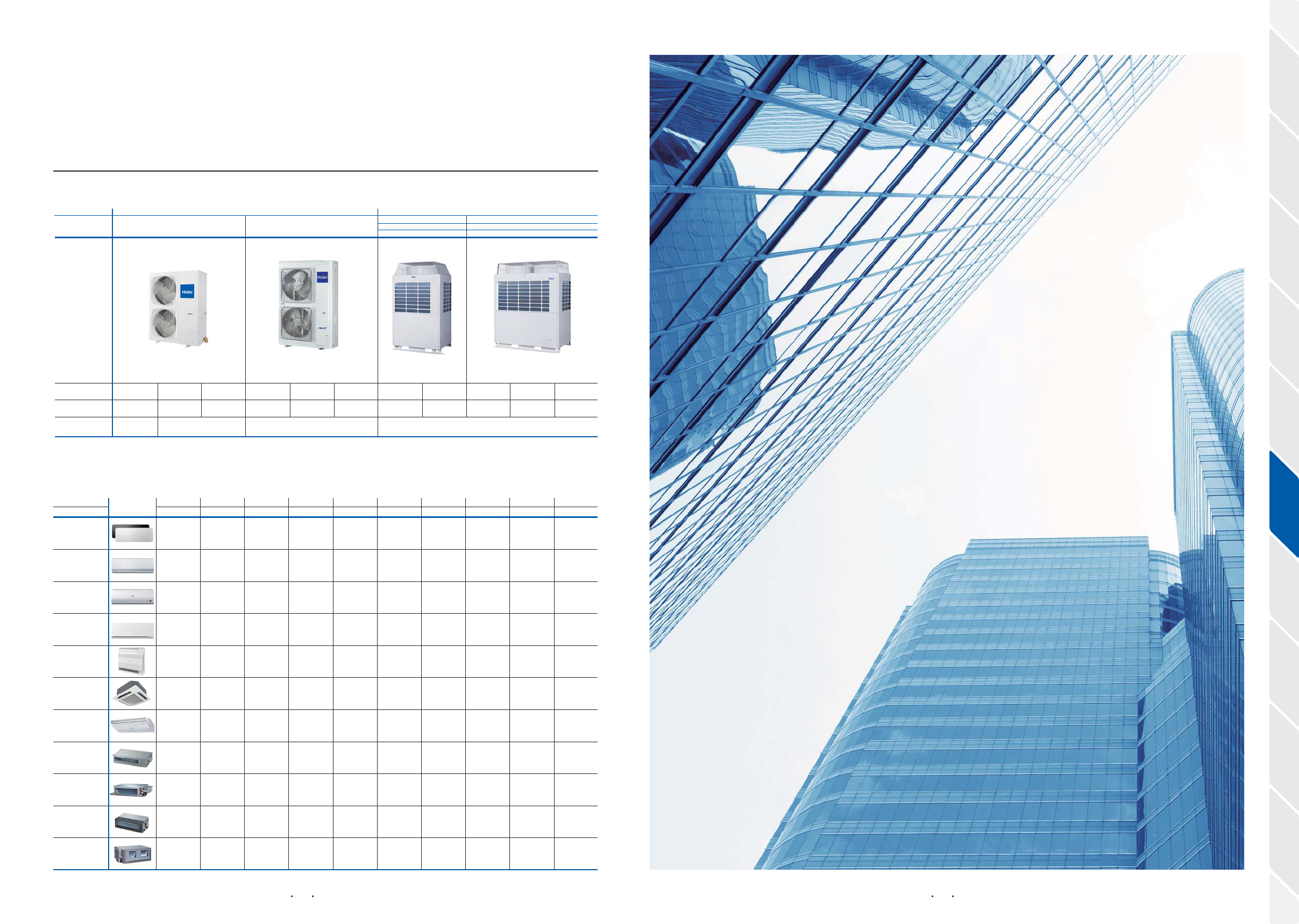

EASY MRV
≤36K 36K<X≤60K Every indoor capacity ≤36K
MRV S, MRV III-C MRV S, MRV III-C MRV S, MRV III-C
EASY MRV
Connection Kit
Capacity(Btu/h)
MRV series
MS1-036A MS1-060A MS3-036A
1 by 1 1 by 1 1 by 3
MODEL
Match with indoor

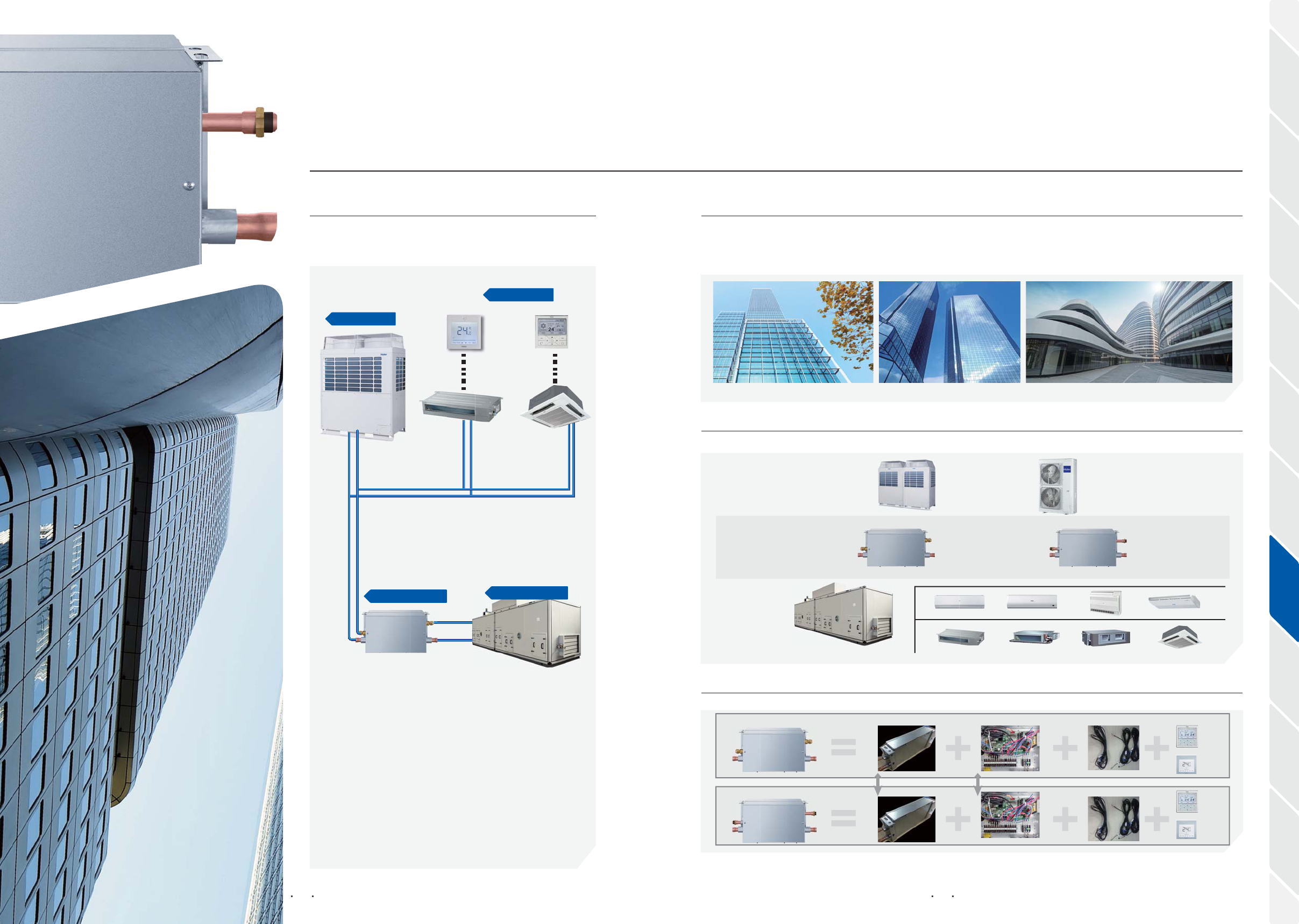

DX AHU Connection Kit
MRV S(8/10/12HP), MRV III-C MRV S(8/10/12HP), MRV III-CMRV series
CAPACITY
MODEL
AH1-280A AH1-560A
14 ≤ x ≤28 kW 28 x ≤56 kW
005 006
PRODUCT LINE-UP
(Outdoor Units)
1/220~230/50/60
3/380~400/50/60
AQUA Hi-Wall
N F series
N H series
Zircon Hi-Wall

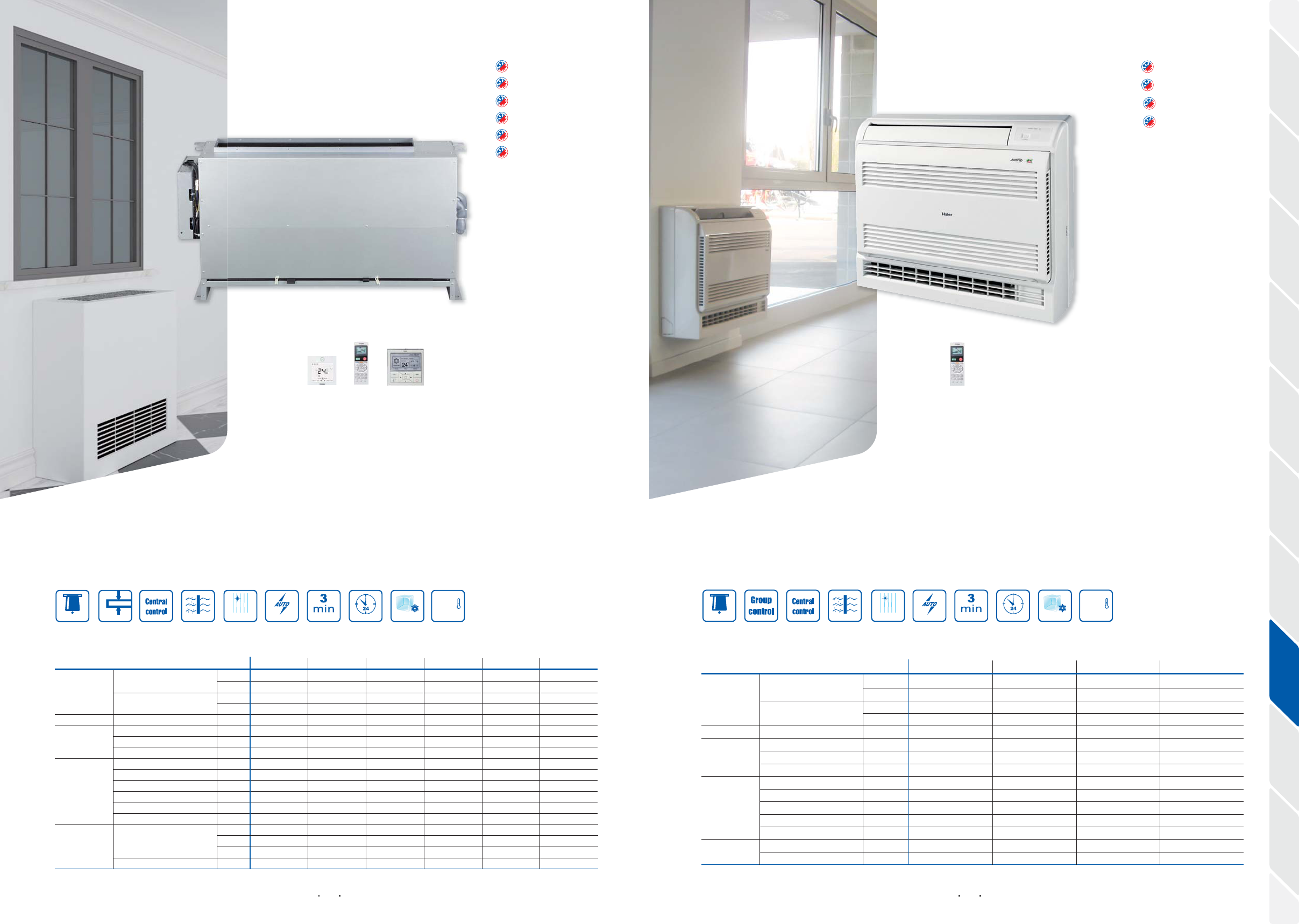

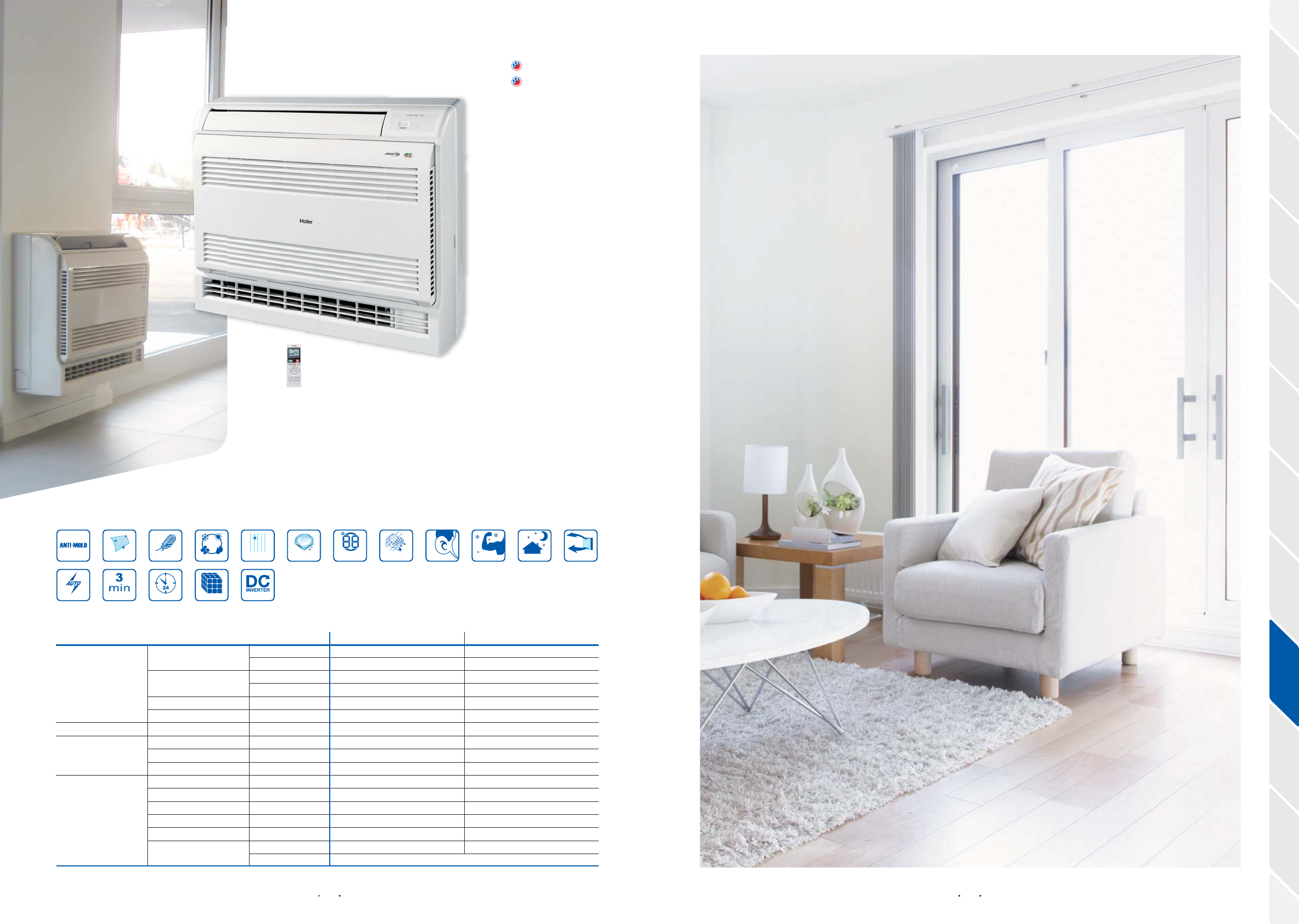

Console

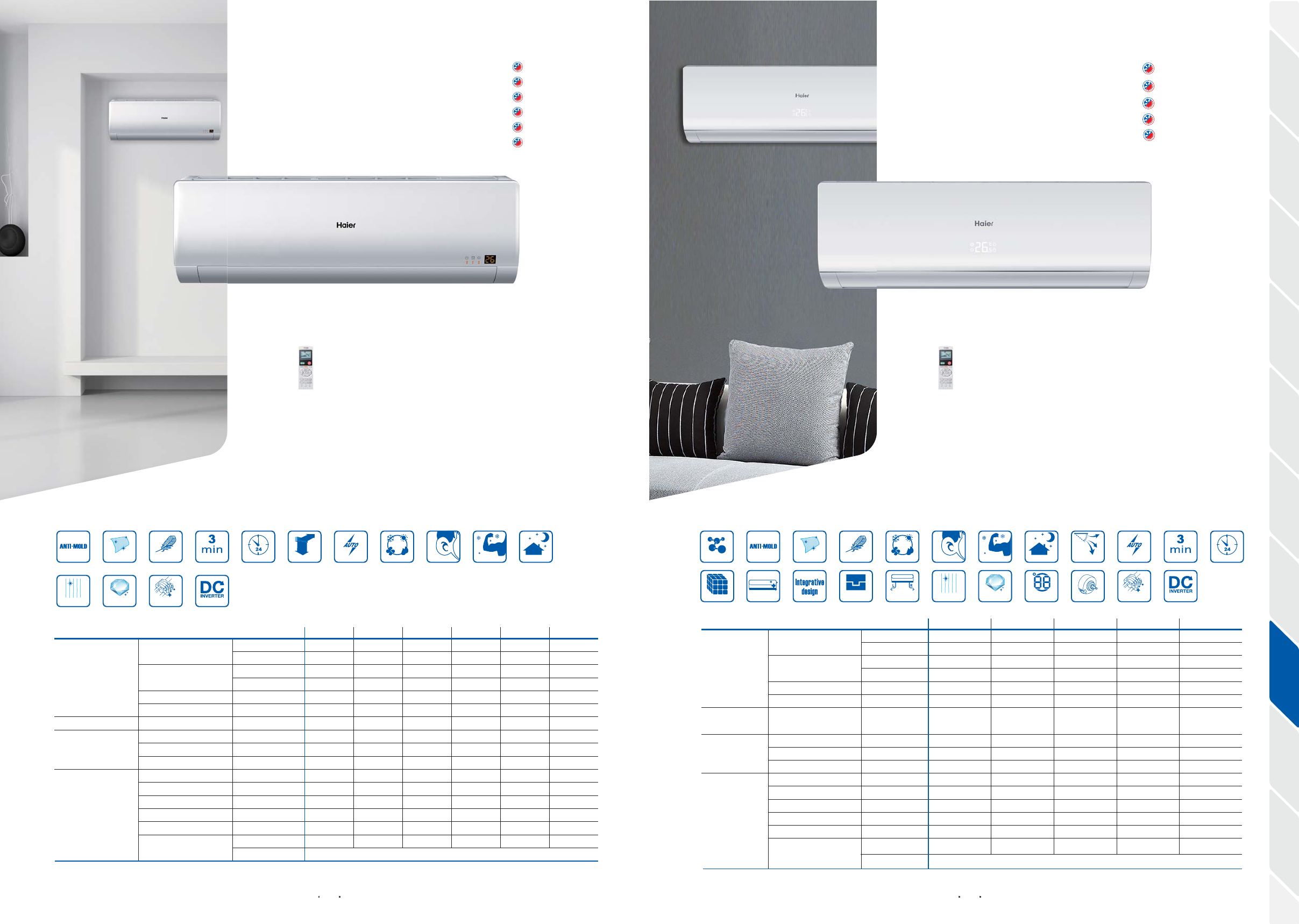

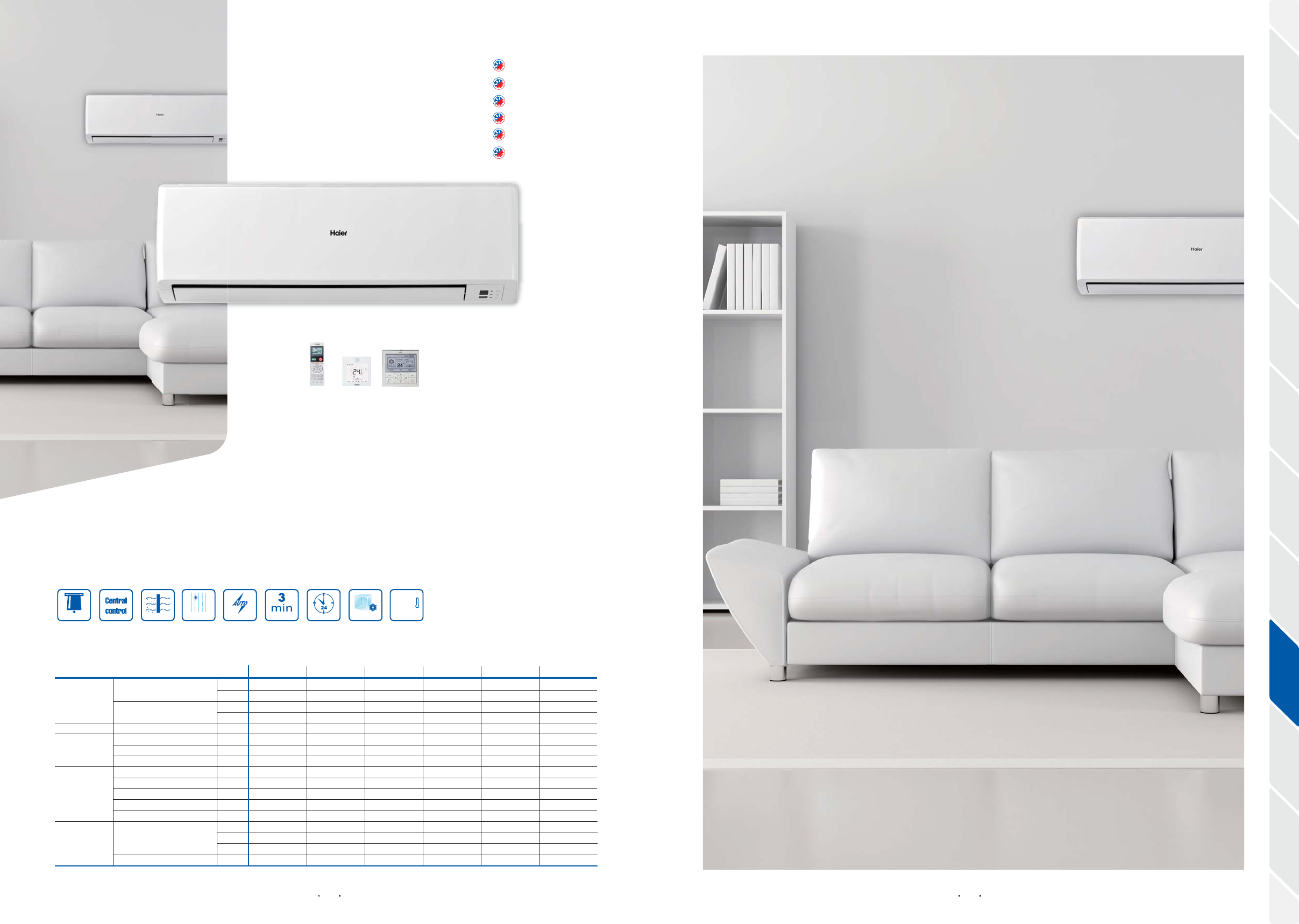

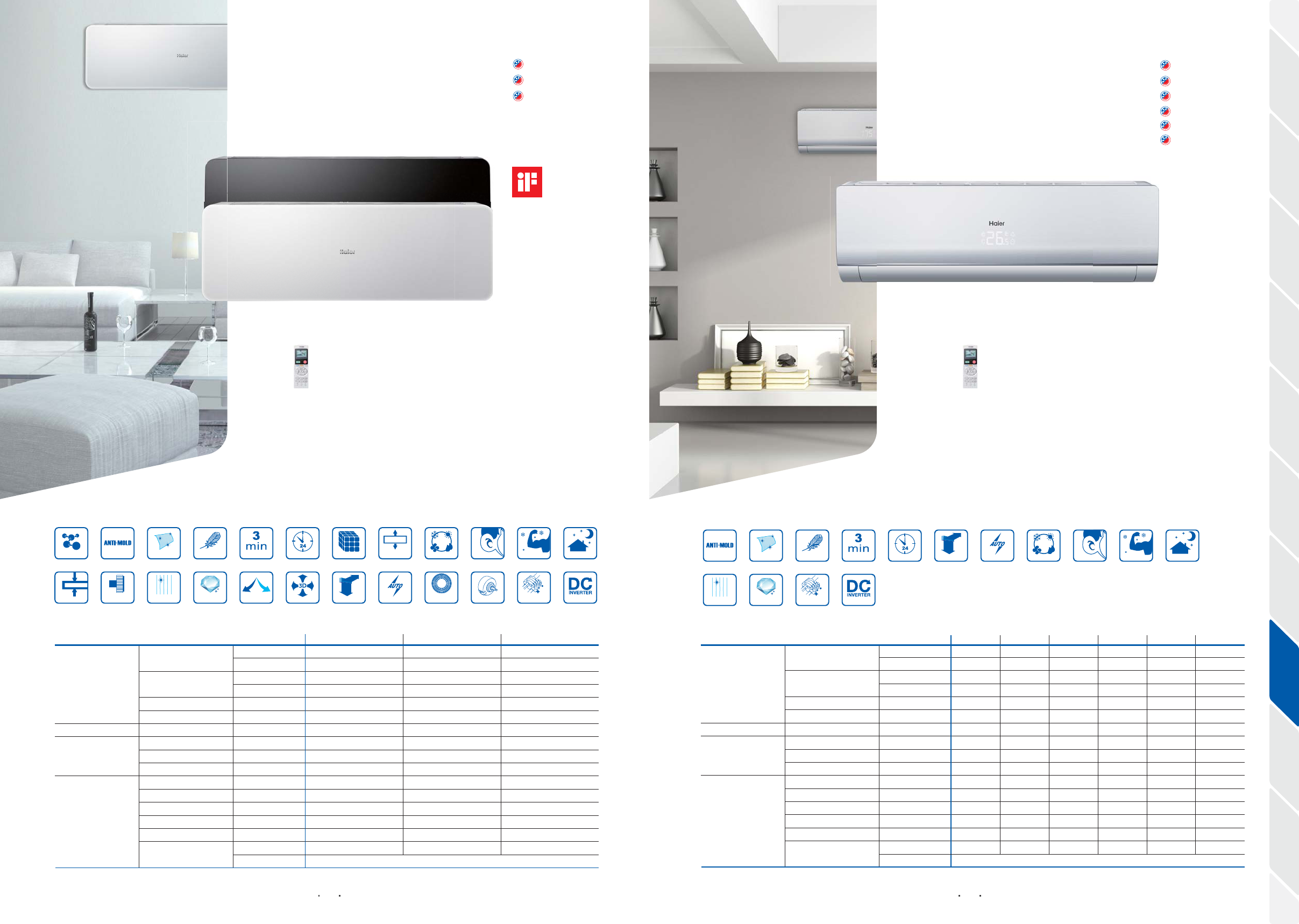

High wall
EEV Inside
Console
(EEV inside )
AS**QS2HRA
AS**NS1HRA
AS**BS4HRA
AS**ZB1ERA
AF*AS1ERA
AS**2MSERA
AF*MAERA
2 Way cassette
AB**2MBERA

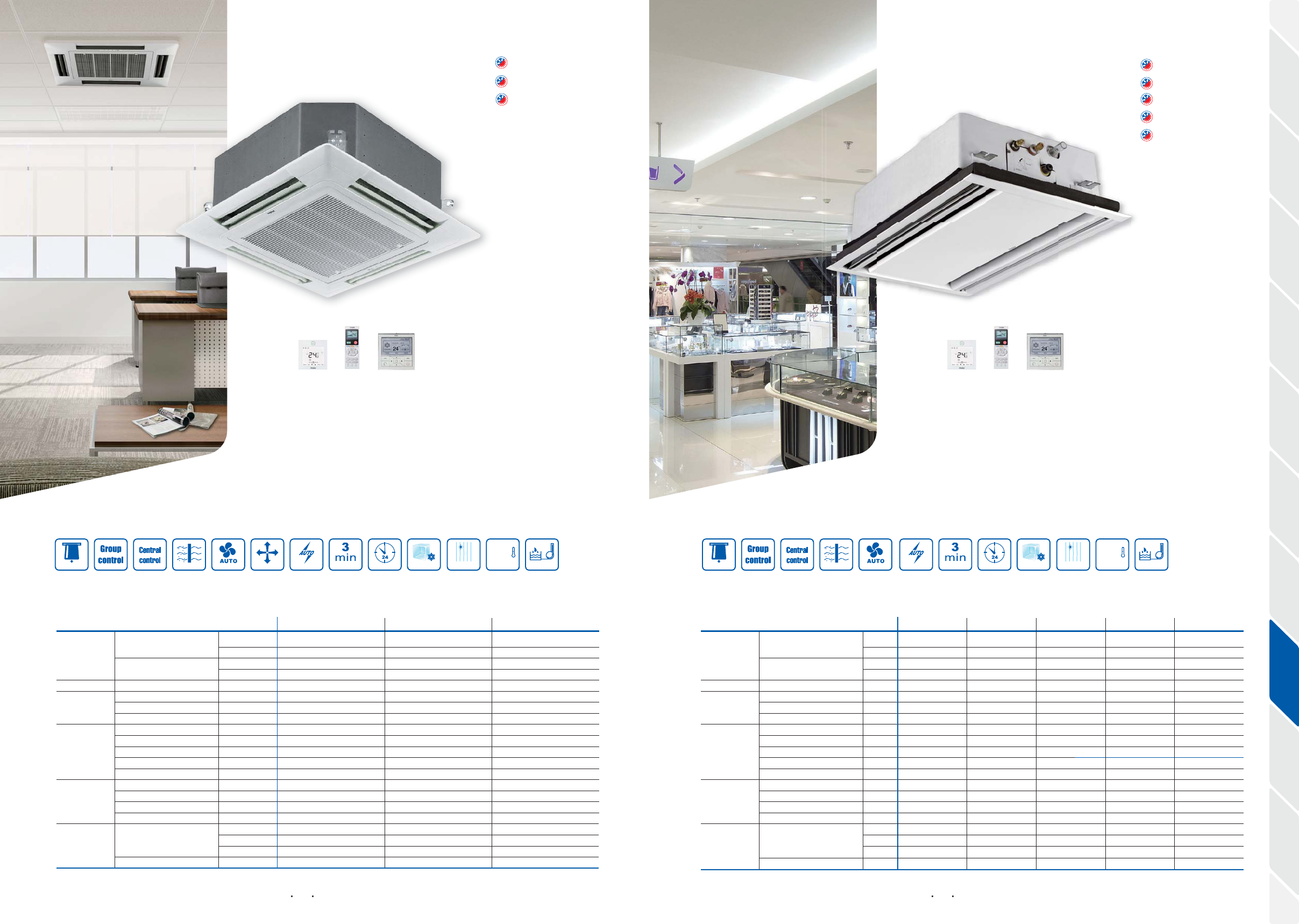

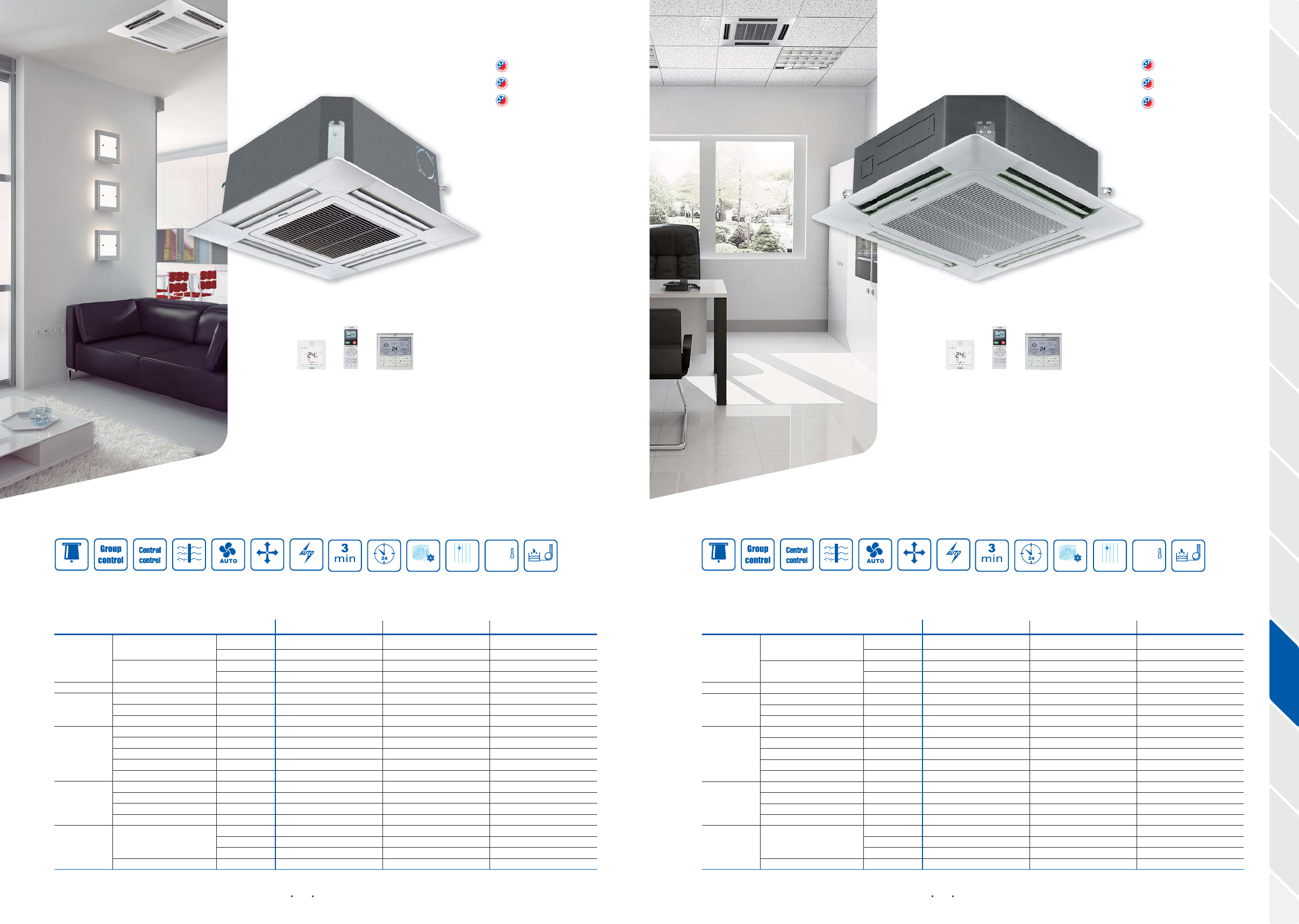

Cassette
360° Smart Air Flow Cassette
AB**2MCERA
AB**2MRERA
(Need match with EASY MRV
connection Kit MS1-036A,
MS3-036A)
(Need match with EASY MRV
connection Kit MS1-036A,
MS3-036A)
(Need match with EASY MRV
connection Kit MS1-036A,
MS3-036A)
(Need match with EASY MRV
connection Kit MS1-036A,
MS3-036A)
(Need match with EASY MRV
connection Kit MS1-036A,
MS3-036A)
Series
kW
2.2 2.8 3.6 4.5 5.6 7.1 8 9 11.2 14 16 22.6 28
7 9 12 16 18 24 28 30 38 48 60 72 96
KBTU/h
007 008
(5.0)

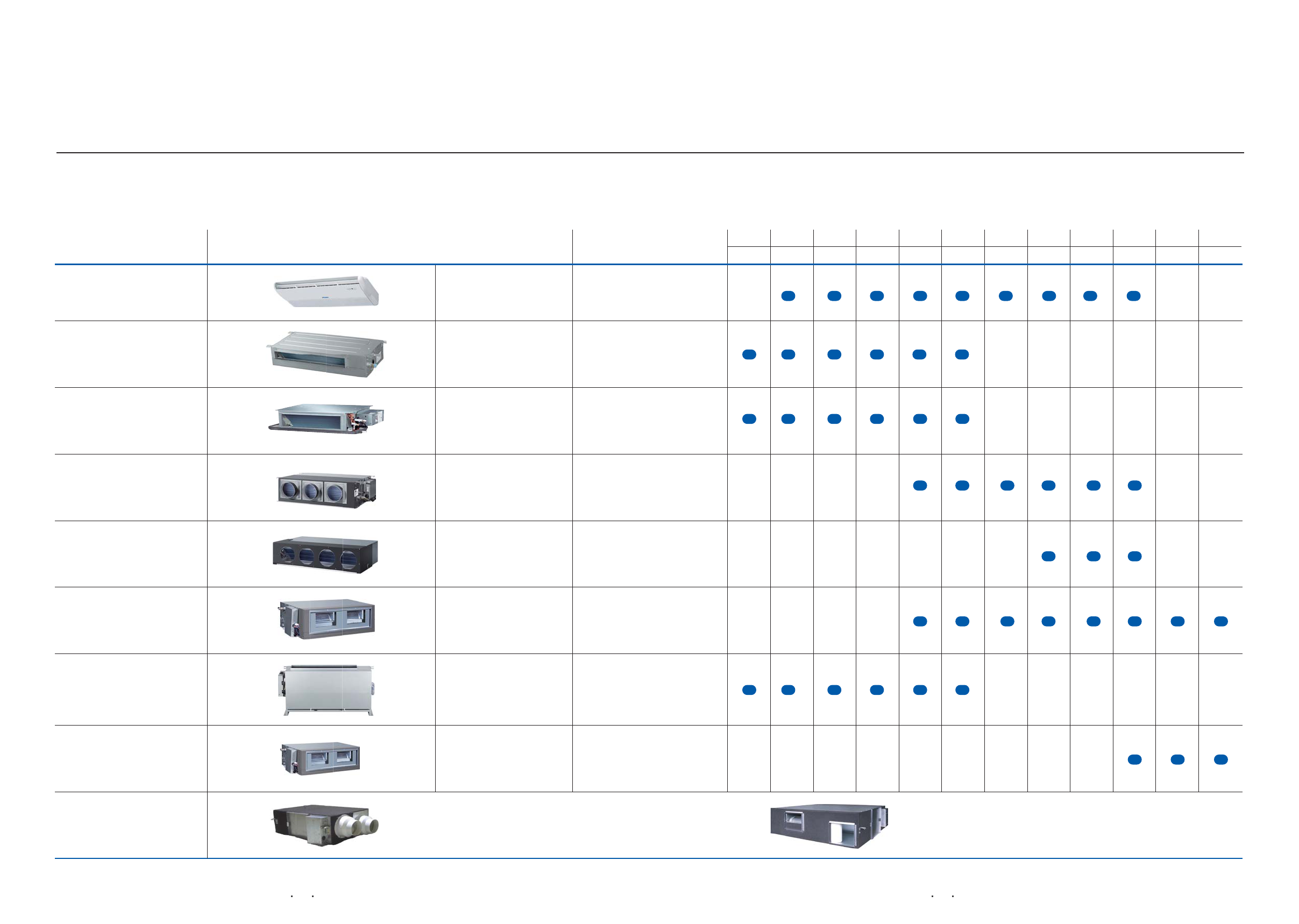

PRODUCT LINE-UP

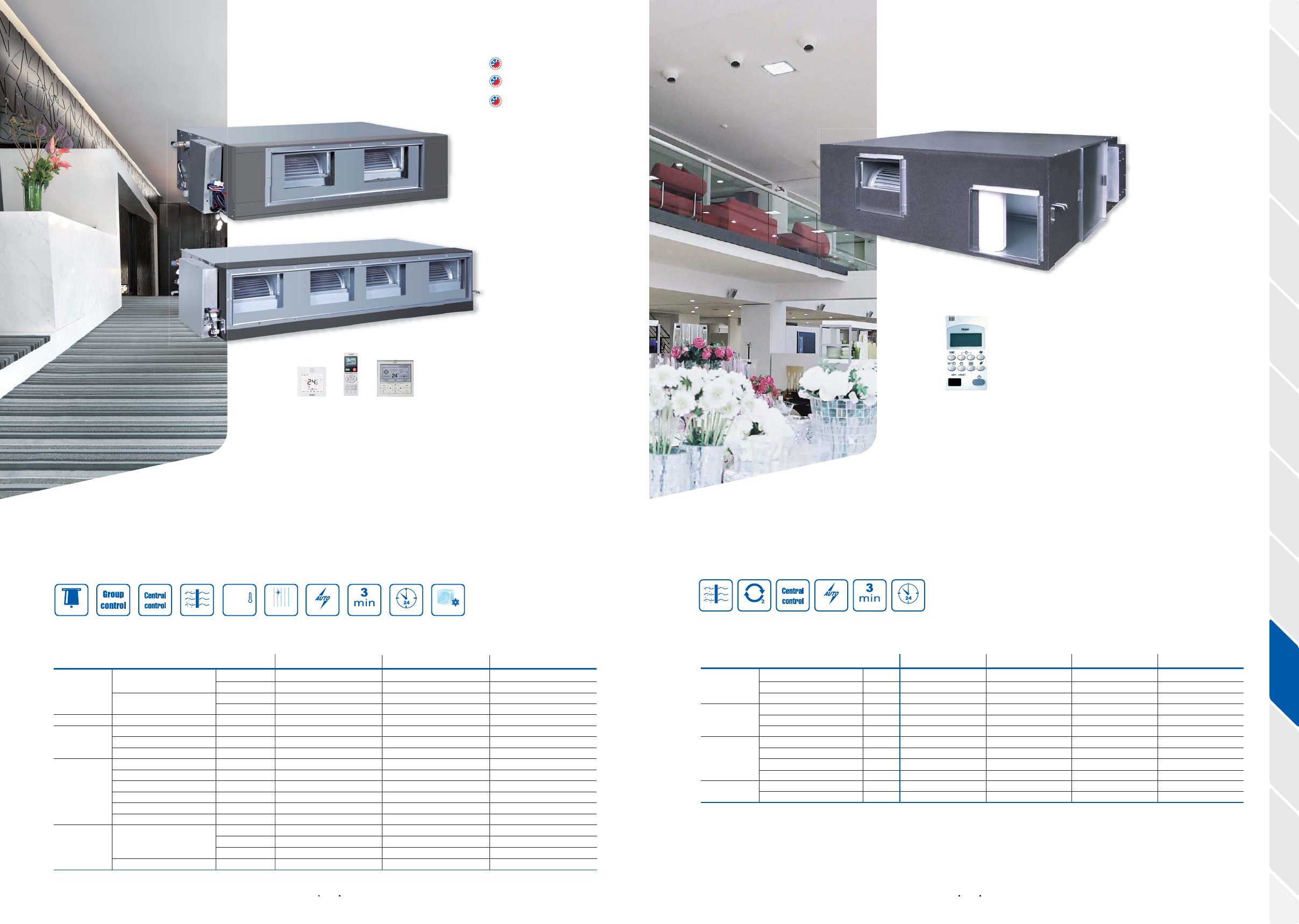

Fresh air duct
HRV (Heat Reclaim
Ventalation)
(ERV0150/0260/
0800/1000ANN)
800m
3
/h
1000m
3
/h
150m
3
/h
260m
3
/h
AD*MPERA

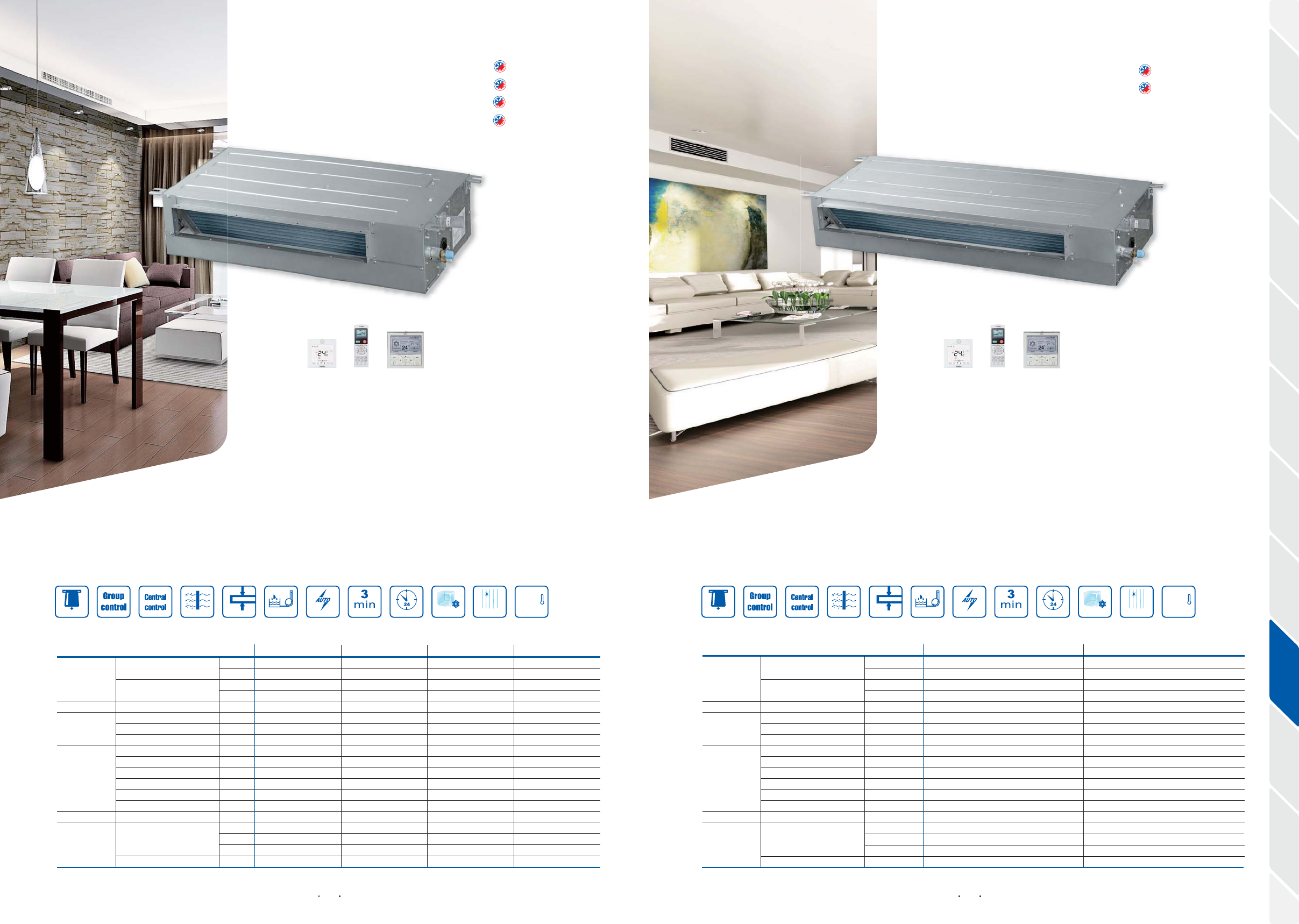

Convertible

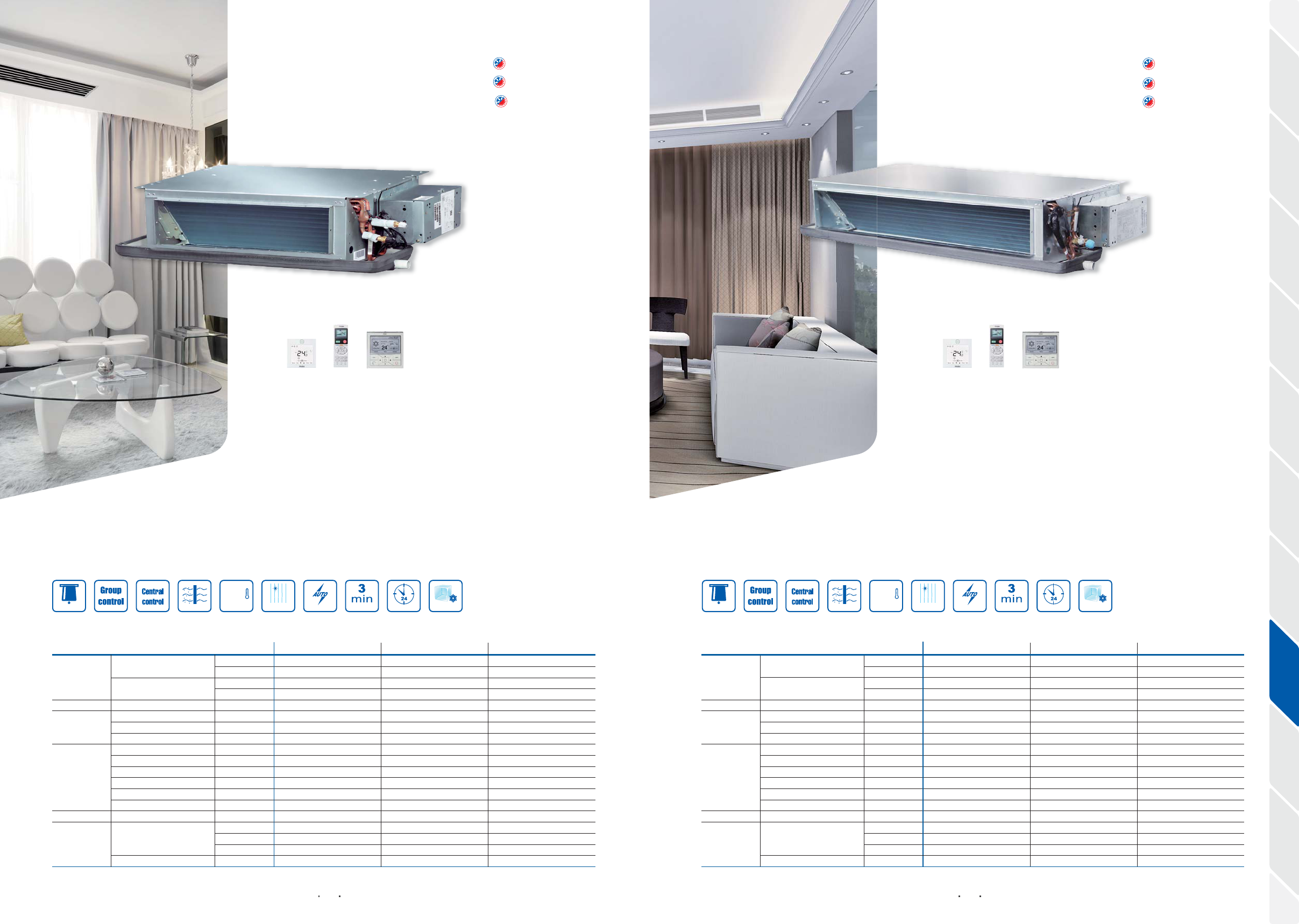

Middle ESP duct(50Pa)
Medium ESP duct
(80Pa)

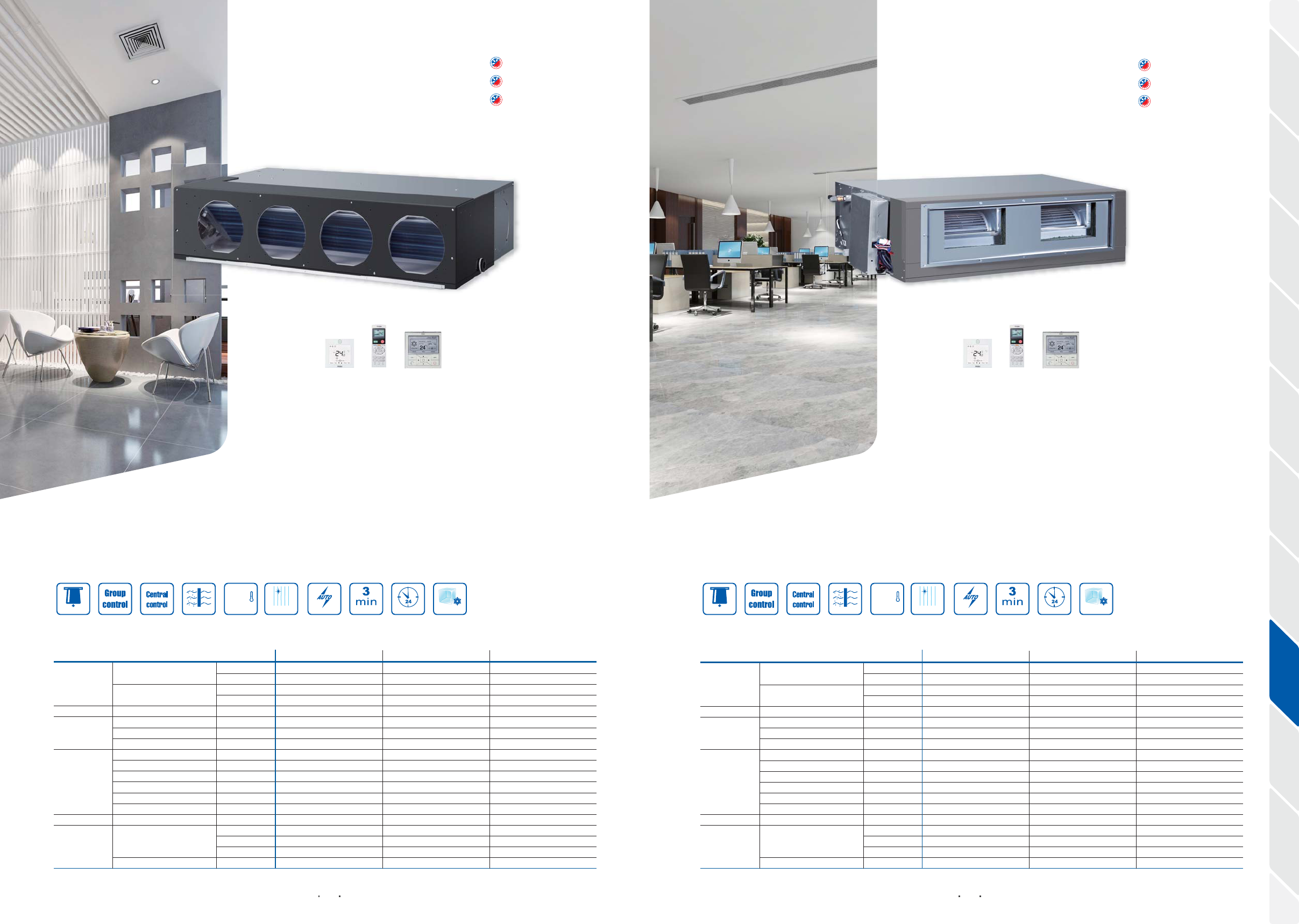

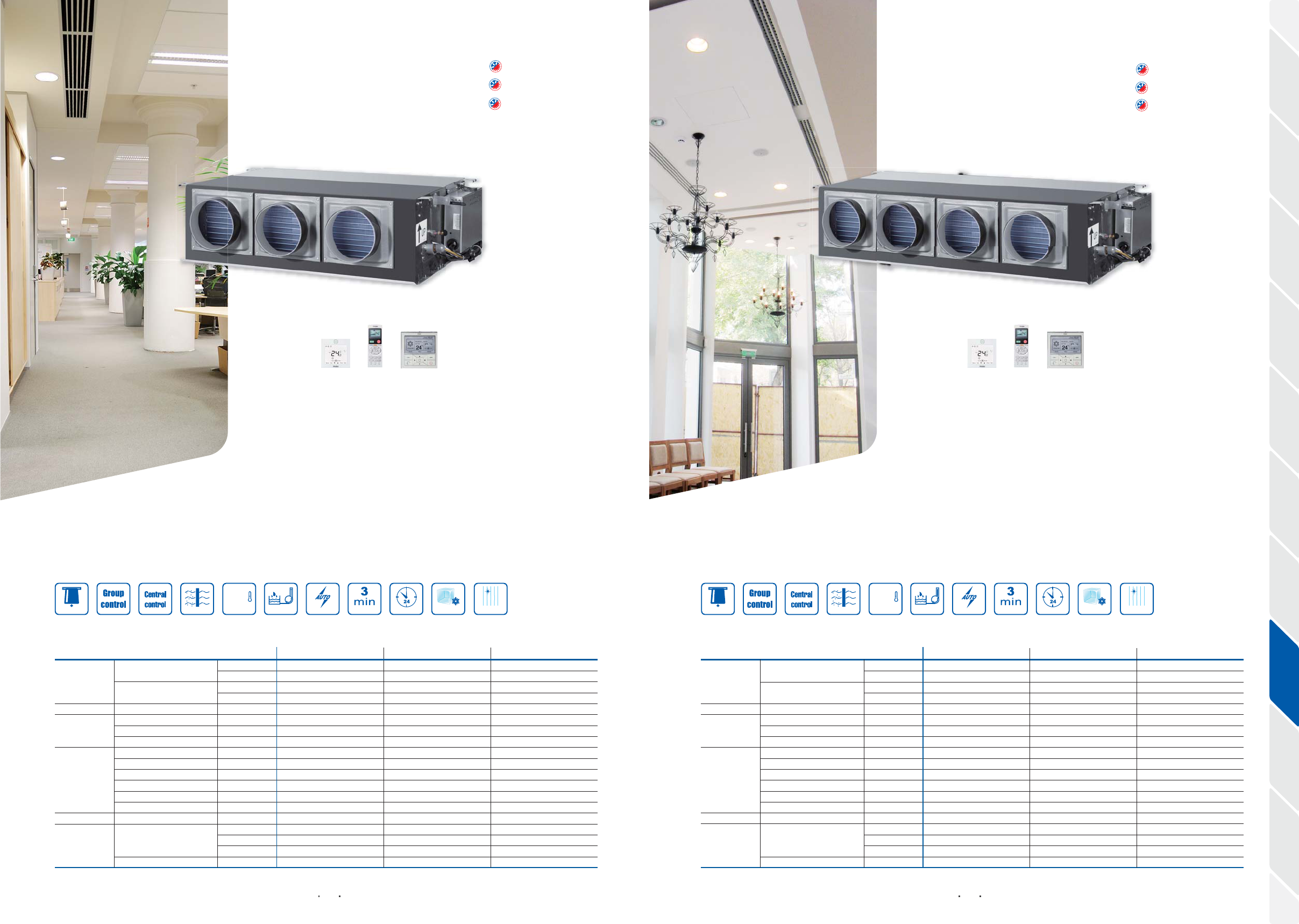

High ESP duct
Builit-in floor
standing
AC**2MCERA
AC**2MFERA
AD**2MMERA
AD**2MNERA
AD**2MHERA
AE**2MLERA
Low ESP duct(20Pa) AD**2MLERA
Slim ESP duct(30Pa) AD**2MSERA
Series
Kw
2.2 2.8 3.6 4.5 5.6 7.1 8 9 11.2 14 22.6 28
7 9 12 16 18 24 28 30 38 48 72 96
KBTU/h
009 010
PRODUCT LINE-UP
013
023
Features & Benefits
MRV IV Outdoor
013 014

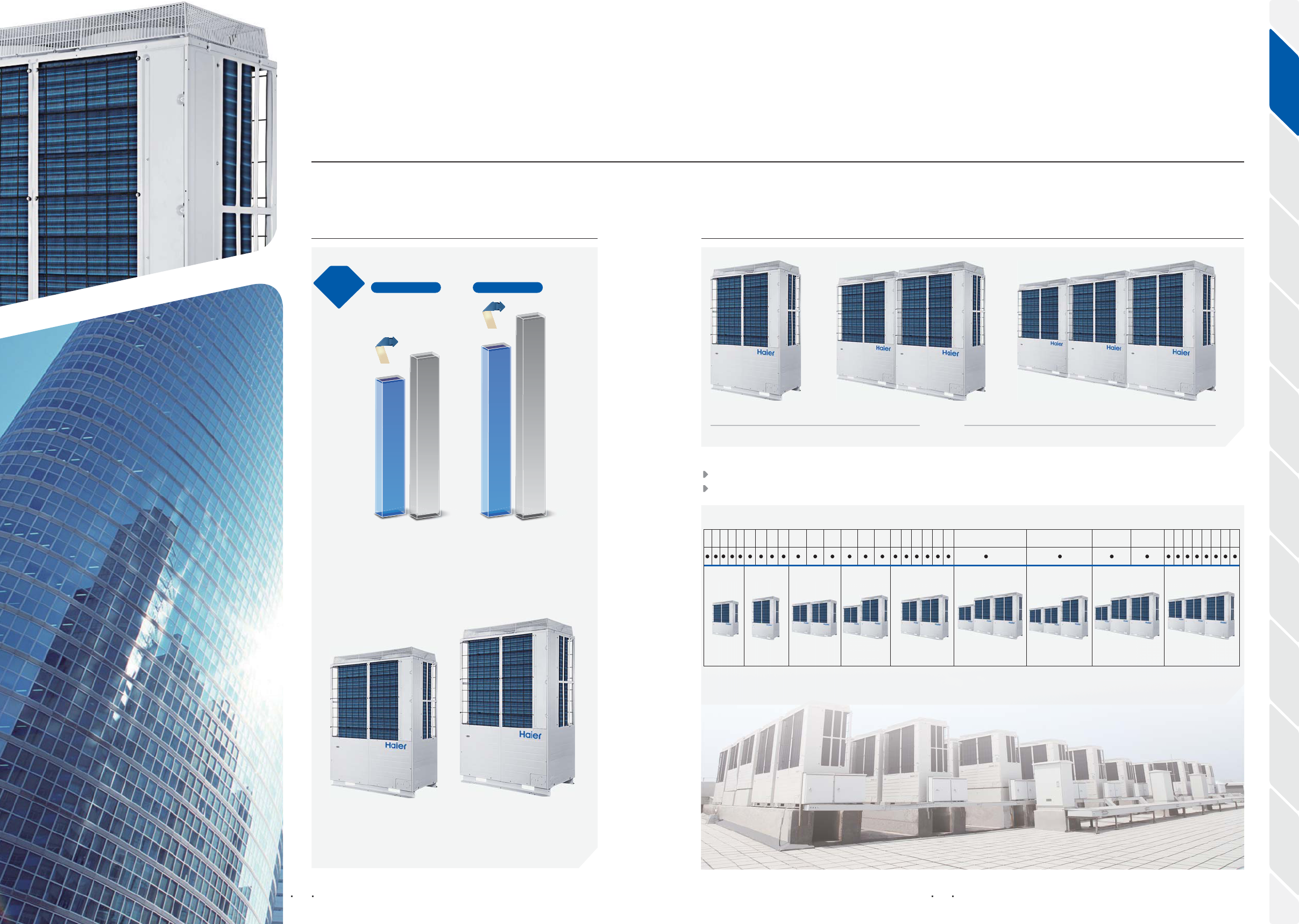

MRV milestones & MRV IV line up
Combination line-up
Max 3 modules combination 72HP, every 2HP one model.
Footprint of 72HP only 2.92m
2
, 50% size reduced
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV IV-C
FEATURES & BENEFITS
Largest capacity single module
MRV milestones & MRV IV line up
24HP
16HP
72HP
48HP
1 Unit Capacity Combinations
24
HP
MRV III
MRV IV
MRV III
MRV IV
Single module line-up
Capacity
Capacity
18,20,22,24HP8,10,12,14,16HP
8~72HP
8 10 12 14 16 50 52 54 56 58 60 62 64 66 68 70 72
38 40 42 44 46 4832 34 3626 28 3018 20 22 24

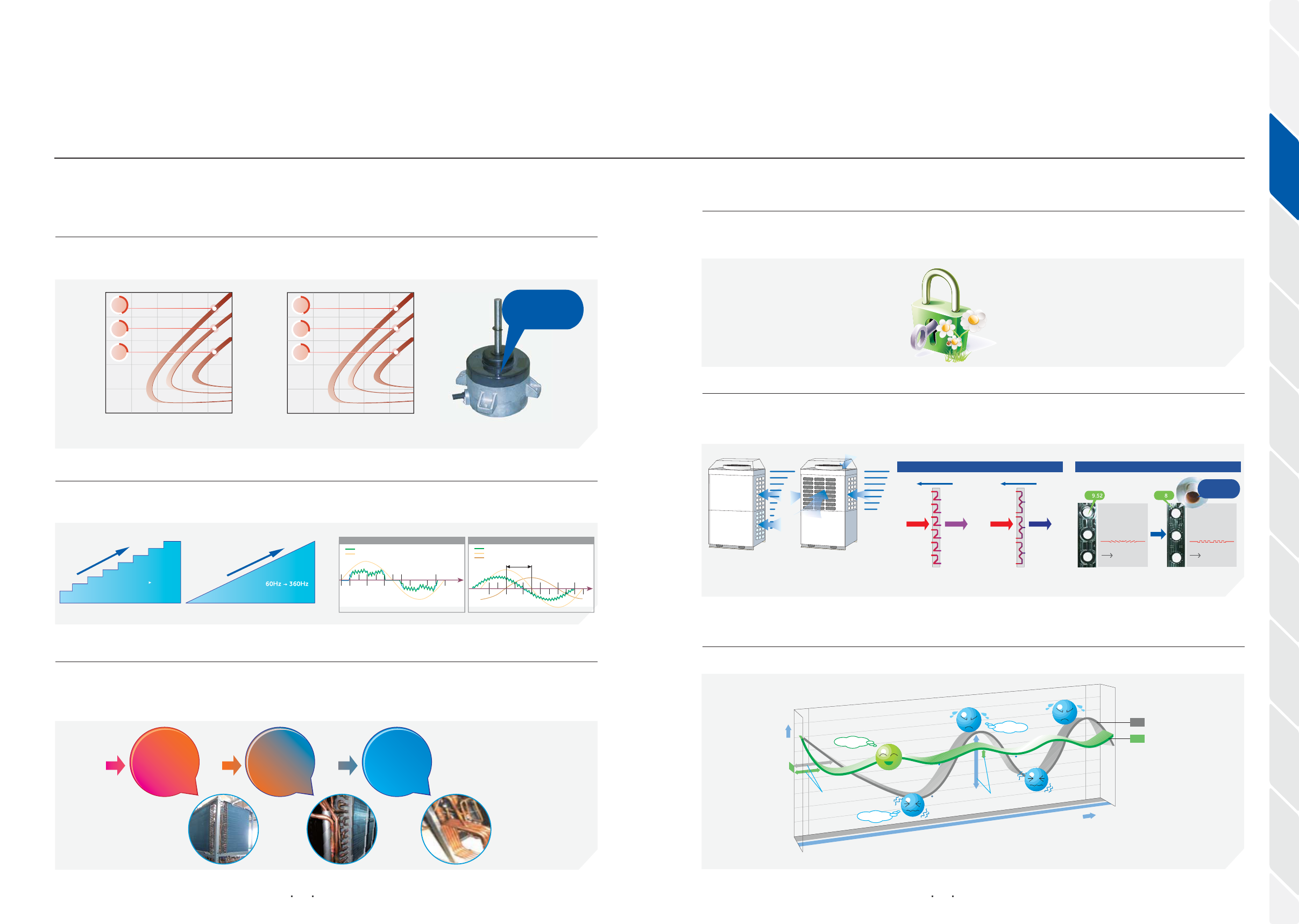

Full DC Inverter High Efficiency
Full DC inverter technology
Full new outlook, full DC inverter technology key parts
IPLV(c) up to 8.2, average IPLV(c) up to 7.7, low running cost
Full DC Inverter technology
Key parts to support full DC inverter technology
High efficiency
1
2
3
015 016

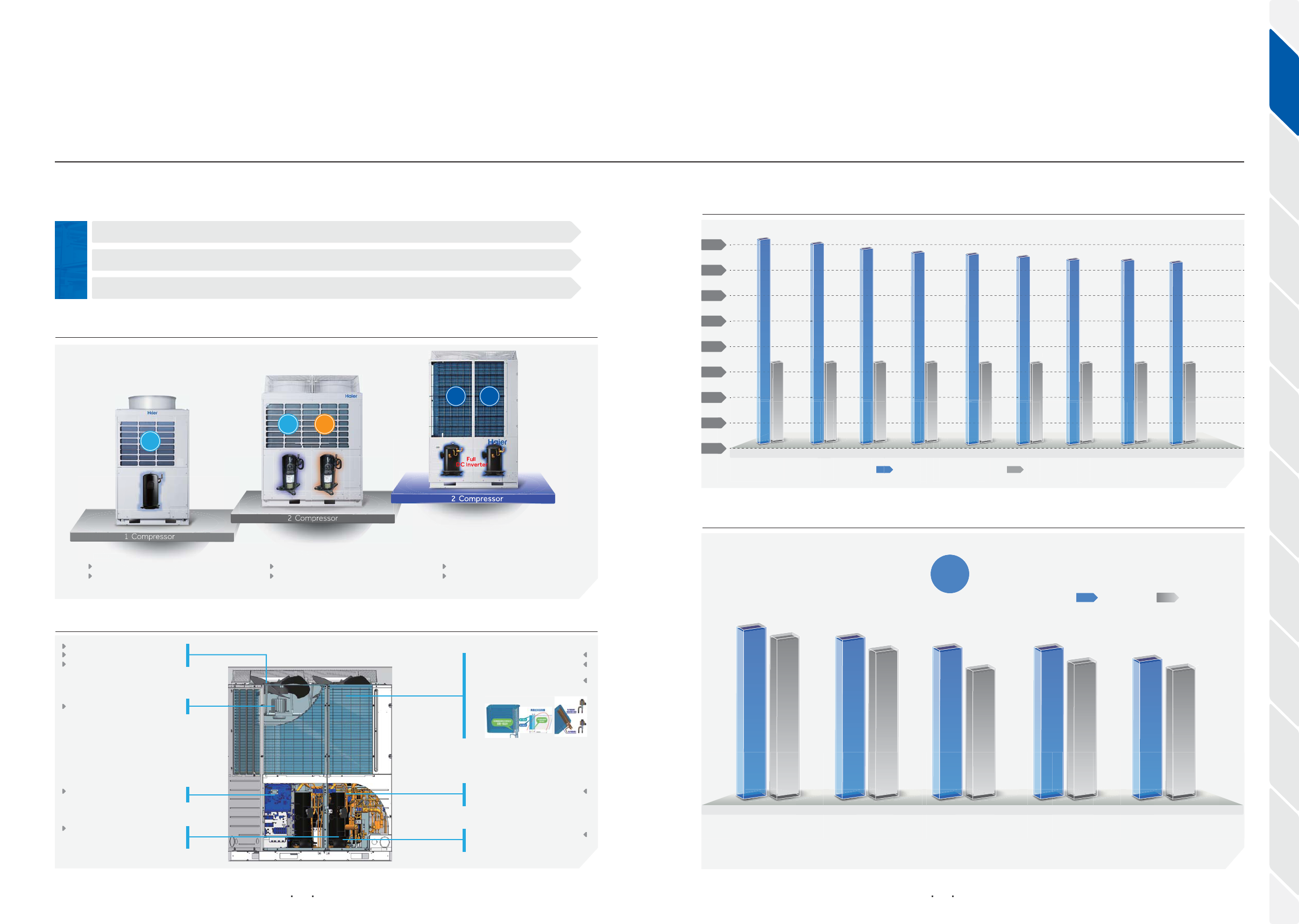

Higher energy efficiency than MRV III
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
1 Compressor
1 Compressor
2 Compressor
2 Compressor
2 Compressor
2 Compressor
MRV II-C
One Compressor
DC INVERTER x 1
MRV III-C
Two Compressor
One DC INVERTER compressor
+ One Fixed Speed comp ressor
MRV IV-C(16-24HP)
Two Compressor
Full DC Inverter x 2
r
r
r
C
2
p
2
2
2
2
2 Com
pre
ssor2 Com
pre
ssor
pp
mm
mpressormpressor
2Com2Com
2 Compressor2 Compressor
2C2C
2C2C
r
r
r
2C
2 Compressor
2
2
2
2
2 Compressor
2 Compressor
pp
pressor
pressor
2Com2Com
2
Com
pre
sso
r
2
Com
pre
sso
r
pp
2 Compressor
2 Comp
2 Compressor
2 Comp
r
r
r
1C
1 Compressor
1
1
1
1
1 Compressor1 Compressor
pp
pressorpressor
1 Comp1 Comp
1
Com
pressor
1
Com
pressor
pp
pre
sso
pre
s
1Com
p
1Com
p
1
Com
pre
sso
1
Com
pre
s
MRV
V II-C
INV INV
+
INV
INV
FIX
+

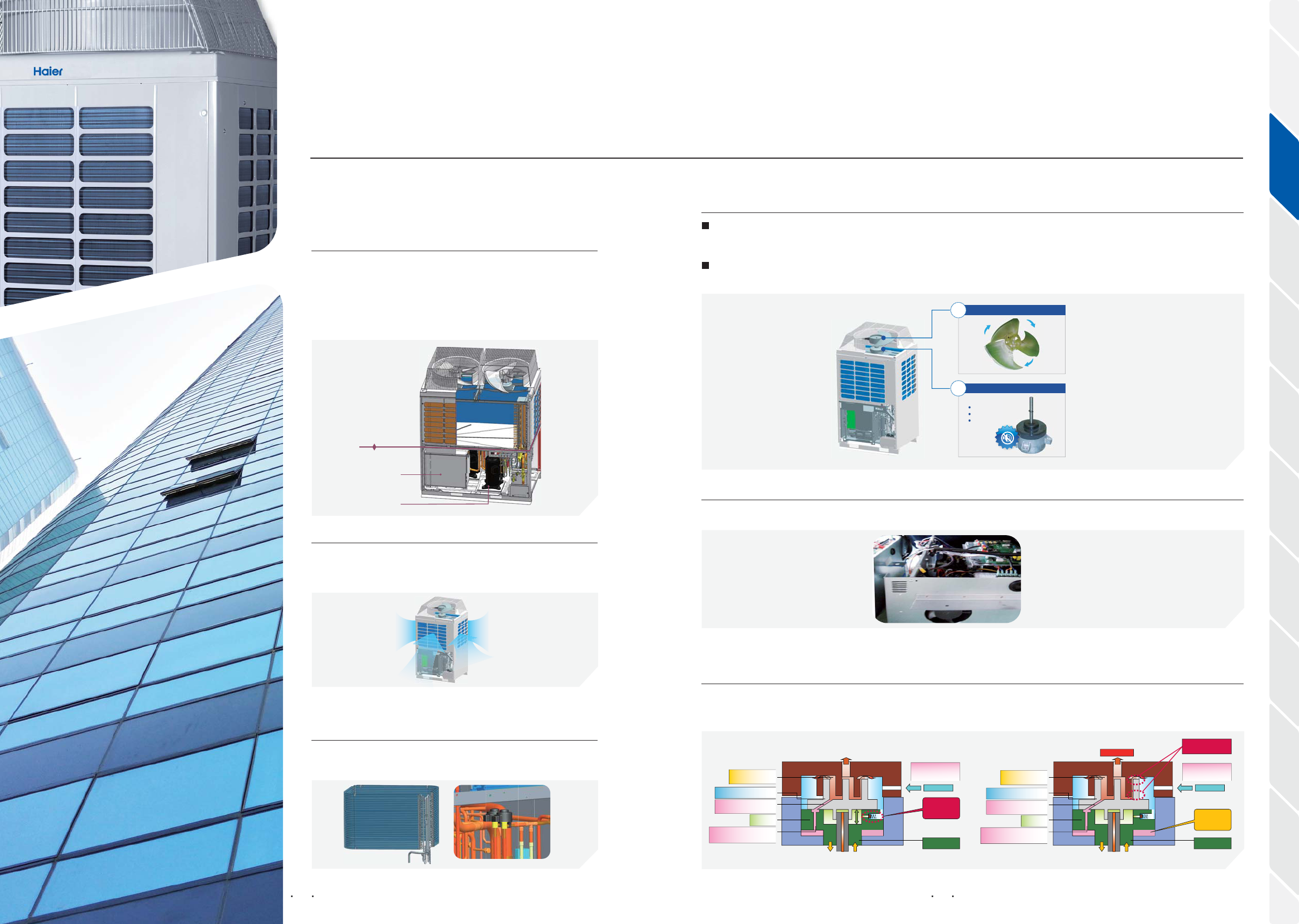

570mm big size, double fan
Zigzag fan, to reduce the air vibration
One-piece streamlined grill
DC fan motor, efficiency 40% enhanced
180 ° vector inverter, efficiency
5% enhanced
Full DC INVERTER scroll compressor,
2 DC inverter compressors
efficiency 5% enhanced
Double oil temperature sensor,
lower standby power consumption
Double Pressure Sensor,
reliable system
Two pieces condenser
Two –stage sub-cooling,
added sub cooler in condenser
Double EEV control
0.00
1.00
2.00
3.00
4.00
5.00
6.00
7.00
8.00
8HP
8.2
3.6 3.6 3.55 3.55 3.55 3.55 3.55 3.55 3.55
8.05
7.9
7.8
7.75
7.7
7.65
7.55
7.45
China national standard : Grade 1MRV IV
10HP 12HP 14HP 16HP 18HP 20HP 22HP 24HP
8H
HP
10
1
P
0H
P
2
12
2HP
V
14
MRV
IV
1
P
HP
16
1
P
6HP
C
8
C
18
n
Chi
n
8H
P
ta
20
n
a
nat
ion
al
st
2
da
P
a
nd
HP
1
2
a
rd
: G
rad
e
HP
1
2
2
H
P
4
HP
P
2
EER MRV IV
4.35
4.29
4.00
3.80
3.90 3.35 3.90
3.51
3.78
3.36
EER MRV III
8HP 10HP 12HP 14HP 16HP
MRV IV MRV III
VS
8HP
10HP
12
HP
1
4
H
P
1
6
H
P
Largest capacity single module in the industry: 24HP ,
Smallest footprint in the industry : 0.97m2
82Pa ESP, Long air duct connecting available
Easy Installation
Largest capacity single module, smallest footprint
Long pipe length, high height drop
High outdoor ESP
1
2
3
017 018
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
VS
24HP Other Brand
All the outdoor with same bottom size Footprint 41% reduced. Smallest in the industry
MRV IV
41%
MRV IV
30%
0.97m
2
1.66m
2
1350mm
2170mm
765mm
930mm 1240mm
720mm
Footprint of 72HP only 2.92m
2
, 30% size reduced
Long pipe length, high height drop
*
1
*
2
*
3 Need contact your local distributor/dealer for individual design.
Max. pipe length 1000m Standard 500m
Max. Single pipe length
165m (equivalent pipe 190m)
Max.Height drop between ID and OD
Max.110m/90m Standard 50m/40m
Max height drop between ID
Max 30m ( Standard 18m)
*
1
*
2
*
3
82Pa
Up to 82 Pa outdoor ESP
Longer air duct connecting available
MRV IV
Max.
total pipe length
1000m
110m
30m

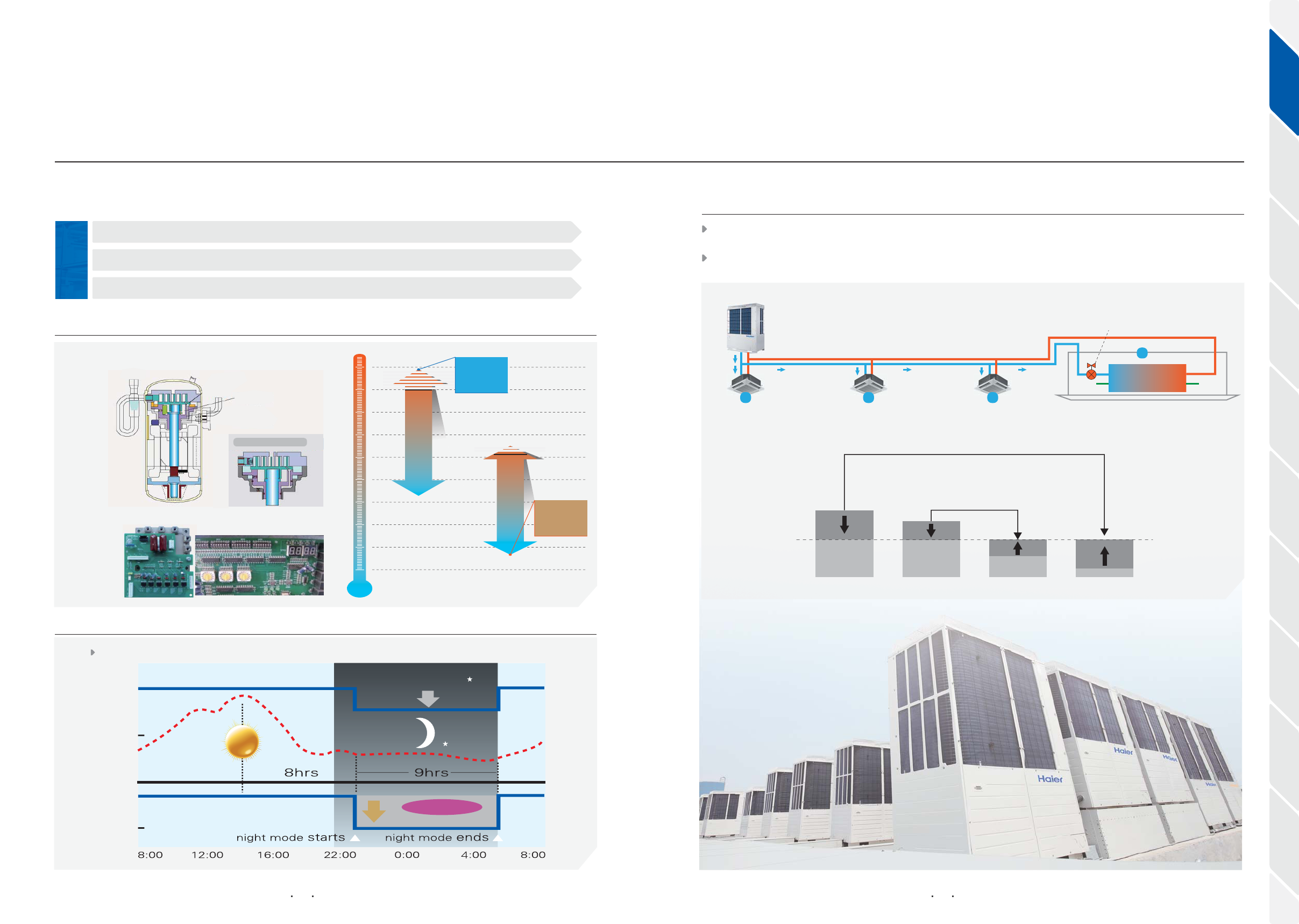

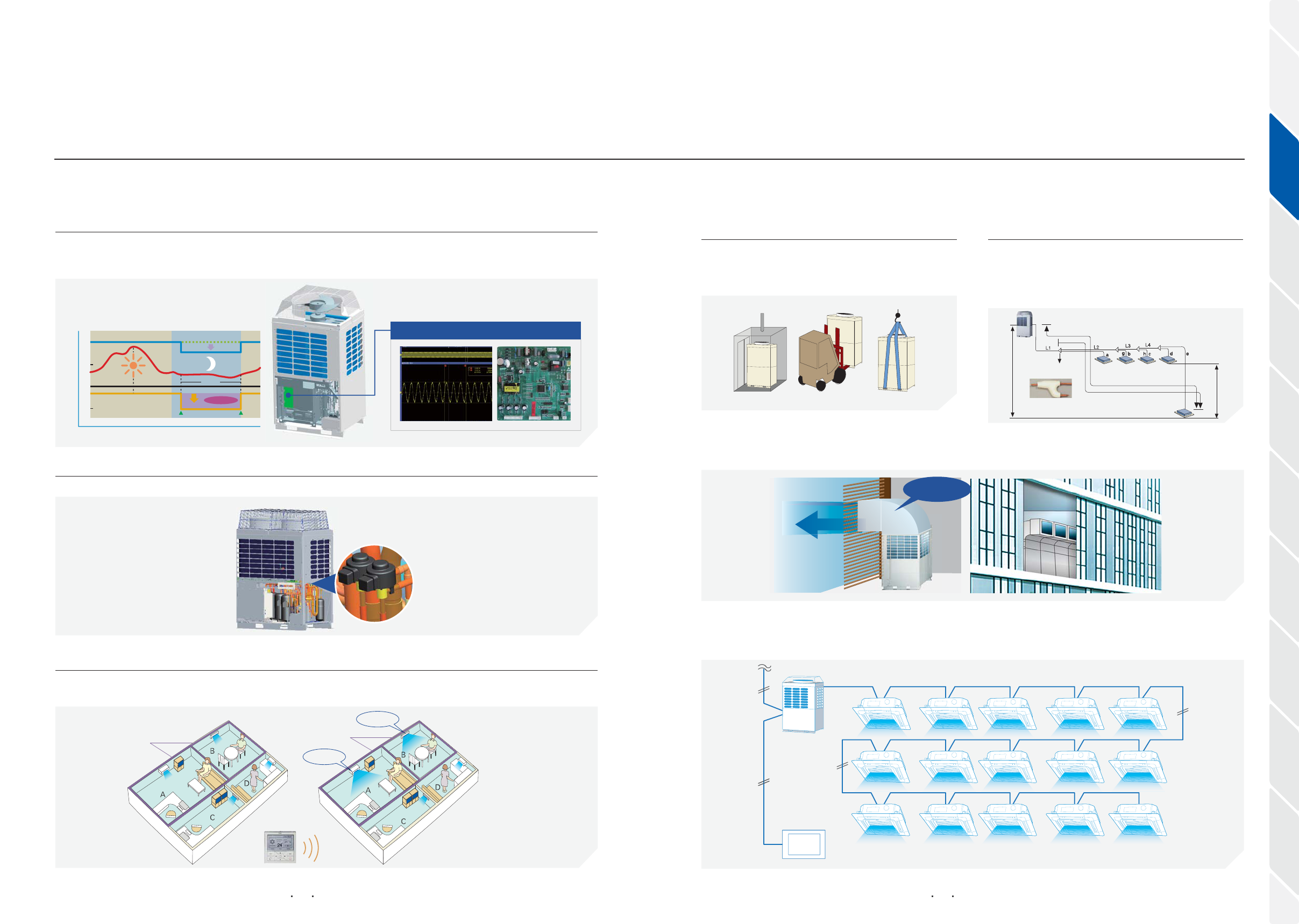

Wide operation range, -23°C heating, 53°C cooling
Optimal Temperature Control
Low noise and night silent running
Wide operation range
Low noise, night silent running
Optimal temperature control
1
2
3
Comfort
When a multiple number of indoor units are connected, an insufficient or excess amount of refrigerant may be supplied
to indoor units depending on the difference in length of the piping connection from outdoor units
Optimal refrigerant control uses the indoor coil temperature to detect the air conditioning status of each indoor unit
and control the capacity(refrigerant amounts) very precisely
019 020
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
Precise
control
Tech.
Full DC
Inverter
Comp.
Inner structure
Discharge
Suction
-30
-20
-10
0
10
20
30
Cooling range Heating range
23°C
-23°C
-5°C
53°C
40
50
55
-23°C
Heating in very
cold area
53°C
Cooling in very
hot area
50~53°C operation intermittently
21~23°C operation intermittently
Peak in the outdoor temperature
100
Night mode
25
0
52
44
Capability%Temperature(°C)Operation dB(A)
lower 8dB
(
A
)
than norma
l
8dB/A noise will be reduced if night silent mode starts.
Outdoor unit
Indoor unit
Pulse motor valve
Refrigerant
sensor(In)
Refrigerant
sensor(Out)
Target capacityCapacity
TC2 TC1
A B C
D
Heat
exchander
The surplus
represented by (A) is
diminished.
The surplus
represented by (A) is
diminished and the
deficiency represented
by (D) is compensated
for.
The surplus represented by (B) is diminished
and the deficiency represented by (C) is
compensated for.

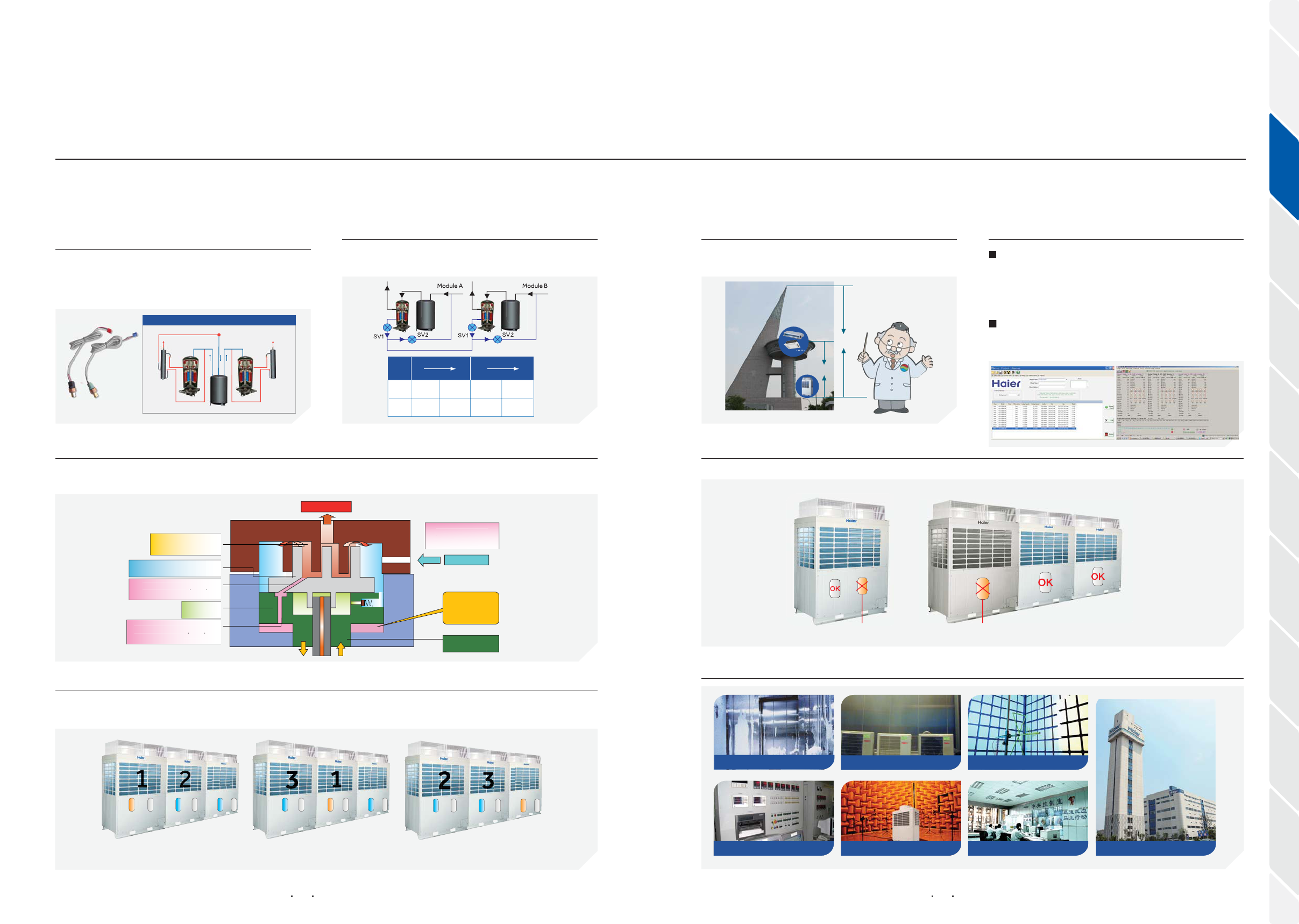

Cloud Service
1
Recycling operation
2 stage oil return
Oil temperature sensor
1
2
3
Double Pressure sensor
Thunder Protection
4
5
High Reliability
Cloud Service Platform
Base on the basic gas discharge sensor, MRV IV add the oil temperature sensor at the bottom of compressor.
Compressor double protection
Cloud Service

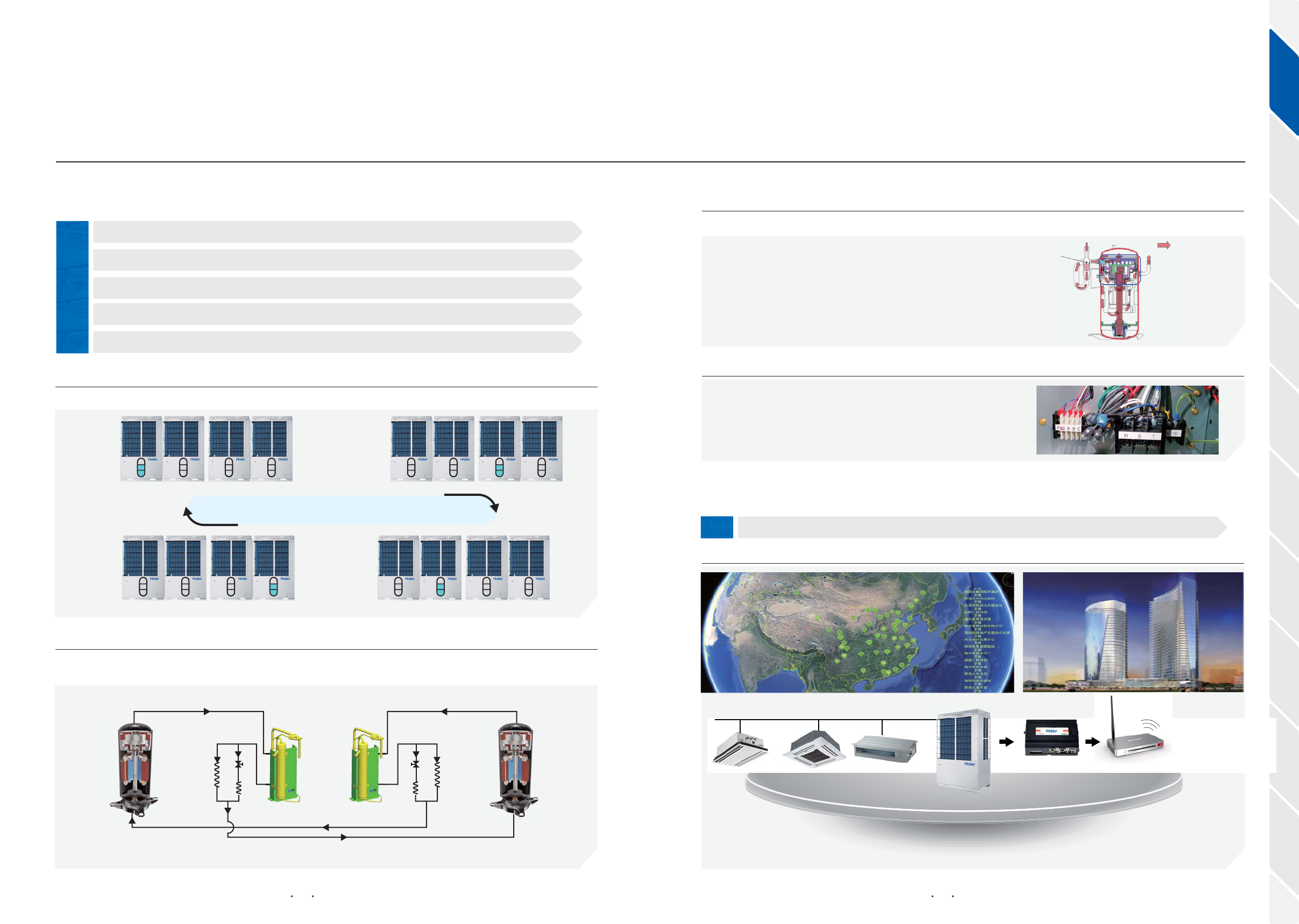

Recycling operation
Recycling operation, longer life of compressor
021 022
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
AB CD AB CD
AB CDAB CD
Average operation time
Comparing with x speed + inverter system, longer life
Group 1
Group 2
Oil Return
If the compressor operate at low frequency,oil return is only through the capillary. If the compressor operate at high
frequency,oil return is through the capillary and magnetic valve.
First stage
oil separator
First stage
oil separator
Discharge
SuctionCompressor 1
Magnetic
valve
Magnetic
valve
Oil separator 1
Oil separator 2
Capillary
Capillary
Compressor 2Suction
Discharge
Gas suction
With the oil temperature sensor
•Control the on/off of heater of compressor, preventing from the
liquid shock of compressor
•Judge if the liquid refrigerant enter into the compressor
•Compressor oil sub heating protection.
•High pressure sensor for every compressor so for the module with 2
compressors ,there are 2 high pressure sensors and 1 low pressure
sensors, total 3 sensors
n
Gas discharge
Gas flow

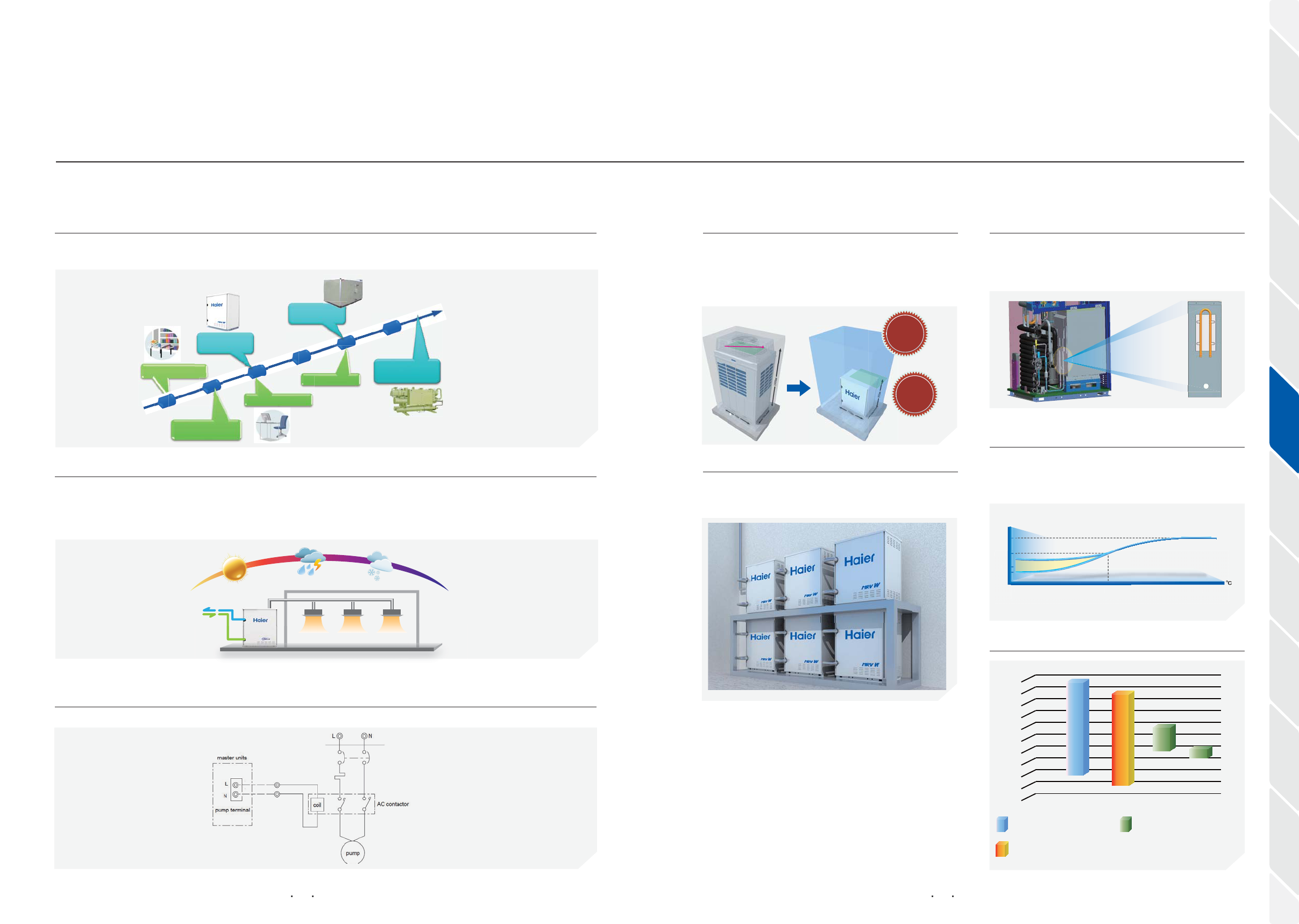

There are electricity discharge wire in the terminal block, to lead the
abnormal voltage into the earth, then to prevent the thunder affect.
Thunder protection
•7*24 on-line service
•Intelligent service failure remind, maintenance mind information
•Energy saving real-time data saving, provide energy saving solution according to data analysis.
emind, maintenance mind information
de energy saving solution a
Oil
separator
1
Ol

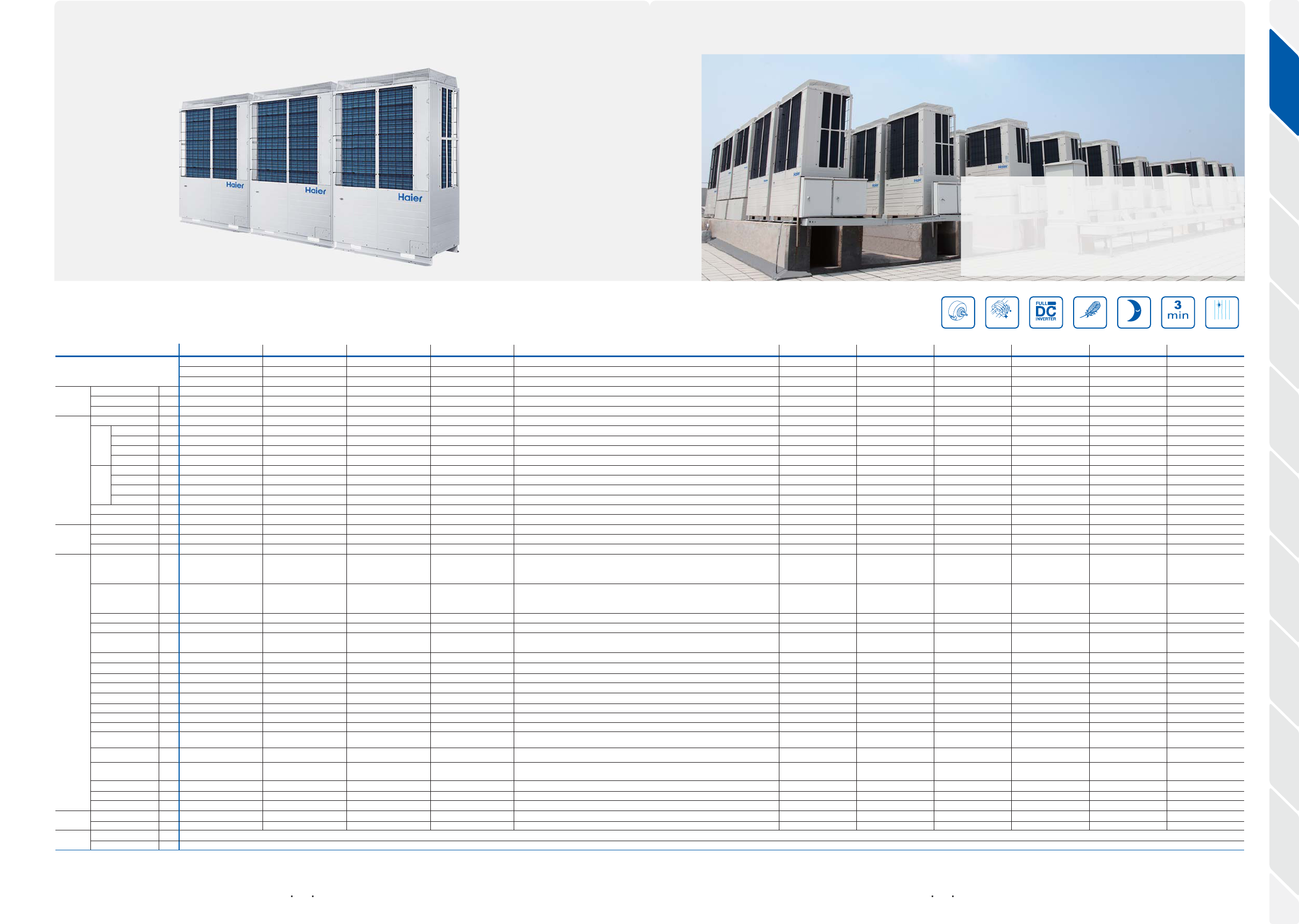

* All the specifications are tested under nominal condition(in cooling, indoor temp. is 27 DB/19 WB;Outdoor temp 35 DB/24WB;in heating, indoor temp.is 20 DB,in heating, outdoor temp.is 7 DB/6 WB)
If the total pipe length to all the indoor units is between 500~1000m, you MUST contact your local distributor/dealer for individual design and separate order.
Standard design and production in the factory.
If the height difference between the outdoor and the indoor units is from 50 to 110m, you MUST contact your local distributor/dealer for individual design and production.
Max.total pipe length *1
Standard total pipe length *2
Max drop between I.U.&O.U *3
023 024
Standard drop between I.U.&O.U *4
Max drop between I.U. *5
Standard drop between I.U. *6
Standard design and production in the factory.
If the height difference between the indoor units is from 18 to 30m, you MUST contact your local distributor/dealer for individual design and production.
Standard design and production in the factory.

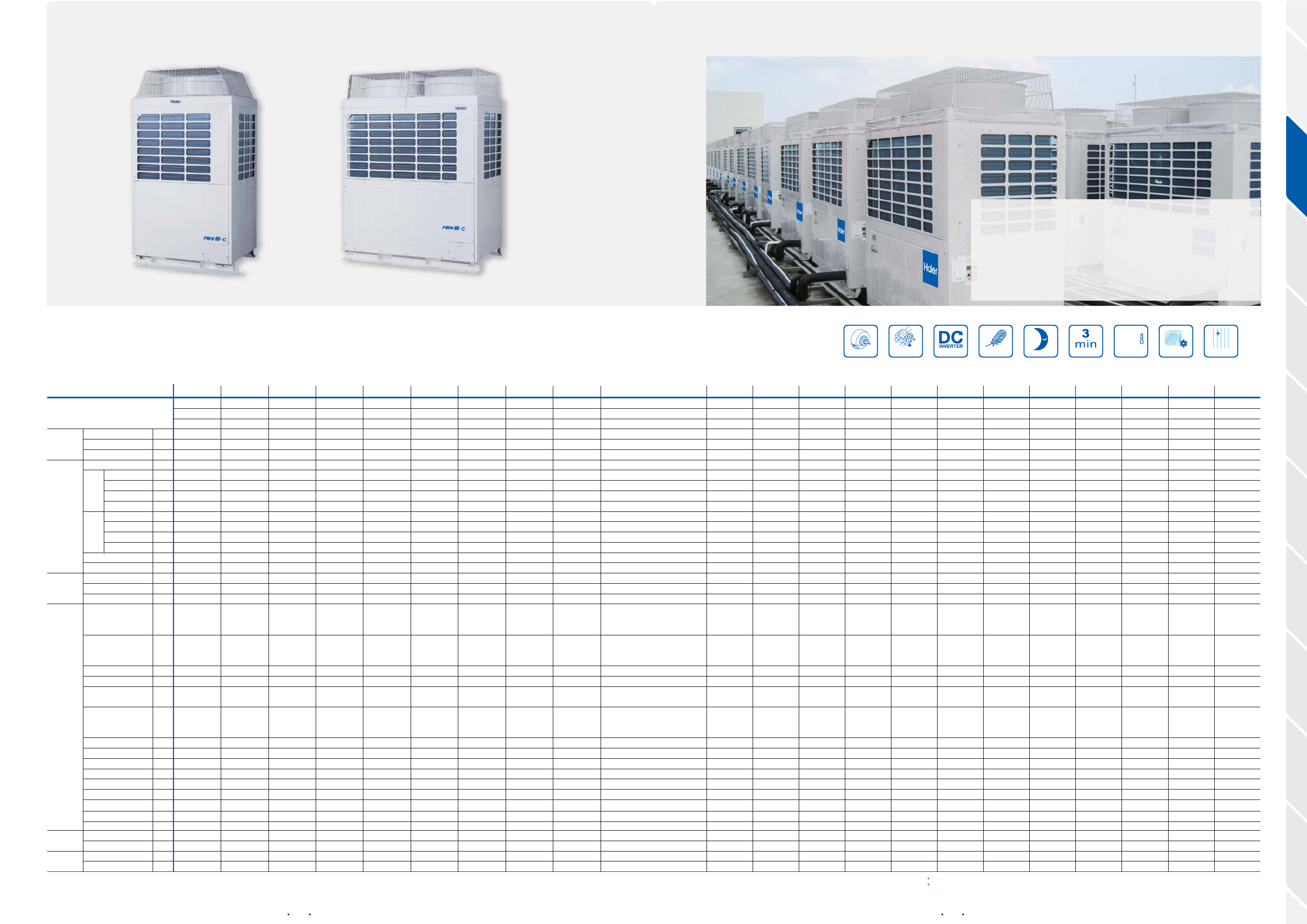

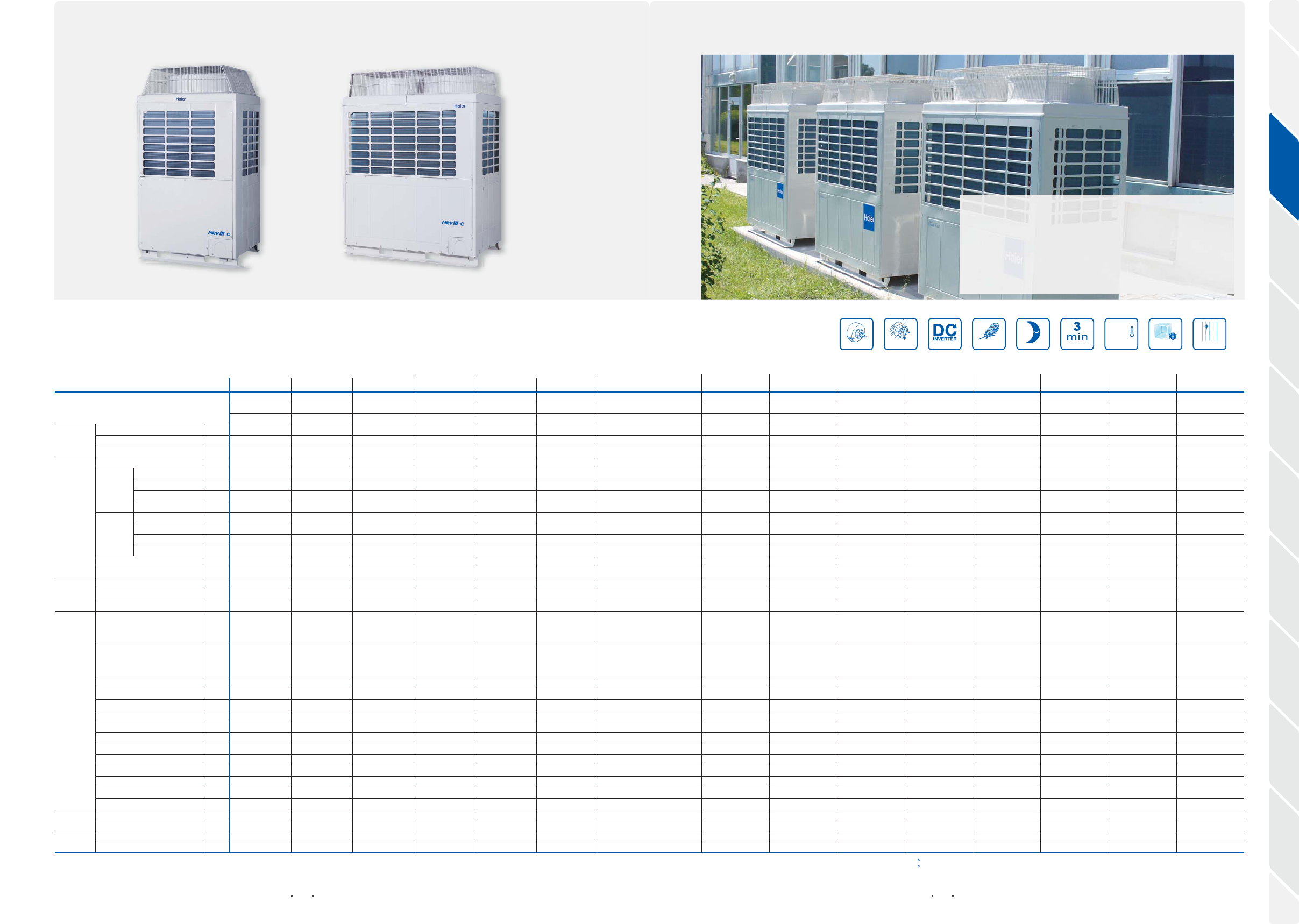

AV26NMMEUA AV28NMMEUA AV30NMMEUA AV32NMMEUA AV34NMMEUA AV36NMMEUA AV38NMMEUA AV40NMMEUA AV42NMMEUA AV44NMMEUA AV46NMMEUA AV48NMMEUA
Model
AV08NMMEUA
AV10NMMEUA
AV12NMMEUA
AV14NMMEUA
AV16NMMEUA
AV18NMMEUA
AV20NMMEUA
AV22NMMEUA
AV24NMMEUA
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
m
m
m
m
Pa
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling Rated power input
Max power input
Rated current
Max current
Heating Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Max.total pipe length *1
Standard total pipe length *2
Max. pipe length
(Equivalent/Actual)
Max drop between I.U.&O.U
( O.U up/down) *3
Standard drop
between I.U.&O.U
*4
Max drop between I.U *5
Standard drop between I.U *6
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
/
/
/
24
68
73
3/380~400/50/60
19.71
37.47
32.55
60.45
19.47
28.62
32.15
47.4
3.45
3.75
C
:
16200/H
:
15000
63
80
1350×720×2048
1450×826×2225
359/384
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
49
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
/
/
/
10
28
31.5
3/380~400/50/60
7.00
14.38
11.56
23.68
7.08
13.23
11.69
21.79
4.00
4.45
C:15000/H:13200
57
73
1350×720×1690
1450×826×1885
276/301
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV
R410A
9.7
9.52
22.22
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
20
/
/
/
8
25.2
27.3
3/380~400/50/60
5.79
14.02
9.57
23.09
6.00
12.72
9.91
20.95
4.35
4.55
C:15000/H:13200
57
73
1350×720×1690
1450×826×1885
276/301
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV
R410A
9.7
9.52
19.05
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
18
/
/
/
12
33.5
37.5
3/380~400/50/60
8.59
14.73
14.19
25.1
8.72
13.68
14.40
22.1
3.90
4.30
C
:
15000/H
:
13200
59
75
1350×720×1690
1450×826×1885
276/301
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV
R410A
9.7
12.7
25.4
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
24
/
/
/
14
40
45
3/380~400/50/60
10.26
16.91
16.94
28.4
10.71
15.60
17.69
25.2
3.90
4.20
C
:
15000/H
:
13200
59.5
76
1350×720×1690
1450×826×1885
279/304
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
29
/
/
/
16
45
50
3/380~400/50/60
11.90
22.68
19.66
36.8
12.05
17.20
19.90
27.88
3.78
4.15
C
:
15600/H
:
14400
61
77
1350×720×1690
1450×826×1885
321/346
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
33
/
/
/
18
50.4
56.5
3/380~400/50/60
13.62
22.10
22.50
36.15
13.95
22.68
23.04
37.8
3.70
4.05
C
:
16200/H
:
15000
62
79
1350×720×2048
1450×826×2225
335/360
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
37
/
/
/
20
56
63
3/380~400/50/60
15.56
25.19
25.69
41.1
15.95
25.19
26.34
42
3.60
3.95
C
:
16200/H
:
15000
62
79
1350×720×2048
1450×826×2225
335/360
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
41
/
/
/
22
61.5
69
3/380~400/50/60
17.57
30.56
29.02
49.65
18.16
27.72
29.99
46.05
3.50
3.80
C
:
16200/H
:
15000
62
79
1350×720×2048
1450×826×2225
359/384
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
45
AV12NMMEUA
AV14NMMEUA
26
73.5
82.5
3/380~400/50/60
18.85
31.64
31.12
53.5
19.44
29.28
32.10
47.3
3.90
4.24
C
:
30000/H
:
26400
62
79
1350×720×1690
+1350×720×1690
1450×826×1885
+1450×826×1885
276/301+279/304
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV+1INV
R410A
19.7
15.88
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
53
AV14NMMEUA
AV14NMMEUA
28
80
90
3/380~400/50/60
20.51
33.81
33.88
56.8
21.43
31.20
35.39
50.4
3.90
4.20
C
:
30000/H
:
26400
62.5
80
1350×720×1690*2
1450×826×1885*2
279/304*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV*2
R410A
20
15.88
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
58
AV14NMMEUA
AV16NMMEUA
30
85
95
3/380~400/50/60
22.16
39.59
36.60
65.2
22.76
32.80
37.59
53.08
3.84
4.17
C
:
30600/H
:
27600
63
80
1350×720×1690
+1350×720×1690
1450×826×1885
+1450×826×1885
279/304+321/346
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV+2INV
R410A
20
15.88
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
62
AV14NMMEUA
AV18NMMEUA
32
90.4
101.5
3/380~400/50/60
23.88
39.00
39.43
64.55
24.66
38.28
40.73
63
3.79
4.12
C
:
31200/H
:
28200
64
81
1350×720×1690
+1350×720×2048
1450×826×1885
+1450×826×2225
279/304+335/360
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV+2INV
R410A
20
15.88
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV16NMMEUA
AV18NMMEUA
34
95.4
106.5
3/380~400/50/60
25.53
44.78
42.16
72.95
26.00
39.88
42.94
65.68
3.74
4.10
C
:
31480/H
:
29400
64.5
82
1350×720×1690
+1350×720×2048
1450×826×1885
+1450×826×2225
321/346+335/360
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV
R410A
20
15.88
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV16NMMEUA
AV20NMMEUA
36
101
113
3/380~400/50/60
27.46
47.87
45.35
77.9
28.00
42.39
46.24
69.88
3.68
4.04
C
:
31480/H
:
29400
64.5
82
1350×720×1690
+1350×720×2048
1450×826×1885
+1450×826×2225
321/346+335/360
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV
R410A
20
15.88
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV18NMMEUA
AV20NMMEUA
38
106.4
119.5
3/380~400/50/60
29.18
47.28
48.19
77.25
29.90
47.87
49.38
79.8
3.65
4.00
C
:
32400/H
:
30000
65
83
1350×720×2048
+1350×720×2048
1450×826×2225
+1450×826×2225
335/360+335/360
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV
R410A
20
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV20NMMEUA
AV20NMMEUA
40
112
126
3/380~400/50/60
31.11
50.37
51.38
82.2
31.90
50.37
52.68
84
3.60
3.95
C
:
32400/H
:
30000
65
83
1350×720×2048*2
1450×826×2225*2
335/360*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*2
R410A
20
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV20NMMEUA
AV22NMMEUA
42
117.5
132
3/380~400/50/60
33.13
55.75
54.71
90.75
34.11
52.91
56.33
88.05
3.55
3.87
C
:
32400/H
:
30000
65
83
1350×720×2048
+1350×720×2048
1450×826×2225
+1450×826×2225
335/360+359/384
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV
R410A
20
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV20NMMEUA
AV24NMMEUA
44
124
136
3/380~400/50/60
35.27
62.66
58.24
101.55
35.42
53.81
58.49
89.4
3.52
3.84
C
:
32400/H
:
30000
65.5
83
1350×720×2048
+1350×720×2048
1450×826×2225
+1450×826×2225
335/360+359/384
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV
R410A
20
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV22NMMEUA
AV24NMMEUA
46
129.5
142
3/380~400/50/60
37.28
68.03
61.57
110.1
37.62
56.34
62.14
93.45
3.47
3.77
C
:
32400/H
:
30000
65.5
83
1350×720×2048
+1350×720×2048
1450×826×2225
+1450×826×2225
359/384+359/384
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV
R410A
20
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV24NMMEUA
AV24NMMEUA
48
136
146
3/380~400/50/60
39.42
74.94
65.10
120.9
38.93
57.24
64.30
94.8
3.45
3.75
C
:
32400/H
:
30000
66
84
(1350×720×2048)*2
(1450×826×2225)*2
(359/384)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*2
R410A
20
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
(-5-50)
(-23-21)
(-5-50)
(-23-21)

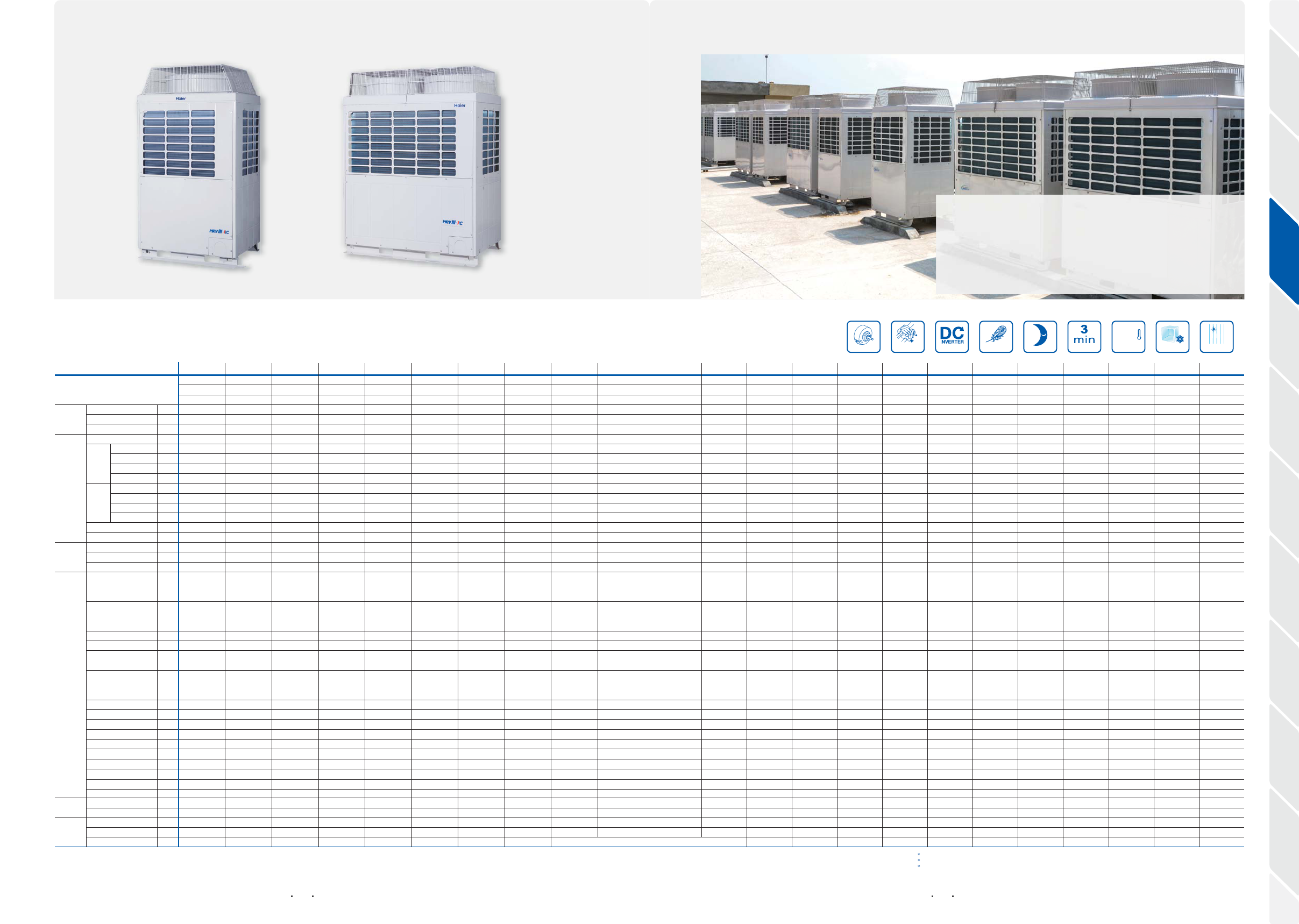

MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
50/60Hz-380~400V-3Ph
8/10/12/14/16HP 18/20/22/24HP
Full DC InverterDC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
•Single Module: 8/10/12/14/16HP,18/20/22/24HP
•Combination Module: 26-72HP, 2-3 modules
•Full DC INVERTER technology
•Max.1000m total pipe length, Max.110m height drop
•Compatible with all the MRV indoor units.
025 026
* All the specifications are tested under nominal condition(in cooling, indoor temp. is 27 DB/19 WB;Outdoor temp 35 DB/24WB;in heating, indoor temp.is 20 DB,in heating, outdoor temp.is 7 DB/6 WB)
If the total pipe length to all the indoor units is between 500~1000m, you MUST contact your local distributor/dealer for individual design and separate order.
Standard design and production in the factory.
If the height difference between the outdoor and the indoor units is from 50 to 110m, you MUST contact your local distributor/dealer for individual design and production.
Max.total pipe length *1
Standard total pipe length *2
Max drop between I.U.&O.U *3
Standard drop between I.U.&O.U *4
Max drop between I.U. *5
Standard drop between I.U. *6
Standard design and production in the factory.
If the height difference between the indoor units is from 18 to 30m, you MUST contact your local distributor/dealer for individual design and production.
Standard design and production in the factory.
Model
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
m
m
m
m
Pa
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling Rated power input
Max power input
Rated current
Max current
Heating Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Max.total pipe length *1
Standard total pipe length *2
Max. pipe length
(Equivalent/Actual)
Max drop between I.U.&O.U
( O.U up/down) *3
Standard drop
between I.U.&O.U
*4
Max drop between I.U *5
Standard drop between I.U *6
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
AV60NMMEUA
AV20NMMEUA
AV20NMMEUA
AV20NMMEUA
60
168
189
3/380~400/50/60
46.67
75.56
77.07
123.3
47.85
75.56
79.02
126
3.60
3.95
C
:
48600/H
:
45000
67
85
(1350×720×2048)*3
(1450×826×2225)*3
(335/360)*3
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*3
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV62NMMEUA
AV20NMMEUA
AV20NMMEUA
AV22NMMEUA
62
173.5
195
3/380~400/50/60
48.68
80.93
80.40
131.85
50.06
78.09
82.67
130.05
3.56
3.90
C
:
48600/H
:
45000
67
85
(1350×720×2048)*2
+(1350×720×2048)
(1450×826×2225)*2
+(1450×826×2225)
(335/360)*2+(359/384)
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*2+2INV
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV64NMMEUA
AV20NMMEUA
AV20NMMEUA
AV24NMMEUA
64
180
199
3/380~400/50/60
50.82
87.84
83.93
142.65
51.37
78.99
84.83
131.4
3.54
3.87
C
:
48600/H
:
45000
67
85
(1350×720×2048)*2
+(1350×720×2048)
(1450×826×2225)*2
+(1450×826×2225)
(335/360)*2+(359/384)
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*2+2INV
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV66NMMEUA
AV20NMMEUA
AV22NMMEUA
AV24NMMEUA
66
185.5
205
3/380~400/50/60
52.84
93.22
87.26
151.2
53.57
81.53
88.48
135.45
3.51
3.83
C
:
48600/H
:
45000
67
85
(1350×720×2048)
+(1350×720×2048)
+(1350×720×2048)
(1450×826×2225)
+(1450×826×2225)
+(1450×826×2225)
(335/360)+(335/360)+(359/384)
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV+2INV
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV68NMMEUA
AV20NMMEUA
AV24NMMEUA
AV24NMMEUA
68
192
209
3/380~400/50/60
54.98
100.13
90.79
162
54.88
82.43
90.64
136.8
3.49
3.81
C
:
48600/H
:
45000
67.5
86
(1350×720×2048)
+(1350×720×2048)*2
(1450×826×2225)
+(1450×826×2225)*2
(335/360)+(359/384)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV*2
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV70NMMEUA
AV22NMMEUA
AV24NMMEUA
AV24NMMEUA
70
197.5
215
3/380~400/50/60
56.99
105.50
94.12
170.55
57.09
84.96
94.29
140.85
3.47
3.77
C
:
48600/H
:
45000
67.5
86
(1350×720×2048)
+(1350×720×2048)*2
(1450×826×2225)
+(1450×826×2225)*2
(335/360)+(359/384)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV*2
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV72NMMEUA
AV24NMMEUA
AV24NMMEUA
AV24NMMEUA
72
204
219
3/380~400/50/60
59.13
112.41
97.65
181.35
58.40
85.86
96.45
142.2
3.45
3.75
C
:
48600/H
:
45000
68
86
(1350×720×2048)*3
(1450×826×2225)*3
(359/384)*3
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*3
R410A
30
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV50NMMEUA
AV14NMMEUA
AV18NMMEUA
AV18NMMEUA
50
140.8
158
3/380~400/50/60
37.50
61.10
61.93
100.7
38.62
60.96
63.77
100.8
3.75
4.09
C
:
44440/H
:
43200
66
84
1350×720×1690
+(1350×720×2048)*2
1450×826×1885
+(1450×826×2225)*2
279/304+(335/360)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1INV+2INV*2
R410A
30
22.22
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV52NMMEUA
AV16NMMEUA
AV16NMMEUA
AV20NMMEUA
52
146
163
3/380~400/50/60
39.37
70.55
65.01
114.7
40.05
59.59
66.14
97.76
3.71
4.07
C
:
44440/H
:
43480
66
84
(1350×720×1690)*2
+(1350×720×2048)
(1450×826×1885)*2
+(1450×826×2225)
(321/346)*2+(335/360)
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV*2+2INV
R410A
30
22.22
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV54NMMEUA
AV16NMMEUA
AV18NMMEUA
AV20NMMEUA
54
151.4
169.5
3/380~400/50/60
41.08
69.96
67.85
114.05
41.95
65.07
69.28
107.68
3.69
4.04
C
:
48000/H
:
44400
66.5
85
(1350×720×1690)
+(1350×720×2048)
+(1350×720×2048)
(1450×826×1885)
+(1450×826×2225)
+(1450×826×2225)
(321/346)+(335/360)+(335/360)
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV+2INV
R410A
30
22.22
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV56NMMEUA
AV16NMMEUA
AV20NMMEUA
AV20NMMEUA
56
157
176
3/380~400/50/60
43.02
73.05
71.04
119
43.95
67.57
72.58
111.88
3.65
4.00
C
:
48000/H
:
44400
66.5
85
(1350×720×1690)
+(1350×720×2048)*2
(1450×826×1885)
+(1450×826×2225)*2
(321/346)+(335/360)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV*2
R410A
30
22.22
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
AV58NMMEUA
AV18NMMEUA
AV20NMMEUA
AV20NMMEUA
58
162.4
182.5
3/380~400/50/60
44.73
72.47
73.88
118.35
45.85
73.05
75.72
121.8
3.63
3.98
C
:
48600/H
:
45000
67
85
(1350×720×2048)
+(1350×720×2048)*2
(1450×826×2225)
+(1450×826×2225)*2
(335/360)+(335/360)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
2INV+2INV*2
R410A
30
22.22
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~160
64
(-5-50)
(-23-21)
(-5-50)
(-23-21)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Full DC InverterDC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
50/60Hz-380~400V-3Ph
72HP
•Single Module: 8/10/12/14/16HP,18/20/22/24HP
•Combination Module: 26-72HP,2-3 modules
•Full DC INVERTER technology
•Max.1000m total pipe length, Max.110m height drop
•Compatible with all the MRV indoor units.
027 028
** All the specifications are tested under nominal condition(in cooling T1, indoor temp. is 27 DB/19 WB;Outdoor temp 35 DB/24WB;in cooling T3, indoor temp. is 27 DB/19 WB;Outdoor temp 46 DB/24WB;in heating, indoor temp.is 20 DB,in heating, outdoor temp.is 7 DB/6 WB)
If the total pipe length to all the indoor units is between 500~1000m, you MUST contact your local distributor/dealer for individual design and separate order.
Standard design and production in the factory.
If the height difference between the outdoor and the indoor units is from 50 to 110m, you MUST contact your local distributor/dealer for individual design and production.
Max.total pipe length *1
Standard total pipe length *2
Max drop between I.U.&O.U *3
Standard drop between I.U.&O.U *4
Max drop between I.U. *5
Standard drop between I.U. *6
Standard design and production in the factory.
If the height difference between the indoor units is from 18 to 30m, you MUST contact your local distributor/dealer for individual design and production.
Standard design and production in the factory.
Model
HP
kW
kW
kW
Ph/V/Hz
kW
A
kW
A
kW
A
kW
kW
A
A
m
3
/h
dB(A)
dB(A)
kg
mm
mm
mm
m
m
m
m
m
m
m
Pa
%
mm
mm
kg
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
AV08IMMEUB AV10IMMEUB AV12IMMEUB AV14IMMEUB AV16IMMEUB AV18IMMEUB AV20IMMEUB AV22IMMEUB AV24IMMEUB AV26IMMEUB AV28IMMEUB AV30IMMEUB AV32IMMEUB AV34IMMEUB
(-5-52)
(-23~21)
(-5-52)
(-23~21)
(-5-52)
(-23~18)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
T3 380-3-50/60
•Single Module: 8/10/12/14HP,16/18/20HP
•Combination Module: 22-60HP, 2-3 modules
•Full DC INVERTER technology
•Max.1000m total pipe length, Max.110m height drop
•Compatible with all the MRV indoor units.
Capacity range
Cooling (T1)
Cooling (T3)
Heating
EER
COP
Air flow (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Sound pressure level (H)
Sound power level (H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Max.total pipe length *1
Standard total pipe length *2
Max. pipe length(Equivalent/Actual)
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Max drop between I.U.&O.U
( O.U up/down) *3
Standard drop between I.U.
&O.U ( O.U up/down) *4
Max drop between I.U *5
Standard drop between I.U *6
External static pressure
Power supply
Rated power input
Rated current
Rated power input
Rated current
Max power input
Max current
Rated power input
Max power input
Rated current
Max current
Cooling
(T1)
Cooling
(T3)
Cooling
Heating
/
/
/
8
25.2
23.2
27
3/380~400/50/60
6.00
10.13
7.02
11.85
16.91
25.10
5.85
11.90
9.88
19.00
4.20
4.62
C:15000/H:13200
57
73
1350×720×1690
1450×826×1885
276/301
DC INV. SCROLL
MITSUBISHI ELECTRIC
1INV
R410A
9.7
12.7
25.4
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
13
/
/
/
10
28
25.2
33.5
3/380~400/50/60
7.28
12.29
8.66
14.62
17.65
28.40
7.32
15.60
12.36
25.20
3.85
4.58
C:15000/H:13200
57
73
1350×720×1690
1450×826×1885
276/301
DC INV. SCROLL
MITSUBISHI ELECTRIC
1INV
R410A
9.7
12.7
25.4
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
16
/
/
/
12
33.5
28.5
37.8
3/380~400/50/60
8.52
14.38
9.76
16.48
22.68
32.37
8.70
17.20
14.69
27.90
3.93
4.34
C:15000/H:13200
57
73
1350×720×1690
1450×826×1885
279/304
DC INV. SCROLL
MITSUBISHI ELECTRIC
1INV
R410A
10
12.7
25.4
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
20
/
/
/
14
40
32.8
45
3/380~400/50/60
10.22
17.25
11.45
19.33
24.36
36.80
10.57
19.7
17.84
33.26
3.91
4.26
C:15600/H:14400
58
74
1350×720×1690
1450×826×1885
321/346
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
24
/
/
/
16
45
39.6
50
3/380~400/50/60
11.66
19.68
13.26
22.39
32.30
54.53
11.95
23.80
20.17
38.00
3.86
4.18
C:16200/H:15000
59
76
1350×720×2048
1450×826×2225
359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
27
/
/
/
18
50.4
42.8
58.5
3/380~400/50/60
13.25
22.37
15.25
25.75
35.24
56.60
14.05
25.20
23.72
42.30
3.80
4.16
C:16200/H:15000
60
77
1350×720×2048
1450×826×2225
359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
30
/
/
/
20
56
44.8
63
3/380~400/50/60
15.20
25.66
16.96
28.63
37.47
60.50
15.40
28.62
26.00
47.40
3.68
4.09
C:16200/H:15000
61
78
1350×720×2048
1450×826×2225
359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV
R410A
10
12.7
28.58
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
33
AV10IMMEUB
AV12IMMEUB
/
22
61.5
53.7
71.3
3/380~400/50/60
15.80
26.67
18.42
31.10
40.33
60.77
16.02
32.80
27.05
53.10
3.89
4.45
(C:15000/H:13200)*2
60
77
(1350×720×1690)*2
(1450×826×1885)*2
279/304*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
1INV+1INV
R410A
9.7+9.7
19.05
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
36
AV10IMMEUB
AV14IMMEUB
/
24
68
58.0
78.5
3/380~400/50/60
17.50
29.54
20.11
33.95
42.01
65.20
17.89
35.30
30.20
58.46
3.89
4.39
(C:15000/H:13200
+(C:15600/H:14400)
60.5
78
(1350×720×1690)*2
(1450×826×1885)*2
276/301+321/346
DC INV. SCROLL
MITSUBISHI ELECTRIC
1INV+2INV
R410A
9.7+10
19.05
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
40
AV12IMMEUB
AV14IMMEUB
/
26
73.5
61.3
82.8
3/380~400/50/60
18.74
31.64
21.21
35.81
47.04
69.17
19.27
36.90
32.53
61.16
3.92
4.30
(C:15000/H:13200
+(C:15600/H:14400)
60.5
78
(1350×720×1690)*2
(1450×826×1885)*2
321/346+279/304
DC INV. SCROLL
MITSUBISHI ELECTRIC
1INV+2INV
R410A
10+10
19.05
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
43
AV14IMMEUB
AV14IMMEUB
/
28
80
65.6
90
3/380~400/50/60
20.44
34.51
22.90
38.66
48.72
73.60
21.14
39.40
35.69
66.52
3.91
4.26
(C:15600/H:14400)*2
61
78
1350×720×1690
+1350×720×2048
(1450×826×1885)*2
321/346*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
31.8
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
46
AV14IMMEUB
AV16IMMEUB
/
30
85
72.4
95
3/380~400/50/60
21.88
36.94
24.71
41.72
56.66
91.33
22.52
43.50
38.02
71.26
3.88
4.22
(C:16200/H:15000
+(C:15600/H:14400
61.5
79
1350×720×1690
+1350×720×2048
1450×826×1885
+1450×826×2225
321/346+359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
50
AV14IMMEUB
AV18IMMEUB
/
32
90.4
75.6
103.5
3/380~400/50/60
23.47
39.62
26.70
45.08
59.60
93.40
24.62
44.90
41.56
75.56
3.85
4.20
(C:16200/H:15000
+(C:15600/H:14400
62
79
1350×720×1690
+1350×720×2048
1450×826×1885
+1450×826×2225
321/346+359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
53
AV16IMMEUB
AV18IMMEUB
/
34
95.4
82.4
108.5
3/380~400/50/60
24.91
42.05
28.51
48.13
67.54
111.13
26.00
49.00
43.89
80.30
3.83
4.17
(C:16200/H:15000)*2
62.5
80
(1350×720×2048)*2
(1450×826×2225)*2
359/384*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
57
Full DC InverterDC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
16/18/20HP8/10/12/14HP
029 030
** All the specifications are tested under nominal condition(in cooling T1, indoor temp. is 27 DB/19 WB;Outdoor temp 35 DB/24WB;in cooling T3, indoor temp. is 27 DB/19 WB;Outdoor temp 46 DB/24WB;in heating, indoor temp.is 20 DB,in heating, outdoor temp.is 7 DB/6 WB)
If the total pipe length to all the indoor units is between 500~1000m, you MUST contact your local distributor/dealer for individual design and separate order.
Standard design and production in the factory.
If the height difference between the outdoor and the indoor units is from 50 to 110m, you MUST contact your local distributor/dealer for individual design and production.
Max.total pipe length *1
Standard total pipe length *2
Max drop between I.U.&O.U *3
Standard drop between I.U.&O.U *4
Max drop between I.U. *5
Standard drop between I.U. *6
Standard design and production in the factory.
If the height difference between the indoor units is from 18 to 30m, you MUST contact your local distributor/dealer for individual design and production.
Standard design and production in the factory.
Model
HP
kW
kW
kW
Ph/V/Hz
kW
A
kW
A
kW
A
kW
kW
A
A
m
3
/h
dB(A)
dB(A)
kg
mm
mm
mm
m
m
m
m
m
m
m
Pa
%
mm
mm
kg
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
AV36IMMEUB AV38IMMEUB AV40IMMEUB AV42IMMEUB AV44IMMEUB AV46IMMEUB AV48IMMEUB AV50IMMEUB AV52IMMEUB AV54IMMEUB AV56IMMEUB AV58IMMEUB AV60IMMEUB
(-5-52)
(-23~18)
(-5-52)
(-23~18)
(-5-52)
(-23~18)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
T3 380-3-50/60
60HP
•Single Module: 8/10/12/14HP,16/18/20HP
•Combination Module: 22-60HP, 2-3 modules
•Full DC INVERTER technology
•Max.1000m total pipe length, Max.110m height drop
•Compatible with all the MRV indoor units.
Capacity range
Cooling (T1)
Cooling (T3)
Heating
EER
COP
Air flow (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Sound pressure level (H)
Sound power level (H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Max.total pipe length *1
Standard total pipe length *2
Max. pipe length(Equivalent/Actual)
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Max drop between I.U.&O.U
( O.U up/down) *3
Standard drop between I.U.
&O.U ( O.U up/down) *4
Max drop between I.U *5
Standard drop between I.U *6
External static pressure
Power supply
Rated power input
Rated current
Rated power input
Rated current
Max power input
Max current
Rated power input
Max power input
Rated current
Max current
Cooling
(T1)
Cooling
(T3)
Cooling
Heating
Full DC InverterDC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
AV18IMMEUB
AV18IMMEUB
/
36
100.8
85.6
117
3/380~400/50/60
26.50
44.74
30.50
51.49
70.48
113.20
28.10
50.40
47.44
84.60
3.80
4.16
(C:16200/H:15000)*2
63
80
(1350×720×2048)*2
(1450×826×2225)*2
359/384*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
60
AV18IMMEUB
AV20IMMEUB
/
38
106.4
87.6
121.5
3/380~400/50/60
28.45
48.03
32.21
54.38
72.71
117.10
29.45
53.82
49.72
89.70
3.74
4.13
(C:16200/H:15000)*2
63.5
81
(1350×720×2048)*2
(1450×826×2225)*2
359/384*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV20IMMEUB
AV20IMMEUB
/
40
112
112
126
3/380~400/50/60
30.40
51.32
33.92
57.26
74.94
121.00
30.80
57.24
52.00
94.80
3.68
4.09
(C:16200/H:15000)*2
65
83
(1350×720×2048)*2
(1450×826×2225)*2
359/384*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*2
R410A
10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV14IMMEUB
AV14IMMEUB
AV14IMMEUB
42
120
98.4
135
3/380~400/50/60
30.66
51.76
34.35
57.99
73.08
110.40
31.71
59.10
53.53
99.77
3.91
4.26
(C:15600/H:14400)*3
63
81
1350×720×2048
+(1350×720×1690)*3
(1450×826×1885)*3
321/346*3
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV14IMMEUB
AV14IMMEUB
AV16IMMEUB
44
125
105.2
140
3/380~400/50/60
32.10
55.20
37.07
62.58
79.48
125.70
33.29
63.92
56.20
105.86
3.89
4.21
(C:15600/H:14400)*2
+(C:16200/H:15000
63
81
1350×720×2048
+(1350×720×1690)*2
1450×826×2225
+(1450×826×1885)*2
321/346*2+359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
38.1
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV14IMMEUB
AV14IMMEUB
AV18IMMEUB
46
130.4
108.4
148.5
3/380~400/50/60
33.30
56.22
38.53
65.05
82.34
125.97
33.91
68.10
57.25
111.56
3.92
4.38
(C:15600/H:14400)*2
+(C:16200/H:15000
63.5
82
1350×720×2048
+(1350×720×1690)*2
1450×826×2225
+(1450×826×1885)*2
321/346*2+359/384
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV14IMMEUB
AV16IMMEUB
AV18IMMEUB
48
135.4
115.2
153.5
3/380~400/50/60
35.13
59.31
39.96
67.46
91.90
147.93
36.57
68.70
61.74
113.56
3.85
4.20
(C:15600/H:14400
+(C:16200/H:15000)*2
64
82
(1350×720×2048)*2
+1350×720×1690
1450×826×1885
+(1450×826×2225)*2
321/346+359/384*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV14IMMEUB
AV18IMMEUB
AV18IMMEUB
50
140.8
118.4
162
3/380~400/50/60
36.72
61.99
41.95
70.82
94.84
150.00
38.67
70.10
65.28
117.86
3.83
4.19
(C:15600/H:14400
+(C:16200/H:15000)*2
64
82
(1350×720×2048)*2
+1350×720×1690
1450×826×1885
+(1450×826×2225)*2
321/346+359/384*2
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV16IMMEUB
AV18IMMEUB
AV18IMMEUB
52
145.8
125.2
167
3/380~400/50/60
38.16
64.42
43.76
73.88
102.78
167.73
40.05
74.20
67.61
122.60
3.82
4.17
(C:16200/H:15000)*3
64.5
83
(1350×720×2048)*3
(1450×826×2225)*3
359/384*3
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV18IMMEUB
AV18IMMEUB
AV18IMMEUB
54
151.2
128.4
175.5
3/380~400/50/60
39.75
67.11
45.75
77.24
105.72
169.80
42.15
75.60
71.16
126.90
3.80
4.16
(C:16200/H:15000)*3
65
83
(1350×720×2048)*3
(1450×826×2225)*3
359/384*3
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
19.05
41.3
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV18IMMEUB
AV18IMMEUB
AV20IMMEUB
56
156.8
130.4
180
3/380~400/50/60
41.70
70.40
47.46
80.12
107.95
173.70
43.50
79.02
73.44
132.00
3.76
4.14
(C:16200/H:15000)*3
65
83
(1350×720×2048)*3
(1450×826×2225)*3
359/384*3
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV18IMMEUB
AV20IMMEUB
AV20IMMEUB
58
162.4
132.4
184.5
3/380~400/50/60
43.65
73.69
49.17
83.01
110.18
177.60
44.85
82.44
75.72
137.10
3.72
4.11
(C:16200/H:15000)*3
65.5
84
(1350×720×2048)*3
(1450×826×2225)*3
359/384*3
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
AV20IMMEUB
AV20IMMEUB
AV20IMMEUB
60
168
134.4
189
3/380~400/50/60
45.60
76.98
50.88
85.90
112.41
181.50
46.20
85.86
78.00
142.20
3.68
4.09
(C:16200/H:15000)*3
66
84
(1350×720×2048)*3
(1450×826×2225)*3
359/384*3
DC INV. SCROLL
MITSUBISHI ELECTRIC
2INV*3
R410A
10+10+10
22.22
44.5
9.52
1000
500
190/165
110/90
50/40
30
18
82
50~130
64
033
041
Features & Benefits
Outdoor Specification
Energy Efficient
Air Supply Chamber and Equipment Chamber
Separation Design
1. Prevent electrical parts and the main functional components by the
rain Erosion, prolong the service life of components;
2. Compressor running noise was closed in the equipment room,
reduce the running noise about 3 dB(A);
3. Air supply chamber complete isolation: During commissioning and
maintenance, the units can be used normally.
4 way air return heat exchanger design
Reduce the heat exchanger height (650mm), and the upper and lower
wind speed uniform and high efficiency.
Two stages heat exchanger design
Two stages heat exchanger can separate control and adjust heat
exchanger size, effectively cope with small load operation, to ensure
the reliable operation range.
High Efficiency DC Inverter Scroll Compressor
Electric Control Box Heat Dissipation Design
Aviation noise reduction patent fan design
•Streamline vortex fan, sharp fan blade edge, and a certain degree of curvature, reduce the vibration, and pressure loss.
DC fan motor
Streamline vortex fan forced heat dissipation fan inside the electric control box, to ensure the stable internal temperature and stable
system operationn, sharp fan blade edge, and a certain degree of curvature, reduce the vibration, and pressure loss.
•DC inverter technology •High efficiency •Low noise
•DC inverter scroll compressor imported from mitsubishi electric.
•Equipped with a “Frame Compliance Mechanism” that allows movement in the axial direction of the frame supporting the cradle scroll.
This greatly reduces both leakage and friction loss, ensuring very high efficiency throughout the whole speed range.
Special Heat Exchanger Design
033 034
MRV III-C
FEATURES & BENEFITS
MRV III-C
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
1.Air supply chamber
2.Electrical parts
3.Compressor
Drain pan
Equipment chamber
Special Heat Exchanger Design
The two stage heat exchanger are respectively controlled by a electronic
expansion valve control, which can adjust the condenser volume.
DC fan motor
2
High efficiency
Low noise
DC inverter
New fan with aviation design
1
Friction loss reduce
Leakage loss reduce
Suction
Discharge
S
Star
Star
Star
t
tpr
t pr
t pr
essu
essu
essu
re
re
re
i
incr
incr
ease
ease
UP
R
unnin
g
p
r
ess
ur
e
i
ncrease
Suction
H
H
Hi
ig
g
g
h
h
p
pr
re
e
ss
sur
e
P
re
es
s
sur
re
p
as
s wa
y
S
Sc
ro
o
ll b
b
ac
ck-
p
pres
sur
e
c
cham
ber
F
F
F
ra
a
a
am
m
e
F
lex
x
ib
ble
ba
ac
k-p
pr
essure
c
cham
be
r
H
H
H
ig
g
g
h
h
p
pr
re
e
ss
sur
e
P
re
es
s
sur
re
p
as
s wa
y
S
Sc
ro
o
ll b
b
ac
ck-
p
pres
sur
e
c
cham
be
r
F
F
F
r
a
a
am
m
e
F
lex
x
ib
ble
ba
ac
k-p
pr
essure
c
cham
be
r
UP
Reduce the
friction(Ad-
justvalve)
Soft contact seal
Star
Star
Star
t
tpr
t pr
p
essu
essu
re
re
incr
incr
ease
ease
Energy Efficient
Comfort
64 Stage Speed Adjustment DC Fan Motor
Efficiency increase 45% comparing with AC motor and power input largely decrease.
64 stage speed adjustment plus DC inverter drive, stabilizing compressor discharge pressure and suction pressure to ensure high
system reliability.
Stepless DC Inverter Control Technology
High precision control, variable frequency drive from 0 to
360Hz.
180° vector DC inverter drive technology: Sine wave current
drive, efficiency improve 17% comparing to conventional
rectangle wave.
Two Stage Deep Sub Cooling Technology
1
st
stage sub cooling added a sub cooling coil to condenser.
2
nd
stage sub cooling added a stand alone sub cooler.
After further cooling, sub-cooling degree can be up to 30°C, with the heat exchanging capacity per unit mass of
xrefrigerant improved by 46% and flow resistance reduced by 55%, and running efficiency improved by 9%.
There is energy saving dip switch (SW8-3) in the indoor unit which can be lock the temperature at 26°C in summer and
20°C in winter, to avoid the energy waste and realize the centralized management.
The temperature lock function also can be realized through the new wired controller YR-E16.
High Efficiency Heat Exchanging Technology
Outdoor high efficiency four way air return heat exchanger design. The compressor and condenser are placed in
separated chamber. High efficiency heat exchanger design. Efficient ø8 inner grooved tube and 0.11 hydrophilic
aluminum coil fin, corrosion and oxidation resistance treatment.
Energy Management Technology
035 036
FEATURES & BENEFITS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
AC motor efficiency DC motor efficiency
0 200 400 600 800 1000
100
80
60
40
20
0
45%
25%
35%
DC motor
0 200 400 600 800 1000
100
80
60
40
20
0
85%
90%
87.5%
240 300 0
120 18060
current
U-phase induced electromotive force
Convention Drive Control
240
300
0
60
120 180
90-degree
current
U-phase induced electromotive force
current cross winding
180° Vector Drive Control
General inverter HAIER MRV III-C inverter
60Hz - 180Hz
Equivalent to the compressor
frequency 30~90rps
Equivalent to the compressor
frequency 20~120rps
Condenser
2
nd
Stage1
st
Stage
3 way air return 4 way air return
Air speed Air speed
Two to one refrigerant circle design
Conventional refrigerant
circle design
Two to one
Refrigerant circle design
Air direction Air direction
High temp.
gas
refrigerant
High temp.
gas
refrigerant
Mid temp.
liquid
refrigerant
Low temp.
liquid
refrigerant
Coil fin and tube
Original coil fin New coil fin
Inner
grooved tube
Air direction Air direction
ØØ
Precise Control
Adopt the inverter control, the temperature could be control precisely within the range of ±0.5°C.
Temp
Setting
temp
Begin
Too cool
Constant
speed system
MR V inverter
system
Not cool
enough
Comfort
Cooling the room
quickly
T
emp. diffe
rence
Cooling running
Timer
Machinery chamber is separated from air supply chamber; Built-in high efficient muffler in the machinery chamber greatly reduce the
compressor noise.
The night silent running function can be set on the outdoor PCB. The noise can be reduced by 8 dB(A) at most.

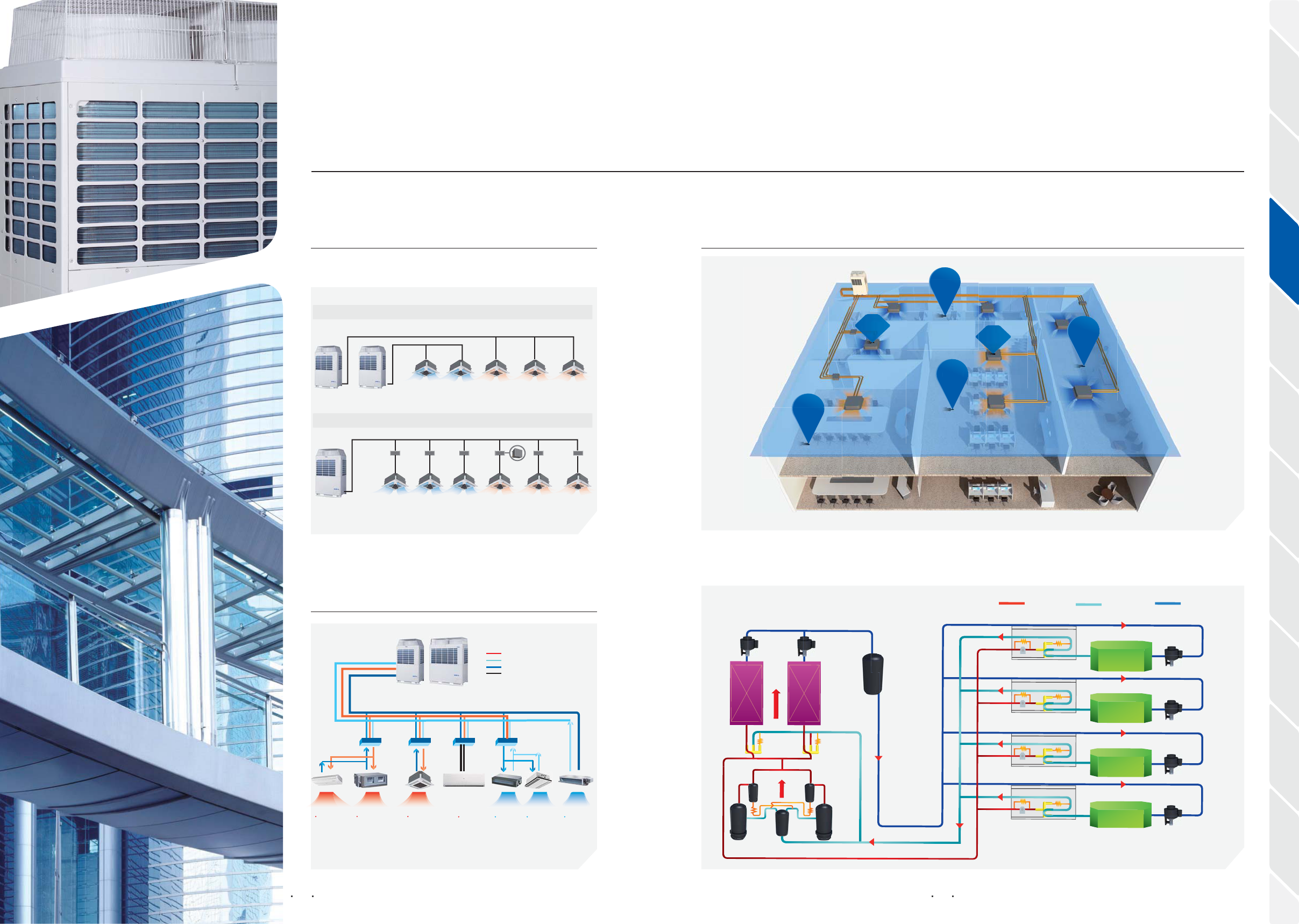

Double EEV Control
Make sure the refrigerant flow equally, to provide more comfort temperature.
Low Noise and Night Silent Running
Priority Setting
With the human design, you can set different preferential steps of some indoor units according to the room functions, so that it will
ensure that the most important room gains high priority.
Total 300m refrigerant piping length.
Max.175m refrigerant piping length.
Max.50m height drop between indoor and outdoor units.
Max.15m height drop between indoor units.
Comfort Convenient Installation
037 038

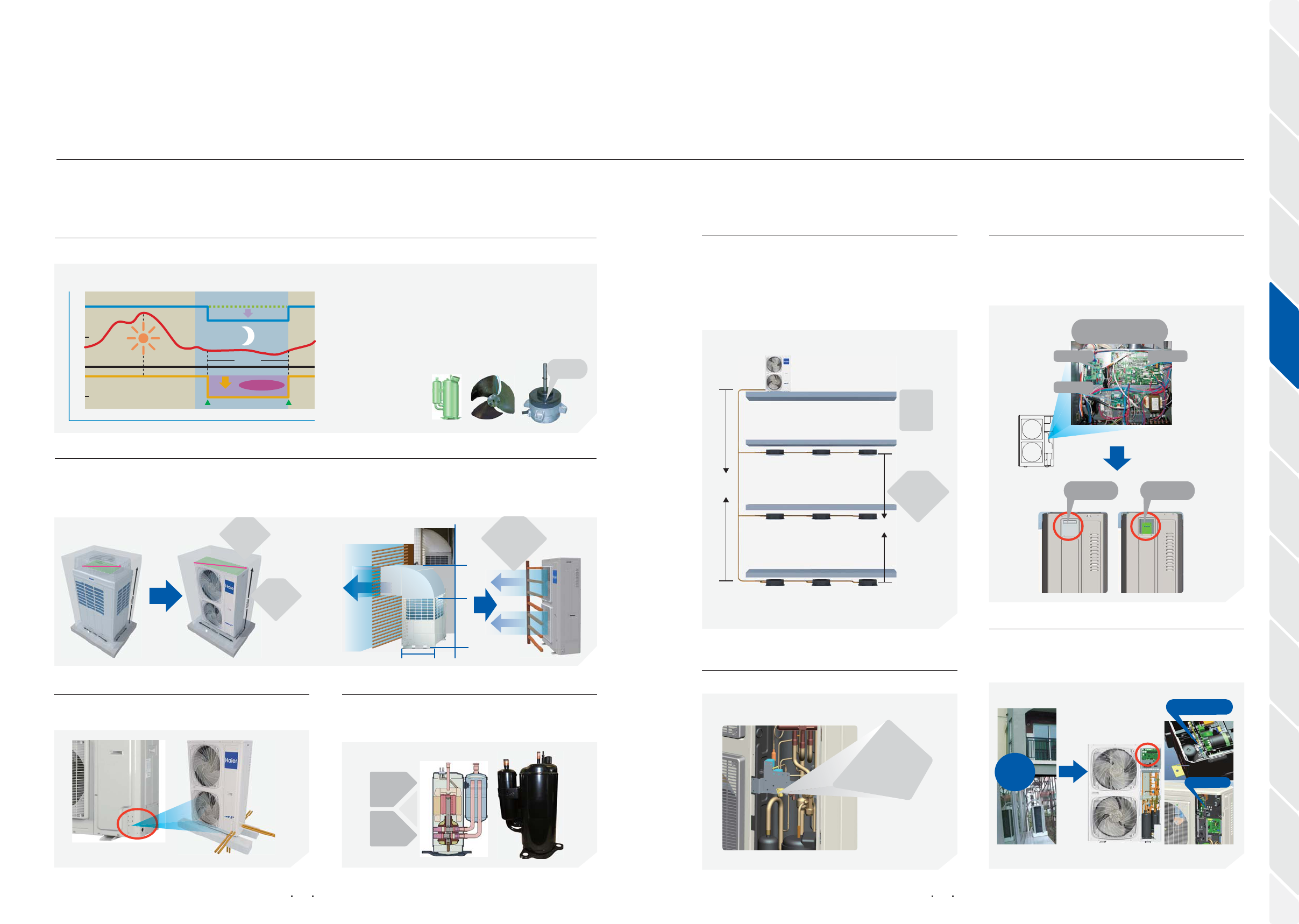

FEATURES & BENEFITS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
9hrs8hrs
Night mode
Lower 8dB(A) than normal
Night mode endsNight mode starts
Peak in the outdoor temperature
08:00
100
50
0
58
50
12:00 16:00 20:00 00:00 04:00 08:00
Operation dB(A) Load% Capabiity
180° vector DC inverter drive
A: Boss Office
B: Antechamber
C: Office
D: Office
Preferential room
Running
Preferential room
Running
Easy Transportation
Outdoor footprint only occupy 0.74m²(8/10HP) and 1.04m²
(12/14/16HP) .
Can lift with elevators and save lots of transport cost and time.
Long Pipe Length, High Height Drop
Max.piping length L≤175m
Max.piping length after
H≤50m
H≤15m
The 1
st
branch L≤40m
Outdoor Unit
1
st
branch
Up to 50Pa and can be installed at different floors .
Outdoor High External Static Pressure
50Pa ESP
Connection Wire
Two core nonpolar communication line way, no joint wrong hidden trouble.
Centralized controller bus and indoor/outdoor bus shareable, wiring and access is very simple Indoor address automatically set.
Outdoor
Indoor
Central Controller
Compressor Anti-liquid Shock Technology
Compressor adopt flexible frame mechanism, when any liquid enter into compressor, cradle scroll detaching fixed scroll, discharging
liquid refrigerant out of scroll set, to avoid scroll damage.
The First 2-stages Oil Separation and Cross
Oil Return Technology in The Industry
1
st
stage oil separation: built-in oil separating unit, greatly
reduced the oil from the compressor discharge.
2
nd
stage oil separation: external oil separator to separate the
small amount oil from discharge.
High Pressure Difference Oil Equalization
Using the pressure difference between suction and discharge,
to realize fast oil balance between module.
Backup Operation
If one outdoor unit get into malfunction, the other units continue to operate without affecting the whole system.
Test Lab.
The system has been running for over 3 years at the jobsite
where the vertical height approximately to 100m.
High Reliability High Reliability
039 040
FEATURES & BENEFITS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Field Test Supporting Tools
Suction
Discharge
S
St
St
St
a
ar
ar
t
t
t
pr
pr
pr
es
es
es
su
su
su
re
re
re
in
in
cr
cr
ea
ea
se
se
se
p
UP
R
unnin
g
p
r
ess
ur
e
in
c
r
ease
H
H
Hi
g
g
gh
h
h
p
p
r
re
e
ss
s
ur
e
P
Pr
r
e
s
s
su
r
re
p
as
s way
S
Sc
c
r
ro
ll
b
b
ac
c
k-
p
pr
essure
c
ch
amber
p
p
F
F
F
r
r
a
a
am
m
e
F
Fl
e
ex
x
ib
b
le
e
b
b
ac
c
k-
p
pr
essure
c
ch
amber
p
p
2
nd
stage oil separation
Discharge
Discharge
Suction
1
st
stage oil separation
2
nd
stage oil
separation
2
nd
stage oil
separation
Double
oil separation
1
st
stage oil separation
Suction
stdinv
1
st
til ti
p
g
p
g
1
st
stage oil
Double
pressure
sensor
Flow
ON
OFF
SV1a
SV1b
SV2b
SV2a
SV1b
SV1a
SV2a
SV2b
a
a
bb
Duty Cycle Operation to Extend the System Lifetime (Combination Model)
The outdoor units priority operating changes every 24 hours. Outdoor units start in turn and operation time can be balanced. Inverter
compressor lifetime can be extend maximum 3 times.
First time operation Second time operation
Third time operation
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
33
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
3
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
22
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
22
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
50m
100m
This software supply a solution of piping & wiring design, can
help the designer select the right material lists, basic wiring
diagram and control wiring diagram etc., most important thing
is to save lots of time during design procedure.
Features: Save the installation and maintenance people time.
More precise than normal checking method.
MRV design express
On-site service software
If one on/off
compressor fault
12HP-16HP 18HP-48HP
If one outdoor
fault in cooling mode
Artificial Climate Lab
Enthalpy Difference Lab
Environment Lab
Noise Lab
Emc Lab
Central Control Room
High Height Drop Test Tower
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
Model
AV08NMVESA
AV10NMVESA
AV12IMVESA
AV14IMVESA
AV16IMVESA
AV18IMVESA
AV20IMVESA AV22IMVESA
AV24IMVESA AV26IMVESA AV28IMVESA AV30IMVESA AV32IMVESA AV34IMVESA AV36IMVESA AV38IMVESA AV40IMVESA AV42IMVESA AV44IMVESA AV46IMVESA AV48IMVESA
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
Pa
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling
Rated power input
Max power input
Rated current
Max current
Heating
Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
AV10NMVESA
AV14IMVESA
/
24
68
76.5
3/380~400/50/60
18.76
33.25
30.15
52.9
19.57
28.5
30.46
45.5
3.62
3.91
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
600/633
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
39
-5~43
-15~21
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
/
/
/
8
22.6
25
3/380~400/50/60
5.27
12.37
8.7
19.85
5.89
9.77
9.7
15.7
4.29
4.24
11000
57
73
990/750/1808
1090/860/1990
240/255
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
19.05
9.52
300
175/150
50/40
50
50~130
13
-5~43
-15~21
/
/
/
10
28
31.5
3/380~400/50/60
7.36
14.7
11.1
23.4
7.97
11.9
12.5
19
3.80
3.95
11000
57
73
990/750/1808
1090/860/1990
240/255
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
9.52
300
175/150
50/40
50
50~130
16
-5~43
-15~21
/
/
/
12
33.5
37.5
3/380~400/50/60
10
17.54
14.2
27.9
10
14.6
15.1
23.3
3.35
3.75
14100
60
76
1390/750/1808
1490/860/1990
360/378
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50~130
19
-5~43
-15~21
/
/
/
14
40
45
3/380~400/50/60
11.4
18.55
19.05
29.5
11.6
16.6
17.96
26.5
3.51
3.88
14100
60
76
1390/750/1808
1490/860/1990
360/378
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50~130
23
-5~43
-15~21
/
/
/
16
45
50
3/380~400/50/60
13.4
20.48
20.3
32.37
13.5
17.8
19.3
28.4
3.36
3.70
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
28.58
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV08NMVESA
AV10NMVESA
/
18
50.6
56.5
3/380~400/50/60
12.63
27.07
19.8
43.25
13.86
21.67
22.2
34.7
4.01
4.08
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/510
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
29
-5~43
-15~21
AV10NMVESA
AV10NMVESA
/
20
56
63
3/380~400/50/60
14.72
29.4
22.2
46.8
15.94
23.8
25
38
3.80
3.95
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/510
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
33
-5~43
-15~21
AV10NMVESA
AV12IMVESA
/
22
61.5
69
3/380~400/50/60
17.36
29.91
25.3
47.75
17.97
24.37
27.6
39
3.54
3.84
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
600/633
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
36
-5~43
-15~21
AV10NMVESA
AV16IMVESA
/
26
73
81.5
3/380~400/50/60
20.76
35.18
31.4
55.77
21.47
29.7
31.8
47.4
3.52
3.80
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
43
-5~43
-15~21
AV14IMVESA
AV14IMVESA
/
28
80
90
3/380~400/50/60
22.8
37.1
38.1
59
23.2
33.2
35.92
53
3.51
3.88
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
720/756
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
46
-5~43
-15~21
AV14IMVESA
AV16IMVESA
/
30
85
95
3/380~400/50/60
24.8
39.03
39.35
61.87
25.1
34.4
37.26
54.9
3.43
3.78
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
728/764
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
50
-5~43
-15~21
AV16IMVESA
AV16IMVESA
/
32
90
100
3/380~400/50/60
26.8
40.96
40.6
64.74
27
35.6
38.6
56.8
3.36
3.70
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/772
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
53
-5~43
-15~21
AV10NMVESA
AV10NMVESA
AV14IMVESA
34
96
108
3/380~400/50/60
26.12
47.95
41.25
76.3
27.54
40.4
42.96
64.5
3.68
3.92
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
840/888
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
31.8
9.52
300
175/150
50/40
50
50~130
56
-5~43
-15~21
AV10NMVESA
AV10NMVESA
AV16IMVESA
36
101
113
3/380~400/50/60
28.12
49.88
42.5
79.17
29.4
41.6
44.3
66.4
3.59
3.84
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/896
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
59
-5~43
-15~21
AV10NMVESA
AV14IMVESA
AV14IMVESA
38
108
121.5
3/380~400/50/60
30.16
51.8
49.2
82.4
31.17
45.1
48.42
72
3.58
3.90
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
960/1011
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
63
-5~43
-15~21
AV10NMVESA
AV14IMVESA
AV16IMVESA
40
113
126.5
3/380~400/50/60
32.16
53.73
50.45
85.27
33.07
46.3
49.76
73.9
3.51
3.83
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
968/1019
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~21
AV10NMVESA
AV16IMVESA
AV16IMVESA
42
118
131.5
3/380~400/50/60
34.16
55.66
51.7
88.14
34.97
47.5
51.1
75.8
3.45
3.76
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1027
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~21
AV12IMVESA
AV16IMVESA
AV16IMVESA
44
123.5
137.5
3/380~400/50/60
36.8
58.5
54.8
92.64
37
50.2
53.7
80.1
3.36
3.72
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1096/1150
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~21
AV14IMVESA
AV16IMVESA
AV16IMVESA
46
130
145
3/380~400/50/60
38.2
59.51
59.65
94.24
38.6
52.2
56.56
83.3
3.40
3.76
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1096/1150
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~21
AV16IMVESA
AV16IMVESA
AV16IMVESA
48
135
150
3/380~400/50/60
40.2
61.44
60.9
97.11
40.5
53.4
57.9
85.2
3.36
3.70
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1158
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~21
041 042
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
50/60Hz-380~400V-3PhMRVIII-C(T1)
12/14/16HP8/10HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
Dual Frequency 50/60Hz-380~400V-3Ph
DC Inverter Scroll Compressor & BLDC Fan
Basic Modular Units: 8HP, 10HP,12HP, 14HP, 16HP
Free Combination up to 48HP with Incremental 2HP
Max. Indoor Units up to 64
AV26CMVESA AV28CMVESA AV30CMVESA AV32CMVESA AV34CMVESA AV36CMVESA AV38CMVESA AV40CMVESA AV42CMVESA AV44CMVESA AV46CMVESA AV48CMVESA
Model
AV08CMVESA
AV10CMVESA
AV12CMVESA
AV14CMVESA
AV16CMVESA
AV18CMVESA
AV20CMVESA
AV22CMVESA
AV24CMVESA
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
Pa
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling
Rated power input
Max power input
Rated current
Max current
Heating
Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
AV10CMVESA
AV14CMVESA
/
24
68
76.5
3/208-230/60
20.5
33
56.1
101.8
21.4
33
58.9
101.8
3.32
3.57
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50-130
39
-5~43
-15~21
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
/
/
/
8
22.6
25
3/208-230/60
5.6
12.5
15.15
38.6
5.9
12.5
16.05
38.6
4.04
4.24
11100
57
73
990/750/1808
1090/860/1990
240/255
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
9.52
300
175/150
50/40
50
50-130
13
-5~43
-15~21
/
/
/
10
28
31.5
3/208-230/60
8.5
14.5
23.35
44.7
8.8
14.5
24.25
44.7
3.29
3.58
11100
57
73
990/750/1808
1090/860/1990
240/255
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
9.52
300
175/150
50/40
50
50-130
16
-5~43
-15~21
/
/
/
12
33.5
37.5
3/208-230/60
10
16.5
27.55
50.9
10.3
16.5
28.45
50.9
3.35
3.64
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50-130
19
-5~43
-15~21
/
/
/
14
40
45
3/208-230/60
12
18.5
32.75
57.1
12.6
18.5
34.65
57.1
3.33
3.57
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50-130
23
-5~43
-15~21
/
/
/
16
45
50
3/208-230/60
14
20
38.95
61.7
14.5
20
39.85
61.7
3.21
3.45
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
28.58
9.52
300
175/150
50/40
50
50-130
26
-5~43
-15~21
AV08CMVESA
AV10CMVESA
/
18
50.6
56.5
3/208-230/60
14.1
27
38.5
83.3
14.7
27
40.3
83.3
3.59
3.84
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/510
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50-130
29
-5~43
-15~21
AV10CMVESA
AV10CMVESA
/
20
56
63
3/208-230/60
17
29
46.7
89.4
17.6
29
48.5
89.4
3.29
3.58
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/510
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50-130
33
-5~43
-15~21
AV10CMVESA
AV12CMVESA
/
22
61.5
69
3/208-230/60
18.5
31
50.9
95.6
19.1
31
52.7
95.6
3.32
3.61
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50-130
36
-5~43
-15~21
AV10CMVESA
AV16CMVESA
/
26
73
81.5
3/208-230/60
22.5
34.5
62.3
106.4
23.3
34.5
64.1
106.4
3.24
3.50
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50-130
43
-5~43
-15~21
AV14CMVESA
AV14CMVESA
/
28
80
90
3/208-230/60
24
37
65.5
114.2
25.2
37
69.3
114.2
3.33
3.57
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/772
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50-130
46
-5~43
-15~21
AV14CMVESA
AV16CMVESA
/
30
85
95
3/208-230/60
26
38.5
71.7
118.8
27.1
38.5
74.5
118.8
3.27
3.51
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/772
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50-130
50
-5~43
-15~21
AV16CMVESA
AV16CMVESA
/
32
90
100
3/208-230/60
28
40
77.9
123.4
29
40
79.7
123.4
3.21
3.45
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/772
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50-130
53
-5~43
-15~21
AV10CMVESA
AV10CMVESA
AV14CMVESA
34
96
108
3/208-230/60
29
47.5
79.5
146.5
30.2
47.5
83.2
146.5
3.31
3.58
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/896
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
31.8
9.52
300
175/150
50/40
50
50-130
56
-5~43
-15~21
AV10CMVESA
AV10CMVESA
AV16CMVESA
36
101
113
3/208-230/60
31
49
85.7
151.1
32.1
49
88.4
151.1
3.26
3.52
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/896
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
59
-5~43
-15~21
AV10CMVESA
AV14CMVESA
AV14CMVESA
38
108
121.5
3/208-230/60
32.5
51.5
88.9
158.9
34
51.5
93.6
158.9
3.32
3.57
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1027
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
63
-5~43
-15~21
AV10CMVESA
AV14CMVESA
AV16CMVESA
40
113
126.5
3/208-230/60
34.5
53
95.1
163.5
35.9
53
98.8
163.5
3.28
3.52
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1027
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
64
-5~43
-15~21
AV10CMVESA
AV16CMVESA
AV16CMVESA
42
118
131.5
3/208-230/60
36.5
54.5
101.3
168.1
37.8
54.5
104.0
168.1
3.23
3.48
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1027
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
64
-5~43
-15~21
AV12CMVESA
AV16CMVESA
AV16CMVESA
44
123.5
137.5
3/208-230/60
38
56.5
105.5
174.3
39.3
56.5
108.2
174.3
3.25
3.50
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1158
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
64
-5~43
-15~21
AV14CMVESA
AV16CMVESA
AV16CMVESA
46
130
145
3/208-230/60
40
58.5
110.7
180.5
41.6
58.5
114.4
180.5
3.25
3.49
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1158
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
64
-5~43
-15~21
AV16CMVESA
AV16CMVESA
AV16CMVESA
48
135
150
3/208-230/60
42
60
116.9
185.1
43.5
60
119.6
185.1
3.21
3.45
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1158
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50-130
64
-5~43
-15~21
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
043 044
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
12/14/16HP8/10HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
60Hz-208~230V-3PhMRVIII-C(T1)
Dual Frequency 60Hz-208~230V-3Ph
DC Inverter Scroll Compressor & BLDC Fan
5 Basic Modular Units: 8HP, 10HP, 12HP, 14HP, 16HP
Free Combination up to 48HP with Incremental 2HP,
Max. Indoor Units up to 64
AV26GMVESA
AV28GMVESA
AV30GMVESA
AV32GMVESA
AV34GMVESA
AV36GMVESA
AV38GMVESA AV40GMVESA
AV42GMVESA AV44GMVESA AV46GMVESA AV48GMVESA
Model
AV08GMVESA
AV10GMVESA
AV12GMVESA
AV14GMVESA
AV16GMVESA
AV18GMVESA
AV20GMVESA
AV22GMVESA
AV24GMVESA
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
Pa
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling Rated power input
Max power input
Rated current
Max current
Heating Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
AV10GMVESA
AV14GMVESA
/
24.0
68.0
76.5
3/460/60
18.76
34.00
24.79
44.92
19.57
29.50
25.86
38.98
3.62
3.91
25100
61
78
990/750/1808
+1390/750/1808
1090/860/1990
+1490/860/1990
240/255+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV +1 FIX)
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
/
/
/
8
22.4
25
3/460/60
5.27
13.00
6.96
17.18
5.89
10.27
7.78
13.57
4.25
4.24
11000
57
73
990/750/1808
1090/860/1990
240/255
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
9.52
300
175/150
50/40
50
50~130
13
-5~43
-15~21
/
/
/
10
28
31.5
3/460/60
7.36
15.00
9.72
19.82
7.97
12.40
10.53
16.38
3.80
3.95
11000
57
73
990/750/1808
1090/860/1990
240/255
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
9.52
300
175/150
50/40
50
50~130
16
-5~43
-15~21
/
/
/
12
33.5
37.5
3/460/60
10.00
17.00
13.21
22.46
10.00
15.10
13.21
19.95
3.35
3.75
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50~130
19
-5~43
-15~21
/
/
/
14
40
45
3/460/60
11.40
19.00
15.06
25.10
11.60
17.10
15.33
22.59
3.51
3.88
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50~130
23
-5~43
-15~21
/
/
/
16
45
50
3/460/60
13.40
20.50
17.70
27.08
13.50
18.30
17.84
24.18
3.36
3.70
14100
60
76
1390/750/1808
1490/860/1990
368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
28.58
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV08GMVESA
AV10GMVESA
/
18.0
50.4
56.5
3/460/60
12.63
28.00
16.69
37.00
13.86
22.67
18.31
29.95
3.99
4.08
22000
60
77
(990*1808*750)*2
(1090*1990*860)*2
240/255+240/255
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV+1 INV
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV10GMVESA
/
20.0
56.0
63.0
3/460/60
14.72
30.00
19.45
39.64
15.94
24.80
21.06
32.77
3.80
3.95
22000
60
77
(990/750/1808)*2
(1090/860/1990)*2
(240/255)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV*2
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV12GMVESA
/
22.0
61.5
69.0
3/460/60
17.36
32.00
22.94
42.28
17.97
27.50
23.74
36.33
3.54
3.84
25100
61
78
990/750/1808
+1390/750/1808
1090/860/1990
+1490/860/1990
240/255+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV +1 FIX)
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV16GMVESA
/
26.0
73.0
81.5
3/460/60
20.76
35.50
27.43
46.90
21.47
30.70
28.37
40.56
3.52
3.80
25100
61
78
990/750/1808
+1390/750/1808
1090/860/1990
+1490/860/1990
240/255+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV +1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV14GMVESA
AV14GMVESA
/
28.0
80.0
90.0
3/460/60
22.80
38.00
30.12
50.20
23.20
34.20
30.65
45.19
3.51
3.88
28200.0
62
79
1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
368/386+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
(1 INV +1 FIX)
+(1 INV +1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV14GMVESA
AV16GMVESA
/
30
85
95
3/460/60
24.80
39.50
32.77
52.18
25.10
35.40
33.16
46.77
3.43
3.78
28200
62
79
1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
368/386+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
(1 INV +1 FIX)
+(1 INV +1 FIX)
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV16GMVESA
AV16GMVESA
/
32
90
100
3/460/60
26.80
41.00
35.41
54.16
27.00
36.60
35.67
48.36
3.36
3.70
28200
62
79
(1390/750/1808)*2
(1490/860/1990)*2
(368/386)*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
(1 INV +1 FIX)*2
R410A
20
19.05
31.8
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV10GMVESA
AV14GMVESA
34
96
108
3/460/60
26.12
49.00
34.51
64.74
27.54
41.90
36.39
55.36
3.68
3.92
36100
63
81
990/750/1808*2
+1390/750/1808
1090/860/1990*2
+1490/860/1990
240/255*2+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV*2
+(1 INV +1 FIX)
R410A
30
19.05
31.8
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV10GMVESA
AV16GMVESA
36
101
113
3/460/60
28.12
50.50
37.15
66.72
29.44
43.10
38.90
56.94
3.59
3.84
36100
63
81
(990/750/1808)*2
+(1390/750/1808)
(1090/860/1990)*2
+(1490/860/1990)
240/255*2+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV*2
+(1 INV +1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV14GMVESA
AV14GMVESA
38.0
108.0
121.5
3/460/60
30.16
53.00
39.85
70.02
31.17
46.60
41.18
61.57
3.58
3.90
39200.0
63
81
(990/750/1808)
+(1390/750/1808)
+(1390/750/1808)
(1090/860/1990)
+(1490/860/1990)
+(1490/860/1990)
240/255+368/386+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV +1 FIX)
+(1 INV +1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV10GMVESA
AV14GMVESA
AV16GMVESA
40
113
127
3/460/60
32.16
54.50
42.49
72.00
33.07
47.80
43.69
63.15
3.51
3.83
39200
63
81
(990/750/1808)
+(1390/750/1808)
+(1390/750/1808)
(1090/860/1990)
+(1490/860/1990)
+(1490/860/1990)
240/255+368/386+368/386
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV +1 FIX)
+(1 INV +1 FIX)
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130%
26
-5~43
-15~21
AV10GMVESA
AV16GMVESA
AV16GMVESA
42.0
118.0
131.5
3/460/60
34.16
56.00
45.13
73.98
34.97
49.00
46.20
64.74
3.45
3.76
39200
63
81
(990/750/1808)
+(1390/750/1808)*2
(1090/860/1990)
+(1490/860/1990)*2
240/255+368/386*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV +1 FIX)*2
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV12GMVESA
AV16GMVESA
AV16GMVESA
44.0
123.5
137.5
3/460/60
36.80
58.00
48.62
76.62
37.00
51.70
48.88
68.31
3.36
3.72
42300
64
82
(1390/750/1808)
+(1390/750/1808)*2
(1490/860/1990)
+(1490/860/1990)*2
368/386+368/386*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
(1 INV +1 FIX)
+(1 INV +1 FIX)*2
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV14GMVESA
AV16GMVESA
AV16GMVESA
46.0
130.0
145.0
3/460/60
38.20
60.00
50.47
79.26
38.60
53.70
51.00
70.95
3.40
3.76
42300
64
82
(1390/750/1808)
+(1390/750/1808)*2
(1490/860/1990)
+(1490/860/1990)*2
368/386+368/386*2
DC INV. SCROLL
MITSUBISHI
ELECTRIC
(1 INV +1 FIX)
+(1 INV +1 FIX)*2
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
AV16GMVESA
AV16GMVESA
AV16GMVESA
48.0
135.0
150.0
3/460/60
40.20
61.50
53.11
81.24
40.50
54.90
53.51
72.53
3.36
3.70
42300
64
82
(1390/750/1808)*3
(1490/860/1990)*3
(368/386)*3
DC INV. SCROLL
MITSUBISHI
ELECTRIC
(1 INV +1 FIX)*3
R410A
30
19.05
38.1
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~21
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
045 046
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
12/14/16HP8/10HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
60Hz-460V-3PhMRVIII-C(T1)
Dual Frequency 60Hz-460V-3Ph
DC Inverter Scroll Compressor & BLDC Fan
5 Basic Modular Units: 8HP, 10HP, 12HP, 14HP, 16HP
Free Combination up to 48HP with Incremental 2HP,
Max. Indoor Units up to 64
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
Pa
%
°C
°C
Capacity range
Cooling capacity
Heating capacity
Power supply
Cooling Rated power input
Max. power input
Rated current
Max.current
Heating Rated power input
Max. power input
Rated current
Max.current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Compressor type
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
/
/
/
8
22.6
25.0
3/380~400/50/60
6.28
14.7
10.6
23.4
5.98
11.9
10.1
19
3.60
4.18
11000
60
76
990/750/1808
1090/860/1990
240/255
DC INV SCROLL
1 INV
R410A
10
9.52
22.22
9.52
300
175/150
50/40
50
50~130
10
-5~52
-15~15.5
/
/
/
10
28.0
31.5
3/380~400/50/60
7.81
17.54
13.18
27.9
7.51
14.6
12.68
23.3
3.59
4.19
14100
65
81
1390/750/1808
1490/860/1990
360/378
DC INV SCROLL
1 INV +1 FIX
R410A
10
12.7
25.4
9.52
300
175/150
50/40
50
50~130
13
-5~52
-15~15.5
/
/
/
12
33.5
37.5
3/380~400/50/60
9.36
20.48
15.8
32.37
9.11
17.8
15.38
28.4
3.58
4.12
14100
65
81
1390/750/1808
1490/860/1990
368/386
DC INV SCROLL
1 INV +1 FIX
R410A
10
12.7
28.58
9.52
300
175/150
50/40
50
50~130
16
-5~52
-15~15.5
AV08NMVERB
AV08NMVERB
/
16
45.2
50.0
3/380~400/50/60
12.6
29.4
21.2
46.8
12.0
23.8
20.2
38.0
3.60
4.18
22000.0
63
80
990/750/1808
+990/750/1808
1090/860/1990
+1090/860/1990
480/510
DC INV SCROLL
2 INV
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
20
-5~52
-15~15.5
AV08NMVERB
AV10NMVERB
/
18
50.6
56.5
3/380~400/50/60
14.1
32.2
23.8
51.3
13.49
26.5
22.8
42.3
3.59
4.19
25100.0
66
83
990/750/1808
+1390/750/1808
1090/860/1990
+1490/860/1990
600/633
DC INV SCROLL
2 INV +1 FIX
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
20
-5~52
-15~15.5
AV10NMVERB
AV10NMVERB
/
20
56
63.0
3/380~400/50/60
15.62
35.08
26.36
55.8
15.02
29.2
25.36
46.6
3.59
4.19
28200
68
85
1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
720/756
DC INV SCROLL
2 INV +2 FIX
R410A
20
15.88
28.58
9.52
300
175/150
50/40
50
50~130
24
-5~52
-15~15.5
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
Model
AV08NMVERB AV10NMVERB AV12NMVERB AV16NMVERB AV18NMVERB AV20NMVERB
AV10NMVERB
AV12NMVERB
/
22
61.5
69.0
3/380~400/50/60
17.2
38.0
29.0
60.3
16.6
32.4
28.1
51.7
3.58
4.15
28200.0
68
85
1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
728/764
DC INV SCROLL
2 INV +2 FIX
R410A
20.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
24
-5~52
-15~15.5
AV12NMVERB
AV12NMVERB
/
24
67.0
75.0
3/380~400/50/60
18.7
41.0
31.6
64.7
18.2
35.6
30.8
56.8
3.58
4.12
28200.0
68
85
1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
736/772
DC INV SCROLL
2 INV +2 FIX
R410A
20.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
28
-5~52
-15~15.5
AV08NMVERB
AV08NMVERB
AV10NMVERB
26
73.2
81.5
3/380~400/50/60
20.4
46.9
34.4
74.7
19.5
38.4
32.9
61.3
3.59
4.19
36100.0
67
85
990/750/1808
+990/750/1808
+1390/750/1808
1090/860/1990
+1090/860/1990
+1490/860/1990
840/888
DC INV SCROLL
3 INV +1 FIX
R410A
30.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
28
-5~52
-15~15.5
AV08NMVERB
AV08NMVERB
AV12NMVERB
28
78.7
87.5
3/380~400/50/60
21.9
49.9
37.0
79.2
21.1
41.6
35.6
66.4
3.59
4.15
36100.0
67
85
990/750/1808
+990/750/1808
+1390/750/1808
1090/860/1990
+1090/860/1990
+1490/860/1990
848/896
DC INV SCROLL
3 INV +1 FIX
R410A
30.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
28
-5~52
-15~15.5
AV10NMVERB
AV10NMVERB
AV10NMVERB
30
84.0
94.5
3/380~400/50/60
23.4
52.6
39.5
83.7
22.5
43.8
38.0
69.9
3.59
4.19
42300.0
70
88
1390/750/1808
+1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
+1490/860/1990
1080/1134
DC INV SCROLL
3 INV +3 FIX
R410A
30.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
32
-5~52
-15~15.5
AV10NMVERB
AV10NMVERB
AV12NMVERB
32
89.5
100.5
3/380~400/50/60
25.0
55.6
42.2
88.2
24.1
47.0
40.7
75.0
3.58
4.16
42300.0
70
88
1390/750/1808
+1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
+1490/860/1990
1088/1142
DC INV SCROLL
3 INV +3 FIX
R410A
30.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
32
-5~52
-15~15.5
AV10NMVERB
AV12NMVERB
AV12NMVERB
34
95.0
106.5
3/380~400/50/60
26.5
58.5
44.8
92.6
25.7
50.2
43.4
80.1
3.58
4.14
42300.0
70
88
1390/750/1808
+1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
+1490/860/1990
1096/1150
DC INV SCROLL
3 INV +3 FIX
R410A
30.0
19.05
31.8
9.52
300
175/150
50/40
50
50~130
36
-5~52
-15~15.5
AV12NMVERB
AV12NMVERB
AV12NMVERB
36
100.5
112.5
3/380~400/50/60
28.08
61.44
47.4
97.11
27.33
53.4
46.14
85.2
3.58
4.12
42300
70
88
1390/750/1808
+1390/750/1808
+1390/750/1808
1490/860/1990
+1490/860/1990
+1490/860/1990
1104/1158
DC INV SCROLL
3 INV +3 FIX
R410A
30
19.05
31.8
9.52
300
175/150
50/40
50
50~130
36
-5~52
-15~15.5
AV22NMVERB AV24NMVERB AV26NMVERB AV28NMVERB AV30NMVERB AV32NMVERB AV34NMVERB AV36NMVERB
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
047 048
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
10/12HP8HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
50/60Hz-380~400v-3PhMRVIII-C(T3)
Dual Frequency 50/60Hz-380~400v-3Ph
DC Inverter Scroll Compressor & BLDC Fan
3 Basic Modular Units: 8HP, 10HP, 12HP
Free Combination up to 36HP with Incremental 2HP,
Max. Indoor Units up to 36
High Ambient Operation up to 52°C
051
061
Features & Benefits
MRV III-RC (Heat Recovery)
•Cooling and heating simultaneously with only one outdoor unit
•Heat recovery system
Typical 3 pipe system
All cooling circuit
•12/14/16HP double compressor module for example
Variable operation mode in one system
051 052
MRVIII-RC
FEATURES & BENEFITS
What is MRVIII-RC
System Introduction System Introduction
2-pipe system
Cooling and heating in two system
Cooling and heating in one system
VP box
3-pipe system
Cooling only
High pressure gas pipe
Suction gas pipe
Liquid pipe
Refrigerant pipe not flow
Cooling
& Heating
Heating Heating Heating Stop
Cooling Cooling Cooling
Office
Office
Lounge
room
Meeting
room
Heating
indoor
units
ffi
ffi
ce
Cooling
indoor
units
High pressure gas pipe Suction gas pipe Liquid pipe
4 way valve
Accu ta
nk
VP BOX
Comp.
Oil
sep.
O
il
sep.
Comp.
Gas-liquid s
ep
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
•12/14/16HP double compressor module for example
Cooling > heating circuit
•12/14/16HP double compressor module for example
053 054
FEATURES & BENEFITS
All heating circuit
System Introduction
•12/14/16HP double compressor module for example
Cooling = heating circuit
•12/14/16HP double compressor module for example
Cooling < heating circuit
System Introduction
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
4 way valve
Accu tank
VP BOX
High pressure gas pipe
Suction gas pipe Liquid pipe
Comp.
Oil
sep.
Oil
sep.
Comp.
Gas-liquid sep
4 way valve
Accu tank
VP BOX
High pressure gas pipe
Suction gas pipe Liquid pipe
Comp.
Oil
sep.
Oil
sep.
Comp.
Gas-liquid sep
4 way valve
Accu tank
VP BOX
High pressure gas pipe
Suction gas pipe Liquid pipe
Comp.
Oil
sep.
Oil
sep.
Comp.
Gas-liquid sep
4 way valve
Accu tank
VP BOX
High pressure gas pipe Suction gas pipe Liquid pipe
Comp.
Oil
sep.
Oil
sep.
Comp.
Gas-liquid sep
Outdoor Structure
Vp (valve pipe) box structure
User friendly outdoor structure
Core Technologies and Parts
Overview
Core Parts: For 12/14/16 Single Module

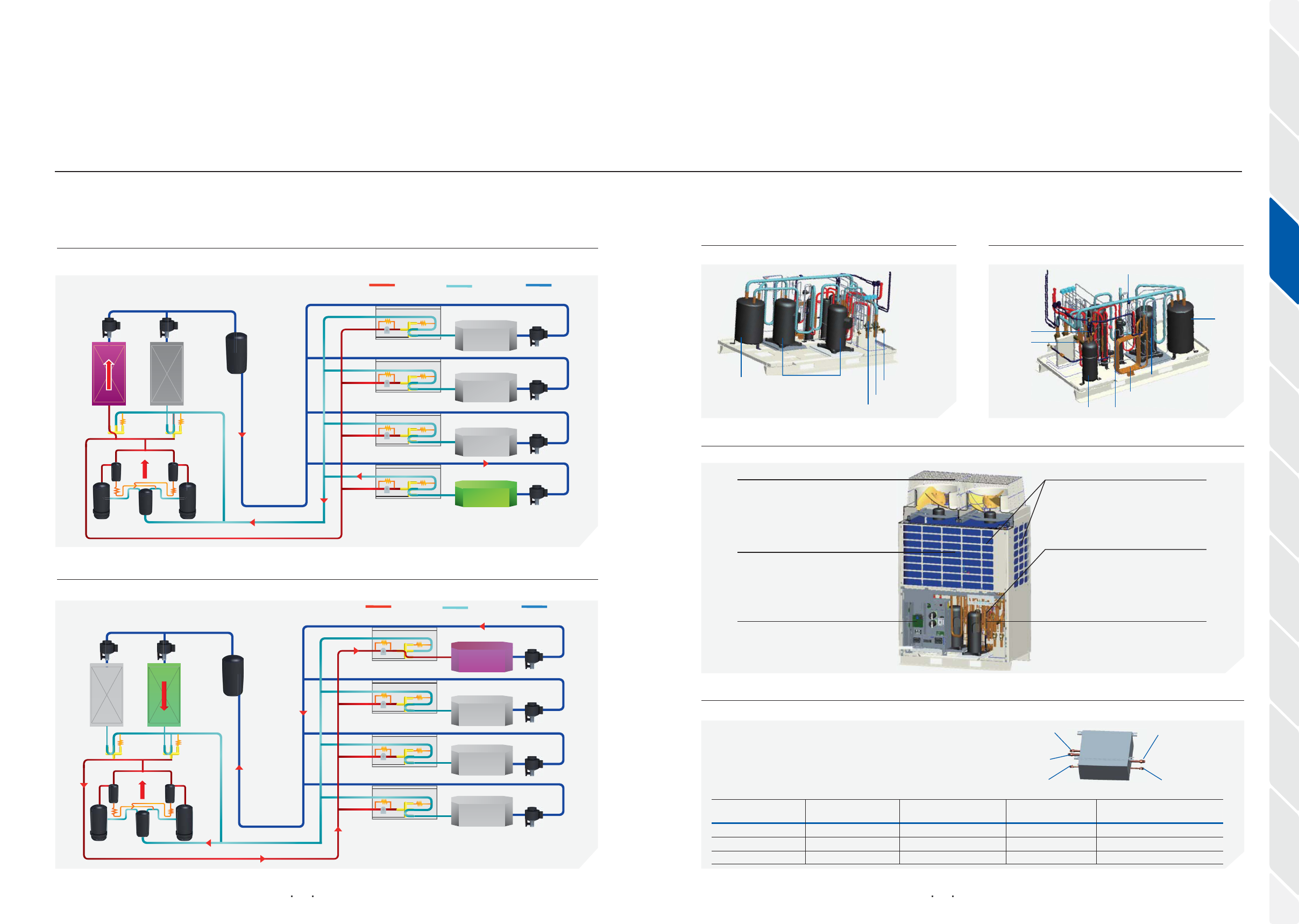

055 056
FEATURES & BENEFITS
•12/14/16HP double compressor module for example, little indoor heating, others off
Light part load heating
•12/14/16HP double compressor module for example, little indoor heating, others off
Light part load cooling
System Introduction
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
4 way valve
Accu tank
VP BOX
High pressure gas pipe
Suction gas pipe
Liquid pipe
Comp.
Oil
sep.
Oil
sep.
Comp.
Gas-liquid sep
4 way valve
Accu tank
VP BOX
High pressure gas pipe
Suction gas pipe
Liquid pipe
Comp.
Oil
sep.
Oil
sep.
Comp.
Gas-liquid sep
Inner system
Gas-liquid sep.
Compressor
High pressure gas valve
Low pressure gas valve
Liquid pipe valve
Core Parts: For 12/14/16 Single Module
Inner system
Gas-liquid sep.
Compressor
Low pressure sensor
High pressure sensor
Sub-cooler
4 way valve
4 way valve
Accu. Tank
Patent fan design and DC fan motor
•Air flow improved by 17.5% with patent
fan design
•Noise reduced 3 dB(A) with DC fan motor
4 way air return
Reduce the heat exchanger
height(650mm), and the upper and lower
wind speed uniform and high efficiency
Double EEV design
The double EEV control the 2 stages heat
exchanger separately, which can adjust
the condenser volume
DC Inverter scroll Compressor
•DC inverter scroll compressor from Mitsubishi electric
•For big module, also with another
fixed-speed compressor from mitsubishi electric
2 stages heat exchanger
Separate control and heat exchanger
size can be adjusted, effectively cope
with small load operation, to ensure
reliable operation
Forced heat dissipation fan
Forced heat dissipation fan inside the
electric control box, to ensure the stable
Internal temperature and stable system
operation
Individual Valve + Pipe Box for Heat Recovery
•High comfort: Individual control box and change
over for one group indoor units
•Super slim built-in height: only 180mm
•Threaded joint connection, easy for installation
Indoor gas connectionHigh pressure gas connection
Low pressure gas connection
High pressure liquid connection Indoor liquid connection
Model name Power Supply Dimension
Max.
indoor units
Max.capacity
of indoor(kw)
VP1-112A
VP1-180A
VP1-280A
x≤11.2
11.2<x≤18
18<x≤28
1/220~240/50/60
1/220~240/50/60
1/220~240/50/60
5
8
8
400/365/180
400/365/180
400/365/180
System Introduction
The heat discharged from outdoor unit can be used to cooling Indoor units. It can save energy above 30% averagely
Typical 3 pipe system
100
0
Mode Heat Recovery system operation Part Load
Energy
Saving
(10HP outdoor
each indoor 2HP)
Cooling only
(10HP outdoor)
Heating only
Cooling>Heatinng
Cooling=Heatinng
Cooling<Heatinng
Indoor required
Load
Comp.Load Condenser Load
1
1
0
0
H
P
P
1
1
1
0
0
H
H
H
P
P
10
HP
100
0
Indoor required
Load
Comp.Load Condenser Load
1
1
0
0
H
P
P
1
1
1
0
0
H
H
H
P
P
10
HP
100
0
Indoor required
Load
Comp.Load Condenser Load
1
1
0
0
H
P
P
8
8
8
H
H
H
P
P
P
6HP
6HP
100
0
Indoor required
Load
Comp.Load Condenser Load
8
H
H
H
P
4
HP
0
HP
100
0
Indoor required
Load
Comp.Load Condenser Load
1
1
0
0
H
P
P
6HP
6
6
6
H
H
H
P
P
P
0
HP
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Heatinng
2HP
Cooling
2HP
Cooling
2HP
Cooling
2HP
Heatinng
2HP
Heatinng
2HP
Heatinng
2HP
Cooling
2HP
Cooling
2HP
Heatinng
2HP
Heatinng
2HP
Heatinng
2HP
Heatinng
2HP
Heatinng
2HP
Heatinng
2HP
Heatinng
0%
0%
20%
50%
40%
057 058
FEATURES & BENEFITS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
50°C
40°C
30°C
20°C
10°C
0°C
-10°C
-20°C
-15°C
15.5°C
20
C
Heating(WB)
Cooling(DB)
Mix mode(WB)
-8°C
1
8
°C
43°C
-5°C
059 060
FEATURES & BENEFITS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
System Introduction
Wide temperature operation range
AV26IMVUSA AV28IMVUSA AV30IMVUSA AV32IMVUSA AV34IMVUSA AV36IMVUSA AV38IMVUSA AV40IMVUSA AV42IMVUSA AV44IMVUSA AV46IMVUSA AV48IMVUSA
Model
AV08IMVUSA
AV10IMVUSA
AV12IMVUSA
AV14IMVUSA
AV16IMVUSA
AV18IMVUSA
AV20IMVUSA
AV22IMVUSA
AV24IMVUSA
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
mm
m
m
m
Pa
%
°C
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling Rated power input
Max power input
Rated current
Max current
Heating Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Cooling Heating
AV10IMVUSA
AV14IMVUSA
/
24
68
76.5
3/380~400/50/60
19.85
33.25
32.43
52.9
19.07
28.5
31.16
45.5
3.43
4.01
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
25.4
9.52
300
175/150
50/40
50
50~130
39
-5~43
-15~
15.5
-8~18
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
/
/
/
8
22.4
25
3/380~400/50/60
5.81
12.37
9.49
19.85
6.1
9.77
9.97
15.7
3.86
4.10
11100
57
73
990/750/1808
1090/860/1990
240/268
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
19.05
19.05
9.52
300
175/150
50/40
50
50~130
13
-5~43
-15~15.5
-8~18
/
/
/
10
28
31.5
3/380~400/50/60
7.55
14.7
12.33
23.4
7.97
11.9
13.02
19
3.71
3.95
11100
57
73
990/750/1808
1090/860/1990
240/268
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
19.05
9.52
300
175/150
50/40
50
50~130
16
-5~43
-15~
15.5
-8~18
/
/
/
12
33.5
37.5
3/380~400/50/60
9.18
17.54
15.00
27.9
9.15
14.6
14.95
23.3
3.65
4.10
14100
60
76
1390/1808/750
1490/1990/860
368/393
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
22.22
9.52
300
175/150
50/40
50
50~130
19
-5~43
-15~
15.5
-8~18
/
/
/
14
40
45
3/380~400/50/60
12.3
18.55
20.10
29.5
11.1
16.6
18.13
26.5
3.25
4.05
14100
60
76
1390/1808/750
1490/1990/860
368/393
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
25.4
22.22
9.52
300
175/150
50/40
50
50~130
23
-5~43
-15~
15.5
-8~18
/
/
/
16
45
50
3/380~400/50/60
14.1
20.48
23.04
32.37
13.5
17.8
22.06
28.4
3.19
3.70
14100
60
76
1390/1808/750
1490/1990/860
368/393
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.7
28.58
22.22
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~
15.5
-8~18
AV08IMVUSA
AV10IMVUSA
/
18
50.4
56.5
3/380~400/50/60
13.36
27.07
21.83
43.25
14.07
21.67
22.99
34.7
3.77
4.02
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/536
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
25.4
9.52
300
175/150
50/40
50
50~130
29
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV10IMVUSA
/
20
56
63
3/380~400/50/60
15.1
29.4
24.67
46.8
15.94
23.8
26.04
38
3.71
3.95
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/536
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
25.4
9.52
300
175/150
50/40
50
50~130
33
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV12IMVUSA
/
22
61.5
69
3/380~400/50/60
16.73
32.24
27.33
51.3
17.12
26.5
27.97
42.3
3.68
4.03
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/661
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
25.4
9.52
300
175/150
50/40
50
50~130
36
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV16IMVUSA
/
26
73
81.5
3/380~400/50/60
21.65
35.18
35.37
55.77
21.47
29.7
35.08
47.4
3.37
3.80
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
28.58
9.52
300
175/150
50/40
50
50~130
43
-5~43
-15~
15.5
-8~18
AV14IMVUSA
AV14IMVUSA
/
28
80
90
3/380~400/50/60
24.6
37.1
40.19
59
22.2
33.2
36.27
53
3.25
4.05
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/786
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
28.58
9.52
300
175/150
50/40
50
50~130
46
-5~43
-15~
15.5
-8~18
AV14IMVUSA
AV16IMVUSA
/
30
85
95
3/380~400/50/60
26.4
39.03
43.13
61.87
24.6
34.4
40.19
54.9
3.22
3.86
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/786
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
28.58
9.52
300
175/150
50/40
50
50~130
50
-5~43
-15~
15.5
-8~18
AV16IMVUSA
AV16IMVUSA
/
32
90
100
3/380~400/50/60
28.2
40.96
46.07
64.74
27
35.6
44.11
56.8
3.19
3.70
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/786
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.8
28.58
9.52
300
175/150
50/40
50
50~130
53
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV10IMVUSA
AV14IMVUSA
34
96
108
3/380~400/50/60
27.4
47.95
44.76
76.3
27.04
40.4
44.18
64.5
3.50
3.99
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/929
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
34.9
28.58
9.52
300
175/150
50/40
50
50~130
56
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV10IMVUSA
AV16IMVUSA
36
101
113
3/380~400/50/60
29.2
49.88
47.71
79.17
29.44
41.6
48.10
66.4
3.46
3.84
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/929
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
34.9
28.58
9.52
300
175/150
50/40
50
50~130
59
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV14IMVUSA
AV14IMVUSA
38
106.5
119
3/380~400/50/60
30.83
52.72
50.37
83.67
30.62
44.3
50.03
70.7
3.45
3.89
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1054
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
31.8
9.52
300
175/150
50/40
50
50~130
63
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV14IMVUSA
AV16IMVUSA
40
113
126.5
3/380~400/50/60
33.95
53.73
55.47
85.27
32.57
46.3
53.21
73.9
3.33
3.88
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1054
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
31.8
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~
15.5
-8~18
AV10IMVUSA
AV16IMVUSA
AV16IMVUSA
42
118
131.5
3/380~400/50/60
35.75
55.66
58.41
88.14
34.97
47.5
57.13
75.8
3.30
3.76
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1054
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
31.8
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~
15.5
-8~18
AV12IMVUSA
AV16IMVUSA
AV16IMVUSA
44
123.5
137.5
3/380~400/50/60
37.38
58.5
61.07
92.64
36.15
50.2
59.06
80.1
3.30
3.80
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1179
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
31.8
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~
15.5
-8~18
AV14IMVUSA
AV16IMVUSA
AV16IMVUSA
46
130
145
3/380~400/50/60
40.5
59.51
66.17
94.24
38.1
52.2
62.25
83.3
3.21
3.81
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1179
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
31.8
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~
15.5
-8~18
AV16IMVUSA
AV16IMVUSA
AV16IMVUSA
48
135
150
3/380~400/50/60
42.3
61.44
69.11
97.11
40.5
53.4
66.17
85.2
3.19
3.70
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1179
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.1
31.8
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~
15.5
-8~18
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
The specification may change according to the further product developement
061 062
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
12/14/16HP8/10HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
MRV III-RC (HEAT RECOVERY)
Power Supply: 3/380~400/50/60
DC Inverter Scroll Compressor & BLDC Fan
5 Basic Single Modular Units: 8HP, 10HP, 12HP, 14HP, 16HP
Max. 3 Modules Combination up to 48HP,
Max Connected Indoor Units up to 64 .
Compatible with all the MRV Indoor Units
AV26CMVUSA AV28CMVUSA AV30CMVUSA AV32CMVUSA AV34CMVUSA AV36CMVUSA AV38CMVUSA AV40CMVUSA AV42CMVUSA AV44CMVUSA AV46CMVUSA AV48CMVUSA
Model
AV08CMVUSA
AV10CMVUSA
AV12CMVUSA
AV14CMVUSA
AV16CMVUSA
AV18CMVUSA
AV20CMVUSA
AV22CMVUSA
AV24CMVUSA
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
mm
m
m
m
Pa
%
°C
°C
°C
Capacity range
Cooling
Heating
Power supply
Cooling Rated power input
Max power input
Rated current
Max current
Heating Rated power input
Max power input
Rated current
Max current
EER
COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
External static pressure
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Cooling Heating
AV10CMVUVA
AV14CMVUVA
/
24
68
76.5
3/208-230/60
19.85
33
56.02
101.8
19.07
33
53.81
101.8
3.43
4.01
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
25.40
9.52
300
175/150
50/40
50
50~130
39
-5~43
-15~15.5
-8~18
Capacity
Combination model
Electrical
parameters
Performance
Installation
Working
temp.
Connection
ratio
/
/
/
8
22.4
25
3/208-230/60
5.81
12.5
16.40
38.6
6.1
12.5
17.21
38.6
3.86
4.10
11100
57
73
990/750/1808
1090/860/1990
240/268
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
19.05
19.05
9.52
300
175/150
50/40
50
50~130
13
-5~43
-15~15.5
-8~18
/
/
/
10
28
31.5
3/208-230/60
7.55
14.5
21.31
44.7
7.97
14.5
22.49
44.7
3.71
3.95
11100
57
73
990/750/1808
1090/860/1990
240/268
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
R410A
10
9.52
22.22
19.05
9.52
300
175/150
50/40
50
50~130
16
-5~43
-15~15.5
-8~18
/
/
/
12
33.5
37.5
3/208-230/60
9.18
16.5
25.91
50.9
9.15
16.5
25.82
50.9
3.65
4.10
14100
60
76
1390/750/1808
1490/860/1990
368/393
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.70
25.40
22.22
9.52
300
175/150
50/40
50
50~130
19
-5~43
-15~15.5
-8~18
/
/
/
14
40
45
3/208-230/60
12.3
18.5
34.71
57.1
11.1
18.5
31.32
57.1
3.25
4.05
14100
60
76
1390/750/1808
1490/860/1990
368/393
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.70
25.40
22.22
9.52
300
175/150
50/40
50
50~130
23
-5~43
-15~15.5
-8~18
/
/
/
16
45
50
3/208-230/60
14.1
20
39.79
61.7
13.5
20
38.10
61.7
3.19
3.70
14100
60
76
1390/750/1808
1490/860/1990
368/393
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 FIX
R410A
10
12.70
28.58
22.22
9.52
300
175/150
50/40
50
50~130
26
-5~43
-15~15.5
-8~18
AV08CMVUVA
AV10CMVUVA
/
18
50.4
56.5
3/208-230/60
13.36
27
37.70
83.3
14.07
27
39.70
83.3
3.77
4.02
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/536
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
25.40
9.52
300
175/150
50/40
50
50~130
29
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV10CMVUVA
/
20
56
63
3/208-230/60
15.1
29
42.61
89.4
15.94
29
44.98
89.4
3.71
3.95
22200
60
77
990/750/1808+
990/750/1808
1090/860/1990+
1090/860/1990
480/536
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV +1 INV
R410A
20
15.88
28.58
25.40
9.52
300
175/150
50/40
50
50~130
33
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV12CMVUVA
/
22
61.5
69
3/208-230/60
16.73
31
47.21
95.6
17.12
31
48.31
95.6
3.68
4.03
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/661
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
15.88
28.58
25.40
9.52
300
175/150
50/40
50
50~130
36
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV16CMVUVA
/
26
73
81.5
3/208-230/60
21.65
34.5
61.09
106.4
21.47
34.5
60.59
106.4
3.37
3.80
25200
61
78
990/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990
608/641
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV)
+(1 INV+1 FIX)
R410A
20
19.05
31.80
28.58
9.52
300
175/150
50/40
50
50~130
43
-5~43
-15~15.5
-8~18
AV14CMVUVA
AV14CMVUVA
/
28
80
90
3/208-230/60
24.6
37
69.42
114.2
22.2
37
62.65
114.2
3.25
4.05
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/786
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.80
28.58
9.52
300
175/150
50/40
50
50~130
46
-5~43
-15~15.5
-8~18
AV14CMVUVA
AV16CMVUVA
/
30
85
95
3/208-230/60
26.4
38.5
74.50
118.8
24.6
38.5
69.42
118.8
3.22
3.86
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/786
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.80
28.58
9.52
300
175/150
50/40
50
50~130
50
-5~43
-15~15.5
-8~18
AV16CMVUVA
AV16CMVUVA
/
32
90
100
3/208-230/60
28.2
40
79.58
123.4
27
40
76.19
123.4
3.19
3.70
28200
62
79
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990
736/786
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
20
19.05
31.80
28.58
9.52
300
175/150
50/40
50
50~130
53
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV10CMVUVA
AV14CMVUVA
34
96
108
3/208-230/60
27.4
47.5
77.32
146.5
27.04
47.5
76.31
146.5
3.50
3.99
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/929
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
34.90
28.58
9.52
300
175/150
50/40
50
50~130
56
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV10CMVUVA
AV16CMVUVA
36
101
113
3/208-230/60
29.2
49
82.40
151.1
29.44
49
83.08
151.1
3.46
3.84
36300
63
81
990/750/1808+
990/750/1808+
1390/750/1808
1090/860/1990+
1090/860/1990+
1490/860/1990
848/929
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+1 INV
+(1 INV+1 FIX)
R410A
30
19.05
34.90
28.58
9.52
300
175/150
50/40
50
50~130
59
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV14CMVUVA
AV14CMVUVA
38
106.5
119
3/208-230/60
30.83
51
87.00
157.3
30.62
51
86.41
157.3
3.45
3.89
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1054
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.10
31.80
9.52
300
175/150
50/40
50
50~130
63
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV14CMVUVA
AV16CMVUVA
40
113
126.5
3/208-230/60
33.95
53
95.80
163.5
32.57
53
91.91
163.5
3.33
3.88
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1054
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.10
31.80
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~15.5
-8~18
AV10CMVUVA
AV16CMVUVA
AV16CMVUVA
42
118
131.5
3/208-230/60
35.75
54.5
100.88
168.1
34.97
54.5
98.68
168.1
3.30
3.76
39300
63
81
990/750/1808+
1390/750/1808+
1390/750/1808
1090/860/1990+
1490/860/1990+
1490/860/1990
976/1054
DC INV SCROLL
MITSUBISHI
ELECTRIC
1 INV
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.10
31.80
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~15.5
-8~18
AV12CMVUVA
AV16CMVUVA
AV16CMVUVA
44
123.5
137.5
3/208-230/60
37.38
56.5
105.48
174.3
36.15
56.5
102.01
174.3
3.30
3.80
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1179
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.10
31.80
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~15.5
-8~18
AV14CMVUVA
AV16CMVUVA
AV16CMVUVA
46
130
145
3/208-230/60
40.5
58.5
114.29
180.5
38.1
58.5
107.52
180.5
3.21
3.81
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1179
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.10
31.80
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~15.5
-8~18
AV16CMVUVA
AV16CMVUVA
AV16CMVUVA
48
135
150
3/208-230/60
42.3
60
119.37
185.1
40.5
60
114.29
185.1
3.19
3.70
42300
64
82
1390/750/1808+
1390/750/1808+
1390/750/1808
1490/860/1990+
1490/860/1990+
1490/860/1990
1104/1179
DC INV SCROLL
MITSUBISHI
ELECTRIC
(1 INV+1 FIX)
+(1 INV+1 FIX)
+(1 INV+1 FIX)
R410A
30
19.05
38.10
31.80
9.52
300
175/150
50/40
50
50~130
64
-5~43
-15~15.5
-8~18
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
The specification may change according to the further product developement
063 064
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
12/14/16HP8/10HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
MRV III-RC (HEAT RECOVERY)
Power Supply: 3/208~230/50/60
DC Inverter Scroll Compressor & BLDC Fan
5 Basic Single Modular Units: 8HP, 10HP, 12HP, 14HP, 16HP
Max. 3 Modules Combination up to 48HP,
Max Connected Indoor Units up to 64 .
Compatible with all the MRV Indoor Units
067
075
080
Features & Benefits
MRV S
II
Outdoor
MRV S
I
Outdoor
MRV IV-C MRV III-C MRVIII-RC MRV S
II
Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV S
MRV S
II
II
MRV S
II
(4/5/6HP)
Spiral air outlet grill
Better outlook and lower noise
DC inverter compressor
Haier takes DC INV. compressor, 5% power
input lower. (14kw)
DC fan motor and 550mm big fan
38% power input lower and 8% airflow higher
Larger heat exchanger
Heat exchange area rise 10 % . ( 14kw)
Low standby power
New PCB programme , reduce 20% standby
power consumption
New aerodynamics fan
550mm super big diameter aerospace helix fan.
lowering sound level 3 dB(A)
Double side “4 ” handles
Easy to carry
“Four-way” pipe connection
4-way (front,back,left & right) pipe connection,
easy to design and install
“888” test panel
All running data & error code can be checked from
"888" screen, which is easy for installers
Enlarged air inlet path and spiral
air outlet path
Air flow direction follows the grill direction .
lowering sound level 2-4 dB(A)
Automatic sound-lowering programme
Night mode set by PCB, 8dB(A) lower
Ball valve
0 pressure loss when refrigerant goes through
the valve .
capacity rise 0.5% with same power input
067 068
New platform, new outlook High energy efficiency
Comfort
Convenience
0
6
7
Built- in stop valve
Better outlook and easier to install
Round corner
Better outlook & safer
AVERAGE
EER
ἠ11%
AVE
R
ἠ
1
2
3
4
5
6
7
8
9
10
11
1
2
3
4
5
6
7
8
9
11
High EER and COP
DC inverter fan motor more higher efficiency in part load running
•16-stage speed control; high efficiency running especially in low speed
•Efficiency increase 45% comparing with AC motor and power input largely decrease
Big diameter fan
•570mm big diameter fan, more big air flow and more higher efficiency
DC Fan and Fan Motor
MRV IV-C MRV III-C MRVIII-RC MRV S
II
Easy MRV
MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
MRV S
II
(
8/10/12HP)
MRV S
MRV S
II
II

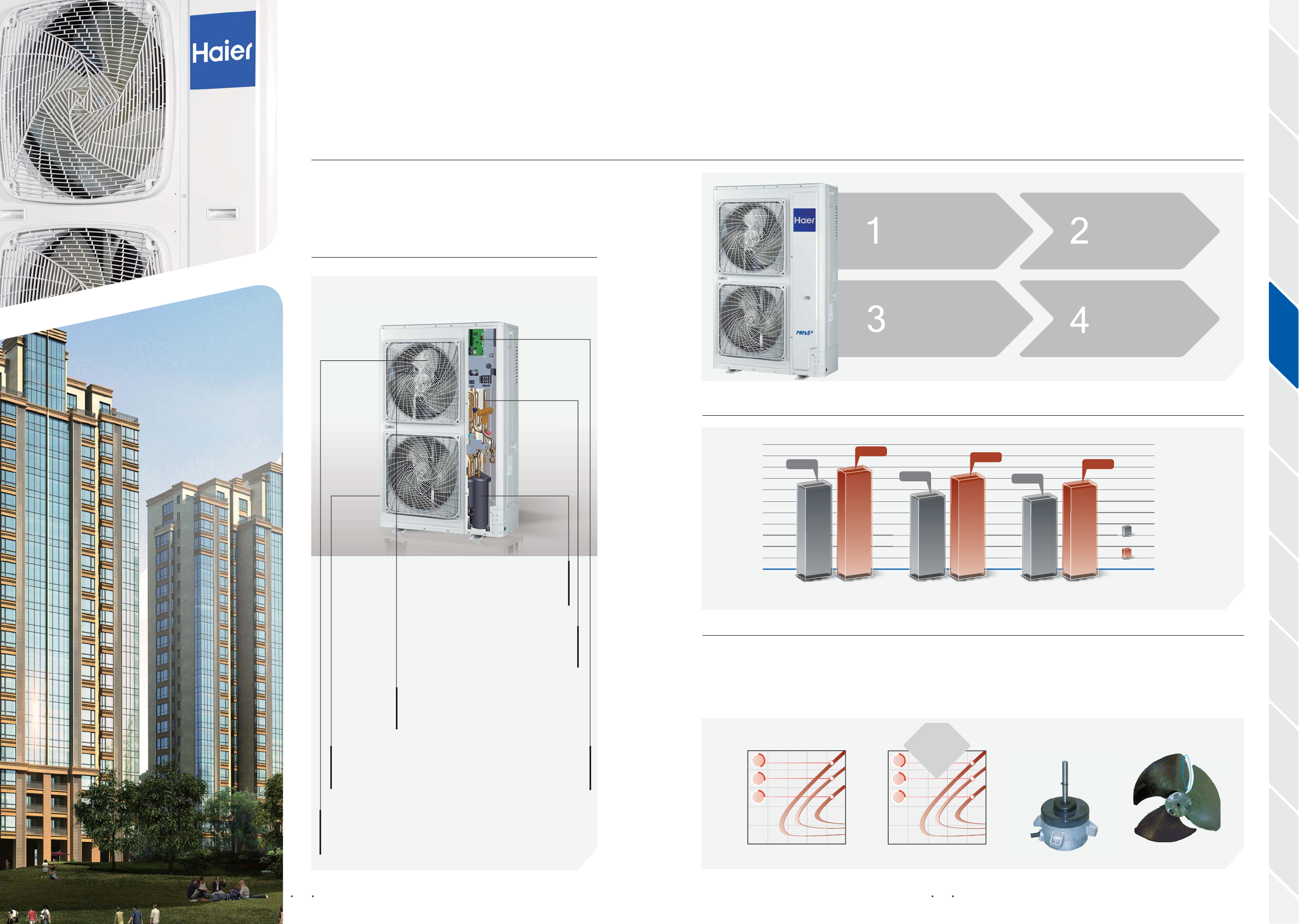

Bigger Outdoor Capacity, More Flexible
Application
Outdoor Structure (8/10/12HP Side Discharge)
High efficiency DC fan motor
•DC fan motor with stepless inverter
control, efficiency increase 45%
comparing with AC motor and power
input largely decrease
Large diameter fan
•570mm big diameter axial flow fan
•Zigzag design, reduce airflow
disturbance, air volume is bigger, the
noise is lower
High efficiency condenser
•New type high efficiency Ø8 inner
grooved tube
•New hydrophilic corrugated fissure
fin, high efficiency
Vector inverter control
•180 degrees sine wave vector
control, 64-bit operation
•High precision control, to achieve
high efficiency and lower noise
Double pressure sensor
•Equipped with high and low voltage
Pressure double sensors
•Accurate Pressure control, the system
run more smoothly, more energy efficiency
Twin rotary DC Inverter compressor
•High chamber DC INVERTER twin
rotary compressor
•Small vibration, low noise, high
energy efficiency
Energy
Efficiency
Comfort
Environment
Side Discharge
and Compact Design
High
Reliability
5.5
5
4.5
4
3.5
3
2.5
2
1.5
1
0.5
0
8HP 10HP 12HP
EER
COP
5
5
0
8H
P
EER
10
HP
EER
COP
E
EE
E
E
E
C
CO
C
C
12
HP
4.6
4.2
3.9
3.5
3.44
3.9
0 200 400 600 800 1000
100
80
60
40
20
0
45%
25%
35%
0 200 400 600 800 1000
100
80
60
40
20
0
85%
90%
87.5%
DC motor Ø570mm fan
0 200 400 600 800 1000
AC motor efficiency DC motor efficiency
0 200 400 600 800 1000
efficiency
45%
enhanced
069 070
•Small torque change, good dynamic balance,
the system runs stably, little vibration, low noise, high efficiency
•More higher efficiency in part load running
Energy Efficiency
Low noise level
Night Quiet Operation Function
Easy installation
Compact Side Discharge Design, Big Capacity, Small
Floor Area
Small floor area, only 0.42m
2
, 43% floor area can be reduced
Compact Side Discharge Design
No need additional ventilation hood comparing with top
discharge unit
Easy Installation
4 Way pipe connection
Front, rear, right, down 4 way pipe connection, flexible installation
Easy Service
•Total pipe length: 300m
•Single pipe length: Max.175m
•From outdoor to the first branch pipe: 135m
•From the first branch to the farthest indoor door unit: 40m
•Height drop: 50m( outdoor above)/40m (outdoor below)
•Height drop between indoor units: 15m
Easy for refrigerant charging
071 072
MRV IV-C MRV III-C MRVIII-RC MRV S
II
Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV S
II
(8/10/12HP)
Noise can be reduced to 45dB(A) Low noise operation
•DC INVERTER compressor, smooth operation, no need
frequent start the compressor, effectively reduce the noise outdoor
•Vector inverter control, more precise control
•DC fan motor, motor bracket used the non-resonance
structure, ensure smooth running of the motor, reduce
operating noise
•Big diameter fan,
design according
to aviation quieter
principle
DC motor
9hrs8hrs
Night mode
Lower 10dB(A) than normal
Night mode ends
Night mode starts
Peak in the outdoor temperature
08:00
100
50
0
58
50
12:00 16:00 20:00 00:00 04:00 08:00
Operation dB(A) Load% Capabiity
0.8m
1.8m
0.77m
0.42m
2
0.745m
2
43%
floor area
reduced
188mm
height
reduced
Good solution
for
narrow space
Easy installation
Long pipe length, high height drop Parameter display panel
Separate refrigerant charging valve
New DC inverter twin rotary compressor
DC FAN
MOTOR
Strong
magnetic
rotor, small
vortex of
refrigerant
15m
50m
Single
pipe
length
175 m
Total pipe
length
300m
Separate
refrigerant
charging
valve
•The first original parameter display panel on the side
•The parameter can be observed directly by opening the
protective cover in case of maintenance, to avoid removing the
repair board
Easy maintenance for control
Parameter
display
Cover
AC FAN
Control PCB
Main PCB
Traditional products need to
open the front panel or top
control box cover for
maintenance
DC FAN
Control PCB
•The control box is in front, reserving space 108mm between
control box and top panel, easy maintenance from the top
Control box is with hinge design, easy to open for maintenance
Maintenance
from the top
Hinge design
Difficult to
maintenance
from the front
High Reliability
•Set refrigerant automatically reclaim through dip switch, the
refrigerant in indoor and pipe can be automatically return to
outdoor, convenient in maintenance and reducing waste of
refrigerant, reduce customer maintenance cost, improve the
efficiency of after-sales maintenance
•Refrigerant control technology without high pressure
accumulator, reducing the refrigerant volume
and enhancing the running efficiency
073 074
MRV IV-C MRV III-C MRVIII-RC MRV S
II
Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
Refrigerant automatically reclaim
Technology
High Reliability
Air inlet grill design on right side panel
Refrigerant control technology
Press these 2
buttons
5 seconds
Outdoor
Indoor
Indoor
Indoor
Without
accumulator
Compressor
•Air inlet grill design, reducing the module temperature and
avoid air dust into air conditioner
High and low double pressure sensor
•Double pressure sensor with PID control technology
•Together with high speed communication to realize the quick
start of compressor and more precise control, the
temperature can be control ±0.5°C
Reducing the module
temperature
Temp
Setting
temp
Begin
Too cool
Constant
speed system
MR V inverter
system
Not cool
enough
Comfort
Cooling the room
quickly
Temp. difference
Cooling running
Time
r
Normal control
PID control
075 076
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV S
II
OUTDOOR
AV08NMSETA
AV10NMSETA
AV12NMSETA
MRV S
II
OUTDOOR
AU042FPERA
AU052FPERA
AU05IFPERA
AU06IFPERA
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
8
77.1
22.6
85.3
25
3/380~400/50/60
5.79
5.43
3.9/4.6
10000
55
66
1050/400/1636
1150/510/1795
168/183
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
7.4
9.52
19.05
300
175/135
50
50~130
13
-5~43
-15~21
AV08NMSETA
10
95.5
28
107.5
31.5
3/380~400/50/60
8
7.5
3.5/4.2
10000
58
69
1050/400/1636
1150/510/1795
168/183
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
7.4
12.7
22.22
300
175/135
50
50~130
16
-5~43
-15~21
AV10NMSETA
12
114.3
33.5
128
37.5
3/380~400/50/60
9.75
9.62
3.44/3.9
10000
60
71
1050/400/1636
1150/510/1795
168/183
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
7.4
12.7
25.4
300
175/135
50
50~130
19
-5~43
-15~21
AV12NMSETA
HP
kBtu/h
kW
kBtu/h
kW
Ph/V/Hz
kW
kW
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
m
m
m
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Power input (Cooling)
Power input (Heating)
EER/COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Total pipe lenth
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Capacity
Electrical
parameters
Performance
Installation
Working temp.
Connection ratio
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB)
Model
HP
kBtu/h
kW
kBtu/h
kW
Ph/V/Hz
kW
kW
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
m
m
m
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Power input (Cooling)
Power input (Heating)
EER/COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Total pipe lenth
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Capacity
Electrical
parameters
Performance
Installation
Working temp.
Connection ratio
Models are under development, data is pending.
AU042FPERA
4
43
12.6
48.4
14.2
1/220-230/50/60
3.41
3.40
3.70
4.18
7200
50
66
950/370/1340
1023/471/1420
115/123
Rotary
MITSUBISHI ELECTRIC
1
R410A
4
9.52
15.88
300
150
50
50-130
7
-15~48
-20~27
Model
AU05IFPERA
5
47.8
14
54.6
16
3/380-400/50/60
3.90
4.19
3.59
3.82
7200
51
67
950/370/1340
1023/471/1420
115/123
Rotary
MITSUBISHI ELECTRIC
1
R410A
4
9.52
15.88
300
150
50
50-130
10
-15~48
-20~27
AU052FPERA
5
47.8
14
54.6
16
1/220-230/50/60
3.84
4.12
3.65
3.88
7200
51
67
950/370/1340
1023/471/1420
115/123
Rotary
MITSUBISHI ELECTRIC
1
R410A
4
9.52
15.88
300
150
50
50-130
10
-15~48
-20~27
6
52.9
15.5
61.4
18
3/380-400/50/60
4.89
5.04
3.17
3.57
7200
53
69
950/370/1340
1023/471/1420
115/123
Rotary
MITSUBISHI ELECTRIC
1
R410A
4
9.52
15.88
300
150
50
50-130
12
-15~48
-20~27
AU06IFPERA
MRV IV-C MRV III-C
MRVIII-RC MRV S
Easy MRV
MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
MRV S
I
(3/5/7HP)
MRV S
I
077 078
DC Inverter Twin Rotary Compressor
Realize high efficiency and compact designed compressor by joint
wrap & earths metal magnet motor.
Wide range inverter compressors would satisfy the customer's
innovative requirement and design.
DC Inverter Twin Rotary Compressor
DC Inverter Technology
•DC fan motor speed can be adjusted from 0~1000 r/min, it can
improve the unit efficiency, at the same time, the unit can
realize low ambient cooling operation.
•MRV S
I
series permits a system design considering a heating
range operation under a low temperature condition from -15°C
of previous model and a cooling range operation -5°C.
•For the capacities under low temperature conditions, please
see technical data sheets.
•PID control adjusts the output of compressor and the open
degree of EEV, balances the indoor refrigerant flow, realizes
the linear output, creates a comfortable environment. The
temperature could be controlled precisely.
DC inverter motor
Precise Control
High efficiency
Low vibration, low noise
High reliability
Operation Range
Imprecise common control
PID precise control
Refrigerant flow speed
Refrigerant flow speed
P:Proportion adjustment
I : Integral adjustment
D : Differential adjustment
MRVIII (PID control)
Conventional control
Time
Indoor temperature
Cooling
Te m p
Setting
temp
Begin
Too cool
Constant
speed system
MR V inverter
system
Notcool
enough
Comfort
Cooling the room
quickly
Temp. diff
erence
Cooling running
Timer
-5°CDB
43°CDB
-15°CWB
21°CWB
180° Vector Control Technology
•Haier using power resistance to detect the rotor position of
compressor, results in the consistency of the compressor
working current and current sine waves, improve power
efficiency about 17%.
079 080
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV S
I
3/5/7HP
Side Discharge MRV S
I
Outdoor Units
•Dual Frequency 50/60Hz
DC Inverter TWIN Rotary Compressor
BLDC Fan ( BrushLess DC motor )
MRV S
I
OUTDOOR
AU482FIERA(G)
AU48NFIERA(G)
AU60NFIERA(G)
AU282FHERA
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
HP
kBtu/h
kW
kBtu/h
kW
Ph/V/Hz
kW
kW
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
m
m
m
%
°C
°C
Capacity range
Cooling
Heating
Power supply
Power input (Cooling)
Power input (Heating)
EER/COP
Air flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Compressor type
Compressor brand
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Total pipe lenth
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
Connectable indoor unit ratio
Maximum number of indoor units
Cooling
Heating
Capacity
Electrical
parameters
Performance
Installation
Working temp.
Connection ratio
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB)
AU282FHERA
3HP
27.3
8
32.4
9.5
1/220~230/50
2.2
2.15
3.64/4.42
3500
55
66
960/340/830
1095/410/945
74/89
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
2.6
9.52
15.88
50
35
30
50~130
4
10~43
-15~21
Model
AU48NFIERA(G)
5HP
51.2
15
58
17
3/380~400/50/60
4.2
4
3.57/4.25
6500
59
70
960/340/1250
1095/410/1400
105/113
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
4
9.52
19.05
100
70
30
50~130
8
-5~43
-15~21
AU482FIERA(G)
5HP
51.2
15
58
17
1/220~230/50/60
4.2
4
3.57/4.25
6500
59
70
960/340/1250
1095/410/1400
105/113
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
3.6
9.52
19.05
100
70
30
50~130
8
-5~43
-15~21
7HP
61.4
18
68.2
20
3/380~400/50/60
5.5
5.25
3.27/3.8
6500
60
71
960/340/1250
1095/410/1400
105/113
Rotary
MITSUBISHI
ELECTRIC
1 INV
R410A
4
9.52
19.05
100
70
30
50~130
9
-5~43
-15~21
AU60NFIERA(G)
240 300 0
60 120 180
240 300
0
90-degree
120 18060
15kW 1 Phase
15kW 3 Phase
18kW 3 Phase
Control the compressor running frequency by temp.
Sensor, more precise and prompt than conventional
control system.
Protections: Pressure, temp., compressor, fan motor,
refrigerant, oil quantity etc. Realize perfect
performance.
DC inverter compressor, high efficiency.
DC fan motor (AU48/60).
Single set valve, easy to installation and save
installation time.
Malfunction self-diagnose.
1
1
1
1
2
2
3
3
4
4
083
097
Features & Benefits
MRV W Outdoor
What is MRV W Series
•MRV W series system is a VRF air conditioning system that adopts water as a cooling or heating source
•MRV W series can combine water system and refrigerant system together
083 084
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV W
FEATURES & BENEFITS
More Bigger Outdoor Capacity, More Flexible
Application
Outdoor Structure (8/10/12hp Side Discharge)
MRV
Indoor units
Water-cooled
MRV
River water Lake water
Sea water Ground water
Soil Solar energy
Waste water
Industry waste heat
System Introduction
Working Principle
Working Principle
Working principle in cooling mode
Working principle in heating mode
085 086
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
1
2
3
4
5
6
7
7
7
8
8
Expansion
tank
1
Cooling
tower
Water-cooled
MRV outdoor
Refrigerant
piping
(to indoor unit)
Water piping
To cooling tower
(closed system)
and boiler
2 3 4 5
Indoor unit
Meeting
room
Office
6 7 8
Refrigerant system
Indoor unit
Condenser unit
Water
system
Water system is same with
chiller system
Refrigerant system is same
with air-cooled VRF
35°C
Cooling tower Condensing unit
Ground source Indoor unit
Indoor heat exchanger
Double coil heat
exchanger
Compressor
30°C
0
30
EXV
15°C
20°C
Heat source
water
Heat
exchanger
Boiler
Indoor heat exchanger
Double coil heat
exchanger
Compressor
EXV
Condensing unit
Indoor unit
Id h t h
r
Outdoor Structure MRV W Application
Core Technologies and Parts (Front Side)
•Compact inner structure and core parts
3 Types Typical High-rise Buildings
•Conventional chiller system, and new water-cooled MRV solution
Type 1 High-rise Building
Typical high-rise buildings
087 088
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
Core Technologies and Parts(Back Side)
Refrigerant pipe
Refrigerant pipe to connect the indoor
units
Gas-liquid separator
Reduce the heat exchanger
height(650mm), and the upper and lower
wind speed uniform and high efficiency
Compact electrical control box
Compact electric control box, which can
rote up and down, easy for compressor
service
Water outlet and inlet
Water outlet and inlet pipe to connect
the double coil heat exchanger
Compact electrical control box
Compact electric control box, which
can rote up and down, easy for
compressor service
DC inverter scroll compressor
DC inverter scroll compressor, more
higher energy efficiency
Water switch
Double coil heat exchanger
•Double coil heat exchanger, more
uniform Heat transfer effect
•More higher double coil, saving more
space, more compact design
Oil separator
High rise building without podium High rise building with podium Single layer with a large area
Type 1 Type 2 Type 3
Heat exchanger
Cooling
Tower
Cooling
Tower
Office Office
Chiller MRV W
Cooled
water
or heated
water
Cooled
water
or heated
water
AHU
Big duct
Condensate
water
Refrigerant
pipe
The
ground
BasementBasement BoilerBoiler
•Conventional chiller system, and water-cooled MRV solution
•New construction or retrofit building: MRV W provides an energy efficient solution anywhere that could use a
water-cooled chiller or replacing water source heat pump design by enabling them to afford the
water-cooled chiller benefits. It is especially true for high-rise buildings such as condos, offices, medical
centers, schools
•High-rise building that didn’t design with VRF system
•Glass curtain wall or special design building
•No enough space to put the outdoor unit even accept the VRF system
•Building which required to renewable energy sources
Buildings That Suitable
•Lower initial cost for the developer and builder
•Client or developer can add air conditioning to match load requirement
•No rebalancing of water systems if commissioning valves are installed on each floor
•Connect to the full suite of MRV control solution A/C management system
•Separate control to every indoor unit
Benefit
089 090
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
MRV W Application MRV W Application
•Conventional chiller system, and water-cooled MRV solution
Type 2 High-rise Building
Type 3 High-rise Building
Cooling
Tower
Cooling
Tower
MRV W Chiller
Cooled/
heated
water
Big duct
Refrigerant
pipe
The
ground
BasementBasement BoilerBoiler
Cooled/
heated
water
Cooled/heated water
Robby, shopping mall
Hotel or
office
Exchanger
Exchanger
Cooling Tower
Cooling Tower
Big duct
Big duct Big duct
Cooled/heated water
Cooled/
heated
water
Condensate
water
Refrigerant pipe
Ground
Ground
Shopping mall
Shopping mall
MRV W
Chiller
Basement
Basement
Atrium
Atrium
Boiler
Boiler
AHU
AHU
Big duct
AHU
AHU
Overview
•COP can be up to 6.02, much more higher energy level than air system
•EER can be up to 4.98, more higher energy level than air system
Energy saving
•High efficiency DC inverter compressor from mitsubishi
electric
•The double EEV control the 2 stages heat exchanger
separately, which can adjust the condenser volume
Energy Saving
Energy Saving
•1
st
stage sub cooling added a sub cooling coil to condenser
•2
nd
stage sub cooling added a stand alone sub cooler
•After further cooling, sub-cooling degree can be up to 30˚C,
with the heat exchanging capacity per unit mass of refrigerant
improved by 46% and flow resistance reduced by 55%, and
running efficiency improved by 9%
•Heat recovery is achieved within the water loop between different refrigerant system, more higher total COP
•Cooling and heating at the same time in different refrigerant system
Heat recovery between different refrigerant system
091 092
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
Energy
Efficiency
Comfort
High
Convenience
High
Reliability
7
6
5
4
3
2
1
0
6.02
5.43
4.81
8HP 10HP 12HP
5
4.8
4.6
4.4
4.2
4
8HP 10HP 12HP
4.98
4.67
4.35
2
1
0
8
HP 1
0
H
P
12H
P
4.4
4.2
4
8HP
10
HP 12HP
High efficiency dc inverter compressor
Double EEV Control Two Stage Deep Sub Cooling Technology
•Double coil heat-exchanger, more uniform heat
transfer effect
Energy Saving
High efficiency double coil heat exchanger
w
a
t
er
R
e
f
rigerant
Zone B
Zone A
Cooling
Cooling
Heating
Heating
Cooling
Tower
Boiler
Absorb
the heat
Discharge
the heat
Discharge
the heat
Absorb
the heat
•Comparing with air system, without fan in the outdoor and with full insulation design, the noise level can be reduced to
only 50dB(A), much lower than the air system and conventional chiller
Low Noise Level
•Thanks to the stable water source, the capacity and efficiency will not reduce with extreme ambient conditions compare with
air-cooled system
•Especially in heating mode, water cooling means no defrost operation is required, the resultant rapid start up time assures quick and
comfortable heating, even in cold environment
Comfortable Environment
High Reliability
•The reserved water pump linkage control, realize the pump linkage control, reduce the energy consumption and eliminate hidden dangers
•Using refrigerant to reduce the module temperature, to
realize stable module temperature, more reliable operation
•Canceling heat dissipation fan of the module, reduce the
power consumption and noise level
Chilled Electric Control Module
High Reliability
•Stable pressure setting design, to make the high pressure
keep above the required pressure, ensure the compressor
reliability and stable capacity output
•The industry’s most compact and lightweight design, installed
in the narrow space.
Comparing with the conventional top discharge air-cooled
system, height 45% reduced, footprint
43% reduced
Compact and Lightweight Design
High Convenience
(Use/installation/service)
•The condensers are smaller and can be staked, reducing the
installation space and increasing the customers usable square
footage
093 094
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
No Influence From Ambient Temperature
Water Pump Controlled Together with the Outdoor
Stable Pressure Setting
Wide Operation Range
Stacked Installation
Quiet audio-
visual room
Working office
Screw /oil free chiller
70~90dB(A)
Street
AHU
60~75dB(A)
MRV W
50dB(A)
Silent library
30
40
50
60
70
80
0.42m
2
Footprint
43%
43%
reduced
0.745m
2
Height
45%
45%
reduced
1.7
1.34
0.9
1
72045
Pa
1
.
34
0
.
9
1
4
5
7
20
50°C
Temperature range of water inlet
7~45°C
Condensing unit ambient
temperature range 0~40°C
Temperature range of indoor
Cooling:18~32°C(Heating: 15~27°C)
The condensing unit water flow range is
50~150L/min (Standard 96L/min)
45°C
45°C
7°C
0°C
40°C
32°C(DB)
18°C
27°C(DB)
15°C
40°C
35°C
30°C
25°C
20°C
15°C
10°C
5°C
0°C
Energy Efficiency Energy Efficiency
Th
e con
d
ensers are sma
ll
er an
d
can
b
e sta
k
e
d
, re
d
ucing t
h
e insta
ll
ation space an
d
increasing t
h
e customers usa
bl
e
square
f
ootag
e
•Max water pressure can be up to 1.96MPa
•Condensate pipe length can be up to 200m
High Convenience (Use/installation/service)
•The condensers are smaller and can be staked, reducing the installation space and increasing the customers usable square footage
Various Mode and Priority Selection
Compact outdoor structure design
095 096
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
Flexible Water Pipe Design
Easy Maintenance
Energy Efficiency
Flexible Installation Location Long Pipe Length and High Height Drop
Max.
Max.
300
300
m
Total pipe length
Cooling tower
Boiler
Max.
Max.
50
50
m
Height drop ID/OD
Max.
Max.
150(120)
150(120)
m
Single pipe length
C
Max.
Max.
20
200m
Cooled water pipe
Cooled water pipe
Max.
Max.
1.96
1.96
MPa
MPa
Water pressure
Water pressure
Max.200m
Water Pipe
Condensate pipe
Outside Machine room
CorridorBalcony
Equipment room
Storage
First on indoor
priority
Last on indoor
priority
Cooling
priority
Mode
Heating
priority
VIP priority Majority
Cooling only
mode
Heating only
mode
Cooling and
heating mode
Mode
Compressor
Compressor is near
the outside;
Compact pipe system;
Convenient for
maintenance
Gas-liquid separator
Heat exchanger
Model
AV08IMWEWA
AV10IMWEWA AV12IMWEWA AV16IMWEWA AV18IMWEWA AV20IMWEWA AV22IMWEWA AV24IMWEWA AV26IMWEWA AV28IMWEWA AV30IMWEWA AV32IMWEWA AV34IMWEWA AV36IMWEWA
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
The specification may change according to the further product developement.
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
mm
mm
Kpa
Mpa
%
unt
Capacity range
Cooling capacity
Heating capacity
Power supply
Cooling Rated power input
Max. power input
Rated current
Max.current
Heating Rated power input
Max. power input
Rated current
Max.current
EER/COP
Water flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Compressor type
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
Type
Material
Inlet water connection pipe
Outlet water connection pipe
pressure drop( inlet and outlet)
Connection type
Max. system water pressure
Inlet water temperature range
(Cooling & Heating)
Connectable indoor unit ratio
Maximum number of indoor units
/
/
/
8
22.4
25
3/380~400/50/60
4.50
13.00
7.20
20.79
4.15
13.00
6.64
20.79
4.98/6.02
4.8
50
61
775/545/995
840/625/1150
172/183
DC INV. SCROLL
1 INV
R410A
2
9.52
19.05
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
35
inner grooved
1.6
50-130
13
°C
7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45 7~45
/
/
/
10
28
31.5
3/380~400/50/60
6.00
15.00
9.60
23.99
5.80
15.00
9.28
23.99
4.67/5.43
6
51
62
775/545/995
840/625/1150
172/183
DC INV. SCROLL
1 INV
R410A
2
9.52
22.2
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
50
inner grooved
1.6
50-130
16
/
/
/
12
33.5
37.5
3/380~400/50/60
7.70
17.00
12.32
27.19
7.80
17.00
12.47
27.19
4.35/4.81
7.2
53
64
775/545/995
840/625/1150
172/183
DC INV. SCROLL
1 INV
R410A
2
12.7
25.4
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
70
inner grooved
1.6
50-130
19
AV08IMWEWA
AV08IMWEWA
/
16
44.8
50.0
3/380~400/50/60
9.00
26.00
14.39
41.58
8.30
26.00
13.27
41.58
4.98/6.02
9.6
53
64
(775/545/995)*2
(840/625/1150)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
12.7
28.58
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
35+35
inner grooved
1.6
50-130
23
AV08IMWEWA
AV10IMWEWA
/
18
50.4
56.5
3/380~400/50/60
10.50
28.00
16.79
44.78
9.95
28.00
15.91
44.78
4.80/5.68
10.8
54
65
(775/545/995)*2
(840/625/1150)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.88
28.58
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
35+50
inner grooved
1.6
50-130
29
AV10IMWEWA
AV10IMWEWA
/
20
56
63
3/380~400/50/60
12.00
30.00
19.19
47.98
11.60
30.00
18.55
47.98
4.67/5.43
12
54
65
(775/545/995)*2
(840/625/1150)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.88
28.58
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
50+50
inner grooved
1.6
50-130
33
Capacity
Combination model
Electrical
parameters
Performance
Installation
Heat
Exchanger
Water side
Connection
ratio
AV10IMWEWA
AV12IMWEWA
/
22
61.5
69.0
3/380~400/50/60
13.70
32.00
21.91
51.18
13.60
32.00
21.75
51.18
4.49/5.07
13.2
55
66
(775/545/995)*2
(840/625/1150)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.88
28.58
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
50+70
inner grooved
1.6
50-130
36
AV12IMWEWA
AV12IMWEWA
/
24
67.0
75.0
3/380~400/50/60
15.40
34.00
24.63
54.38
15.60
34.00
24.95
54.38
4.35/4.81
14.4
56
67
(775/545/995)*2
(840/625/1150)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.88
28.58
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
70+70
inner grooved
1.6
50-130
39
AV08IMWEWA
AV08IMWEWA
AV10IMWEWA
26
72.8
81.5
3/380~400/50/60
15.00
41.00
23.99
65.57
14.10
41.00
22.55
65.57
4.85/5.78
15.6
55
66
(775/545/995)*3
(840/625/1150)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.05
31.8
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
35+35+50
inner grooved
1.6
50-130
43
AV08IMWEWA
AV10IMWEWA
AV10IMWEWA
28
78.4
88.0
3/380~400/50/60
16.50
43.00
26.39
68.77
15.75
43.00
25.19
68.77
4.75/5.59
16.8
55
66
(775/545/995)*3
(840/625/1150)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.05
31.8
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
35+50+50
inner grooved
1.6
50-130
46
AV10IMWEWA
AV10IMWEWA
AV10IMWEWA
30
84.0
94.5
3/380~400/50/60
18.00
45.00
28.79
71.97
17.40
45.00
27.83
71.97
4.67/5.43
18.0
56
67
(775/545/995)*3
(840/625/1150)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.05
31.8
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
50+50+50
inner grooved
1.6
50-130
50
AV10IMWEWA
AV10IMWEWA
AV12IMWEWA
32
89.5
100.5
3/380~400/50/60
19.70
47.00
31.51
75.17
19.40
47.00
31.03
75.17
4.54/5.18
19.2
57
68
(775/545/995)*3
(840/625/1150)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.05
31.8
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
50+50+70
inner grooved
1.6
50-130
53
AV10IMWEWA
AV12IMWEWA
AV12IMWEWA
34
95.0
106.5
3/380~400/50/60
21.40
49.00
34.23
78.37
21.40
49.00
34.23
78.37
4.44/4.98
20.4
57
68
(775/545/995)*3
(840/625/1150)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.05
31.8
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
50+70+70
inner grooved
1.6
50-130
56
AV12IMWEWA
AV12IMWEWA
AV12IMWEWA
36
100.5
112.5
3/380~400/50/60
23.10
51.00
36.95
81.57
23.40
51.00
37.42
81.57
4.35/4.81
21.6
58
69
(775/545/995)*3
(840/625/1150)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.05
38.1
9.52
300
150/120
50/40
Double coil
Copper
DN32
DN32
70+70+70
inner grooved
1.6
50-130
59
097 098
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV W OUTDOOR
8/10/12HP
3Ph/380-400V/50(60)Hz
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
Water Source MRV Outdoor Unit, Combine Water System and Refrigerant System in
one System
3 Basic Single Module:8/10/12HP, Max 3 Modules Combination up to 36HP
Most Compact Size Outdoor Design in the Industry
Total 300m Long Pipe Length, Easy for Installation
Double Coil Outdoor Heat Exchanger
Compatible with all the MRV Indoor Units
Model
AV08CMWEWA
AV10CMWEWA AV12CMWEWA AV16CMWEWA AV18CMWEWA AV20CMWEWA AV22CMWEWA AV24CMWEWA AV26CMWEWA AV28CMWEWA AV30CMWEWA AV32CMWEWA AV34CMWEWA AV36CMWEWA
1 outdoor above 50m,outdoor below 40m.
All the specifications are tested under nominal condition(In cooling, Indoor temp is 27°C DB/19°C WB; Outdoor temp 35°C DB/24°C WB; In heating, Indoor temp is 20°C DB, Outdoor temp is 7°C DB/6°C WB).
The specification may change according to the further product developement.
HP
kW
kW
Ph/V/Hz
kW
kW
A
A
kW
kW
A
A
m³/h
dB(A)
dB(A)
mm
mm
kg
kg
mm
mm
mm
m
m
m
mm
mm
Kpa
Mpa
%
unt
Capacity range
Cooling capacity
Heating capacity
Power supply
Cooling Rated power input
Max. power input
Rated current
Max.current
Heating Rated power input
Max. power input
Rated current
Max.current
EER/COP
Water flow (H)
Sound pressure level (H)
Sound power level (H)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Compressor type
Compressor quantity
Refrigerant type
Refrigerant charge
Refrigerant liquid pipe
Refrigerant gas pipe
Oil equalization pipe
Total pipe length
Max. pipe length(Equivalent/Actual)
Max drop between I.U.&O.U
Type
Material
Inlet water connection pipe
Outlet water connection pipe
pressure drop( inlet and outlet)
Connection type
Max. system water pressure
Inlet water temperature range
(Cooling & Heating)
Connectable indoor unit ratio
Maximum number of indoor units
/
/
/
8
22.4
25
3/208~230/60
4.50
13.00
12.43
35.91
4.15
13.00
11.46
35.91
4.98/6.02
4.8
50
61
775/545/995
875/655/1182
172/183
DC INV. SCROLL
1 INV
R410A
2
9.52
19.05
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
35
inner grooved
1.6
7~45
50-130
13
°C
/
/
/
10
28
31.5
3/208~230/60
6.00
15.00
16.58
41.44
5.80
15.00
16.02
41.44
4.67/5.43
6
51
62
775/545/995
875/655/1182
172/183
DC INV. SCROLL
1 INV
R410A
2
9.52
22.2
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
50
inner grooved
1.6
7~45
50-130
16
/
/
/
12
33.5
37.5
3/208~230/60
7.70
17.00
21.27
46.96
7.80
17.00
21.55
46.96
4.35/4.81
7.2
53
64
775/545/995
875/655/1182
172/183
DC INV. SCROLL
1 INV
R410A
2
12.7
25.4
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
70
inner grooved
1.6
7~45
50-130
19
AV08CMWEWA
AV08CMWEWA
/
16
44.8
50.0
3/208~230/60
9.00
26.00
24.86
71.83
8.30
26.00
22.93
71.83
4.98/6.02
9.6
53
64
(775/545/995)*2
(875/655/1182)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
12.7
28.6
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
35+35
inner grooved
1.6
7~45
50-130
23
AV08CMWEWA
AV10CMWEWA
/
18
50.4
56.5
3/208~230/60
10.50
28.00
29.01
77.35
9.95
28.00
27.49
77.35
4.8/5.68
10.8
54
65
(775/545/995)*2
(875/655/1182)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.9
28.6
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
35+50
inner grooved
1.6
7~45
50-130
29
AV10CMWEWA
AV10CMWEWA
/
20
56
63
3/208~230/60
12.00
30.00
33.15
82.88
11.60
30.00
32.05
82.88
4.67/5.43
12
54
65
(775/545/995)*2
(875/655/1182)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.9
28.6
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
50+50
inner grooved
1.6
7~45
50-130
33
Capacity
Combination model
Electrical
parameters
Performance
Installation
Heat
Exchanger
Water side
Connection
ratio
AV10CMWEWA
AV12CMWEWA
/
22
61.5
69.0
3/208~230/60
13.70
32.00
37.85
88.40
13.60
32.00
37.57
88.40
4.49/5.07
13.2
55
66
(775/545/995)*2
(875/655/1182)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.9
28.6
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
50+70
inner grooved
1.6
7~45
50-130
36
AV12CMWEWA
AV12CMWEWA
/
24
67.0
75.0
3/208~230/60
15.40
34.00
42.54
93.93
15.60
34.00
43.10
93.93
4.35/4.81
14.4
56
67
(775/545/995)*2
(875/655/1182)*2
344/366
DC INV. SCROLL
2 INV
R410A
4
15.9
28.6
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
70+70
inner grooved
1.6
7~45
50-130
39
AV08CMWEWA
AV08CMWEWA
AV10CMWEWA
26
72.8
81.5
3/208~230/60
15.00
41.00
41.44
113.26
14.10
41.00
38.95
113.26
4.85/5.78
15.6
55
66
(775/545/995)*3
(875/655/1182)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.1
31.8
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
35+35+50
inner grooved
1.6
7~45
50-130
43
AV08CMWEWA
AV10CMWEWA
AV10CMWEWA
28
78.4
88.0
3/208~230/60
16.50
43.00
45.58
118.79
15.75
43.00
43.51
118.79
4.75/5.59
16.8
55
66
(775/545/995)*3
(875/655/1182)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.1
31.8
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
35+50+50
inner grooved
1.6
7~45
50-130
46
AV10CMWEWA
AV10CMWEWA
AV10CMWEWA
30
84.0
94.5
3/208~230/60
18.00
45.00
49.73
124.31
17.40
45.00
48.07
124.31
4.67/5.43
18.0
56
67
(775/545/995)*3
(875/655/1182)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.1
31.8
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
50+50+50
inner grooved
1.6
7~45
50-130
50
AV10CMWEWA
AV10CMWEWA
AV12CMWEWA
32
89.5
100.5
3/208~230/60
19.70
47.00
54.42
129.84
19.40
47.00
53.59
129.84
4.54/5.18
19.2
57
68
(775/545/995)*3
(875/655/1182)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.1
31.8
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
50+50+70
inner grooved
1.6
7~45
50-130
53
AV10CMWEWA
AV12CMWEWA
AV12CMWEWA
34
95.0
106.5
3/208~230/60
21.40
49.00
59.12
135.36
21.40
49.00
59.12
135.36
4.44/4.98
20.4
57
68
(775/545/995)*3
(875/655/1182)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.1
31.8
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
50+70+70
inner grooved
1.6
7~45
50-130
56
AV12CMWEWA
AV12CMWEWA
AV12CMWEWA
36
100.5
112.5
3/208~230/60
23.10
51.00
63.81
140.89
23.40
51.00
64.64
140.89
4.35/4.81
21.6
58
69
(775/545/995)*3
(875/655/1182)*3
516/549
DC INV. SCROLL
3 INV
R410A
6
19.1
38.1
9.52
300
150/120
50/40
Double coil
Copper&Steel
DN32
DN32
70+70+70
inner grooved
1.6
7~45
50-130
59
099 100
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV W OUTDOOR
8/10/12HP
DC motor
Super quiet
Quiet operation
3 minutes
protection
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
Water Source MRV Outdoor Unit, Combine Water System and Refrigerant System in
one System
3 Basic Single Module:8/10/12HP, Max 3 Modules Combination up to 36HP
Most Compact Size Outdoor Design in the Industry
Total 300m Long Pipe Length, Easy for Installation
Double Coil Outdoor Heat Exchanger
Compatible with all the MRV Indoor Units
3Ph/208-230V/60Hz
103
107
Features & Benefits
Easy MRV Outdoor
EASY MRV KIT
Easy MRV Line up
Haier Easy MRV Connection Kit offers a range of expansion valve kits and control boxes to connect Haier SUPER MATCH indoor
units.
Haier Easy MRV Provide a wide range of MRV outdoor, valve box and Super Match Indoor solution.
103 104
EASY MRV KIT
FEATURES & BENEFITS
System Connection Kit to link the systems
together.
Intergraded System Solution Easy MRV System Introduction
Super Match
Indoor
MRV Outdoor
Single Split
MRV Indoor
AHU
Multi Split
Maxi Split
3
rd
Party DX AHU
Capacity ≤ 36K
36K<Capacity < 60K
Capacity ≤ 36K
MRV Indoor
1:1
1:1
1:3
Connection kit
Indoor
MRV S MRV III-C outdoor
Super Match
Super Match
Super Match
AU482FIERA(G)
AU48NFIERA(G)
AU60NFIERA(G)
MRV S
Outdoor
Valve Box
Super Match
Indoor
And MRV indoor
AV08NMSETA
AV10NMSETA
AV12NMSETA
AV08NMVESA
AV10NMVESA
AV08CMVESA
AV10CMVESA
AV08GMVESA
AV10GMVESA
AV12IMVESA
AV14IMVESA
AV16IMVESA
AV12CMVESA
AV14CMVESA
AV16C MVESA
AV12GMVESA
AV14GMVESA
AV16G MVESA
MS1-036A(1:1)
MS1-060A(1:1)
MS3-036A(1:3)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Valve Box Inner Structure
Specification
Easy Installation
Good performance
•Provide a new solution with MRV outdoor and Super Match indoor units to dealers/consumers, more compatible, stock reduced.
•Super match new Hi-wall NF, NH unit and console type can be directly connected with MRV outdoor.
Haier Easy MRV Connection Kit consists the following 2 parts.
105 106
FEATURES & BENEFITS
High Compatible
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MS1-036A
MS1-060A
MS3-036A
Different Valve Different Control Parts
EXV part Control Part
House / Villa Apartment Small Office
EXV part and Control part
integration, easy for
translation and installation.
Gas pipe is integrated into the
valve box.
Optional installation location
EEV box inlet and outlet pipe
can be left or right.
Flare Connection
Gas pipe no need the bend and welding, easy installation.
Different sizes of nut.
Installation can choose lifting or nailed to the wall.
Traditional
HAIER
Hang
Nail to the wall
Largest Indoor
Capacity
Largest Indoor Capacity can be up to 60K ,the largest indoor in
the industry for this integrated system
Largest outdoor
Capacity
Largest capacity of side discharge up to 12HP for EASY MRV system.
Largest capacity of top discharge up to 16HP for Easy MRV system.
Low noise
Outside EEV box, low noise
Good parts
FUJIKOKI EEV, good performance and high reliability
MS1-036A/MS1-060A MS3-036A
Connected indoor quantity
Connected indoor capacity( Btu/h)
Power Supply Ph/V/Hz
Size(W/D/H)
Shipping dimensions
Material
Color
Weight/kg
Shipping Weight/kg
Liquid pipe (mm)
Gas pipe (mm)
Pipe connection method
Brand box-Indoor Max Single pipe length(m)
Branch box- indoor max drop(m )
Height Drop between branch box (m )
1
X ≤36k
1/220~230/50/60
310/217/155
509/285/209
Galvanized steel
Grey
5
7
9.52 Main /6.35
15.88 Main /12.7 /9.52
Flare connection
15
15
15
1
36 X ≤60k
1/220~230/50/60
310/217/155
509/285/209
Galvanized steel
Grey
5
7
9.52 Main /12.7
19.05 Main /15.88
Flare connection
15
15
15
3
X ≤36k (each indoor)
1/220~230/50/60
394/227/253
687/295/303
Galvanized steel
Grey
9
12
6.35 Main /9.52 9.52 Main /12.7
19.05 Main /15.88 15.88 Main /12.7 /9.52
Flare connection
15
15
15
Model MS1-036A MS1-060A MS3-036A
Easy MRV Outdoor
Easy MRV Indoor
Easy MRV indoor is universal indoor unit with Super Match
1/220~230/50
1/220~230/60
3/380~400/50 3/380~400/60 3/380~400/50 3/380~400/60 3/380~400/50 3/380~400/60 3/208~230/60 3/460/60
15 15 18 22.6 28 33.5 22.6 28 33.5 40 45
5 5 7 8 10 12 8 10 12 14 16
HP
kW
Power supply
AU482FIERA(G) AU48NFIERA(G) AU60NFIERA(G) AV08NMSETA AV10NMSETA AV12NMSETA
AV08NMVESA AV10NMVESA AV12IMVESA AV14IMVESA AV16IMVESA
AV08CMVESA AV10CMVESA AV12CMVESA AV14CMVESA AV16CMVESA
AV08GMVESA AV10GMVESA AV12GMVESA AV14GMVESA AV16GMVESA
MRV S MRV III-C
MODEL
OUTDOOR
AS07QS2HRA
AS07BS4HRA
AS07ZB1HRA
AS09QS2HRA
AS09BS4HRA
AS09ZB1HRA
AF09AS1ERA
AB09CS2ERA(S)
AC12CS1ERA(S)
AD09SS1ERA
AD09LS1ERA
AS12QS2HRA
AS12BS4HRA
AS12ZB1HRA
AF12AS1ERA
AB12CS2ERA(S)
AC18CS1ERA(S)
AD12SS1ERA
AD12LS1ERA
AD12MS1ERA
AB60CS1ERA(S)
AC60FS1ERA(S)
AD60HS1ERA(S)
AB48ES1ERA(S)
AC48FS1ERA(S)
AD48NS1ERA(S)
AD48HS1ERA(S)
AS18BS4HRA
AS18ZB1HRA
AB18CS2ERA(S)
AD24SS1ERA
AD24LS1ERA
AD18MS1ERA
AS24BS4HRA
AS24ZB1HRA
AB24ES1ERA(S)
AD24MS1ERA
AB28ES1ERA(S)
AC28ES1ERA(S)
AD28NS1ERA(S)
AB36ES1ERA(S)
AC36ES1ERA(S)
AD36NS1ERA(S)
AC24CS1ERA(S)
AD18SS1ERA
AD18LS1ERA
AQUA Hi-Wall
N F series
N H series
Zircon Hi-Wall
Console
Cassette
Convertible
Slim ESP
Low ESP duct
Medium ESP duct
High ESP duct
INDOOR
Super Match I
7K 9K 12K 15K 18K 24K 28K 36K 48K 60K
2.2 2.8 3.6 4.4 5.5 7.1 8 10 14 16
107 108
PARAMETERS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
AS09NS1HRA-GU
AS12NS1HRA-GU
AS18NS1HRA-GU
AS15NS1HRA-GU AS24NS1HRA-GUAS07NS1HRA-GU
AS15BS4HRA
AS07NS1HRA-WU AS09NS1HRA-WU
AS12NS1HRA-WU
AS15NS1HRA-GU
AS18NS1HRA-WU AS24NS1HRA-WU
111
115
Features & Benefits
MRV Outdoor Line Up
MRV AHU
CONNECTION KIT
System Application
AHU Kit Configuration
Haier offers a range of connection kit to connect MRV outdoor
units to third party DX air handling units.
Haier Easy MRV Provide a wide range of MRV outdoor, valve box and Super Match Indoor solution.
Haier AHU Connection Kit consists the following 4 parts.
•Provide a solution for big space to cool down the supply fresh air with MRV outdoor units to match the air handling units.
Intergraded the advantages of MRV and AHU units
•Meet the requirement of law in EU, that for every working placeI it have to supply at minimum 25 m3/h fresh air.so it means that
every office, every shop and mostly every commercial building MUST have this solution.
•EXV part, Control part, Sensor and wire are all integrated in one box. •Controller need to be purchased separately.
111 112
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
MRV AHU
FEATURES & BENEFITS
System Line up
System Introduction
MRV Outdoor
AHU Connection Kit
MRV Indoor
3
rd
Party DX AHU
High rise building without podium High rise building with podium Single layer with a large area
MRV III-CMRV Outdoor
Valve Box
AHU &
MRV indoor
MRV S
8/10/12HP
AH1-280A
AHU need purchase in Market
5HP(14KW) <Connected AHU capa. ≤10HP(28KW) 10HP(28KW) <Connected AHU capa. ≤20HP(56KW)
AH1-560A
AH1-280A
Different Valve Same Control Parts
EXV part Control Part Sensor and wire Controller
OR
OR
AH1-560A
AHU Connection Kit Control
Connection Kit Control
System Control
Central Control: AHU control is same as MRV indoor unit control.
•Adopting the MRV outdoor ,not the traditional chiller outdoor system, is easy to design and install since no additional water system
such as boilers , gas connections, cooling tower etc. are required. This also reduces the total system cost.
•AHU can provide enough cooled fresh air to big space other than HRV and fresh air indoor units.
•All the control system for MRV outdoor is available:
-Wired control -Central control -Net work control -BMS control
Easy Installation
113 114
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
Power Power
Power
Communication
Tc1/TC2/Ta
ON/OFF
FA N
L N
A
B
C
Central controller
(YCZ-A003,A004)
System 1:
AV10IMVESA
(5 Indoor units)
System 2:
AV12IMVESA
( 12 Indoor units)
System 3:
AV14IMVESA
( 12 Indoor units)
System 4:
AV16IMVESA
( AHU with kit)
IGU05 IGU05IGU05 IGU05
MRV Outdoor
AHU Connection Kit
MRV Indoor
AH
A
A
A
A
3
rd
Party DX AHU
VS
EXV part and Control part
integration, easy for
translation and installation.
Gas pipe is integrated into
the valve box.
Optional installation location
EEV box inlet and outlet pipe
can be left or right.
Gas pipe no need the bend and welding, easy installation.
Installation can choose lifting or nailed to the wall.
Traditional
HAIER
Hang
Nail to the wall
T
r
a
OR
Heat exchanger
Cooling
Tower
Office
Cooled
water
or heated
water
AHU
Big duct
Condensate
water
BasementBoiler
Advantages
Connected AHU capacity
Power Supply Ph/V/Hz
Dimention(W/D/H)
Shipping dimensions
Material
Color
Weight/kg
Shipping Weight/kg
Liquid pipe (mm)
Gas pipe (mm)
Pipe connection method
Brand box-Indoor Max Single pipe length/m
Branch box- indoor max drop/m
14≤x ≤28kW(5-10HP)
1/220~230/50/60
350/226/155
606*295*209
Galvanized steel
Grey
6
8
9.52 Main /12.7
25.4 Main /22.2 /19.05
Flare connection and welding
5
5
28 x ≤56kW(10-20HP)
1/220~230/50/60
433/296/193
667*365*249
Galvanized steel
Grey
9
12
12.7 Main /15.88
28.58 Main /25.4/22.22
Flare connection and welding
5
5
Model AH1-280A AH1-560A
Broad capacity
High Compatible
Reliable EEV
Connected AHU capacity from 5HP to 20HP.
EEV is supplied by FUJIKOKI.
1.Same PCB board with MRV indoor, easy operation and service.
2.Same wired controller can be used with MRV indoor unit such as
YR-E16,YR-E17 and YR-E14.
Specification
8 10 12 8 10 12 14 16
3/380~400/50 3/380~400/60 3/380~400/50 3/380~400/60 3/208~230/60 3/460/60
22.6 28 33.5 22.6 28 33.5 40 45
HP
kW
Power supply
AV08NMSETA AV10NMSETA AV12NMSETA
MRV III-C
MODEL
OUTDOOR
MRV S
AV08NMVESA AV10NMVESA AV12IMVESA AV14IMVESA AV16IMVESA
AV08CMVESA AV10CMVESA AV12CMVESA AV14CMVESA AV16CMVESA
AV08GMVESA AV10GMVESA AV12GMVESA AV14GMVESA AV16GMVESA
MRV OUTDOOR LINE UP
115 116
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
FEATURES & BENEFITS
MRV INDOOR
119
121
124
125
127
129
Round-way Smart Air Flow Cassette
4-Way Cassette
2-Way Cassette
Convertible Type
Duct Slim Low ESP
Duct Low ESP (0/20Pa)
Duct Medium ESP (50/96Pa)
Duct Medium ESP (80/120Pa)
Duct High ESP (100/196Pa)
Built-in Floor Standing
Console
High Wall
131
133
134
137
138
139
Electrical Parameters
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
mm
mm
kg
mm
mm
mm
mm
kg
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Model name
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Panel
27.3
8
30.7
9
1/220~230/50/60
1380
37/35/31
840/840/204
983/983/290
29/32
9.52
15.88
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB282MRERA
30.7
9
34.1
10
1/220~230/50/60
2050
37/35/31
840/840/246
983/983/331
34/37
9.52
15.88
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB302MRERA
38.2
11.2
42.6
12.5
1/220~230/50/60
2050
37/35/31
840/840/246
983/983/331
34/37
9.52
15.88
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB382MRERA
47.7
14
54.6
16
1/220~230/50/60
2100
44/40/36
840/840/288
983/983/373
35/38
9.52
15.88
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB482MRERA
54.6
16
61.2
18
1/220~230/50/60
2100
44/40/36
840/840/288
983/983/373
35/38
9.52
15.88
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB602MRERA
Model/Indoor unit
Controller
119 120
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
YR-E17(S)
AB302MRERA
AB382MRERA
AB282MRERA
AB602MRERA
AB482MRERA
AB092MRERA
AB122MRERA
AB072MRERA
AB182MRERA
AB242MRERA
AB162MRERA
AB302MRERA
A
AB
30
2M
RE
RA
AB3
82
MRERA
Electrical Parameters
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
mm
mm
kg
mm
mm
mm
mm
kg
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Model name
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Panel
7.5
2.2
8.5
2.5
1/220~230/50/60
1000
30/27/25
840/840/183
983/983/268
28/31
6.35
9.52
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB072MRERA
9.5
2.8
10.9
3.2
1/220~230/50/60
1000
30/27/25
840/840/183
983/983/268
28/31
6.35
9.52
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB092MRERA
12.3
3.6
13.6
4
1/220~230/50/60
1000
30/27/25
840/840/183
983/983/268
28/31
6.35
12.7
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB122MRERA
15.3
4.5
17.1
5
1/220~230/50/60
1000
32/29/27
840/840/183
983/983/268
28/31
6.35
12.7
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB162MRERA
19.1
5.6
21.5
6.3
1/220~230/50/60
1000
33/30/29
840/840/183
983/983/268
28/31
6.35
12.7
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB182MRERA
24.2
7.1
27.3
8
1/220~230/50/60
1380
35/34/31
840/840/204
983/983/290
29/32
9.52
15.88
PB-950KB
950/950/50
1013/1025/123
6.5/9
YR-E17(S)
YR-HBS01(O)
AB242MRERA
Model/Indoor unit
Controller
Round-way Smart Air Flow Cassette Round-way Smart Air Flow Cassette
YR-E17(S) YR-HBS01(O)
AB
09
2M
RE
RA
A
AB092MRE
RA
AB
122
MRE
RA
YR-HBS01(O)
•Unique round-way air outlet, no blind spot
•Innovative 4 independent air flow control
•6 adjustable louver positions, 1296 air flow combinations
•Move Eye intelligent system, intelligence all
around(optional)
•Unique round-way air outlet, no blind spot
•Innovative 4 independent air flow control
•6 adjustable louver positions, 1296 air flow combinations
•Move Eye intelligent system, intelligence all
around(optional)
180° sine wave DC motor
Sleep mode
On-Off card
Fresh air channel Premium filter
Evaporator
self-cleaning
Super quiet
Wide-angle
airflow
Quiet operation
Round-way airflow
4 way independent
air flow
Double 8 display
Quick insllation
180° sine wave DC motor
Sleep mode
On-Off card
Fresh air channel Premium filter
Evaporator
self-cleaning
Super quiet
Wide-angle
airflow
Quiet operation
Round-way airflow
4 way independent
air flow
Double 8 display
Quick insllation
Electrical Parameters
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
mm
mm
kg
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Model name
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Panel
19.1
5.6
21.5
6.3
1/220~230/50/60
1200
34/32/30
48/46/44
840/840/240
930/930/330
30/32.5
6.35
12.7
PB-950JB
950/950/60
992/992/115
6/7.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB182MCERA
Model/Indoor unit
24.2
7.1
27.3
8
1/220~230/50/60
1200
35/34/31
49/48/45
840/840/240
930/930/330
30/32.5
9.52
15.88
PB-950JB
950/950/60
992/992/115
6/7.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB242MCERA
27.3
8
30.7
9
1/220~230/50/60
1200
37/35/31
51/49/45
840/840/240
930/930/330
30/32.5
9.52
15.88
PB-950JB
950/950/60
992/992/115
6/7.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB282MCERA
Controller
121 122
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
•700x700mm new panel design
•Pre-set fresh air inlet
•Built-in high head drain pump
•Quiet operation
4-WAY CASSETTE 4-WAY CASSETTE
AB122MCERA
AB162MCERA
AB092MCERA
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
mm
mm
kg
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Model name
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Electrical Parameters
Performance
Installation
Controller
Panel
Model/Indoor unit
9.5
2.8
10.9
3.2
1/220~230/50/60
700
32/30/29
46/44/43
570/570/260
718/680/380
17/21
6.35
9.52
PB-700IB
700/700/60
740/740/115
2.8/4.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB092MCERA
12.3
3.6
13.6
4
1/220~230/50/60
700
32/30/29
46/44/43
570/570/260
718/680/380
19/23
6.35
12.7
PB-700IB
700/700/60
740/740/115
2.8/4.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB122MCERA
15.3
4.5
17.1
5
1/220~230/50/60
700
33/30/29
47/44/43
570/570/260
718/680/380
19/23
6.35
12.7
PB-700IB
700/700/60
740/740/115
2.8/4.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB162MCERA
YR-E17(S) YR-E16A(O)YR-HD(O) YR-E17(S) YR-E16A(O)YR-HD(O)
•Compact design
•Pre-set fresh air inlet
•Built-in high head drain pump
•Reserve branch outlet
On-Off card
4-way airflow
Drain
water pump
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Auto-swing
Blue fin
Blue
B
u
e
Clean air
On-Off card
4-way airflow
Drain
water pump
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Auto-swing
Blue fin
Blue
B
u
e
Clean air
AB242MCERA
AB282MCERA
AB182MCERA
123 124
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
4-WAY CASSETTE
•Compact design
•Pre-set fresh air inlet
•Built-in high head drain pump
•Reserve branch outlet
YR-E17(S) YR-E16A(O)YR-HD(O) YR-E17(S) YR-E16A(O)YR-HD(O)
On-Off card
4-way airflow
Drain
water pump
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Auto-swing
Blue fin
Blue
B
u
e
Clean air
On-Off card
Drain
water pump
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Auto-swing
Blue fin
Blue
B
u
e
Clean air
AB382MCERA
AB482MCERA
AB302MCERA
Electrical Parameters
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
mm
mm
kg
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Model name
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Panel
Model/Indoor unit
30.7
9
34.1
10
1/220~230/50/60
1800
37/35/31
51/49/45
840/840/295
930/930/390
38/40
9.52
15.88
PB-950JB
950/950/60
992/992/115
6/7.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB302MCERA
38.2
11.2
42.6
12.5
1/220~230/50/60
1800
37/35/31
51/49/45
840/840/295
930/930/390
38/40
9.52
15.88
PB-950JB
950/950/60
992/992/115
6/7.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB382MCERA
47.7
14
54.6
16
1/220~230/50/60
1800
42/39/35
56/53/49
840/840/295
930/930/390
38/40
9.52
15.88
PB-950JB
950/950/60
985/985/115
6/7.5
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB482MCERA
Controller
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
mm
mm
kg
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Model name
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Panel
Model/Indoor unit
7.5
2.2
8.5
2.5
1/220~230/50/60
840
42/37/33
55/50/46
817/620/220
1022×682×274
21/23
6.35
9.52
P2B-1055IB
1055/680/68
1097×707×136
7/8
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB072MBERA
9.6
2.8
10.9
3.2
1/220~230/50/60
840
42/37/33
55/50/46
817/620/220
1022×682×274
21/23
6.35
9.52
P2B-1055IB
1055/680/68
1097×707×136
7/8
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB092MBERA
12.3
3.6
13.7
4
1/220~230/50/60
840
42/37/33
55/50/46
817/620/220
1022×682×274
21/23
6.35
12.7
P2B-1055IB
1055/680/68
1097×707×136
7/8
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB122MBERA
15.4
4.5
17.1
5
1/220~230/50/60
840
44/39/34
57/52/47
817/620/220
1022/682/247
21/23
6.35
12.7
P2B-1055IB
1055/680/68
1097/707/136
7/8
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB162MBERA
19.1
5.6
21.5
6.3
1/220~230/50/60
840
44/39/34
57/52/47
817/620/220
1022×682×274
21/23
6.35
12.7
P2B-1055IB
1055/680/68
1097×707×136
7/8
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AB182MBERA
Controller
Electrical Parameters
AB122MBERA
AB162MBERA
AB072MBERA
AB092MBERA
AB182MBERA
2-WAY CASSETTE
•Compact design: only 220mm height
•Built in high head drain pump
•Ceiling antifouling design unique antifouling design
•Quiet operation
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Model/Indoor unit
9.5
2.8
10.9
3.2
1/220~230/50/60
800
38/35/33
51/48/46
990/655/199
1160/730/280
28.3/34.3
6.35
9.52
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC092MCERA
12.3
3.6
13.6
4
1/220~230/50/60
800
38/35/33
51/48/46
990/655/199
1160/730/280
28.3/36.4
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC122MCERA
15.4
4.5
17.1
5
1/220~230/50/60
800
40/37/35
53/50/48
990/655/199
1160/730/280
28.3/36.4
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC162MCERA
19.1
5.6
21.5
6.3
1/220~230/50/60
800
40/37/35
53/50/48
990/655/199
1160/730/280
28.3/36.4
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC182MCERA
24.2
7.1
27.3
8
1/220~230/50/60
800
40/37/35
53/50/48
990/655/199
1160/730/280
28.3/36.4
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC242MCERA
Controller
Electrical Parameters
125 126
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
CONVERTIBLE CONVERTIBLE
AC162MCERA
AC182MCERA
AC092MCERA
AC122MCERA
AC242MCERA
AC282MFERA
AC302MFERA
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Model/Indoor unit
27.3
8
30.7
9
1/220~230/50/60
2040
43/40/38
56/53/51
1580/700/240
1720/800/330
50/57
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC282MFERA
30.7
9
34.1
10
1/220~230/50/60
2040
43/40/38
56/53/51
1580/700/240
1720/800/330
50/57
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC302MFERA
Controller
Electrical Parameters
38.2
11.2
42.6
12.5
1/220~230/50/60
2040
46/42/38
59/55/51
1580/700/240
1720/800/330
54/61
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC382MFERA
48
14
55
16
1/220~230/50/60
2040
46/42/38
59/55/51
1580/700/240
1720/800/330
54/61
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AC482MFERA
On-Off card
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Auto-swing
Blue fin
Blue
B
u
e
Clean air
Left & Right
airflow
On-Off card
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Auto-swing
Blue fin
Blue
B
u
e
Clean air
Left & Right
airflow
AC382MFERA
AC482MFERA
•Flexible installation, on the floor or on the ceiling
•Ultra thin design, only 199mm thick
•Automatic horizontal and vertical swing
•Reserved fresh air inlet
•Flexible installation, on the floor or on the ceiling
•Automatic horizontal and vertical swing
•Reserved fresh air inlet
•Multiple direction for connection pipe setting
•Long-life and high efficiency air purify filter
YR-E17(S) YR-E16A(O)YR-HD(O) YR-E17(S) YR-E16A(O)YR-HD(O)
YR-E17(S) YR-E16A(O)YR-HD(O)
DUCT SLIM LOW ESP DUCT SLIM LOW ESP
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static pressure
S-standard
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain pump
Model/Indoor unit
7.5
2.2
8.5
2.5
1/220~230/50/60
480
27/24/21
41/38/35
850/420/185
1045/540/270
16.5/21.5
6.35
9.52
0/30
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD072MSERA
9.5
2.8
10.9
3.2
1/220~230/50/60
480
27/24/21
41/38/35
850/420/185
1045/540/270
16.5/21.5
6.35
9.52
0/30
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD092MSERA
12.3
3.6
13.6
4
1/220~230/50/60
550
30/28/25
44/42/39
850/420/185
1045/540/270
17.5/22.5
6.35
12.7
0/30
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD122MSERA
15.3
4.5
17.1
5
1/220~230/50/60
600
33/30/27
47/44/41
850/420/185
1045/540/270
18.5/23.5
6.35
12.7
0/30
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD162MSERA
Controller
Electrical Parameters
On-Off card
Drain
water pump
Compact design
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
On-Off card
Drain
water pump
Compact design
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
AD122MSERA
AD162MSERA
AD072MSERA
AD092MSERA
•Super slim design, only 185mm
•Reserved fresh air inlet
•Built-in high head drain pump
•Friendly design of rear or bottom air return
•Quiet operation
•Static pressure 0/30Pa
•Super slim design, only 185mm
•Reserved fresh air inlet
•Built-in high head drain pump
•Friendly design of rear or bottom air return
•Quiet operation
•Static pressure 0/30Pa
YR-E17(S) YR-E16A(O)YR-HD(O)
AD182MSERA
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure
S-standard
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Model/Indoor unit
19.1
5.6
21.5
6.3
1/220~230/50/60
800
33/30/28
47/44/42
1170/420/185
1365/540/270
22.2/28.2
6.35
12.7
0/30
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD182MSERA
Controller
Electrical Parameters
24.2
7.1
27.3
8
1/220~230/50/60
930
36/33/31
50/47/44
1170/420/185
1365/540/270
24/30
9.52
15.88
0/30
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD242MSERA
AD242MSERA
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
127 128
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
YR-E17(S) YR-E16A(O)YR-HD(O)
•Ultra thin design, only 220mm
•Knock-down drain pan
•Two-way pipe connection
•Left or right side drain outlet
•Static pressure 0/20Pa
•Ultra thin design, only 220mm
•Knock-down drain pan
•Two-way pipe connection
•Left or right side drain outlet
•Static pressure 0/20Pa
DUCT LOW ESP
AD072MLERA
AD092MLERA
AD122MLERA
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
7.5
2.2
8.5
2.5
1/220~230/50/60
400
35/32/30
49/46/44
610/500/220
710/549/280
15/17
6.35
9.52
0/20
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD072MLERA
9.5
2.8
10.9
3.2
1/220~230/50/60
400
35/32/30
49/46/44
610/500/220
710/549/280
15/17
6.35
9.52
0/20
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD092MLERA
12.3
3.6
13.6
4
1/220~230/50/60
500
35/32/30
49/46/44
610/500/220
710/549/280
16/18
6.35
12.7
0/20
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD122MLERA
Electrical Parameters
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
YR-E17(S) YR-E16A(O)YR-HD(O)
DUCT LOW ESP
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
15.3
4.5
17.1
5
1/220~230/50/60
850
35/32/30
49/46/44
1105/500/220
1174/549/294
25/27
6.35
12.7
0/20
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD162MLERA
19.1
5.6
21.5
6.3
1/220~230/50/60
1250
39/37/35
53/51/49
1105/500/220
1174/549/294
28/30
6.35
12.7
0/20
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD182MLERA
Electrical Parameters
24.2
7.1
27.3
8
1/220~230/50/60
1250
39/37/35
53/51/49
1105/500/220
1174/549/294
28/30
9.52
15.88
0/20
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD242MLERA
AD242MLERA
AD182MLERA
AD162MLERA
129 130
DUCT MEDIUM ESP DUCT MEDIUM ESP
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
19.1
5.6
21.5
6.3
1/220~230/50/60
1200
36/34/31
49/47/44
990/650/300
1170/860/340
39/45
6.35
12.7
50/96
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD182MMERA
24.2
7.1
27.3
8
1/220~230/50/60
1200
36/34/31
49/47/44
990/650/300
1170/860/340
39/45
9.52
15.88
50/96
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD242MMERA
27.3
8
30.7
9
1/220~230/50/60
1200
39/37/35
52/50/48
990/650/300
1170/860/340
39/45
9.52
15.88
50/96
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD282MMERA
Electrical Parameters
AD182MMERA
AD242MMERA
AD282MMERA
YR-E17(S) YR-E16A(O)YR-HD(O)
•Flexible duct connection
•Built in drain pump
•Static pressure 50/96Pa
On-Off card
Drain
water pump
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
YR-E17(S) YR-E16A(O)YR-HD(O)
•Flexible duct connection
•Built in drain pump
•Static pressure 50/96Pa
On-Off card
Drain
water pump
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
30.7
9
34.1
10
1/220~230/50
1900
39/37/35
52/50/48
1418/655/350
1570/813/383
64/66.7
9.52
15.88
50/96
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD302MMERA
38.2
11.2
42.6
12.5
1/220~230/50
1900
41/40/39
54/53/52
1418/655/350
1570/813/383
64/66.7
9.52
15.88
50/96
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD382MMERA
Electrical Parameters
47.7
14
54.6
16
1/220~230/50
2100
41/40/39
54/53/52
1418/655/350
1570/813/383
64/66.7
9.52
15.88
50/96
S
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD482MMERA
AD482MMERA
AD302MMERA
AD382MMERA
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
131 132
DUCT MEDIUM ESP
YR-E17(S) YR-E16A(O)YR-HD(O) YR-E17(S) YR-E16A(O)YR-HD(O)
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
30
9
34
10
1/220~230/50/60
1600
49/47/43
62/60/56
1135/742/270
1355/856/380
50/56
9.52
15.88
80/120
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD302MNERA
38
11.2
43
12.5
1/220~230/50/60
1600
49/47/43
62/60/56
1135/742/270
1355/856/380
50/56
9.52
15.88
80/120
KT-NP01(Optional)
Y
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD382MNERA
48
14
55
16
1/220~230/50/60
1600
49/47/43
62/60/56
1135/742/270
1355/856/380
50/56
9.52
15.88
80/120
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD482MNERA
Electrical Parameters
•New compact design:270mm height
•Optional external drain pump
•Flexible duct connection
•Static pressure 80/120Pa
AD382MNERA
AD482MNERA
AD302MNERA
DUCT HIGH ESP
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
19.1
5.6
21.5
6.3
1/220~230/50/60
1500
42/40
55/53
975/876/360
1050/945/405
48/58
6.35
12.7
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD182MHERA
24.2
7.1
27.3
8
1/220~230/50/60
1500
42/40
55/53
975/875/360
1050/945/405
48/58
9.52
15.88
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD242MHERA
27.3
8
30.73
9
1/220~230/50/60
1500
42/40
55/53
975/875/360
1050/945/405
48/58
9.52
15.88
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD282MHERA
Electrical Parameters
•Flexible duct connection
•Easy to maintain
•Variable static pressure 100/196Pa setting
AD242MHERA
AD282MHERA
AD182MHERA
133 134
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
DUCT HIGH ESPDUCT HIGH ESP
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
77.1
22.6
85.3
25
1/220~230/50/60
4050
54/49
67/62
1725/876/360
1830/990/530
92/100
9.52
25.4
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
95.6
28
105.8
31
1/220~230/50/60
4050
54/49
67/62
1725/876/360
1830/990/530
92/100
9.52
25.4
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD722MHERA AD962MHERA
Electrical Parameters
YR-E17(S) YR-E16A(O)YR-HD(O)
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
O-optional,S-standard,W-without
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Drain Pump
Controller
Model/Indoor unit
30.7
9
34.1
10
1/220~230/50/60
1560
45/40
58/53
1355/876/360
1386/966/418
62/77
9.52
15.88
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
38.2
11.2
42.6
12.5
1/220~230/50/60
1600
45/40
58/53
1355/876/360
1386/966/418
62/77
9.52
15.88
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
47.8
14
54.6
16
1/220~230/50/60
2100
45/40
58/53
1355/876/360
1386/966/418
62/77
9.52
15.88
100/196
KT-NP01(Optional)
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD302MHERA AD382MHERA AD482MHERA
Electrical Parameters
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
•Flexible duct connection
•Variable static pressure 100/196Pa setting
YR-E17(S) YR-E16A(O)YR-HD(O)
•Flexible duct connection
•Variable static pressure 100/196Pa setting
AD382MHERA
AD482MHERA
AD302MHERA
AD722MHERA
AD962MHERA
135 136
YR-E17(S) YR-E16A(O)
YR-HD(O)
On-Off card
Compact design
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
YR-HD(S)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
BUILT-IN FLOOR STANDING
•Require very little installation space: only 220mm
•Good solution for installation beneath a window
•High efficiency filter fitted as standard
AE072MLERA
AE092MLERA
AE242MLERA
AE162MLERA
AE182MLERA
AE122MLERA
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Model/Indoor unit
7.5
2.2
8.5
2.5
1/220~230/50/60
750
38/35/33
51/48/46
1116/221/624
1198/295/707
29/37
6.35
9.52
0/30
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AE072MLERA
9.5
2.8
10.9
3.2
1/220~230/50/60
750
38/35/33
51/48/46
1116/221/624
1198/295/707
29/37
6.35
9.52
0/30
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AE092MLERA
12.3
3.6
13.6
4
1/220~230/50/60
750
40/37/35
53/50/48
1116/221/624
1198/295/707
29/37
6.35
12.7
0/30
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AE122MLERA
15.3
4.5
17.1
5
1/220~230/50/60
950
40/37/35
53/50/48
1116/221/624
1198/295/707
31/39
6.35
12.7
0/30
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AE162MLERA
19.1
5.6
21.5
6.3
1/220~230/50/60
950
42/39/36
55/52/49
1116/221/624
1198/295/707
31/39
6.35
12.7
0/30
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AE182MLERA
24.2
7.1
27.3
8
1/220~230/50/60
950
42/39/36
55/52/49
1116/221/624
1198/295/707
31/39
9.52
15.88
0/30
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AE242MLERA
Controller
Electrical Parameters
•Air discharge through top ang bottom
•Compact design & small space occupation
•Quiet operation
CONSOLE TYPE
AF072MAERA
AF092MAERA
AF122MAERA
AF182MAERA
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Controller
Model/Indoor unit
7.5
2.2
8.5
2.5
1/220~230/50/60
460
43/39/36
56/53/49
720/255/640
784/305/720
18/20
6.35
12.7
/
YR-HD(S)
AF072MAERA
9.5
2.8
10.9
3.2
1/220~230/50/60
460
43/39/36
56/53/49
720/255/640
784/305/720
18/20
6.35
12.7
/
YR-HD(S)
AF092MAERA
12.3
3.6
13.6
4
1/220~230/50/60
520
43/39/36
56/53/49
720/255/640
784/305/720
18/20
6.35
12.7
/
YR-HD(S)
AF122MAERA
17
5.0
20.5
6
1/220~230/50/60
580
48/46/42
61/59/55
720/255/640
784/305/720
18/20
6.35
12.7
/
YR-HD(S)
AF182MAERA
Electrical Parameters
On-Off card
Auto restart
24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
137 138
YR-E16A(O)YR-E17(O)YR-HD(S)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-20°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
HIGH WALL
AS072MGERA
AS092MGERA
AS122MGERA
AS242MGERA
AS162MGERA
AS182MGERA
•Stylish design & LED display
•Built in EEV, easy to installation
•Negative ion, vitamin C, and ESF filter optional
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Capacity
Performance
Installation
Model/Indoor unit
7.5
2.2
8.5
2.5
1/220~230/50/60
600
37/33/31
48/44/42
938/187/265
1016/304/360
10.9/13.1
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AS072MGERA
9.5
2.8
10.9
3.2
1/220~230/50/60
600
37/34/31
48/45/42
938/187/265
1016/304/360
10.9/13.1
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AS092MGERA
12.3
3.6
13.6
4
1/220~230/50/60
600
41/36/33
52/47/44
938/187/265
1016/304/360
10.9/13.1
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AS122MGERA
15.3
4.5
17.1
5
1/220~230/50/60
600
41/36/33
52/47/44
938/187/265
1016/304/360
10.9/13.1
6.35
12.7
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AS162MGERA
19.1
5.6
21.5
6.3
1/220~230/50/60
800
43/39/34
54/50/45
1046/239/299
1111/329/373
13/16.5
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AS182MGERA
24.2
7.1
27.3
8
1/220~230/50/60
800
48/39/37
59/50/48
1046/239/299
1111/329/373
13/16.5
9.52
15.88
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AS242MGERA
Controller
Electrical Parameters
139 140
MRV INDOOR
Ventilation
143
Duct Fresh Air
HRV
VENTILATION
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
DUCT FRESH AIR
YR-E17(S) YR-E16A(O)
YR-HD(O)
YR-N07(S)
•Variable static pressure 100~200Pa setting
•Install with other indoor units together, and
introduce the outdoor fresh air into indoor
AD722MPERA
AD962MPERA
AD482MPERA
On-Off card
Auto restart 24 hours timer
Lowambient
heating
HEATING
-15°C
Lowambient
cooling
-5°C
3 minutes
protection
Blue fin
Blue
B
u
e
Clean air
HRV
•Be controlled with other indoor units together
•Efficient heat recovery air processing
•Heat recovery media element
ERV0150ANN
ERV0260ANN
ERV0800ANN
ERV1000ANN
Ph/V/Hz
kW
A
m³/h
dB(A)
dB(A)
mm
mm
kg
Pa
/
/
Power supply
Rated power input
Rated current
Air flow (H)
Sound pressure level(H/L)
Sound power level(H/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Static Pressure
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
Electrical
Performance
Installation
Controller
Model/Indoor unit
1/220~230/50/60
0.1
0.55
150
44/43
55/54
940/685/276
1013/773/345
28.7/31.2
80
YR-N07(S)
/
ERV0150ANN
1/220~230/50/60
0.12
0.55
260
44/43
55/54
940/685/276
1013/773/345
28.7/31.2
60
YR-N07(S)
/
ERV0260ANN
1/220~230/50/60
0.36
1.65
800
57/55
68/66
1227/1115/387
1465/1213/430
85.5/90.6
120
YR-N07(S)
/
ERV0800ANN
1/220~230/50/60
0.36
1.65
1000
57/55
68/66
1227/1115/387
1465/1213/430
85.5/90.6
100
YR-N07(S)
/
ERV1000ANN
kBtu/h
kW
Btu/h
kW
Ph/V/Hz
m³/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Pa
/
/
/
/
Cooling
Heating
Power supply
Air flow (H)
Sound pressure level(H/M/L)
Sound power level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Static Pressure(Standard/Max.)
Wired (O-Optional/S-Standard)
Infrared(O-Optional/S-Standard)
47.7
14
30.4
8.9
1/220~230/50/60
1600
48
61
1355/876/360
1386/966/418
62/77
9.52
15.88
100/185
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
Capacity
Performance
Installation
Model/Indoor unit AD482MPERA
77.1
22.6
51.8
15.2
1/220~230/50/60
2300
55
68
1725/876/360
1830/990/530
92/100
9.52
25.4
100/200
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD722MPERA
95.5
28
60.8
17.8
1/220~230/50/60
2800
55
68
1725/876/360
1830/990/530
92/100
9.52
25.4
100/200
YR-E16A(O)
YR-E16(O)
YR-E17(S)
YR-HD(O)
AD962MPERA
Controller
Electrical Parameters
Auto restart
24 hours timer
3 minutes
protection
Clean air O₂-refresh
143 144
MRV INDOOR
Easy MRV Indoor
147
High Wall
Console
EASY MRV INDOOR
HIGH WALL HIGH WALL
YR-HD(S) YR-HD(S)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
•3D-cant lifting panel
•6 color lights concealed LED display
•Nano-aqua
•3D airflow
AS07QS2ERA
AS09QS2ERA
AS12QS2ERA
6800
2
7850
2.3
2.63
2.5
1/230/50
600
51
34/30/24/22
860/175/285
938/265/360
10/11.7
6.35
9.52
YR-HD(S)
9000
2.63(0.9-3.1)
9220
2.7(1.2-3.1)
2.63
2.5
1/230/50
600
51
34/30/24/22
860/175/285
938/265/360
10/11.7
6.35
9.52
YR-HD(S)
11950
3.5(1.2-3.8)
12290
3.6(1.3-4.0)
3.5
3.1
1/230/50
620
53
35/30/25/23
860/175/285
938/265/360
10/11.7
6.35
9.52
YR-HD(S)
Model/indoor unit AS09QS2ERAAS07QS2ERA AS12QS2ERA
Capacity
Electrical parameters
Performance
Installation
Nominal cooling
Nominal heating
Cooling P design(35°C)
Heating P design(-10°C)
Power supply
Air flow(H/M/L)
Sound power level(H/M/L)
Sound pressure level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Btu/h(nor)
kW nominal(min~max)
Btu/h(nor)
kW nominal(min~max)
kW
kW
Ph/V/Hz
m
3
/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Controller
Standard
Option
Please refer to Super Match Catalogue
DC motor
Nano-aqua Anti-mold filter
Evaporator
self-cleaning
Super quiet
Intelligent airCompact design
High quality
element
Super match
Auto restart
24 hours timer
3 minutes
protection
Sleep mode
7-color LED
display
Auto mode Power modeSoft mode
High performance
compressor
Blue fin
Blue
B
u
e
Original 3D-cant
lifting panel
Automatic
Integral stop
valve cover
Left & Right
airflow
3D auto airflow
180° sine wave
•Super quiet 22dB(A)
•Nano-aqua
•3D airflow
•Long distance air supplying
•A-PAM inverter technology
6800
2
7850
2.3
2.7
2.5
1-230-50
600
52
39/34/27/21
855X204X280
954×279×355
10/12.2
6.35
9.52
YR-HD(S)
15010
4.4(1.3-5.0)
18430(4780-20480)
5.4(1.4-6.0)
4.4
3.5
700
55
44/40/35/28
900×210×310
991×313×399
11.5/14
6.35
12.7
YR-HD(S)
Model/indoor unit AS15NS1HRA*
9210
2.7 0.80-3.40
9560(4780-10920)
2.8(1.00-4.60)
2.7
2.5
1-230-50
600
52
39/34/27/21
855X204X280
954×279×355
10/12.2
6.35
9.52
YR-HD(S)
AS09NS1HRA
12290
3.6(1.00-4.20)
12630(4780-13990)
3.7(1.100-5.40)
3.6
3.2
1-230-50
650
54
40/35/31/22
855X204X280
954×279×355
10/12.2
6.35
9.52
YR-HD(S)
AS12NS1HRAAS07NS1HRA AS18NS1HRA
23890
7.0(2.20-8.50)
25600(8530-26620)
7.5(2.40-9.80)
7
5.1
1-230-50
1200
62
47/43/37/35
1115x248x336
1205x341x416
16/19.6
9.52
15.88
YR-HD(S)
17740
5.2(1.30-6.80)
19790(5460-20480)
5.8(1.40-6.90)
5.2
4.9
1-230-50
900
57
47/43/37/30
997x235x322
1085×329×403
13/16
9.52
15.88
YR-HD(S)
AS24NS1HRA
Capacity
Electrical parameters
Performance
Installation
Nominal cooling
Nominal heating
Cooling P design(35°C)
Heating P design(-10°C)
Power supply
Air flow(H/M/L)
Sound power level(H/M/L)
Sound pressure level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Btu/h(nor)
kW nominal(min~max)
Btu/h(nor)
kW nominal(min~max)
kW
kW
Ph/V/Hz
m
3
/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Controller
Standard
Option
Please refer to Super Match Catalogue
AS07NS1HRA
AS09NS1HRA
AS12NS1HRA
AS15NS1HRA
AS18NS1HRA
AS24NS1HRA
Anti-mold filter
Evaporator
self-cleaning
Super quiet Intelligent air
High quality
element
Auto restart24 hours timer
3 minutes
protection
Sleep mode
Auto mode Power modeSoft mode
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
147 148
HIGH WALL HIGH WALL
YR-HD(S) YR-HD(S)
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Anti-mold filter
Evaporator
self-cleaning
Super quiet Intelligent air
High quality
element
Auto restart24 hours timer
3 minutes
protection
Sleep mode
Auto mode Power modeSoft mode
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
•Super quiet 22dB(A)
•Long distance air supplying
•A-PAM inverter technology
6800
2
7850
2.3
2.7
2.5
1-230-50
600
52
39/34/27/21
855X204X280
954×279×355
10/12.2
6.35
9.52
YR-HD(S)
15010
4.4(1.3-5.0)
18430(4780-20480)
5.4(1.4-6.0)
4.4
3.5
1-230-50
700
55
44/40/35/28
900×210×310
991×313×399
11.5/14
6.35
12.7
YR-HD(S)
17740
5.2(1.30-6.80)
19790(5460-20480)
5.8(1.40-6.90)
5.2
4.9
1-230-50
900
57
47/43/37/30
997x235x322
1085×329×403
13/16
9.52
15.88
YR-HD(S)
Model/indoor unit AS15BS4HRA*
9210
2.7 0.80-3.40
9560(4780-10920)
2.8(1.00-4.60)
2.7
2.5
1-230-50
600
52
39/34/27/21
855X204X280
954×279×355
10/12.2
6.35
9.52
YR-HD(S)
AS09BS4HRA
12290
3.6(1.00-4.20)
12630(4780-13990)
3.7(1.100-5.40)
3.6
3.2
1-230-50
650
54
40/35/31/22
855X204X280
954×279×355
10/12.2
6.35
9.52
YR-HD(S)
AS12BS4HRAAS07BS4HRA AS18BS4HRA
23890
7.0(2.20-8.50)
25600(8530-26620)
7.5(2.40-9.80)
7
5.1
1-230-50
1200
62
47/43/37/35
1115x248x336
1205x341x416
16/19.6
9.52
15.88
YR-HD(S)
AS24BS4HRA
Capacity
Electrical parameters
Performance
Installation
Nominal cooling
Nominal heating
Cooling P design(35°C)
Heating P design(-10°C)
Power supply
Air flow(H/M/L)
Sound power level(H/M/L)
Sound pressure level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Btu/h(nor)
kW nominal(min~max)
Btu/h(nor)
kW nominal(min~max)
kW
kW
Ph/V/Hz
m
3
/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Controller
Standard
Option
* Models are under development, data is pending;
Please refer to Super Match Catalogue
•Super quiet
•Negative ion
•Long distance air supplying
•A-PAM inverter technology
6830
2(1.1~2.9)
7510
2.2(1.3~3.2)
2.0
2.0
630
53
39/33/26/23
805/205/272
900/280/335
8.6/10.8
6.35
9.52
YR-HD
(S)
9210
2.7 0.9~3.2
9560
2.8(1.4~3.2)
2.7
2.4
630
53
39/33/26/23
805/205/272
900/280/335
8.6/10.8
6.35
9.52
YR-HD
(S)
12290
3.6(1.40~3.90)
12630
3.7(1.40~4.1)
3.6
3.2
700
55
40/35/27/24
805/205/272
900/280/335
8.6/10.8
6.35
9.52
YR-HD
(S)
17740
5.2(1.50~5.60)
19790
5.8(1.6~6.0)
5.2
5.2
900
58
45/40/35/33
960/235/310
1051/328/390
11.7/13.9
6.35
12.7
YR-HD
(S)
23890
7.0(2.0~7.3)
25600
7.5(2.5~7.8)
7
5.6
1200
63
48/44/37/36
1085/245/330
1175/341/416
14.6/17.8
9.52
15.88
YR-HD
(S)
Model/indoor unit
AS07ZB1HRA AS09ZB1HRA AS12ZB1HRA AS18ZD1HRA AS24ZE1HRA
Capacity
Electrical
parameters
Performance
Installation
Nominal cooling
Nominal heating
Cooling P design(35°C)
Heating P design(-10°C)
Power supply
Air flow(H/M/L)
Sound power level
(H/M/L)
Sound pressure level
(H/M/L)
External dimensions
(W/D/H)
Shipping dimensions
(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Btu/h(nor)
kW nominal
(min~max)
Btu/h(nor)
kW nominal
(min~max)
kW
kW
Ph/V/Hz
m
3
/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Please refer to Super Match Catalogue
Controller
Standard
Option
1/230/50
1-230-50 1-230-50
1-230-50
1-230-50
DC motor
Nano-aqua Anti-mold filter
Evaporator
self-cleaning
Super quiet
High quality
element
Super match
Auto restart 24 hours timer
3 minutes
protection
Sleep mode
Auto mode Power modeSoft mode
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
3D big flap
Easy clean design
Quick & easy
installation
2 ways drain piping
connection
Large "DOUBLE 8"
LED display
AS07ZB1HRA
AS09ZB1HRA
AS18ZD1HRA
AS12ZB1HRA
AS24ZE1HRA
149 150
AS15BS4HRA*
AS09BS4HRA
AS12BS4HRA
AS07BS4HRA
AS18BS4HRA
AS24BS4HRA
CONSOLE TYPE
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Anti-mold filter
Evaporator
self-cleaning
Super quiet
High quality
element
Super matchAuto restart 24 hours timer
3 minutes
protection
Sleep mode
Auto mode Power modeSoft mode
High performance
compressor
Blue fin
Blue
B
u
e
180° sine wave
Large "DOUBLE 8"
LED display
•High efficiency filter
•Quiet running
•Compact design
•Fast temp. adjustment
•Blowing up and down
YR-HD(S)
AF09AS1ERA
AF12AS1ERA
Model/indoor unit
8500
2.5(1.3-3.0)
9550
2.8(1.4-3.2)
2.5
2.1
1/230/50
450
53
39/35/30/26
720x253x640
784x305x719
17/19.5
6.35
9.52
YR-HD
(S)
AF09AS1ERA
12000
3.5(1.4-4.0)
13000
3.80(1.4-4.1)
3.5
2.7
1/230/50
500
54
40/36/32/28
720x253x640
784x305x719
17.5/20
6.35
9.52
YR-HD
(S)
AF12AS1ERA
Capacity
Electrical parameters
Performance
Installation
Nominal cooling
Nominal heating
Cooling P design(35°C)
Heating P design(-10°C)
Power supply
Air flow(H/M/L)
Sound power level(H/M/L)
Sound pressure level(H/M/L)
External dimensions(W/D/H)
Shipping dimensions(W/D/H)
Net/Shipping weight
Refrigerant liquid pipe
Refrigerant gas pipe
Btu/h(nor)
kW nominal(min~max)
Btu/h(nor)
kW nominal(min~max)
kW
kW
Ph/V/Hz
m
3
/h
dB(A)
dB(A)
mm
mm
kg
mm
mm
Controller
Standard
Option
Please refer to control system in page 26
Carpet airflow
151 152
CONTROL
SYSTEM
Star Products
Individual Controller
Centralized Controller
BMS
Reference Projects
157
161
165
167
173
BMS
Centralized
Controller
Wifi
Control
155 156
CONTROL SYSTEM STRUCTURE
CONTROL SYSTEM
User Friendly Management
Control Solution
Integrated Management
Convenient and efficient, Haier controllers realize the
co-management of Super match and MRV in one system,
providing you more combination choices for better managing
large or middle-sized buildings.
Building Management
The excellent building management system provides a
professional and reliable service for a better management of
your air conditioning units.
Intelligent Management
“Haier Smart AC” provides an intelligent and personalized
experience for your smart life.
Applications
Haier control products are designed to provide you a perfect
solution for the small, medium or large commercial projects.
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
156
Wireless
Controller
Centralized
Controller
Wired
Controller
YCZ-A004 is a smart touch screen controller enabling remote man-
agement of up to 256 indoor units.
YCZ-A004 System
Control and Monitoring
•Control and monitoring up to 256 indoor units.
•Operation control: mode, temperature, fan, swing.
•All ON/OFF
•Icon based indoor units display
Energy Saving Function
•Operation mode lock
•Upper/lower temperature limit setting for different
zones/ groups
Zone Management
•Zoning control the indoor units according to user’s
demands.
•Zone control: zone creation, edition, deletion
Schedule Control
•Weekly/ Daily schedule control without setting number
limitation.
•Free combination
•Schedule edit (add, edit, delete)
•Detailed operation setting
Cycle Monitoring
•Monitoring indoor unit running status
Power Distribution & Report
•Data query
•Electricity report download .
157 158
CONTROL SYSTEM
Star Products
•Individual control, Group control & Central control (Max 256 indoor units)
•7-inch TFT LCD touch screen with back light
•Schedule control
•Operation mode lock
•Control mode setting (LIFO, Central, Lock)
•User editable control logic
•Indoor units’ information edit
•Error display
•Fire alarm terminal
•Historical data backup
YCZ-A004
MRV
SuperMatch
YCJ-A002
IGU05
YCZ-A004
IGU05
YCJ-A002
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
HCM-05 System
Control and Monitoring
•Control and monitoring up to 250/500 indoor units.
•Operation control: mode, temperature, fan, swing.
•Operation mode lock
•Control mode lock
•Icon based indoor units display
Power Distribution & Report
•Data query
•Electricity price setting for different time sections
•Electricity report preview, print and transmit
•Electricity charges prepaid & comparison
Schedule Control
•Graphical schedule setting
•Free combination
•Schedule edit (add, edit, delete)
•Exception day setting
Zone Management
•Zoning control the indoor units according to user’s
demands
•Zone control: creation, edition, deletion
Error Management
•Error history management
•Detailed error information query
System Configuration
•Building configuration
•Device confirguration
•User management
•System parameters
159 160
Powerful and integrated solution for medium or large commercial
projects, enabling control of 250/500 indoor units.
CONTROL SYSTEM
Star Products
•Remote monitoring version
•Third party interface: BACnet ip
•Max. 250 indoor units can be controlled for HCM-05; and 500
indoor units for HCM-05(A)
•Max. 32 systems. Each system requires one IGU02.
•Operation status setting & monitoring.
•Schedule setting
•Multi user management with different authorized levels
•Electricity charge report
•Operation and Error history log
•Cooperated technology with Honeywell
HCM-05/HCM-05(A)
IGU02
IGU02
Max. 40 indoor uints
Homebus
IGU02
Max. 32 IGU02
HCM-05
TCP/IP
PC
IGU02
RS-485 Max. 1000m
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
161 162
CONTROL SYSTEM
The individual control system has a variety of wired and wireless controllers which
enable you an easy and intelligent control of your air conditioners. You can choose the
one which best suits for your air conditioning management.
Individual Controller YR-HBS01
•On/Off, Mode, Fan speed, Temperature setting, Swing
•Individual control
•Five grades fan speed reserved
•Individual blade control for Smart Power Cassette
•Clock & Timer
YR-HD
YR-E17
YR-E16A
•On/Off, Mode, Fan speed, Temperature setting, Swing
•Individual control
•Timer
•Clock
•On/Off, Mode, Fan speed, Temperature setting, Swing.
•Individual & Group control (Max 16 indoor units)
•Simple and Smart design, 86*86*13.05mm
•Touch button with back light
•Timer /Clock
•Individual blade control for Smart Power Cassette
•Easy installation, user friendly
•On/Off, Mode, Fan speed, Temperature setting, Swing
•Individual & Group control (Max 16 indoor units)
•Large touch button
•Fahrenheit/ Celsius selectable; Sensitivity ±0.5°C (±1 )
•Individual blade control for Smart Power Cassette
•Static pressure setting
•Error display in sequence of date
YR-HBS01
YR-E16A
YR-E17
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
163 164
Individual Controller
YR-F02
WIFI Module (KZW-W001)
RE-01/02
•On/Off, Mode, Fan speed, Temperature setting, Swing
•Individual control
•Group control, Max. 16 units
•Filter
•Check
•Remote control: On/Off, Mode, Fan speed, Temperature setting, Swing.
•Individual & Group control (Max 16 indoor units)
•Cloud adaptation
•Weekly timer
•* A YCJ-A002 is required on some certain indoor units
•Infrared signal receiver
•Realize the remote control of Duct type indoor unit
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
CONTROL SYSTEM
165 166
CONTROL SYSTEM
The centralized control system offers you a smart and convenient experience while
managing your air conditioner individually or by groups or by zones. A variety of con-
trollers can be used to perfect your air conditioning management.
Centralized Controller YCZ-G001
YCZ-A004
YCZ-A003
IGU05
YCZ-G001
YCZ-A004
•Individual control, Group control & Central control (Max 32 indoor units)
•Large touch key
•Weekly timer.
•Unit name & Group name free setting. Four background available (mall, hotel, office, home)
•Error display
•* Must be used in combination with an IGU05 for each MRV system (Max. 16 sets)
•Individual control, Group control & Central control (Max 256 indoor units)
•7-inch TFT LCD touch screen with back light
•Schedule control
•Indoor units’ information edit
•* Must be used in combination with an IGU05 for each MRV system.
(Max. 32 sets)
•Individual control, Group control & Central control (Max 128 indoor units)
•Touch screen with back light
•Schedule control
•Error display
•* Must be used in combination with an IGU05 for each MRV system. (Max. 32 sets)
•Protocol adapter, convert Homebus to RS-485
•Match with Central controller (YCZ-G001/A003/A004). An IGU05 can only
be used in one system
•Max. 64 indoor units can be connected with one IGU05
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
HCM-01 System
167 168
CONTROL SYSTEM
The building management modules could perfectly integrate air conditioners into the
Building Management System, providing an excellent solution for large commercial
areas.
BMS HCM-01
HCM-05/05A
HCM-01
HCM-03
•Local control version; Convert RS-485 to RS-232
•Max. 400 indoor units can be controlled
•Max. 32 systems/ outdoor units, each system unit requires one IGU02.
•Operation status setting & monitoring.
•Schedule setting (weekly, monthly)
•Electricity charge report
•Operation and Error history log
IGU02
IGU02
IGU02
HCM-01
RS-232
IGU02
Ammeter
Ammeter
RS-485
Monitor Software
Max. 32 IGU02
RS-485 Max. 1000m
Ammeter
Home BUS
Max. 40 indoor uints
Ammeter
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
HCM-03 System
Intelligent Cloud Services
169 170
CONTROL SYSTEM
BMS
HCM-05/HCM-05(A)
HCM-03
•Remote monitoring version; Third party interface: BACnet ip/ Modbus ip/ Modbus rtu
•Max. 1000 indoor units can be controlled
•Max. 4 groups. Each group can connect 20 systems. Each system
requires one IGU02.
•Operation status setting & monitoring.
•Schedule setting (weekly, monthly)
•Multi user management with different authorized levels
•Operation and Error history log
IGU02
IGU02
Max. 40 indoor units
Max. 40 indoor units
Max. 40 indoor units
Max. 40 indoor units
Max. 20 IGU02
Max. 20 IGU02
Max. 20 IGU02
Max. 4 groups
Tcp/Ip
HCM03
Max. 20 IGU02
•Third party interface: BACnet ip
•Max. 250 indoor units can be controlled for HCM-05; and 500 indoor units for HCM-05(A)
•Max. 32 systems. Each system requires one IGU02.
•Multi user management with different authorized levels
•Cooperated technology with Honeywell
IGU02
•Protocol adapter, convert Homebus to RS-485
•Match with BMS (HCM-01, 03, 05, 05A). Each system requires one IGU02
•Max. 40 indoor units can be connected with one IGU02
•Electricity data collection, calculation, allocation and storage.
Cloud Services Platform
•7*24 Personalized Long-distance monitoring & service
•Malfunction alarm and error solving suggestions
•Power consumption data collection and analysis
YCZ-A004
HCM-05/05A
OutdoorIndoor
ServerServer Center
BMS Control
Internet
d
oor
BMS Co
ntr
ol
4
A
I
nt
e
rn
e
t
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Name Design Model For what unitsFunctions
HZG-30A
HZG-20B
HZG-30B
Refrigerant gathering
Refrigerant gathering
Refrigerant gathering
Gather pipe
Gather pipe
Gather pipe
Gather pipe
Gather pipe
3 outdoor units
MRV IV-C, 2 outdoor units
MRV IV-C, 3 outdoor units
3 outdoor units
HZG-20A
HZG-R20A
HZG-R30A
Refrigerant gathering
Gather pipe
2 outdoor units
2 outdoor units
FQG-B335A
Refrigerant distribution
for heat pump MRV
Refrigerant gathering
for heat recovery MRV
Refrigerant gathering
for heat recovery MRV
Refrigerant distribution
for heat pump MRV
Refrigerant distribution
for heat pump MRV
Refrigerant distribution
for heat pump MRV
Manifold pipe
Total indoor units capacity less than
33,500W
FQG-B506A
Manifold pipe
Total indoor units capacity less than
50,600W, but equal or bigger than
33,500W
FQG-B730A
Manifold pipe
Total indoor units capacity less than
73,000W, but equal or bigger than
50,600W
FQG-B1350A
Manifold pipe
Total indoor units capacity
bigger than 73,000W
Total indoor units capacity less than
33,500W
Total indoor units capacity less than
50,600W, but equal or bigger than
33,500W
Total indoor units capacity less than
73,000W, but equal or bigger than
50,600W
Total indoor units capacity less than 135,000W,
but equal or bigger than 73,000W
Total indoor capacity 135,000 W
MRV III-RC(heat recovery)
MRV III-RC(heat recovery)
MRV III-RC(heat recovery)
Refrigerant distribution
for heat recovery MRV
Refrigerant distribution
for heat recovery MRV
Refrigerant distribution
for heat recovery MRV
Refrigerant distribution
for heat recovery MRV
Refrigerant distribution
for MRV IV-C
Vavle pipe box
Vavle pipe box
Vavle pipe box
FQG-R335A
Manifold pipe
FQG-R506A
Manifold pipe
FQG-R730A
Manifold pipe
FQG-R1350A
FQG-B2040A
VP1-112A
VP1-180A
VP1-280A
Manifold pipe
Manifold pipe
VP box
VP box
VP box
Accessories
LonWorks System
171 172
CONTROL SYSTEM
BMS
IGU06
•Protocol adapter, convert Homebus to Modbus
•Max. 64 indoor units can be controlled
•Match with IGU07 to realize the Lonworks gateway function
•Max. 32 indoor units can be connected with one IGU06 when connecting with the IGU07
IGU07
HA-WA1
•Protocol adapter, convert Modbus to Lonworks
•Each system requires one IGU07+ IGU06
•Max. 32 indoor units can be connected in one system
•External 24V DC power supply is needed by IGU07.
•Gateway: Modbus rtu
•Protocol adapter: Convert Homebus to RS-485
•Max.64 indoor units can be connected with one AD-GA1
•Replacement of IGU05
*Designed to be launched on June, 2016
NCE
NCE
IGU07
IGU06
IGU06
IGU06
IGU06
Homebus
Homebus
Homebus
Homebus
Max. 32 indoor units
RS-485, Max. 1000m
IGU07
IGU07
IGU07
NCE
NCE
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Country: Algeria
Project Name: Hotel-Akbou Bedjaia
Product Series: MRVII-C&MRVIII-C
Country: Algeria
Project Name: AGB Bank
Product Series: MRVII-C
Country: Algeria
Project Name: Al Qods
Product Series: MRVII
Country: Algeria
Project Name: Invest Inox Office
Product Series: MRVII
Project Name: Hotel-amillia bab ezzouar
Product Series: MRVII-C
Country: Algeria
173 174
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Country: Algeria
Project Name: PPT Tipaza Office
Product Series: MRVII-C
Country: Algeria
Project Name: Telecom Com Office
Product Series: MRVII-C
Project Name: Mole Fix Office
Product Series: MRVII-C
Country: Algeria
175 176
Country: Algeria
Project Name: Ofarco Office
Product Series: MRVII-S
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S
Easy MRV MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
Country: Algeria
Project Name: Tapis office and showroom
Product Series: MRVII-C
Project Name: Mobil Art
Product Series: MRV-S&MRVIII
Country: Algeria
177 178
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S
Easy MRV MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
Project Name: Tapis office and showroom
Product Series: MRV-C
Country: Algeria
179 180
Product Series: MRVII-C
Project Name: Cabinda Stadium
Country: Angola
Country: Bulgaria
Project Name: Varna Tower
Product Series: MRVII-C
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S
Easy MRV MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
Project name: Geosan Group
Product series: MRVIII-C
Country: Czech Republic
Project name: National digital archiv
Product series: MRVII-C
Country: Czech Republic
Project name: ZZN Polabi
Product series: MRVIII-C
Country: Czech Republic
181 182
Project Name: Coop Kato Varosion
Project Name: Church at Ayios Theodoros
Product Series: MRVII-C2
Product Series: MRV-C
Country: Cyprus
Project Name: Avlogyros
Product Series: MRVII-C2
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV
MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
REFERENCE PROJECTS
183 184
Project Name: House at Pyla Near CTO
Project Name: Viva Souvenir Shop Ayia Napa
Project Name: Ydroyios Insurance
Product Series: MRVII-C2
Product Series: MRVII-C2
Product Series: MRV-C
Country: Cyprus
Project Name: Cordia City Garden Budapest
Project Name: DEC Oncology Medical Center, Debrecen
Product Series: MRVII-C
Product Series: MRVII-C
Country: Hungary
Project Name: National Institute
Product Series: MRVII-C
MRV IV-C MRV III-C MRVIII-RC MRV S
Easy MRV MRV AHU MRV Indoor
Reference ProjectsControl SystemMRV W
REFERENCE PROJECTS
185 186
Product Series: MRVII-C
Product Series: MRVII-C
Project Name: Restaurant Hotel Costrz
Project Name: Autosalone(BS)
Country: Italy
Product Series: MRVII-C
Project Name: Venpa, Brescia
Country: Iran
Product Series: MRV-III
Project Name: Jewelry Factory, Mr. Anaraki
Country: Iran
Product Series: MRV-III
Project Name: Ebrahimi's Carpet gallery
Country: Iran
Product Series: MRVII-C2
Project Name: Takbiri's House
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
187 188
Country: Mauritius
Project Name Mr. Bricolage
Product Series MRVIII-C & HCM-03
Country: Mauritius
Project Name: EBENE SKIES-port Louis
Product Series: MRVII-C
Country: Laos
Project Name: Lao President Palace
Product Series MRVII-C
Country: Mauritius
Project Name Eben Skies
Product Series MRVII-C
Country: Mauritius
Project Name Precigraph
Product Series MRVII-C
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
189 190
Country: Nigeria
Project Name: Takyi Plaza
Product Series: MRVII-C
Country: Pakistan
Project Name BNU University
Product Series MRVIII
Country: Pakistan
Project Name Barat Ghar
Product Series MRVII-C
Country: Pakistan
Project Name Shapes Health club
Product Series MRVIII
Country: Pakistan
Project Name Such TV
Product Series MRVIII
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S
Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Project Name Interloop
Product Series MRVIII-C
Country: Pakistan
Project Name CNS Head Office
Product Series MRVIII-C
Country: Pakistan
Project Name Centaurus
Product Series MRVIII-C
Country: Pakistan
Country: Vietnam
Project Name: Nissan Centre
Product Series:MRVII-C
191 192
REFERENCE PROJECTS
MRV IV-C MRV III-C MRVIII-RC MRV S
Easy MRV MRV AHU MRV Indoor Reference ProjectsControl SystemMRV W
Commercial Air Conditioning
Air Con
Con
ing
ing
di
ditio
d
C
C
al Ai
merc
cia
ditioni
Com
merc
mm
cial Ai
