When it comes to providing personalized comfort in every room of every building, we are here
to help. No other company is as committed to creating environmentally friendly and affordable
technology that’s ideal for today’s home and work environments, no matter the size or shape.
QUALITY
Mitsubishi Electric is consistently recognized by HVAC contractors as the #1 preferred
brand with the highest quality rating among manufacturers. With over 30 years of industry
leadership, we are proud to be America’s #1 selling brand of variable refrigerant ow (VRF)
zoning technology.
PERFORMANCE
We deliver a complete range of compact and powerful heat pump products that are also
intelligent, quiet, and use energy effectively.
TRAINING
We provide comprehensive product and applications instruction through our regional training
centers across the United States.
SUPPORT
We offer the most extensive network of experienced VRF zoning system professionals to
provide project consultation in the areas of application planning and design, plus installation
and start-up. Post installation, we can provide support, including user training and operation
monitoring.
GROWTH
Our products and services provide opportunities for architects, engineers, distributors
and contractors to enhance and grow their businesses. With nearly 20 years of consistent
double-digit percentage growth, we continue to lead the market’s growth acceleration.
ECO CHANGES
Eco Changes is our commitment to continuously strive for a greener tomorrow through
cutting-edge global environmental technologies and outstanding strength in manufacturing.
AMERICA’S #1 SELLING BRAND OF VRF ZONING TECHNOLOGY
MITSUBISHI ELECTRIC IS A WORLD
LEADER IN PRODUCTS THAT HELP
PEOPLE LIVE BETTER.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 3
Overview of CITY MULTI
®
. . . . . . . 5
OUTDOOR UNITS
Outdoor Units Showcase . . . . . . . . . . . . . 13
R2-Series Overview . . . . . . . . . . . . . . . . 17
Y-Series Overview . . . . . . . . . . . . . . . . . 20
H2i
®
R2-Series Overview . . . . . . . . . . . . . 22
H2i
®
Y-Series Overview . . . . . . . . . . . . . . 23
S-Series (PUMY) Overview . . . . . . . . . . . . 25
W-Series Overview . . . . . . . . . . . . . . . . 26
Low Ambient Cooling . . . . . . . . . . . . . . . 28
Cold Weather Solutions Guide . . . . . . . . . . 29
INDOOR UNITS
Indoor Units Overview . . . . . . . . . . . . . . 33
PKFY (Wall mounted) . . . . . . . . . . . . . . . 35
PLFY (4-way Ceiling-recessed Cassette) . . . . . 36
PMFY (1-way Ceiling-recessed Cassette) . . . . 38
PCFY (Ceiling-suspended) . . . . . . . . . . . . 39
PEFY (Ceiling-concealed Ducted) . . . . . . . . 40
FBM/FBL/FBH Filter Boxes . . . . . . . . . . . . 42
PFFY (Floor standing) . . . . . . . . . . . . . . . 43
PVFY (Multi-position Air Handler) . . . . . . . . . 44
PWFY (Hydronic Heat Exchanger) . . . . . . . . 45
VENTILATION
Premisys
®
Dedicated Outdoor Air System . . . . 48
Lossnay
®
Energy Recovery Ventilators (ERVs) . . 50
Dedicated Outdoor Air System (DOAS) . . . . . . 51
CONTROLS AND SOFTWARE TOOLS
CITY MULTI Controls Network . . . . . . . . . . 54
Integrated Centralized Control Web . . . . . . . 55
Software Options for Central Controllers . . . . . 56
Centralized Controller AE-200A/AE-50A . . . . . 57
Centralized Controller EW-50A . . . . . . . . . . 59
Centralized Controller TC-24B . . . . . . . . . . 60
Input/Output Controllers . . . . . . . . . . . . . 61
Zone Controllers . . . . . . . . . . . . . . . . . 63
System Integration . . . . . . . . . . . . . . . . 66
Diamond Controls™ . . . . . . . . . . . . . . . . 67
Diamond System Builder . . . . . . . . . . . . . 69
Maintenance Tool Software . . . . . . . . . . . . 71
SPECIFICATIONS . . . . . . . . . . . 72
TABLE OF CONTENTS
4
4
JOHN C. STENNIS MEMORIAL HOSPITAL
DEKALB, MS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 5
OVERVIEW OF CITY MULTI
®

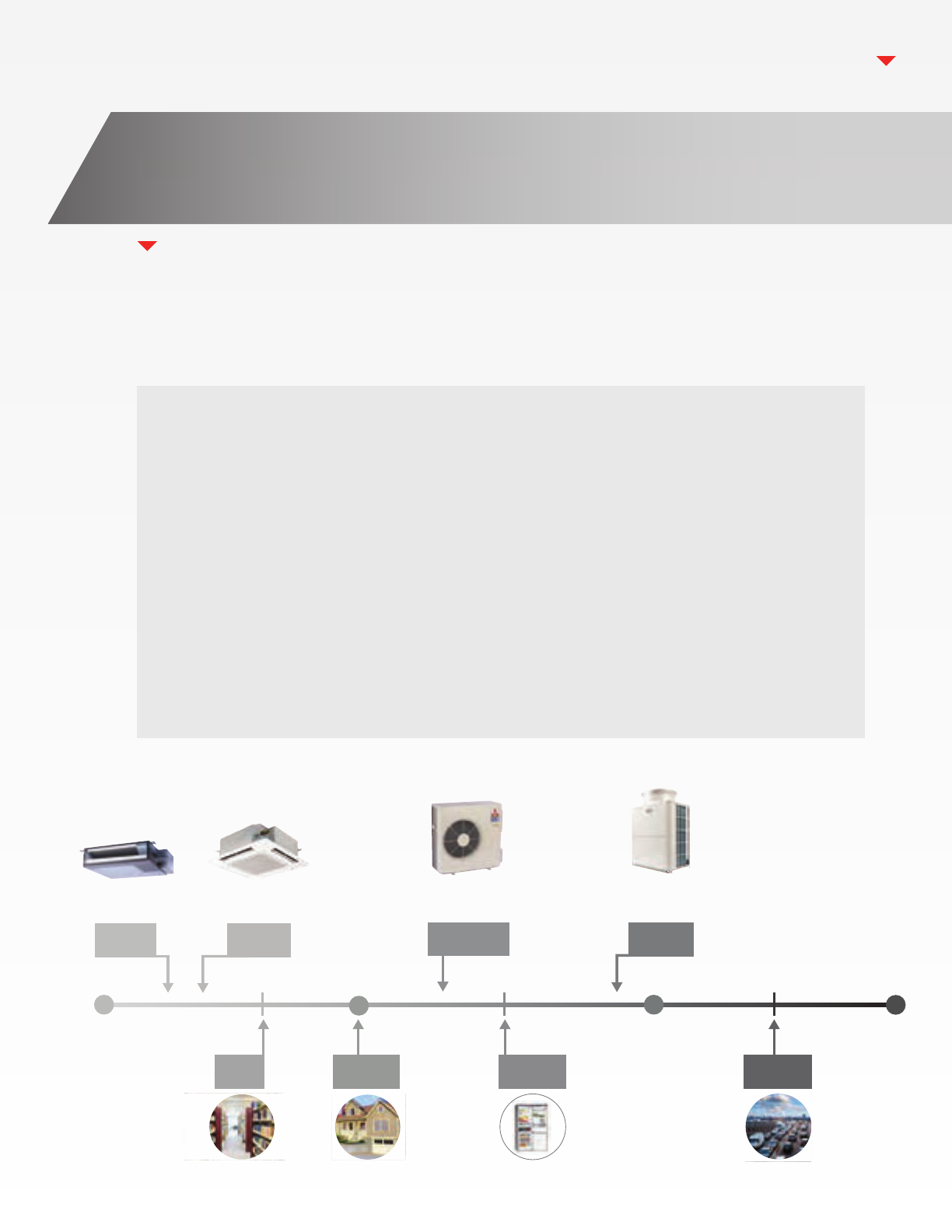

PRODUCT OVERVIEW
33 dB(A)
Library
40 dB(A)
Quiet Home
50 dB(A)
Refrigerator
70 dB(A)
Busy Traffic
Mitsubishi Electric
Ducted Unit
Mitsubishi Electric
Ceiling–recessed
Cassette Unit
Mitsubishi Electric
Residential
Outdoor Unit
Mitsubishi Electric
Commercial
Outdoor Unit
As Low As
27 dB(A)
As Low As
46 dB(A)
As Low As
58 dB(A)
As Low As
22 dB(A)
20
40
60
80
• Ultra-efficient design to ensure total
comfort in any commercial space.
• Advanced INVERTER technology
varies the speed of the compressor for
more efcient cooling and heating.
• Complete zoning control so you heat
and cool the areas that need it without
paying for the ones that don’t.
• Design flexibility for any application,
from modern designs to historic
renovations.
• Complete product family to handle
every job from the smallest spaces to the
largest buildings and campuses.
• Green technology that contributes to
Leadership in Energy & Environmental
Design (LEED) credits and saves energy.
• Quiet operation that's even softer than
a human whisper.
• Simultaneous operation to cool and
heat with just two pipes.
WHY CITY MULTI VRF ZONING SOLUTIONS?
As a global leader in VRF zoning solutions, you can trust that you’re receiving the most
advanced technology and dedicated support in the industry.
ADVANTAGES CITY MULTI OFFERS:
QUIET OPERATION
6
PRODUCT OVERVIEW

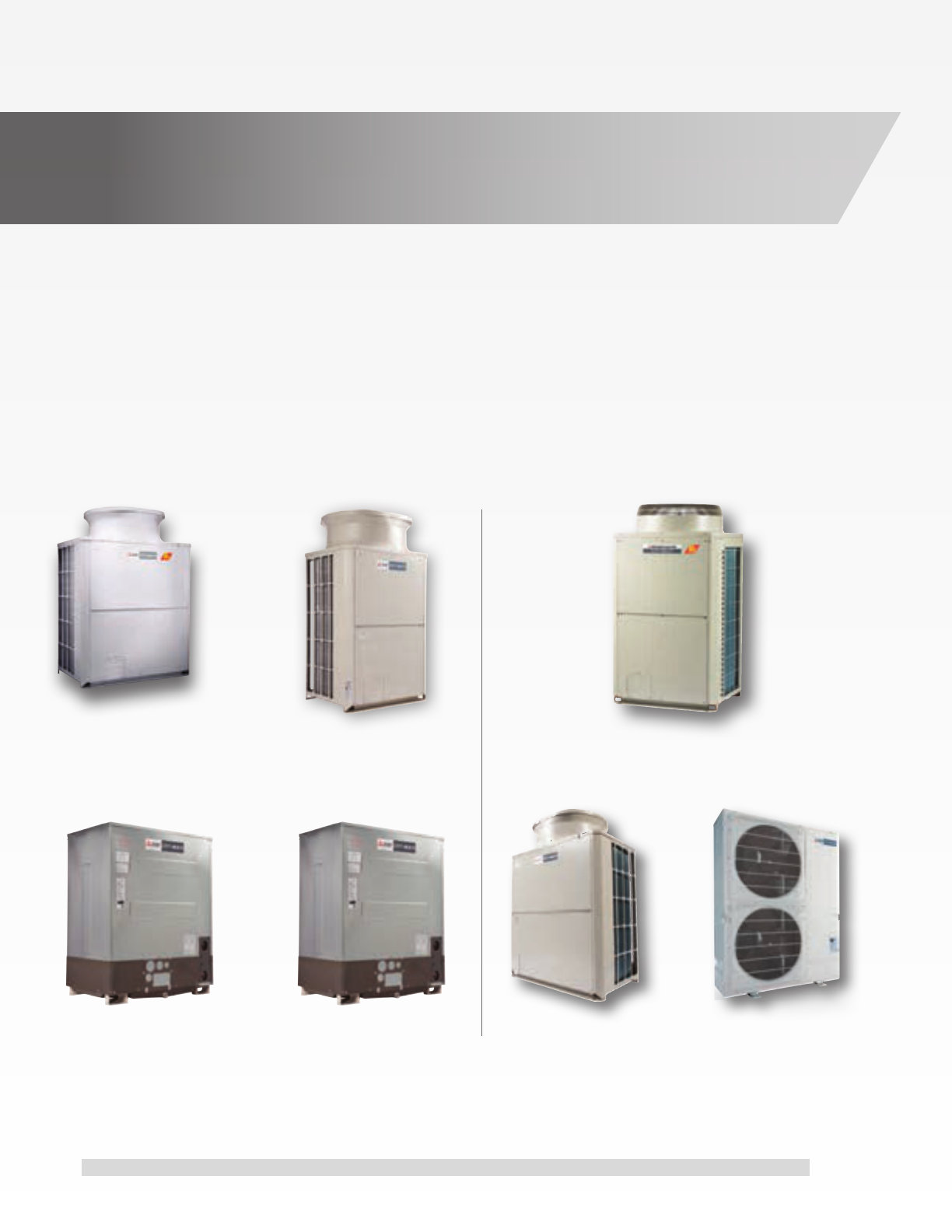

OUTDOOR UNITS
Mitsubishi Electric offers an extensive air-source and water-source unit line-up that can be
tailored to any building design need.
AIR-SOURCE HEAT RECOVERY
AIR-SOURCE HEAT PUMPS
H2i
®
R2-Series
R2-Series
Y-Series S-Series
WR2-Series
WATER-SOURCE
HEAT RECOVERY
H2i
®
Y-Series
WY-Series
WATER-SOURCE
HEAT PUMP
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 7
PKFY
Wall-mounted
PLFY–NEMU (33"x33")
PLFY–NCMU (22"x22")
Ceiling-recessed Cassette (4–Way)
PCFY
Ceiling-suspended
PEFY-NMSU Low Prole
PEFY-NMAU Medium Static
PEFY-NMHU /NMHSU High Static
Ceiling-concealed Ducted
PMFY
Ceiling-recessed Cassette (1-Way)
PWFY–NMU–E–AU (HEX)
PWFY–NMU–E–BU (Booster)
Hydronic Heat Exchanger
INDOOR UNITS
Mitsubishi Electric’s wide selection of indoor units enables you to choose the style and
size that meets your requirements for layout and design.
PFFY-NEMU Exposed
PFFY-NRMU Concealed
Floor-standing

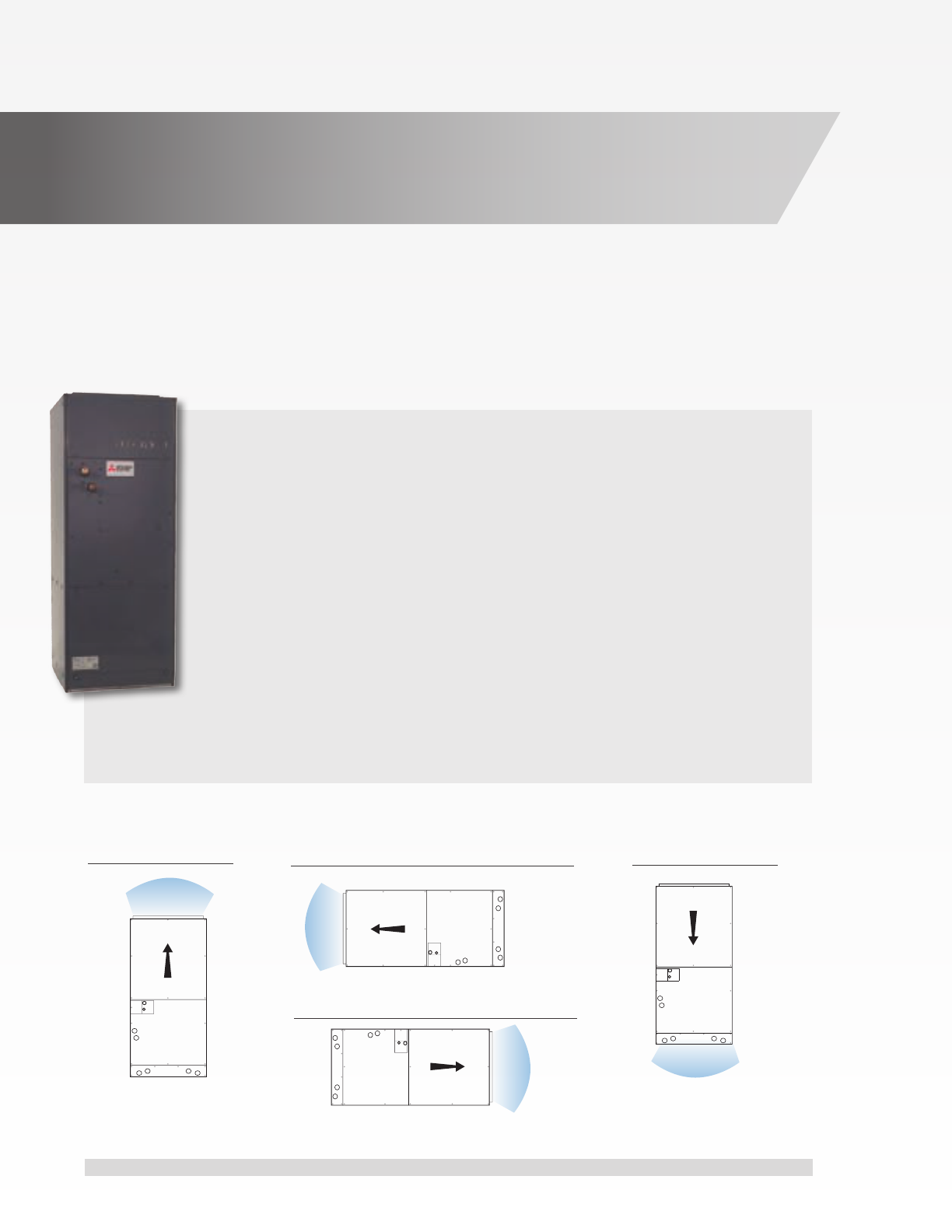

PVFY
Multi-position Air Handler
OVERVIEW OF CITY MULTI
®
8

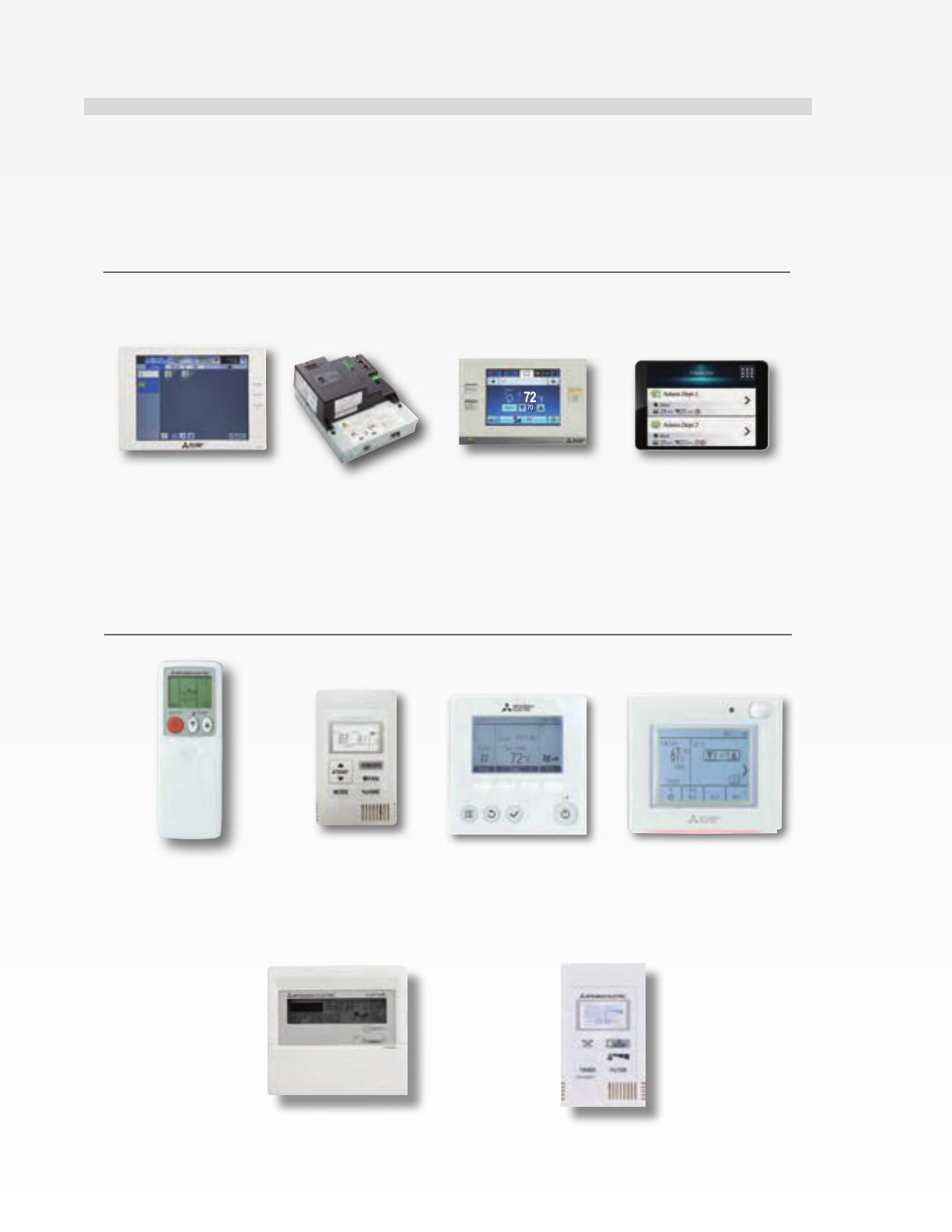

CITY MULTI
®
CONTROLS NETWORK (CMCN)
The exibility of CITY MULTI controls allows you to select the level of control and integration
that ts the application’s needs.
ICCW
Integrated Centralized
Control Web
AE-200A / AE-50A
Touch Screen
Centralized Controllers
(Browser Capable)
PAR–FL32MA
Wireless MA
Wireless Remote Controller
TC–24B
Touch Screen
Centralized Controller
CENTRALIZED CONTROLLERS
ZONE CONTROLLERS
PAC–YT53CRAU
Simple MA
Remote Controller
EW-50A
Centralized Controller
(Browser Capable)
PZ–60DR
Lossnay
®
Remote Controller
PZ-43SMF
Lossnay
®
Remote Controller
PAR-32MAA
Wired MA
Remote Controller
PAR–U01MEDU
SmartME
Remote Controller
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 9
OVERVIEW OF CITY MULTI
®
DC-600E
Diamond Controls
™
Building
Management System

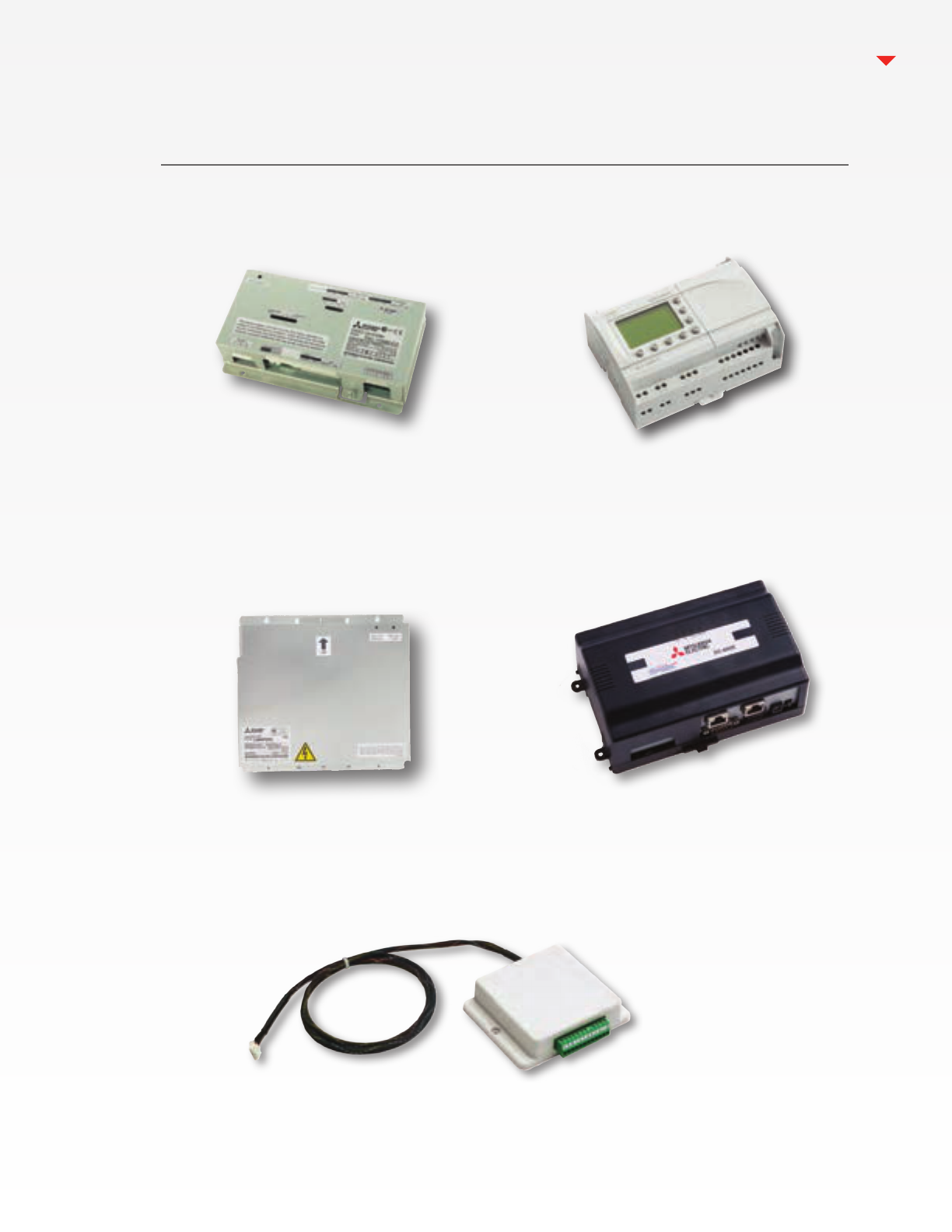

PAC-US444CN
Thermostat Interface
PACY-YG60MCA (PI)
PAC–YG63MCA (AI)
PAC–YG66DCA (DIDO)
I/O Control Boards
CUSTOM CONTROL SOLUTIONS
LMAP04U
LonWorks
®
Interface
AHA-01(-04)-A
AdvancedHVAC
Applications
10
CITY MULTI
®
HIGH-PERFORMANCE,
MODULAR VRF ZONING SYSTEMS

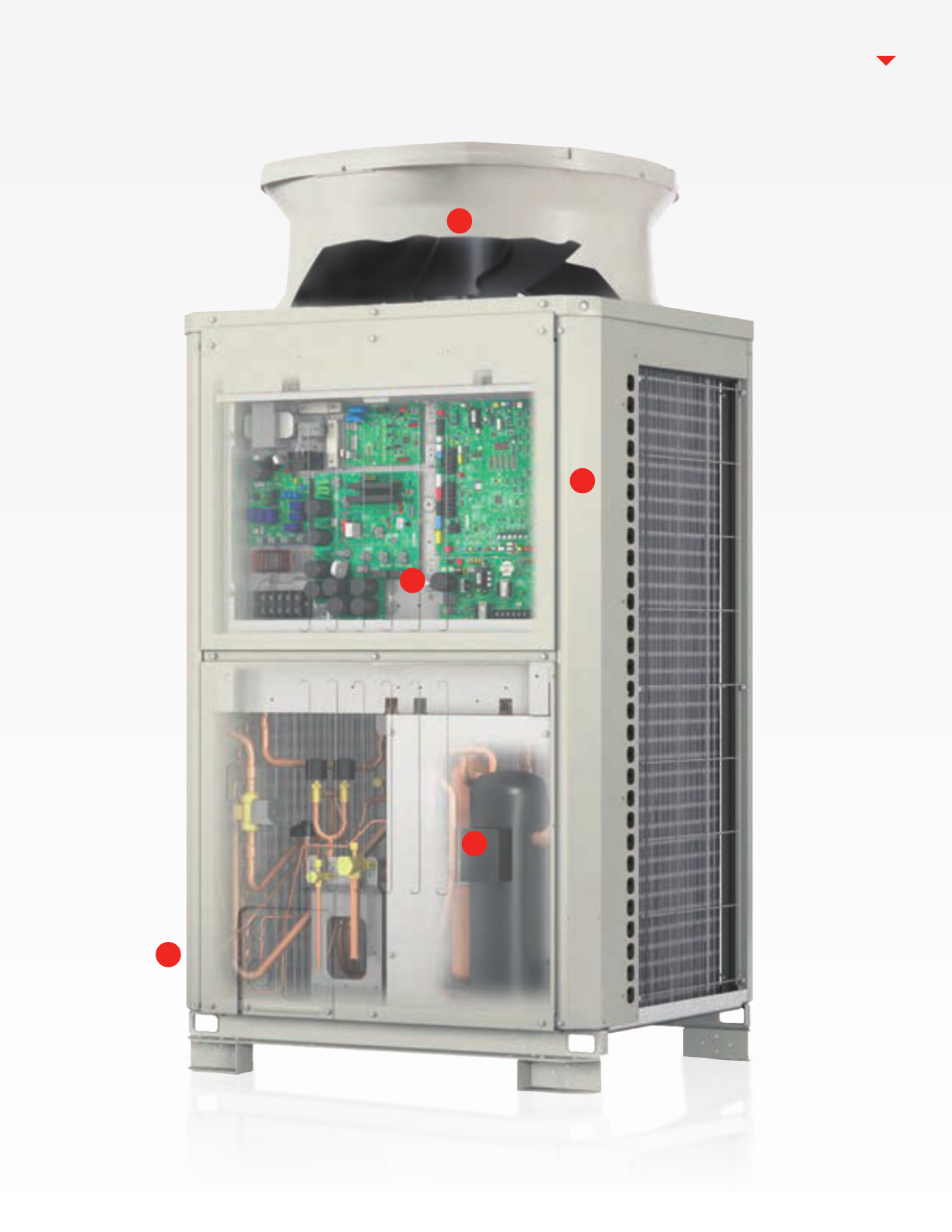

CITY MULTI outdoor units feature a lightweight modular design with a minimal
footprint, lower sound level, easy piping, maintenance and much more.
1. INVERTER-DRIVEN COMPRESSOR TECHNOLOGY
The compressor varies its speed to match the indoor cooling or heating demand to consume only the energy
required. No other compressor design can match the efcient performance.
2. EASY MAINTENANCE
In many cases, our systems allow an indoor unit to be serviced while other indoor units within the same piping
system are still in operation. Indoor units only require periodic lter changes and cleaning. Protective coating
comes standard on air-source outdoor units to lengthen coil life while additional Bermuda Special treatment,
designated -BS within the model number, provides enhanced protection for the rest of the outdoor unit in
sea-coast environments.
3. LONG LINE LENGTHS
The R2- and Y-Series outdoor units allow for long line lengths to the connected indoor units. Maximum total
length of refrigerant piping is up to 2,624 feet for R2–Series and up to 3,280 feet for Y–Series.
4. ADJUSTABLE STATIC PRESSURE
R2–, Y– and H2i
®
R2- and Y–Series outdoor fan features adjustable static pressure up to 0.24" W.G., enabling
the use of louvers or ductwork in its installation. The static pressure setting is adjustable by changing a dip
switch. The default setting is 0" W.G., with options for 0.12" and 0.24" W.G.
5. QUIET OPERATION
CITY MULTI air-source outdoor units operate at sound levels as low as 58 dB(A)—the level of a common ofce
environment, restaurant conversation or background music. Water-source units operate as low as 47 dB(A).
Contributing features include our INVERTER-driven compressor compartment sealed by insulation-lined metal
panels, vibration-absorbing compressor mounts, INVERTER-driven fan and Low Noise operating mode.
PRODUCT ADVANTAGES
LOW AMBIENT OPERATION

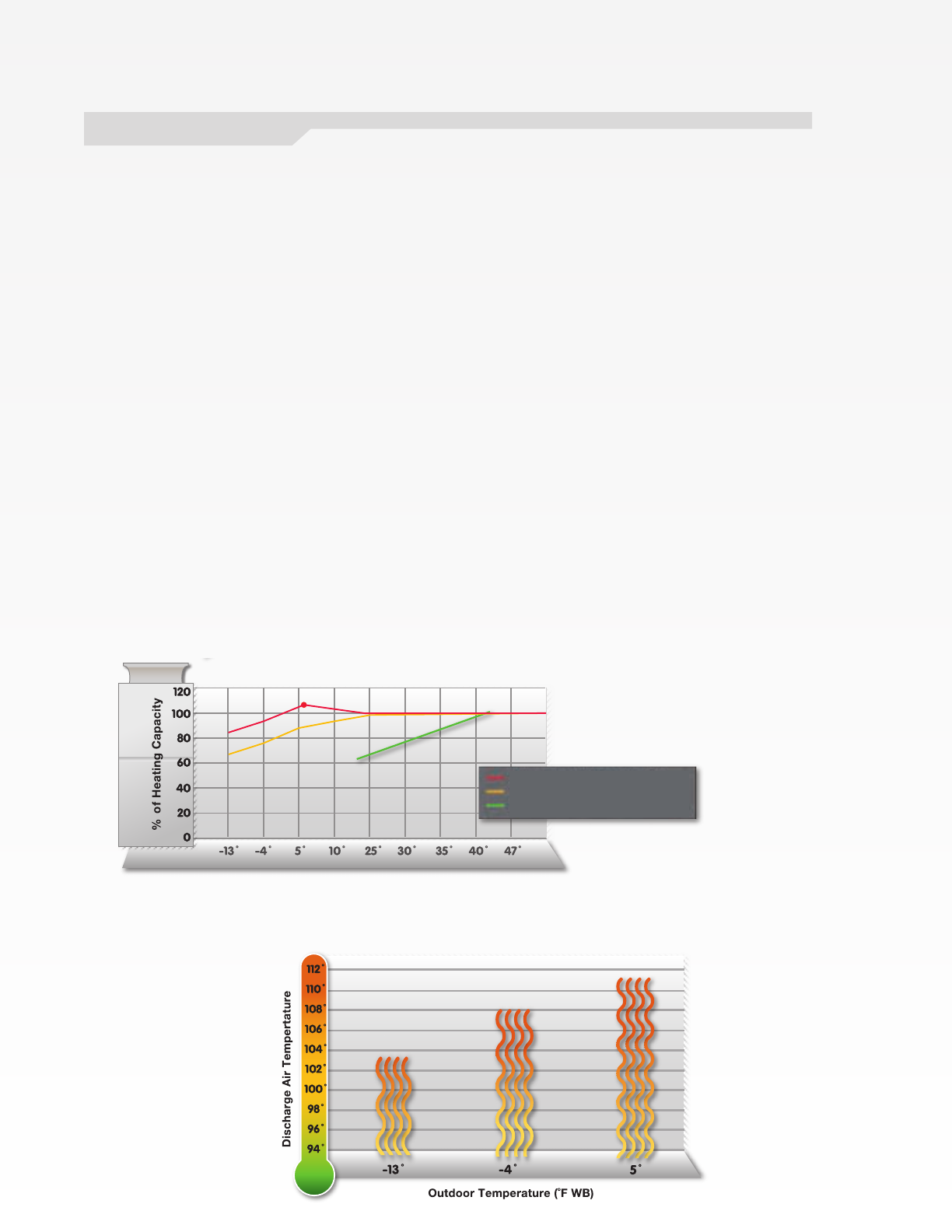

CITY MULTI systems provide 100% cooling capacity down to -10° F with the optional low ambient kit.
Systems provide guaranteed heating operation down to -13° F. See pages 28 and 29 (Low Ambient Cooling)
for more information.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 11
1
2
4
3
5
OVERVIEW OF CITY MULTI
®
ILLUSTRATION PURPOSES ONLY
12
12

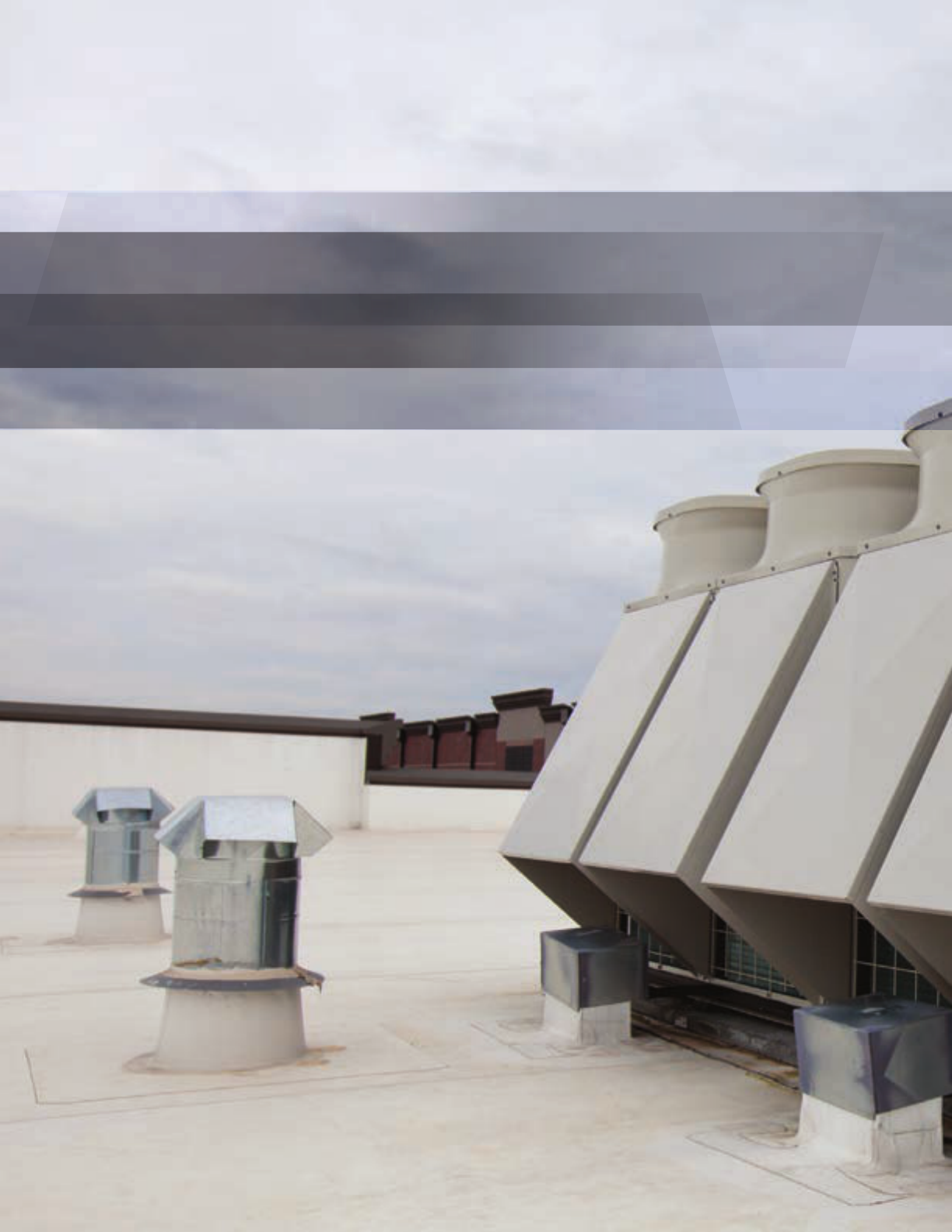

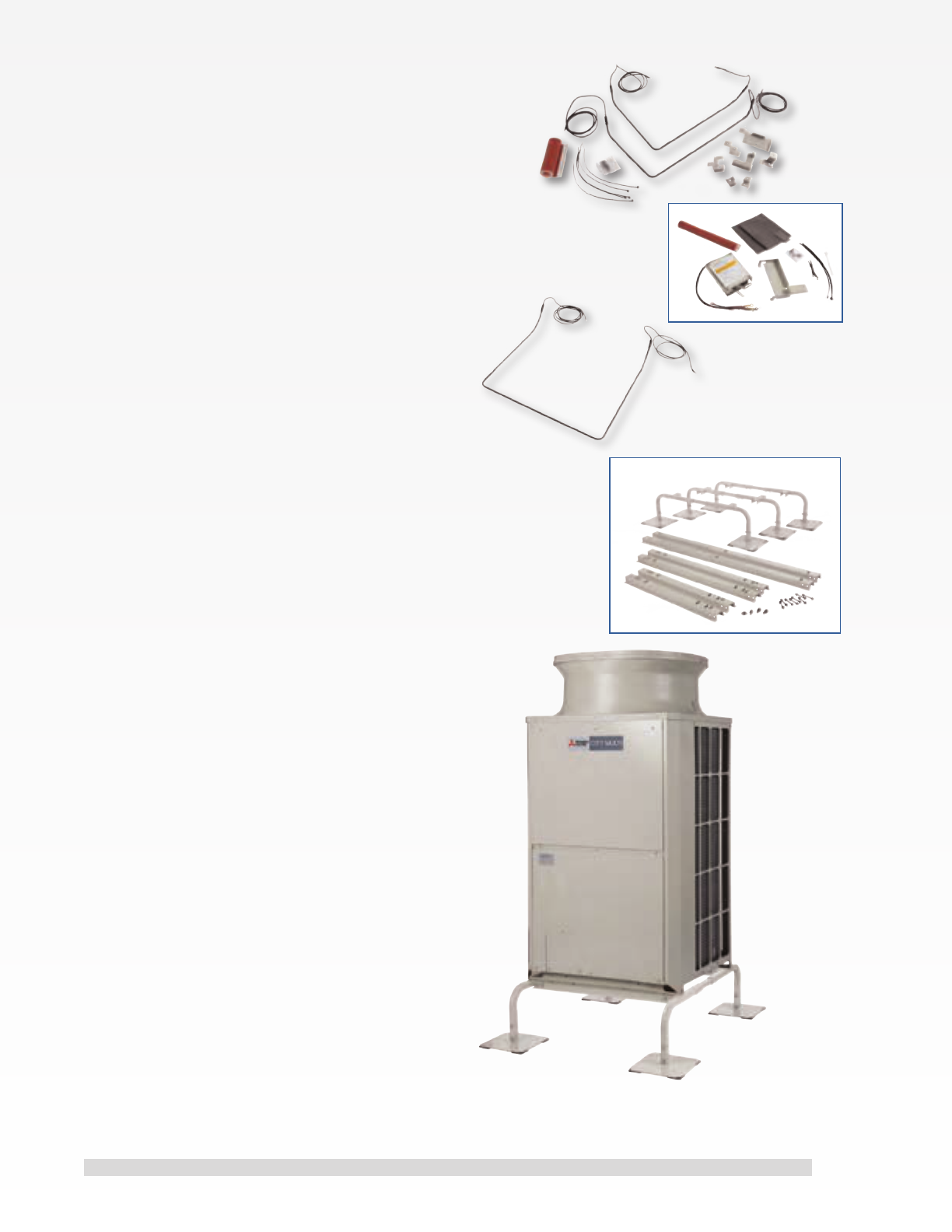

Outdoor units featuring cold weather accessories,
including hail and snow guards.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 13
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 13
OUTDOOR UNITS
R2–Series / H2i
®
R2–Series / Y–Series / H2i
®
Y–Series / S–Series / W–Series
14

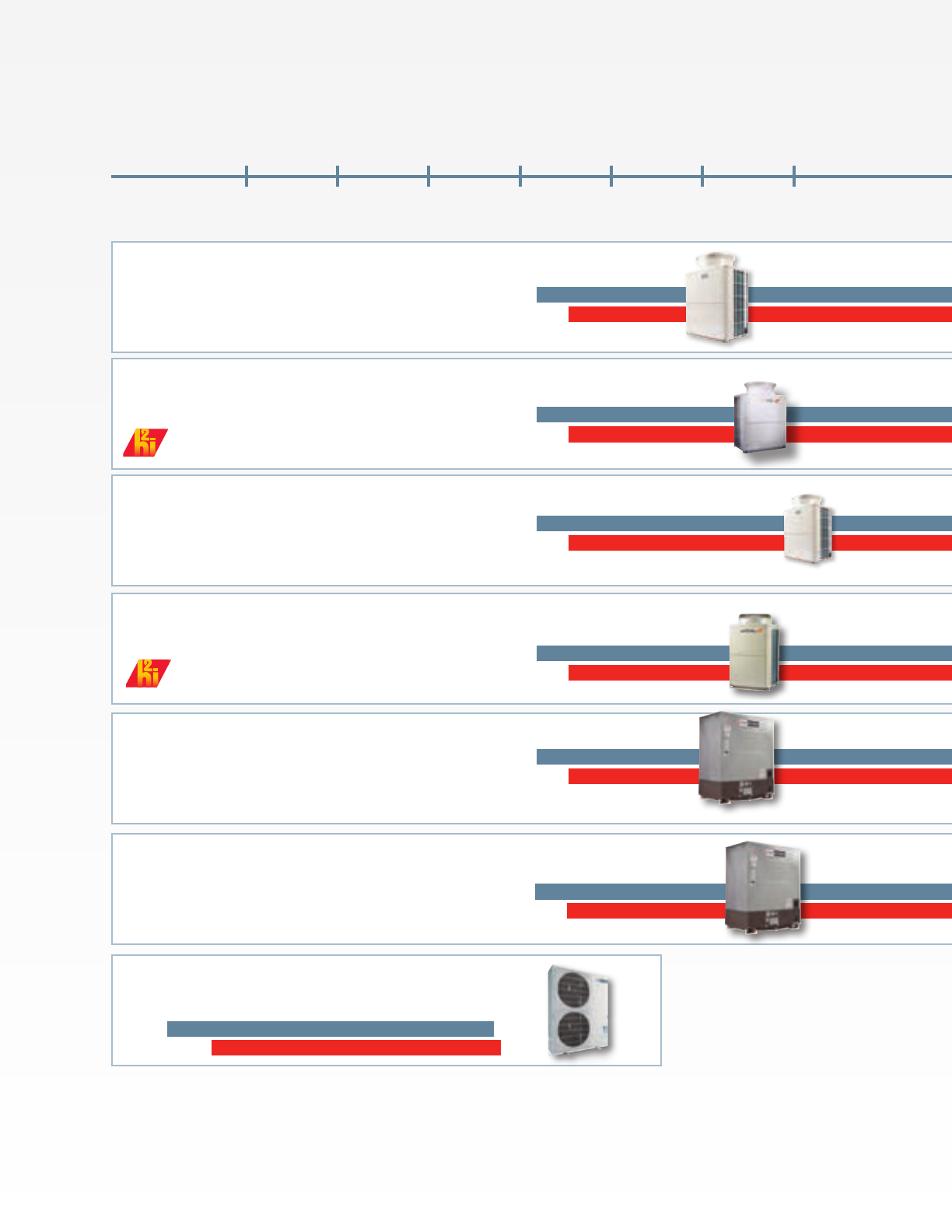

TONS 3.5 4.0 4.5 5.0 8.0 10.0 12.0 14.0 16.0 20.0 24.0 26.0 30.0 TONS
MBtu/h 42 48 54 60 96 120 144 168 192 240 288 312 360 MBtu/h

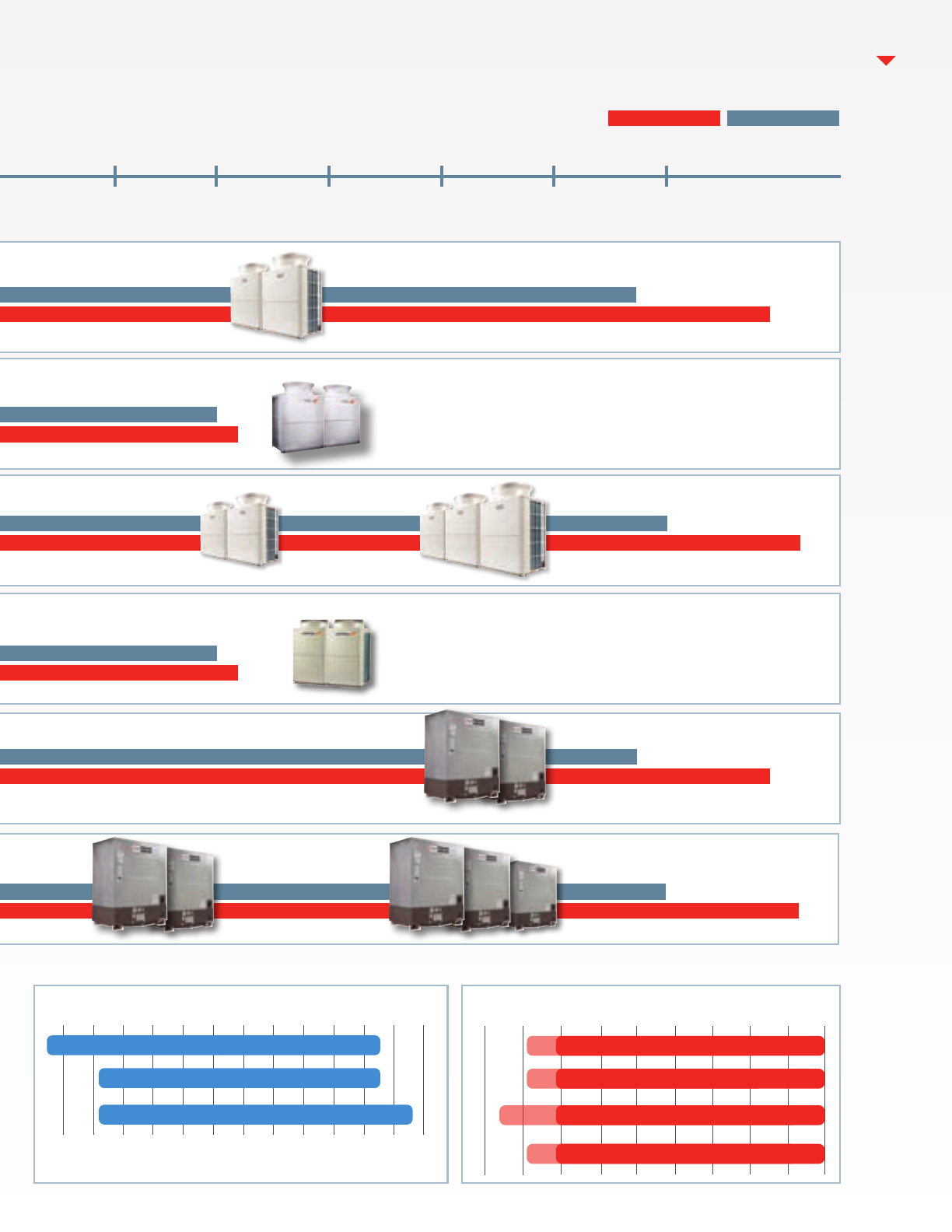

OUTDOOR UNITS SHOWCASE
S-Series Heat Pump
PUMY
up to 12 indoor units
40 66
36 60
Y-Series H2i Heat Pump
PUHY
up to 41 indoor units
80
72
R2-Series H2i
®
Heat Recovery
PURY
up to 48 indoor units
80
72
R2-Series Heat Recovery
PURY
up to 50 indoor units
Y-Series Heat Pump
PUHY
up to 50 indoor units
WY-Series Water-Source Heat Pump
PQHY
up to 50 indoor units
WR2-Series Water-Source Heat Recovery
PQRY
up to 50 indoor units
72
80
72
80
72
80
72
80
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 15
Outdoor Dry Bulb Temperature
20˚ F 30˚ F 40˚ F 50˚ F 60˚ F 70˚ F 80˚ F 90˚ F 100˚ F
110˚ F
115˚ F
115˚ F
126˚ F
5˚ F
23˚ F
23˚ F
10˚ F
S-Series
R2- and Y-Series Hyper Heat
R2- and Y-Series
120˚ F
130˚ F
Outdoor Wet Bulb Temperature
-20˚ F-30˚ F
-10˚ F 0˚ F 10˚ F
20˚ F
30˚ F 40˚ F 50˚ F 60˚ F
60˚ F
60˚ F
60˚ F-25˚ F
-18.7˚ F
-18.7˚ F
-13˚ F
-13˚ F
-13˚ F
S-Series
R2-Series, Y-Series
R2-Series Hyper Heat
60˚ F-18.7˚ F -13˚ F Y-Series Hyper Heat
Outdoor Dry Bulb Temperature
20˚ F 30˚ F 40˚ F 50˚ F 60˚ F 70˚ F 80˚ F 90˚ F 100˚ F
110˚ F
115˚ F
115˚ F
126˚ F
5˚ F
23˚ F
23˚ F
10˚ F
S-Series
R2- and Y-Series Hyper Heat
R2- and Y-Series
120˚ F
130˚ F
Outdoor Wet Bulb Temperature
-20˚ F-30˚ F
-10˚ F 0˚ F 10˚ F
20˚ F
30˚ F 40˚ F 50˚ F 60˚ F
60˚ F
60˚ F
60˚ F-25˚ F
-18.7˚ F
-18.7˚ F
-13˚ F
-13˚ F
-13˚ F
S-Series
R2-Series, Y-Series
R2-Series Hyper Heat
60˚ F-18.7˚ F -13˚ F Y-Series Hyper Heat
TONS 3.5 4.0 4.5 5.0 8.0 10.0 12.0 14.0 16.0 20.0 24.0 26.0 30.0 TONS
MBtu/h 42 48 54 60 96 120 144 168 192 240 288 312 360 MBtu/h
216
192
OUTDOOR UNITS
HEATING
COOLING
CAPACITY RANGE
215
192
378
336
405
360
405
360
378
336
CITY MULTI OUTDOOR UNIT OPERATING RANGES
*Low ambient operation may require the use of low ambient accessories.
16
TOWSON UNIVERSITY
TOWSON, MD
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 17

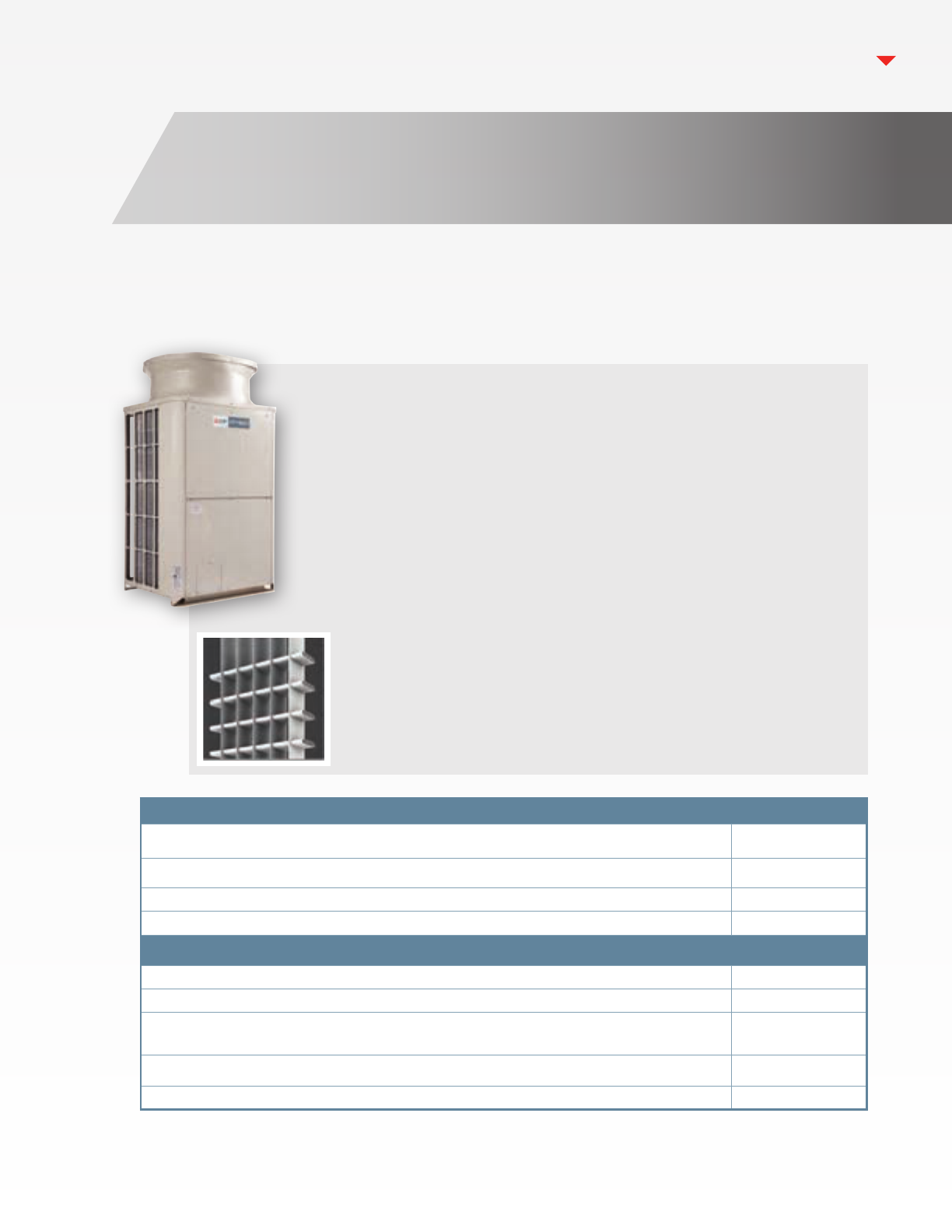

The only two–pipe heat recovery system that simultaneously cools and heats.
The R2-Series simultaneously cools and heats different zones within a building to provide
energy-saving heat-recovery operation through the use of the Branch Circuit (BC) Controller.
KEY FEATURES: L-GENERATION
• Up to 54% increase in efciency ratings.
• Single modules up to 14 tons with the ability to combine modules for systems up
to 28 tons.
• HexiCoil™ aluminium at tube heat exchanger technology, eliminating copper
tubing from the coil.
• Up to 50% less refrigerant charge required than previous generations.
• Supports up to 50 indoor units per system.
• Optimized refrigerant circuit and component design for improved ow
distribution, allowing maximum energy transfer with minimal power input.
• Superior high-ambient cooling performance with guaranteed operation
to 126°F.
• Extended 10-year parts and compressor warranty available.

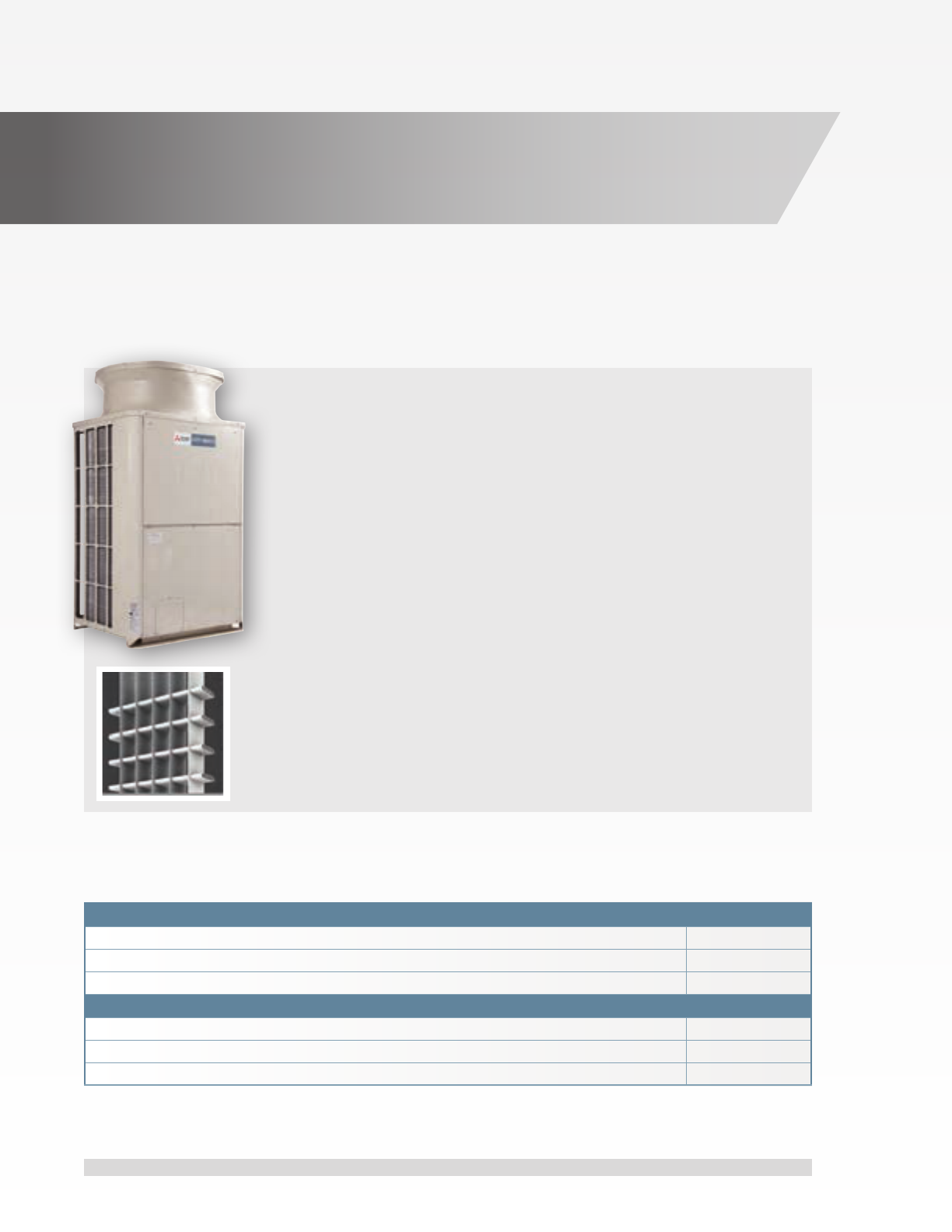

HEXICOIL™ CONDENSER COIL TECHNOLOGY
• Turbulated tube walls and optimized cross section ensure maximum heat transfer.
• Zinc coated for long-term corrosion resistance.
• Unique n shape and coating provide water shedding capability.
• Capillary tube system leading to even uid distribution.
R2–SERIES
Refrigerant Piping Lengths (Maximum Feet)
Total Length
¹
1,761-3,073
Farthest Indoor from Outdoor 541 (623 equivalent)
Maximum Length between Outdoor and Single/Main BC Controller 360
Maximum Length between Single/Main BC Controller & Indoor 131-197
Vertical Separation Between Components (Maximum Feet)
Indoor/Outdoor (Outdoor Higher)
3
164
Indoor/Outdoor (Outdoor Lower)
4
131
Indoor/BC Controller (Single/Main)
²
49
Indoor/Indoor 98
Main Controller/Sub BC Controller 49
1.
Maximum Total Length is dependent on the outdoor unit model and distance between BC Controller
.
2.
Maximum length between single/main BC Controller and indoor is dependent upon the vertical differential between the single/main
BC Controller and the indoor unit.
3.
295’ is available depending on model and installation conditions. For more detailed infor
mation, contact your local distributor.
4.
197’ is available depending on model and installation conditions. For more detailed infor
mation, contact your local distributor.
OUTDOOR UNITS
18
SIMULTANEOUS OPERATION
CITY MULTI
®
VRF systems provide simultaneous cooling and heating any time of year. This innovation transfers
heat from one zone, normally rejected outside the building, to be used in another zone within the building.
Benefits
Branch Circuit Controller
The BC Controller is the technological
heart of the CITY MULTI R2–Series. It
works in unison with the outdoor unit
to provide simultaneous cooling and
heating, something no other two–pipe
system can do.
Single BC Controller:
For systems with up to 120,000 Btu/h
nominal cooling capacity that require
only one BC Controller.
Main BC Controller:
For larger systems that require the use
of Sub BC Controllers.
Sub BC Controller:
Used with a Main BC Controller to
connect additional indoor units. A
maximum of two Sub BC Controllers
can be connected to one Main BC
Controller per system.

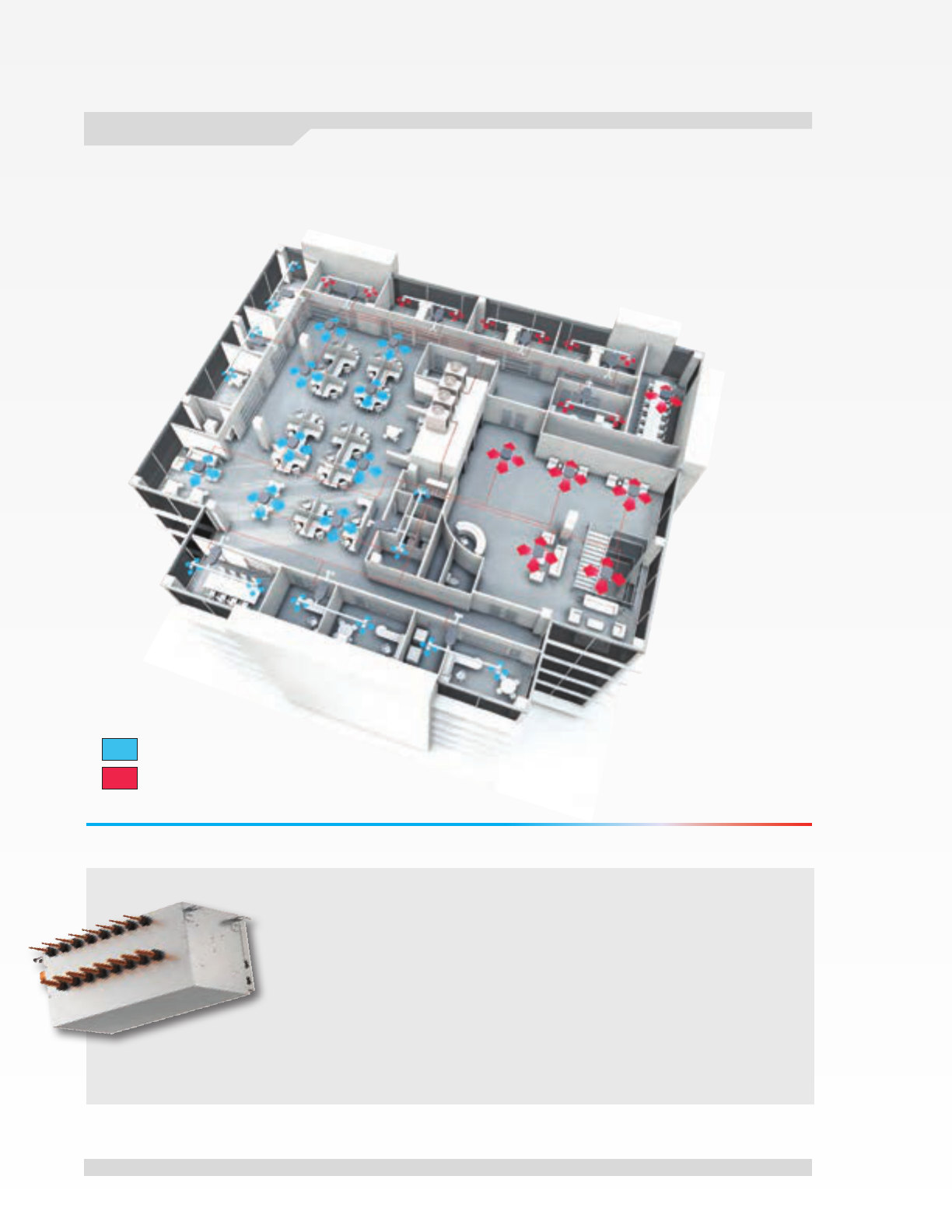

HEATING AREA
COOLING AREA
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 19
OUTDOOR UNITS

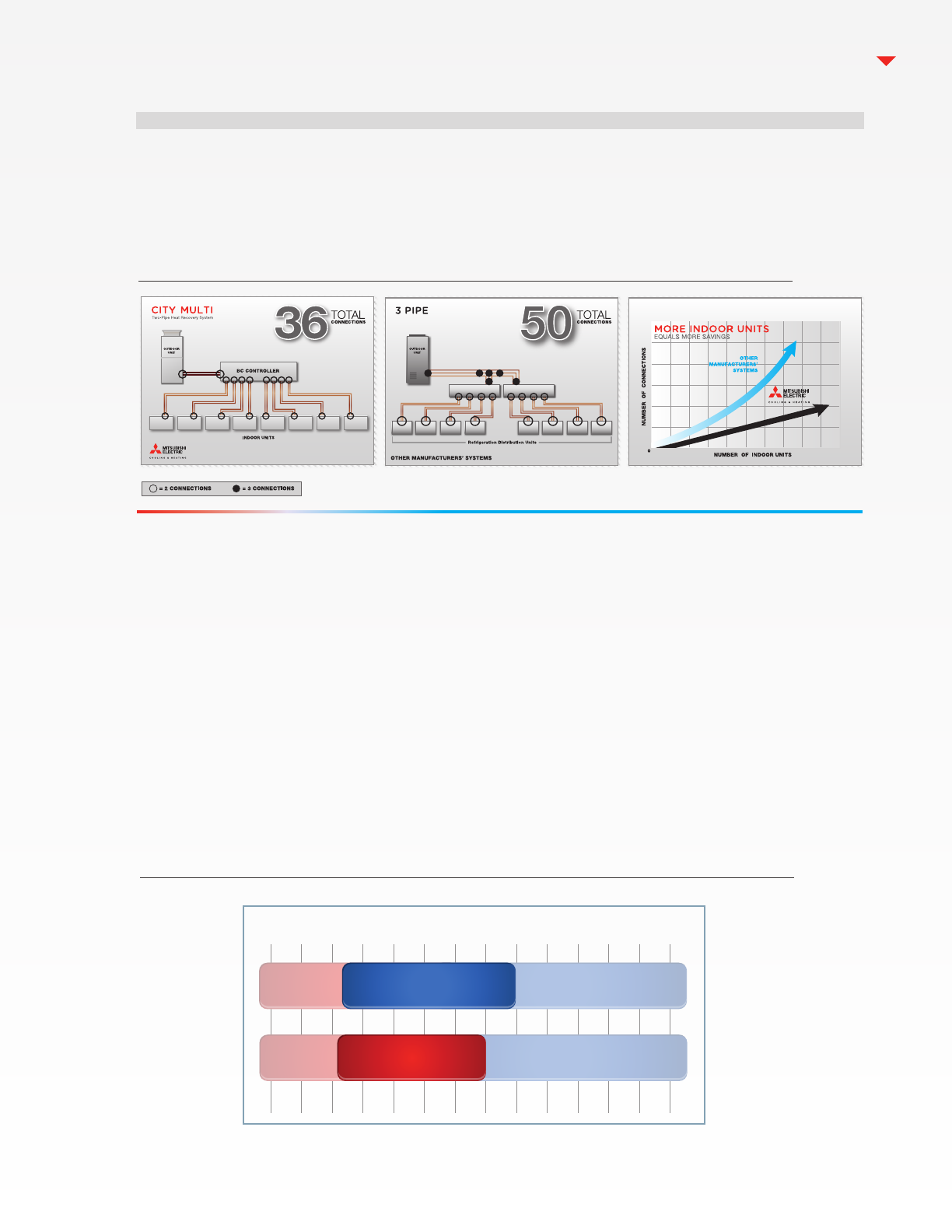

THE TWO-PIPE ADVANTAGE
Provides simultaneous cooling and heating with just two pipes, something no other VRF manufacturer can do.
As the number of indoor units grow, so do the two-pipe installations savings, in terms of connections (refrigerant
and electrical) as well as maintenance access.
EFFECTIVE ENERGY USAGE
The total applied capacity of the R2-Series system’s indoor units can be up to 150% of the capacity of the
outdoor units. This is made possible by taking advantage of load diversity and simultaneous cooling and heating
operation. CITY MULTI VRF zoning systems can satisfy a signicantly higher building load by efciently
distributing the capacity to the outdoor units and indoor units while using much less energy. CITY MULTI systems,
in combination with Mitsubishi Electric’s Integrated Centralized Control Web congured with optional Energy
Allocation software, appropriately allocates the cooling and heating usage among the tenants. The allocation is
based on each tenant’s usage of comfort control based on the temperature setting on their system controller.
Energy Allocation can control up to 2,000 indoor units from a single PC.
MODULAR SCALABILITY
With the Twinning Kit accessory, the modular units easily combine in the eld to create a larger capacity system.
Only two refrigerant pipes need to be twinned, saving time and materials. Oil and pressure equalization lines aren’t
needed when combining modules. This also helps to reduce installation cost.
-
2-PIPE COST SAVINGS
FEWER CONNECTIONS REQUIRED FOR SIMULTANEOUS OPERATION

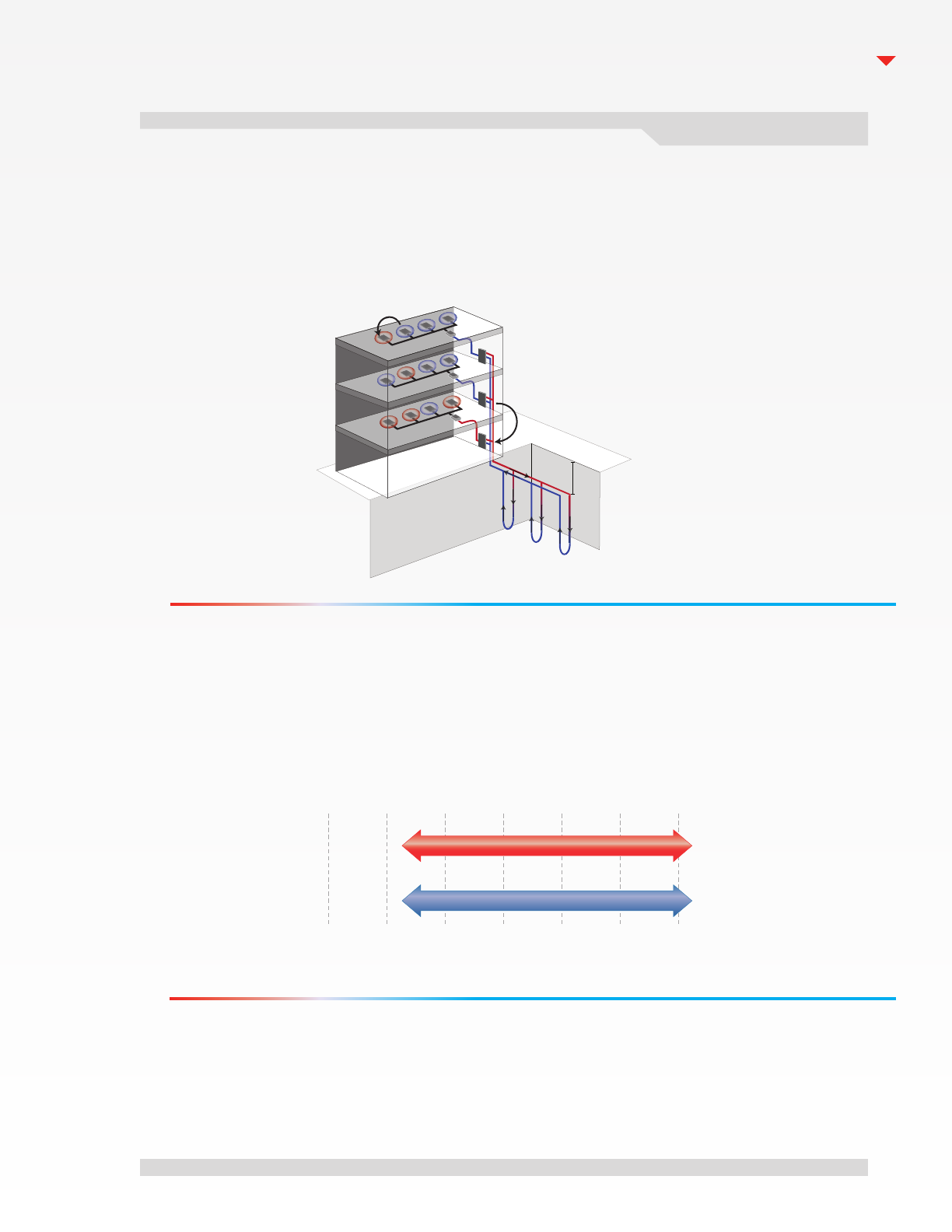

SIMULTANEOUS OPERATING RANGE
Simultaneous Operating Ranges
-10°F 0°F 10°F 20°F 30°F 40°F 50°F 60°F 70°F 80°F 90°F 100°F 110°F 120°F
Outdoor Temperature
Heating
Only
-13°FWB
Cooling Only
126°FDB
R2 Heating Main
12°FWB 60°FWB
Cooling Only
126°FDB
Heating
Only
-13°FWB
R2 Cooling Main
14°FDB 70°FDB
20
Maximum Refrigerant Piping Lengths (Feet)
Total Length 3,280
Indoor to Outdoor 541
Indoor to First Branch 295
Vertical Differentials Between Units (Maximum Feet)
Indoor/Outdoor (Outdoor Higher) ¹ 164
Indoor/Outdoor (Outdoor Lower) ² 131
Indoor/Indoor
98
Two–pipe zoned system designed for heat pump operation
Y-Series outdoor units are exible enough to cool or heat up to 50 individual zones, maximizing
building design options. The modular unit design features a small footprint and low operating sound.
Y-SERIES
KEY FEATURES: L-GENERATION
• Up to 54% increase in efciency ratings.
• Single modules up to 14 tons with the ability to combine modules for systems up
to 30 tons.
• HexiCoil™ aluminium at tube heat exchanger technology, eliminating copper
tubing from the coil.
• Up to 50% less refrigerant charge required than previous generations.
• Supports up to 50 indoor units per outdoor unit.
• Optimized refrigerant circuit and component design for improved ow
distribution, allowing maximum energy transfer with minimal power input.
• Superior high-ambient cooling performance with guaranteed operation
to 126° F.
• Extended 10-year parts and compressor warranty available.
HEXICOIL™ CONDENSER COIL TECHNOLOGY
• Turbulated tube walls and optimized cross section ensure maximum heat transfer.
• Zinc coated for long-term corrosion resistance.
• Unique n shape and coating provide water shedding capability.
• Capillary tube system leading to even uid distribution.
1. 295’ is available depending on model and installation conditions. For more detailed information, contact your local distributor.
2.
197’ is available depending on model and installation conditions. For more detailed infor
mation, contact your local distributor.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 21
ULTIMATE IN ZONING
The CITY MULTI
®
Y-Series uses a two-pipe system with a wide variety of indoor units and individual zone controllers
to provide the ultimate zoning system. Headers and T- branches simplify the piping design and
provide design freedom for placement of both piping and indoor units. Individual zones are managed by
remote controllers placed in each zone or by the centralized controller.
OUTDOOR UNITS
benefits
INTELLIGENT ENERGY USAGE
The highly responsive INVERTER technology and customized zone control of the CITY MULTI Y-Series provides
year-round savings. In warm summer months, the Y-Series provides exceptional zoned cooling, and in
cold winter months, the INVERTER-driven compressor provides outstanding heating performance. CITY MULTI
systems, in combination with Mitsubishi Electric’s Integrated Centralized Control Web congured with optional
Energy Allocation software, appropriately allocates the cooling and heating usage among the tenants. The
allocation is based on each tenant’s usage of comfort control based on the temperature setting on their system
controller. Energy Allocation can control up to 2,000 indoor units from a single PC.
DESIGN FLEXIBILITY
Flexibility is the key with the CITY MULTI Y-Series. The Y-Series, just like the R2-Series, can condition up to
50 zones. By using T-branches and headers, the Y-Series provides the ultimate in piping design exibility that
is truly simple in application.

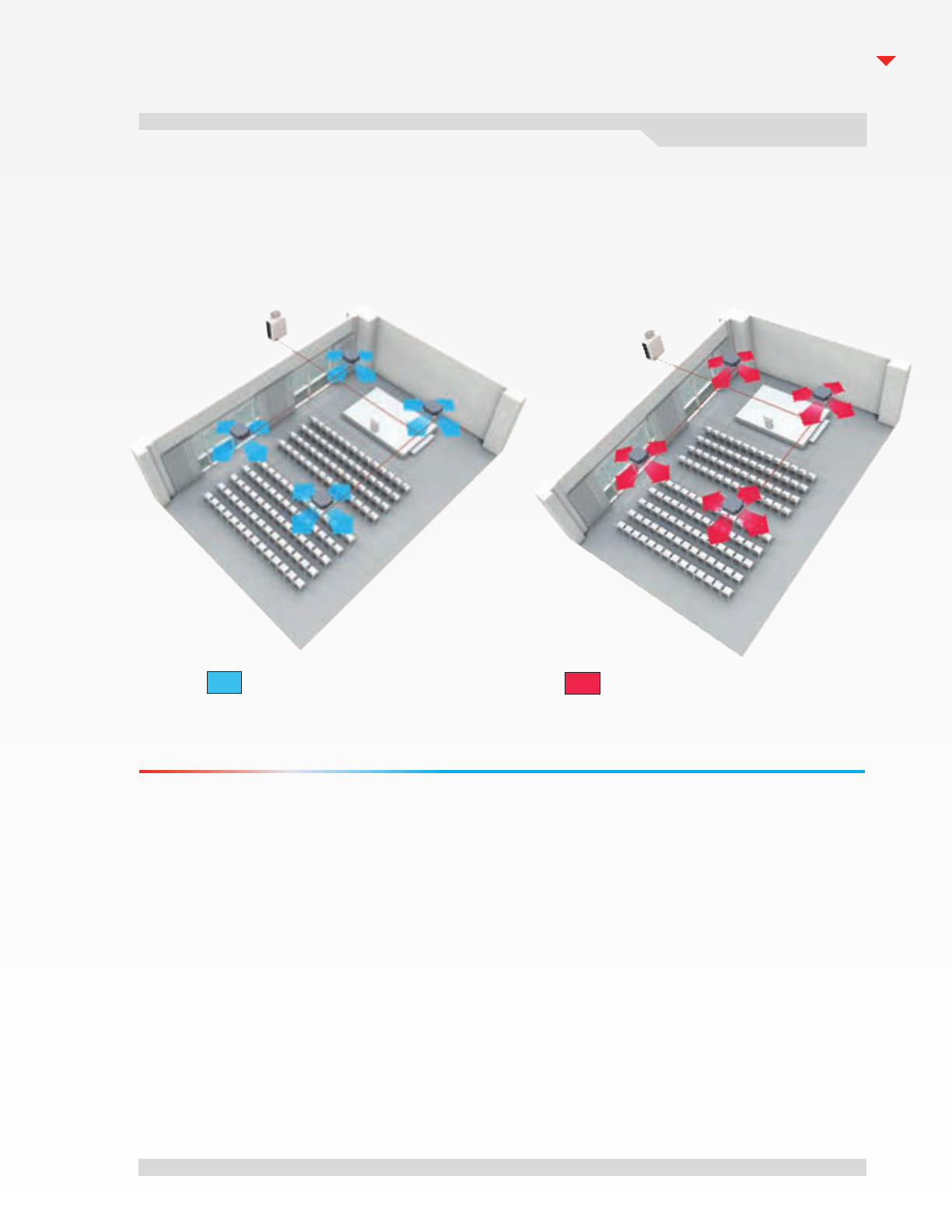

HEATING
COOLING
Conference Room Application
22

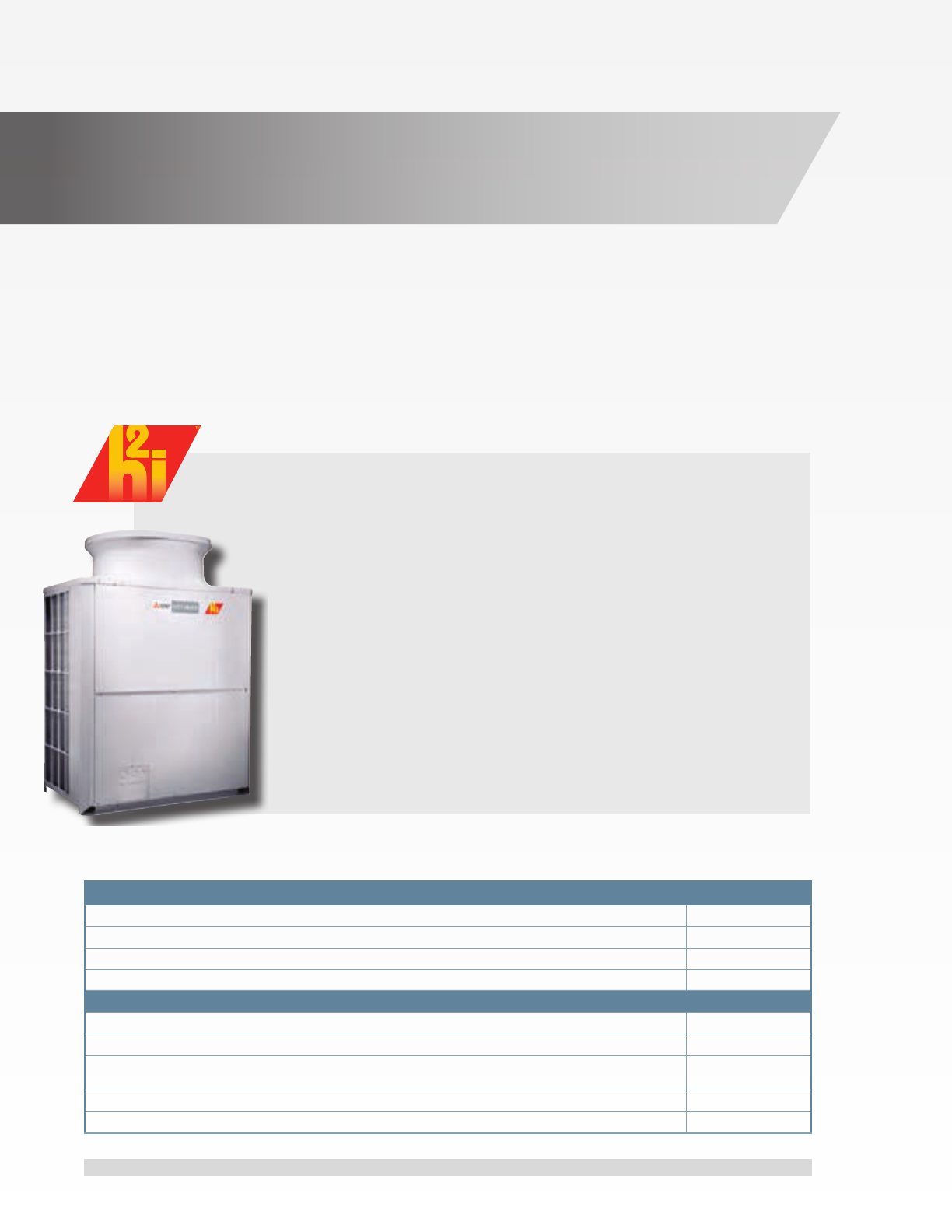

Bringing year–round comfort to extreme climates with energy recovery

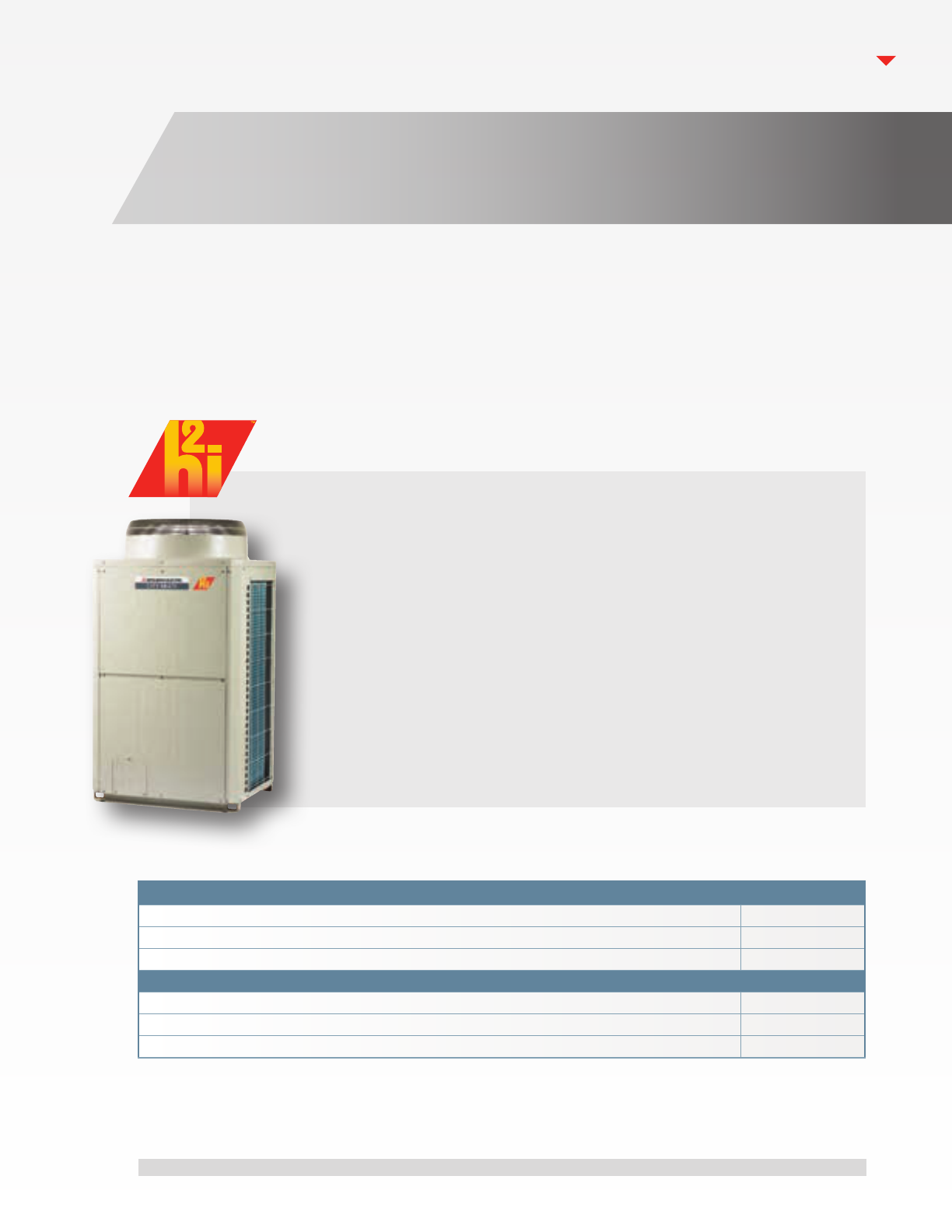

The Hyper-Heating INVERTER (H2i
®
) R2-Series simultaneously cools and heats different
zones within a building to provide energy saving heat recovery operation. Our 2-pipe
H2i
®
R2-Series gives you the exibility to t the specic needs of any building and provides
reliable cold-climate heating performance.
H2i
®
R2–SERIES
KEY FEATURES
• 2-pipe, simultaneous operation for up to 48 zones.
• Available sizes: 6, 8, 12, and 16 ton.
• 50%-150% connectable capacity.
• Extreme performance provides up to 100% heating output at
0° F and 83% heating capacity at -13° F.
• Simultaneous cooling and heating possible down to -5.8˚ F.
• Uses BC Controllers and headers to provide piping design exibility
and simultaneous operation.
• INVERTER-driven compressor for outstanding performance and
optimized energy usage.
• Connects to CITY MULTI
®
indoor units; controlled via CITY MULTI
Controls Network (CMCN).
Maximum Refrigerant Piping Lengths (Feet)
Total Length (Maximum Total Length is dependent on the outdoor unit model and distance between BC Controller) 1,804-2,460
Farthest Indoor from Outdoor 541 (623 equivalent)
Maximum Length between Outdoor & Single/Main BC Controller 360
Maximum Length between Single/Main BC Controller and Indoor 131-197
Vertical Differentials Between Components (Maximum Feet)
Indoor/Outdoor (Outdoor Higher) 164
Indoor/Outdoor (Outdoor Lower) 131
Indoor/BC Controller (Single/Main) (Maximum length between single/main BC Controller and indoor is dependent upon the
vertical differential between the single/main BC Controller and the indoor unit)
49
Indoor/Indoor 49
Controller/Sub BC Controller
49
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 23
Bringing year–round comfort to extreme climates
Hyper-Heating INVERTER (H2i
®
) technology enhances the Y-Series by providing full
heating capacity to −4° F outdoor ambient temperature. H2i
®
patent-pending technology
is exclusively from Mitsubishi Electric and is available in select CITY MULTI
®
VRF models.
H2i
®
Y-SERIES
KEY FEATURES
• Heat pump that provides either all-cool or all-heat operation up
to 41 zones.
• Available sizes: 6, 8, 12, and 16 ton.
• 50%-130% connectable capacity.
• Extreme performance provides up to 100% heating output
at −4° F and 85% heating capacity at −13° F.
• Uses T-branches and headers to provide piping design exibility.
• INVERTER-driven compressor for outstanding performance and
optimized energy usage.
• Connects to CITY MULTI indoor units; controlled via CITY MULTI
Controls Network (CMCN).
Maximum Refrigerant Piping Lengths (Feet)
Total Length
984
Indoor to Outdoor
492
Indoor to First Branch
131
Vertical Differentials Between Units (Maximum Feet)
Indoor/Outdoor (Outdoor Higher)
164
Indoor/Outdoor (Outdoor Lower)
131
Indoor/Indoor
49
OUTDOOR UNITS
24
Benefits
EXTREME HEATING PERFORMANCE
With its expanded heating capabilities, the CITY MULTI
®
H2i R2- and Y-Series provides year-round comfort,
even in extreme climates.
• At –13˚ F outdoor temperature, the H2i system can provide 100˚ F discharge air temperature from
the indoor unit.
• At 5˚ F outdoor temperature and above, the discharge temperature reaches an impressive 110˚ F.
• At start-up, a special circuit assures that normally dormant refrigerant quickly enters the conditioning cycle.
This process rapidly increases the mass ow rate in the system, which quickly provides comfortable discharge
temperatures from the indoor units.
UNEQUALED COMFORT
The patented ash injection process cools the compressor, allowing higher speeds at a lower outdoor
temperature without overheating. This also allows the system to maintain indoor coil temperatures providing
phenomenal heating performance at low temperatures. The Hyper–Heating INVERTER combines the ultimate in
application exibility and powerful conditioning capabilities to deliver personalized comfort control to multiple
zones of a commercial or institutional building. The outdoor units deliver full-sized performance from a compact,
space–saving design for ease of transportation and installation. The INVERTER-driven scroll compressor delivers
the precise amount of comfort to the zones as required.
40.5° F Temp Rise
111° F
38.4° F Temp Rise
108° F
33.4° F Temp Rise
103° F
107% @ 6º F
40.5° F Temp Rise
111° F
38.4° F Temp Rise
108° F
33.4° F Temp Rise
103° F
107% @ 6º F
Hyper-Heat (High Heat Setting)
Hyper-Heat (Standard Setting)
Traditional Heat Pump Technology
HYPER-HEATING INVERTER VS. OTHERS
(72,000 Btu/h, 70° F W.B. entering Indoor Unit)
INDOOR UNIT HEATING DISCHARGE TEMPERATURE
(PEFY-P24 NMAU-E with 70° F Entering Air)
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 25
KEY FEATURES
• Single phase 208/230V operation allows use in residential and light
commercial applications.
• Systems available from 36,000-60,000 BTU/H.
• All models are Energy Star qualied.
• SEER rating improvement of 29% (average vs. prior generation).
• HSPF rating improvement of 27% (average vs. prior generation).
• Blue-n condenser coating standard on all models.
• Extended heating operating range down to -13ºF.
• Extended cooling operating range down to 5ºF.
• Connects up to 12 indoor units.

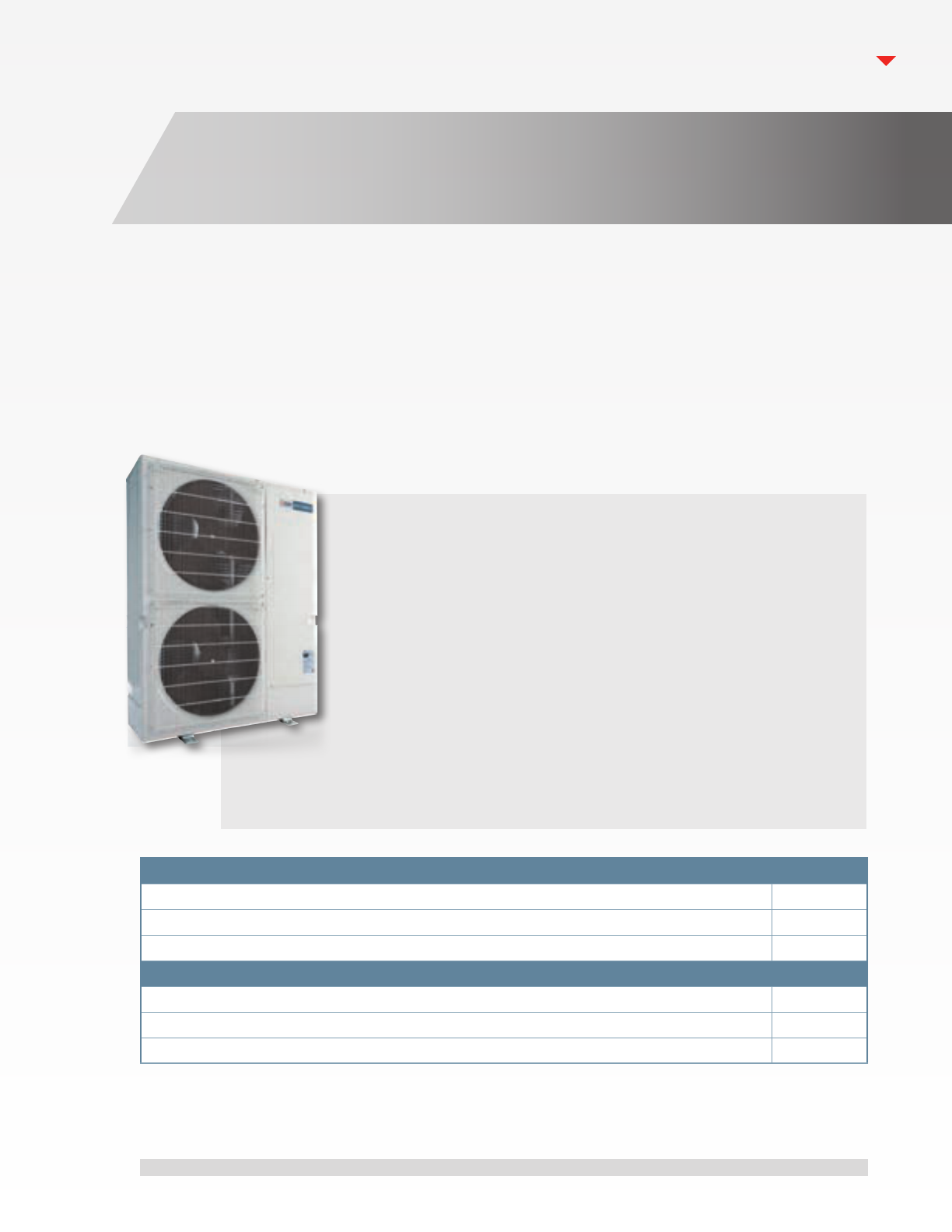

S-SERIES (PUMY)
Solutions for light commercial and large residential applications
The CITY MULTI
®
S-Series is a single-phase heat pump system perfect for light commercial or
large residential applications. Featuring best-in-class efciency ratings and Energy Star (Circle
R mark here) qualication, PUMY systems are designed to deliver operational cost savings and
long-time performance to a homeowner or building owner. It uses the CITY MULTI Controls
Network (CMCN) to cool or heat up to 12 individual zones with a choice of indoor unit styles.
Maximum Refrigerant Piping Lengths (Feet)
Total Length 984
¹
Indoor to Outdoor 492
2
Indoor to First Branch 98
Vertical Differentials Between Units (Maximum Feet)
Indoor/Outdoor (Outdoor Higher) 164
Indoor/Outdoor (Outdoor Lower) 131
Indoor/Indoor
49
1. Applies to P36 and P48 models only. P60 is 492’.
2.
Applies to P36 and P48 models only. P60 is 262’.
*Low ambient operation requires the use of low ambient accessories such as a WB-PA3 Wind Bafe.
OUTDOOR UNITS
26
W-SERIES
CITY MULTI SYSTEMS AND GEOTHERMAL APPLICATIONS
CITY MULTI water cooled systems, used in geothermal and other types of applications, work by taking heat or
rejecting heat from/to the ground. Closed loop systems accomplish this by circulating water through a series of
wells or loops that are installed in the ground, turning the ground into a large heat exchanger. Because the ground
remains relatively unaffected by outdoor ambient temperatures, the loop runs at temperatures lower than ambient
temperatures throughout the cooling season and higher than ambient temperatures throughout the heating season.
Modular heat pump systems that combine the convenience of water source
with VRF technology
W-Series units are easily installed indoors, which means that system performance
efciency is independent of outdoor ambient temperatures. W-Series includes WR2
models for simultaneous cooling and heating, and WY models for independent cooling
and heating operation.
KEY FEATURES: L-GENERATION
• Single modules up to 20 tons with the ability to combine single modules for
systems up to 30 tons.
• 208/230V, 3-Phase, 60 Hz and 460V, 3-Phase, 60 Hz options.
• 0-10V output signal to modulate water ow for compliance with energy codes.
• Enhanced water-side heat exchanger design for improved efciency and reduced
risk of clogging.
• Designed for closed water loops.
• Connects to CITY MULTI indoor units and controlled via CITY MULTI Controls
Network (CMCN).
• Stack multiple units on a eld-supplied rack to take advantage of vertical space
when available.
• Extended 10-year parts and compressor warranty available.
WY- and
WR2-Series
Benefits
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 27
WATER SOURCE
Benefits
DOUBLE-HEAT RECOVERY
The double-heat recovery feature of the WR2–Series helps recover energy that would normally be rejected to the
condensing water loop. First, within the system, energy is absorbed in units providing cooling. The energy is redirected
by refrigerant to units that are in heating mode. Secondarily, energy can be recovered between systems through the
water loop.
EXTENDED TEMPERATURE RANGE
WR2- and WY-Series CITY MULTI
®
water-source units can handle entering water temperatures down to 23° F
(with the addition of glycol to the condenser water loop) in both heating and cooling mode allowing more possibilities
for geothermal applications. Coupling the water-source units with a geothermal loop will not only provide the benet
of higher efciencies by using a lower entering water temperature but will also provide all the benet of an INVERTER–
driven CITY MULTI system.
-4˚F
-13˚F
14˚F 32˚F 50˚F 68˚F 86˚F 104˚F
In cooling mode
Water temperature
Water temperature
23˚F
WR2/WY
113˚F
In heating mode
23˚F
113˚F
Inlet Water Temperature
28

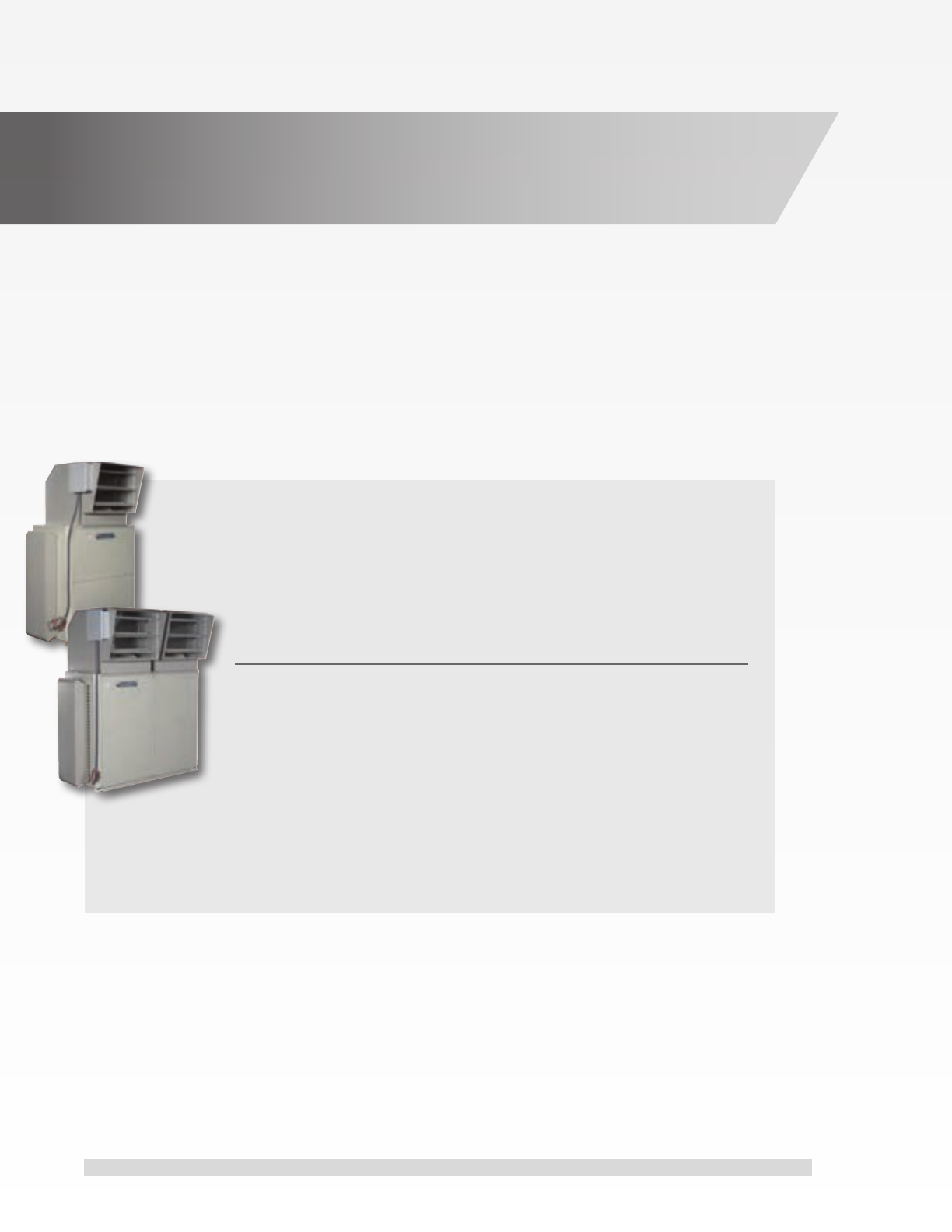

LOW AMBIENT COOLING KIT
Full cooling performance at extreme conditions
The specially designed wind deectors will block unwanted wind that could impede operation
and will allow full airow when required at higher ambient temperatures or in heating mode.
The assembly also provides a more efcient defrost cycle when the unit is operating in
heating mode. Complete Low Ambient Kit requires hood with control damper assembly
and wind deectors.
KEY FEATURES
Allows system to operate at 100% cooling capacity at reduced
outdoor temperatures:
• Y–Series Outdoor Units (down to –10º FDB Outdoor Temp.)
• R2–Series (includes H2i
®
R2-Series) Outdoor Units
(down to –10º FDB Outdoor Temp.)
APPLYING TO MULTIPLE OUTDOOR UNITS
For outdoor units with multiple modules, a minimum 1-3/16” separation between the modules is recommended.
If modules are placed more than 15” apart, more than one set of side wind deflectors may be needed. For multiple
units or module sets placed in a row, only one side wind deflector is needed for each of the outside module
coil surfaces.
ADDITIONAL FEATURES
• Hood and wind deectors constructed of 20 gauge hot-dipped
galvanized G–90 steel.
• Heavy-duty polyester-based powder paint nish.
• Designed to work with both 208/230 and 460V 3-phase units.
• NEMA 4X control box protects electrical components from the elements.
• Kit easily connects to outdoor unit with plug-in electrical connections.
• Wind deectors easily install in place of existing wire guard.
PATENTED
TECHNOLOGY
Low ambient hood
(LAHK2) side deflector
(SWDK1), and Rear
Deflector (RWDK1).
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 29

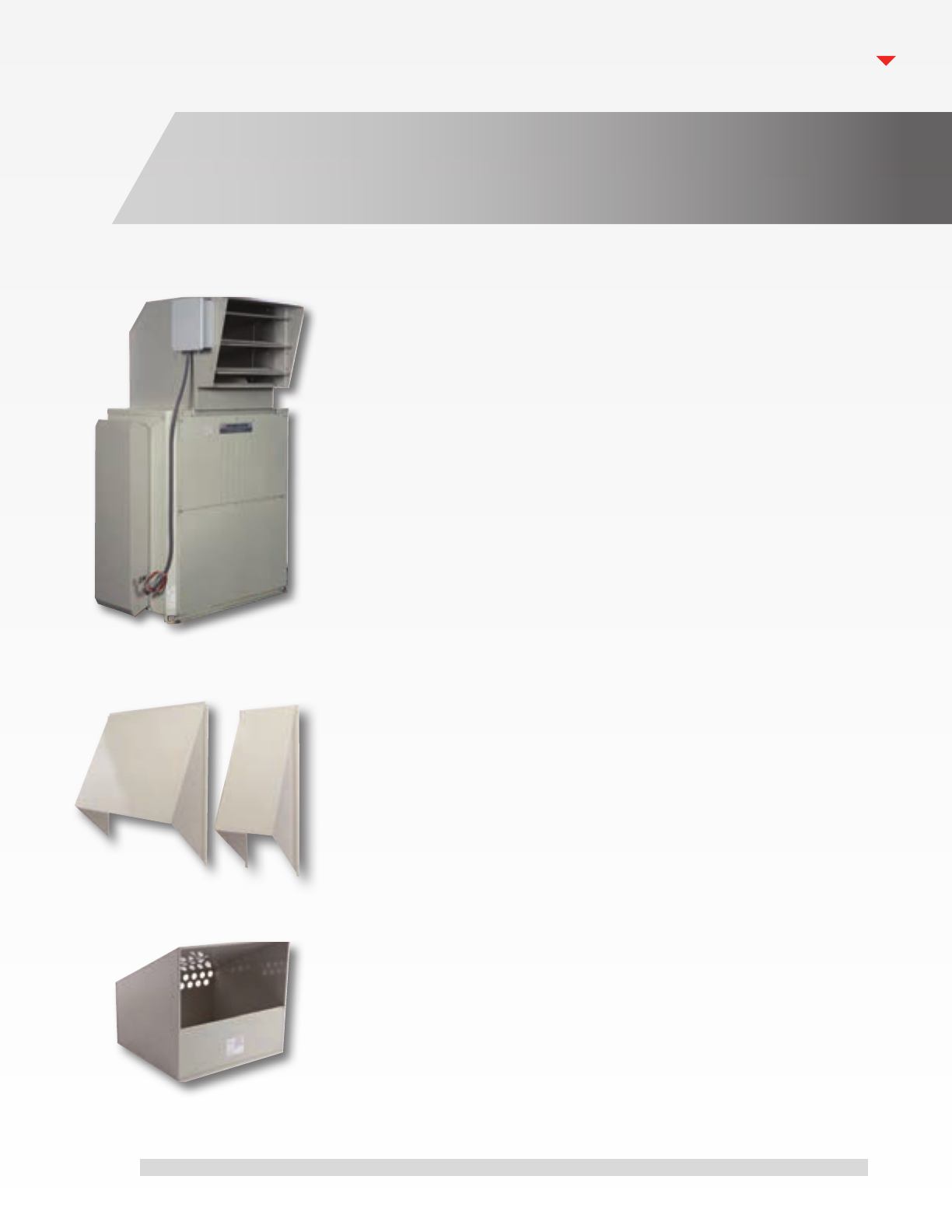

COLD WEATHER SOLUTIONS GUIDE
Low Ambient Cooling (LHKA Series)
The specially designed wind deflectors block unwanted wind that could
impede operation and allow full airflow when required at higher ambient
temperatures or in heating mode. The wind deflectors also provide a
more efficient defrost cycle when the unit is operating in heating mode.
The complete Low Ambient Kit requires a hood with a control damper
assembly and wind deflectors. With the addition of wind deflectors,
CITY MULTI
®
Y-Series and R2-Series outdoor units feature 100%
cooling capacity at outdoor temperatures down to -10° F. The wind
deflector kit easily installs in the place of the existing wire guard, and
connects to the outdoor unit with plug-in electrical connections.
Hail/Snow Guards (SG Series and SGK Series)
Mitsubishi Electric hail/snow guards are designed to protect the outdoor
unit coil surfaces from hail damage or snow build-up in severe climates.
Made of 20-guage, hot-dipped galvanized G-90 steel, the hail/snow
guards feature a heavy-duty polyester-based powder paint finish to
match the outdoor units. Using existing wire guard fasteners, the hail/snow
guards are easily installed to the sides and rear of the unit in just minutes.
Hail/Snow Hoods (SH and SHK Series)
Mitsubishi Electric hail/snow hoods are made to the same specifications
as the hail/snow guards, and protect the outdoor unit fan guard from hail
damage and snow build-up in severe climates. Using existing wire guard
fasteners, the hail/snow hoods are easily installed to the sides and rear of
the unit in just minutes. Hail/snow hoods are sold separately.
*SG-Series is compatible with J-Generation and SGK-Series is compatible with K- and L-Generation.
*SH-Series is compatible with J-Generation and SHK-Series is compatible with K- and L-Generation.
OUTDOOR UNITS
30
Base Pan Heaters
Mitsubishi Electric base pan heaters feature a heating coil
controlled by the CITY MULTI outdoor unit which prevents ice
buildup. The base pan heater is ideal for low temperature, high
humidity environments where the outdoor unit will be operating
in heating mode for an extended period of time. A complete
base pan heater order should include a relay box, the heating
element(s), required mounting brackets, and all other associated
items required for installation. Note: Snow hoods and side/rear
snow guards are also recommended for installations with
base pan heaters.
Supplemental Base Pan Heaters
Available for K & L-Generation Outdoor Units, Supplemental
Base Pan Heaters provide additional heat to keep Base Pans
clear of ice build-up in extreme weather conditions.
Cold weather stands and supports
Mitsubishi Electric features multiple configurations of stands and
supports for M-Series, P-Series, and CITY MULTI outdoor units.
The sturdy stands and supports are designed to keep the
outdoor unit above or off the ground and away from snow
drifts in cold weather climates.
SuperStands
SuperStands provide secure mounting support and height above
ground to keep CITY MULTI outdoor units out of normal snow
accumulations. Available in 12”, 18”, and 24” leg heights for
varying mounting options. The stands lock together to make
one continuous interlocked stand for almost any number of
outdoor units.
• Rubber roof friendly.
• Adjustable height in ¼” and ½” increments.
• U-Bars made from 11 gauge steel square tubing.
• Available leg heights: 12” , 18”, and 24”.
Outdoor unit must be mounted at least 12” off the ground or 12” above the highest average snow depth, whichever is greater.
The outdoor unit may require additional mounting restraints depending on the mounting location.
BASE PAN HEATER
CONTROL BOX
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 31
32
INDOOR UNITS
PKFY Wall–mounted / PLFY Ceiling-recessed Cassette / PMFY Ceiling-recessed Cassette /
PCFY Ceiling–suspended / PEFY Ceiling–concealed Ducted /
PFFY Floor–standing / PVFY Multi-position
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 33
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 33
INDOOR UNITS
PKFY Wall–mounted / PLFY Ceiling-recessed Cassette / PMFY Ceiling-recessed Cassette /
PCFY Ceiling–suspended / PEFY Ceiling–concealed Ducted /
PFFY Floor–standing / PVFY Multi-position
34

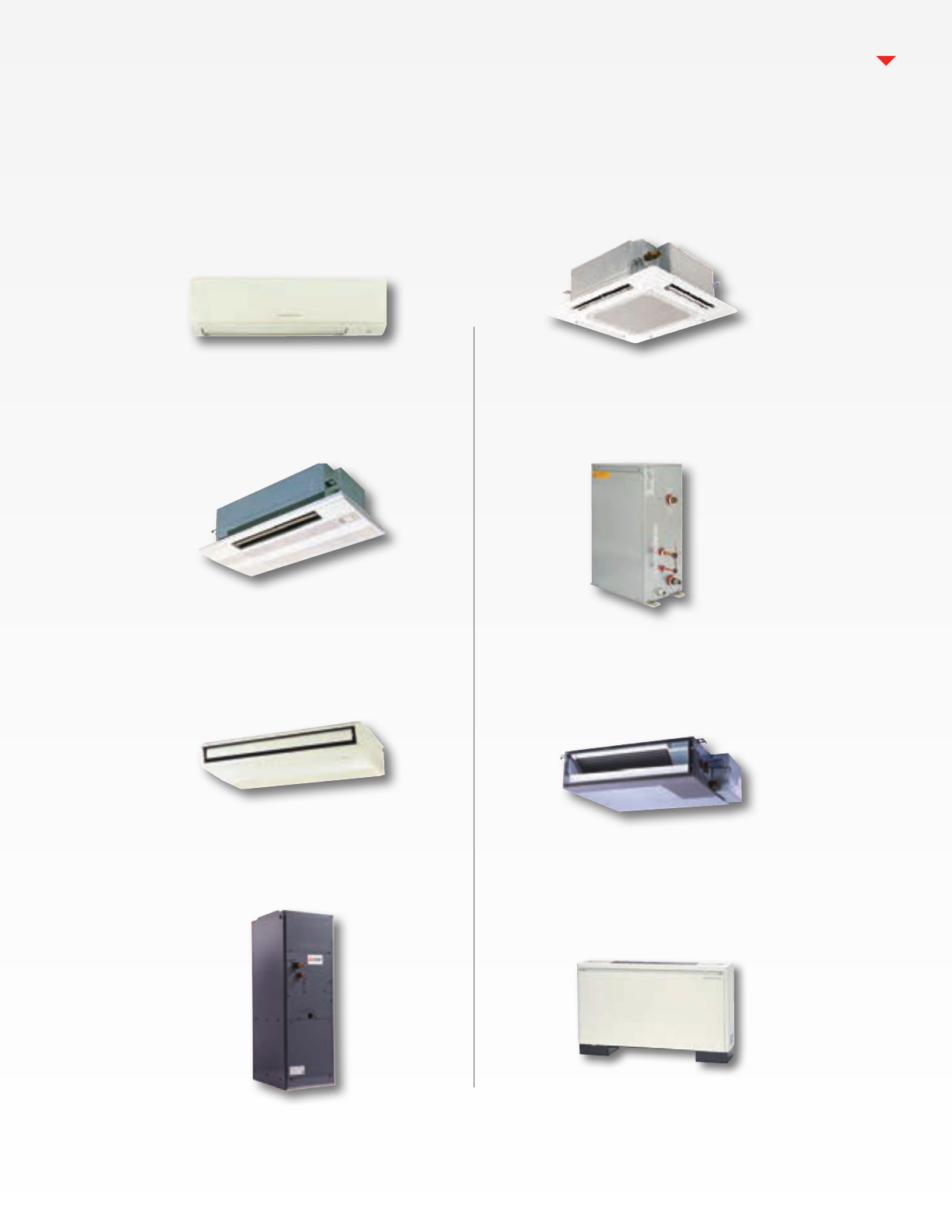

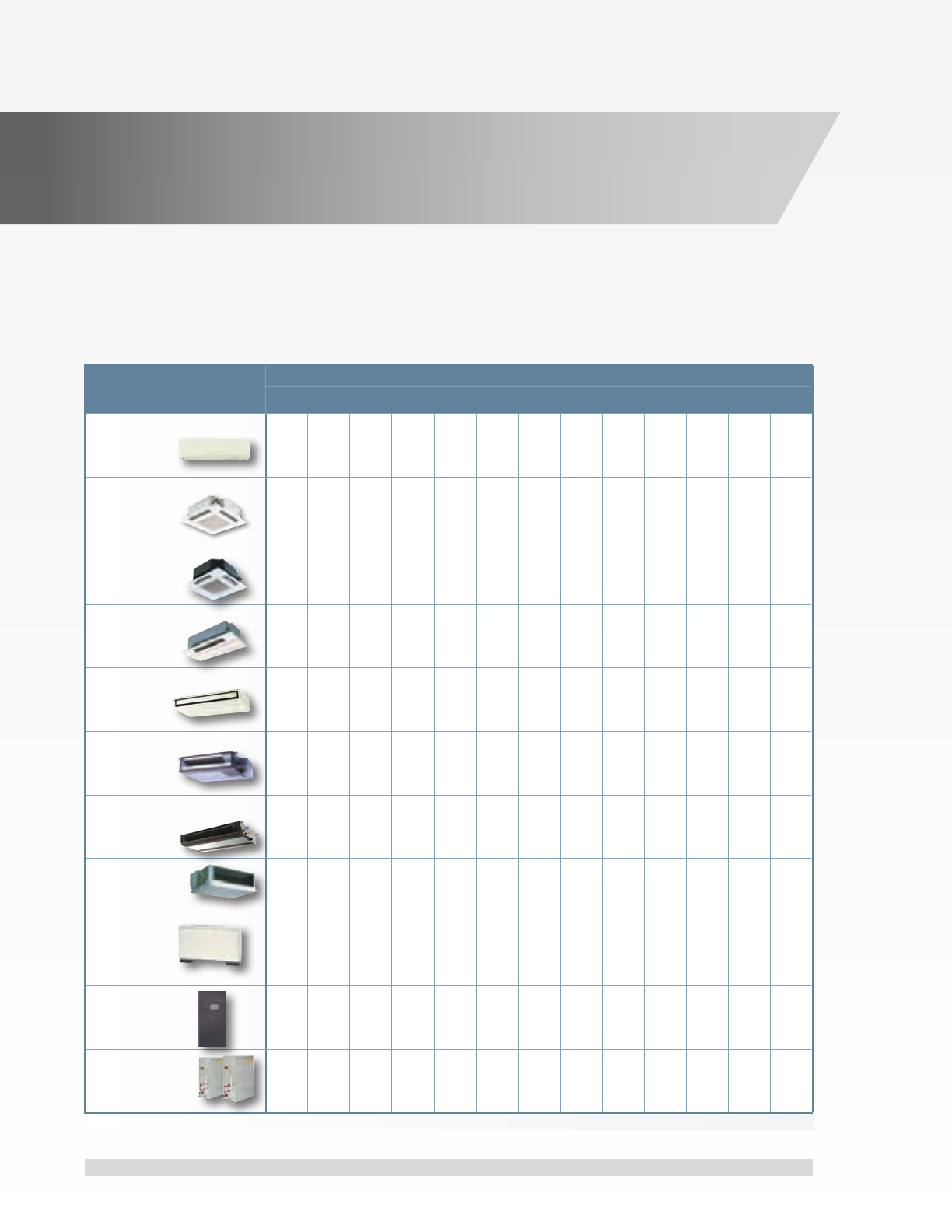

Capacity Code Nominal Btu/h
6,000 8,000 12,000 15,000 18,000 24,000 27,000 30,000 36,000 48,000 54,000 72,000 96,000
Wall-mounted
PKFY–P–N*MU–E
• • • • • • •
Ceiling-recessed Cassette
(4-way)
PLFY–P–NEMU
• • • • • • • •
Ceiling-recessed Cassette
(4-way)
PLFY–P–NCMU
• • •
Ceiling-recessed Cassette
(1-way)
PMFY–P–NBMU
• • • •
Ceiling-suspended
PCFY–P–NKMU
• • • •
Ceiling-concealed
(Ducted
Low–Profile)
PEFY–P–NMSU
• • • • • •
Ceiling-concealed
(Ducted Medium-Static)
PEFY–P–NMAU
• • • • • • • • • • •
Ceiling-concealed
(Ducted High-Static
Option)
PEFY–P–NMHU / NMHSU
• • • • • • • • • •
Floor-standing
(Exposed/
Concealed)
PFFY–P–NEMU / NRMU
• • • • • •
Multi-position
PVFY–P–NAMU
• • • • • • •
PWFY–P-NMU-E-AU
PWFY–P-NMU-E-BU
•
•
-AU
only
Complete Building Comfort Solutions
All models feature quiet operation, easy maintenance, and the ultimate in personalized
comfort control. The chart below gives the capacity size for each model.
INDOOR UNITS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 35

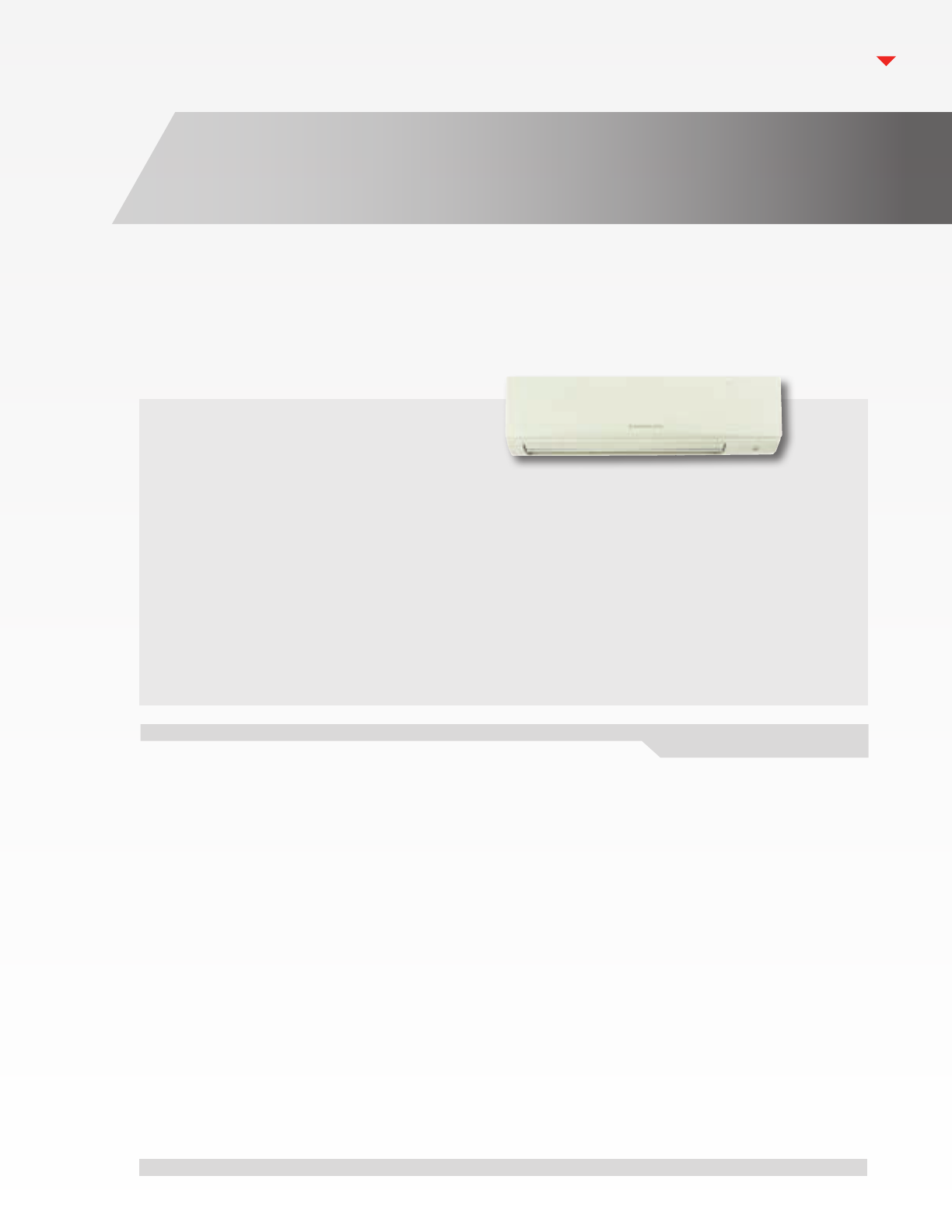

Elegant design and compact dimensions
Whatever the size or shape of your room, there's a Mitsubishi Electric PKFY wall-mounted
unit that is just right for you. PKFY units mount high on the wall and blend beautifully into any
space. Perfect for hotels, assisted living facilities, ofces, residences and other applications
where wall space is available.
PKFY (Wall–mounted)
INDOOR UNITS
EASY FILTER CLEANING
The front grille hinges open easily—no tools are needed to gain quick access to the lter. The lter can be
removed and cleaned as needed.
QUIET OPERATION
The unit incorporates a random–pitch fan to assure quiet operation. The optimal design of the airow passage
features a small fan diameter to allow for a compact installation. Thanks to practical casing conguration, airow
generated by the fan is uniformly distributed.
SUPERIOR AIR DISTRIBUTION
A user–selectable vane swing setting with the SmartME and SimpleMA remote controllers enhances air
distribution in the conditioned space.
FLEXIBLE INSTALLATION
Refrigerant and drain piping can be connected from the rear, right, base, or left of the unit, providing much greater
exibility for piping and selecting an installation site.
KEY FEATURES
• Ranges from 6,000 to 30,000 Btu/h.
• Compact, lightweight and features a built–in wireless sensor for use with an optional wireless remote controller.
• Extremely quiet: as low as 32 dB(A).
• Multiple fan speed settings.
• Multiple vane settings and swing setting adjust airow in vertical directions.
• Front panel opens easily—no tools are needed to gain access to the lter.
• Refrigerant and drain piping can be connected from the rear, right, base, or left of the unit.
• Condensate Pump Systems are available when gravity drainage is not available.
benefits
36

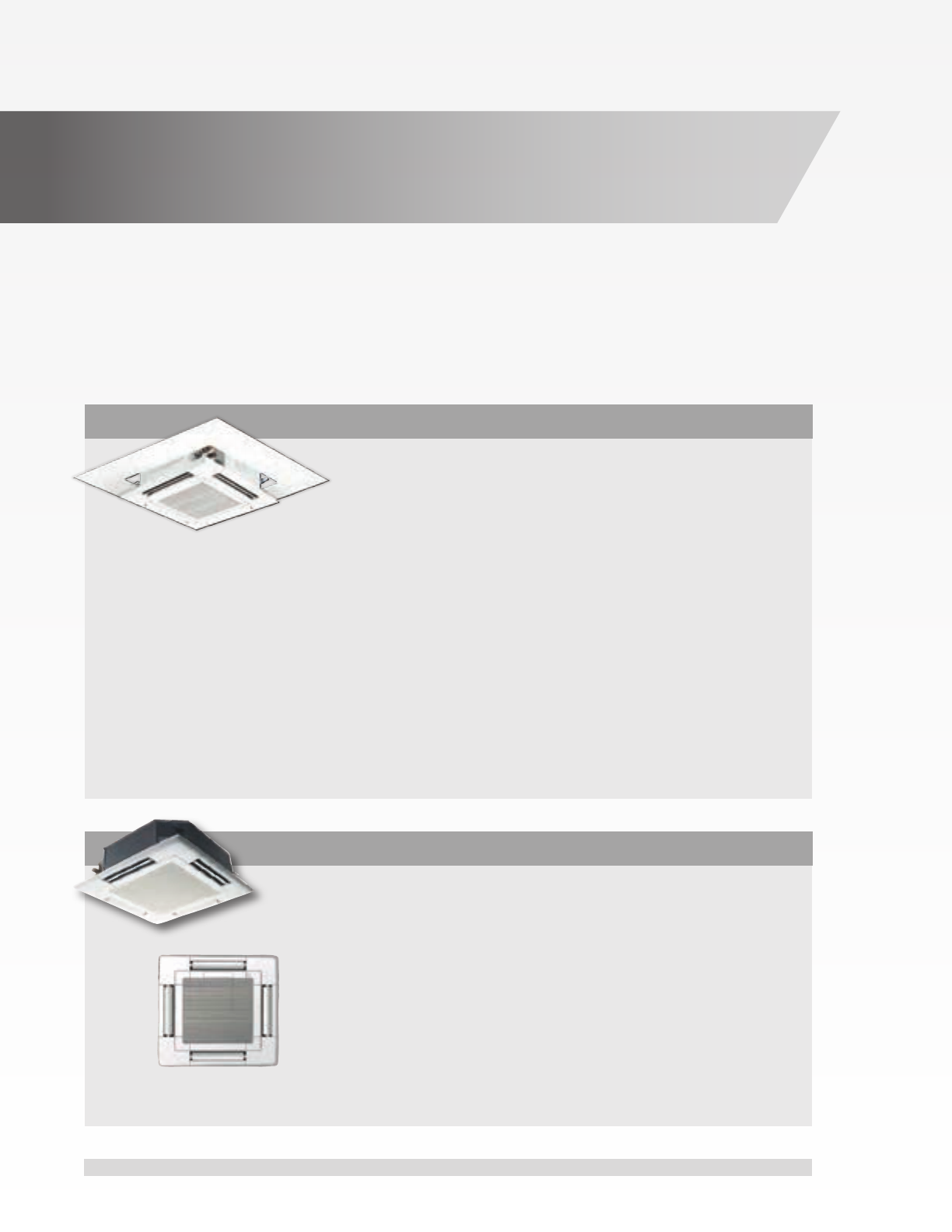

Adjustable airflow to meet your every need
The PLFY-Series four-way ceiling-recessed cassette provides exceptional performance and
air coverage. Two styles are available: the PLFY-P-NEMU and the PLFY-P-NCMU. Both
models can be accessorized with installation trim panels (PLFY-ITP1 and PLFY-ITP2) to
ensure a seamless integration into suspended ceilings.
PLFY (Four-way Ceiling-recessed Cassette)
KEY FEATURES
• 33” x 33” cabinet size.
• Capacity range of 8,000 to 48,000 Btu/h.
• Sound levels as low as 27 dB(A).
• Ventilation air connection (Second connection found in
Multi-function Casement).
• High-efciency lter option (MERV-10 requires
Multi-function Casement).
• Branch ducting capability.
• Four-speed fan settings.
• Integrated condensate lift mechanism to provide
up to 33-7/16” of lift.
KEY FEATURES
• 22" x 22" cabinet size to t in standard T-grid ceiling.
• Capacity range of 8,000 to 15,000 Btu/h.
• Sound levels as low as 29 dB(A).
• Ventilation air connection.
• Four-speed fan settings.
• Integrated condensate lift mechanism
to provide up to 19-11/16" of lift.
PLFY–P-NEMU
PLFY–NCMU
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 37
HIGH PERFORMANCE AND VERSATILITY
The four–way cassette unit is compact and recesses easily into a ceiling space, so all you see is an attractive
ush-mounted grille. The PLFY-P-NEMU has a unit height of only 10-3/16” or 11-3/4”, depending on the model.
At 8-3/16” in height and 22-7/16” x 22-7/16” width, the PLFY–NCMU makes satisfying even the tightest
of ceiling installations a possibility.
QUIET OPERATION
This powerful indoor unit is whisper–quiet, down to 27 dB(A)
for the PLFY-P-NEMU and 29 dB(A) for the PLFY–NCMU.

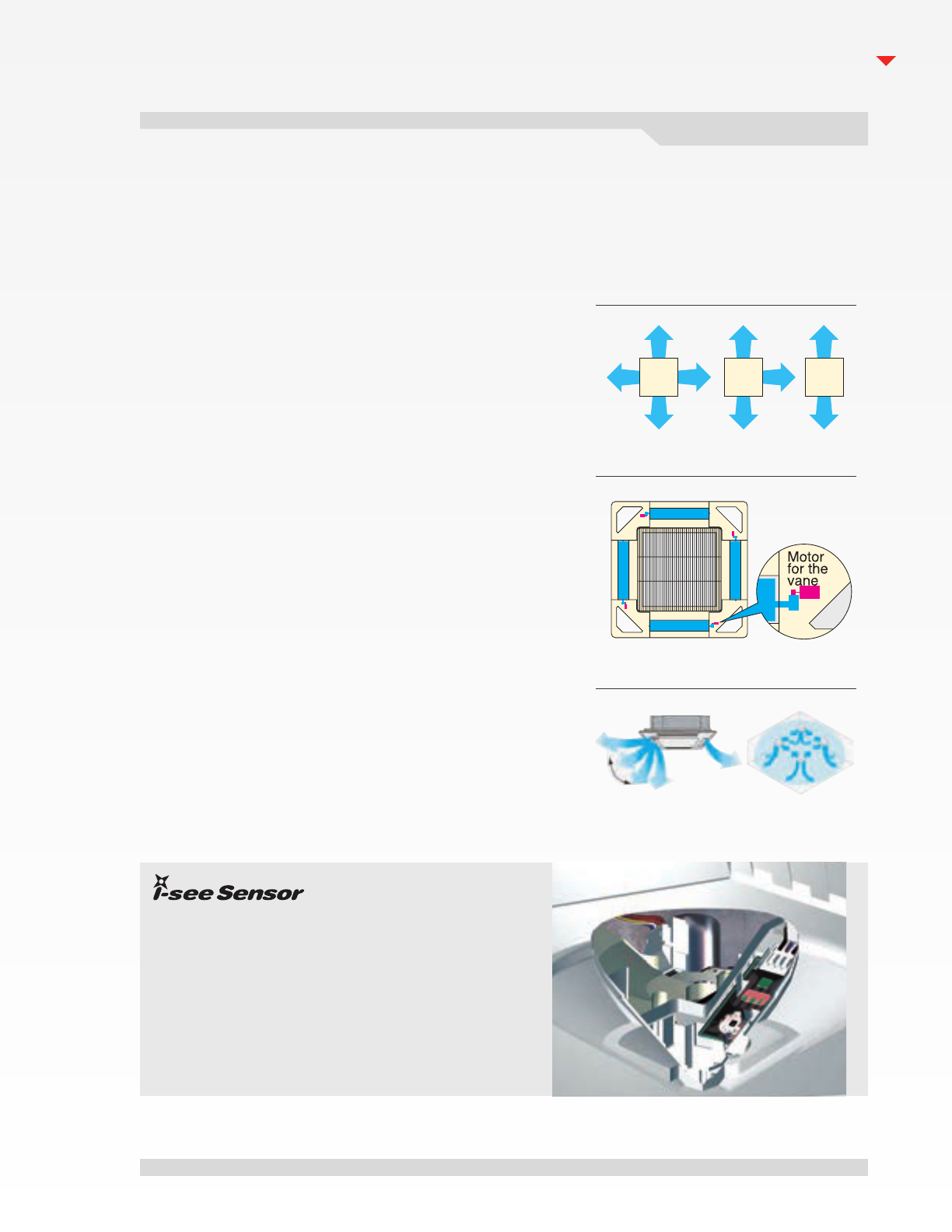

CUSTOMIZE THE AIRFLOW PATTERN TO MEET YOUR NEEDS
The different airow options provide the best solution for a variety of room
layouts and air–conditioning requirements. For extra versatility, you can
select up to 72 airow patterns with two–, three–, or four–way airow.
BUILT–IN CONDENSATE LIFT MECHANISM
The drain piping of the PLFY-P-NEMU can be positioned anywhere up to
33-7/16” from the ceiling’s surface, allowing for long piping and versatility.
The PLFY–NCMU model has a built–in pump that lifts condensate 20”
from the ceiling’s surface. The unit recognizes if there is a pump
failure and safeguards against leaks.
CORNER–POCKET DESIGN SIMPLIFIES MAINTENANCE
AND INSTALLATION
PLFY-P-NEMU allows access through the pockets equipped on
each of four corners of the grille to complete installation,
maintenance work, and height adjustment.
EASY MAINTENANCE, LONG–LIFE FILTER
The washable lter provides about 2,500 hours of use in a
normal ofce environment before cleaning is needed.
This amazing technology constantly monitors and adjusts
temperatures for maximum comfort and eciency.
• Measures infrared rays generated from surrounding
walls and surface angles.
• Rotates 90 degrees slowly in ve second intervals.
• Eciently adjusts temperatures to ideal comfort
levels for occupants.
benefits
4, 3, OR 2 WAY AIRFLOW
FIXED AIRFLOW DIRECTION PER VANE
INDEPENDENT VANE MOTOR CONTROL
™
INDOOR UNITS
38
QUIET OPERATION
Specialized airow control technology operates as
low as 27 dB(A) for industry-leading sound performance.
BUILT-IN CONDENSATE LIFT MECHANISM
The drain pipe can be extended anywhere up to 23-5/8”
above the ceiling’s surface.
EASY INSTALLATION AND MAINTENANCE
PMFY body size has been standardized for all models
at 31-31/32” for easier installation. With a height of only
9-1/16”, the prole is one of the smallest of all CITY MULTI
ceiling models. This unit is one of the lightest available with
a weight of only 31 pounds for the main unit and seven
pounds for the panel.

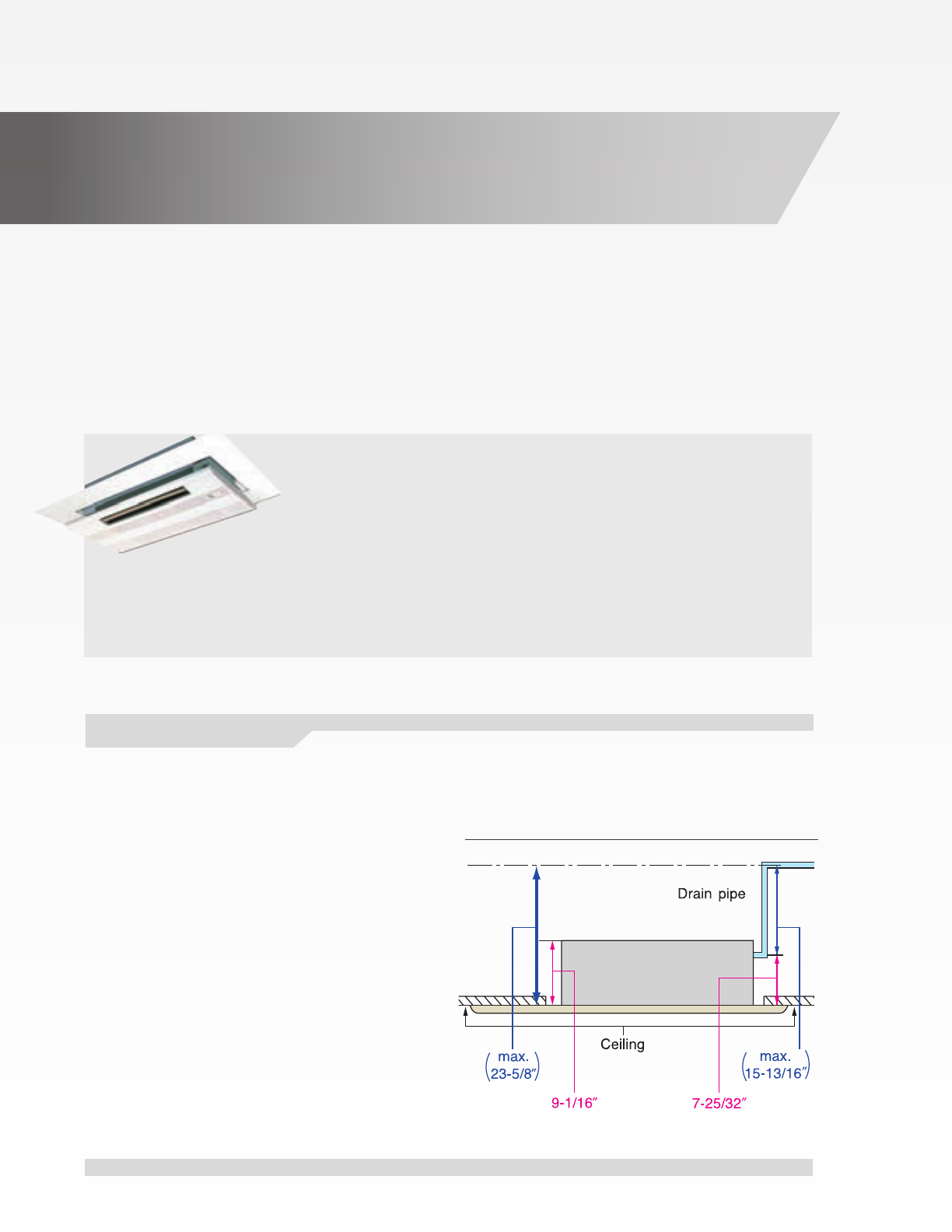

PMFY (One-way Ceiling-recessed Cassette)
Compact and lightweight, perfect for office spaces with windows
The PMFY model is a ductless, one-way, ceiling-recessed cassette that moves air in
one direction, and has the capability of introducing ventilation air. The PMFY can be
accessorized with an installation trim panel (PMFY-ITP1) to ensure a seamless integration
into suspended ceilings.
Benefits
KEY FEATURES
• The PMFY is available in 6,000, 8,000, 12,000 and 15,000 Btu/h.
• Standardized cabinet size for all models: 31-31/32".
• Airow control technology operates as low as 27 dB(A) for
industry-leading quiet performance.
• Integrated condensate lift mechanism to provide up to 23-5/8" of lift.
• Full unit access through front cover panel.
DRAIN MECHANISM
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 39
PCFY (Ceiling–suspended)
Compact design ideal for classrooms, restaurants and stores
The PCFY model features powerful air throw to cover entire spaces quietly and efciently.
INDOOR UNITS
POWERFUL PERFORMANCE
The easy–to–install, ceiling–suspended unit delivers
enough cold or hot air to make any space more
comfortable. Manually adjusted, over–sized swing
louvers direct the airow left or right, covering the
entire space quietly and efciently.
THE i–SEE SENSOR™ ACCESSORY
This amazing technology constantly monitors
and adjusts temperatures for maximum comfort
and efciency.
• Measures infrared rays generated from
surrounding walls and surface angles.
• Rotates 90 degrees in ve second intervals.
• Efciently adjusts temperatures to ideal comfort
levels for occupants.
QUIET, EFFICIENT AIRFLOW
Appropriate airow can be selected to enhance
space conditioning efciency and comfort while
operating at a low sound level. PCFY’s auto-vane
and wide-range outlet swings the conditioned air
and distributes it uniformly to all corners of the room.
EASY INSTALL
The PCFY’s direct suspension allows installation
on most ceiling surfaces quickly and securely using
only suspension bolts and the durable attachment
xture. An optional pump kit is available to dispose of
condensate.
KEY FEATURES
• Available in 15,000, 24,000, 30,000, and 36,000 Btu/h capacities.
• Auto-vane and wide-range outlet provides uniformly distributed
conditioned air to all corners of the room.
• Four-speed fan settings.
• Accessory lters are available to increase ltration effectiveness.
• Optional pump kit is available for condensate removal.
Benefits
40
Flexible design allows elegant interior layout

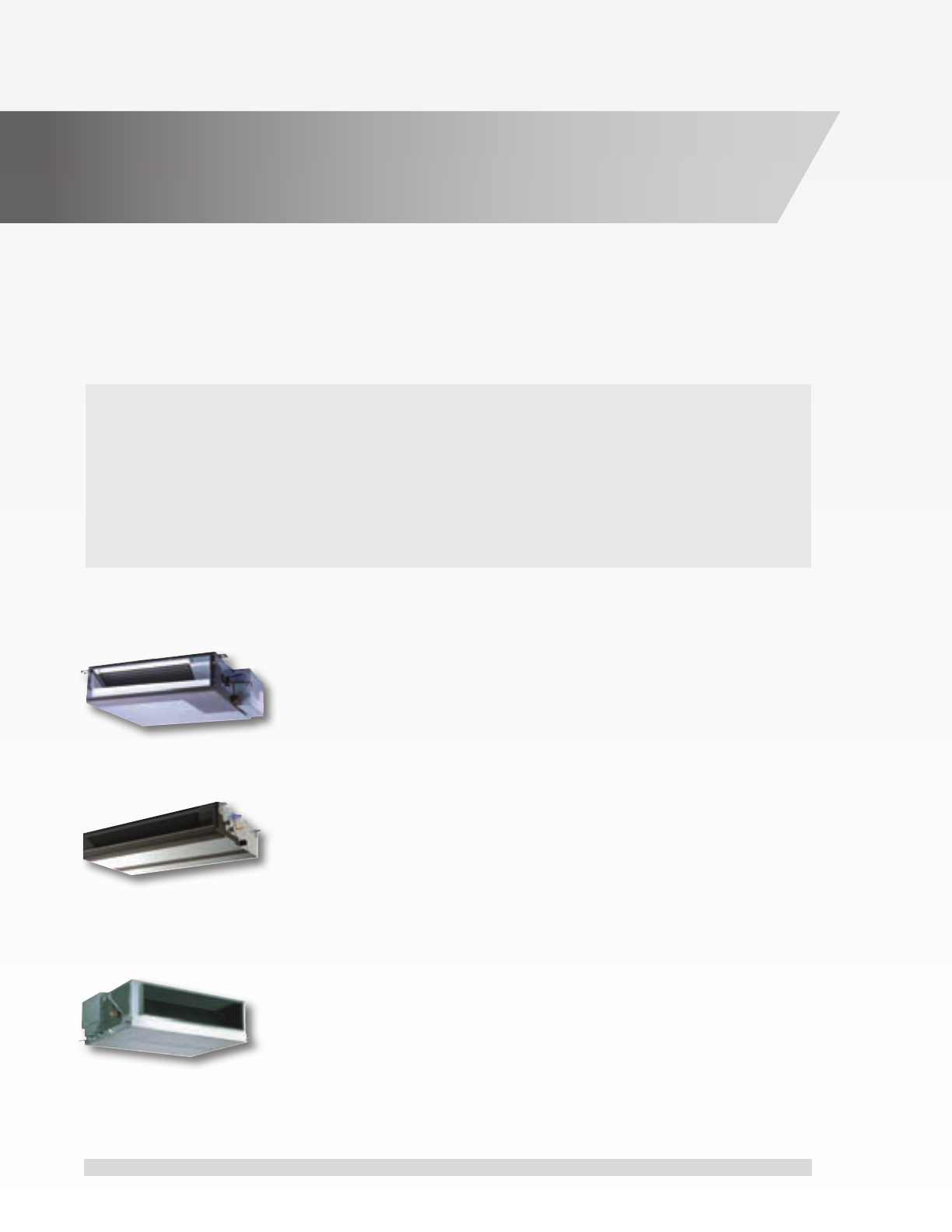

The PEFY models are high-performance, ceiling-concealed, ducted indoor units. An excellent
choice for ofce buildings, schools, hotels, assisted-living facilities and other applications
where ceiling space is available.
PEFY (Ceiling–concealed Ducted)
KEY FEATURES
• External static pressure settings are adjustable to meet varying application conditions.
• Choice of fan speed settings.
• Side access to control panel.
• Integrated condensate lift mechanism (low-static, mid-static and NMHU-E2 models).
HIGH STATIC (NMHU-E2/NMHSU)
• Provides up to 1.00" external static pressure.
• Extremely quiet, with sound ratings as low as 36 dB(A).
• Capacities range from 15,000 to 96,000 Btu/h.
• Integrated condensate lift mechanism to provide up to 27-9/16" of lift.
(Note: Not applicable to P72 and P96 models).
LOW PROFILE (NMSU)
• Extremely quiet, with sound ratings as low as 26 dB(A).
• Capacities range from 6,000 to 24,000 Btu/h.
• Integrated condensate lift mechanism to provide up to 21-11/16" of lift.
MEDIUM STATIC (NMAU)
• Provides up to 0.60" external static pressure.
• Extremely quiet, with sound ratings as low as 26 dB(A).
• Capacities range from 6,000 to 54,000 Btu/h.
• Integrated condensate lift mechanism to provide up to 27-9/16" of lift.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 41
CHOICE OF EXTERNAL STATIC PRESSURE
Additional external static pressure capacity provides exibility for duct extension, branching, and air outlet
conguration. The factory setting can be eld-adjusted to match the installed ductwork for PEFY indoor units.
The PEFY indoor unit is available in a low–prole option with up to 0.20" W.G. and a high–static option for up
to 1.00" W.G.
QUIET OPERATION
The specially designed centrifugal fan provides exceptionally quiet operation, even at high operating speeds.
INDOOR UNITS
benefits
BUILT–IN CONDENSATE LIFT MECHANISM
The drain piping can be positioned anywhere up to 21-11/16” for NMSU or 27-9/16” for NMAU and NMHU-E2
from the ceiling’s surface, allowing for long piping and versatility. A built in safety switch halts operation if the
pump experiences a problem or the drain becomes clogged, ensuring no water leaks occur.
COMPACT OPTIONS (PEFY–P–NMSU)
The PEFY–P–NMSU–E model is very compact, with a height of 7-7/8”. Standard features include brazed
refrigerant connections, rear air return, and auto fan mode. The unit operates as low as 22 dB(A), and the control
panel is located on the opposite side from other ducted models. This unit is an ideal choice for guest rooms in
hotels, dormitories, assisted living centers or any application with tight vertical clearances and minimal duct work.

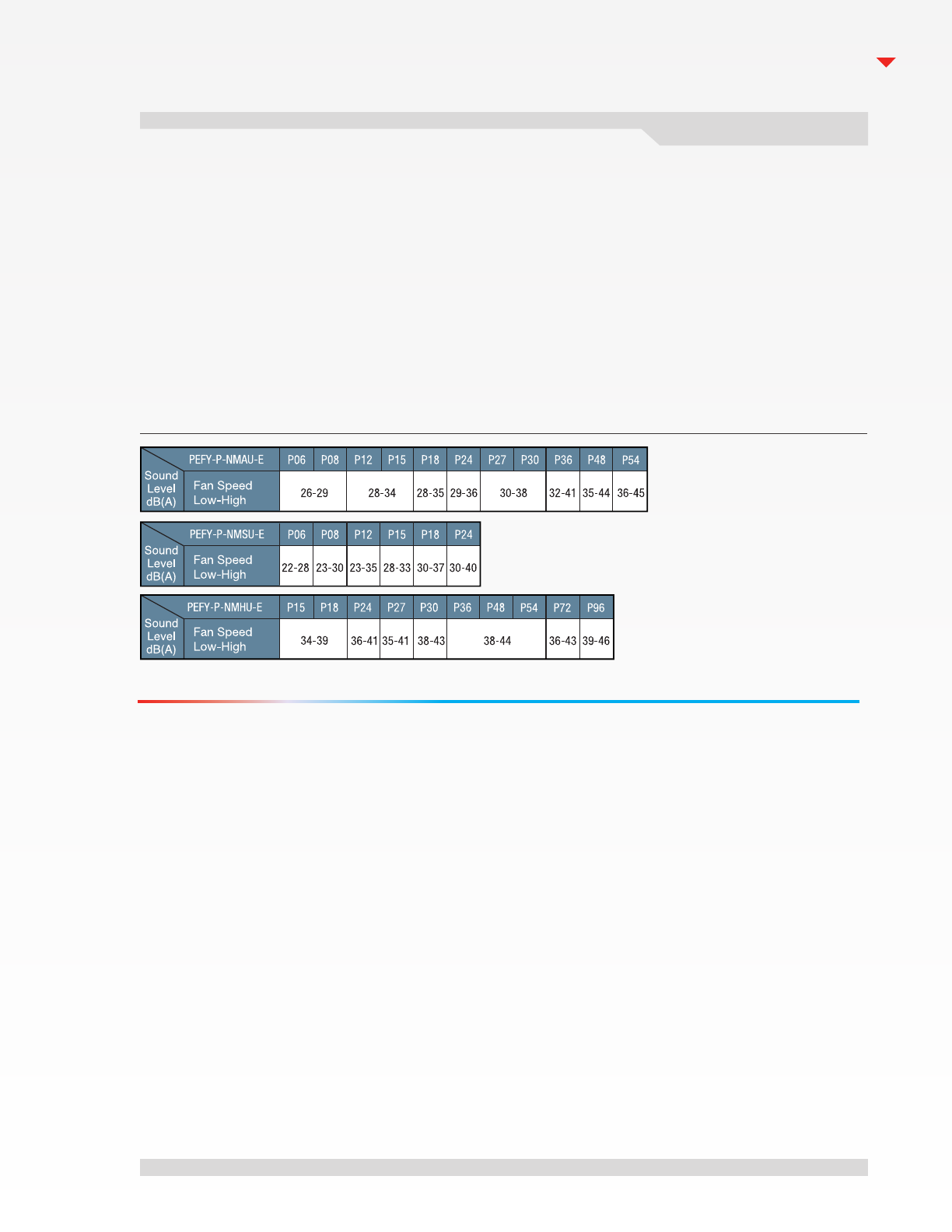

OPERATING SOUND RANGE
42
Designed for CITY MULTI
®
Ceiling-concealed Ducted Indoor Units
Low-Profile FBL1 boxes include 1" thick pleated MERV 8 lter(s).
Medium-Static FBM2 boxes include 2" thick pleated MERV 13 lter(s).
High-Static FBH4 boxes include 4" thick pleated MERV 13 lter(s).
FB (M,L,H) FILTER BOXES
Part Number Used on CITY MULTI Models Filters Included Net Weight (lbs.)
FBM2–1 PEFY–P06, P08, P12–NMAU–E (1) – 14" x 25" x 2" 20
FBM2–2 PEFY–P15, P18–NMAU–E
(1) – 14" x 20" x 2"
(1) – 14" x 14" x 2"
26
FBM2–3 PEFY–P24, P27, P30–NMAU–E (2) – 14" x 20" x 2" 32
FBM2–4 PEFY–P36, P48–NMAU–E
(2) – 14" x 20" x 2"
(1) – 14" x 14" x 2"
41
FBM2–5 PEFY–P54–NMAU–E (3) – 14" x 20" x 2" 46
Part Number Used on CITY MULTI Models Filters Included Net Weight (lbs.)
FBH2-1 PEFY-P15, P18, P24-NMHU-E2 (1) - 20” x 24” x 2" 14
FBH2-2 PEFY-P27, P30-NMHU-E2 (1) - 20" x 16" x 2", (1) - 20" x 20" x 2" 24
FBH2-3 PEFY-P36, P48 P54-NMHU-E2 (2) - 20" x 20" x 2" 27
FBH4-4 PEFY–P72, P96–NMHSU–E (2) - 24" x 24" x 4" 40
Part Number Used on CITY MULTI Models Filters Included Net Weight (lbs.)
FBL1–1 PEFY–P06, P08, P12–NMSU–E (1) – 13" x 25" x 1" 12
FBL1–2 PEFY–P15, P18–NMSU–E
(1) – 12" x 20" x 1"
(1) – 12" x 14" x 1"
15
FBL1–3 PEFY–P24–NMSU–E (3) – 12" x 20" x 1" 18
KEY FEATURES
• Rated Class 2 under UL Standard 900.
• Cabinet is constructed of non-insulated 20 gauge G–60 galvanized steel.
• Foam gasket provides air-tight connection to indoor unit and access door.
• Return connection in rear easily eld converted to bottom.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 43

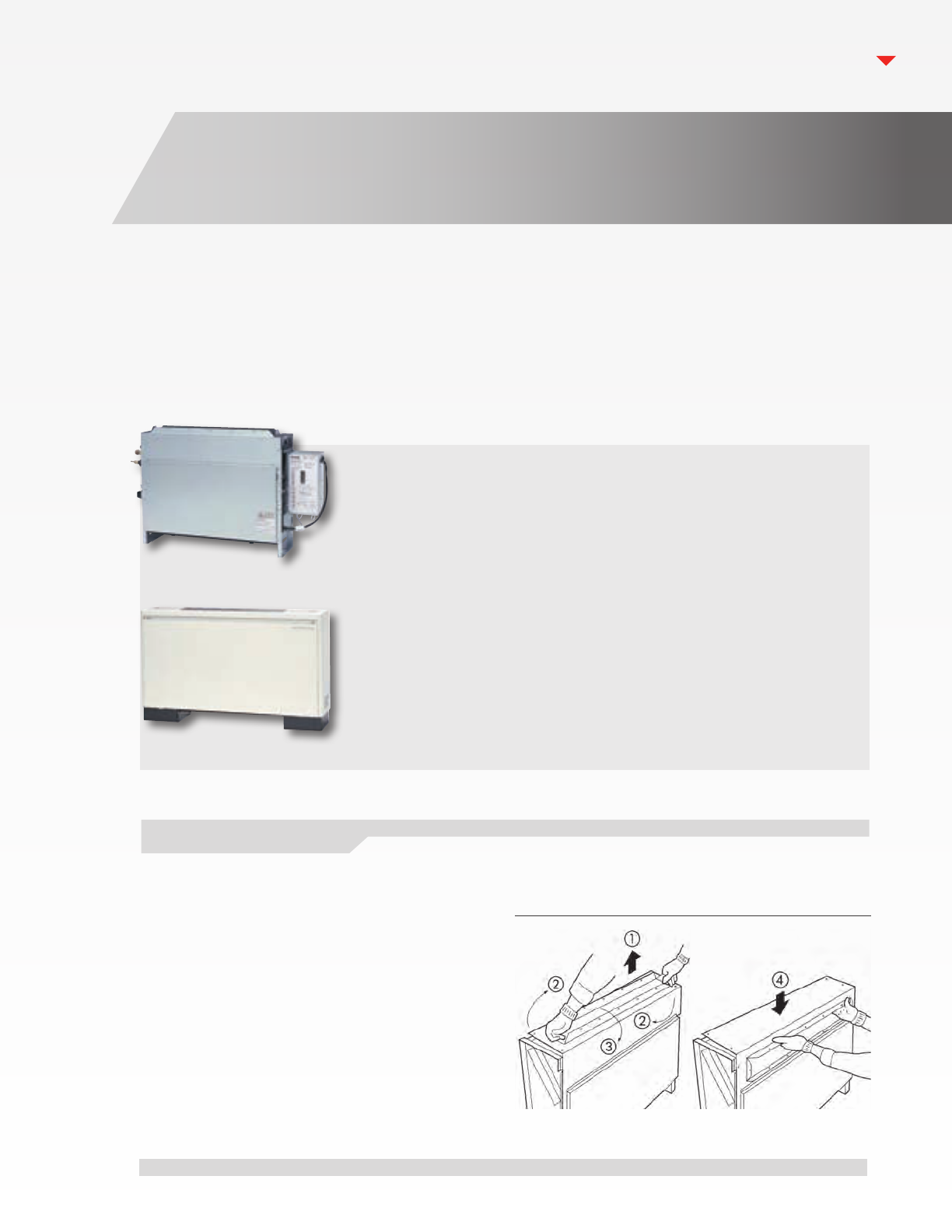

Effectively use perimeter areas for space conditioning
PFFY oor-standing models are available as exposed or concealed indoor units. At less than
nine inches deep, these units are easy to install in peripheral spaces, yet offer highly efcient
cooling and heating performance. Their low operating sound and compact size make them ideal
for hotel rooms, schools and ofce buildings.
PFFY (Floor-standing)
PFFY–P-NEMU-E
Exposed Type
PFFY–P-NRMU-E
Concealed Type
OPTIONAL MOUNTING FOR REMOTE CONTROLLER
PFFY units can house a remote controller in the top
corner (under a cover panel). The remote controller
can be mounted on the wall or in the PFFY unit.
INSTALLATION FLEXIBILITY
The PFFY–P–NRMU–E unit can be eld converted
from top discharge to front discharge to increase
installation exibility.
KEY FEATURES
• PFFY-NRMU—designed for applications requiring a built-in,
concealed, oor-standing unit.
• PFFY-NEMU—exposed-type model, perfect for most applications
and requires no nish work.
• Available in 6,000, 8,000, 12,000, 15,000, 18,000 and 24,000 Btu/h.
• Two-speed fan settings.
• The PFFY-P-NRMU-E unit can be eld converted from top
discharge to front discharge.
Benefits
INSTALLATION FLEXIBILITY
INDOOR UNITS
44
Ideal for closet, attic, or equipment room installations
PVFY multi-position air handlers can be connected to a system with other CITY MULTI
®
indoor units for complete system design exibility. The multi-position design is suitable for any
application, requiring no additional kits even for down-ow conguration,
making it ideal for installation in a closet, attic, or an equipment room.
PVFY (Multi-position Air Handler)
Capacity Range:
12,000-54,000 Btu/h
VERTICAL AIRFLOW
DOWN FLOW
HORIZONTAL LEFT AIRFLOW
KEY FEATURES
• Selectable external static pressure up to 0.80.
• Reusable standard-size 1” lter.
• Side return available (P12-P24 only).
• Unique cabinet insulation design allows for no thermal penetration
into the coil section.
• Cabinet can be disassembled to install in very tight spaces.
• Heavy gauge, high-gloss powder coat nish steel cabinets with 1”
berglass-free foam insulation (R-4.2 insulation value).
• Accessories available for various custom applications, including two-stage
auxiliary heat, fan speed indication, humidier control, and more.
• Cabinet sections are embossed with fan, coil, and other components for
easy identication and maintenance.
HORIZONTAL RIGHT AIRFLOW
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 45
INDOOR UNITS

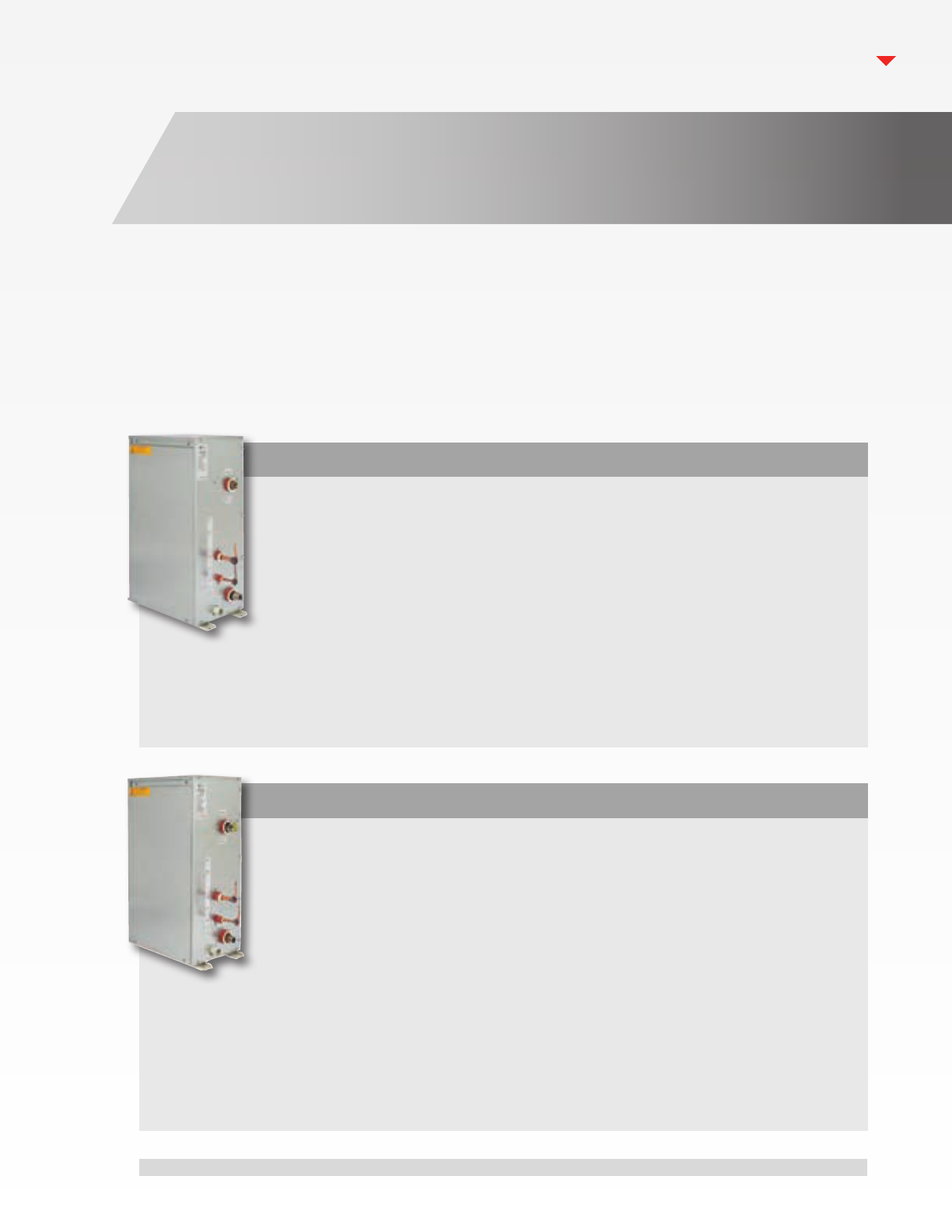

Heat and cool water, quickly and efficiently
The PWFY Hydronic Heat Exchanger is available in two congurations, the HEX (-AU) and the
Booster (-BU). Each provides unique solutions to incorporate into an existing VRF system for
an efcient means to heat and cool non-potable water. The PWFY is a closed-circuit water
heater that works with the Y-Series or R2-Series outdoor units.
Available Sizes:
36,000 and 72,000 Btu/h
KEY FEATURES
• Heats water to 113° F.
• Hydronic heat exchanger transfers energy from refrigerant to water.
• Can be used to recover waste heat from cooling operation to water when combined
with any R2-Series, resulting in large energy savings.
• Cools water to 41° F to be used for cooling outside air, cooling pool water, misting
stations, process cooling and more.
• Applications include radiant heating, snow melting, reheating air, pre-heating hot
water and more.
KEY FEATURES
• Heats water to 160° F.
• Hydronic heat exchanger transfers energy from refrigerant to water.
• Compatible with R2- and WR2-Series.
• Can be used to recover waste heat from cooling operation to water, resulting
in large energy savings.
• Includes R134A compressor circuit for boosting water temperature.
• Applications include radiant heating, hot water preheating, snow melting,
reheating air, warming pools, and more.
Available Sizes:
36,000 Btu/h
PWFY–P36/72NMU–E–AU
PWFY–P36NMU–E–BU
PWFY (Hydronic Heat Exchanger)
46
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 47
VENTILATION
PremiSys
®
DOAS/Lossnay
®
Energy Recovery Ventilators (ERVs)/DOAS
48

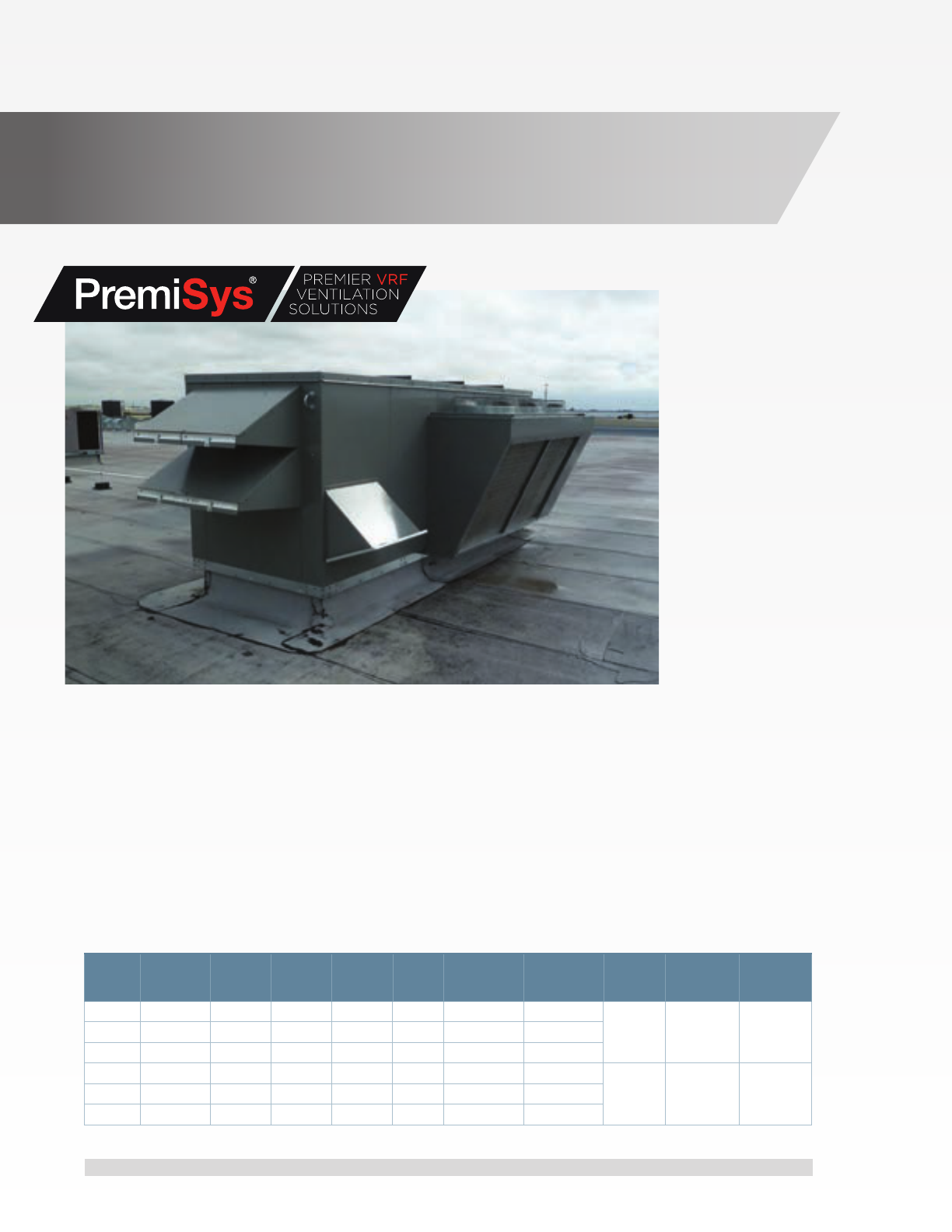

PREMISYS
®
DEDICATED OUTDOOR AIR SYSTEM
The PremiSys series of rooftop ventilation products is a premier solution for conditioning
outdoor air for commercial buildings. Designed to handle 100% outdoor air with optional
energy recovery, PremiSys products offer premium features ideal for handling ventilation
air in variable refrigerant ow (VRF) applications.
The PremiSys models MP and MPE (with energy recovery), are pre-engineered to
provide semi-custom exibility while maintaining the quality, consistency, and value
of a standardized product.
Unit
Size
Nominal
Tonnage
(tons)
Height
(H)
Width
(W)
Length
(L)
Intake
(A)
Condensing
Section
(B)
Nominal
Weight (lbs)
Outdoor
Intake
Supply
Discharge
Exhaust
Discharge
MP-1 5 - 15 58 81 117 22 30 2500
End
Bottom or
Side
N/AMP-2 10 - 25 70 100 130 22 36 3600
MP-3 15 - 30 82 100 143 27 32 4500
MPE-1 5 - 15 58 81 169 22 30 3600
End
Bottom or
Side
SideMPE-2 10 - 25 70 100 184 22 36 4900
MPE-3 15 - 30 82 100 205 27 32 6200
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 49

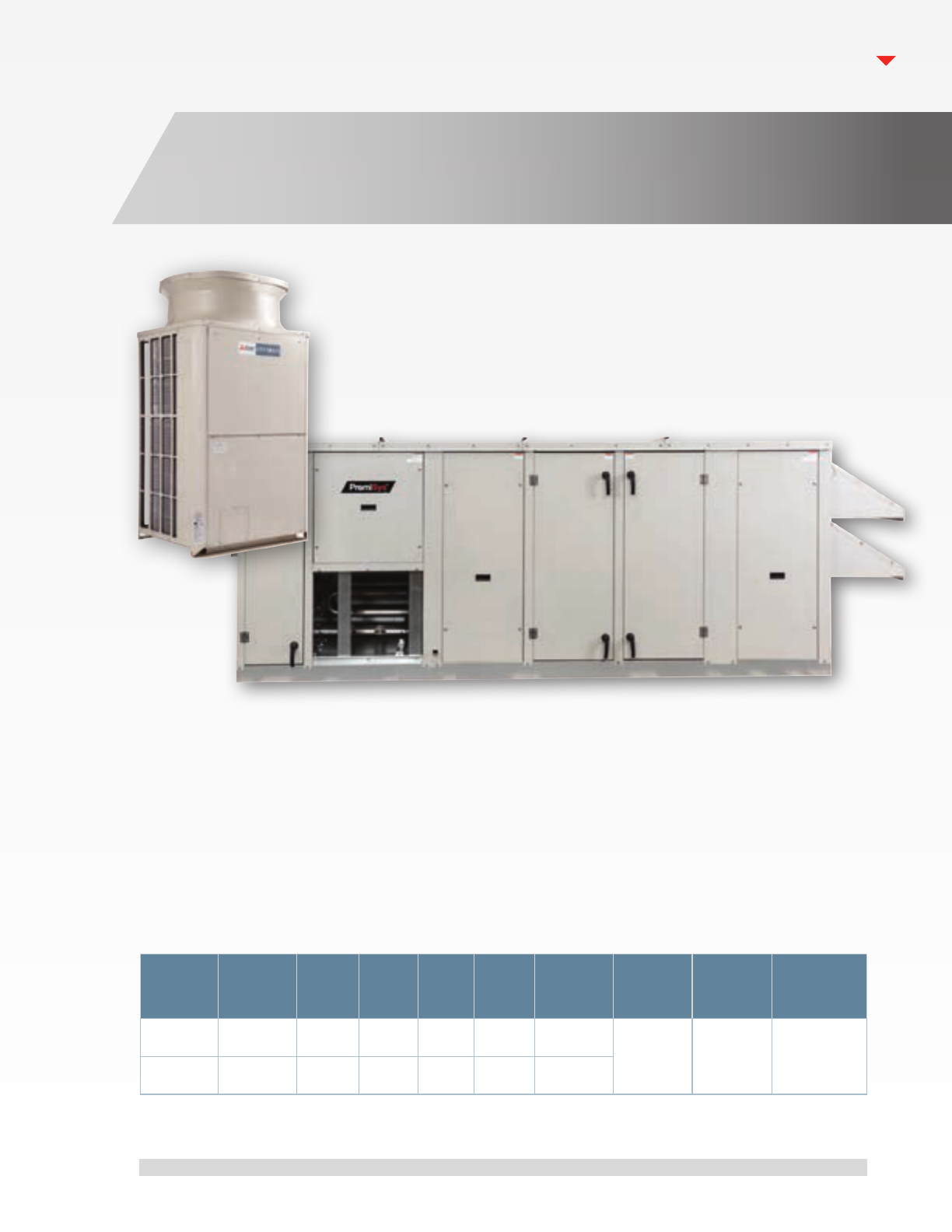

PREMISYS
®
FUSION
The PremiSys series of rooftop ventilation products is a premier solution for conditioning outdoor
air for commercial buildings. Designed to handle 100% outdoor air with energy recovery models,
PremiSys products offer premium features ideal for handling ventilation air in VRF applications.
The PremiSys Fusion is the latest addition to the family of dedicated outdoor air systems.
The MPF-1 and MPF-2 (split system with energy recovery) models are pre-engineered to provide
semi-custom exibility while maintaining the quality, consistency, and value of a standardized
product. Take advantage of the split-system design to further enhance the exibility of applying
Mitsubishi Electric products to any building.
Unit Size
Nominal
Tonnage
(tons)
Height Width Length Intake
Nominal
Weight (lbs)
Outdoor
Intake
Supply
Discharge
Exhaust
Discharge
MPF-1 5 - 12 58 53 148 22 2200
End
Bottom or
Side
Side
MPF-2 10 - 20 71 64 163 22 2800
VENTILATION
50

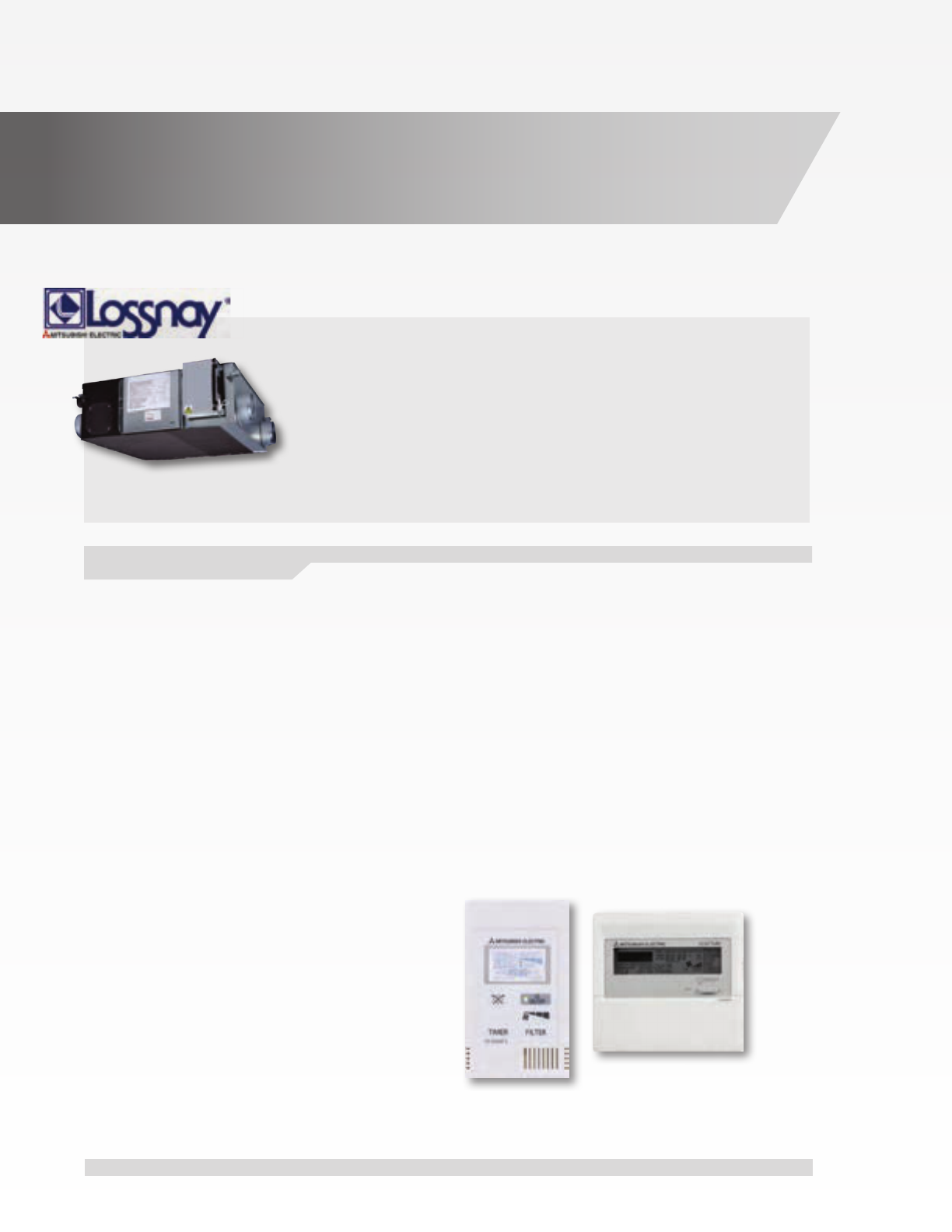

LOSSNAY
®
ENERGY RECOVERY VENTILATORS (ERVs)
Outdoor air solutions for improved indoor environmental quality
KEY FEATURES
• Lossnay core.
• Over 50% enthalpy exchange efciency.
• Four fan speeds on 300, 470, 600 models: extra low, low, high, extra high.
• M-NET connectivity for use with CITY MULTI
®
central controllers
and BMS interfaces.
• Sound pressure level: maximum sound level 40.5 dB(A).
• Three ventilation modes: Auto, Bypass, Heat Recovery.
Benefits
INTERLOCK
Networking systems with Mitsubishi Electric air conditioners
has never been easier. The M-NET adapter comes
standard, and there is no need to purchase additional parts.
Systems can be assembled simply and logically, reducing
construction time and keeping initial costs low.
SYSTEM COMPATIBILITY
The LGH-F-RX5-E1 series is fully compatible with our
controls network, further increasing the scope of total
system management.
MULTI–FUNCTION LCD REMOTE
CONTROLLER
The compact and attractive remote
controller with a liquid crystal display
is designed for easy visibility.
• ON/OFF, Run mode,
and Ventilation mode.
• Filter Maintenance Display.
• Controls up to 16 Lossnay units
in a single group.
• Night Purge.
• Timer Operations.
BYPASS VENTILATION STANDARD
Lossnay models offer three ventilation modes:
• Energy Recovery—Heat Exchange.
• Bypass—No Exchange.
• Automatic—Heat Exchange/Bypass.
With conventional ERVs, bypass ventilation was impossible
without attaching additional dampers and adapters. With
the LGH–F–RX5–E series, however, this mode is available
without the use of other parts. An automatic mode allows
the system to select recovery or bypass as required. Mode
selection is easy when interlocked with M–NET systems
using the PZ–60DR remote controller, which is
sold separately.
PZ-43SMF
PZ–60DR
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 51

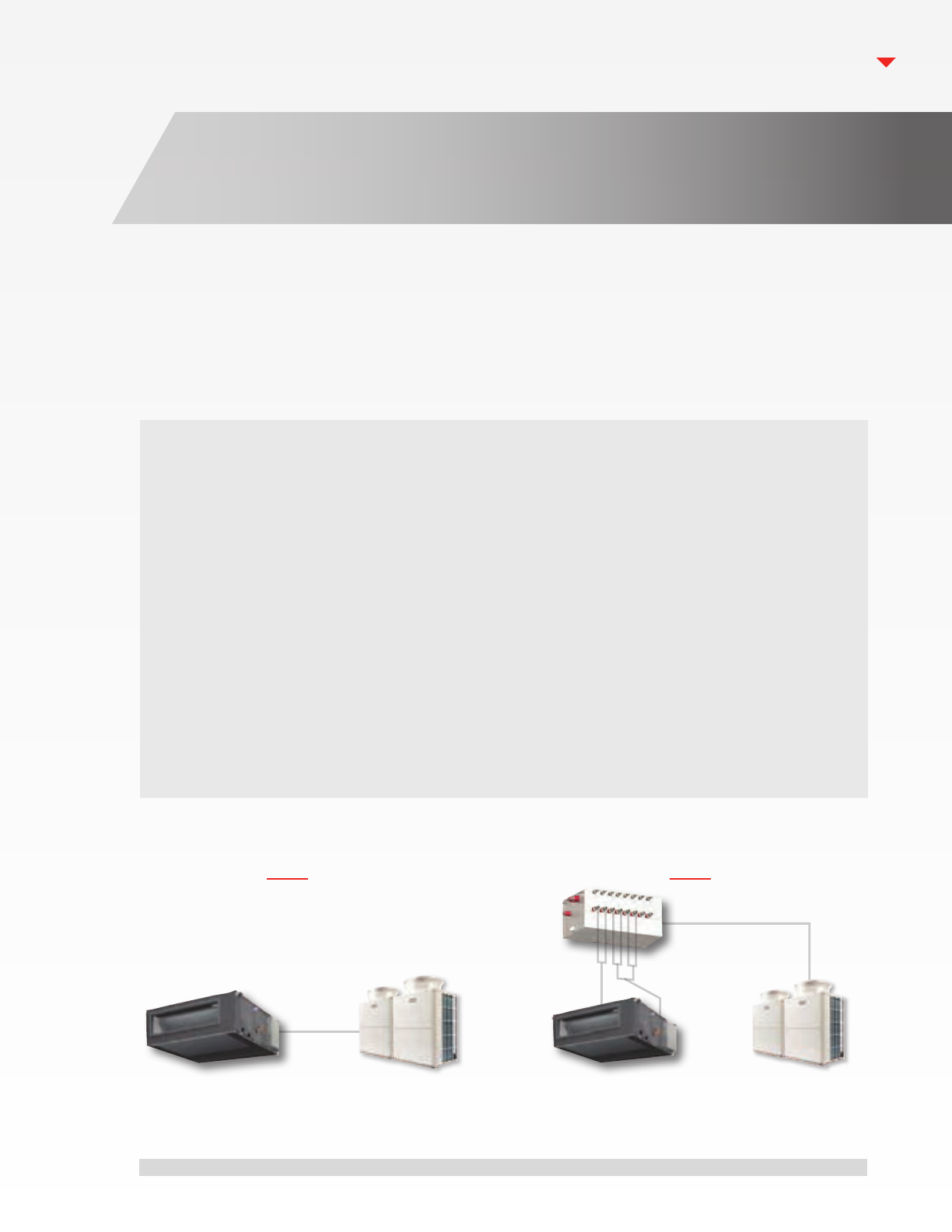

VENTILATION
DEDICATED OUTDOOR AIR SYSTEM (DOAS)
OUTDOOR UNIT
Y-SERIES P120
INDOOR UNIT
PEFY–AF1200 CFM
OUTDOOR UNIT
R2-SERIES P120
INDOOR UNIT
PEFY–AF1200 CFMR
KEY FEATURES
• Single-speed 1200 CFM fan.
• Multiple external static pressure set points.
• Large DX coil with high latent capacity.
• Entering air temperature and humidity sensors factory installed.
• Thin 18-9/16" high cabinet installs in small areas.
• Drain lift mechanism up to 21-11/16" included as standard.
• 50° F to 70° F saturated air available in cooling mode (CFM/PUHY-P120).
• Reheat capabilities using recovered energy from cooling through the branch
controller (CFMR/PURY-P120).
• 50° F to 60° F saturated air available leaving cooling coil (CFMR/PURY-P120).
• 63° F to 83° F leaving air temperature available leaving reheat coil (CFMR/PURY-P120).
Provides pre-conditioned outdoor air
The award-winning PEFY–AF Dedicated Outside Air System comes in two congurations,
the CFM and the CFMR. Both congurations offer high capacity coils that will condition
incoming air, making it suitable for distribution to down-stream fan coil units.
CFM CFMR
52
CONTROLS AND SOFTWARE SOLUTIONS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 53
CONTROLS AND SOFTWARE SOLUTIONS

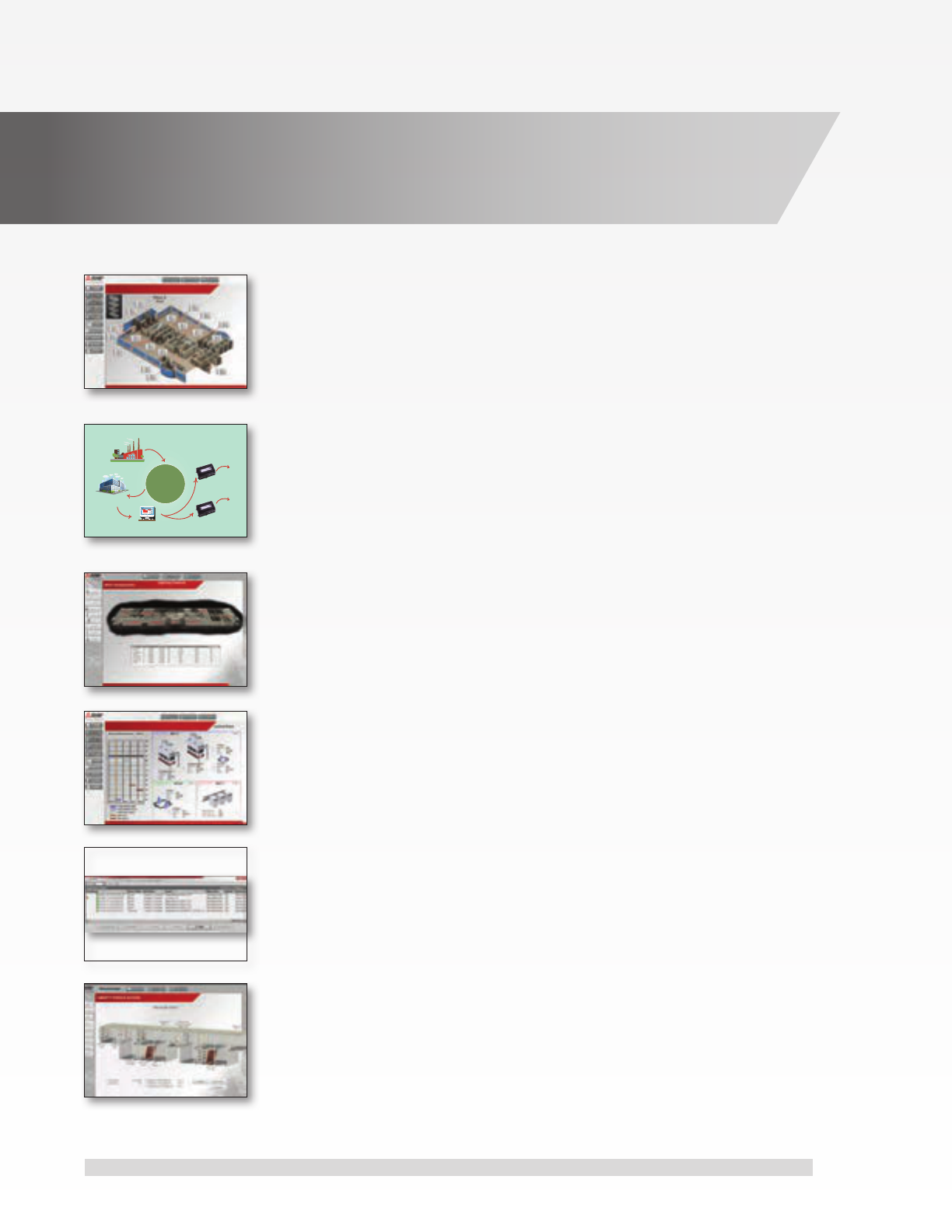

54

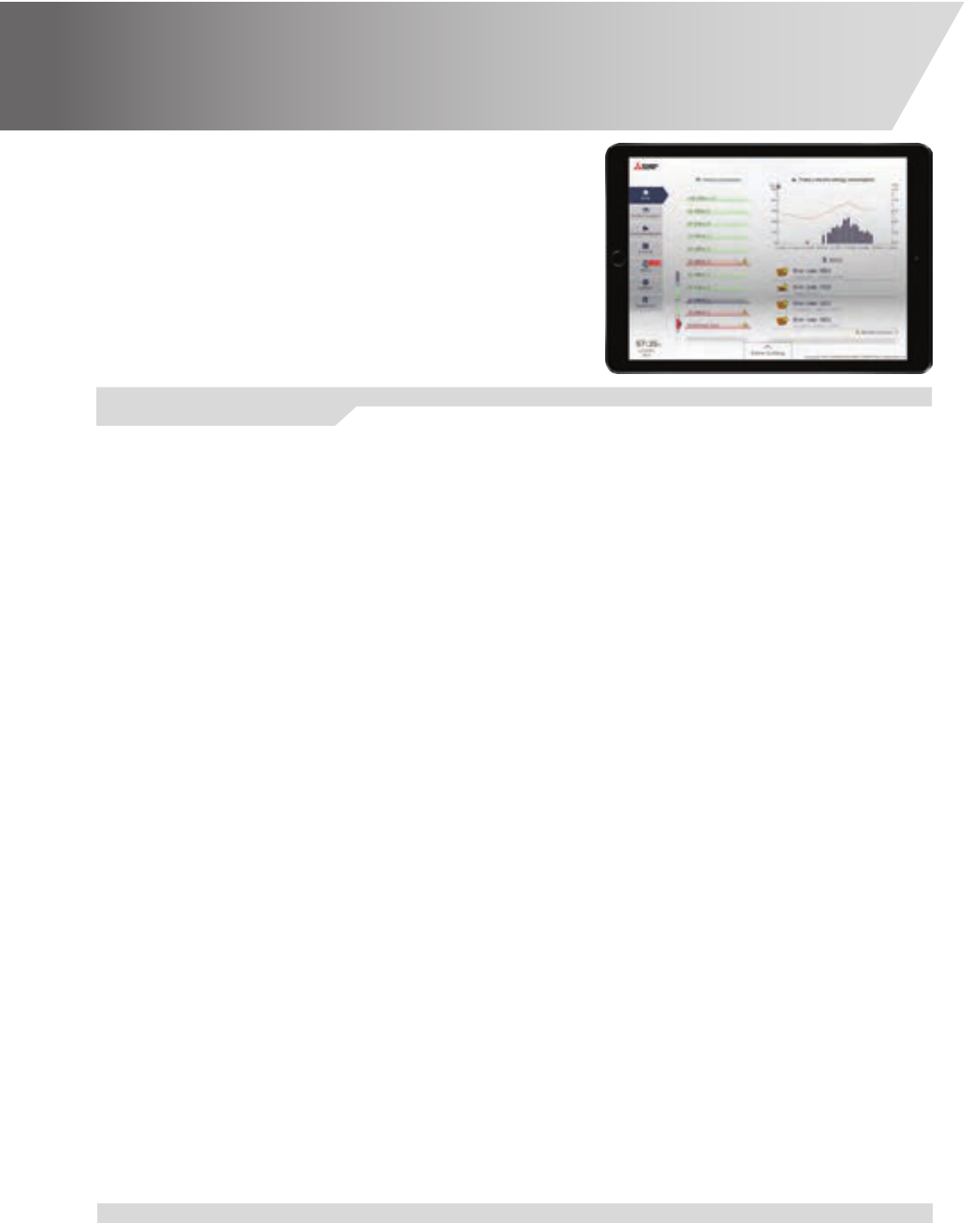

Our CITY MULTI
®
Controls Network (CMCN)
makes it easy to manage your building.
The Integrated Centralized Control Web (ICCW) manages up
to 2,000 indoor units from a single networked PC or tablet.
The ICCW puts individual, personalized comfort in the hands
of the tenants and the building manager.
CONTROLS NETWORK
FLEXIBLE DESIGN FOR CUSTOMIZED, INDIVIDUAL ZONE CONTROL
Building owners and engineers can select from a wide variety of remote controllers and other devices to satisfy the exact
level of tenant control on a zone–by–zone basis, while providing the ultimate in personal comfort control. The versatility
of the CMCN enables each building’s controls network to address the specic design and tenant requirements, while
providing unparalleled occupant comfort.
OPTIONAL EASY–TO–USE CONTROL VIA PC WEB BROWSER
From a web-browser on a PC or tablet, the building manager can now monitor, operate and schedule the HVAC system
through the central controller. Plus, the building manager can enable tenants to control their own individual zones via a
personal web browser on their networked PC, tablet, or smartphone.
EASY INSTALLATION
The CMCN uses simple, non–polar, two–wire control connections. All components are daisy–chained and added onto the
M-NET communication bus. It all adds up to less labor and materials with quicker installation.
SINGLE–SOURCE CONTROL FOR UP TO 2,000 INDOOR UNITS
You can control up to 2,000 units with central controllers, empowering the building manager to control the HVAC system
for multiple buildings in a business park, educational campus or retirement facility.
ENERGY ALLOCATION
A centralized controller network congured with the energy allocation option and watt–hour meter(s) can calculate the
HVAC energy consumption relative to each indoor unit on a per–tenant basis and generate a CITY MULTI energy allocation
per tenant. The Energy Allocation feature is available through the AE-200A/AE-50A/EW-50A centralized controllers.
SYSTEM INTEGRATION
Not only can our CMCN act as a stand–alone building management system, it can also integrate with existing systems via
LonWorks
®
or BACnet
®
.
Benefits
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 55
CITY MULTI
®
CONTROLS

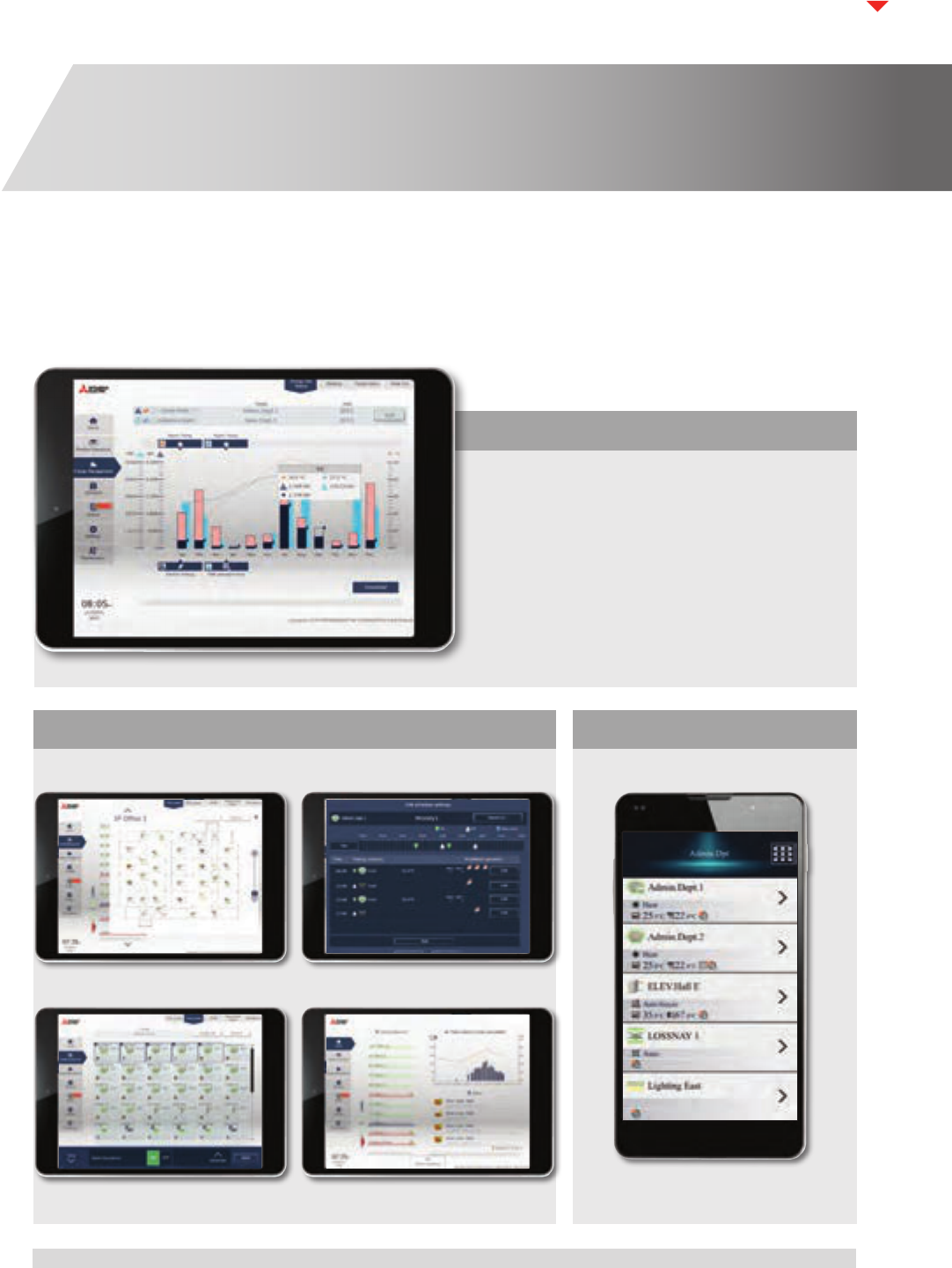

INTEGRATED CENTRALIZED CONTROL WEB
The Integrated Centralized Control Web (ICCW) enables the user to control multiple AE-200A/AE-
50A /EW-50A centralized controllers and provide enhanced functions from any networked PC,
tablet or smart phone. ICCW is capable of controlling up to 2,000 indoor units in conjunction with
our centralized controllers.
KEY FEATURES
• Allocates the energy cost of the outdoor unit(s)
power consumption to building tenants based
on the capacity used by their indoor units.
• Great for condos and multiple tenant spaces.
• Requires a software license (SW-Charge).
ENERGY ALLOCATION
TABLET SMART PHONE
FLOOR PLAN:
ALL GROUPS:
SCHEDULE:
HOME SCREEN (TABLET):
Note: requires a license (SW-PWeb)

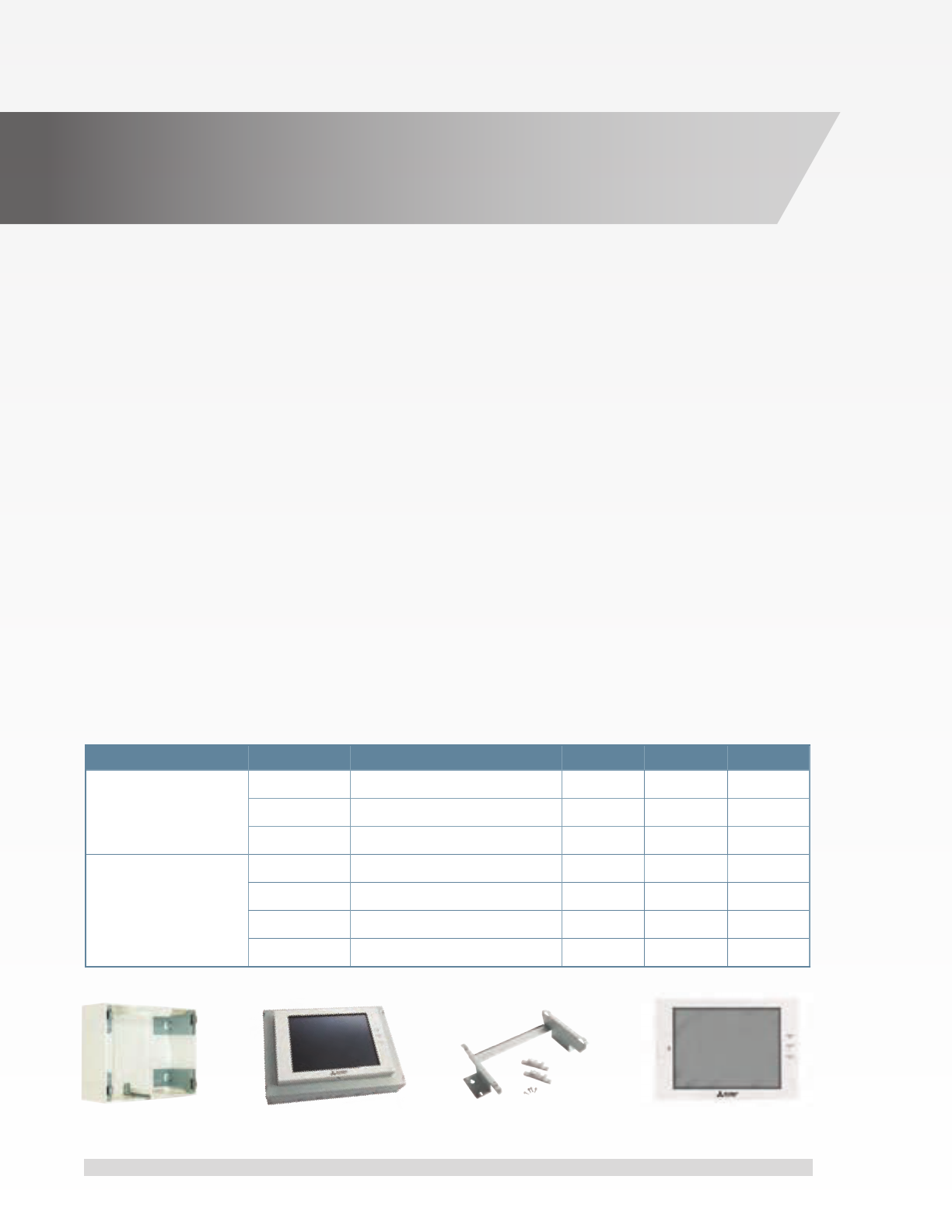

5656
Centralized controllers support operations that supersede simple control of the HVAC system
and include system conguration, scheduling, batch operation, and malfunction monitoring
through license options. These license options further expand the functionality of our centralized
controller offerings.
OPTIONAL LICENSES
PERSONAL WEB BROWSER (SW–PWEB)
Allows facility managers individual users to control their zone conditioning via personal networked PC, tablet or
smart phone with or without remote controllers. Personal web browser is only supported on AE–200A, AE-50A,
and EW-50A centralized controllers.
BACnet TCP/IP COMMUNICATION (SW-BACNET)
Allows for BACnet TCP/IP communication from a centralized controller to third party building management
software via an Ethernet connection. The BACnet license is only supported on the AE-200A, AE-50A, and EW-50A
centralized controllers.
ENERGY ALLOCATION (SW-CHARGE)
Provides the ability for the AE-200A to allocate the outdoor unit(s) power consumption to building tenants based
on the capacity used by their indoor units. Note that there are additional components required to complete a full
Energy Allocation installation.
LICENSE OPTIONS FOR
CENTRALIZED CONTROLLERS
Part Number Description AE-200A AE-50A EW-50A
OPTIONAL LICENSES
SW–Charge Energy Allocation
• • •
SW–Pweb Personal Web Browser
• • •
SW-BACnet BACnet(R) TCP/IP communication
• • •
OPTIONAL ACCESSORIES
PAC-YG84UTB-J Electric Box
• •
PAC-YG86TK-J Mounting Kit (for control panel)
• •
PAC-YG82TB-J Mounting Attachment (for wall surface)
• •
PAC-YG72CWL-J Surface cover with USB port
• •
PAC-YG82TB-J PAC-YG84UTB-J PAC-YG86TK-J PAC-YG72CWL-J
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 57

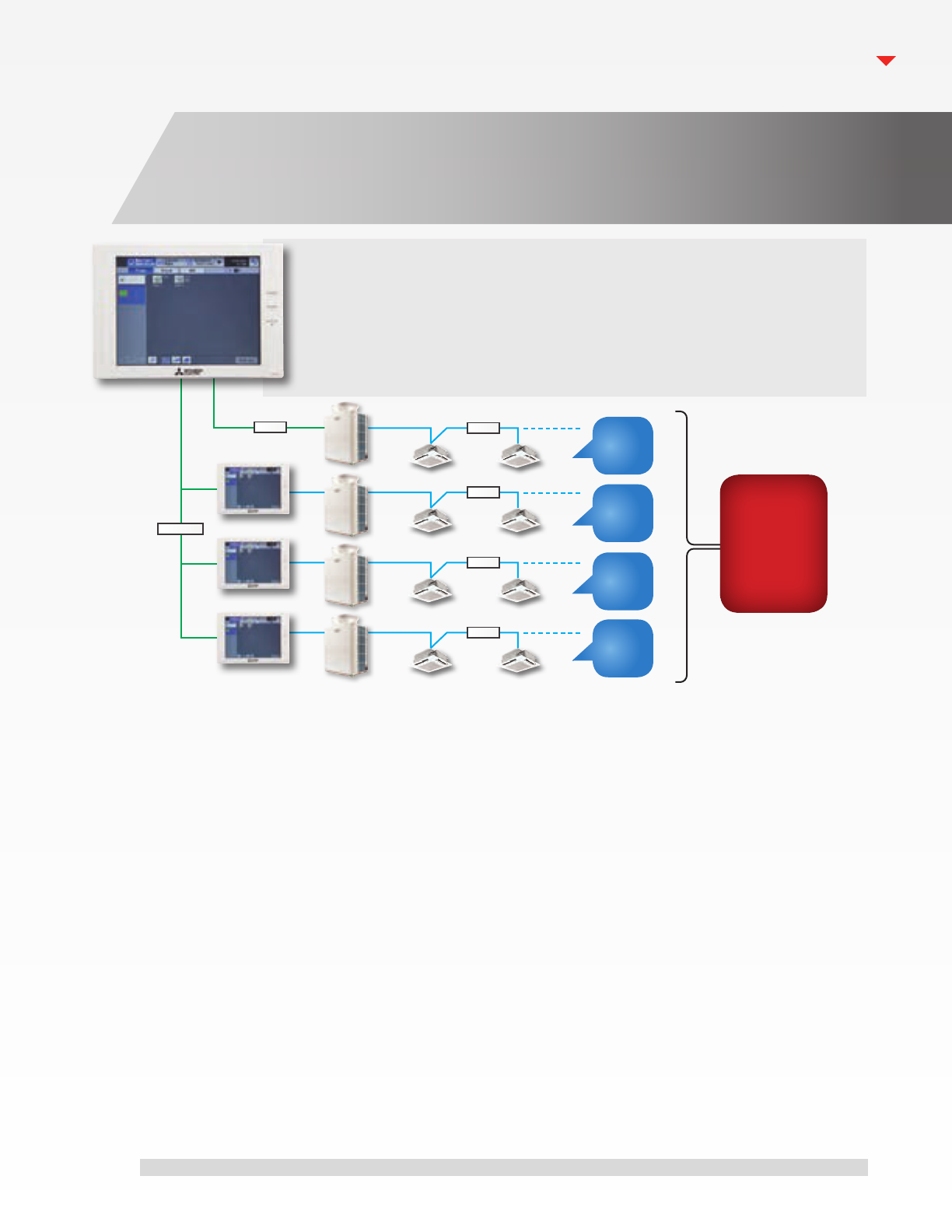

CENTRALIZED CONTROLLER AE-200A/AE-50A
Combines the power of a touch-screen interface with the remote capabilities
of an Internet browser. The AE-200A is our most capable central controller
for managing your CITY MULTI
®
and peripheral systems. Up to three AE-50A
or EW-50A expansion controllers can be added up to a single AE-200A. This
allows the AE-200A to control and monitor up to 200 indoor units from one
touch screen.
AE-50A
AE-50A
AE-50A
AE-200A
50
units
50
units
50
units
50
units
Total
200
units
PROVIDE ASSISTANCE IN IDENTIFYING ENERGY
SAVINGS BY COMPREHENSIVELY SHOWING THE
ENERGY CONSUMPTION OF HVAC EQUIPMENT
Energy consumption of HVAC equipment by individual
area is displayed graphically on the controller’s interface.
This enables comparisons with the previous year’s
power consumption as well as provides a view to
performance against electric usage targets. Floor layout
is displayed on the 10.4” LCD touch panel which
facilities easier operation of HVAC equipment.
ESTABLISH THE OPTIMAL SYSTEM BASED ON THE
SCALE OF YOUR FACILITY
The AE-200A allows a user to control up to 50 indoor
units. The AE-200A can increase its control capabili-
ties to a maximum of 200 indoor units with the addition
of three AE-50A expansion controllers. A PC or tablet
connection enables the control of more than 200 indoor
units via the ICCW browser.
DUAL SET POINT
When the operation mode is set to Auto (dual set point),
two preset temperatures can be set. Depending on the
room temperature, the indoor unit will automatically
operate in either the Cool or Heat mode to keep the
room temperature within the preset range.
MONITOR AND OPERATE THE HOT WATER HEAT
PUMP THROUGH THE ADDITION OF A PWFY
Centralized batch control with the PWFY is made
possible through the use of an AE-200A/AE-50A.
M–NET
ETHERNET
M–NET
M–NET
M–NET
M–NET
CITY MULTI
®
CONTROLS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 57
58

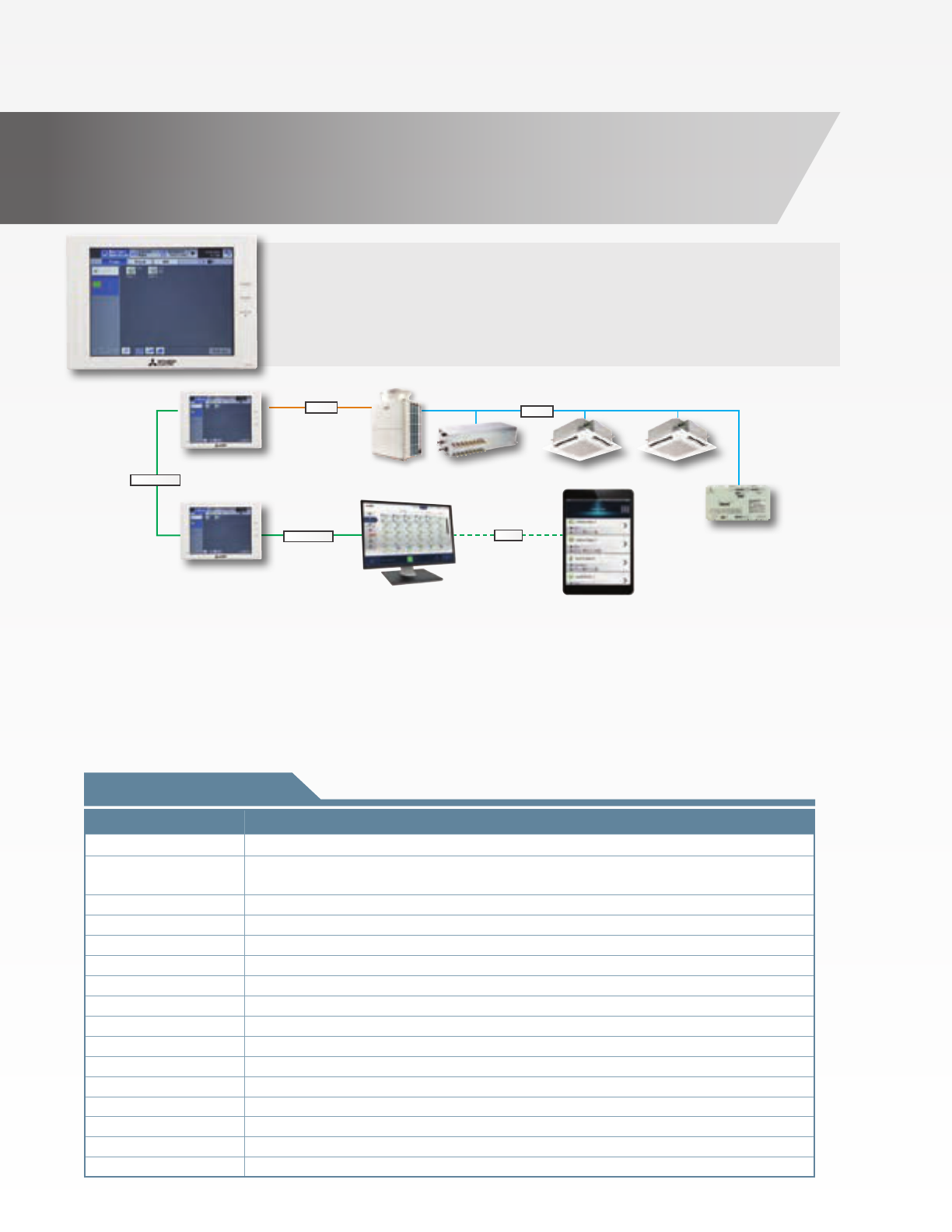

Function Description
Touch Screen 10.4" high resolution color touch screen
Max No. of Indoor Units
Up to 200 indoor units can be controlled and monitored when three expansion controllers
(AE-50A and/or EW-50A) are networked together.
ON/OFF On/Off operation for a single group and batch operation
Operation Mode Setback /Cool / Dry / Auto (R2- and WR2-Series) / Fan / Heat
Temperature Setting Supports single and dual set point operation with extended set temperature range
Fan Speed Setting Hi / Mid–2 / Mid–1 /Low / Auto (Available fan speed settings depending on indoor unit)
Airflow Direction Setting Swing / Horizontal / Mid-0 / Mid-1 / Mid-2 / Mid-3 / Auto (settings vary depending on indoor unit model)
Permit/Prohibit Function Individual prohibit operations for each remote controller function (ON/OFF, Set Temperature, Operation Mode and Filter Reset)
Indoor Return Air Temperature Displays the measured return air temperature from each group
Error Indication Displays a four-digit code and the affected unit address
Test Run Function Allows indoor units to operate in test mode
Ventilation Interlock Allows the group to be interlocked with Lossnay unit
Schedule Operation Annual, Weekly, and Today schedules
External Input/Output Inputs: Level Signal–Batch Start / Stop, Batch Emergency Stop Outputs: Start / Stop Status, Error / Normal Status
Power Supply Built-in
Dimensions – (H x W x D) 7-27/32” x 11-5/32” x 2-17/32”
STANDARD FEATURES
The AE-50A centralized controller can only expand an AE-200A controller, it
cannot be used by itself. Three AE-50A controllers can expand an AE-200A
to monitor 200 indoor units. It features advanced functionality with expanded
monitoring, control, dual set point and trending abilities.
Energy consumption of an applicable area can be
displayed by the month, day, and/or hour. Energy
consumption of two different units, groups and block,
can be compared within the software. The energy
consumption of the fan(s), along with operation time,
can be displayed as well.
Energy consumption of the HVAC equipment is ranked
and displayed by each unique area, thus visualizing
high-load components within the system. In addition,
a comparison of energy consumption alongside target
electric energy usage is possible.
CONTROL SCREEN FOR POWER CONSUMPTION
AE-50A
AE-200A
PI Board
M–NET
M–NET
ETHERNET
ETHERNET
Wi-Fi
CENTRALIZED CONTROLLER AE-200A/AE-50A

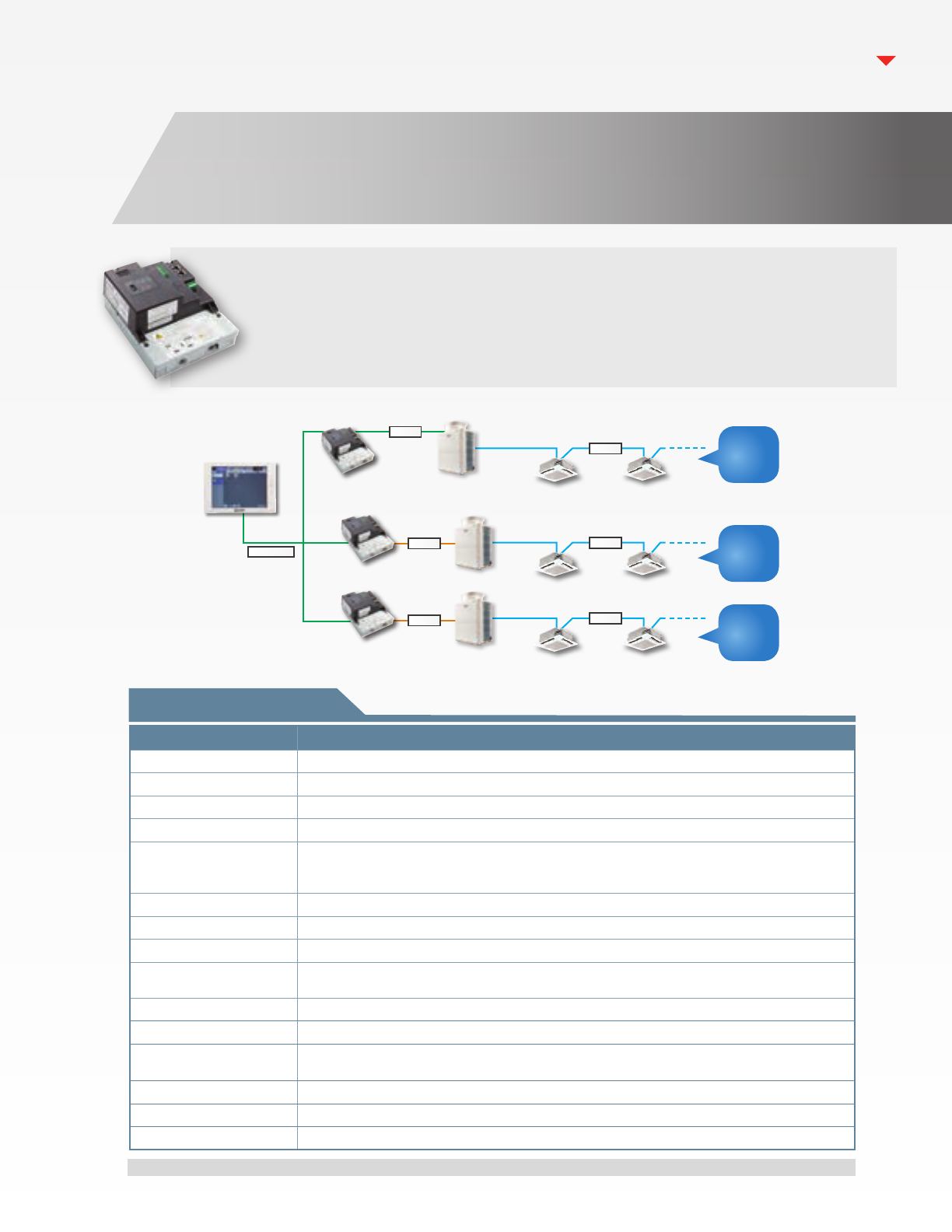

The EW-50A centralized controller is an web browser-only centralized controller for managing CITY
MULTI
®
and peripheral systems. The EW-50A can also connect to an AE-200A over Ethernet to
expand its monitoring capability to up to 200 indoor units when three EW-50A units are used.
The EW-50A features advanced functionality with expanded monitoring, control, dual set point
and trending abilities.
CENTRALIZED CONTROLLER EW-50A
STANDARD FEATURES
FUNCTION DESCRIPTION
Max No
. of Indoor Units Up to 50 indoor units can be contr
olled and monitored.
ON/OFF On/Off operation for a single group and batch operation
Operation Mode Setback /Cool / Dry / Auto (R2- and WR2-Series) / Fan / Heat
Function Hold (temporarily disables schedules) / Initial setting / Operation data back-up
Displays
CITY MULTI compressor speed and hi/low pressure / AdvancedHVAC Controller (DC-AIO) input/output status / Space
temperature and humidity (from SmartME or AI controller) / Error code (four-digit code and the affected unit address) /
Unoccupied setback temperature range / Occupancy and brightness status from the SmartME remote controller
Temperature Setting Supports single and dual set point operation with extended set temperature range
Fan Speed Setting Hi / Mid–2 / Mid–1 / Low / Auto (Available fan speed settings depending on indoor unit)
Airflow Direction Setting Swing / Horizontal / Mid-0 / Mid-1 / Mid-2 / Mid-3 / Auto (settings vary depending on indoor unit model)
Permit/Prohibit Function
Individual prohibit operations for each remote controller function include ON/OFF / Set Temperature / Fan speed and
direction / Operation Mode / Filter Reset
Ventilation Interlock Allows the group to be interlocked with Lossnay unit
Schedule Operation Annual, Today, and Weekly schedules
External Input/Output
Inputs: Level Signal–Batch Start / Stop, Batch Emergency Stop Outputs: Start / Stop Status, Error / Normal Status
(requires PAC-YG10HA)
Trending Data Fan operation time / Thermo-on time / Set temperature / Room temperature / AI controller temperature and humidity
Power Supply Built-in
Dimensions – (H x W x D) 8-4/16” x 6-13/16” x 3-10/16”
CITY MULTI
®
CONTROLS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 59
Max
50
units
AE-200A
Max
50
units
EW-50A
EW-50A
Max
50
units
EW-50A
M–NET
M–NET
M–NET
M–NET
M–NET
M–NET
ETHERNET
60

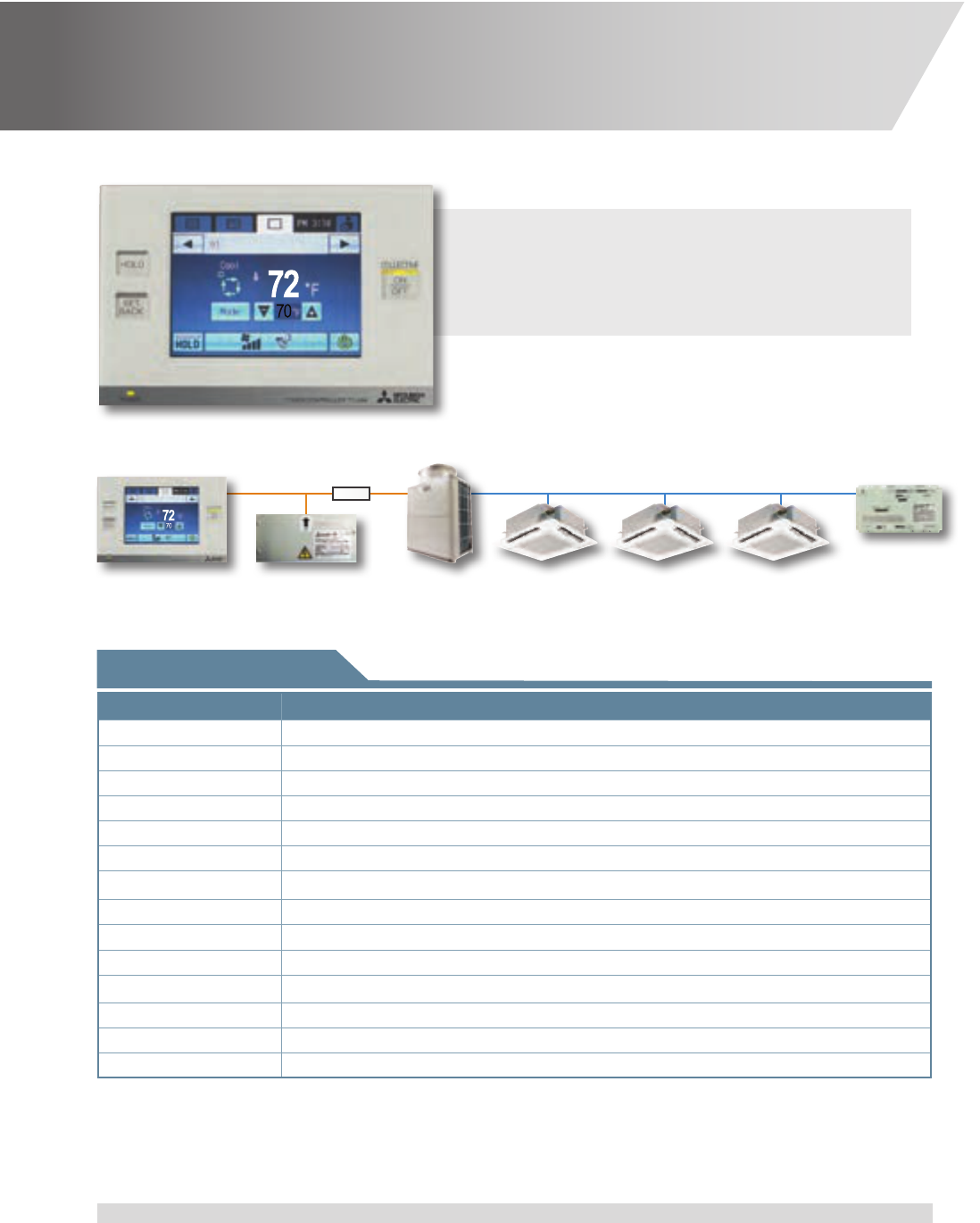

TC–24B PAC–SC51KUA
DIDO Board
Function Description
Max No
. of Indoor Units Up to 24 indoor units can be connected
ON/OFF On/Of
f operation for a single group and batch operation
Operation Mode Setback /Cool / Dry / Auto (R2- and WR2-Series) / Fan / Heat
Temperature Setting Supports single and dual set point modes / Set temperature from 57˚ F – 87˚ F depending on operation mode and indoor unit
Fan Speed Setting Hi / Mid–2 / Mid–1 /Low / Auto (Available fan speed settings depending on indoor unit)
Airflow Direction Setting Airow angles: 100˚ – 80˚ – 60˚ – 40˚ and swing / Airow direction settings vary depending on indoor unit model
Permit/Prohibit Function Individual prohibit operations for each remote controller function (ON/OFF, Set Temperature, Operation Mode and Filter Reset)
Indoor Return Air Temperature Displays the measured return air temperature from each group
Error Indication Displays a four-digit code and the affected unit address
Ventilation Interlock Allows the group to be interlocked with Lossnay unit
Schedule Operation Weekly schedule can be set by groups based on operation pattern
External Input/Output Inputs: Level Signal–Batch Start / Stop, Batch Emergency Stop Outputs: Start / Stop Status, Error / Normal Status
Power Supply PAC–SC51KUA
Dimensions – (H x W x D) 4-3/4" x 7-1/8" x 1-3/16"
Customized individual zone control via a bright and easy
to use touch-screen interface. The TC-24B is perfect for
light commercial and residential applications.
STANDARD FEATURES
CENTRALIZED CONTROLLER TC–24B
M–NET
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 61
CITY MULTI
®
CONTROLS

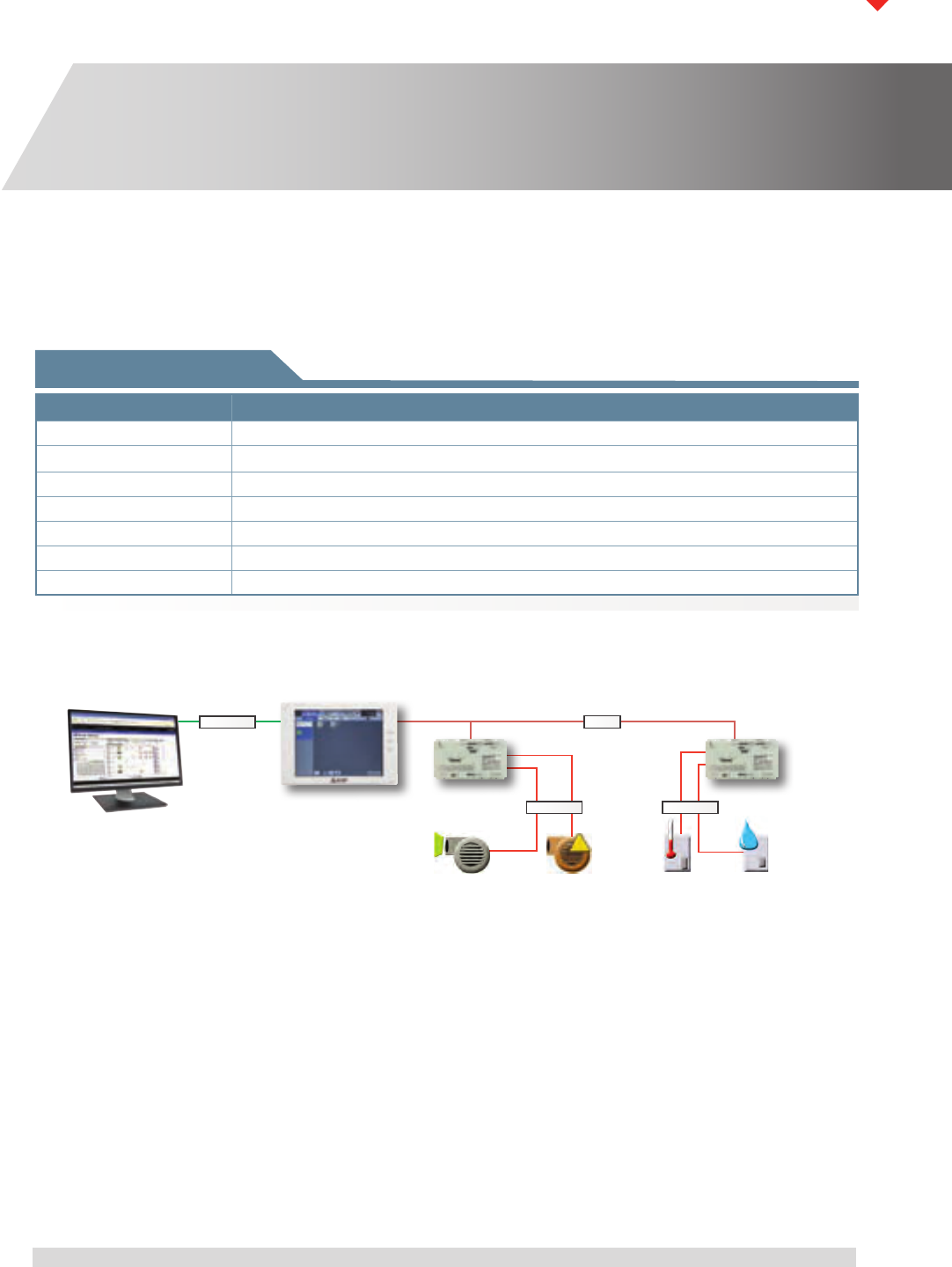

INPUT/OUTPUT CONTROLLERS
Function Description
Display Displays measurement data via AE-200A, AE-50A, and EW-50A web browser
Monitor Watt-hour meter, water meter, gas meter, calorimeter
Input Quantity of 4 non-voltage pulse inputs
Fail-safe device An internal capacitor will continue to track time for one week in the event of a power failure
Power Supply 24 VDC, 5 W, 0.2 A
Communication M–NET
Dimensions – (H x W x D) 1-13/16” x 7-7/8” x 4-3/4”
STANDARD FEATURES
PAC-YG60MCA PULSE INPUT (PI) CONTROLLER
The Pulse Input (PI) controller makes it possible to perform energy saving and energy allocation initiatives. A maximum of
four (4) measurement meters (WHM, gas meter, water meter, and calorie meter) can be connected to the PI Controller and
trended within the Centralized Controller. (Note: 24VDC power needs to be provided on-site.)
AE-200A
ETHERNET
ETHERNET ETHERNET
PAC–YG66DCA PAC–YG63DCA
SENSOR 1EQUIPMENT 1 EQUIPMENT 2 SENSOR 2
!
M–NET

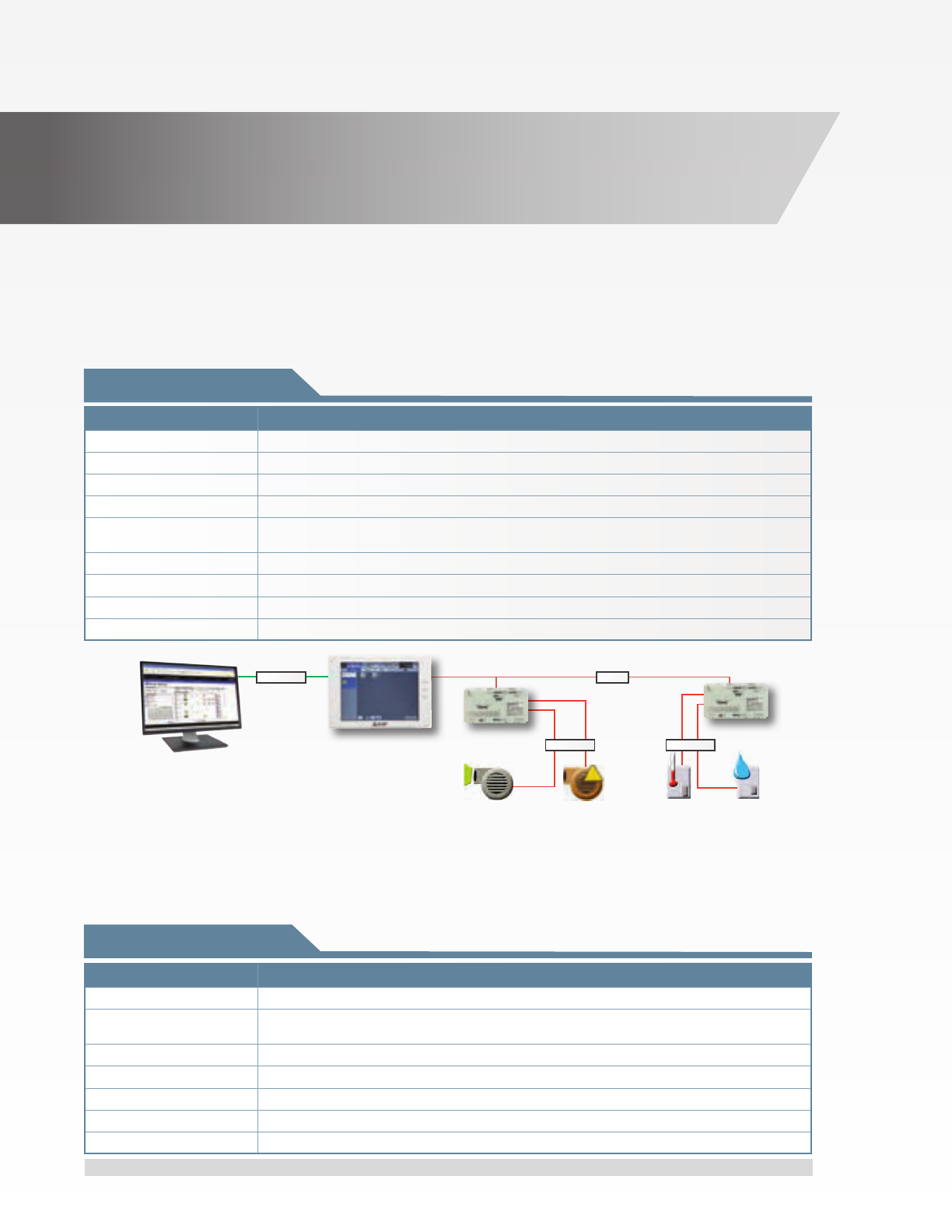

62
Function Description
Inputs Qty two Digital Status Inputs and 2 Digital Error Inputs (Non–Voltage Contacts)
Outputs Qty two Digital Outputs (Non–Voltage Relay Contact | Use only VDC with outputs
Monitor Status, Fault | Requires AE-200A, AE-50A, EW-50A, or TC–24B Centralized Controller
Control On/Off, Start/Stop, Enable/Disable | Requires AE-200A, AE-50A, EW-50A, or TC–24B Centralized Controller
Schedule Operation Weekly schedule can be set by groups based on operation pattern
Requires AE-200A, AE-50A, EW-50A, or TC–24B Centralized Controller
Interlock Function Interlock M–NET devices and output contacts according to status of input contacts
Power Supply 24 VDC (5W plus loads)
Communication M–NET
Dimensions – (H x W x D) 4–3/4" x 7–7/8" x 1–13/16"
PAC–YG66DCA DIGITAL INPUT DIGITAL OUTPUT (DIDO) CONTROLLER
The DIDO controller makes it possible to control general-purpose equipment with an AE-200A, AE-50A, EW-50A, or
TC-24B centralized controller. Connect up to six (6) pieces of equipment to the DIDO controller. The equipment can
either be scheduled or interlocked with indoor units through the use of a centralized controller. (Note: 24 VDC
power is required on-site.)
INPUT/OUTPUT CONTROLLERS
Function Description
Inputs Qty two Analog Inputs (0/10 VDC, 4/20 mA, 1–5 VDC)
Monitor Temperature and/or Humidity
Requires AE-200A, AE-50A or EW-50A centralized controller and eld supplied sensor
Interlock Function Interlock M–NET devices and output contacts according to measured values on inputs
Alarms Generate alarm based on user dened high and low limits
Power Supply 24 VDC (5W)
Communication M–NET
Dimensions – (H x W x D) 4–3/4" x 7–7/8" x 1–13/16"
STANDARD FEATURES
STANDARD FEATURES
PAC–YG63MCA ANALOG INPUT (AI) CONTROLLER
The AI Controller makes it possible to monitor values measured by the temperature and humidity sensors connected to the
AI Controller. The AI Controller has two input and two output channels and is required to be connected with an AE-200A,
AE-50A, or EW-50A centralized controller. The user can trend measured data on a Web browser and set alarms to output
via e-mail when data exceeds a preset upper or lower limit. (Note: 24 VDC power is required on-site.)
AE-200A
ETHERNET
ETHERNET ETHERNET
PAC–YG66DCA
PAC–YG63DCA
SENSOR 1EQUIPMENT 1 EQUIPMENT 2 SENSOR 2
!
M–NET

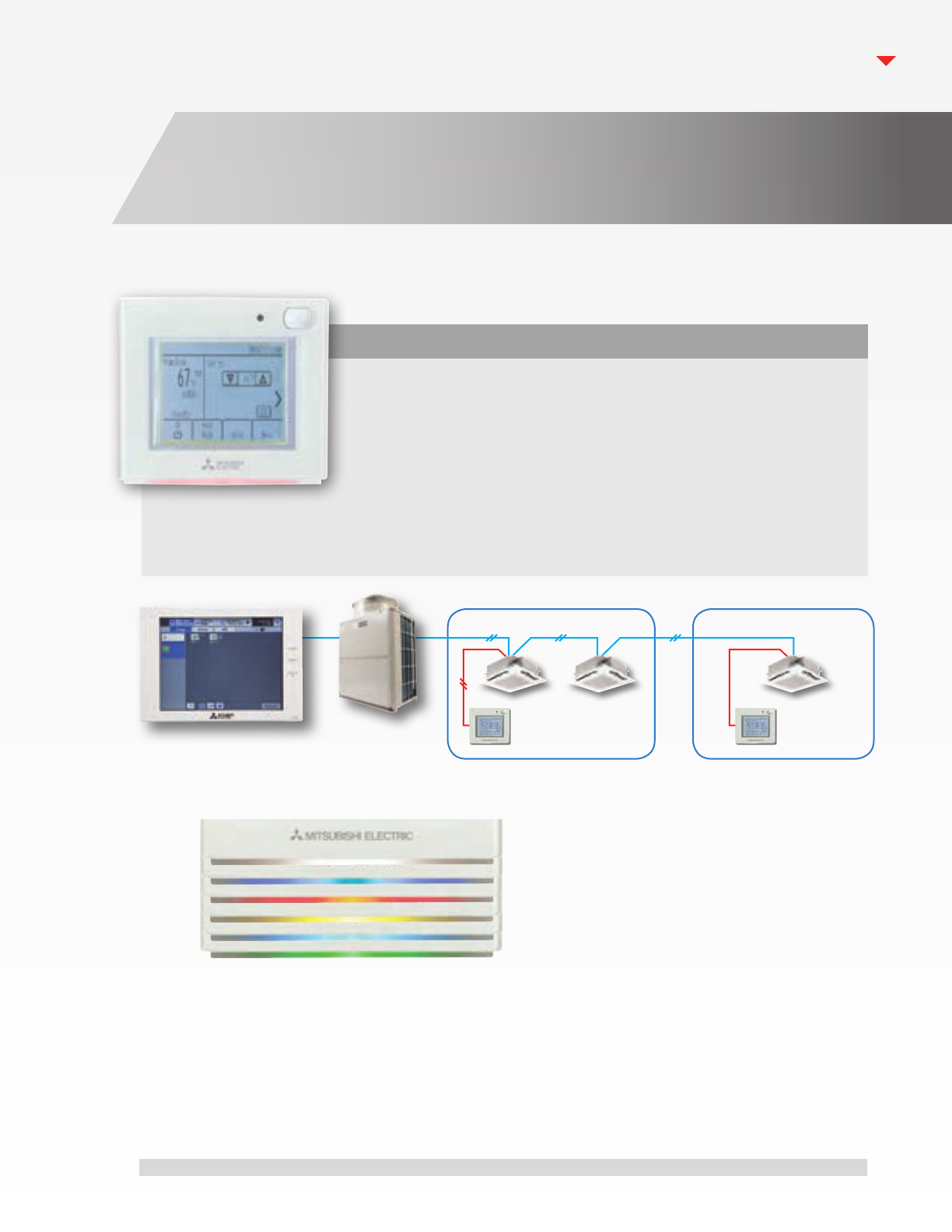

Remote Controller for CITY MULTI systems featuring an intuitive touch screen
interface with dual set point functionality and LED status indicator
KEY FEATURES
• Intuitive backlit touch screen.
• Group control up to 16 indoor units in a single zone.
• Onboard temperature, humidity, occupancy, and brightness sensors.
• Monitors third-party equipment through AdvancedHVAC controller.
• Supports dual set point and setback functions.
• Improved scheduling.
• Color glow status indicator LED bar.
• Dimensions (H x W x D): 4-3/4" x 5-9/16" x 1".
SMARTME
PAR-U01MEDU
COLOR GLOW STATUS INDICATOR
The LED bar indicates the operation status by lighting and
blinking with different colors and brightness (High/Low), or by
turning off. Multiple operation status indicators include blue
(Cooling), light blue (Drying), yellow (Fan), white (Auto), green
(Setback), red (Heating) and lime (Energy Save). Advanced
settings are available for selecting desired color per mode,
LED brightness (in conjunction with room brightness sensor),
and temperature range indicator.
ENERGY SAVE FUNCTION
The Energy Save function reduces energy consumption during
vacancy. The user can select a mode for the Energy Save
function which is activated based on vacancy detection in a
room, including the following:
• Thermo-off: Puts the unit into the Thermo-off state.
• Set temperature offset: Offsets the set temperature.
• Fan speed down: Sets the fan speed to Low.
• ON/OFF: Turns off the unit.
• Operation mode: Sets the operation mode to Setback.
OCCUPANCY SENSOR
The built-in Occupancy Sensor is used to detect movement
in a room. If the sensor detects no movement (or “vacancy”)
it will activate the selected Energy saving function mode.
The Occupancy Sensor returns the system to original
operating status after detecting movement. The user can
adjust the away time and detection sensitivity threshold level
for the Occupancy Sensor. Brightness can also be used in
conjunction with motion to determine occupancy.
Auto (white)
Cool (blue)
Heat (red)
Fan (yellow)
Drying (light blue)
Setback (green)
→
→
→
→
→
→
ZONE CONTROLLERS
Smart ME
Controller
Smart ME
Controller
AE-200A
CITY MULTI
®
CONTROLS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 63
64

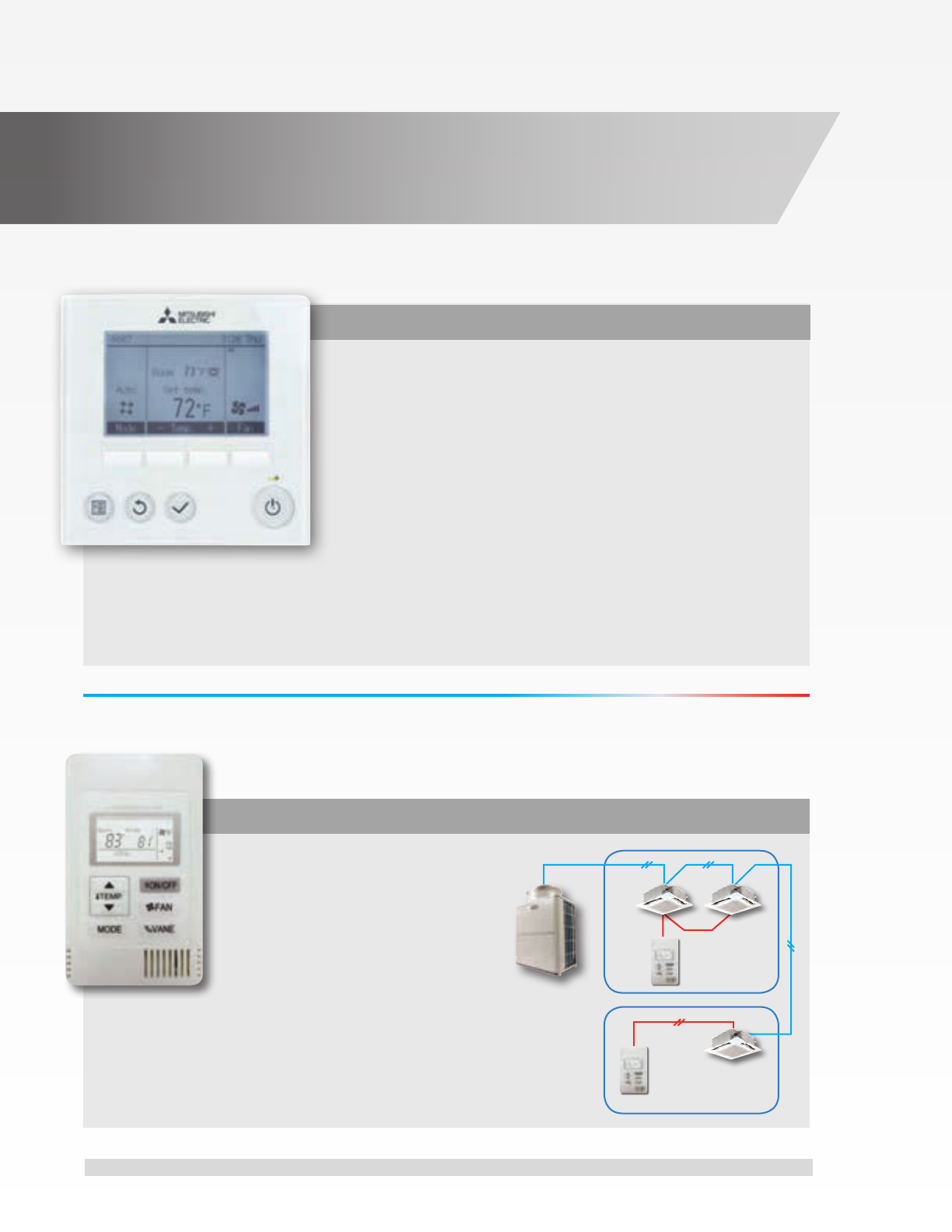

ZONE CONTROLLERS
SIMPLE MA
KEY FEATURES
• Controls up to 16 zones.
• Backlit LCD.
• Operation modes of Cool, Heat,
Dry, Fan, Auto, Ventilation, Setback
(depending on connected equipment).
• Fan speed settings.
• Controls air direction (vane direction and ventilation).
• Dimensions: 2-3/4" x 1-5/8" x 4-3/4".
• Dual set point functionality.
PAC-YT53CRAU
Easy to use remote for temperature and operation mode control
Wired remote controller ideal for easy operation, convenience, and energy savings
KEY FEATURES
• Controls up to 16 zones.
• Large easy-to-see backlit LCD with two display modes:
Full or Basic.
• Interlock and control Lossnay units.
• Operation modes: Auto, Cool, Heat, Dry, Fan.
• Fan speed settings.
• Controls air direction (vane direction and ventilation).
• Dimensions: 4-3/4” x 3/4” x 4-3/4”
• Dual set point functionality.
WIRED MA REMOTE CONTROLLER
PAR-32MAA
Simple MA
remote
controller
Simple MA
remote
controller
M-NET
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 65
CITY MULTI
®
CONTROLS
ZONE CONTROLLERS

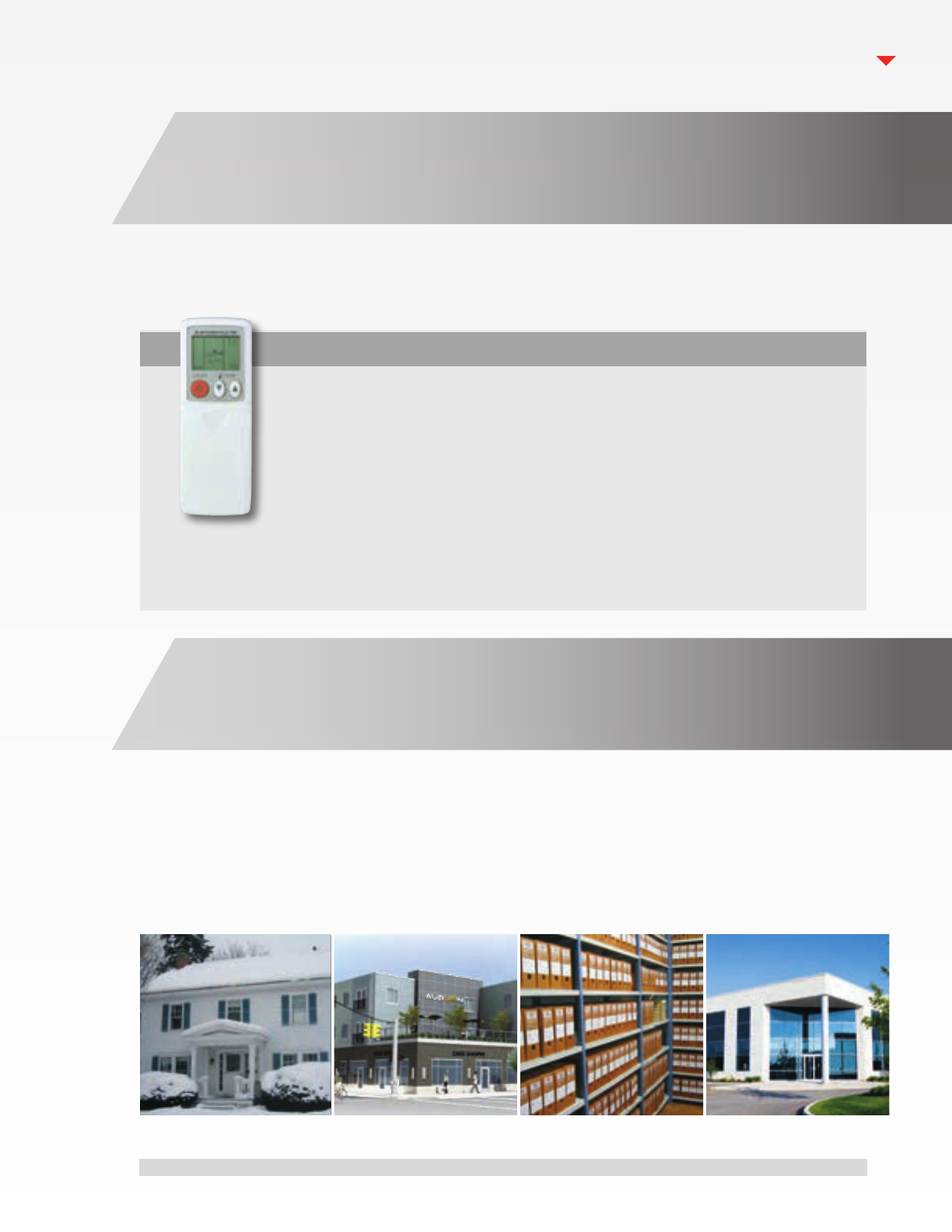

Easy-to-use hand-held remote for temperature and operation mode
control for CITY MULTI
®
and P-Series systems
KEY FEATURES
• Hand held wireless remote control of up to 16 indoor units.
• Operation modes of Cool, Heat, Dry, Fan, Auto, Ventilation.
• Fan speed, airow direction settings.
• Compatible with P-Series and CITY MULTI systems.
• Requires PAR-FA32MA Wireless Receiver. (Built-in as standard on PKFY models).
• Dimensions–Remote: 2-5/16" x 3/4" x 5-1/4"
Receiver: 2-3/4" x 7/8" x 4-12/16".
WIRELESS MA REMOTE CONTROLLER AND MA RECEIVER
PAR-FL32MA
ADVANCEDHVAC CONTROLLER
AdvancedHVAC Controller
The AdvancedHVAC controller features customizable applications for integrating CITY MULTI indoor units with
third party equipment. Physical inputs and outputs can be used for reading sensors and energizing relays.
An analog output accessory can be added for modulating third party equipment signals. Status of inputs and
outputs are displayed on the AE-200A, AE-50A, EW-50A web browser and the PAR-U01MEDU SmartME Remote
Controller screen.
Auxiliary Heat Y-Series Changeover Humidity Control Ventilation Control
66

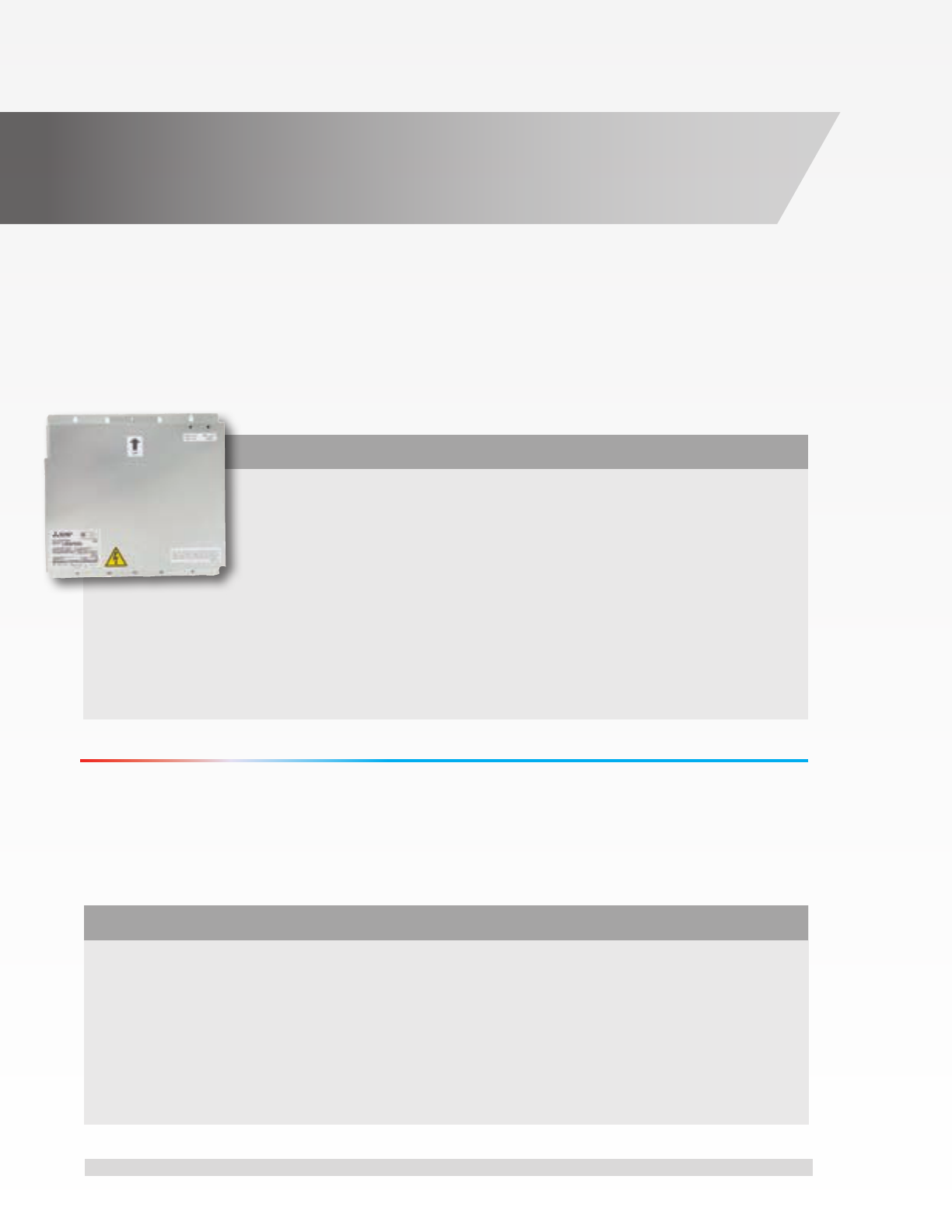

KEY FEATURES
• Up to 50 units (CITY MULTI, M-Series, P-Series and/or Lossnay) can be
connected with one LonWorks interface.
• Operation/Setting: Request On/Off, Set Point, Request Lossnay Mode,
Request Fan Speed, Request Local Prohibit On/Off and Set Point, Request
Forced Thermostat Off, Filter Sign Reset, Time Stamp, Request Limit
Temperature Setting Range, Request Simplied Locking.
• Features a built-in power supply (208/230 VAC).
• Dimensions: 13-7/16" x 14-3/16" x 2-3/8".
LONWORKS
®
INTERFACE
The CMCN supports integration with Building Management Systems (BMS) via
LonWorks
®
and BACnet
®
The Mitsubishi Electric LonWorks
®
interface, LMAP04U, supports up to 50 indoor units with a variety of network
variables on a per indoor unit basis. Input variables include, but are not limited to: On/Off, Operation Mode, Fan
Speed, Prohibit Remote Controller, and Filter Sign Reset. Output variables include but are not limited to: Model
Size, Alarm State, Error Code, and Error Address.
The AE-200A/AE-50A/EW-50A centralized controllers are BTL
®
(BACnet Testing Laboratories) listed,
demonstrating their compliance with ASHRAE standards and their compatibility with building management
systems supporting the BACnet TCP/IP communication protocol.
SYSTEM INTEGRATION
BACNET
®
LICENSE
KEY FEATURES
• Connect up to 50 indoor units per licensed controller.
• Supports the monitoring and operation of CITY MULTI indoor units, M- and
P-Series indoor units (requires additional adapter), and Lossnay ERV units.
• BACnet TCP/IP
• Licensed feature of the centralized controller
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 67
CITY MULTI
®
CONTROLS

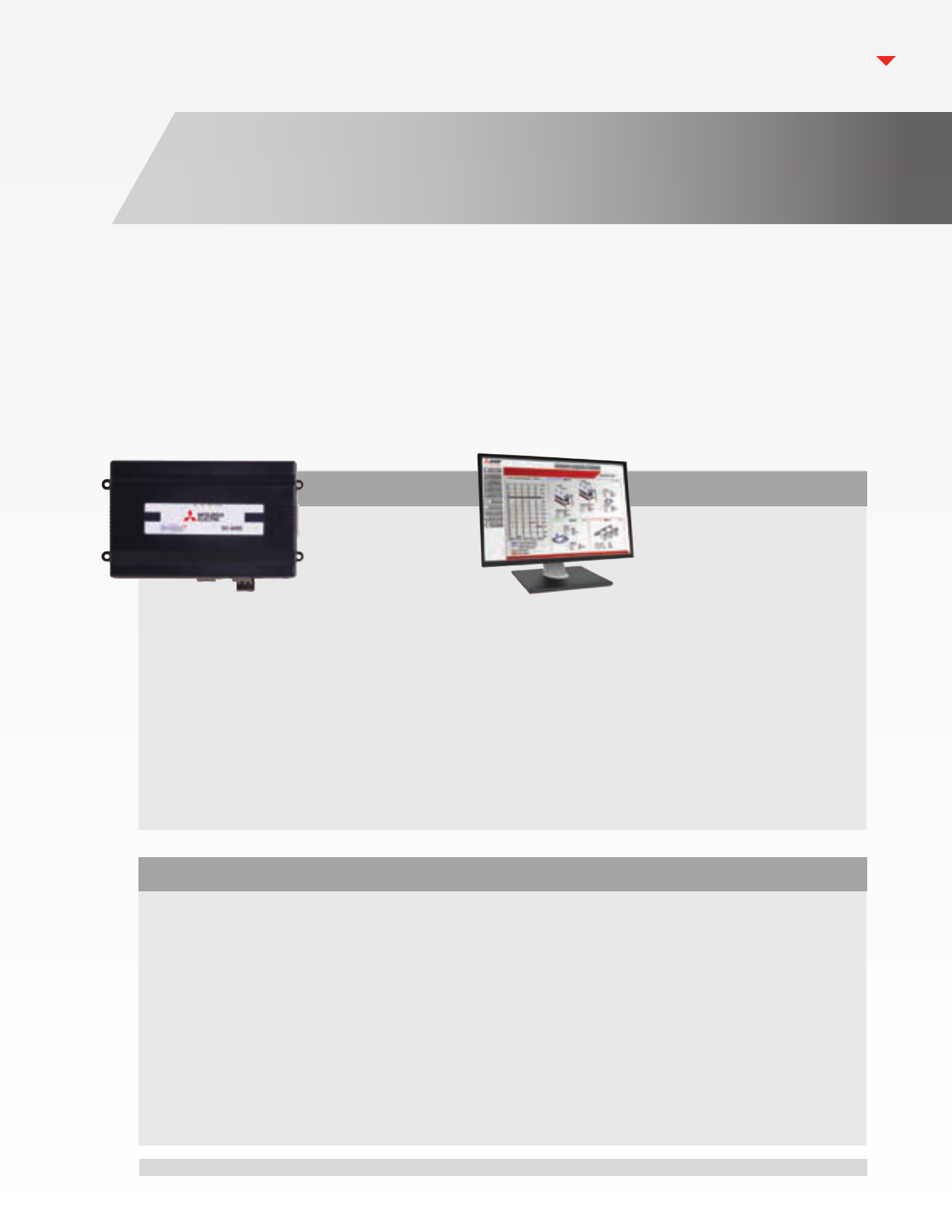

DIAMOND CONTROLS
™
A branded, bundled, and seamless building controls solution packaged with our
variable refrigerant flow (VRF).
Mitsubishi Electric’s Diamond Controls is powered by the industry leading NiagaraAX Framework
®
, the industry’s rst
software technology designed to integrate diverse building systems and devices into one seamless system. Niagara
supports a wide range of protocols including LonWorks™, BACnet™, Modbus
®
, oBIX and Internet standards. The
AX Framework also includes integrated network management tools to support the design, conguration, installation
and maintenance of interoperable networks.
The Mitsubishi Electric
DC-600-E is an
embedded controller/
server platform that
combines integrated control, supervision, data
logging, alarming, scheduling and network
management functions into a small, compact
platform with network connectivity and web
serving capabilities. The DC-600E makes it
possible to control and manage external devices
over the network, presenting real-time information
to users in web-based graphical views.
Professional Solutions is a group of industry experts
located across the country who are ready to assist
with ever aspect of Mitsubishi Electric Cooling &
Heating systems. By utilizing Professional Solutions,
a building owner has peace of mind that the project
will seamlessly move forward with minimal hiccups.
With one company providing the equipment and the
controls, project execution is much more efcient.
Professional Solutions services include:
- Project Supervision
- Owner Training
- System Start-up
- Project Training
- System Commissioning
- Design Support
- Retro-commissioning
- System Evaluation
The Mitsubishi Electric DCPro
is a exible network server
for all connected DC-600E
stations. The DCPro provides
efcient integration of standard open protocols. The
DCPro creates a powerful network environment with
comprehensive database management functionality,
alarm management, and messaging services. DCPro
can manage global control functions, support data
passing over multiple networks, connect to enterprise
level software applications, and host multiple,
simultaneous client workstations connected over a local
network or the Internet.
PROFESSIONAL SOLUTIONS GROUP
DCProDC-600E
68
DIAMOND CONTROLS APPLICATIONS
HIGH-RESOLUTION 3D GRAPHICS
Diamond Controls enables a new graphical user experience for variable
refrigerant ow (VRF) zoning systems with the inclusion of high resolution
three-dimensional oor plan graphics of your building.
MEASURING
INFRAESTRUCTURE
DR-On %
Kw $
DR-Off %
Open Standards
Based Model
COMMERCIAL
Change
Indor Unit
Setpoint
and Mode
Or Turn Indoor
Unit On/Off
Limit
Outdoor Unit
Capacity
DC PRO
UTILITY PLANT
DC-600E
DC-600E
DEMAND RESPONSE DIAGRAM
DEMAND RESPONSE COMPLIANCE
Demand Response programs help utilities maintain grid reliability and enable
customers to realize signicant value. Diamond Controls provides Demand
Response compliance to a building owner through OpenADR.
ADVANCED ALARMING
Diamond Controls advanced logic enables superior alarming capabilities for
building awareness, as well as VRF zoning systems. The building owner can
set-up multiple alarm conditions ranging from simple out-of-range alarms to
advanced condition alarms.
LIGHTING CONTROL
Diamond Controls can manage a building’s lighting system without requiring
integration with third party equipment. Lighting control provides a building
manager the ability to set lighting schedules, which can be overridden by
local switches if necessary.
HVAC EQUIPMENT INTEGRATION
Diamond Controls can schedule, monitor, control, and integrate advanced
logic within various HVAC manufacturer’s equipment. Diamond Controls can
also easily integrate into an existing building management system (BMS).
CENTRAL PLANT CONTROL
Diamond Controls can monitor, control, and schedule a central plant
to provide chilled or hot water for the buildings needs without requiring
additional third party controls.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 69
CITY MULTI
®
CONTROLS

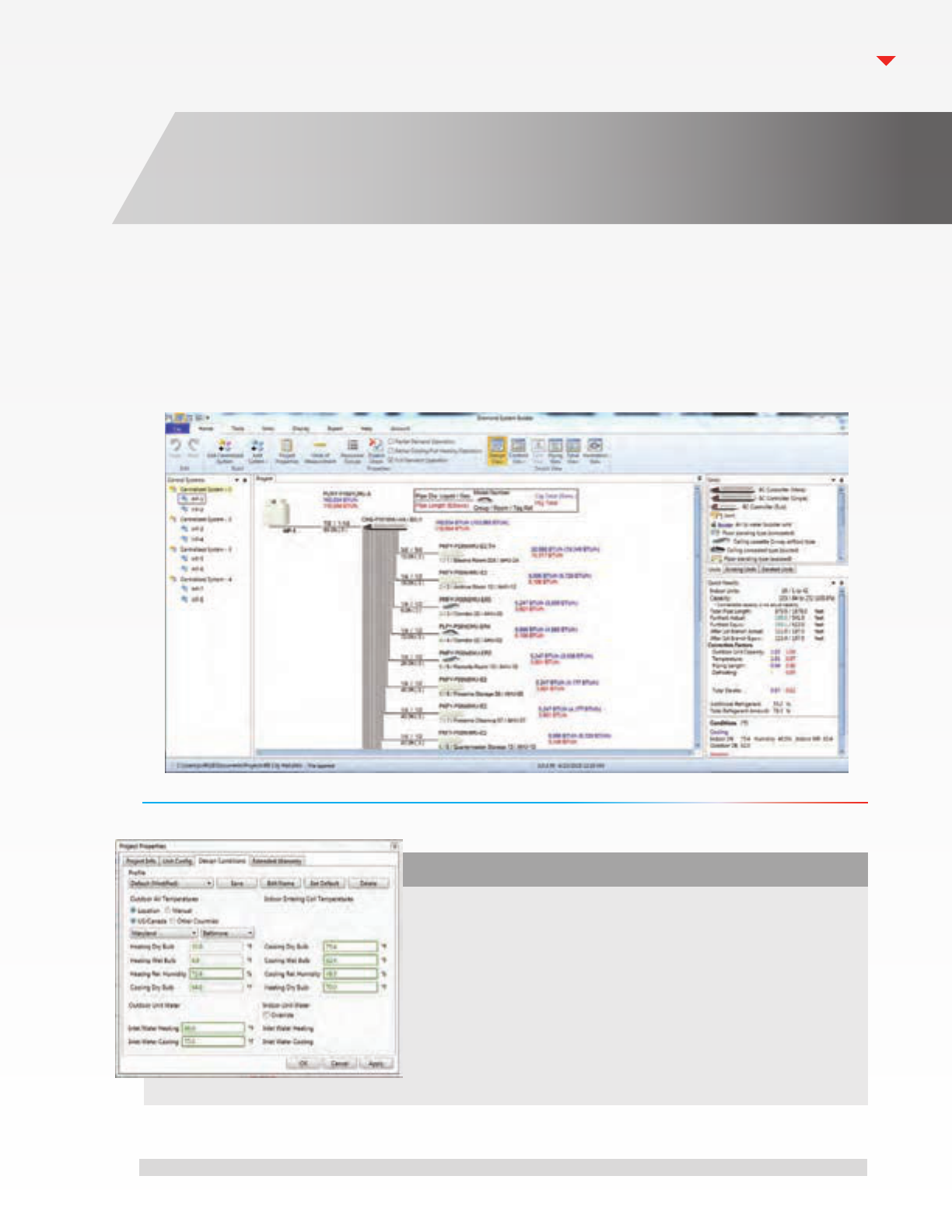

DIAMOND SYSTEM BUILDER
Diamond System Builder is an interactive system layout tool providing a
simple and ecient means of system design.
Diamond System Builder (DSB) helps users determine the cooling and heating output of selected
equipment for project-specic conditions. The program has error indicators and built-in safeguards against
exceeding limitations, assuring line lengths, maximum connected capacities, component selections,
control schemes, etc. are within the system requirements.
System design conditions, such as indoor and outdoor
design conditions, are easily entered for both cooling
and heating. Customer and project names can be
entered to identify the job on the outputs.
PROJECT PROPERTIES
70

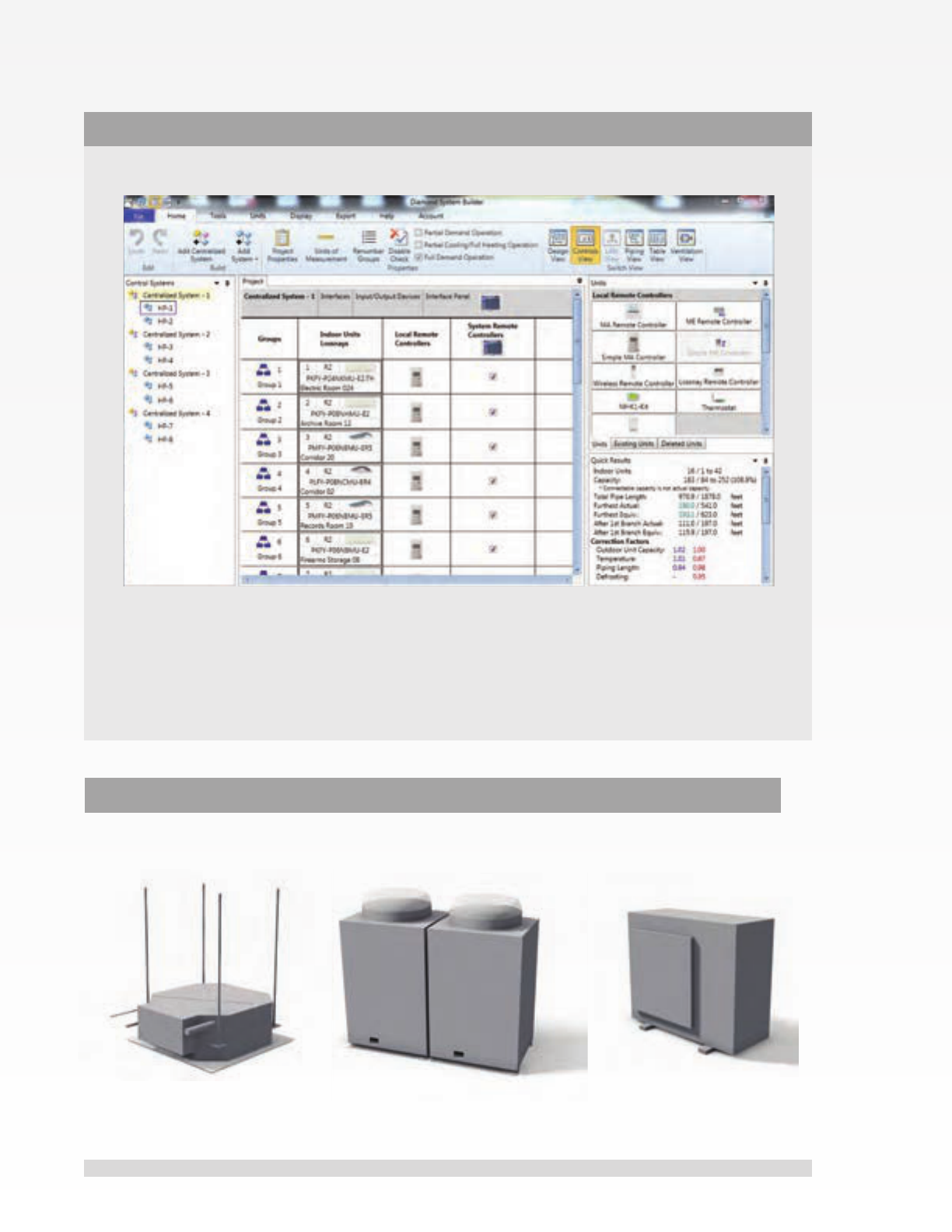

DSB INTERFACE
Optional functions to customize the system layout to your project are available, such as labeling groups with
a room name, adding equipment tags to pieces of equipment, and giving each system a project-specic
name. Other features, like a custom equipment schedule, submittal packages, and AutoCAD drawings are
available once the system layout has been nalized.
REVIT AND AUTOCAD OUTPUTS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 71

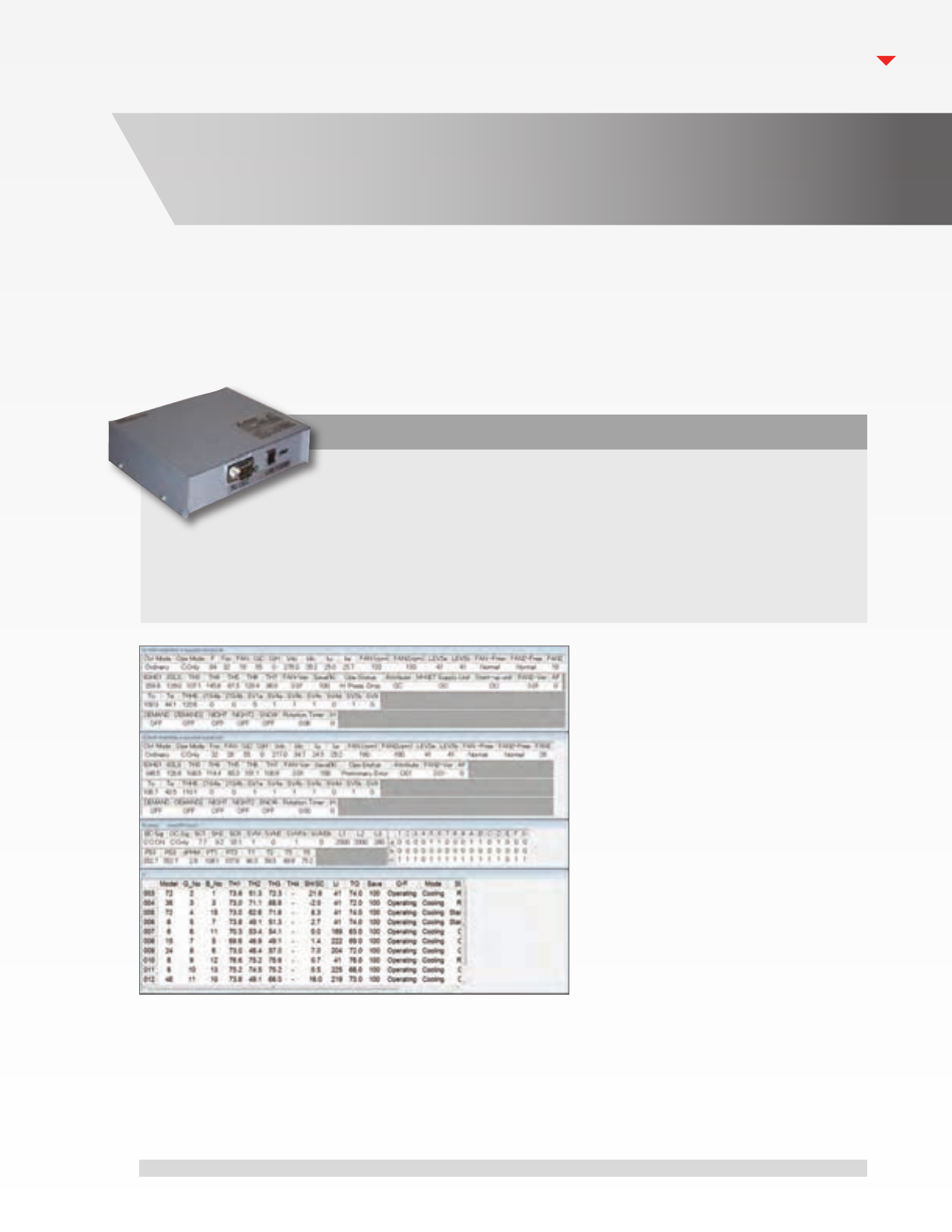

MAINTENANCE TOOL
MN CONVERTER
KEY FEATURES
• Allows technicians to monitor and collect CITY MULTI system data
and control various functions.
• System monitoring accomplished through direct connection
between your PC and the M–NET bus line using the MN–Converter.
CMS–MNG–E
The operation status monitor screen displays the operational
data for the connected system, including system pressures,
temperatures, LEV settings, compressor frequency, current
operational mode, and more. Pre–recorded data can also be
viewed in an off–line version of this screen.
The mode select screen allows
the user to select the method for
connection to the CITY MULTI
system, whether direct or remotely,
or choose to analyze previously
recorded data ofine.
Easy–to–use, Windows
®
-based Maintenance Tool software
Use Maintenance Tool software to monitor pressure and temperature readings from CITY MULTI system sensors, display
and control system LEV settings and display and remotely control all connected indoor units. Maintenance Tool software
also allows the technician to record and save system operational data for the purposes of trending and system analysis
off site as well as display malfunction logs and email error reports to personnel responsible for servicing the system.
CITY MULTI
®
CONTROLS
72
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 73
SPECIFICATION TABLES
74
SPECIFICATIONS: L-GENERATION R2-SERIES
Model Name
208V
/230V
PURY-P72TLMU-A (-BS) PURY-P96TLMU-A (-BS) PURY-P120TLMU-A (-BS) PURY-P144TLMU-A (-BS) PURY-P168TLMU-A (-BS)
460V PURY-P72YLMU-A (-BS) PURY-P96YLMU-A (-BS) PURY-P120YLMU-A (-BS) PURY-P144YLMU-A (-BS) PURY-P168YLMU-A (-BS)
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal) *1
Cooling
Btu/h
Capacity
72,000 96,000 120,000 144,000 168,000
Heating
Btu/h
Capacity
80,000 108,000 135,000 160,000 188,000
Electrical Supply
MCA
A
24 / 22
11
33 / 30
15
42 / 39
19
52 / 48
24
68 / 63
31
MOP
A
35 / 35
20
50 / 50
25
60 / 60
30
80 / 70
35
110 / 100
50
Fan
Type X Quantity Propeller Fan x 1 Propeller Fan x 2
Airow Rate CFM 6,550 11,300
External Static Pressure
Selectable; 0, 0.12 or 0.24"W.G.; factory set to 0"W.G.
Compressor
Type X Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 13% to 100% 15% to 100% 12% to 100%
Lubricant MEL32
Refrigerant Type R410A
External Finish Pre-coated galvanized steel sheet (Plus Powder Coating for -BS type) <MUNSELL 5Y 8/1 or similar>
Dimensions H x W x D
Height In. 64-31/32
Width In. 36-1/4 48-1/16 68-29/32
Depth In. 29-5/32
Net Weight Pounds
444
474
503
534
695
730
702
730
Sound Pressur
e Level
(Measured In Anechoic Room)
dB(A) 58.0 60.0 61.0
Protection Devices
High Pr
essure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-curr
ent protection
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In. 5/8 3/4 7/8
Gas
(Low Pressure)
(Brazed)
In. 3/4 1-1/8 7/8 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 150% of outdoor unit capacity
Model / Quantity P06 - P72 / 1 to 18 P06 - P96 / 1 to 24 P06 - P96 / 1 to 30 P06 - P96 / 1 to 36 P06 - P96 / 1 to 42
Operating
Temperature Range
Cooling D.B.
**Outdoor: 23° to 126° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings *2
EER (Ducted/Non-Ducted) *2 13.5 / 14.8 12.0 / 14.1 12.8 / 14.7 12.2 / 14.0 10.6 / 11.2
IEER (Ducted/Non-Ducted) *2 23.1 / 28.1 24.1 / 27.0 19.9 / 24.6 19.7 / 24.3 15.9 / 19.6
COP (Ducted/Non-Ducted) *2 3.65 / 4.30 3.53 / 4.00 3.52 / 3.99 3.38 / 3.72 3.24 / 3.49
SCHE (Ducted/Non-Ducted) *2 25.9 / 28.4 23.5 / 31.5 25.3 / 30.3 24.8 / 27.7 24.7 / 28.3
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2. Efficiency values based on AHRI 1230 test method
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
PURY-P** (T/Y) LMU
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 75
Model Name
208V
/230V
PURY-P144TSLMU
(-BS) *2
PURY-P168TSLMU
(-BS) *2
PURY-P192TSLMU
(-BS) *2
PURY-P216TSLMU
(-BS) *2
PURY-P240TSLMU-A
(-BS) *2
With 2 PURY-P72TLMU-A
(-BS) *3
With 1 PURY-P72TLMU-A
(-BS) and
1 PURY-P96TLMU-A
(-BS) *3
With 2 PURY-P96TLMU-A
(-BS) *3
With 1 PURY-P96TLMU-A
(-BS) and
1 PURY-P120TLMU-A
(-BS) *3
With 2 PURY-P120TLMU-A
(-BS) *3
460V
PURY-P144YSLMU-A
(-BS) *2
PURY-P168YSLMU-A
(-BS) *2
PURY-P192YSLMU-A
(-BS) *2
PURY-P216YSLMU-A
(-BS) *2
PURY-P240YSLMU-A
(-BS) *2
With 2 PURY-P72YLMU-A
(-BS) *3
With 1 PURY-P72YLMU-A
(-BS) and 1 PURY-
P96YLMU-A (-BS) *3
With 2 PURY-P96YLMU-A
(-BS) *3
With 1 PURY-P96YLMU-A
(-BS) and 1 PURY-
P120YLMU-A (-BS) *3
With 2 PURY-P120YLMU-A
(-BS) *3
Power Source
208V / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
144,000 168,000 192,000 216,000
240,000
Heating
Btu/h
Capacity
160,000 188,000 215,000 243,000
270,000
Fan
Type X Quantity Refer to:
PURY-P72TLMU-A (-BS)
PURY-P72YLMU-A (-BS)
Refer to:
PURY-P72TLMU-A (-BS) /
PURY-P96TLMU-A (-BS)
PUR
Y
-P72YLMU-A (-BS) /
PURY-P96YLMU-A (-BS)
Refer to:
PURY
-P96TLMU-A (-BS)
PURY-P96YLMU-A (-BS)
Refer to:
PURY-P96TLMU-A (-BS) /
PURY-P120TLMU-A (-BS)
PURY
-P96YLMU-A (-BS) /
PURY-P120YLMU-A (-BS)
Refer to:
PUR
Y
-P120TLMU-A (-BS)
PURY-P120YLMU-A (-BS)
Airow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 6% to 100% 5% to 100% 7% to 100%
Lubricant
Refer to:
PURY-P72TLMU-A (-BS)
PURY-P72YLMU-A (-BS)
Refer to:
PURY-P72TLMU-A (-BS) /
PURY-P96TLMU-A (-BS)
PUR
Y
-P72YLMU-A (-BS) /
PURY-P96YLMU-A (-BS)
Refer to:
PURY
-P96TLMU-A (-BS)
PURY-P96YLMU-A (-BS)
Refer to:
PURY-P96TLMU-A (-BS) /
PURY-P120TLMU-A (-BS)
PURY
-P96YLMU-A (-BS) /
PURY-P120YLMU-A (-BS)
Refer to:
PURY
-P120TLMU-A (-BS)
PURY-P120YLMU-A (-BS)
Refrigerant Type
External Finish
Dimensions
H x W x D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level
(Measured In Anechoic Room)
dB(A) 61.0 62.0 63.0
Protection
Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit (Compressor / Fan) Over-current protection
Refrigerant
Pipe
Dimensions
Gas (Low Pressure)
(Brazed)
In. 7/8 1-1/8
Liquid (High Pressure)
(Brazed)
In. 1-1/8 1-3/8
Indoor Unit
Connectable
Total Capacity 50% to 150% of outdoor unit capacity
Model / Quantity P06-P96 / 1 to 36 P06-P96 / 1 to 42 P06-P96 / 1 to 48 P06-P96 / 2 to 50 *4
P06-P96 / 2 to 50 *4
Operating
Temperature
Range
Cooling D.B. **Outdoor: 23° to 126° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings *5
EER (Ducted/Non-Ducted) *5 12.3 / 14.2 11.0 / 12.6 11.4 / 12.1 11.7 / 12.4
11.8 / 12.9
IEER (Ducted/Non-Ducted) *5 21.2 / 26.6 19.9 / 24.8 23.5 / 23.9 21.5 / 22.9
19.0 / 22.3
COP (Ducted/Non-Ducted) *5 3.58 / 4.07 3.39 / 3.77 3.53 / 3.59 3.52 / 3.59
3.45 / 3.64
SCHE (Ducted/Non-Ducted) *5 25.0 / 28.8 24.9 / 29.4 23.0 / 28.0 22.7 / 26.9
22.9 / 26.8
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two individual outdoor units in the field for
PURY-P-T(Y)SLMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Maximum connectable number of branch pipes is 48.
*5 Efficiency values based on AHRI 1230 test method
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
NOTES: In systems with considerably long piping runs, the outdoor units may exhibit slightly louder than
normal sound pressure levels when in heating mode.
The outdoor twinning kit (low pressure) should be connected to the low pressure side of the outdoor unit.
If the connected units are different capacities, the outdoor twinning kit (low pressure) should be installed
in the unit with the largest capacity.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
PURY-P** (T/Y) LMU
76
SPECIFICATIONS: L-GENERATION
© 2015 Mitsubishi Electric US, Inc.
Model Name
208V
/230V
PURY-P264TSLMU-A (-BS) *2 PURY-P288TSLMU-A (-BS) *2 PURY-P312TSLMU-A (-BS)*2 PURY-P336TSLMU-A (-BS)*2
With 1 PURY-P120TLMU-A (-BS)
and
1 PURY-P144TLMU-A (-BS) *3
With 2 PURY-P144TLMU-A
(-BS) *3
With 1 PURY-P144TLMU-A
(-BS) and 1 PURY-P168TLMU-A
(-BS) *3
With 2 PURY-P168TLMU-A
(-BS) *3
460V
PURY-P264YSLMU-A
(-BS) *2
PURY-P288YSLMU-A
(-BS) * *2
PURY-P312YSLMU-A (-BS) * *2 PURY-P336YSLMU-A (-BS) * *2
With 1 PURY-P120YLMU-A
(-BS)* and 1 PURY-P144YLMU-A
(-BS) *3
With 2 PURY-P144YLMU-A
(-BS) *3
With 1 PURY-P144YLMU-A
(-BS) and 1 PURY-P168YLMU-A
(-BS) *3
With 2 PURY-P168YLMU-A
(-BS) *3
Power Source
208 / 230V 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
264,000 288,000 312,000 336,000
Heating
Btu/h
Capacity
295,000 323,000 350,000 378,000
Fan
Type X Quantity
Refer to:
PURY-P120TLMU-A (-BS) /
PURY-P144TLMU-A (-BS)
PURY-P120YLMU-A (-BS) /
PURY-P144YLMU-A (-BS)
Refer to:
PURY-P144TLMU-A (-BS)
PURY-P144YLMU-A (-BS)
Refer to:
PURY-P144TLMU-A (-BS)
PURY-P168TLMU-A
PURY-P144YLMU-A (-BS)
PURY-P168YLMU-A
Refer to:
PURY-P168TLMU-A (-BS)
PURY-P168YLMU-A (-BS)
Airow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 7% to 100% 6% to 100%
Lubricant
Refer to:
PURY-P120TLMU-A (-BS) /
PURY-P144TLMU-A (-BS)
PURY-P120YLMU-A (-BS) /
PURY-P144YLMU-A (-BS)
Refer to:
PURY-P144TLMU-A (-BS)
PURY-P144YLMU-A (-BS)
Refer to:
PURY-P144TLMU-A (-BS)
PURY-P168TLMU-A
PURY-P144YLMU-A (-BS)
PURY-P168YLMU-A
Refer to:
PURY-P168TLMU-A (-BS)
PURY-P168YLMU-A (-BS)
Refrigerant Type
External Finish
Dimensions H x
W x D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level
(Measured In Anechoic Room)
dB(A) 63.5 64.0
Protection
Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit (Compressor / Fan) Over-current protection
Refrigerant Pipe
Dimensions
Gas (Low Pressure)
(Brazed)
In. 1-1/8
Liquid (High Pressure)
(Brazed)
In. 1-3/8 1-5/8
Indoor Unit
Connectable
Total Capacity 50% to 150% of outdoor unit capacity
Model / Quantity P06-P96 / 2 to 50 *4
Operating
Temperature
Range
Cooling D.B.
**Outdoor: 23° to 126° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings * 5
EER (Ducted/Non-Ducted) *5 11.5 / 12.5 11.3 / 12.2 10.5 / 11.0 9.9 / 9.7
IEER (Ducted/Non-Ducted) *5 18.7 / 21.9 18.5 / 21.9 16.9 / 19.7 15.3 / 17.6
COP (Ducted/Non-Ducted) *5 3.36 / 3.49 3.28 / 3.38 3.24 / 3.27 3.19 / 3.23
SCHE (Ducted/Non-Ducted) *5 22.3 / 25.7 21.7 / 24.5 20.6 / 23.8 20.4 / 23.4
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two individual outdoor units in the field for
PURY-P-T(Y)SLMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Maximum connectable number of branch pipes is 48.
*5 Efficiency values based on AHRI 1230 test method
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
NOTES: In systems with considerably long piping runs, the outdoor units may exhibit slightly louder than
normal sound pressure levels when in heating mode.
The outdoor twinning kit (low pressure) should be connected to the low pressure side of the outdoor unit.
If the connected units are different capacities, the outdoor twinning kit (low pressure) should be installed
in the unit with the largest capacity.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
PURY-P** (T/Y) LMU
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 77
SPECIFICATIONS: L-GENERATION Y-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Efficiency values based on AHRI 1230 test method.
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
Model Name
208V/
230V
PUHY-P72TLMU-A (-BS) PUHY-P96TLMU-A (-BS) PUHY-P120TLMU-A (-BS) PUHY-P144TLMU-A (-BS) PUHY-P168TLMU-A (-BS)
460V PUHY-P72YLMU-A (-BS) PUHY-P96YLMU-A (-BS) PUHY-P120YLMU-A (-BS) PUHY-P144YLMU-A (-BS) PUHY-P168YLMU-A (-BS)
Power Source
208 / 230V, 3-Phase, 60Hz /
460V, 3-Phase, 60Hz
Capacity (Nominal) *1
Cooling
Btu/h
Capacity
72,000 96,000 120,000 144,000 168,000
Heating
Btu/h
Capacity
80,000 108,000 135,000 160,000 188,000
Electrical Supply
MCA A
24 / 22
11
32 / 29
14
42 / 39
19
46 / 43
21
58 / 54
26
MOP
A
35 / 35
15
50 / 45
20
60 / 60
30
70 / 70
35
90 / 80
40
Fan
Type X Quantity Propeller Fan x 1 Propeller Fan x 2
Airow Rate CFM 6,200 6,700 11,300 12,700
External Static Pressure Selectable; 0, 0.12 or 0.24"WG; factory set to 0"W.G.
Compressor
Type X Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 13% to 100% 15% to 100% 12% to 100%
Lubricant MEL32
Refrigerant Type R410A
External Finish Pre-coated galvanized steel sheet (Plus Powder Coating for -BS type) <MUNSELL 5Y 8/1 or Similar>
Dimensions H X W X D
Height In. 64-31/32
Width In. 36-1/4 48-1/16 68-29/32
Depth In. 29-5/32"
Net Weight Pounds
435
468
499
532
671
706
673
702
Sound Pressure Level
(Measured In Anechoic Room)
dB(A) 58.0 60.0 61.0 62.0
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Brazed)
In. 3/8
3/8
(1/2", length to rst joint≥
295')
3/8
(1/2", length to rst joint≥
131')
1/2 5/8
Gas
(Low Pressure)
(Brazed)
In. 7/8 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 130% of outdoor unit capacity
Model / Quantity P06 - P72 / 1 to 15 P06 - P96 / 1 to 20 P06 - P96 / 1 to 26 P06 - P96 / 1 to 31 P06 - P96 / 1 to 36
Operating
Temperature Range
Cooling D.B.
**Outdoor: 23° to 126° F
Heating W.B. Outdoor: -13° to 60° F
System Eciencies *2
EER (Ducted/Non-Ducted) *2 13.7 / 16.4 13.1 / 15.5 13.2 / 14.9 12.5 / 14.0 11.6 / 12.5
IEER (Ducted/Non-Ducted) *2 23.1 / 28.1 23.1 / 28.2 21.9 / 25.3 21.2 / 24.7 18.7 / 22.2
COP (Ducted/Non-Ducted) *2 3.84 / 4.44 3.79 / 4.27 3.71 / 4.17 3.55 / 3.88 3.47 / 3.77
PUHY-P** (T/Y) LMU
78
SPECIFICATIONS: L-GENERATION
Model Name
208V/
230V
PUHY-P144TSLMU-A
(-BS) *2
PUHY-P168TSLMU-A
(-BS) *2
PUHY-P192TSLMU-A
(-BS) *2
PUHY-P216TSLMU-A
(-BS) *2
PUHY-P240TSLMU-A
(-BS) *2
With 2 PUHY-P72TLMU-A
(-BS) *3
With 1 PUHY-P72TLMU-A
(-BS) and 1 PUHY-
P96TLMU-A (-BS) *3
With 1 PUHY-P72TLMU-A
(-BS) and 1 PUHY-
P120TLMU-A (-BS)
With 1 PUHY-P96TLMU-A
(-BS) and 1 PUHY-
P120TLMU-A (-BS) *3
With 2 PUHY-P120TLMU-A
(-BS) *3
460V
PUHY-P144YSLMU-A
(-BS) *2
PUHY-P168YSLMU-A
(-BS) *2
PUHY-P192YSLMU-A
(-BS) *2
PUHY-P216YSLMU-A
(-BS) *2
PUHY-P240YSLMU-A
(-BS) *2
With 2 PUHY-P72YLMU-A
(-BS) *3
With 1 PUHY-P72YLMU-A
(-BS) and 1 PUHY-
P96YLMU-A (-BS) *3
With 1 PUHY-P72YLMU
(-BS) and
1 PUHYP120YLMU-
A (-BS) *3
With 1 PUHY-P96YLMU-A
(-BS) and 1 PUHY-
P120YLMU-A (-BS) *3
With 2 PUHY-P120YLMU-A
(-BS) *3
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal) *1
Cooling
Btu/h
Capacity
144,000 168,000 192,000 216,000 240,000
Heating
Btu/h
Capacity
160,000 188,000 215,000 243,000 270,000
Fan
Type X Quantity
Refer to:
PUHY-P72TLMU-A (-BS)
PUHY-P72YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P96TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P96YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P96TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P96YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P120TLMU-A (-BS)
PUHY-P120YLMU-A (-BS)
Airow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 6% to 100% 5% to 100% 7% to 100%
Lubricant
Refer to:
PUHY-P72TLMU-A (-BS)
PUHY-P72YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P96TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P96YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P96TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P96YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P120TLMU-A (-BS)
PUHY-P120YLMU-A (-BS)
Refrigerant Type
External Finish
Dimensions H X
W X D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level
(Measured In Anechoic Room)
dB(A) 61.0 62.5 63.0
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In. 1/2 5/8
Gas
(Low Pressure)
(Brazed)
In. 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 130% of outdoor unit capacity
Model / Quantity P06 - P96 / 1 to 31 P06 - P96 / 1 to 36 P06 - P96 / 1 to 41 P06 - P96 / 2 to 46 P06 - P96 / 2 to 50
Operating
Temperature Range
Cooling D.B.
**Outdoor: 23° to 126° F
Heating W.B. Outdoor: -13 to 60° F
System Eciencies *4
EER (Ducted/Non-Ducted) *4 12.6 / 14.6 12.0 / 14.0 12.4 / 13.5 12.1 / 13.3 12.1 / 13.1
IEER (Ducted/Non-Ducted) *4 21.3 / 26.0 21.0 / 25.0 21.1 / 24.5 21.0 / 24.5 20.8 / 23.5
COP (Ducted/Non-Ducted) *4 3.60 / 4.10 3.50 / 3.90 3.61 / 3.70 3.56 / 3.64 3.52 / 3.67
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two or three individual outdoor units in the field
for PUHY-P(T)YSLMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference
electrical data for each individual outdoor unit.
*4 Efficiency values based on AHRI 1230 test method.
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
PUHY-P** (T/Y) LMU
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 79
SPECIFICATIONS: L-GENERATION
Model Name
208V/
230V
PUHY-P264TSLMU-A
(-BS) *2
PUHY-P288TSLMU-A
(-BS) *2
PUHY-P312TSLMU-A
(-BS) *2
PUHY-P336TSLMU-A
(-BS) *2
PUHY-P360TSLMU-A
(-BS) *2
With 2 PUHY-P72TLMU-A
(-BS) and 1 PUHY-
P120TLMU-A (-BS) *3
With PUHY-P72TLMU-A
(-BS) / PUHY-P96TLMU-A
(-BS) / PUHY-P120TLMU-A
(-BS) *3
With 1 PUHY-P72TLMU-A
(-BS) and 2 PUHY-
P120TLMU-A (-BS) *3
With 1 PUHY-P96TLMU-A
(-BS) and 2 PUHY-
P120TLMU-A (-BS) *3
With 3 PUHY-P120TLMU-A
(-BS) *3
460V
PUHY-P264YSLMU-A
(-BS) *2
PUHY-P288YSLMU-A
(-BS) *2
PUHY-P312YSLMU-A
(-BS) *2
PUHY-P336YSLMU-A
(-BS) *2
PUHY-P360YSLMU-A
(-BS) *2
With 2 PUHY-P72YLMU-A
(-BS) and 1 PUHY-
P120YLMU-A (-BS) *3
With PUHY-P72YLMU-A
(-BS) / PUHY-P96YLMU-A
(-BS) /
PUHY-P120YLMU-A (-BS) *3
With 1 PUHY-P72YLMU-A
(-BS) and 2 PUHY-
P120YLMU-A (-BS) *3
With 1 PUHY-P96YLMU-A
(-BS) and 2 PUHY-
P120YLMU-A (-BS) *3
With 3 PUHY-P120YLMU-A
(-BS) *3
Power Source
208 / 230V, 3-Phase, 60Hz
208/230v
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
264,000 288,000 312,000 336,000 360,000
Heating
Btu/h
Capacity
295,000 323,000 350,000 378,000 405,000
Fan
Type X Quantity
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P96TLMU-A (-BS) /
PUHY-P120TKMU (-BS
PUHY-P72YLMU-A (-BS) /
PUHY-P96YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P96TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P96YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P120TLMU-A (-BS)
PUHY-P120YLMU-A (-BS)
Airow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 4% to 100% 3% to 100% 5% to 100%
Crankcase
Heater
W
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P96TLMU-A (-BS) /
PUHY-P120TKMU (-BS
PUHY-P72YLMU-A (-BS) /
PUHY-P96YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P72TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P72YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P96TLMU-A (-BS) /
PUHY-P120TLMU-A (-BS)
PUHY-P96YLMU-A (-BS) /
PUHY-P120YLMU-A (-BS)
Refer to:
PUHY-P120TLMU-A (-BS)
PUHY-P120YLMU-A (-BS)
Lubricant
Refrigerant Type
External Finish
Dimensions
H X W X D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level
(Measured In Anechoic Room)
dB(A) 63.5 64.0 64.5 65.0
Protection
Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In. 3/4
Gas
(Low Pressure)
(Brazed)
In. 1-3/8 1-5/8
Indoor Unit
Connectable
Total Capacity 50 to 130% of outdoor unit capacity
Model / Quantity P06 - P96 / 2 to 50
Operating
Temperature
Range
Cooling D.B.
**Outdoor: 23° to 126° F
Heating W.B. Outdoor: -13° to 60° F
System Eciencies *4
EER (Ducted/Non-Ducted) *4 12.4 / 13.6 12.0 / 13.5 12.0 / 13.4 11.8 / 13.2 11.8 / 13.1
IEER (Ducted/Non-Ducted) *4 21.1 / 24.0 20.4 / 24.0 20.3 / 23.4 20.3 / 23.4 20.1 / 22.7
COP (Ducted/Non-Ducted) *4 3.60 / 3.75 3.47 / 3.70 3.45 / 3.66 3.43 / 3.52 3.41 / 3.51
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two or three individual outdoor units in the field
for PUHY-P(T)YSLMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference
electrical data for each individual outdoor unit.
*4 Efficiency values based on AHRI 1230 test method.
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
PUHY-P** (T/Y) LMU
80
SPECIFICATIONS: K-GENERATION R2-SERIES
Model Name
208V
/230V
PURY-P72TKMU-A (-BS) PURY-P96TKMU-A (-BS) PURY-P120TKMU-A (-BS) PURY-P144TKMU-A (-BS)
460V PURY-P72YKMU-A (-BS) PURY-P96YKMU-A (-BS) PURY-P120YKMU-A (-BS) PURY-P144YKMU-A (-BS)
Power Source 208 / 230V, 3-Phase, 60Hz / 460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
72,000 96,000 120,000 144,000
kW
Power
Input
4.4 7.05 9.44 11.2
A
Current
Input
13.5 / 12.2 / 6.1 21.7 / 19.6 / 9.8 29.1 / 26.3 / 13.1 34.5 / 31.2 / 15.6
Heating
Btu/h
Capacity
80,000 108,000 135,000 160,000
kW
Power
Input
5.92 8.28 10.86 13.54
A
Current
Input
18.2 / 16.5 / 8.2 25.5 / 23.0 / 11.5 33.4 / 30.7 / 15.1 41.7 / 37.7 / 18.8
Electrical Supply
MCA A 23 / 21 / 11 34 / 31 / 15 45 / 42 / 21 53 / 48 / 24
Recommended
Fuse Size
A 25 / 15 35 / 20 50 / 25 60 / 25
Fan
Type X Quantity Propeller Fan x 1 Propeller Fan x 2
Airflow Rate CFM 6,200 11,300 11,300
External Static Pressure Selectable; 0, 0.12 or 0.24"W.G.; factory set to 0"W.G.
Compressor
Type X Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 17% to 100% 16% to 100% 15% to 100%
Lubricant MEL32
Refrigerant Type R410A
External Finish Pre-coated galvanized steel sheet (Plus Powder Coating for -BS type) <Munsell 5Y 8/1 or similar>
Dimensions
H x W x D
Height In. 64-31/32
Width In. 48-1/16 68-29/32
Depth In. 29-5/32
Net Weight Pounds 503 / 534 538 / 574 715 / 743
Sound Pressure Level
(As Measured in an Anechoic Room)
dB(A) 58.0 60.0 61.0
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Fan Motor Thermal switch
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In. 5/8 3/4 7/8
Gas
(Low Pressure)
(Brazed)
In. 3/4 7/8 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 150% of outdoor unit capacity
Model / Quantity P06 - P96 / 1 to 18 P06 - P96 / 1 to 24 P06 - P96 / 1 to 30 P06 - P96 / 1 to 36
Operating
Temperature Range
Cooling D.B. **Outdoor: 23° to 115° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings *2
EER (Ducted/Non-Ducted) *2 13.9 / 15.5 12.2 / 13.6 11.7 / 12.2 11.7 / 12.7
IEER (Ducted/Non-Ducted) *2 21.1 / 22.1 19.7 / 20.9 18.6 / 20.8 18.0 / 20.9
COP (Ducted/Non-Ducted) *2 3.81 / 3.72 3.64 / 3.71 3.45 / 3.61 3.41 / 3.28
SCHE (Ducted/Non-Ducted) *2 23.6 / 24.48 17.4 / 23.5 16.8 / 19.7 18.2 / 20.2
PURY-P***T(Y)SKMU-A
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2. Efciency values based on AHRI 1230 test method.
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our
website for details on specific additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 81
SPECIFICATIONS: K-GENERATION R2-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two individual outdoor units in the eld for
PURY-P-T(Y)SKMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection.
Reference electrical data for each individual outdoor unit.
*4 Maximum connectable number of branch pipes is 48.
*5 Efciency values based on AHRI 1230 test method.
** Extended ambient cooling operation range down to -10° F DB Low Ambient
Kit required.
In systems with considerably long piping runs, the outdoor units may exhibit slightly louder
than normal sound pressure levels when in heating mode.
The outdoor twinning kit (low pressure) should be connected to the low pressure side of the
outdoor unit. If the connected units are different capacities, the outdoor twinning kit (low
pressure) should be installed in the unit with the largest capacity.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our website for
details on specific additional application installation coverage.
Model Name
208V
/230V
PURY-P168TSKMU-A
(-BS) *2
PURY-P192TSKMU-A
(-BS) *2
PURY-P216TSKMU-A
(-BS) *2
With 1 PURY-P72TKMU-A (-BS)
and 1 PURY-P96TKMU-A (-BS) *3
With 2 PURY-P96TKMU-A
(-BS) *3
With 1 PURY-P96TKMU-A
(-BS) and 1 PURY-
P120TKMU-A (-BS) *3
460V
PURY-P144YSKMU-A (-BS) *2
PURY-P168YSKMU-A
(-BS) *2
PURY-P192YSKMU-A
(-BS) *2
PURY-P216YSKMU-A
(-BS) *2
With 2 PURY-P72YKMU-A
(-BS) *3
With 1 PURY-P72YKMU-A (-BS)
and 1 PURY-P96YKMU-A (-BS) *3
With 2 PURY-P96YKMU-A
(-BS) *3
With 1 PURY-P96YKMU-A
(-BS) and 1 PURY-
P120YKMU-A (-BS) *3
Power Source
460V, 3-Phase,
60Hz
208V / 230V, 3-Phase, 60Hz / 460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
144,000 168,000 192,000 216,000
kW
Power
Input
10.31 12.8 *3 15.61 *3 18.22 *3
A
Current
Input
14.3 *3 39.4 / 35.7 / 17.8 *3 48.1 / 43.5 / 15.61 *3 56.1 / 50.8 / 25.4 *3
Heating
Btu/h
Capacity
160,000 188,000 215,000 243,000
kW
Power
Input
12.54 *3 14.91 *3 17.2 *3 19.89 *3
A
Current
Input
17.4 45.9 / 41.5 / 20.7 *3 53.9 / 47.9 / 23.9 *3 61.3 / 55.4 / 27.7 *3
Fan
Type X Quantity
Refer to:
PURY-P72YKMU-A (-BS)
Refer to:
PURY-P72TKMU-A (-BS) /
PURY-P96TKMU-A (-BS)
PURY-P72YKMU-A (-BS) /
PURY-P96YKMU-A (-BS)
Refer to:
PURY-P96TKMU-A (-BS)
PURY-P96YKMU-A (-BS)
Refer to:
PURY-P96TKMU-A (-BS) /
PURY-P120TKMU-A (-BS)
PURY-P96YKMU-A (-BS) /
PURY-P120YKMU-A (-BS)
Airflow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 15% to 100% 7% to 100% 8% to 100%
Crankcase Heater W
Refer to:
PURY-P72YKMU-A (-BS)
Refer to:
PURY-P72TKMU-A (-BS) /
PURY-P96TKMU-A (-BS)
PURY-P72YKMU-A (-BS) /
PURY-P96YKMU-A (-BS)
Refer to:
PURY-P96TKMU-A (-BS)
PURY-P96YKMU-A (-BS)
Refer to:
PURY-P96TKMU-A (-BS) /
PURY-P120TKMU-A (-BS)
PURY-P96YKMU-A (-BS) /
PURY-P120YKMU-A (-BS)
Lubricant
Refrigerant Type
External Finish
Dimensions
H x W x D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As Measured in
an Anechoic Room)
dB(A) 61.0 61.0 62.5
Protection
Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit (Compressor / Fan) Over-current protection
Fan Motor Thermal switch
Refrigerant
Pipe
Dimensions
Liquid (High Pressure)
(Brazed)
In. 7/8 1-1/8
Gas (Low Pressure)
(Brazed)
In. 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 150% of outdoor unit capacity
Model / Quantity P06-P96 / 1 to 36 P06-P96 / 1 to 42 P06-P96 / 1 to 48 P06-P96 / 2 to 50 *4
Operating
Temperature
Range
Cooling D.B. **Outdoor: 23° to 115° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings *5
EER (Ducted/Non-Ducted) *5 12.0 / 14.4 12.1 / 12.9 11.6 / 11.9 11.4 / 11.3
IEER (Ducted/Non-Ducted) *5 18.8 / 20.6 19.4 / 19.1 19.3 / 18.2 18.7 / 18.3
COP (Ducted/Non-Ducted) *5 3.54 / 3.65 3.63 / 3.52 3.64 / 3.47 3.54 / 3.43
SCHE (Ducted/Non-Ducted) *5 21.8 / 24.0 20.0 / 22.6 17.4 / 21.81 17.1 / 20.11
PURY-P***T(Y)SKMU-A
82
SPECIFICATIONS: K-GENERATION R2-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two individual outdoor units in the eld for
PURY-P-T(Y)SKMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Maximum connectable no. of branch pipes is 48.
*5 Efciency values based on AHRI 1230 test method.
* 264 and 288 require use -HA, BC controller
** Extended ambient cooling operation range down to -10° F DB Low Ambient Kit required.
Notes:
In systems with considerably long piping runs, the outdoor units may exhibit slightly louder
than normal sound pressure levels when in heating mode.
The outdoor twinning kit (low pressure) should be connected to the low pressure side of the
outdoor unit. If the connected units are different capacities, the outdoor twinning kit (low
pressure) should be installed in the unit with the largest capacity.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our website for
details on specific additional application installation coverage.
Model Name
208V
/230V
PURY-P240TSKMU
(-BS) *2
PURY-P264TKMU
(-BS) *2
PURY-P288TSKMU
(-BS) *2
With 2 PURY-P120TKMU (-BS) *3
With 1 PURY-P120TKMU (-BS) and 1 PURY-
P144TKMU (-BS) *3
With 2 PURY-P144TKMU (-BS) *3
460V
PURY-P240YSKMU
(-BS) *2
PURY-P264YKMU
(-BS) *2
PURY-P288YSKMU
(-BS) * *2
With 2 PURY-P120YKMU (-BS) *3
With 1 PURY-P120YKMU (-BS)* and 1
PURY-P144YKMU (-BS) *3
With 2 PURY-P144YKMU (-BS) *3
Power Source 208 / 230V 3-Phase, 60Hz / 460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
240,000 264,000 288,000
Heating
Btu/h
Capacity
270,000 295,000 320,000
Fan
Type X Quantity
Refer to:
PURY-P120TKMU (-BS)
PURY-P120YKMU (-BS)
Refer to:
PURY-P120TKMU (-BS) /
PURY-P144TKMU (-BS)
PURY-P120YKMU (-BS) /
PURY-P144YKMU (-BS)
Refer to:
PURY-P144TKMU (-BS)
PURY-P144YKMU (-BS)
Airflow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 7% to 100%
Crankcase Heater W
Refer to:
PURY-P120TKMU (-BS)
PURY-P120YKMU (-BS)
Refer to:
PURY-P120TKMU (-BS) /
PURY-P144TKMU (-BS)
PURY-P120YKMU (-BS) /
PURY-P144YKMU (-BS)
Refer to:
PURY-P144TKMU (-BS)
PURY-P144YKMU (-BS)
Lubricant
Refrigerant Type
External Finish
Dimensions
H x W x D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As Measured in
an Anechoic Room)
dB(A) 63.0 63.5 64.0
Protection
Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit (Compressor / Fan) Over-current protection
Refrigerant
Pipe
Dimensions
Liquid (High Pressure)
(Brazed)
In. 1-1/8
Gas (Low Pressure)
(Brazed)
In. 1-3/8
Indoor Unit
Connectable
Total Capacity 50% to 150% of outdoor unit capacity
Model / Quantity P06-P96 / 2 to 50 *4
Operating
Temperature
Range
Cooling D.B. **Outdoor: 23° to 115° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings* 5
EER (Ducted/Non-Ducted) *5 10.9 / 10.9 11.0 / 11.0 11.2 / 11.3
IEER (Ducted/Non-Ducted) *5 17.8 / 18.5 17.7 / 18.4 17.6 / 18.6
COP (Ducted/Non-Ducted) *5 3.38 / 3.42 3.4 / 3.25 3.41 / 3.20
SCHE (Ducted/Non-Ducted) *5 16.5 / 18.6 17.3 / 18.7 18.2 / 19.0
PURY-P***T(Y)SKMU
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 83
SPECIFICATIONS: K-GENERATION H2i
®
R2-SERIES
Model Name
208/230V PURY-HP72TKMU-H PURY-HP96TKMU-H
PURY-HP144TSKMU-H *2
With
2 PURY-HP72TKMU-H*3
PURY-HP192TSKMU-H *2
With
2 PURY-HP96TKMU-H *3
460V PURY-HP72YKMU PURY-HP96YKMU
PURY-HP144YSKMU *2
With 2 PURY-HP72YKMU *3
PURY-HP192YSKMU *2
With 2 PURY-HP96YKMU *3
Electrical Power
Requirements
Voltage, Phase, Hertz
208 / 230V, 3-phase, 60Hz
460V, 3-phase, 60Hz
Nominal
Cooling
Capacity *1 Btu/h 72,000 96,000 144,000 192,000
Nominal
Heating
Capacity *1 Btu/h 80,000 108,000 160,000 215,000
Electrical Supply
MCA A
44 / 40
26
60 / 54
32
Refer to:
PURY-HP72TKMU-H
PURY-HP72YKMU
Refer to:
PURY-HP96TKMU-H
PURY-HP96YKMU
Recommended
Fuse/Breaker Size
A
50
30
65
35
Maximum Fuse
Size
A
60
30
80
35
Fan
Type x Quantity Propeller Fan x 1
Airflow Rate CFM 6,200
Compressor
Operating Range
Cooling 30% to 100% 23% to 100% 15% to 100%; 12% to 100%;
Heating 15% to 100% 13% to 100% 7% to 100% 6% to 100%
Type x Quantity Inverter-driven Scroll Hermetic x 1 Refer to:
PURY-HP72TKMU-H
PURY-HP72YKMU
Refer to:
PURY-HP96TKMU-H
PURY-HP96YKMU
Lubricant MEL32
Refrigerant Type R410A
External Finish Pre-coated galvanized steel sheet
Dimensions
Height
In.
64-31/32
Width 48-1/16
Depth 29-5/32
Net Weight Lbs.
552
574
552
576
Sound Pressure Levels dB(A) 58 61
Protection Devices
High-pressure High pressure sensor, High pressure switch at 4.15 MPa (601 psi)
Inverter circuit (COMP./FAN) Over-current protection
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In.
5/8 3/4 7/8
Gas
(Low Pressure)
(Brazed)
3/4 7/8 1-1/8
Indoor Unit Connectable
Total Capacity 50 to 150% of Outdoor Unit Capacity
Model / Quantity *4 P06 to P96 / 1 to 18 P06 to P96 / 1 to 24 P06 ~ P96 / 1 to 36 P06 ~ P96 / 1 to 48
Operating Temperature
Range
Cooling (Outdoor) ** 23 ~ 115° F (-5 ~ +46° C) D.B.
Heating (Outdoor) -13 ~ +60° F (-25 ~ +15.5° C) W.B.
Efficiency Ratings
(Ducted / Non-Ducted) *5
EER 12.9 / 13.0 11.4 / 12.5 12.5 / 12.6 11.1 / 12.1
IEER 17.2 / 18.4 16.5 / 17.1 16.7 / 17.9 16.1 / 16.6
COP 3.61 / 3.55 3.46 / 3.44 3.47 / 3.41 3.32 / 3.31
SCHE *2 22.7 / 22.6 17.4 / 22.0 22.1 / 22.0 16.9 / 21.4
PURY-HP***T(S)KMU
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two individual outdoor units in the eld for
PURY-HP-T(Y)SKMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection.
Reference electrical data for each individual outdoor unit.
*4 Maximum connectable number of branch pipes is 48.
*5 Efciency values based on AHRI 1230 test method.
** Low Ambient Kit is required for extended ambient cooling operation range down to
-10° F DB.
In systems with considerably long piping runs, the outdoor units may exhibit slightly louder
than normal sound pressure levels when in heating mode.
The outdoor twinning kit (low pressure) should be connected to the low pressure side of the
outdoor unit. If the connected units are different capacities, the outdoor twinning kit (low
pressure) should be installed in the unit with the largest capacity.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty
of up to 10 years is available. See our website for details on specific additional
application installation coverage.
84
Model Name CMB-P1013NU-GA1 CMB-P108NU-HA1 CMB-P1010NU-HA1 CMB-P1016NU-HA1
Number of Branches 13 8 10 16
Power Source 208 / 230V, 1-phase, 60 Hz
Power Input
Cooling W 178 152 / 196 183 / 236 274 / 353
Heating W 86 76 / 98 92 / 118 137 / 177
Current
(208/230V)
Cooling A 0.86 / 0.77 0.074 / 0.086 0.88 / 1.03 1.32 / 1.54
Heating A 0.41 / 0.37 0.37 / 0.43 0.45 / 0.52 0.66 / 0.77
External Finish Unit: Galvanized steel plate; Drain pan: Pre-coated galvanized sheets plus powder coating
Dimensions
Height Inches 11-13/32 11-7/16
Width Inches 43-3/4
Depth Inches 20-1/2
Net Weight Pounds 148 124 131 172
Refrigerant Pipe
Dimensions
To Indoor Unit *1
Liquid Pipe (In.) 3/8 Brazed
Gas Pipe (In.) 5/8 (Brazed)
Max. connected capacity for all
branches
Btu/h 360,000 360,000 360,000 432,000
Max. Connected Capacity to
Sub BC Controller(s) *2
Btu/h 126,000 126,000 126,000 126,000
Indoor Unit Capacity Connectable to One Branch 54,000 Btu/h or less per branch
Drain Pipe O.D. 1-1/4”
Notes:
*1 BC controller includes reducers for all branches. 5/8" are to 1/2" braze,
3/8" are to 1/4" braze.
*2 If two sub BC controllers are connected and at least one is a CMB-P1016NU-HB, the
maximum connected capacity is 168,000 Btu/h.
Specifications are subject to change without notice.
SPECIFICATIONS: BC CONTROLLER
CMB-P-NU-GA1/HA1 (Main BC)
Model Name
CMB-P105NU-G1 CMB-P106NU-G1 CMB-P108NU-G1 CMB-P1010NU-G1
CMB-P1013NU-G1
CMB-P1016NU-G1
Number of Branches
5 6
8 10 13 16
Power Source 208 / 230V, 1-phase, 60 Hz
Power Input
Cooling W 73 86 112 138 178 217
Heating W 33 40 53 66 86 106
Current
(208/230V)
Cooling A 0.35 / 0.32 0.41 / 0.37 0.54 / 0.49 0.66 / 0.60 0.86 / 0.77 1.04 / 0.94
Heating A 0.16 / 0.14 0.19 / 0.17 0.25 / 0.23 0.32 / 0.29 0.41 / 0.37 0.51 / 0.46
External Finish Unit: Galvanized steel plate; Drain pan: Pre-coated galvanized sheets plus powder coating
Dimensions
Height Inches 11-3/16
Width Inches 25-17/32 43-1/4
Depth Inches 17-1/32
Net Weight Pounds 72 76 84 94 126 138
Refrigerant Pipe
Dimensions
To Indoor Unit *1
Liquid Pipe (In.) 3/8 Brazed
Gas Pipe (In.) 5/8 (Brazed)
Max. Connected Capacity for
All Branches
Btu/h 189,000 189,000 189,000 189,000 189,000 189,000
Indoor Unit Capacity Connectable to One Branch 54,000 Btu/h or less per branch
Drain Pipe O.D. 1-1/4”
CMB-P-NU-G1 (Single BC)
Notes:
*1 BC controller includes reducers for all branches. 5/8" are to 1/2" braze, 3/8" are to 1/4" braze. Specifications are subject to change without notice.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 85
Specifications are subject to change without notice.

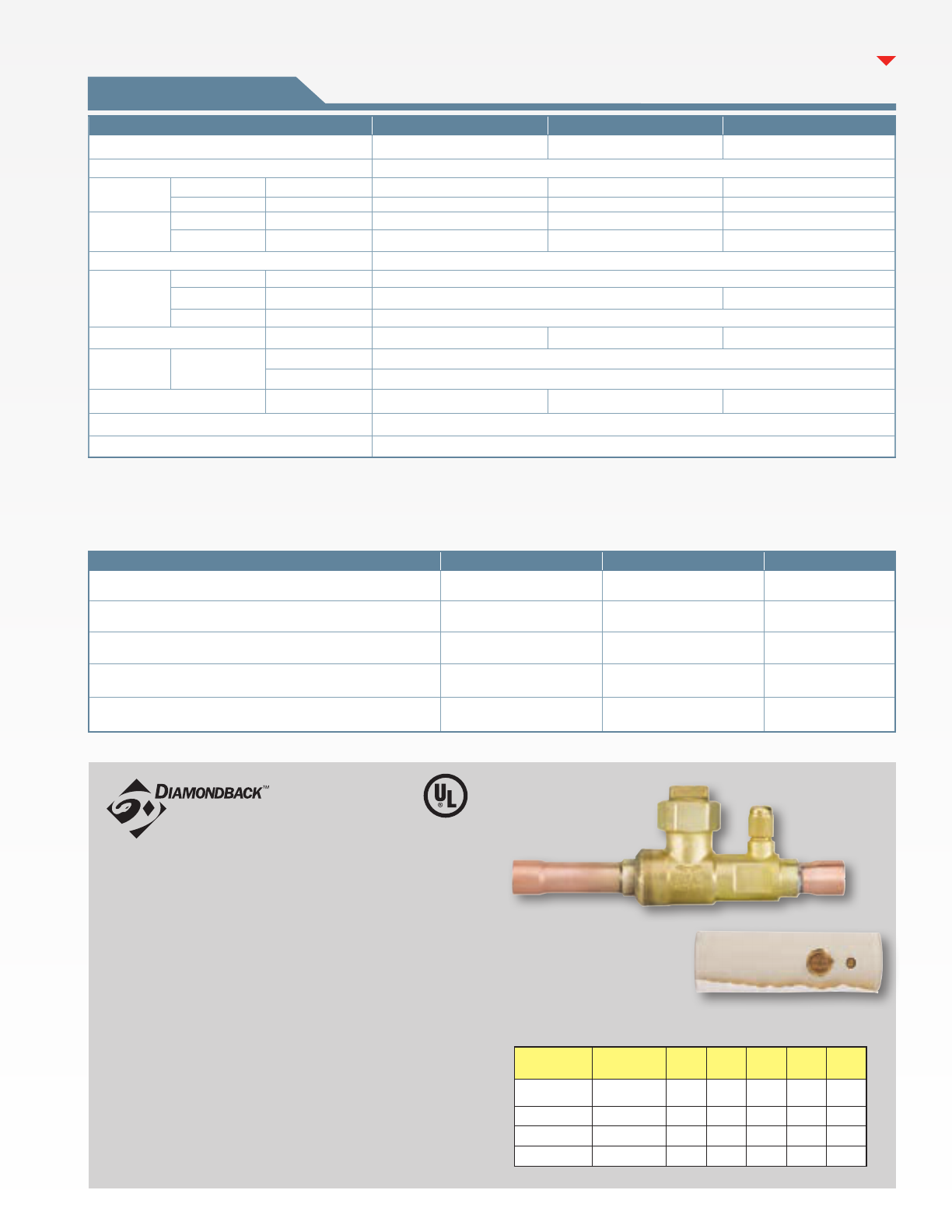

Refrigerant Line Sizes from Main BC Controller to Sub BC Controller(s)
Liquid (High Pressure) Gas (Low Pressure) Liquid Pipe
Total downstream capacity < 72,000 Btu/h
(nominal cooling capacity)
5/8" (Brazed) 3/4" (Brazed) 3/8" (Brazed)
Total downstream capacity between 73,000 - 108,000 Btu/h
(nominal cooling capacity)
3/4" (Brazed) 7/8" (Brazed) 3/8" (Brazed)
Total downstream capacity between 109,000 - 126,000 Btu/h
(nominal cooling capacity)
3/4" (Brazed) 1-1/8" (Brazed) 1/2" (Brazed)
Total downstream capacity between 127,000 - 144,000 Btu/h
(nominal cooling capacity)
7/8" (Brazed) 1-1/8" (Brazed) 1/2" (Brazed)
Total downstream capacity between 145,000 - 168,000 Btu/h
(nominal cooling capacity)
7/8" (Brazed) 1-1/8" (Brazed) 5/8" (Brazed)
SPECIFICATIONS: BC CONTROLLER
Model Name CMB-P104NU-GB1 CMB-P108NU-GB1 CMB-P1016NU-HB1
Number of Branches 4 8 16
Power Source 208 / 230V, 1-phase, 60 Hz
Power Input
Cooling W 53 106 314
Heating W 27 53 157
Current
(208/230V)
Cooling A 0.25 / 0.23 0.51 / 0.46 1.17 / 1.37
Heating A 0.13 / 0.12 0.25 / 0.23 0.59 / 0.69
External Finish Unit: Galvanized steel plate; Drain pan: Pre-coated galvanized sheets plus powder coating
Dimensions
Height Inches 11-3/16
Width Inches 25-17/32 43-1/4
Depth Inches 17-1/32
Net Weight Pounds 62 82 136
Refrigerant Pipe
Dimensions
To Indoor Unit *1
Liquid Pipe (In.) 3/8 Brazed
Gas Pipe (In.) 5/8 Brazed
Max. Connected Capacity for All
Branches
Btu/h 126,000 126,000 126,000
Indoor Unit Capacity Connectable to One Branch 54,000 Btu/h or less per branch
Drain Pipe O.D. 1-1/4"
Notes:
*1 BC controller includes reducers for all branches. 5/8" are to 1/2" braze, 3/8" are to 1/4" braze.
Specifications are subject to change without notice.
CMB-P-NU-GB1/HB1 (Sub BC)
*Ball valves come with an insulation piece.
Part Number SAE Braze A B C D E
BV14BBSI 1/4" 6.5 3.06 1.81 1.81 1.42
BV38BBSI 3/8
" 6.5 3.06 1.81 1.81 1.42
BV12BBSI 1/2
" 6.5 3.06 1.81 1.81 1.42
BV58BBSI 5/8
" 6.5 3.06 1.81 1.81 1.42
Schrader
®
is a registered trademark of Schrader-Bridgeport Inc.
BV-Series Ball Valves
LISTED 891N
REFRIGERANT
VAL
VE
C US
Model numbers:
BV14BBSI/ BV38BBSI/ BV12BBSI/ BV58BBSI
• Size available: 1/4"; 1/2”, 3/8"; 5/8".
• Fully factory assembled.
• Furnace brazed and pressure tested.
• Each ball valve is equipped with 1/4" Schrader
®
Valve
for refrigerant service.
•
Design working pressure: 700 PSIG.
• Temperature range: -40˚ F to +325˚ F (-40˚ C to +149˚ C).
• Forged and machined brass unibody designed with
forged brass seal cap.
•
Polytetrafluoroethylene (PTFE) seals and gaskets
(no synthetic O-rings).
•
Seal cap design permits valve operation without
removal of seal cap.
•
One year limited materials and workmanship
warranty on Ball Valves.
•
Full Port Design.
• 800 PSIG Rated.
• R-410A Compatible.
• Brazed Connections.
86
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Efciency values based on AHRI 1230 test method.
** Low Ambient Kit is required for extended ambient cooling operation range down to
-10° F DB.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
Model Name
208V/
230V
PUHY-P72TKMU (-BS) PUHY-P96TKMU (-BS) PUHY-P120TKMU (-BS) PUHY-P144TKMU (-BS)
460V PUHY-P72YKMU (-BS) PUHY-P96YKMU (-BS) PUHY-P120YKMU (-BS) PUHY-P144YKMU (-BS)
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling
Btu/h
Capacity
72,000 96,000 120,000 144,000
Heating
Btu/h
Capacity
80,000 108,000 135,000 160,000
Electrical Supply
MCA A
25 / 23
12
34 / 31
15
45 / 42
20
53 / 49
24
Recommended
Fuse Size
A
30
15
35
20
50
25
60
25
Fan
Type X Quantity Propeller Fan x 1 Propeller Fan x 2
Airflow Rate CFM 6,200 11,300
External Static Pressure Selectable; 0, 0.12 or 0.24" W.G.; factory set to 0" W.G.
Compressor
Type X Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 15% to 100% 16% to 100% 15% to 100% 14% to 100%
Lubricant MEL32
Refrigerant Type R410A
External Finish Pre-coated galvanized steel sheet (Plus Powder Coating for -BS type) <Munsell 5Y 8/1 or Similar>
Dimensions
H X W X D
Height In. 64-31/32
Width In. 36-1/4 48-1/16 68-29/32
Depth In. 29-5/32
Net Weight Pounds
430
463
532
558
697
726
Sound Pressure Level
(As Measured in an Anechoic Room)
dB(A) 58.0 58.0 60.0 61.0
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Fan Motor Thermal switch
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In. 3/8
3/8 (1/2", length
to rst joint ≥ 295')
3/8 (1/2", length
to rst joint ≥ 131')
1/2
Gas
(Low Pressure)
(Brazed)
In. 7/8 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 130% of outdoor unit capacity
Model / Quantity P06 - P96 / 1 to 15 P06 - P96 / 1 to 20 P06 - P96 / 1 to 26 P06 - P96 / 1 to 31
Operating
Temperature Range
Cooling D.B. **Outdoor: 23° to 115° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency Ratings
(Ducted /
Non-Ducted) *2
EER 13.0 / 14.2 12.6 / 13.7 12.5 / 12.7 11.6 / 11.8
IEER 19.8 / 21.3 19.7 / 20.7 19.1 / 19.1 19.3 / 20.2
COP 3.83 / 4.19 3.95 / 4.22 3.66 / 3.83 3.56 / 3.72
PUHY-P**T(Y)SKMU
SPECIFICATIONS: K-GENERATION Y-SERIES
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 87
SPECIFICATIONS: K-GENERATION Y-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two or three individual outdoor units in the eld
for PUHY-P(T)YSKMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference
electrical data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
** Low Ambient Kit is required for extended ambient cooling operation range down to
-10° F DB.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
Model Name
208V/
230V
PUHY-P168TSKMU
(-BS) *2
PUHY-P192TSKMU
(-BS) *2
PUHY-P216TSKMU
(-BS) *2
PUHY-P240TSKMU
(-BS) *2
With
1 PUHY-P72TKMU (-BS)
and 1 PUHY-P96TKMU
(-BS) *3
With
1 PUHY-P72TKMU (-BS)
and
1 PUHY-P120TKMU
(-BS)
With
1 PUHY-P96TKMU
(-BS) and
1 PUHY-P120TKMU
(-BS) *3
With
2 PUHY-P120TKMU
-BS) *3
460V
PUHY-P144YSKMU
(-BS) *2
PUHY-P168YSKMU
(-BS) *2
PUHY-P192YSKMU
(-BS) *2
PUHY-P216YSKMU
(-BS) *2
PUHY-P240YSKMU
(-BS) *2
With
2 PUHY-P72YKMU
(-BS) *3
With
1 PUHY-P72YKMU
(-BS) and
1 PUHY-P96YKMU
(-BS) *3
With
1 PUHY-P72YKMU
(-BS) and
1 PUHY-P120YKMU-
A (-BS) *3
With
1 PUHY-P96YKMU
(-BS) and
1 PUHY-P120YKMU
(-BS) *3
With
2 PUHY-P120YKMU
(-BS) *3
Power Source 460V, 3-Phase, 60Hz
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
144,000 168,000 192,000 216,000 240,000
Heating
Btu/h
Capacity
160,000 188,000 215,000 243,000 270,000
Fan
Type X Quantity
Refer to:
PUHY-P72YKMU (-BS
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P96TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P96YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P120TKMU (-BS)
Refer to:
PUHY-P96TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P96YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P120TKMU (-BS)
PUHY-P120YKMU (-BS)
Airflow Rate CFM
External Static Pressure
Compressor
Type X Quantity
Operating Range 9% to 100% 6% to 100% 6% to 100% 8% to 100% 8% to 100%
Crankcase
Heater
W
Refer to:
PUHY-P72YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P96TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P96YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P120TKMU (-BS)
Refer to:
PUHY-P96TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P96YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P120TKMU (-BS)
PUHY-P120YKMU (-BS)
Lubricant
Refrigerant Type
External Finish
Dimensions
H X W X D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As
Measured in an Anechoic Room)
dB(A) 61.0 61.0 62.5 62.5 63.0
Protection
Devices
High Pressure Protection High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Fan Motor Thermal switch
Refrigerant Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 1/2 5/8
Gas
(Low
Pressure)
(Brazed)
In. 1-1/8
Indoor Unit
Connectable
Total Capacity 50% to 130% of outdoor unit capacity
Model / Quantity P06 - P96 / 1 to 31 P06 - P96 / 1 to 36 P06 - P96 / 1 to 41 P06 - P96 / 2 to 46 P06 - P96 / 2 to 50
Operating
Temperature
Range
Cooling D.B. **Outdoor: 23 to 115° F
Heating W.B. Outdoor: -13 to 60° F
Efficiency Ratings
(Ducted /
Non-Ducted) *4
EER 12.8 / 13.2 12.6 / 12.9 12.4 / 12.5 12.3 / 12.3 12.1 / 12.0
IEER 19.3 / 20.3 19.6 / 19.7 18.9 / 19.1 18.9 / 18.6 18.6 / 18.1
COP 3.79 / 3.95 3.78 / 3.83 3.63 / 3.61 3.65 / 3.56 3.55 / 3.53
PUHY-P**T(Y)SKMU
88
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit is required for combining two or three individual outdoor units in the eld
for PUHY-P(T)YSKMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection. Reference
electrical data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
** Low Ambient Kit is required for extended ambient cooling operation range down to
-10° F DB.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty
of up to 10 years is available. See our website for details on specific additional applica-
tion installation coverage.
Model Name
208V/
230V
PUHY-P264TSKMU
(-BS) *2
PUHY-P288TSKMU
(-BS) *2
PUHY-P312TSKMU
(-BS) *2
PUHY-P336TSKMU
(-BS) *2
PUHY-P360TSKMU
(-BS) *2
With
2 PUHY-P72TKMU (-BS)
and
1 PUHY-P120TKMU
(-BS) *3
With
1 PUHY-P72TKMU (-BS)
1 PUHY-P96TKMU (-BS)
and PUHY-P120TKMU
(-BS) *3
With
1 PUHY-P72TKMU (-BS)
and
2 PUHY-P120TKMU
(-BS) *3
With
1 PUHY-P96TKMU (-BS)
and
2 PUHY-P120TKMU
(-BS) *3
With
3 PUHY-P120TKMU
(-BS) *3
460V
PUHY-P264YSKMU
(-BS) *2
PUHY-P288YSKMU
(-BS) *2
PUHY-P312YSKMU
(-BS) *2
PUHY-P336YSKMU
(-BS) *2
PUHY-P360YSKMU
(-BS) *2
With
2 PUHY-P72YKMU (-BS)
and 1 PUHY-P120YKMU
(-BS) *3
With
1 PUHY-P72YKMU (-BS)
1 PUHY-P96YKMU (-BS)
and
1 PUHY-P120YKMU
(-BS) *3
With
1 PUHY-P72YKMU (-BS)
and
2 PUHY-P120YKMU
(-BS) *3
With
1 PUHY-P96YKMU (-BS)
and
2 PUHY-P120YKMU
(-BS) *3
With
3 PUHY-P120YKMU
(-BS) *3
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity
(Nominal) *1
Cooling
Btu/h
Capacity
264,000 288,000 312,000 336,000 360,000
Heating
Btu/h
Capacity
295,000 323,000 350,000 378,000 405,000
Fan
Type X Quantity
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P96TKMU (-BS) /
PUHY-P120TKMU (-BS
PUHY-P72YKMU (-BS) /
PUHY-P96YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P96TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P96YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P120TKMU (-BS)
PUHY-P120YKMU (-BS)
Airflow
Rate
CFM
External Static
Pressure
Compressor
Type X Quantity
Operating Range 5% to 100% 4% to 100% 4% to 100% 5% to 100% 5% to 100%
Crankcase
Heater
W
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P96TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P96YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P72TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P72YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P96TKMU (-BS) /
PUHY-P120TKMU (-BS)
PUHY-P96YKMU (-BS) /
PUHY-P120YKMU (-BS)
Refer to:
PUHY-P120TKMU (-BS)
PUHY-P120YKMU (-BS)
Lubricant
Refrigerant Type
External Finish
Dimensions
H X W X D
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As
Measured in an Anechoic
Room)
dB(A) 63.5 64.0 64.5 65.0
Protection
Devices
High Pressure
Protection
High pressure sensor, High pressure switch
Inverter Circuit
(Compressor / Fan)
Over-current protection
Fan Motor Thermal switch
Refrigerant
Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 3/4
Gas
(Low
Pressure)
(Brazed)
In. 1-3/8 1-5/8
Indoor Unit
Connectable
Total Capacity 50 to 130% of outdoor unit capacity
Model / Quantity P06 - P96 / 2 to 50
Operating
Temperature
Range
Cooling D.B. *Outdoor: 23° to 115° F
Heating W.B. Outdoor: -13° to 60° F
Efficiency
Ratings
(Ducted /
Non-Ducted) *4
EER 12.5 / 12.5 12.4 / 12.4 12.1 / 12.1 11.9 / 12.0 11.7 / 11.8
IEER 19.0 / 18.7 19.0 / 18.7 18.4 / 18.1 18.2 / 17.8 17.8 / 17.2
COP 3.68 / 3.6 3.68 / 3.59 3.54 / 3.45 3.5 / 3.36 3.39 / 3.22
PUHY-P**T(Y)SKMU
SPECIFICATIONS: K-GENERATION Y-SERIES
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 89
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80°F (26.7°C) DB / 67°F (19°C) WB; Outdoor: 95°F (35°C) DB.
Heating | Indoor: 70°F (21.1°C) DB; Outdoor: 47°F (8.3°C) DB / 43°F (6°C) WB.
*2 Twinning Kit CMY-Y100VBK2 is required for combining two individual outdoor units in the
eld for PUHY-HP-TSJMU combined systems.
*3 Each individual outdoor unit requires a separate electrical connection.
Reference electrical data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
** For details on extended ambient cooling operation range down to 0º FDB see Low Ambient
Cooling section.
-BS indicates Seacoast Protection option.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty
of up to 10 years is available. See our website for details on specific additional applica-
tion installation coverage.
Model Name PUHY-HP72TJMU (-BS) PUHY-HP96TJMU (-BS)
PUHY-HP144TSJMU
(-BS) *2
PUHY-HP192TSJMU (-BS) *2
With 2 PUHY-HP72TJMU
(-BS)
With 2 PUHY-HP96TJMU (BS)
Power Source 208/230V, 3-Phase, 60Hz
Capacity *1
Cooling Btu/h 72,000 96,000 144,000 192,000
Heating Btu/h 80,000 108,000 160,000 216,000
Electrical Supply
MCA A 59 / 54 74 / 68 59 + 59 / 54 + 54 *3 74 + 74 / 68 + 68 *3
Recommended
Fuse/Breaker Size
A 60 / 60 75 / 75 60 + 60 *3 75 + 75 *3
Maximum Fuse
Size
A 100 / 90 120 / 110 100 + 100 / 90 + 90 *3 120 + 120 / 110 + 110 *3
Fan
Type x Quantity Propeller Fan x 1
Refer to
PUHY-HP72TJMU (-BS)
Specications
Refer to
PUHY-HP96TJMU
(-BS) Specications
Airflow Rate CFM 6,180 7,950
Motor Output kW 0.92
Compressor
Operating Range
Cooling 30% to 100% 23% to 100% 15% to 100% 12% to 100%
Heating 16% to 100% 13% to 100% 8% to 100% 6% to 100%
Type Inverter Scroll Hermetic
Refer to
PUHY-HP72TJMU (-BS)
Specications
Refer to
PUHY-HP96TJMU
(-BS) Specications
Motor Output kW 5.3 6.7
Crankcase Heater W 45
Lubricant MEL32
Refrigerant Type R410A
External Finish
Pre-coated Galvanized Sheets (Plus Powder-coating
for -BS types) <Munsell No. 5Y 8/1 or Similar>
Dimensions
Height In. 65
Width In. 36-1/4 48-1/16
Depth In. 29-15/16
Net Weight Lbs. 497 585
Sound Pressure Level
(As Measured in an Anechoic Room)
dB(A)
56 (61 in Heating at -5º F
Outdoor Temperature)
57 (62 in Heating at -5º F
Outdoor Temperature)
59 (64 in Heating at -5º F
Outdoor Temperature)
60 (65 in Heating at -5º F
Outdoor Temperature)
Protection Devices
High Pressure Protection High-pressure Sensor, High-pressure Switch
Compressor/Fan Overheat Protection/Thermal Switch
Inverter Overheat and Overcurrent Protection
Refrigerant Pipe
Dimensions
Liquid (High
Pressure) (Brazed)
In. 1/2 5/8
Gas (Low Pressure)
(Brazed)
In. 3/4 7/8 1-1/8
Indoor Unit
Total Capacity 50 to 130% of Outdoor Unit Capacity
Quantity P06-P72/1-15 P06-P96/1-20 P06-P96/1-31 P06-P96/1-41
Operating Temperature
Range
Cooling **Outdoor: 23º F D.B. to 109º F D.B.
Heating Outdoor: -13º F W.B. to +60º F W.B.
Efficiency Ratings
(Ducted / Non-Ducted) *4
EER 11.70 / 11.30 11.35 / 11.30 11.30 / 10.90 10.90 / 10.90
IEER 16.80 / 16.20 16.00 / 15.40 14.40 / 13.85 13.60 / 13.10
COP 3.66 / 3.35 3.39 / 3.35 3.56 / 3.25 3.29 / 3.25
PUHY-HP**T(S)JMU
SPECIFICATIONS: K-GENERATION H2i
®
Y-SERIES
90
SPECIFICATIONS: S-SERIES
PUMY-P**NKMU1
Notes:
*1 Rating Conditions:
Cooling | Indoor: 80˚ F (26.7˚ C) DB / 67˚ F (19.4˚ C) WB; Outdoor: 95˚ F (35˚ C) DB.
Heating | Indoor: 70˚ F (21.1˚ C) DB; Outdoor: 47˚ F (8.3˚ C) DB / 43˚ F (6.1˚ C) WB.
*2 Efficiencies values based in AHRI 210/240 test method.
*3 When using Wind Baffles [WB-PA3], the minimum operating range is 5° F.
Without Wind Baffles, the minimum operating range is 23° F.
*4 When connecting PKFY-P06NBMU/P08NHMU,PFFY-P06/08/12NEMU or
PFFY-P06/08/12NRMU indoor units, the minimum operating range is 50° F.
-BS indicates Seacoast Protection option.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
Model Name PUMY-P36NKMU1(-BS) PUMY-P48NKMU1(-BS) PUMY-P60NKMU1(-BS)
Power Source
208 / 230V, 1-Phase, 60Hz
Capacity *1
Cooling Btu/h
36,000 48,000 60,000
Heating Btu/h
42,000 54,000 66,000
Electrical Supply
MCA A
31 31 36
Maximum Fuse Size A
44 42
Fan
Type x Quantity
Propeller Fan x 2
Airow Rate CFM
3,885 4,879
Motor Output kW
0.074 0.2
Compressor
Type
INVERTER-driven Scroll Hermetic
Operating Range
Cooling
29% to 100% 23% to 100% 36% to 100%
Heating
24% to 100% 22% to 100% 22% to 100%
Motor Output kW
2.8 3.3 4.1
Lubricant
FV50S
Refrigerant
R410A
External Finish
Galvanized Sheets (plus Powder Coating for -BS Model) Munsell 3Y 7.8/1.1
Dimensions
Height In.
52-11/16
Width In.
41-11/32
Depth In.
13 (+1)
Net Weight Pounds
269 306
Sound Pressure Levels (As Measured in an Anechoic Room) dB(A)
49 / 53 51 / 54 58 / 59
Protection Devices
High Pressure Protection
High Pressure Switch
Compressor/Fan
Discharge Thermo and Over-current Protection
Compressor Thermo/Over-current
Protection
Inverter
Over-current/Overheat Protection Over-current/Voltage Protection
Refrigerant Pipe
Dimensions
Liquid
(High Pr
essure)
(Flare)
In.
3/8
Gas
(Low Pressure)
(Flare)
In.
5/8 3/4
Indoor Unit
Total Capacity
50 - 130% of Outdoor Unit Capacity
Quantity
P06-36/1-7 P06-P54/1-10 P06-P72/1-12
Operating Temperature Range
Cooling
Outdoor: 5° to 115° F D.B. *3 *4
Heating
Outdoor: -13° to +59° F W.B.
Efciency Ratings *2
EER (Ducted / Non-Ducted) *2
12.6 / 14.2 11.3 / 12.6 11.1 / 12.5
SEER (Ducted / Non-Ducted) *2
15.6 / 21.0 16.5 / 20.2 17.0/18.6
COP (Ducted / Non-Ducted) *2
3.60/ 3.90 3.30 / 3.80 3.7/3.5
HSPF (Ducted / Non-Ducted) *2
10.5 / 11.5 11.0 / 11.7 10.7/11.4
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 91
Model Name
208/230V PQRY-P72TLMU-A PQRY-P96TLMU-A PQRY-P120TLMU-A PQRY-P144TLMU-A
460V PQRY-P72YLMU-A PQRY-P96YLMU-A PQRY-P120YLMU-A PQRY-P144YLMU-A
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling Btu/h 72,000 96,000 120,000 144,000
Heating Btu/h 69,000 92,000 114,000 137,000
Electrical Supply
MCA A
13 / 12 19 / 17 29 / 26 35 / 32
6 9 13 16
MOP A
20 / 20 30 / 25 50 / 45 60 / 50
15 15 20 25
Compressor
Type x Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 24 % to 100% 18 % to 100% 14 % to 100% 19 % to 100%
Lubricant MEL32
Circulating Water
Water Flow
Rate
GPM 25.4 25.4 25.4 31.7
Pressure
Drop
Ft. (psi)
8 (3.48) 8 (3.48) 8 (3.48) 15 (6.38)
Max Water Pressure 290
PSI / 2 MPA
Refrigerant Type R410A
External Finish Galvanized steel sheets
Dimensions
Height In. 43-5/16 57-1/8
Width In. 34-11/16
Depth In. 21-11/16
Net Weight Pounds
380 479
404 505
Sound Pressure Level (As Measured
in an Anechoic Room)
dB(A) 46 48 54
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Compressor Over-heat protection, Over-current protection
Inverter Over-heat protection
Refrigerant Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 5/8 3/4 7/8
Gas
(Low
Pressure)
(Brazed)
In. 3/4 7/8 1-1/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of water-source unit capacity
Model / Quantity P06~P96/1~18 P06~P96/1~24 P06~P96/1~30 P06~P96/1~36
Operating
Temperature Range
Cooling W.B. Indoor: 59 to 75° F
Heating D.B. Indoor: 50 to 113° F
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *2
EER 16.7 / 20.1 15.2 / 18.7 13.4 / 15.6 12.1 / 15.4
IEER 24.2 / 28.1 25.0 / 30.4 23.2 / 29.0 19.5 / 23.1
COP 5.51 / 6.05 5.77 / 5.93 5.51 / 5.60 4.90 / 5.50
PQRY-P**T(Y)LMU-A
SPECIFICATIONS: L-GENERATION W-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor:: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts.
See our website for details on specific additional application installation coverage.
92
Model Name
208/230V PQRY-P168TLMU-A PQRY-P192TLMU-A PQRY-P216TLMU-A PQRY-P240TLMU-A
460V PQRY-P168YLMU-A PQRY-P192YLMU-A PQRY-P216YLMU-A PQRY-P240YLMU-A
Power Source
Capacity (Nominal)
*1
Cooling Btu/h 168,000 192,000 216,000 240,000
Heating Btu/h 161,000 183,000 206,000 228,000
Electrical Supply
MCA A
44 / 39 54 / 49 69 / 63 79 / 71
20 25 31 36
MOP A
70 / 70 90 / 80 110 / 110 125 / 125
35 40 50 60
Compressor
Type x Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 16 % to 100% 14 % to 100% 13 % to 100% 12 % to 100%
Lubricant MEL32
Circulating Water
Water Flow
Rate
GPM 31.7 31.7 50.7 50.7
Pressure
Drop
Ft. (psi)
15 (6.38) 15 (6.38) 15 (6.53) 15 (6.53)
Max Water Pressure 290
PSI / 2 MPA
Refrigerant Type R410A
External Finish Galvanized steel sheets
Dimensions
Height In. 57-1/8
Width In. 34-11/16
Depth In. 21-11/16
Net Weight Pounds
380 556
404 571
Sound Pressure Level (As Measured
in an Anechoic Room)
dB(A) 56 58
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Compressor Over-heat protection, Over-current protection
Inverter Over-heat protection
Refrigerant Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 7/8 7/8 (1-1/8 for the part that exceeds 65 m)
Gas
(Low
Pressure)
(Brazed)
In. 1-1/8 1-3/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of water-source unit capacity
Model / Quantity P06~P96/1~42 P06~P96/1~48
P06~P96/2~50 (Connectable
branch pipe number is
max. 48.)
P06~P96/2~50
(Connectable branch pipe
number is max. 48.)
Operating
Temperature Range
Cooling W.B. Indoor: 59 to 75° F
Heating D.B. Indoor: 50 to 113° F
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *2
EER 15.1 / 18.6 11.9 / 13.5 14.8 / 17.1 11.5 / 12.4
IEER 22.5 / 26.1 18.0 / 21.8 23.6 / 25.8 18.4 / 21.7
COP 5.29 / 5.94 4.73 / 5.39 5.57 / 5.67 4.60 / 5.15
PQRY-P**T(Y)LMU-A
SPECIFICATIONS: L-GENERATION W-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor:: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts.
See our website for details on specific additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 93
SPECIFICATIONS: L-GENERATION W-SERIES
PQRY-P**T(Y)SLMU-A
Model Name
208/230V
PQRY-P144TSLMU-A *2 PQRY-P168TSLMU-A *2 PQRY-P192TSLMU-A *2 PQRY-P216TSLMU-A *2 PQRY-P240TSLMU-A *2
With
2 PQRY-P72TLMU-A *3
With
1 PQRY-P72TLMU-A
and
1 PQRY-P96TLMU-A *3
With
2 PQRY-P96TLMU-A *3
With
1 PQRY-P96TLMU-A and
1 PQRY-P120TLMU-A *3
With
2 PQRY-P120TLMU-A *3
460V
PQRY-P144YSLMU-A *2 PQRY-P168YSLMU-A *2 PQRY-P192YSLMU-A *2 PQRY-P216YSLMU-A *2 PQRY-P240YSLMU-A *2
With
2 PQRY-P72YLMU-A *3
With
1 PQRY-P72YLMU-A
and
1 PQRY-P96YLMU-A *3
With
2 PQRY-P96YLMU-A *3
With
1 PQRY-P96YLMU-A and
1 PQRY-P120YLMU-A *3
With
2 PQRY-P120YLMU-A *3
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling Btu/h 144,000 168,000 192,000 216,000 240,000
Heating Btu/h 160,000 188,000 215,000 243,000 270,000
Compressor
Operating Range 12 % to 100% 10 % to 100% 9 % to 100% 8 % to 100% 7 % to 100%
Type x Quantity Refer to: Refer to: Refer to: Refer to: Refer to:
Lubricant
PQRY-P72TLMU-A PQRY-P72TLMU-A PQRY-P96TLMU-A PQRY-P96TLMU-A PQRY-P120TLMU-A
Circulating Water
Water Flow
Rate
GPM
(L/s)
Pressure
Drop
Ft. (psi)
PQRY-P96TLMU-A PQRY-P120TLMU-A
Operation
Volume
Range
GPM
(L/m)
PQRY-P72YLMU-A PQRY-P72YLMU-A PQRY-P96YLMU-A PQRY-P96YLMU-A PQRY-P120YLMU-A
Refrigerant Type
External Finish
Dimensions
Height In.
PQRY-P96YLMU-A PQRY-P120YLMU-A
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As
Measured in an Anechoic Room)
dB(A) 50.0 51.0 52.0 53.0 54.0
Protection Devices
High Pressure
Protection
High pressure sensor, High pressure switch
Compressor / Fan Overheat protection / Thermal switch
Inverter Overheat and Overcurrent Protection
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Brazed)
In. 7/8 7/8 (1-1/8 for the part that exceeds 65 m)
Gas (Low
Pressure)
(Brazed)
In. 1-1/8 1-3/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of outdoor unit capacity
Model / Quantity P06~P96/1~36 P06~P96/1~42 P06~P96/1~48
P06~P96/2~50
(Connectable branch pipe
number is max. 48.)
P06~P96/2~50
(Connectable branch pipe
number is max. 48.)
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *4
EER 14.4 / 16.2 11.2 / 10.9 13.5 / 14.9 10.8 / 11.0 12.5 / 13.8
IEER 24.4 / 26.4 19.0 / 21.2 23.5 / 25.9 18.8 / 21.2 22.4 / 25.7
COP 5.77 / 5.53 4.75 / 5.23 5.64 / 5.40 4.52 / 5.05 5.46 / 5.32
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Twinning kit is required for combining two individual outdoor units in the eld for
PQRY-P-T(Y)SLMU.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our website
for details on specific additional application installation coverage.
94
SPECIFICATIONS: L-GENERATION W-SERIES
PQRY-P**T(Y)SLMU-A
Model Name
208/230V
PQRY-P288TSLMU-A *2 PQRY-P312TSLMU-A *2 PQRY-P336TSLMU-A *2
With
2 PQRY-P144TLMU-A *3
With
1 PQRY-P72TLMU-A and
1 PQRY-P96TLMU-A *3
With
2 PQRY-P168TLMU-A *3
460V
PQRY-P288YSLMU-A *2 PQRY-P312YSLMU-A *2 PQRY-P336YSLMU-A *2
With
2 PQRY-P144YLMU-A *3
With
1 PQRY-P72YLMU-A and
1 PQRY-P96YLMU-A *3
With
2 PQRY-P168YLMU-A *3
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling Btu/h 288,000 312,000 336,000
Heating Btu/h 275,000 297,000 320,000
Compressor
Operating Range 9 % to 100% 9 % to 100% 8 % to 100%
Type x Quantity Refer to: Refer to: Refer to:
Lubricant
PQRY-P144TLMU-A PQRY-P168TLMU-A PQRY-P168TLMU-A
Circulating Water
Water Flow
Rate
GPM (L/s)
Pressure
Drop
Ft. (psi)
PQRY-P144TLMU-A
Operation
Volume
Range
GPM
(L/m)
PQRY-P144YLMU-A PQRY-P168YLMU-A PQRY-P168YLMU-A
Refrigerant Type
External Finish
Dimensions
Height In.
PQRY-P144YLMU-A
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As
Measured in an Anechoic Room)
dB(A) 57 58 59
Protection Devices
High Pressure
Protection
High pressure sensor, High pressure switch
Compressor / Fan Overheat protection / Thermal switch
Inverter Overheat and Overcurrent Protection
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Brazed)
In. 1-1/8
Gas (Low
Pressure)
(Brazed)
In. 1-3/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of outdoor unit capacity
Model / Quantity
P06~P96/2~50 (Connectable
branch pipe number is max.
48.)
P06~P96/2~50 (Connectable
branch pipe number is max.
48.)
P06~P96/2~50 (Connectable
branch pipe number is max.
48.)
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *4
EER 11.4 / 13.7 11.2 / 13.0 11.1 / 12.3
IEER 18.5 / 20.6 17.6 / 20.4 16.8 / 20.1
COP 4.90 / 5.25 4.78 / 5.24 4.66 / 5.23
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Twinning kit is required for combining two individual outdoor units in the eld for
PQRY-P-T(Y)SLMU.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our website
for details on specific additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 95
Model Name
208/230V PQHY-P72TLMU-A PQHY-P96TLMU-A PQHY-P120TLMU-A PQHY-P144TLMU-A
460V PQHY-P72YLMU-A PQHY-P96YLMU-A PQHY-P120YLMU-A PQHY-P144YLMU-A
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling Btu/h 72,000 96,000 120,000 144,000
Heating Btu/h 69,000 92,000 114,000 137,000
Electrical Supply
MCA A
13 / 12 19 / 17 29 / 26 35 / 32
6 9 13 16
MOP A
20 / 20 30 / 25 50 / 45 60 / 50
15 15 20 25
Compressor
Type x Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 24 % to 100% 18 % to 100% 14 % to 100% 19 % to 100%
Lubricant MEL32
Circulating Water
Water Flow
Rate
GPM 25.4 25.4 25.4 31.7
Pressure
Drop
Ft. (psi)
8 (3.48) 8 (3.48) 8 (3.48) 15 (6.38)
Max Water Pressure 290
PSI / 2 MPA
Refrigerant Type R410A
External Finish Galvanized steel sheets
Dimensions
Height In. 43-5/16 57-1/8
Width In. 34-11/16
Depth In. 21-11/16
Net Weight Pounds
384 481
408 508
Sound Pressure Level (As Measured
in an Anechoic Room)
dB(A) 46 48 54
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Compressor Over-heat protection, Over-current protection
Inverter Over-heat protection
Refrigerant Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 3/8 3/8 (1/2, total length >= 90 m) 1/2
Gas
(Low
Pressure)
(Brazed)
In. 3/4 7/8 1-1/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of water-source unit capacity
Model / Quantity P06~P96/1~15 P06~P96/1~20 P06~P96/1~26 P06~P96/1~31
Operating
Temperature Range
Cooling W.B. Indoor: 59 to 75° F
Heating D.B. Indoor: 50 to 113° F
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *2
EER 17.4 / 20.7 15.3 / 19.4 13.5 / 15.9 12.1 / 15.6
IEER 24.2 / 28.1 25.0 / 30.4 23.2 / 29.0 19.5 / 23.1
COP 5.62 / 6.15 5.80 / 6.02 5.55 / 5.66 4.92 / 5.56
PQHY-P**T(Y)LMU-A
SPECIFICATIONS: L-GENERATION W-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor:: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts.
See our website for details on specific additional application installation coverage.
96
Model Name
208/230V PQHY-P168TLMU-A PQHY-P192TLMU-A PQHY-P216TLMU-A PQHY-P240TLMU-A
460V PQHY-P168YLMU-A PQHY-P192YLMU-A PQHY-P216YLMU-A PQHY-P240YLMU-A
Power Source
Capacity (Nominal)
*1
Cooling Btu/h 168,000 192,000 216,000 240,000
Heating Btu/h 161,000 183,000 206,000 228,000
Electrical Supply
MCA A
44 / 39 54 / 49 69 / 63 79 / 71
20 25 31 36
MOP A
70 / 70 90 / 80 110 / 110 125 / 125
35 40 50 60
Compressor
Type x Quantity INVERTER-driven Scroll Hermetic x 1
Operating Range 16 % to 100% 14 % to 100% 13 % to 100% 12 % to 100%
Lubricant MEL32
Circulating Water
Water Flow
Rate
GPM 31.7 31.7 50.7 50.7
Pressure
Drop
Ft. (psi)
15 (6.38) 15 (6.38) 15 (6.53) 15 (6.53)
Max Water Pressure 290
PSI / 2 MPA
Refrigerant Type R410A
External Finish Galvanized steel sheets
Dimensions
Height In. 57-1/8
Width In. 34-11/16
Depth In. 21-11/16
Net Weight Pounds
481 558
508 574
Sound Pressure Level (As Measured
in an Anechoic Room)
dB(A) 56 58
Protection Devices
High Pressure Protection High pressure sensor, High pressure switch
Compressor Over-heat protection, Over-current protection
Inverter Over-heat protection
Refrigerant Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 5/8
Gas
(Low
Pressure)
(Brazed)
In. 1-1/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of water-source unit capacity
Model / Quantity P06~P96/1~36 P06~P96/1~41 P06~P96/2~46 P06~P96/2~50
Operating
Temperature Range
Cooling W.B. Indoor: 59 to 75° F
Heating D.B. Indoor: 50 to 113° F
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *2
EER 15.2 / 19.0 12.0 / 13.6 15.0 / 17.3 11.5 / 12.5
IEER 22.5 / 26.1 18.0 / 21.8 23.6 / 25.8 18.4 / 21.7
COP 5.32 / 6.01 4.76 / 5.43 5.61 / 5.72 4.62 / 5.19
PQHY-P**T(Y)LMU-A
SPECIFICATIONS: L-GENERATION W-SERIES
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor:: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts.
See our website for details on specific additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 97
SPECIFICATIONS: L-GENERATION W-SERIES
PQHY-P**T(Y)SLMU-A
Model Name
208/230V
PQHY-P144TSLMU-A *2 PQHY-P168TSLMU-A *2 PQHY-P192TSLMU-A *2 PQHY-P216TSLMU-A *2 PQRY-P240TSLMU-A *2
With
2 PQHY-P72TLMU-A *3
With
1 PQHY-P72TLMU-A
and
1 PQHY-P96TLMU-A *3
With
2 PQHY-P96TLMU-A *3
With
1 PQHY-P96TLMU-A and
1 PQHY-P120TLMU-A *3
With
2 PQHY-P120TLMU-A *3
460V
PQHY-P144YSLMU-A *2 PQHY-P168YSLMU-A *2 PQHY-P192YSLMU-A *2 PQHY-P216YSLMU-A *2 PQHY-P240YSLMU-A *2
With
2 PQHY-P72YLMU-A *3
With
1 PQHY-P72YLMU-A
and
1 PQHY-P96YLMU-A *3
With
2 PQHY-P96YLMU-A *3
With
1 PQHY-P96YLMU-A and
1 PQHY-P120YLMU-A *3
With
2 PQHY-P120YLMU-A *3
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling Btu/h 144,000 168,000 192,000 216,000 240,000
Heating Btu/h 160,000 188,000 215,000 243,000 270,000
Compressor
Operating Range 12 % to 100% 10 % to 100% 9 % to 100% 8 % to 100% 7 % to 100%
Type x Quantity Refer to: Refer to: Refer to: Refer to: Refer to:
Lubricant
PQHY-P72TLMU-A
PQHY-P72TLMU-A
PQHY-P96TLMU-A
PQHY-P96TLMU-A
PQHY-P96TLMU-A
PQHY-P120TLMU-A
PQHY-P120TLMU-A
Circulating Water
Water Flow
Rate
GPM
(L/s)
Pressure
Drop
Ft. (psi)
Operation
Volume
Range
GPM
(L/m)
PQHY-P72YLMU-A
PQHY-P72YLMU-A
PQHY-P96YLMU-A
PQHY-P96YLMU-A
PQRY-P96YLMU-A
PQRY-P120YLMU-A
PQHY-P120YLMU-A
Refrigerant Type
External Finish
Dimensions
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As
Measured in an Anechoic Room)
dB(A) 49 50 51 55 57
Protection Devices
High Pressure
Protection
High pressure sensor, High pressure switch
Compressor / Fan Overheat protection / Thermal switch
Inverter Overheat and Overcurrent Protection
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Brazed)
In. 1/2 5/8
Gas (Low
Pressure)
(Brazed)
In. 1-1/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of outdoor unit capacity
Model / Quantity P06~P96/1~31 P06~P96/1~36 P06~P96/1~41 P06~P96/2~46 P06~P96/2~50
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *4
EER 14.5 / 16.4 11.3 / 10.9 13.6 / 15.0 10.8 / 11.0 12.5 / 13.9
IEER 24.4 / 26.4 19.0 / 21.2 23.5 / 25.9 18.8 / 21.2 22.4 / 25.7
COP 5.80 / 5.57 4.77 / 5.26 5.68 / 5.43 4.54 / 5.08 5.49 / 5.35
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Twinning kit is required for combining two individual outdoor units in the eld for
PQRY-P-T(Y)SLMU.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our website
for details on specific additional application installation coverage.
98
SPECIFICATIONS: L-GENERATION W-SERIES
PQHY-P**T(Y)SLMU-A
Model Name
208/230V
PQHY-P288TSLMU-A *2 PQHY-P312TSLMU-A *2 PQHY-P336TSLMU-A *2 PQHY-P360TSLMU-A *2
With
2 PQHY-P144TLMU-A *3
With
1 PQHY-P144TLMU-A and
1 PQHY-P168TLMU-A *3
With
2 PQHY-P168TLMU-A *3
With
1 PQHY-P168TLMU-A and 1
PQHY-P192TLMU-A *3
460V
PQHY-P288YSLMU-A *2 PQHY-P312YSLMU-A *2 PQHY-P336YSLMU-A *2 PQHY-P360YSLMU-A *2
With
2 PQHY-P144YLMU-A *3
With
1 PQHY-P144YLMU-A and
1 PQHY-P168YLMU-A *3
With
2 PQHY-P168YLMU-A *3
With
1 PQHY-P168YLMU-A and 1
PQHY-P192YLMU-A *3
Power Source
208 / 230V, 3-Phase, 60Hz
460V, 3-Phase, 60Hz
Capacity (Nominal)
*1
Cooling Btu/h 288,000 312,000 336,000 360,000
Heating Btu/h 323,000 350,000 378,000 405,000
Compressor
Operating Range 9 % to 100% 9 % to 100% 8 % to 100% 8 % to 100%
Type x Quantity Refer to: Refer to: Refer to: Refer to:
Lubricant
PQHY-P144TLMU-A
PQHY-P72TLMU-A
PQHY-P96TLMU-A
PQHY-P168TLMU-A
PQHY-P168TLMU-A
PQHY-P192TLMU-A
Circulating Water
Water Flow
Rate
GPM
(L/s)
Pressure
Drop
Ft. (psi)
Operation
Volume
Range
GPM
(L/m)
PQHY-P144YLMU-A
PQHY-P72YLMU-A
PQHY-P96YLMU-A
PQHY-P168YLMU-A
PQRY-P168YLMU-A
PQRY-P192YLMU-A
Refrigerant Type
External Finish
Dimensions
Height In.
Width In.
Depth In.
Net Weight Pounds
Sound Pressure Level (As
Measured in an Anechoic Room)
dB(A) 57 58 59 60
Protection Devices
High Pressure
Protection
High pressure sensor, High pressure switch
Compressor / Fan Overheat protection / Thermal switch
Inverter Overheat and Overcurrent Protection
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Brazed)
In. 3/4
Gas (Low
Pressure)
(Brazed)
In. 1-3/8 1-5/8
Indoor Unit
Connectable
Total Capacity 50 to 150% of outdoor unit capacity
Model / Quantity P06~P96/2~50 P06~P96/2~50 P06~P96/2~50 P06~P96/2~50
Inlet Water
Temperature Range
Cooling 50 to 113° F
Heating 50 to 113° F
Efficiency Ratings
(Ducted /
Non-Ducted) *4
EER 11.4 / 13.8 11.2 / 13.0 11.1 / 12.3 11.2 / 12.1
IEER 18.5 / 20.6 17.6 / 20.4 16.8 / 20.1 17.5 / 20.3
COP 4.92 / 5.27 4.80 / 5.26 4.67 / 5.25 4.64 / 5.14
Notes:
*1 Rating Conditions:
Cooling | Indoor: 81° F (27° C) D.B. / 66° F (19° C) W.B.; Water Temperature: 86° F (30° C)
Heating | Indoor: 68° F (20° C) D.B.; Water Temperature: 68° F (20° C).
*2 Twinning kit is required for combining two individual outdoor units in the eld for
PQRY-P-T(Y)SLMU.
*3 Each individual outdoor unit requires a separate electrical connection. Reference electrical
data for each individual outdoor unit.
*4 Efciency values based on AHRI 1230 test method.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. See our website
for details on specific additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 99
PWFY-P**NMU-E-AU/BU
SPECIFICATIONS: PWFY
HYDRONIC HEAT EXCHANGER
Notes:
*1 Nominal heating conditions (PWFY conditions are indicated in the parentheses).
(W-Series)
Outdoor Temp.: 47° F D.B. / 43° F W.B. (8.3° C D.B./6.1° C W.B.)
Pipe length: 25 ft (7.6 m)
Level difference: 0 ft (0 m)
(Inlet water Temp.: 149° F (65°C) Water ow rate: 9.2 gpm (2.15 m
3
/h))
(WR2-Series)
Circulating water Temp.: 70° F (21.1° C)
Pipe length: 25 ft (7.6 m)
Level difference: 0 ft (0 m)
(Inlet water Temp.: 149° F (65° C) Water ow rate 9.2 gpm (2.15 m
3
/h))
Note: Consult Application Note 2014 - Designing with PWFY for additional
design assistance.
Note: The design water pressure drop and flow. Note that the pressure drop doesn’t
include strainers.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
Model Name PWFY-P36NMU-E-AU PWFY-P72NMU-E-AU PWFY-P36NMU-E-BU
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity *1 Btu/h 36,200 72,000 -
Heating Capacity *1 Btu/h 39,900 79,800 39,900
Power
Consumption
Cooling kW 0.015 N/A
Heating kW 0.015 2.48
Current
Cooling A 0.072 / 0.065 N/A
Heating A 0.072 / 0.065 12.30 /11.12
External Finish Galvanized-steel Sheet
Dimensions
Height In. 31-1/2
Width In. 17-3/4
Depth In. 11-13/16
Net Weight Unit Pounds 78 84 133
Operating Outdoor
Temperature Range
Cooling
23° F to 115° F D.B. (PURY/PUHY/PURY-HP)
23° F to 109° F D.B. (PUHY-HP)
-
Heating
-13° F to 90° F W.B. (PURY)
-13° F to 60° F W.B. (PUHY)
-13° F to 60° F W.B. (PUHY-HP)
-4 ° F to 90° F W.B.
Circulating Water Operation Volume
Range
GPM
(L/m)
4.8-9.4 (18-36) 7.9-18.9 (30-72) 2.6-9.6 (10-36)
Circulating Water Design Pressure MPa (psi) 1 (145)
Water Piping
Dimensions
Inlet In. 3/4 FPT 1 FPT 3/4 FPT
Outlet In. 3/4 FPT 1 FPT 3/4 FPT
Refrigerant Pipe
Dimensions
Liquid (High Pressure)
(Brazed)
In. 3/8 3/8 3/8
Gas (Low Pressure)
(Brazed)
In. 5/8 3/4 5/8
Drainpipe Dimensions (O.D.) In. 1-1/4
Sound Pressure Levels dB(A) 29 44
Connectable Outdoor Units
PURY-P72~288T/Y(S)KMU (-BS)
PURY-HP72~192T/Y(S)KMU (-BS)
PUHY-P72~360T/Y(S)KMU (-BS)
PURY-P72-336T/Y(S)LMU-A (-BS)PQRY-P72-336T/Y(S)LMU-A (-BS)
PUHY-P72-360T/Y(S)LMU-A (-BS)PQHY-P72-360T/Y(S)LMU-A (-BS)
PURY-P72~288T/Y(S)KMU (-BS)
PURY-HP72~192T/Y(S)KMU (-BS)
PURY-P72-336T/Y(S)LMU-A (-BS)
PQRY-P72-336T/Y(S)LMU-A (-BS)
100
Model Name
PKFY-
P06NBMU-E2
PKFY-
P08NHMU-E2
PKFY-
P12NHMU-E2
PKFY-
P15NHMU-E2
PKFY-
P18NHMU-E2
PKFY-P24NK-
MU-E2.TH
PKFY-P30NK-
MU-E2.TH
Power Source 208 / 230V, 1-Phase, 60Hz
Cooling Capacity Btu/h *1 6,000 8,000 12,000 15,000 18,000 24,000 30,000
Heating Capacity Btu/h *1 6,700 9,000 13,500 17,000 20,000 27,000 34,000
Power
Consumption
Cooling W 8 30 70
Heating W 30 30 70
Current
Cooling A .15 .30 0.50
Heating A .15 .30 0.50
External Finish Munsell No. 1.0Y 9.2 / 0.2
Dimensions
Height In. 11-5/8 14-3/8
Width In. 32-1/8 35-3/8 46-1/16
Depth In. 8-7/8 9-13/16 11-5/8
Net Weight Unit Pounds 22 29 46
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Line Flow Fan x 1
Airflow
Rate *2
CFM
170 - 180 - 200
- 210
320-370-413 320-370-425 570-920 710-920
Motor Type
Single-phase
Induction Motor
Direct-driven DC Motor
Air Filter Polypropylene Honeycomb
Refrigerant
Pipe
Dimensions
Liquid
(High
Pressure)
(Flare)
In. 1/4 3/8
Gas
(Low
Pressure)
(Flare)
In. 1/2 5/8
Drain Pipe Dimension (I.D.) In. 5/8
Sound
Pressure
Levels *2
dB(A) 32 - 33 - 35 - 36 34 - 39 - 43 36 - 41 - 45 39 - 49 43 - 49
Notes:
*1 Cooling/Heating Capacity indicates the maximum value at operation under the following conditions:
Cooling | Indoor: 80° F (27° C) D.B. / 67° F (19° C) W.B.; Outdoor: 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B.; Outdoor: 45° F (7° C) D.B. / 43° F (6° C) W.B.
*2 Airow Rate/Sound Pressure Levels are at Lo-Mid1-Mid2-Hi, Lo-Mid-Hi, or Lo-Hi.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty of up to 10 years is available. See our website for details on specific additional
application installation coverage.
PKFY-P**N(H,K)MU-E2
SPECIFICATIONS: PKFY
WALL-MOUNTED INDOOR UNIT
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 101
SPECIFICATIONS: PLFY
CEILING-RECESSED INDOOR UNIT
PLFY-P**NEMU-E
Model Name PLFY-P08NEMU-E PLFY-P12NEMU-E PLFY-P15NEMU-E PLFY-P18NEMU-E
Power Source
208 / 230V, 1-Phase, 60Hz
Cooling Capacity Btu/h *1
8,000 12,000 15,000 18,000
Heating Capacity Btu/h *1
9,000 13,500 17,000 20,000
Power Consumption
Cooling W
20
Heating W
20
Current
Cooling A
0.25 0.26 0.29
Heating A
0.20 0.21 0.24
External Finish Color (Munsell No.)
Grille 6.4Y 8.9/0.4
Dimensions
Height In.
10-3/16
Width In.
33-3/32
Depth In.
33-3/32
Net Weight *2 Unit/Panel Pounds
42/11
Heat Exchanger
Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity
Turbo Fan x 1
Airow Rate *3 CFM
424 - 459 - 494 - 530 459 - 494 - 530 - 565 459 - 494 - 530 - 600 459 - 494 - 565 - 636
Motor Type
DC Motor
Motor Output W
50
Air Filter
Polypropylene Honeycomb
Refrigerant Pipe Dimensions
Liquid (High Pressure)
(Flare)
In.
1/4
Gas (Low Pressure)
(Flare)
In.
1/2
Drain Pipe Dimension (O.D.) In.
1-1/4
Sound Pressure Levels (As
Measured in an Anechoic
Room)*3
(Low-Mid1-Mid2-High) dB(A)
27 - 29 - 30 - 31 27 - 29 - 30 - 31 28 - 29 - 30 - 31 28 - 30 - 31 - 32
Model Name PLFY-P24NEMU-E PLFY-P30NEMU-E PLFY-P36NEMU-E PLFY-P48NEMU-E
Power Source
208 / 230, 1-phase, 60Hz
Cooling Capacity Btu/h *1
24,000 30,000 36,000 48,000
Heating Capacity Btu/h *1
34,000 40,000 54,000 20,000
Power Consumption
Cooling W
40 50 80 100
Heating W
40 50 80 100
Current
Cooling A
0.41 0.56 0.90 0.99
Heating A
0.36 0.51 0.85 0.94
External Finish Color (Munsell No.)
Grille 6.4Y 8.9/0.4
Dimensions
Height In.
11-3/4
Width In.
33-3/32
Depth In.
33-3/32
Net Weight *2 Unit/Panel Pounds
46/11 46/11 51/11 55/11
Heat Exchanger
Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity
Turbo Fan x 1
Airow Rate *3 CFM
494 - 565 - 671 - 777 494 - 600 - 742 - 883 706 - 883 - 1060 - 1201 742 - 918 - 1060 - 1236
Motor Type
DC Motor
Motor Output W
50 120
Air Filter
Polypropylene Honeycomb
Refrigerant Pipe Dimensions
Liquid (High Pressure)
(Flare)
In.
3/8
Gas (Low Pressure)
(Flare)
In.
5/8
Drain Pipe Dimension (O.D.) In.
1-1/4
Sound Pressure Levels
(As Measured in an Anechoic
Room)*3
(Low-Mid1-Mid2-High) dB(A)
28 - 31 - 34 - 37 28 - 32 - 35 - 38 35 - 38 - 41 - 44 36 - 39 - 42 - 45
Notes:
*1 Cooling / Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80˚ F (26.7˚ C) DB / 67˚ F (19.4˚ C) WB; Outdoor: 95˚ F (35˚ C) DB.
Heating | Indoor: 70˚ F (21˚ C) DB; Outdoor: 47˚ F (8˚ C) DB / 43˚ F (6˚ C) WB.
*2 Net weight is shown for unit / grille.
*3 Airflow rate / sound pressure levels are at (Low-Mid1-Mid2-High).
Ventilation Air: Providing sufficient ventilation air is an important part of every building design
ASHRAE Standard 62 provides the minimum ventilation air requirements. Also check local codes.
LIMITED WARRANTY | Seven-year warranty on compressor. One-year warranty on parts.
See our website for details on specific additional application installation coverage.
Specifications are subject to change.
102
PLFY-P**NCMU-ER2
SPECIFICATIONS: PLFY
CEILING-RECESSED INDOOR UNIT
Model Name PLFY-P08NCMU-ER2 PLFY-P12NCMU-ER2 PLFY-P15NCMU-ER2
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity Btu/h *1 8,000 12,000 15,000
Heating Capacity Btu/h *1 9,000 13,500 17,000
Power Consumption
Cooling W 50 60
Heating W 50 60
Current
Cooling A 0.23 0.28
Heating A 0.23 0.28
External Finish (Munsell No.) Grille: White (6.4Y 8.9/0.4)
Dimensions
Height In. 8-3/16
Width In. 22-7/16
Depth In. 22-7/16
Net Weight *2 Unit/Panel Pounds 34/7 37/7
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Turbo Fan x 1
Airflow Rate *3 CFM 280-320-350 320-350-390
Motor Type Single-phase Induction Motor
Air Filter Polypropylene Honeycomb
Refrigerant Pipe Dimensions
Liquid (High
Pressure)
(Flare)
In. 1/4
Gas (Low
Pressure) (Flare)
In. 1/2
Condensate Lift Mechanism (Standard) In. 19-11/16
Drain Pipe Dimension (O.D.) In. 1-1/4
Sound Pressure Levels
(As Measured in an Anechoic
Room) *3
(Low-Mid-High) dB(A) 29-32-38 30-34-39 31-35-40
Notes:
*1 Cooling / Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80˚ F (27˚ C) D.B. / 67˚F (19˚ C) W.B.; Outdoor: 95˚F (35˚ C) D.B.
Heating | Indoor: 70˚ F (21˚ C) D.B.; Outdoor: 47˚ F (8˚ C) D.B. / 43˚F (6˚ C) W.B.
*2 Net weight is shown for unit / grille.
*3 Airow rate / sound pressure levels are at (Low-Mid-High).
Ventilation Air: Providing sufcient ventilation air is an important part of every building design.
ASHRAE Standard 62 provides the minimum ventilation air requirements. Also check local
codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 103
PMFY-P**NBMU-ER5
SPECIFICATIONS: PMFY
CEILING-RECESSED INDOOR UNIT
Model Name PMFY-P06NBMU-ER5 PMFY-P08NBMU-ER5 PMFY-P12NBMU-ER5 PMFY-P15NBMU-ER5
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity Btu/h *1
6,000 8,000 12,000 15,000
Heating Capacity Btu/h *1
6,700 9,000 13,500 17,000
Power Consumption
Cooling W
40 50
Heating W
40 50
Current
Cooling A
0.20 0.21 0.26
Heating A
0.20 0.21 0.26
External Finish Color (Munsell No.) Grille: 6.4Y 8.9/0.4
Dimensions
Height In. 9-1/16
Width In. 31-31/32
Depth In. 15-9/16
Net Weight Unit Pounds 31
Heat Exchanger Cross Fin
Fan
Type x Quantity Line ow fan x 1
Airflow Rate *2 CFM 230-254-283-307 258-283-304-328 258-283-304-328 272-307-343-378
Motor Type DC Brushless Motor
Air Filter Polypropylene Honeycomb
Liquid (High
Pressure) (Flare)
In. 1/4
Refrigerant Pipe Dimensions
Gas (Low Pressure)
(Flare)
In. 1/2
Condensate Lift Mechanism (Standard) In.
23-5/8
Drain Pipe Dimension (O.D.) In. 1
Sound Pressure Levels
(As Measured in an Anechoic
Room) *2
(Low-Mid1-Mid2-
High)
dB(A) 27-30-33-35 32-34-36-37 32-34-36-37 33-35-37-39
Notes:
*1 Cooling/Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80° F (27° C) D.B./67° F (19° C) W.B.; Outdoor: 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B.; Outdoor: 47° F (8° C) DB/43° F (6° C) W.B.
*2 Airow rate/sound levels are at (Low-Mid1-Mid2-High).
Ventilation Air: Providing sufcient ventilation air is an important part of every building design.
ASHRAE standard 62 provides the minimum ventilation air requirements. Also check
local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
104
Model Name PCFY-P15NKMU-ER1 PCFY-P24NKMU-ER1 PCFY-P30NKMU-ER1 PCFY-P36NKMU-ER1
Power Source 208 / 230V, 1 Phase, 60Hz
Cooling Capacity Btu/h *1 15,000 24,000 30,000 36,000
Heating Capacity Btu/h *1 17,000 27,000 34,000 40,000
Power Consumption
Cooling W 30 40 90 110
Heating W 30 40 90 110
Current
Cooling A 0.35 0.41 0.83 0.97
Heating A 0.35 0.41 0.83 0.97
External Finish Munsell No. 6.4Y 8.9 / 0.4
Dimensions
Height In. 9-1/16
Width In. 37-13/16 50-3/8 63
Depth In. 26-3/4
Net Weight Unit Pounds 53 71 79 84
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x quantity Sirocco Fan x 2 Sirocco Fan x 3 Sirocco Fan x 4
Airflow Rate *2 CFM 353-388-424-459 494-530-565-636 703-777-883-989 742-847-953-1,095
Motor Type Direct-driven DC Motor
Air Filter Polypropylene Honeycomb
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Flare)
In. 1/4 3/8
Gas (Low Pressure)
(Flare)
In. 1/2 5/8
Drain Pipe Dimension (O.D.) In. 1
Sound Pressure
Levels *2
Lo-Mid1-Mid2-Hi dB(A) 29-32-34-36 31-33-35-37 34-37-40-43 36-39-42-44
PCFY-P**NKMU-ER1
SPECIFICATIONS: PCFY
CEILING-SUSPENDED INDOOR UNIT
Note:
*1 Cooling/Heating Capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80° F (27° C) D.B. / 67° F (19° C) W.B.; Outdoor 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B.; Outdoor: 45° F (7° C) D.B. / 43° F (6° C) W.B.
*2 Airow rate/sound pressure levels are at Low-Mid1-Mid2-Hi.
Ventilation Air: Providing sufcient ventilation air is an important part of very building design
ASHRAE Standard 62 provides the minimum air requirements. Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage..
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 105
PEFY-P**NMSU-ER2
SPECIFICATIONS: PEFY
CEILING-CONCEALED INDOOR UNIT
Notes:
*1 Not compatible with PUHY/PURY-P-TGMU or PQHY/PQRY-P-TGMU units.
*2 Cooling/Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80˚ F (27˚ C) D.B./67˚ F (19˚ C) W.B.; Outdoor: 95˚ F (35˚ C) D.B.
Heating | Indoor: 70˚ F (21˚ C) D.B.; Outdoor: 47˚ F (8˚ C) D.B./43˚F (6˚ C) W.B.
*3 Airow rate/sound pressure levels are at (Low-Mid-High).
*4 External static pressure is factory set to 0.06" W.G.
Ventilation Air: Providing sufcient ventilation air is an important part of very building design
ASHRAE Standard 62 provides the minimum air requirements. Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
Model Name PEFY-P06NM-
SU-ER2* 1
PEFY-P08NM-
SU-ER2
PEFY-P12NM-
SU-ER2
PEFY-P15NM-
SU-ER2
PEFY-P18NM-
SU-ER2
PEFY-P24NM-
SU-ER2
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity *2 Btu/h 6,000 8,000 12,000 15,000 18,000 24,000
Heating Capacity *2 Btu/h 6,700 9,000 13,500 17,000 20,000 27,000
Power
Consumption
Cooling W 50 / 50 60 / 60 70 / 70 90 / 90 120 / 120
Heating W 30 / 30 40 / 40 50 / 50 70 / 70 100 / 100
Current
Cooling A 0.42 / 0.41 0.51 / 0.49 0.56 / 0.53 0.57 / 0.55 0.74 / 0.70 0.98 / 0.93
Heating A 0.32 / 0.31 0.41 / 0.39 0.46 / 0.43 0.47 / 0.45 0.64 / 0.60 0.88 / 0.83
External Finish Galvanized Steel Sheets
Dimensions
Height In. 7-7/8
Width In. 31-1/8 39 46-7/8
Depth In. 27-9/16
Net Weight Unit Pounds 42 46 54 62
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Sirocco Fan x 2 Sirocco Fan x 3 Sirocco Fan x 4
Airflow Rate *3 CFM 176-212-247 194-247-317 211-282-370 282-335-388 353-441-529 423-565-706
External Static
Pressure *4
In.
W.G.
0.02-0.06-0.14-0.20
Motor Type DC Brushless Motor
Air Filter Polypropylene Honeycomb Fabric (washable)
Liquid
(High Pressure)
(Brazed)
In. 1/4 3/8
Refrigerant Pipe
Dimensions
Gas (Low
Pressure)
(Brazed)
In. 1/2 5/8
Condensate Lift Mechanism
(standard)
In. 21-4/16
Drain Pipe Dimensions (O.D.) In. 1-1/4
Sound Pressure
Levels *3
Low-Mid-High dB(A) 22-24-28 23-26-30 23-28-35 28-30-33 30-34-37 30-35-40
106
PEFY-P**NMAU-E3
SPECIFICATIONS: PEFY
CEILING-CONCEALED INDOOR UNIT
Model Name PEFY-P06NMAU-E3 PEFY-P08NMAU-E3 PEFY-P12NMAU-E3 PEFY-P15NMAU-E3 PEFY-P18NMAU-E3 PEFY-P24NMAU-E3
Power Source 208 / 230V, 1-Phase, 60Hz
Cooling Capacity Btu/h *1 6,000 8,000 12,000 15,000 18,000 24,000
Heating Capacity Btu/h *1 6,700 9,000 13,500 17,000 20,000 27,000
Power
Consumption
Cooling W 60 90 110 170
Heating W 40 70 90 150
Current
Cooling A 0.56 / 0.52 0.66 / 0.62 0.67 / 0.63 0.77 / 0.73 1.31 / 1.27
Heating A 0.45 / 0.41 0.55 / 0.51 0.56 / 0.52 0.66 / 0.62 1.20 / 1.16
External Finish Galvanized Steel Sheet
Dimensions
Height In. 9-7/8
Width In. 27-9/16 35-7/16 43-5/16
Depth In. 28-7/8
Net Weight Unit Pounds 49 58 67
Heat Exchanger Cross Fin (Aluminum plate n and copper tube)
Fan
Type x Quantity Sirocco Fan x 1 Sirocco Fan x 2
Airflow Rate *2 CFM 212-265-300 265-318-371 353-424-494 424-512-600 618-742-883
External Static
Pressure
In. W.G. 0.14 - 0.20 - 0.28 - 0.40 - 0.60
Motor Type Direct-driven DC Brushless Motor
Air Filter Polypropylene Honeycomb
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Brazed)
In. 1/4 3/8
Gas (Low
Pressure)
(Brazed)
In. 1/2 5/8
Drain Pipe Dimension (O.D.) In. 1-1/4"
Sound Pressure
Levels
Lo-Mid-Hi dB(A) 26 - 28 - 29 28 - 30 - 34 26 - 28 - 29
Model Name PEFY-P27NMAU-E3 PEFY-P30NMAU-E3 PEFY-P36NMAU-E3 PEFY-P48NMAU-E3 PEFY-P54NMAU-E3
Power Source 208 / 230V, 1-Phase, 60Hz
Cooling Capacity Btu/h *1 27,000 30,000 36,000 48,000 54,000
Heating Capacity Btu/h *1 30,000 34,000 40,000 54,000 60,000
Power
Consumption
Cooling W 170 240 340 360
Heating W 150 220 320 340
Current
Cooling A 1.31 / 1.27 1.50 / 1.46 2.08 / 2.04 2.24 / 2.2
Heating A 1.20 / 1.16 1.39 / 1.35 1.97 / 1.93 2.13 / 2.09
External Finish Galvanized Steel Sheet
Dimensions
Height In. 9-7/8
Width In. 43-5/16 55-1/8 63
Depth In. 28-7/8
Net Weight Unit Pounds 67 86 93
Heat Exchanger Cross Fin (Aluminum plate n and copper tube)
Fan
Type x Quantity Sirocco Fan x 2
Airflow Rate *2 CFM 618 - 742 - 883 812 - 989 - 1,165 989 - 1,201 - 1,412 1,042 - 1,254 - 1,483
External
Static Pressure
In. W.G. 0.14 - 0.20 - 0.28 - 0.40 - 0.60
Extended Static Motor Type Direct-driven DC Brushless Motor
Air Filter Polypropylene Honeycomb
Refrigerant Pipe
Dimensions
Liquid
(High
Pressure)
(Brazed)
In. 3/8
Gas (Low Pres-
sure) (Brazed)
In. 5/8
Drain Pipe Dimension (O.D.) In. 1-1/4
Sound Pressure
Levels
Lo-Mid-Hi dB(A) 28 - 30 - 34v 32 - 37 - 41 35 - 40 - 44 36 - 41 - 45
Notes:
*1 Cooling/Heating Capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80° F (27° C) D.B. / 67° F (19° C) W.B.; Outdoor 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B.; Outdoor: 45° F (7° C) D.B. / 43° F (6° C) W.B.
*2 Airow rate/sound pressure levels are at Low-Mid-Hi.
Ventilation Air: Providing sufcient ventilation air is an important part of very building design
ASHRAE Standard 62 provides the minimum air requirements. Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 107
PEFY-P**NMHU-E2
SPECIFICATIONS: PEFY
CEILING-CONCEALED INDOOR UNIT
Model Name PEFY-P15NMHU-E2 PEFY-P18NMHU-E2 PEFY-P24NMHU-E2 PEFY-P27NMHU-E2 PEFY-P30NMHU-E2
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity *1 Btu/h 15,000 18,000 24,000 27,000 30,000
Heating Capacity *1 Btu/h 17,000 20,000 27,000 30,000 34,000
Power
Consumption
Cooling W 270 / 280 270 / 280 330 / 320 390 450
Heating W 250 / 260 250 / 260 310 / 300 370 430
Current
Cooling A 1.32 / 1.25 1.32 / 1.25 1.61 / 1.43 1.90 / 1.73 2.20 / 2.00
Heating A 1.21 / 1.14 1.21 / 1.14 1.50 / 1.32 1.79 / 1.62 2.09 / 1.89
External Finish Unit: Galvanized Steel Plate
Dimensions
Height In. 15 15 15 15 15
Width In. 29-3/8 29-3/8 29-3/8 40-9/16 40-9/16
Depth In. 35-7/16 35-7/16 35-7/16 35-7/16 35-7/16
Net Weight Unit Pounds 98 98 100 124 124
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Sirocco Fan x 1 Sirocco Fan x 1 Sirocco Fan x 1 Sirocco Fan x 1 Sirocco Fan x 2
Airflow Rate *2 CFM 353-494 353-494 477-671 547-777 636-883
Ext. Static Pressure
(208/230V)
In. W.G. 0.40-1.00 / 0.60-1.00
Motor Type Single-phase Induction Motor
Air Filter Optional Part
Refrigerant Pipe
Dimensions
Liquid
(High Pressure)
(Flare)
In. 1/4 1/4 3/8 3/8 3/8
Gas (Low
Pressure) (Flare)
In. 1/2 1/2 5/8 5/8 5/8
Drain Pipe Dimension (O.D.) In. 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4
Sound Pressure Levels (Low-High) *2 dB(A) at 230V 39-45 39-45 40-46 38-44 38-43
Model Name PEFY-P36NMHU-E2 PEFY-P48NMHU-E2 PEFY-P54NMHU-E2 PEFY-P72NMHSU-E2 PEFY-P96NMHSU-E2
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity *1 Btu/h 36,000 48,000 54,000 72,000 96,000
Heating Capacity *1 Btu/h 40,000 54,000 60,000 80,000 108,000
Power
Consumption
Cooling W 620 / 610 620 / 610 630 / 620 63 82
Heating W 600 / 590 600 / 590 610 / 600 63 82
Current
Cooling A 3.10 / 2.74 3.10 / 2.74 3.11 / 2.78 3.67 / 3.32 4.89 / 4.43
Heating A 2.99 / 2.63 2.99 / 2.63 3.00 / 2.67 3.67 / 3.32 4.89 / 4.43
External Finish Unit: Galvanized Steel Plate
Dimensions
Height In. 15 15 15 18-9/16
Width In. 47-1/16 47-1/16 47-1/16 49-1/4
Depth In. 35-7/16 35-7/16 35-7/16 44-1/8
Net Weight Unit Pounds 153 153 157 214 221
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2
Airflow Rate *2 CFM 936-1,342 936-1,342 989-1,412 1,766 - 2,154 - 2,542 2,048 - 2,507 - 2,966
Ext. Static Pressure
(208/230V)
In. W.G. 0.40-1.00 / 0.60-1.00 0.20 - 0.40 - 0.60 - 0.80 - 1.00
Motor Type Single-phase Induction Motor DC Motor
Air Filter Optional Part
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
In. 3/8 (Flare) 3/8 (Flare) 3/8 (Flare) 3/8 (Brazed) 3/8 (Brazed)
Gas (Low
Pressure)
In. 5/8 (Flare) 5/8 (Flare) 5/8 (Flare) 3/4 (Brazed) 7/8 (Brazed)
Drain Pipe Dimension (O.D.) In. 1-1/4 1-1/4 1-1/4 1-1/4 1-1/4
Sound Levels *2
(Low-High or Low-Mid-High)
dB(A) at 230V 40-46 40-46 41-47 36 - 39 - 43 39 - 42 - 46
Notes:
*1 Cooling/Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80° F (27° C) D.B./67° F (19° C) W.B.; Outdoor: 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B.; Outdoor: 47° F (8° C) D.B./43° F (6° C) W.B.
*2 Airow rate/sound levels are at (Low-High or Low-Mid-High).
Ventilation Air: Providing sufcient ventilation air is an important part of every building design.
ASHRAE standard 62 provides the minimum ventilation air requirements. Also check local
codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty
of up to 10 years is available. See our website for details on specific additional
application installation coverage.
108
PFFY-P**N(E,R)MU-E
SPECIFICATIONS: PFFY-P-NEMU/NRMU
FLOOR-STANDING INDOOR UNIT
Notes:
*1 Cooling / Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80° F (27° C) D.B. / 67° F (19° C) W.B. ; Outdoor: 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B. ; Outdoor: 45° F (7° C) D.B. / 43° F (6° C) W.B.
*2 Airow rate/sound levels are at (Low-High).
Ventilation Air: Providing sufcient ventilation air is an important part of every building design
ASHRAE standard 62 provides the minimum ventilation air requirements.
Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
Note:
*1 Cooling / Heating capacity indicates the maximum value at operation under the following
conditions:
Cooling | Indoor: 80° F (27° C) D.B. / 67° F (19° C) W.B. ; Outdoor: 95° F (35° C) D.B.
Heating | Indoor: 70° F (21° C) D.B. ; Outdoor: 45° F (7° C) DB / 43° F (6° C) W.B.
*2 Airow rate/sound levels are at (Low-High)
Ventilation Air: Providing sufcient ventilation air is an important part of every building design
ASHRAE standard 62 provides the minimum ventilation air requirements.
Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage.
Model PFFY-P06NEMU-E PFFY-P08NEMU-E PFFY-P12NEMU-E PFFY-P15NEMU-E PFFY-P18NEMU-E PFFY-P24NEMU-E
Power Source 208 / 230V, 1 Phase, 60Hz
Cooling Capacity Btu/h *1 6,000 8,000 12,000 15,000 18,000 24,000
Heating Capacity Btu/h *1 6,700 9,000 13,500 17,000 20,000 27,000
Power
Consumption
Cooling W 51 / 61 51 / 61 55 / 67 65 / 78 78 / 93 96 / 114
Heating W 51 / 61 51 / 61 55 / 67 65 / 78 78 / 93 96 / 114
Current
Cooling A 0.25 / 0.27 0.25 / 0.27 0.27 / 0.30 0.32 / 0.35 0.38 / 0.42 0.47 / 0.51
Heating A 0.25 / 0.27 0.25 / 0.27 0.27 / 0.30 0.32 / 0.35 0.38 / 0.42 0.47 / 0.51
External Finish (Munsell No.) Acrylic Painted (5Y 8/1)
Dimensions
Height In. 24-13/16 24-13/16 24-13/16 24-13/16 24-13/16 24-13/16
Width In. 41-11/32 41-11/32 46-3/32 46-3/32 55-17/32 55-17/32
Depth In. 8-11/16 8-11/16 8-11/16 8-11/16 8-11/16 8-11/16
Net Weight Unit Pounds 67 67 71 73 84 89
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Sirocco Fan x 1 Sirocco Fan x 1 Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2
Airflow Rate *2 CFM 194-229 194-229 247-317 300-388 353-459 353-494
Motor Type Single Phase Induction Motor
Motor Output W 15 15 18 30 35 63
Air Filter Standard Filter
Refrigerant
Pipe
Dimension
Liquid
(High Pressure)
(Flare)
In. 1/4 1/4 1/4 1/4 1/4 3/8
Gas (Low
Pressure)
(Flare)
In. 1/2 1/2 1/2 1/2 1/2 5/8
Drain Pipe Dimension In. O.D. 1-3/32
Sound Levels *2 (Low-High) dB(A) 36-41 36-41 37-41 38-43 38-43 40-46
Model
PFFY-
P06NRMU-E
PFFY-
P08NRMU-E
PFFY-
P12NRMU-E
PFFY-
P15NRMU-E
PFFY-
P18NRMU-E
PFFY-
P24NRMU-E
Power Source 208 / 230V, 1 Phase, 60Hz
Cooling Capacity Btu/h *1 6,000 8,000 12,000 15,000 18,000 24,000
Heating Capacity Btu/h *1 6,700 9,000 13,500 17,000 20,000 27,000
Power Cooling W 51/61 51 / 61 55 / 67 65 / 78 78 / 93 96 / 114
Consumption Heating W 51/61 51 / 61 55 / 67 65 / 78 78 / 93 96 / 114
Current Cooling A 0.25 / 0.27 0.25 / 0.27 0.27 / 0.30 0.32 / 0.35 0.38 / 0.42 0.47 / 0.51
Heating A 0.25 / 0.27 0.25 / 0.27 0.27 / 0.30 0.32 / 0.35 0.38 / 0.42 0.47 / 0.51
External Finish (Munsell No.) Galvanized Sheet Metal
Dimensions
Height In. 25-3/16 25-3/16 25-3/16 25-3/16 25-3/16 25-3/16
Width In. 34-29/32 34-29/32 39-5/8 39-5/8 49-1/16 49-1/16
Depth In. 8-11/16 8-11/16 8-11/16 8-11/16 8-11/16 8-11/16
Net Weight Unit Pounds 51 51 58 60 69 71
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x Quantity Sirocco Fan x 1 Sirocco Fan x 1 Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2 Sirocco Fan x 2
Airflow Rate *2 CFM 194-229 194-229 247-317 300-388 353-459 353-494
Motor Type Single Phase Induction Motor
Motor Output kW 0.015 0.015 0.018 0.030 0.035 0.063
Air Filter Standard Filter
Refrigerant
Pipe
Dimension
Liquid
(High Pressure)
(Flare)
In. 1/4 1/4 1/4 1/4 1/4 3/8
Gas (Low Pressure)
(Flare)
In. 1/2 1/2 1/2 1/2 1/2 5/8
Drain Pipe Dimension In. O.D. 1-3/32
Sound Levels *2 (Low-High) dB(A) 36-41 36-41 37-41 38-43 38-43 40-46
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 109
SPECIFICATIONS: PVFY
MULTI-POSITION AIR HANDLER
PVFY-P**NAMU-E
Notes:
*1 Cooling/Heating capacity indicates the maximum value at operation under the
following conditions:
Cooling | Indoor: 80˚ F (27˚ C) D.B./67˚ F (19˚ C) W.B.; Outdoor: 95˚ F (35˚ C) D.B.
Heating | Indoor: 70˚ F (21˚ C) D.B.; Outdoor: 47˚F (8˚ C) D.B./43˚F (6˚ C) W.B.
*2 Airow rate/sound pressure levels are at (Low-Med-High).
Ventilation Air: Providing sufcient ventilation air is an important part of every building
design.
ASHRAE standard 62 provides the minimum ventilation air requirements.
Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage
Model Name
PVFY-P12NAMU-E PVFY-P18NAMU-E PVFY-P24NAMU-E PVFY-P30NAMU-E PVFY-P36NAMU-E PVFY-P48NAMU-E PVFY-P54NAMU-E
Power Source 208 / 230V, 1-phase, 60Hz
Cooling Capacity Btu/h *1 12,000 18,000 24,000 30,000 36,000 48,000 54,000
Heating Capacity Btu/h *1 13,500 20,000 27,000 34,000 40,000 54,000 60,000
Dimensions
Height In. 50-1/4 54-1/4 59-1/2
Width In. 17 21 25
Depth In. 21-5/8
Net Weight Unit Pounds 113 141 172
Heat Exchanger Cross n (Aluminum n and copper tube)
Fan
Type x Qty. Sirocco fan x 1
Airflow Rate *2 CFM 280 - 340 - 400 410 - 497 - 585 515 - 625 - 735 613 - 744 - 875
767 - 931 -
1,095
980 - 1,190 -
1,400
1,040 - 1,262 -
1,485
External Static
Pressure
In. W.G. 0.30 - 0.50 - 0.80 (selectable)
Motor Type DC motor
Filter Polypropylene Honeycomb
Refrigerant
Pipe
Dimensions
Liquid
(High Pressure)
(Brazed)
In. 1/4 3/8
Gas
(Low Pressure)
(Brazed)
In. 1/2 5/8
Drain Pipe Dimensions In. 3/4 FPT
Sound Pressure
Levels
(As Measured
in an Anechoic
Room) *2
Pressure dB(A) 27-31-35 28-32-36 30-34-38 32-36-40 35-39-43 35-39-43 36-40-44
110
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty of up to 10 years is available. See our website for details on specific additional
application installation coverage
LGH-F***RX5-E1
SPECIFICATIONS: LOSSNAY
®
ENERGY
ENERGY RECOVERY VENTILATOR (ERV)
Model Name LGH-F300RX5-E1
Power source
208 / 230V, 1-phase, 60Hz
Ventilation mode Lossnay ventilation Bypass ventilation
Speed Extra high High Low Extra Low Extra high High Low Extra Low
Current A 1.33 / 1.35 1.12 / 1.18 0.81 / 0.86 0.32 / 0.36 1.33 / 1.35 1.12 / 1.18 0.81 / 0.86 0.32 / 0.36
Input W 274 / 300 232 / 268 168 / 197 67 / 82 274 / 300 232 / 268 168 / 197 67 / 82
Air volume CFM 300 / 300 260 / 300 203 / 235 91 / 112 300 / 300 260 / 300 203 / 235 91 / 112
External static pressure In. W.G. 0.60 / 0.78 0.46 / 0.54 0.28 / 0.33 0.06 / 0.08 0.60 / 0.78 0.46 / 0.54 0.28 / 0.33 0.06 / 0.08
Temperature recovery efficiency (%) 65.5 / 65.5 67.5 / 65.5 71 / 69 81 / 79 - - - -
Enthalpy recovery efficiency
(%)
Heating 63 / 63 65 / 63 68 / 66 79 / 77 - - - -
Cooling 50 / 50 52 / 50 55 / 53 63 / 61 - - - -
Sound Pressure
(Measured at 1.5m under level
the center of the unit)
dB(A) 34 / 37 30.5 / 33 25.5 / 27.5 18 / 18 35/37.5 31.5 / 34.5 25.5 / 28.5 18 / 18.5
Weight Pounds 73
Starting current 2.5A
Filter Specification Standard Filter Provided (MERV 6)
Model Name LGH-F470RX5-E1
Power source
208 / 230V, 1-phase, 60Hz
Ventilation mode Lossnay ventilation Bypass ventilation
Speed Extra high High Low Extra Low Extra high High Low Extra Low
Current A 2.40 / 2.50 2.10 / 2.20 1.59 / 1.71 0.60 / 0.64 2.40 / 2.50 2.10 / 2.20 1.59 / 1.71 0.60 / 0.64
Input W 485 / 538 425 / 490 330 / 393 120 / 145 485 / 538 425 / 490 330 / 393 120 / 145
Air volume CFM 470 / 470 420 / 470 330 / 365 147 / 177 470 / 470 420 / 470 330 / 365 147 / 177
External static pressure In. W.G. 0.80 / 0.96 0.54 / 0.66 0.33 / 0.40 0.07 / 0.09 0.80 / 0.96 0.54 / 0.66 0.33 / 0.40 0.07 / 0.09
Temperature recovery efficiency (%) 69 / 69 70.5 / 69 74 / 72 82 / 80 - - - -
Enthalpy recovery
efficiency (%)
Heating 64 / 64 66 / 64 70 / 68 80 / 78 - - - -
Cooling 51 / 51 53 / 51 58 / 55 69 / 67 - - - -
Sound Pressure
(Measured at 1.5m under level
the center of the unit)
dB(A) 36 / 38 33 / 35.5 28.5 / 31 18 / 18.5 36 / 39 33 / 36 28.5 / 31.5 18 / 18
Weight Pounds 119
Starting current 4.5A
Filter Specification Standard Filter Provided (MERV 6)
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 111
LGH-F***RX5-E1
SPECIFICATIONS: LOSSNAY
®
ENERGY
ENERGY RECOVERY VENTILATOR (ERV)
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage
Model LGH-F600RX5-E1
Power source
208 / 230V, 1-phase, 60Hz
Ventilation mode Lossnay ventilation Bypass ventilation
Speed Extra high High Low Extra Low Extra high High Low Extra Low
Current A 2.80 / 2.90 2.50 / 2.70 1.56 / 1.69 0.72 / 0.79 2.80 / 2.90 2.50 / 2.70 1.56 / 1.69 0.72 / 0.79
Input W 577 / 637 517 / 605 324 / 387 146 / 180 577 / 637 517 / 605 324 / 387 146 / 180
Air volume CFM 600 / 600 520 / 600 370 / 430 200 / 235 600 / 600 520 / 600 370 / 430 200 / 235
External static pressure In. W.G. 0.56 / 0.80 0.48 / 0.48 0.24 / 0.24 0.07 / 0.07 0.56 / 0.80 0.48 / 0.48 0.24 / 0.24 0.07 / 0.07
Temperature recovery efficiency (%) 67 / 67 68 / 67 75 / 73 80 / 78 - - - -
Enthalpy recovery
efficiency (%)
Heating 64 / 64 65 / 64 71 / 68 79 / 77 - - - -
Cooling 50 / 50 53 / 50 59 / 56 68 / 67 - - - -
Sound Pressure
(Measured at 1.5m under level
the center of the unit)
dB(A) 36 / 38 34 / 36.5 26.5 / 29 19 / 21 37 / 39 35 / 37.5 27 / 30 18.5 / 20
Weight Pounds 132
Starting current 5.0A
Filter Specification Standard Filter Provided (MERV 6)
Model LGH-F1200RX5-E1
Power source
208 / 230V, 1-phase, 60Hz
Ventilation mode Lossnay ventilation Bypass ventilation
Speed Extra high High Low Extra high High Low
Current A 5.7 / 5.8 5.0 / 5.3 3.1 / 3.4 5.8 / 5.8 5.1 / 5.4 3.1 / 3.4
Input W 1185 / 1303 1040 / 1219 639 / 765 1185 / 1303 1040 / 1219 639 / 765
Air volume CFM 1200 / 1200 1012 / 1200 695 / 824 1200 / 1200 1012 / 1200 695 / 824
External static pressure In. W.G. 0.43 / 0.75 0.43 / 0.43 0.20 / 0.20 0.43 / 0.75 0.43 / 0.43 0.20 / 0.20
Temperature recovery efficiency (%) 67 / 67 68 / 67 75 / 73
Enthalpy recovery efficiency
(%)
Heating 64 / 64 65 / 64 71 / 68
Cooling 50 / 50 53 / 50 59 / 56
Sound Pressure
(Measured at 1.5m under level
the center of the unit)
dB(A) 38 / 40.5 36 / 39 29 / 32 40 / 42.5 38 / 41 30.5 / 33.5
Weight Pounds 265
Starting current 10.0A
Filter Specification Standard Filter Provided (MERV 6)
112112
Model Name PEFY-AF1200CFM PEFY-AF1200CFMR
Power Source 208 / 230V, 1 Phase, 60Hz
Cooling Capacity Btu/h *1 112,000 112,000
Heating Capacity Btu/h *1 61,400 61,400
Reheat Capacity Btu/h - 24, 200
Power Consumption
Cooling W 660 / 780
Heating W 660 / 780
Current
Cooling A 3.19 / 3.45
Heating A 3.19 / 3.45
External Finish Galvanized
Dimensions
Height In. 18-9/16
Width In. 49-1/4
Depth In. 55-1/8
Net Weight Unit Pounds 287 309
Heat Exchanger Cross Fin (Aluminum Plate Fin and Copper Tube)
Fan
Type x quantity Sirocco Fan x 2
Airflow Rate *2 CFM 1,200
External Static
Pressure
In. WG
0.40-0.60-0.88 (208V) 0.28-0.48-0.80 (208V)
0.64-0.80-1.04 (230V) 0.52-0.72-0.96 (230V)
Motor Type Single-phase Induction Motor
Air Filter Field Supply
Main Coil
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Flare)
In. 3/8
Gas (Low Pressure)
(Flare)
In. 7/8
Reheat Coil
Refrigerant Pipe
Dimensions
Liquid (High
Pressure)
(Flare)
In. - 7/8
Gas (Low Pressure)
(Flare)
In. - 3/8
Drain Pipe Dimension (O.D.) In. 1-1/4 x 2
Sound Pressure
Level *3
Low-Mid-High
dB(A)
36-38-41 (208V)
39-41-43 (230V)
Operating
Temperature Range
Cooling
50° F WB to 95° F WB (109° F DB)
(10° C WB to 35° C WB [43° C DB])
Heating
-4° F WB to +60° F WB
(-20° C WB to +15.5° C WB)
Connectable Outdoor Unit
PUHY-P120TKMU (-BS), PUHY-P120YKMU (-BS)
PUHY-P120TJMU (-BS), PUHY-P120YJMU (-BS)
PURY-P120TKMU (-BS), PURY-P120YKMU (-BS)
PURY-P120TJMU (-BS), PURY-P120YJMU (-BS)
PEFY-AF
SPECIFICATIONS: DEDICATED OUTDOOR
AIR SYSTEMS
Notes:
*1 Cooling/Heating Capacity indicates the maximum value at operation under the
following conditions:
Cooling | Entering Indoor Unit: 87° F (31° C) D.B. / 80° F (27° C) W.B.
Cooling | Outdoor Unit: 87° F (31° C) D.B.
Heating | Entering Indoor Unit: 32° F (0° C) D.B.
Heating | Outdoor Unit: 32° F (0° C) D.B. / 28° F (-2° C) W.B.
Ventilation Air: Providing sufcient ventilation air is an important part of very building design
ASHRAE Standard 62 provides the minimum air requirements. Also check local codes.
Specifications are subject to change without notice.
LIMITED WARRANTY | Seven-year compressor and one year parts. Extended
warranty of up to 10 years is available. See our website for details on specific
additional application installation coverage
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / 113
LEADING THE VRF INDUSTRY
Mitsubishi Electric HVAC has been at the forefront of the
charge to develop proper testing standards and procedures
for VRF systems, providing clients the necessary
information to properly incorporate these systems into their
building designs.
AHRI STANDARDS
Air-conditioning, Heating and Refrigeration Institute
(AHRI) Standards 210/240 and 340/360 had been used
as the benchmark for establishing the testing methods of
traditional unitary HVAC equipment. These standards have
formalized the use of such terms as EER, COP, SEER, and
HSPF– terms which are recognized and applied throughout
the HVAC industry today. The simple testing procedures
detailed in these existing AHRI standards, however, were
not adequate to appropriately measure efficiency levels
within advanced VRF systems, and could not account
for such technologies as inverter-driven compressors,
simultaneous cooling and heating, and variable-capacity
ductless and ducted indoor units.
AHRI STANDARD 1230
Mitsubishi Electric worked with the Department of Energy
(DOE) and AHRI to gain regulatory acceptance for VRF
systems. Initially, Mitsubishi Electric requested DOE
grant waivers from the existing testing standards for VRF
systems. It was quickly recognized that waivers weren’t
a long-term solution, and Mitsubishi Electric immediately
assisted in developing a proper testing standard for VRF
systems—a standard that is now known as AHRI Standard
1230.
INTEGRATED ENERGY EFFICIENCY RATIO
IEER is the new measure of partial-load cooling
performance for unitary equipment and VRF systems.
IEER greatly improves the industry methodology for part-
load testing by collecting data for four different outdoor
testing conditions based on load on the system. The
formula (shown below) used for testing, more accurately
demonstrates the value and capabilities of INVERTER-
driven VRF systems at part-load operation.
ASHRAE STANDARD 90.1
ASHRAE Standard 90.1 is synonymous with energy
efficiency requirements in commercial buildings. Many
city, state, and national codes reference the efficiency
levels listed in this standard.
With the development and approval of AHRI Standard 1230,
Mitsubishi Electric and other VRF system manufacturers
had a platform that supported the introduction of VRF
efficiency standards as an addendum to Standard 90.1-
2007, and incorporated these standards as a part of
Standard 90.1-2010. The minimum VRF efficiency standards
are shown in the table on page 99.
ASHRAE STANDARDS 15 and 34
ASHRAE Standard 15 provides requirements for the safe
design, construction, installation, and operation of all
HVAC&R systems as a way of protecting building occupants
and property. ASHRAE Standard 34 assigns reference
numbers, safety classifications for flammability and toxicity,
and refrigerant concentration limits (RCL) to refrigerants.
These standards are referenced by both the International
Mechanical Code and the Uniform Mechanical Code, which
are typically adopted as part of local code requirements.
Mitsubishi Electric VRF systems utilize R-410A refrigerant,
which is assigned an A1 safety classification placing it in the
lowest toxicity and no flame propagation categories.
Engineers and designers have great flexibility in applying
CITY MULTI
®
VRF systems to ensure the design is compliant
with ASHRAE Standard 15. Examining the project spaces
and determining the occupied and connected spaces needs
to be a primary consideration, and care must be taken in the
location and layout of refrigerant lines and indoor units. For
more detailed information please refer to the system design
manual for the outdoor unit. Guidance is also provided
in Application Note 2001 which can be downloaded from
mylinkdrive.com.
Mitsubishi Electric HVAC continues to drive acceptance of
VRF technology in the U.S. engineering and regulatory arenas.
INDUSTRY STANDARDS
Test Condition "A" = 100% Capacity at 95˚ FDB
Test Condition "B" = 75% Capacity at 81.5˚ FDB
Test Condition "C" = 50% Capacity at 68˚ FDB
Test Condition "D" = 25% Capacity at 65˚ FDB
IEER = 0.02A + 0.617B + 0.238C + 0.125D
Equipment Type Size Category Heating Section Type
Sub-Category or Rating
Condition
Minimum Efficiency Test Procedure
VRF Air Cooled,
(cooling mode)
<65,000 Btu/h All VRF Multi-split System 13.0 SEER
AHRI 1230
≥65,000 Btu/h and
<135,000 Btu/h
Electric Resistance (or none) VRF Multi-split System
11.0 EER
12.3 IEER
12.9 IEER (as of 7/1/2012)
≥65,000 Btu/h and
<135,000 Btu/h Electric Resistance (or none)
VRF Multi-split System with
Heat Recovery
10.8 EER
12.1 IEER
12.7 IEER (as of 7/1/2012)
≥135,000 Btu/h and
<240,000 Btu/h
Electric Resistance (or none) VRF Multi-split System
10.6 EER
11.8 IEER
12.3 IEER (as of 7/1/2012)
≥135,000 Btu/h and
<240,000 Btu/h
Electric Resistance (or none)
VRF Multi-split System with
Heat Recovery
10.4 EER
11.6 IEER
12.1 IEER (as of 7/1/2012)
≥240,000 Btu/h Electric Resistance (or none) VRF Multi-split System
9.5 EER
10.6 IEER
11.0 IEER (as of 7/1/2012)
≥240,000 Btu/h Electric Resistance (or none)
VRF Multi-split System with
Heat Recovery
9.3 EER
10.4 IEER
10.8 IEER (as of 7/1/2012)
VRF Water Source,
(cooling mode)
<65,000 Btu/h All
VRF Multi-split System
86ºF entering water
12.0 EER
AHRI 1230
≥65,000 Btu/h h All
VRF Multi-split System with
Heat Recovery
86ºF entering water
11.8 EER
≥65,000 Btu/h and
<135,000 Btu/h All
VRF Multi-split systems
86ºF entering water
12.0 EER
≥65,000 Btu/h and
<135,000 Btu/h
All
VRF Multi-split System with
Heat Recovery
86ºF entering water
11.8 EER
≥135,000 Btu/h All
VRF Multi-split systems
86ºF entering water
10.0 EER
≥135,000 Btu/h All
VRF Multi-split System with
Heat Recovery
86ºF entering water
9.8 EER
VRF Ground
Water Source,
(cooling mode)
≥135,000 Btu/h All
VRF Multi-split System
59ºF entering water
16.2 EER
AHRI 1230
≥135,000 Btu/h All
VRF Multi-split System with
Heat Recovery
59ºF entering water
16.0 EER
≥135,000 Btu/h
All
VRF Multi-split System
59ºF entering water
13.8 EER
≥135,000 Btu/h All
VRF Multi-split System with
Heat Recovery
59ºF entering water
13.6 EER
VRF Air Cooled,
(heating mode)
<65,000 Btu/h (cooling capacity) – VRF Multi-split System 7.7 HSPF
AHRI 1230
≥65,000 Btu/h and
<135,000 Btu/h
–
VRF Multi-split System
47° F db/43° F wb outdoor air
3.3 COP
VRF Multi-split System
17° F db/15° F wb outdoor air
2.25 COP
≥135,000 Btu/h –
VRF Multi-split System
47° F db/43° F wb outdoor air
3.2 COP
VRF Multi-split System
17° F db/15° F wb outdoor air
2.05 COP
VRF Water Source,
(heating mode)
<135,000 Btu/h –
VRF Multi-split System
68° F entering water
4.2 COP
AHRI 1230
≥135,000 Btu/h –
VRF Multi-split System
68° F entering water
3.9 COP
VRF Ground Water
Source, (heating
mode)
<135,000 Btu/h –
VRF Multi-split System
50° F entering water
3.6 COP
AHRI 1230
≥135,000 Btu/h –
VRF Multi-split System
50° F entering water
3.3 COP
VRF Ground
Source,
(heating mode)
≥135,000 Btu/h –
VRF Multi-split System
32° F entering water
3.1 COP
AHRI 1230
<135,000 Btu/h –
VRF Multi-split System
32° F entering water
2.8 COP
Note: For efciency values tested in accordance with AHRI-1230, contact your local Mitsubishi Electric sales representative
ELECTRICALLY OPERATED VARIABLE
REFRIGERANT FLOW AIR-TO-AIR AND APPLIED HEAT PUMPS–MINIMUM EFFICIENCY REQUIREMENTS
REFERENCE: AHRI EFFICIENCY REQUIREMENTS
MITSUBISHI ELECTRIC Cooling & Heating / CITY MULTI / IBC3
BC4
Please recycle.
MAKE COMFORT
Mitsubishi Electric Cooling & Heating
1340 Satellite Boulevard, Suwanee, GA 30024
Phone: 800-433-4822 Fax: 800-658-1458
Mitsubishi Electric Air Conditioning & Refrigeration Systems Works
acquired environmental management system standard ISO 14001
certication.
© 2016 Mitsubishi Electric US, Inc. CITY MULTI
®
, Lossnay
®,
and H2i
®
are registered trademarks of Mitsubishi Electric.
Mitsubishi Electric is a registered trademark of Mitsubishi
Electric Corporation. The three-diamond logo is a registered
logo of Mitsubishi Electric Corporation. PremiSys
®
is a registered
trademark of Greenheck Fan Corporation. Used with permission.
Windows and Excel are registered trademarks of Microsoft
Corporation. AutoCAD is a registered trademark of Autodesk. LON,
LON WORKS
®
, and the Echelon logo are trademarks of Echelon
Corporation, registered in the United States and other countries.
BACnet
®
is a registered trademark of the American Society of
Heating, Refrigerating, and Air-Conditioning Engineers (ASHRAE).
Specications shown in this brochure are subject to change
without notice.
Use of the AHRI Certied™ mark indicates a manufacturer’s
participation in the certication program. For verication of
certication for individual products, go to www.ahridirectory.org.
See complete warranty for terms, conditions, and limitations.
A copy is available from Mitsubishi Electric.
For more information visit www.mitsubishipro.com
I
09.2016 REPRINT
I
SKU: ME-1006
I
Printed in the U.S.A
Visit mitsubishipro.com
©2016 Mitsubishi Electric US, Inc.
